Wiring Diagrams for Toyota Land Cruiser 200 facelift 2 (2015-2021)

Automatic a/c circuit Cool box circuit

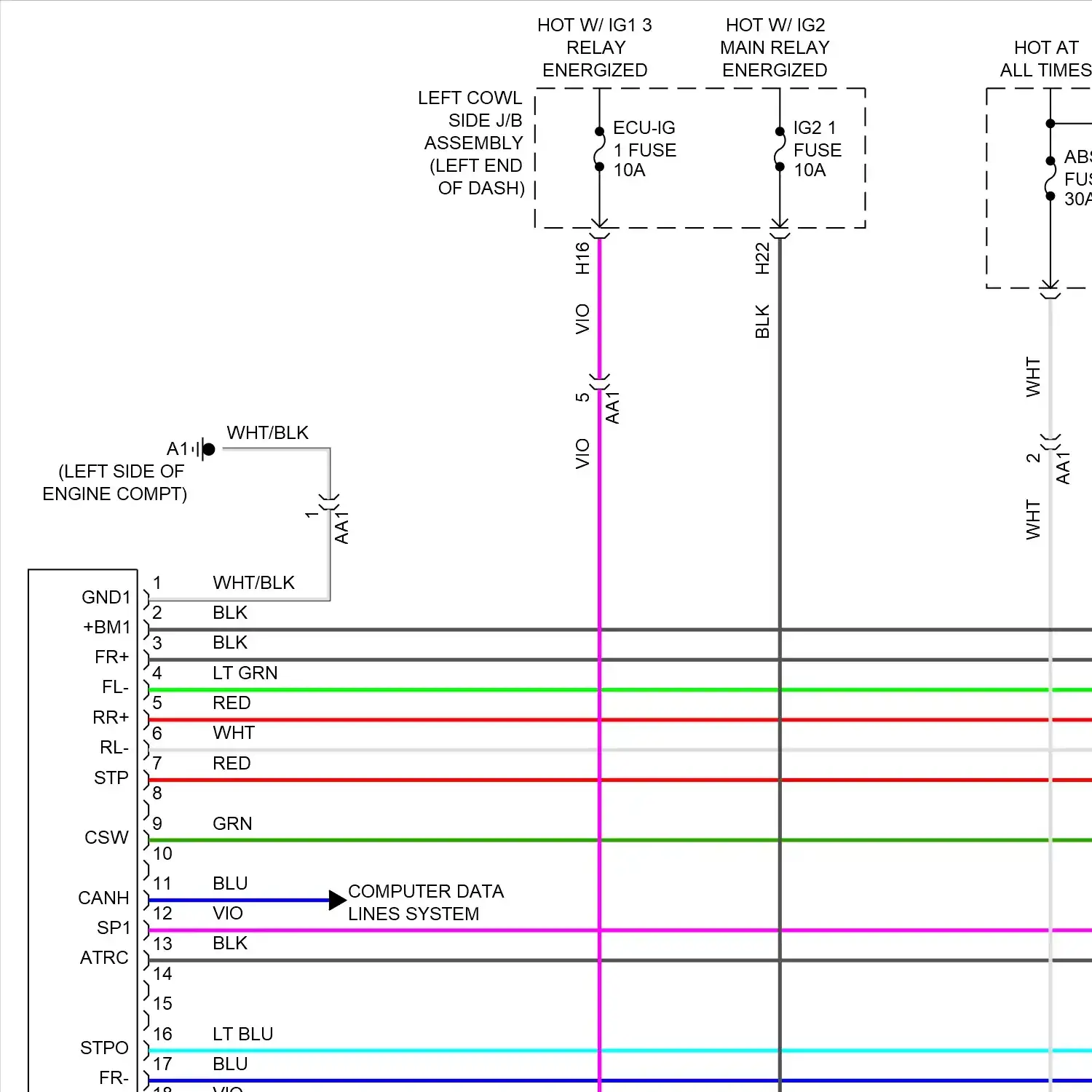

Anti-lock brakes circuit

Forced entry circuit Immobilizer circuit

Body ecu circuit Integration control and panel circuit

Computer data lines circuit

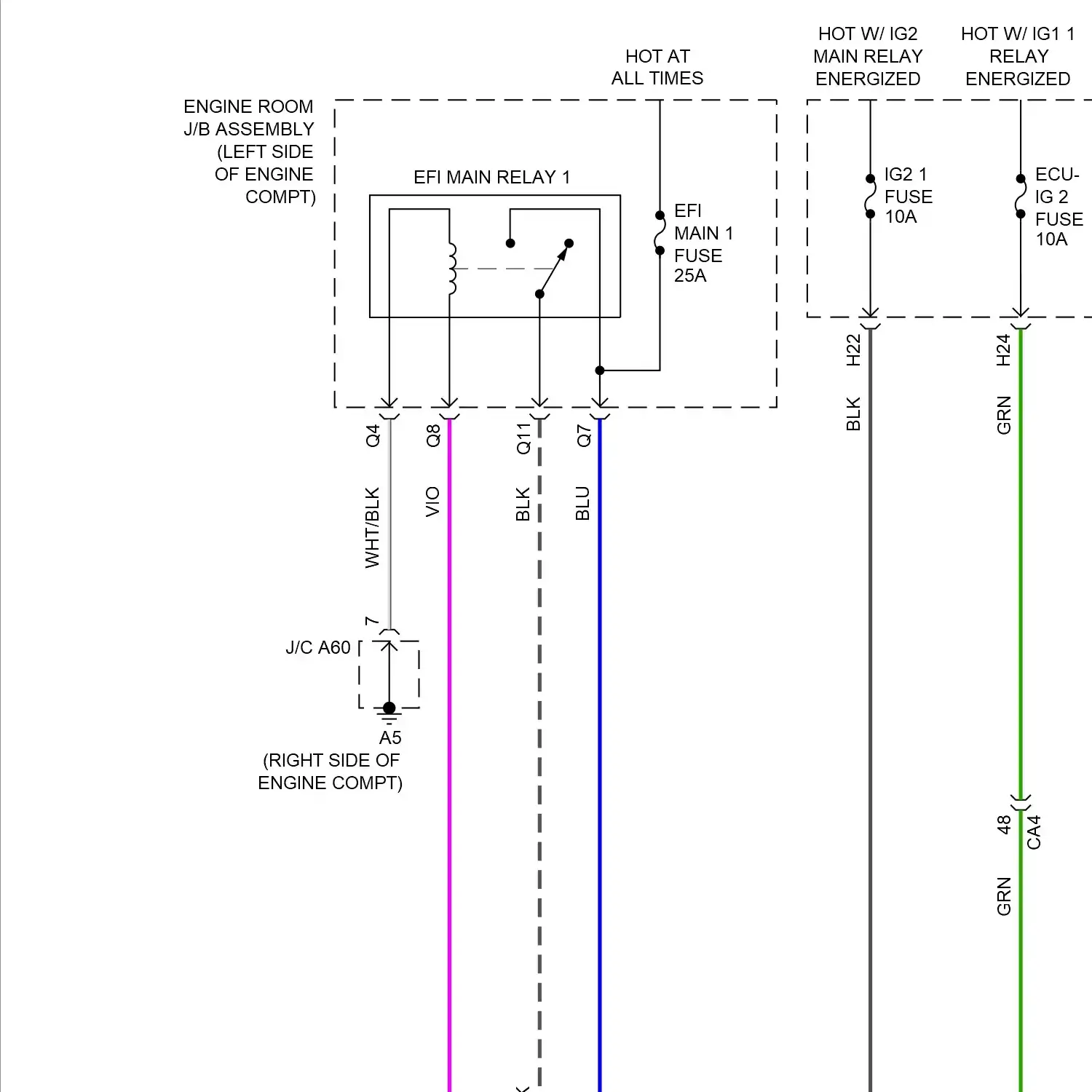

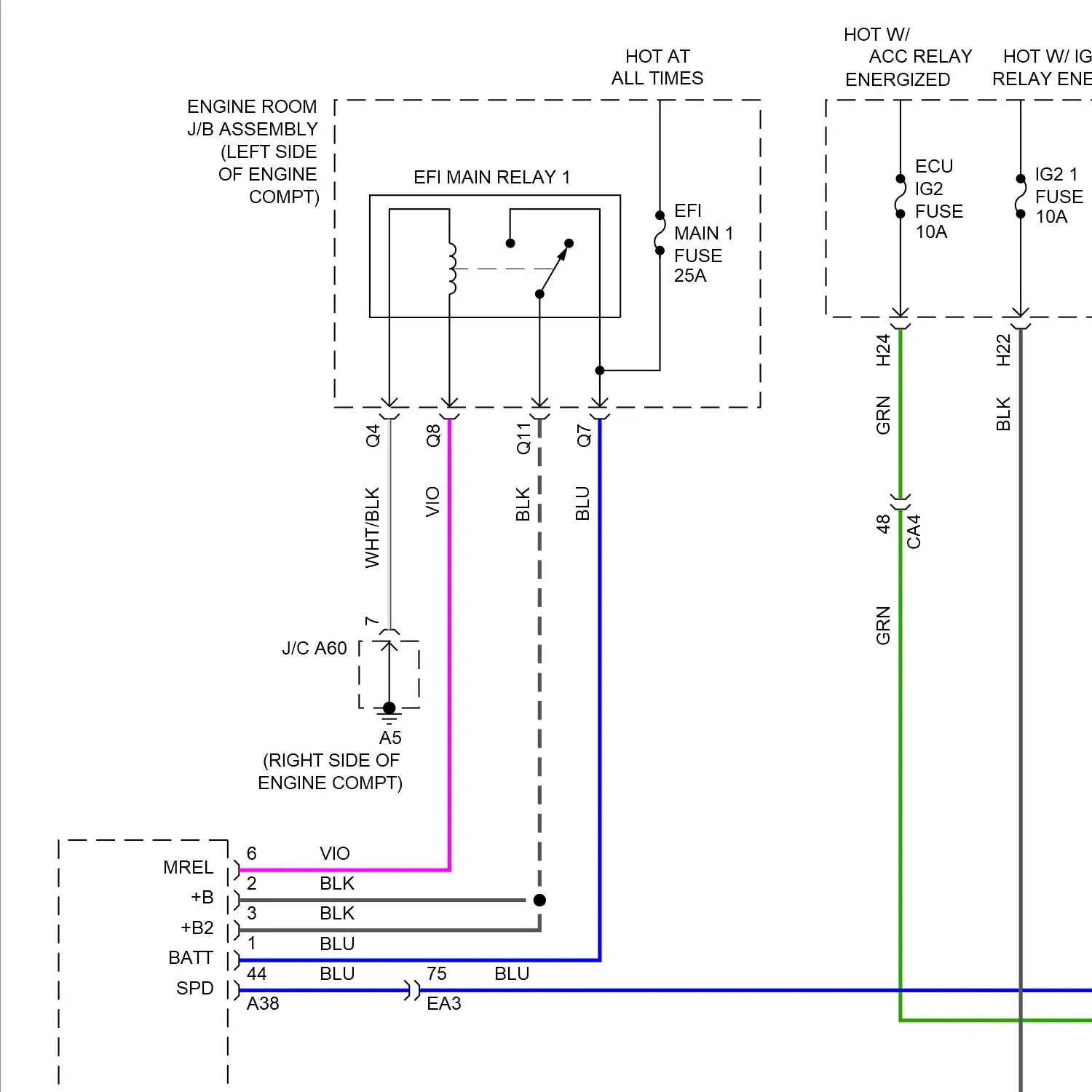

Cruise control circuit Dynamic laser cruise control circuit

Front deicer circuit Mirror heater & rear defogger circuit

Electronic power steering circuit

Wiring diagram engine performance 5.7l

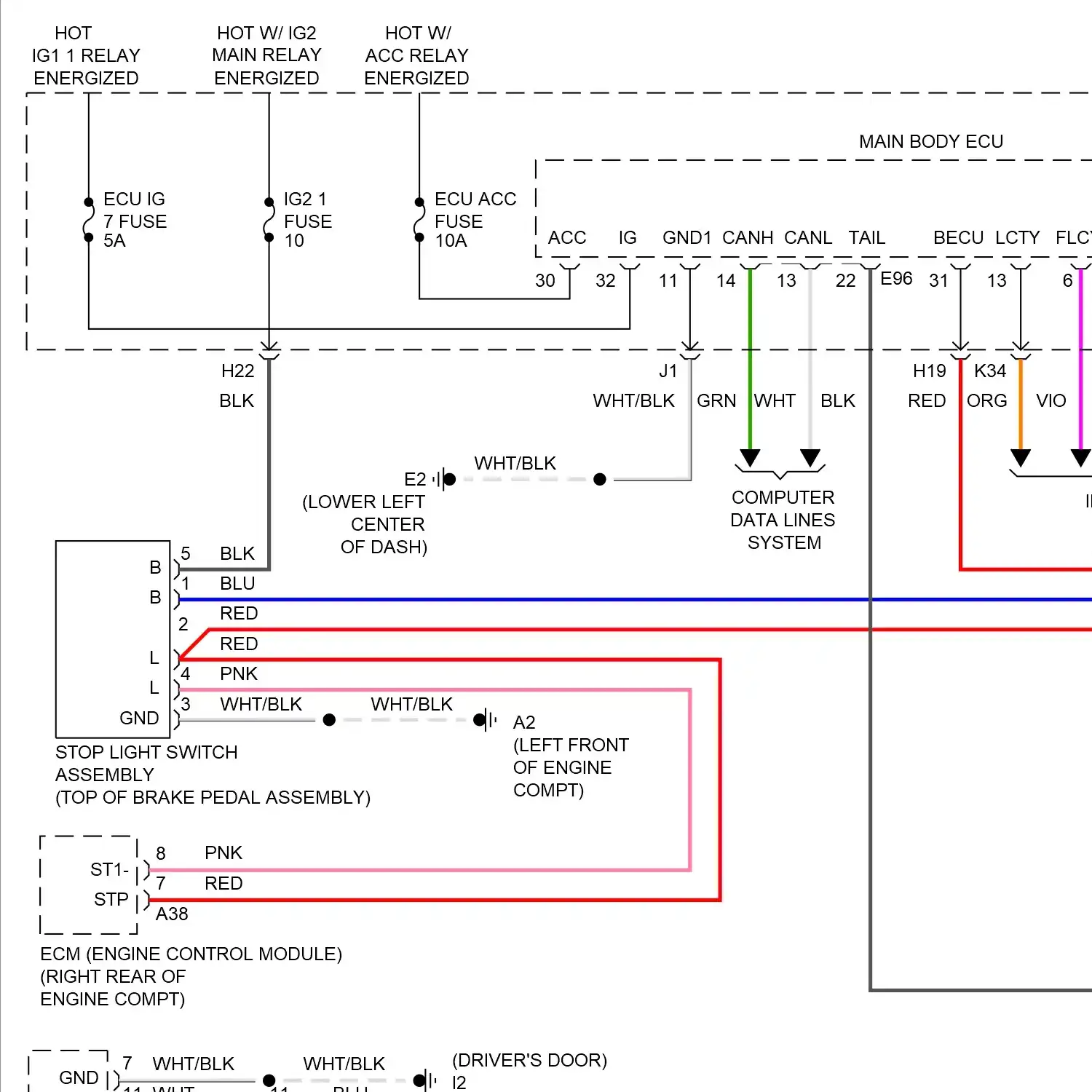

Backup lamps circuit Exterior lamps circuit Trailer tow circuit

Ground distribution circuit

Headlamp beam adjustment circuit Headlamps & fog lamps circuit

Horn circuit

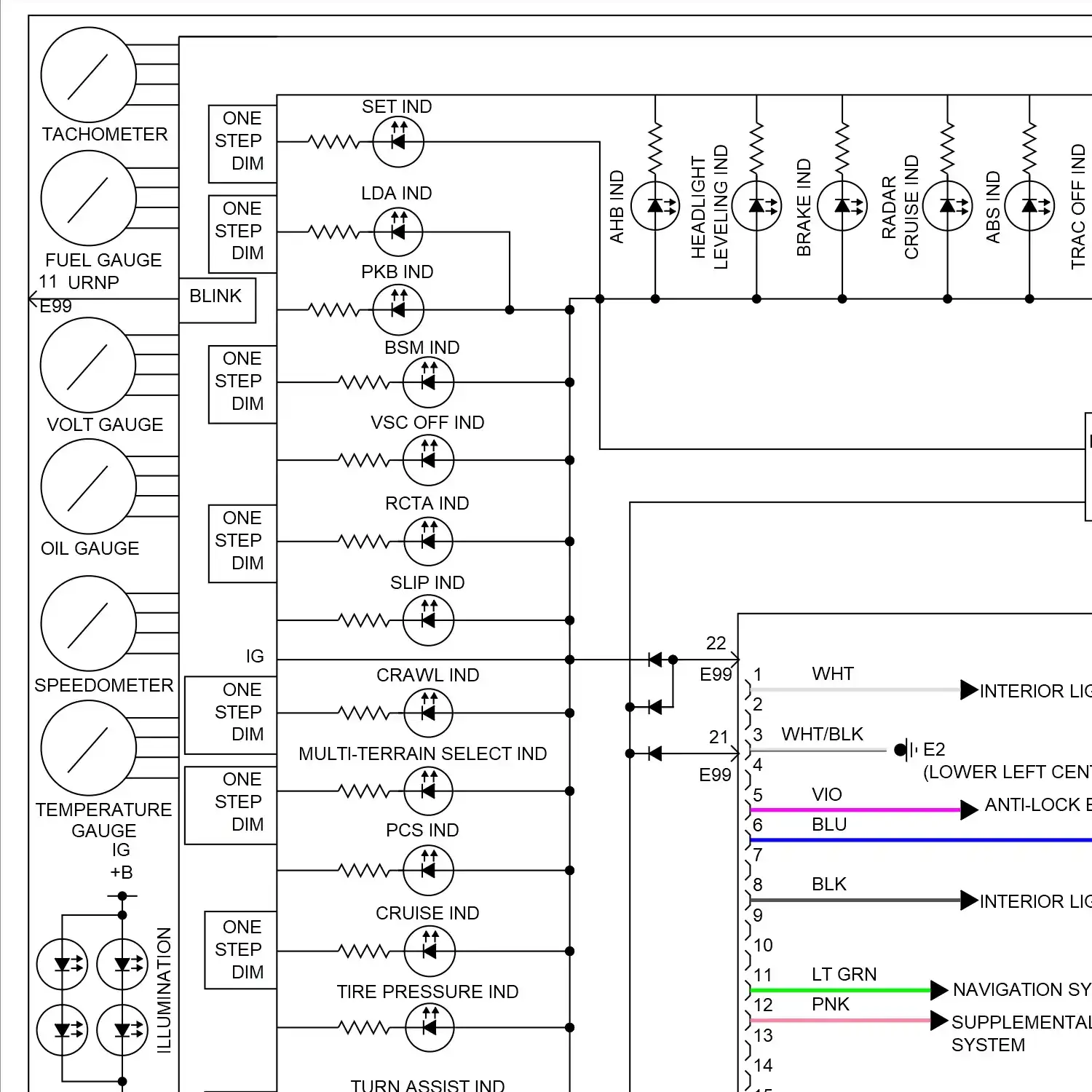

Instrument cluster circuit

Courtesy lamps circuit Instrument illumination circuit

Memory mirrors circuit Memory power tilt & power telescopic circuit Memory seat circuit

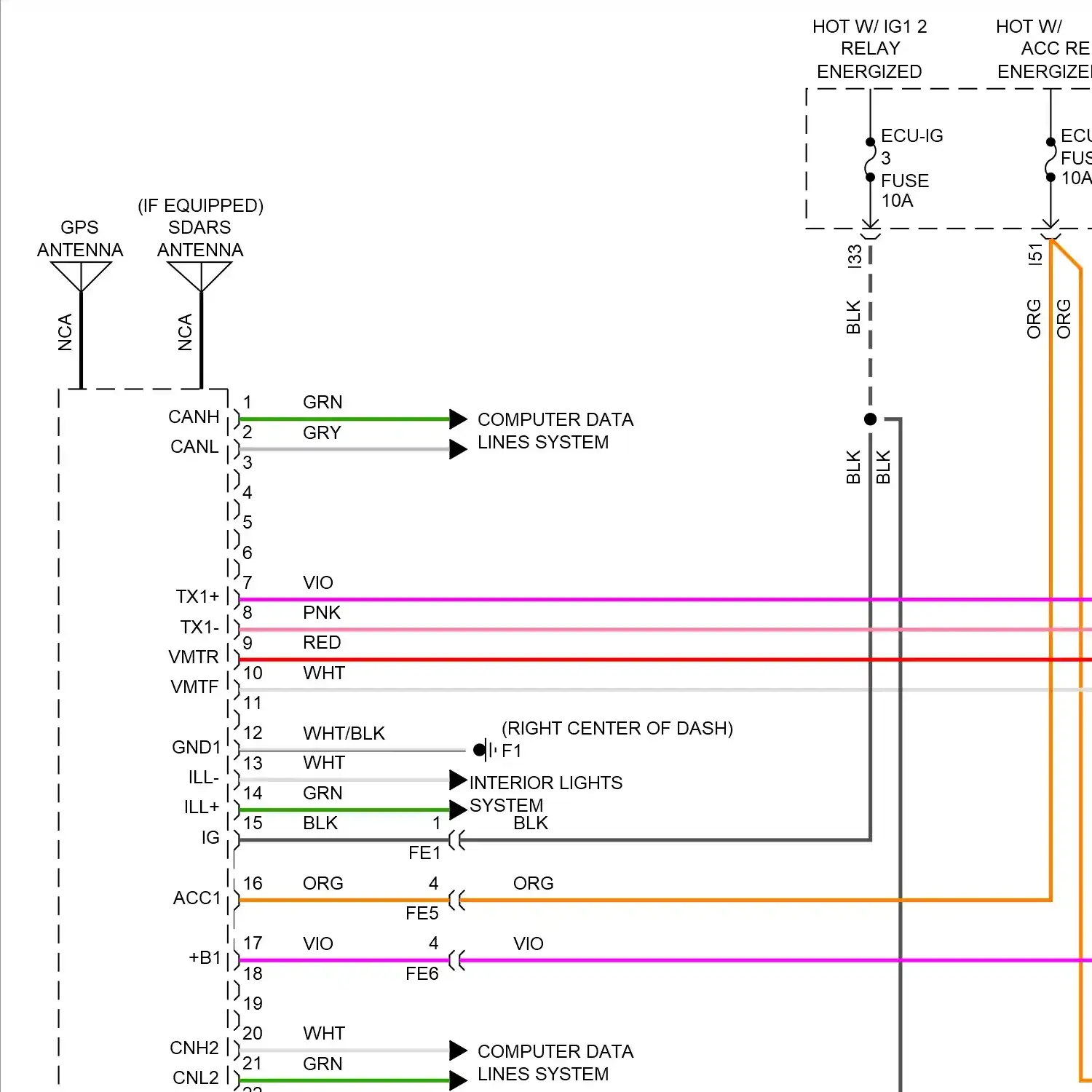

Blind spot monitoring circuit Lane departure warning circuit Navigation circuit Parking assistant circuit, w/ multi-terrain monitor Parking assistant circuit, w/o multi-terrain monitor Telematics circuit

Passive restraints circuit

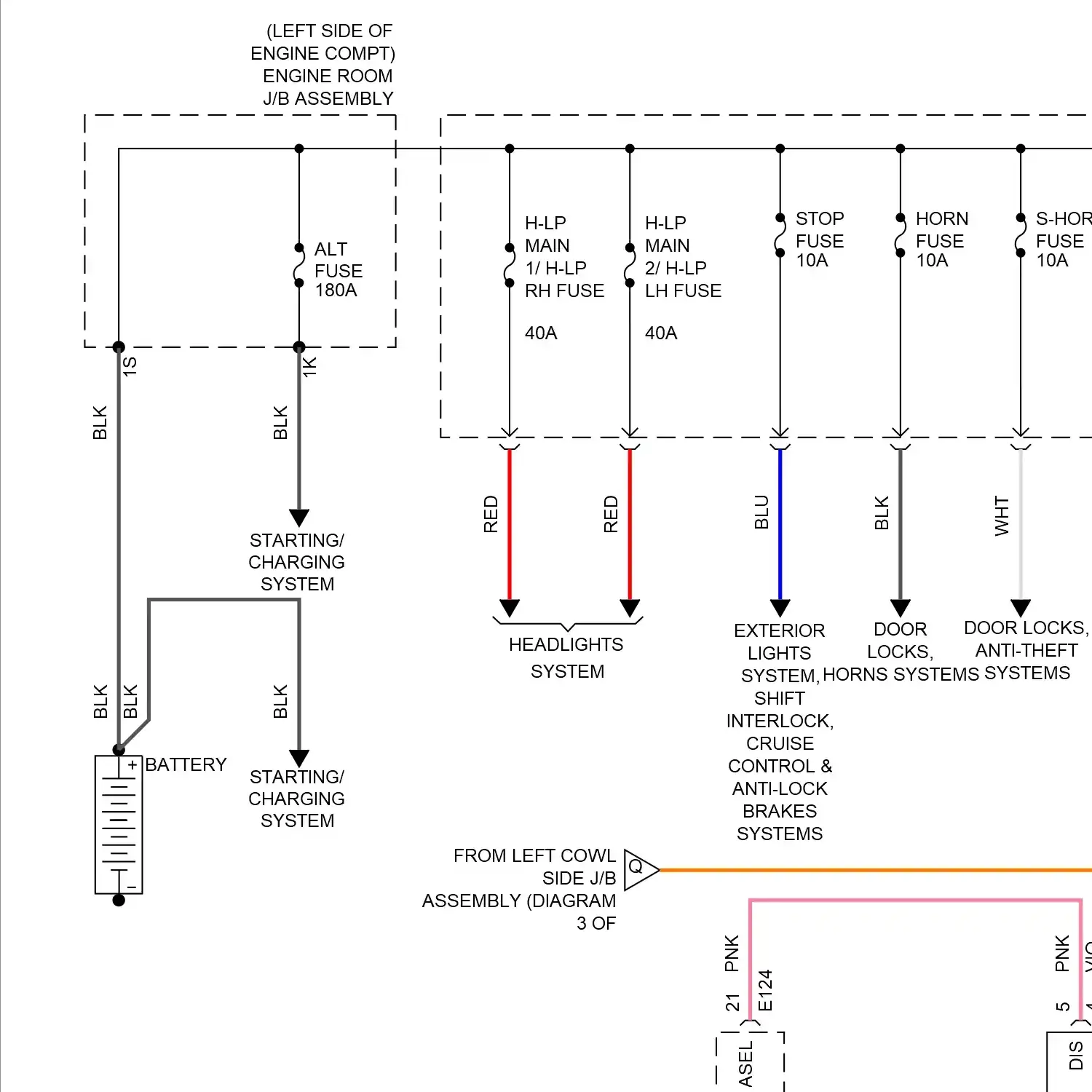

Power distribution circuit

Power door locks circuit

Power mirrors circuit

Front heated seats circuit Heated steering wheel circuit Passenger power seat circuit Rear heated seats circuit

Power top/sunroof circuit

Power windows circuit

Radio circuit

Shift interlock circuit Steering column circuit

Charging circuit Starting circuit

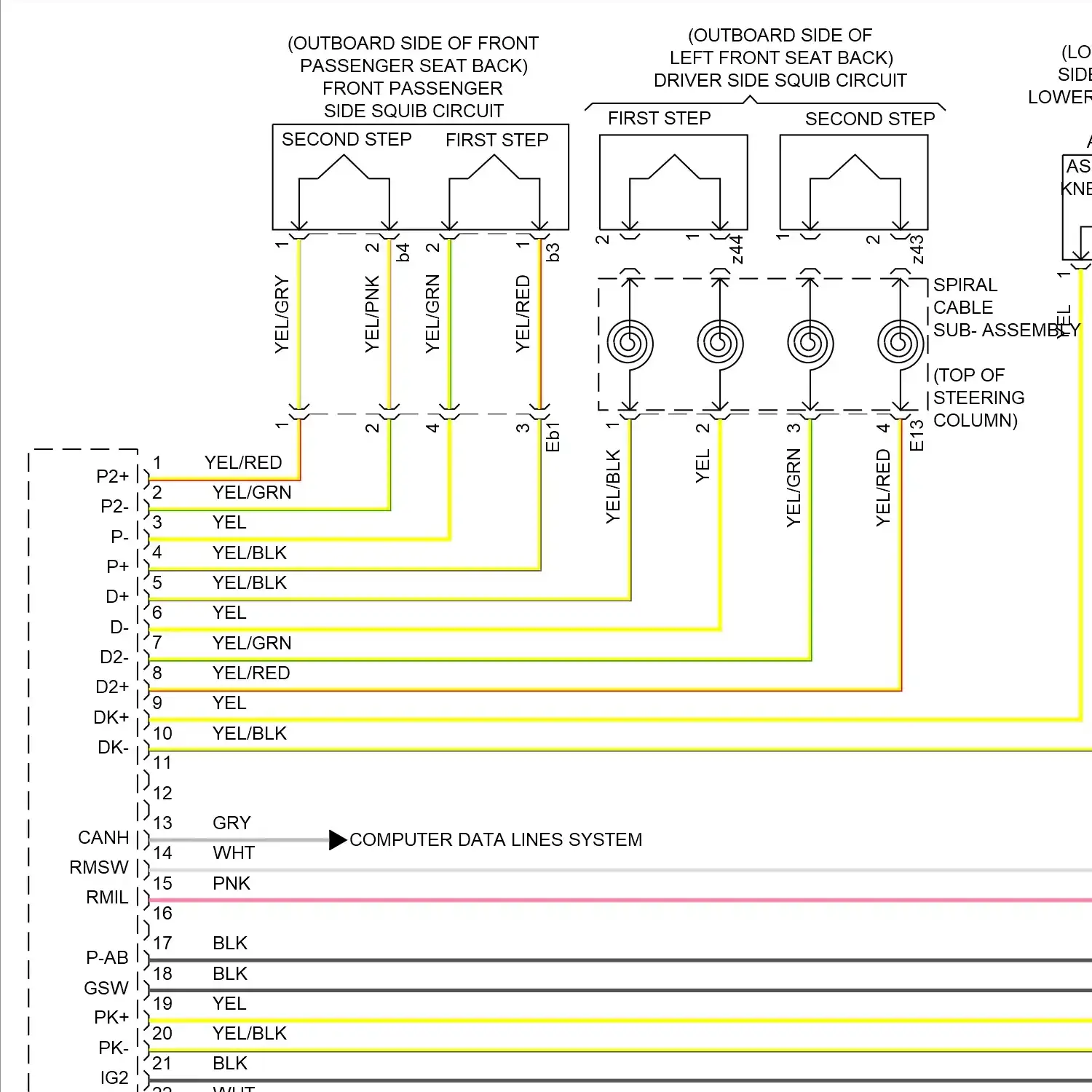

Supplemental restraints circuit

4wd circuit A/t circuit

Back door opener circuit

Key reminder & seat belt warning circuit Tire pressure monitoring circuit

Front wiper/washer circuit, w/ auto wiper system Front wiper/washer circuit, w/o auto wiper system Headlamp washer circuit Rear wiper/washer circuit

A/C AMPLIFIER ASSEMBLY AIR CONDITIONING AMPLIFIER ANTI-LOCK BRAKES SYSTEM ANTI-LOCK BRAKES, ELECTRONIC POWER STEERING SYSTEMS BACK DOOR LOCK ASSEMBLY CENTER DIFFERENTIAL LOCK IND CRUISE CONTROL, ANTI-LOCK BRAKES, EXTERIOR LIGHTS SYSTEMS HIGH PITCHED HORN ASSEMBLY IGNITION COIL 1 ASSEMBLY IGNITION COIL 2 ASSEMBLY IGNITION COIL 3 ASSEMBLY IGNITION COIL 4 ASSEMBLY IGNITION COIL 5 ASSEMBLY IGNITION COIL 6 ASSEMBLY IGNITION COIL 7 ASSEMBLY IGNITION COIL 8 ASSEMBLY KEY COIL KEY LOCK LEFT FRONT DOOR LOCK ASSEMBLY LEFT REAR DOOR LOCK ASSEMBLY LOW PITCHED HORN ASSEMBLY MICROPHONE AMPLIFIER REAR DIFFERENTIAL LOCK IND RIGHT FRONT DOOR LOCK ASSEMBLY RIGHT REAR DOOR LOCK ASSEMBLY SECURITY HORN ASSEMBLY STARTER ASSEMBLY STEREO COMPONENT AMPLIFIER ASSEMBLY TELEMATICS TRANSCEIVER WIRELESS DOOR LOCK BUZZER

BLOWER MOTOR CONTROL CHECK ENGINE IND CONDENSER BLOWER MOTOR ASSEMBLY ENGINE CONTROLS SYSTEM ENGINE IND ENGINE ROOM J/B ASSEMBLY ENGINE ROOM R/B ASSEMBLY FRONT BLOWER W/ FAN MOTOR SUB- ASSEMBLY HEADLAMP CLEANER MOTOR, PUMP ASSEMBLY LEFT FRONT LUMBAR SUPPORT FORWARD, BACK MOTOR ASSEMBLY LEFT FRONT POWER SEAT LIFT POSITION MOTOR ASSEMBLY LEFT FRONT POWER SEAT RECLINING POSITION MOTOR ASSEMBLY LEFT FRONT POWER SEAT SLIDE POSITION MOTOR ASSEMBLY LEFT FRONT POWER SEAT VERTICAL POSITION MOTOR ASSEMBLY LEVELING MOTOR POWER TILT MOTOR REAR BLOWER W/ FAN MOTOR SUB- ASSEMBLY REAR WIPER MOTOR ASSEMBLY RIGHT FRONT POWER SEAT LIFT POSITION MOTOR ASSEMBLY RIGHT FRONT POWER SEAT RECLINING POSITION MOTOR ASSEMBLY RIGHT FRONT POWER SEAT SLIDE POSITION MOTOR ASSEMBLY RIGHT FRONT POWER SEAT VERTICAL POSITION MOTOR ASSEMBLY STEERING LOCK ACTUATOR ASSEMBLY TELESCOPIC MOTOR TILT MOTOR TRANSFER SHIFT ACTUATOR ASSEMBLY WINDSHIELD WASHER MOTOR, PUMP ASSEMBLY WINDSHIELD WIPER MOTOR ASSEMBLY

ELECTRICAL KEY ANTENNA GPS ANTENNA INDOOR ELECTRICAL KEY ANTENNA ASSEMBLY 1 INDOOR ELECTRICAL KEY ANTENNA ASSEMBLY 2 INDOOR ELECTRICAL KEY ANTENNA ASSEMBLY 3 SDARS ANTENNA TELEPHONE ANTENNA

LEFT FRONT POWER WINDOW REGULATOR MOTOR ASSEMBLY LEFT REAR POWER WINDOW REGULATOR MOTOR ASSEMBLY LEFT REAR POWER WINDOW REGULATOR SWITCH ASSEMBLY RIGHT FRONT POWER WINDOW REGULATOR MOTOR ASSEMBLY RIGHT FRONT POWER WINDOW REGULATOR SWITCH ASSEMBLY RIGHT REAR POWER WINDOW REGULATOR MOTOR ASSEMBLY RIGHT REAR POWER WINDOW REGULATOR SWITCH ASSEMBLY

FORWARD RECOGNITION CAMERA FRONT TELEVISION CAMERA ASSEMBLY REAR TELEVISION CAMERA ASSEMBLY SIDE TELEVISION CAMERA TELEVISION CAMERA W/ FORWARD RECOGNITION CAMERA W/O FORWARD RECOGNITION CAMERA

CONNECTOR HOUSING DATA LINK CONNECTOR 3 FRONT POWER OUTLET SOCKET ASSEMBLY POWER OUTLET SOCKET ASSEMBLY REAR POWER OUTLET SOCKET ASSEMBLY TRAILER SOCKET

ENGINE CONTROL MODULE

4 WHEEL DRIVE CONTROL ECU CERTIFICATION ECU CERTIFICATION ECU ASSEMBLY CLEARANCE WARNING ECU ASSEMBLY DRIVING SUPPORT ECU ASSEMBLY ECU- IG 1 FUSE ECU- IG 6 FUSE ECU-ACC FUSE ECU-IG 2 FUSE ECU-IG 3 FUSE ECU-IG 7 FUSE FOUR WHEEL DRIVE CONTROL ECU FUEL PUMP CONTROL ECU ASSEMBLY LEFT OUTER MIRROR CONTROL ECU ASSEMBLY MAIN BODY ECU MAIN BODY ECU LEFT COWL SIDE J/B ASSEMBLY MULTI DISPLAY UNIT MULTIPLEX TILT, TELESCOPIC ECU NETWORK GATEWAY ECU OCCUPANT DETECTION ECU PARKING ASSIST ECU REAR COOLING UNIT EXPANSION VALVE RIGHT OUTER MIRROR CONTROL ECU ASSEMBLY SHIFT LOCK CONTROL ECU SUB-ASSEMBLY SKID CONTROL ECU W/ ACTUATOR SKID CONTROL ECU W/ ACTUATOR ASSEMBLY SLIDING ROOF CONTROL ECU STEERING COLUMN ECU STEERING CONTROL ECU TRANSMISSION CONTROL ECU ASSEMBLY

A/C COMP FUSE A/C FUSE A/C RR 1 FUSE A/F HTR FUSE ABS 1 FUSE ABS 2 FUSE AIR PMP 1 FUSE AIR PMP 2 FUSE AIR PMP HTR FUSE ALT FUSE ALT-CDS FUSE AMP 1 FUSE AMP 2 FUSE BKUP LP FUSE CDS FAN FUSE D/C CUT FUSE D/L 1 FUSE D/L 2 FUSE DCM FUSE DEF FUSE DEICER FUSE DOME CUT FUSE DOME FUSE DOOR F/D FUSE DOOR F/P FUSE DOOR R/L FUSE DOOR R/R FUSE EFI 2 FUSE EFI- MAIN 1 FUSE ENG- IG 1 FUSE ETCS FUSE FOG FR FUSE FUEL PMP FUSE H-LP CLN FUSE H-LP LH HI FUSE H-LP LH LO FUSE H-LP MAIN 1/ H-LP RH FUSE H-LP MAIN 2/ H-LP LH FUSE H-LP RH HI FUSE H-LP RH LO FUSE HAZ FUSE HORN FUSE HTR FUSE IMMOBI FUSE INJ FUSE INV FUSE J/B LH-AM FUSE J/B LH-B FUSE J/B RH-AM FUSE J/B- B 2 FUSE J/B-AM 1 FUSE J/B-B 1 FUSE METER FUSE MPX-B 1 FUSE MPX-B-2 FUSE OBD FUSE P OUTLET FUSE P/I-B FUSE P/SEAT F/L FUSE PANEL 1 FUSE PANEL 2 FUSE PTC HTR 1 FUSE PTC HTR 2 FUSE PTC HTR 3 FUSE RADIO FUSE RSE FUSE S ROOF FUSE S-HORN FUSE S-HTR FUSE S/HTR FUSE S/HTR R/L FUSE S/HTR RR FUSE S/ROOF FUSE SEAT- A/C FAN FUSE SFT LOCK- ACC FUSE SFT LOCK-IG FUSE ST FUSE STOP FUSE STRG HTR FUSE STRG LOCK FUSE SUB BATT FUSE TAIL FUSE TI, TE FUSE TOW BK/UP FUSE TOWING BRK FUSE TOWING FUSE TOWING TAIL FUSE VGRS FUSE WASHER FUSE WIPER FUSE WIPER RR FUSE

LEFT HEADLIGHT ASSEMBLY RIGHT HEADLIGHT ASSEMBLY

HEATER CONTROL ASSEMBLY LEFT REAR SEAT HEATER LEFT SEAT HEATER ASSEMBLY MIRROR HEATER QUICK HEATER ASSEMBLY RIGHT REAR SEAT HEATER RIGHT SEAT HEATER ASSEMBLY SEAT BACK HEATER SEAT CUSHION HEATER SEAT HEATER ASSEMBLY SEAT HEATER CONTROL STEERING HEATER STEERING HEATER STEERING WHEEL HEATER CONTROL ASSEMBLY

PASSENGER AIR BAG ON/OFF INDICATOR SECURITY INDICATOR, PASSENGER AIR BAG ON/OFF INDICATOR

DOOR LOCKS, INTERIOR LIGHTS SYSTEMS EXTERIOR LIGHTS EXTERIOR LIGHTS, INTERIOR LIGHTS SYSTEMS HEADLIGHTS, EXTERIOR LIGHTS SYSTEMS LIGHTS)

CANISTER PUMP MODULE LEAK DETECTION PUMP

A/F RELAY ACC RELAY AIR PMP HTR RELAY ALL DR LOCK RELAY BACK D/L RELAY BATT CHG RELAY CDS FAN RELAY D DR UNLOCK RELAY DEF RELAY DEICER RELAY DOME CUT RELAY EFI MAIN RELAY 1 EFI- MAIN 1 RELAY ENGINE EFI MAIN 1 RELAY ROOM J/B ASSEMBLY FOG FR RELAY FUEL PMP RELAY FUEL PUMP RELAY H-LP CLN RELAY H-LP HI/ H-LP RH RELAY H-LP LO/ H-LP LH RELAY HORN RELAY HOT W/ ACC RELAY ENERGIZED HOT W/ IG 2 MAIN RELAY ENERGIZED HOT W/ IG 4 RELAY ENERGIZED IG 4 RELAY INVERTER RELAY L/D-DR UNLOCK RELAY MAIN RELAY ENERGIZED MG CLT RELAY POWER OUTLET RELAY PTC HTR 1 RELAY PTC HTR 2 RELAY PTC HTR 3 RELAY REAR WIPER RELAY RELAY ENERGIZED S-HORN RELAY ST RELAY STOP LIGHT CONTROL RELAY ASSEMBLY STP LP OPE RELAY TAIL RELAY TOW BK/ UP RELAY RIGHT COWL SIDE J/B ASSEMBLY TOW BK/UP RELAY TOWING TAIL RELAY WINDSHIELD WIPER RELAY ASSEMBLY WIPER RELAY

A/C EVAPORATOR TEMPERATURE SENSOR A/C PRESSURE SENSOR ACCELERATOR PEDAL SENSOR ASSEMBLY AMBIENT TEMPERATURE SENSOR AUTOMATIC LIGHT CONTROL SENSOR CAMSHAFT POSITION SENSOR CANISTER PRESSURE SENSOR CENTER AIR BAG SENSOR ASSEMBLY E.F.I. ENGINE COOLANT TEMPERATURE SENSOR ENGINE OIL LEVEL SENSOR FUEL SENSOR GAUGE ASSEMBLY LEFT BLIND SPOT MONITOR SENSOR LEFT FRONT AIR BAG SENSOR LEFT FRONT SIDE AIR BAG SENSOR ASSEMBLY LEFT FRONT SPEED SENSOR LEFT FRONT SPEED SENSOR SHIELD LEFT REAR HEIGHT CONTROL SENSOR SUB-ASSEMBLY LEFT REAR SIDE AIR BAG SENSOR ASSEMBLY LEFT REAR SPEED SENSOR LEFT REAR SPEED SENSOR SHIELD LEFT ULTRASONIC SENSOR 1 LEFT ULTRASONIC SENSOR 2 LEFT ULTRASONIC SENSOR 3 MILLIMETER WAVE RADAR SENSOR ASSEMBLY OCCUPANT DETECTION SENSOR POWER STEERING OIL PRESSURE SENSOR RAIN SENSOR REAR FLOOR SIDE AIR BAG SENSOR RIGHT BLIND SPOT MONITOR SENSOR RIGHT FRONT AIR BAG SENSOR RIGHT FRONT SIDE AIR BAG SENSOR ASSEMBLY RIGHT FRONT SPEED SENSOR RIGHT FRONT SPEED SENSOR SHIELD RIGHT REAR SIDE AIR BAG SENSOR ASSEMBLY RIGHT REAR SIDE AIR BAG SENSOR ASSEMBLY SHIELD RIGHT REAR SPEED SENSOR RIGHT REAR SPEED SENSOR SHIELD RIGHT ULTRASONIC SENSOR 1 RIGHT ULTRASONIC SENSOR 2 RIGHT ULTRASONIC SENSOR 3 ROOM TEMPERATURE SENSOR SEAT BELT TENSION SENSOR SEAT POSITION AIR BAG SENSOR SEAT POSITION SENSOR RIGHT FRONT SEAT INNER BELT ASSEMBLY SPIRAL CABLE W/ SENSOR SUB-ASSEMBLY STEERING SENSOR TELESCOPIC SENSOR THEFT WARNING SENSOR CORD SUB-ASSEMBLY YAW RATE SENSOR

FRONT SPEAKER ASSEMBLY 4 LEFT FRONT SPEAKER ASSEMBLY 1 LEFT FRONT SPEAKER ASSEMBLY 2 LEFT FRONT SPEAKER ASSEMBLY 3 LEFT REAR HEADER SPEAKER ASSEMBLY LEFT REAR SPEAKER ASSEMBLY 3 LEFT REAR SPEAKER SET RIGHT FRONT SPEAKER ASSEMBLY 1 RIGHT FRONT SPEAKER ASSEMBLY 2 RIGHT FRONT SPEAKER ASSEMBLY 3 RIGHT REAR HEADER SPEAKER ASSEMBLY RIGHT REAR SPEAKER ASSEMBLY 3 RIGHT REAR SPEAKER SET W/ BOX SPEAKER ASSEMBLY 1

A/C CONTROL SWITCH AUTO HIGH BEAM SWITCH BACK DOOR OPENER SWITCH ASSEMBLY BACK SONAR OR CLEARANCE SONAR SWITCH ASSEMBLY BACK SONAR/ CLEARANCE SONAR SWITCH ASSEMBLY BUCKLE SWITCH CLIMATE CONTROL SWITCH COOLER CONTROL SWITCH CRUISE CONTROL MAIN SWITCH CRUISE CONTROL SWITCH CURTAIN AIR BAG CUTOFF SWITCH DIMMER SWITCH DOOR CONTROL SWITCH ENGINE SWITCH FOG SWITCH FOLD AWAY SWITCH FRONT WASHER SWITCH FRONT WINDOW DEICER SWITCH FRONT WIPER SWITCH HAZARD SWITCH HEADLIGHT CLEANER SWITCH ASSEMBLY HEADLIGHT DIMMER SWITCH ASSEMBLY HEADLIGHT LEVELING SWITCH HOOD COURTESY SWITCH HORN SWITCH L, R SELECT SWITCH LEFT FRONT DOOR COURTESY LIGHT SWITCH ASSEMBLY LEFT FRONT POWER SEAT SWITCH LEFT FRONT POWER SEAT SWITCH ASSEMBLY LEFT REAR DOOR COURTESY LIGHT SWITCH ASSEMBLY LEFT SEAT MEMORY SWITCH LEFT STEERING PAD SWITCH LEFT STEERING SWITCH LEVEL SWITCH LIGHT CONTROL SWITCH MAIN SWITCH ASSEMBLY MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY OUTER MIRROR SWITCH ASSEMBLY P DETECTION SWITCH PARK/NEUTRAL POSITION SWITCH PARKING BRAKE SWITCH ASSEMBLY POWER WINDOW MASTER SWITCH PRE-COLLISION SYSTEM CANCEL SWITCH ASSEMBLY REAR A/C CONTROL SWITCH A/C CONTROL ASSEMBLY 2 REAR SEAT HEATER SWITCH REAR WINDOW DEFOGGER SWITCH REAR WIPER/WASHER SWITCH RIGHT FRONT DOOR CONTROL SWITCH ASSEMBLY RIGHT FRONT DOOR COURTESY LIGHT SWITCH ASSEMBLY RIGHT FRONT POWER SEAT SWITCH ASSEMBLY RIGHT REAR DOOR COURTESY LIGHT SWITCH ASSEMBLY RIGHT STEERING PAD SWITCH RIGHT STEERING PAD SWITCH STEERING PAD SWITCH ASSEMBLY RIGHT STEERING SWITCH SEAT HEATER SWITCH SLIDING ROOF CONTROL SWITCH SONAR SWITCH SOS SWITCH MICROPHONE AMPLIFIER STEERING HEATER SWITCH STEERING PAD SWITCH ASSEMBLY STEERING PAD SWITCH ASSEMBLY LEFT STEERING SWITCH STOP LIGHT SWITCH ASSEMBLY THERMO SWITCH TILT, TELESCOPIC SWITCH TIRE PRESSURE WARNING RESET SWITCH TRANSFER POSITION SWITCH TRANSMISSION CONTROL SWITCH TURN SIGNAL SWITCH WINDSHIELD WIPER SWITCH ASSEMBLY

MAGNET VALVE SHIFT LOCK SOLENOID TRANSMISSION SOLENOID ASSEMBLY 3 VENT VALVE

+B PNK CANP WIRE ACCD PNK +B WIRE BLK WIRE BLK/RED WIRE BLK/WHT WIRE BLK/YEL WIRE BLU WIRE BLU/RED WIRE BLU/WHT WIRE BLU/YEL WIRE BRN WIRE DWN PNK OPN WIRE GRN WIRE GRN/BLK WIRE GRN/WHT WIRE GRN/YEL WIRE GRY WIRE LFT+ PNK RCL+ WIRE LMHR PNK LM+R WIRE LT BLU WIRE LT GRN WIRE NCA WIRE ORG/ WIRE PNK 2 29 WIRE PNK CAIN WIRE PNK CANL WIRE PNK HAZ WIRE PNK NTB WIRE PNK SLD- WIRE PNK UL WIRE PNK VC WIRE PNK VCI WIRE PNK WIRE PPL/BLK WIRE PPL/BLU WIRE PPL/GRN WIRE PPL/GRY WIRE PPL/LT BLU WIRE PPL/LT GRN WIRE PPL/ORG WIRE PPL/PNK WIRE PPL/RED WIRE PPL/VIO WIRE PPL/WHT WIRE PPL/YEL WIRE RDAM PNK ASEL WIRE RED WIRE RED/BLK WIRE RED/WHT WIRE RED/YEL WIRE RMHR PNK RM+R WIRE UL PNK WIRE VIO WIRE WHT WIRE WHT/BLK WIRE WHT/BLU WIRE WIPER/WASHER SYSTEM PNK WIRE YEL WIRE YEL/BLK WIRE YEL/GRN WIRE YEL/GRY WIRE YEL/PNK WIRE YEL/RED WIRE

"ON" (LOWER REAR OF DRIVER'S DOOR (ON WASHER (OR (RIGHT SIDE OF TRANSMISSION +BI +BM +BO +SM IG A/C BLOWER ASSEMBLY A/C CONTROL ASSEMBLY 2 ABS IND. AHB IND AIR CONDITIONING SYSTEM AIR CONDITIONING, NAVIGATION SYSTEMS ANTI-THEFT SYSTEM APH+ AUTO EL AUTO OFF B+ BUS BACKUP LAMPS CIRCUIT BBI+ BBL+ BBO- BBR+ BCB+ BCL+ BCR+ BCV- BDIL BSL+ BEAM IND BECU BCTY BECU LCTY BEHIND LEFT QUARTERPANEL) BFC- BFR+ BI EI SI BLOWER FAN BMU+ BMV+ BMW+ BRAKE IND BSL+ BSM IND BSR+ BUS - BUS G CAN I/P CAN INPUT CAN L CANL CANH CANL SLR+ CB+ CDL+ CENTER STOP LIGHT ASSEMBLY CFN- CHARGE IND CLEARANCE WARNING BUZZER 1 COMBINATION METER ASSEMBLY COMPUTER DATA LINES SYSTEM COOLER COMPRESSOR ASSEMBLY COOLER THERMISTOR COOLING BOX ASSEMBLY CRAWL IND CRUISE CONTROL SYSTEM CRUISE CONTROL, TRANSMISSIONS SYSTEMS CRUISE IND CSW+ CTR + CTR OFF CV+ DATA LINES DCV+ DEFOGGER SYSTEM DETEC- DISTANCE CONTROL DK+ DLC 3 DOME LIGHT DOME LIGHT READING LIGHT DOOR CONTROL RECEIVER DOOR CONTROL RECEIVER, TIRE PRESSURE MONITOR RECEIVER ASSEMBLY DOOR IND DOOR LOCKS SYSTEM DOOR LOCKS, ANTI-THEFT SYSTEMS DOOR LOCKS, HORNS SYSTEMS DRIVER SEAT BELT IND DRIVER SIDE SQUIB CIRCUIT DRIVER'S DOOR EC+ ECI+ ECO IND ECT PWR IND ECT PWR. EI BI EI BI BO SI EI BI SI EI BI SI SO BO EO ELECTRONIC POWER STEERING SYSTEM EO SO BO ETM- EX+ EXTERIOR LAMPS CIRCUIT FE&B FIRST STEP FP- FRCY FLCY FRONT FOG IND FRONT PASSENGER SIDE SQUIB CIRCUIT FRONT SIDE FRONT SIDE AIR BAG FRONT VERTICAL FRONT WIPER DEICER FRV- FUEL GAUGE URNP FUEL INJECTOR ASSEMBLY 1 FUEL INJECTOR ASSEMBLY 2 FUEL INJECTOR ASSEMBLY 3 FUEL INJECTOR ASSEMBLY 4 FUEL INJECTOR ASSEMBLY 5 FUEL INJECTOR ASSEMBLY 6 FUEL INJECTOR ASSEMBLY 7 FUEL INJECTOR ASSEMBLY 8 FUEL LEVEL IND FUEL SENDER GAUGE ASSEMBLY GARAGE DOOR OPENER GLOVE BOX LIGHT ASSEMBLY HEAD IND HEAD IND TAIL IND HEADLIGHTS SYSTEM HEADLIGHTS, SHIFT INTERLOCK SYSTEMS HEADPHONE TERMINAL HEATED STEERING WHEEL CIRCUIT HIGH MOUNTED STOP LIGHT HORNS SYSTEM HOT AT ALL TIMES HOT IN ON OR START HOT W/ ICL- ICR+ ID CODE BOX IG B+ IG+ POWER SUPPLY CIRCUIT INNER REAR VIEW MIRROR ASSEMBLY INSTRUMENT CLUSTER SYSTEM INSTRUMENT CLUSTER, ANTI-THEFT, DOOR LOCKS SYSTEMS INTEGRATION CONTROL, PANEL ASSEMBLY JUNCTION TERMINAL KEY UNLOCK L-R LANE DEPARTURE WARNING LDA IND LEFT "C" PILLAR) LEFT COOLER THERMISTOR LEFT COWL SIDE J/B ASSEMBLY LEFT CURTAIN SHIELD AIR BAG ASSEMBLY CIRCUIT LEFT FOG LIGHT ASSEMBLY LEFT FRONT DOOR COURTESY LIGHT ASSEMBLY LEFT FRONT DOOR INSIDE HANDLE ILLUMINATION LIGHT ASSEMBLY LEFT FRONT DOOR OUTSIDE HANDLE ASSEMBLY LEFT FRONT PRETENSIONER LEFT FRONT SEAT INNER BELT ASSEMBLY LEFT FRONT SIDE AIR BAG SQUIB CIRCUIT LEFT FRONT TENSION REDUCER LEFT LICENSE PLATE LIGHT ASSEMBLY LEFT OUTER REAR VIEW MIRROR ASSEMBLY LEFT REAR COMBINATION LIGHT ASSEMBLY LEFT REAR COOLER THERMISTOR 1 LEFT REAR DOOR COURTESY LIGHT ASSEMBLY LEFT REAR DOOR INSIDE HANDLE ILLUMINATION LIGHT ASSEMBLY LEFT REAR DOOR OUTSIDE HANDLE ASSEMBLY LEFT REAR LIGHT ASSEMBLY LEFT REAR PRETENSIONER LEFT REAR SIDE AIR BAG SQUIB CIRCUIT LEFT SEAT CLIMATE CONTROL BLOWER LEFT TELEVISION DISPLAY ASSEMBLY LEFT TL LEFT TURN IND LEFT VISOR ASSEMBLY LEVELING IND LF+ LFT- LG+ LH - LH E LH T LIGHT CONTROL RHEOSTAT LIN 1 LO AUTO LO INT LOWER INSTRUMENT PANEL AIR BAG ASSEMBLY 1 KNEE AIR BAG LOWER INSTRUMENT PANEL AIR BAG ASSEMBLY 2 KNEE AIR BAG LSP + LUMBAR SUPPORT MAP LIGHT MASS AIR FLOW METER MASTER IND MCI- MCO- MEMORY SYSTEMS MEMORY, POWER WINDOWS SYSTEMS MG+ MI+ MIC - MIN-A MIRRORS, AIR CONDITIONING, NAVIGATION, SOUND, MEMORY SYSTEMS MO- MOBILE WIRELESS CHARGER CRADLE ASSEMBLY MR- MRY SET MSM+ MULTI DISPLAY BUZZER MULTI- DISPLAY ASSEMBLY MULTI-DISPLAY MULTI-DISPLAY CONTROLLER SUB-ASSEMBLY MULTI-MEDIA MODULE RECEIVER ASSEMBLY MULTI-TERRAIN MULTI-TERRAIN SELECT IND NAVIGATION SYSTEM NAVIGATION, SOUND SYSTEMS NAVIGATION, SOUND, COMPUTER DATA LINES SYSTEMS NAVIGATION, SOUND, MEMORY SYSTEMS NAVIGATION, SUPPLEMENTAL RESTRAINTS SYSTEMS NE+ NOISE FILTER OFF HOOK OFF INT OFF LO AUTO OIL GAUGE OIL PRESSURE SENDER GAUGE ASSEMBLY ON HOOK ON STEP DIM ONE IG STEP DIM ONE STEP ONE STEP DIAL ONE STEP DIM OVERHEAD MODULE PARKING SIDE MARKER PASSIVE RESTRAINTS SYSTEM PCS IND PK- PKB FRCY PKB IND PL- PLR+ POWER DISTRIBUTION SYSTEM POWER IG SUPPLY CIRCUIT +B POWER SUPPLY CIRCUIT POWER SUPPLY CIRCUIT +B IG+ POWER SUPPLY CIRCUIT IG+ POWER TOPS SYSTEM POWER WINDOWS SYSTEM POWER WINDOWS, DOOR LOCKS, ANTI-THEFT, WARNING SYSTEMS PR- PRECRASH SAFETY CITY BUZZER PRR- PURGE VSV R+ R- R+B RADAR - RADAR CRUISE IND RADIO RECEIVER ASSEMBLY RADIO SETTING CONDENSER RBE+ RCL- RCTA IND RCTA IND IG RCTY LCTY FLCY REAR A/C BLOWER ASSEMBLY REAR SIDE RF+ RG+ RH E RH T RH- RIGHT COOLER THERMISTOR RIGHT COWL SIDE J/B ASSEMBLY RIGHT CURTAIN SHIELD AIR BAG ASSEMBLY RIGHT CURTAIN SHIELD AIR BAG ASSEMBLY SHIELD RIGHT END OF DASH) RIGHT FOG LIGHT ASSEMBLY RIGHT FRONT DOOR COURTESY LIGHT ASSEMBLY RIGHT FRONT DOOR INSIDE HANDLE ILLUMINATION LIGHT ASSEMBLY RIGHT FRONT DOOR OUTSIDE HANDLE ASSEMBLY RIGHT FRONT PRETENSIONER RIGHT FRONT SEAT INNER BELT ASSEMBLY RIGHT FRONT SIDE AIR BAG SQUIB CIRCUIT RIGHT FRONT TENSION REDUCER RIGHT LICENSE PLATE LIGHT ASSEMBLY RIGHT OUTER REAR VIEW MIRROR ASSEMBLY RIGHT REAR COMBINATION LIGHT ASSEMBLY RIGHT REAR COOLER THERMISTOR 1 RIGHT REAR DOOR RIGHT REAR DOOR COURTESY LIGHT ASSEMBLY RIGHT REAR DOOR INSIDE HANDLE ILLUMINATION LIGHT ASSEMBLY RIGHT REAR DOOR OUTSIDE HANDLE ASSEMBLY RIGHT REAR LIGHT ASSEMBLY RIGHT REAR PRETENSIONER RIGHT REAR SIDE AIR BAG SQUIB CIRCUIT RIGHT SEAT CLIMATE CONTROL BLOWER RIGHT TELEVISION DISPLAY ASSEMBLY RIGHT TURN IND RIGHT VISOR ASSEMBLY ROOM LIGHT ASSEMBLY 1 ROOM LIGHT ASSEMBLY 3 RSCA OFF RSCA OFF IND RV+ SCB+ SCV+ SEATS SYSTEM SECOND STEP SECURITY IND SELECT IND SET IND SET- SFL- SFR- SG-1 SG-2 SG-4 SHIELD SHIELD SHIFT INTERLOCK SYSTEM SHIFT INTERLOCK, COMPUTER DATA LINES SYSTEMS SHORT PIN SHP+ SL- SLIP IND SLS+ SLT- SLU+ SO BO EO SI SO EO SOUND SYSTEMS SPI+ SPIRAL CABLE SUB-ASSEMBLY SPO- SR- SRL- SRR+ SRS IND SSR+ STARTING/ CHARGING SYSTEM STARTING/ CHARGING SYSTEM, COMPUTER DATA LINES SYSTEMS STARTING/CHARGING SYSTEM STEERING COLUMN ASSEMBLY STEREO JACK ADAPTER ASSEMBLY 1 SUB + SUPPLEMENTAL RESTRAINTS SYSTEM SUPPLEMENTAL RESTRAINTS, NAVIGATION, CRUISE CONTROL SYSTEMS TAIL CANL TAIL IND TAIL OFF TEMPERATURE GAUGE THR+ THROTTLE BODY ASSEMBLY TILT DOWN TILT UP TIRE PRESSURE TIRE PRESSURE IND TIRE PRESSURE MONITOR RECEIVER ASSEMBLY TOWING BRAKE CONTROLLER TOWING CONVERTER TRAC OFF IND TRANSMISSIONS SYSTEM TRLY RCTY TRN+ TURN ASSIST IND TWL- TWR+ UN- VCS OFF IND VOLT GAUGE VOLTAGE INVERTER ASSEMBLY VOR- VOT+ VSC OFF IND VV- VVR+ W/ REAR SEAT ENTERTAINMENT SYSTEM W/ REAR SEAT ENTERTAINMENT SYSTEM W/O REAR SEAT ENTERTAINMENT SYSTEM W/ SAFETY CONNECT W/ TIRE PRESSURE WARNING SYSTEM W/O SAFETY CONNECT W/O TIRE PRESSURE WARNING SYSTEM W/O TIRE PRESSURE WARNING SYSTEM W/ TIRE PRESSURE WARNING SYSTEM WARNING SYSTEMS WFL- WFR- WIPER/ WASHER SYSTEM WIPER/ WASHER, HEADLIGHTS SYSTEMS WIPER/WASHER SYSTEM
