Toyota Highlander III facelift (2016-2019) smart door control receiver assembly Wiring diagrams

This page contains all the electrical diagrams for the component. smart door control receiver assembly, in which he is found in the car Toyota Highlander III facelift (2016-2019). You can view various wiring diagrams where this component is used, as well as go to more detailed diagrams to see the complete connection and interaction in the system. All diagrams have links to quickly jump to the corresponding section with the component for easy viewing..

smart door control receiver assembly wiring diagram (1 of 4)

BACK DOOR CONTROL SWITCH BACK DOOR OPENER SWITCH ASSEMBLY BLK WIRE BLU WIRE BRN WIRE BZR CERTIFICATION ECU (W/ SMART KEY SYSTEM) (RIGHT END OF DASH) COMPUTER DATA LINES SYSTEM CSEL DATA GRN WIRE GRY WIRE HYBRID EXCEPT HYBRID LOCK PNK WIRE POWER BACK DOOR WARNING BUZZER RCO RDAM RED WIRE SMART DOOR CONTROL RECEIVER ASSEMBLY W/ SMART KEY SYSTEM W/O SMART KEY SYSTEM WHT WIRE WHT/BLK WIRE

Go to component -> Back door opener circuit, w/ power back door (3 of 3) -> SMART DOOR CONTROL RECEIVER ASSEMBLY

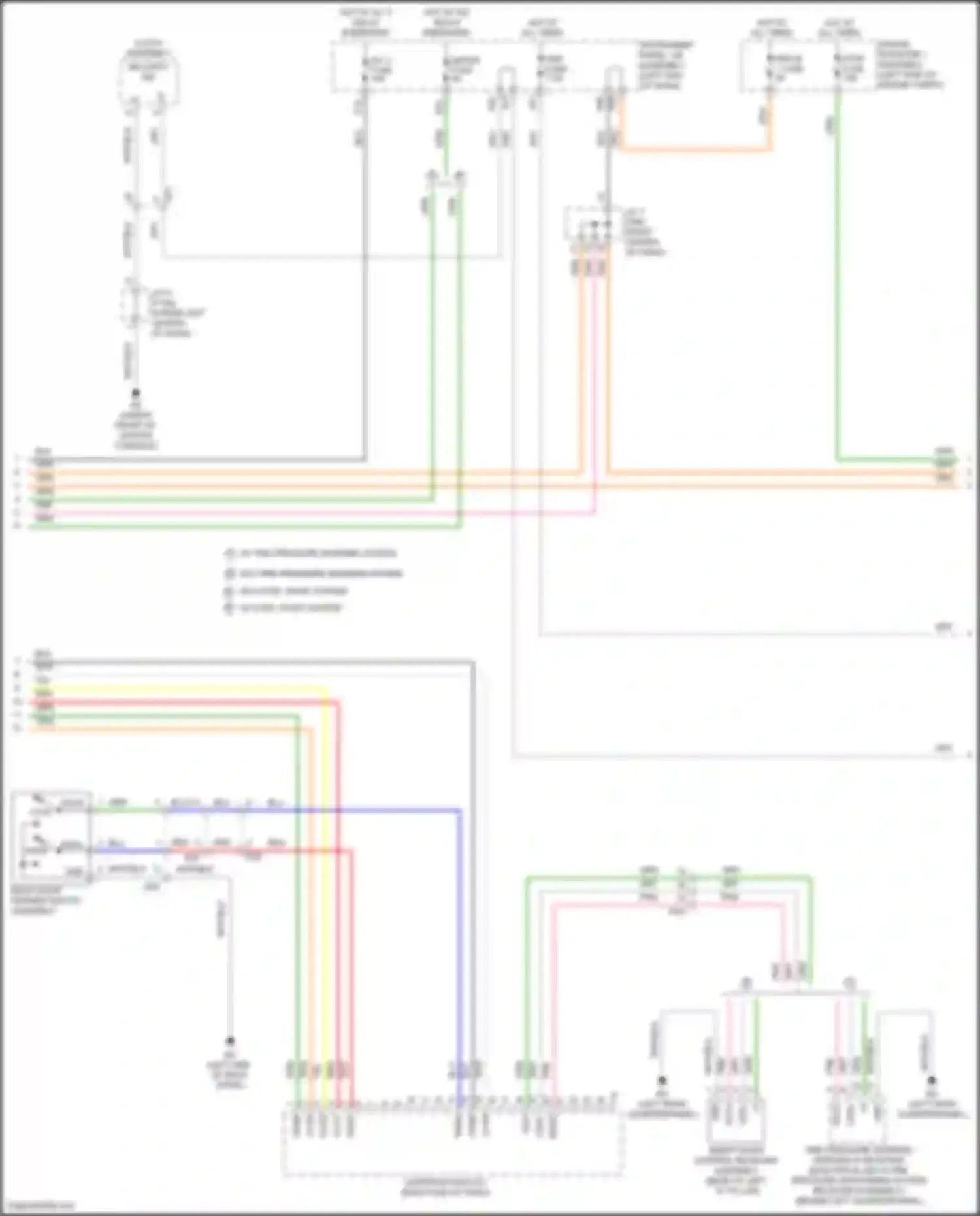

smart door control receiver assembly wiring diagram (2 of 4)

BACK DOOR OPENER SWITCH ASSEMBLY BEHIND LEFT QUARTERPANEL) BLK WIRE BLU WIRE CERTIFICATION ECU (RIGHT END OF DASH) CLOCK ASSEMBLY CSEL DATA ENGINE ROOM R/B 1 ASSEMBLY GRN WIRE GRY WIRE HOT AT ALL TIMES INSTRUMENT PANEL J/B ASSEMBLY LOCK METER FUSE MPX-B 1 FUSE ORG/ WIRE PNK WIRE RCO RDAM RED WIRE RELAY ENERGIZED SECURITY IND SMART DOOR CONTROL RECEIVER ASSEMBLY STOP FUSE W/ TIRE PRESSURE WARNING SYSTEM W/O STOP, START SYSTEM W/ STOP, START SYSTEM W/O TIRE PRESSURE WARNING SYSTEM WHT WIRE WHT/BLK WIRE YEL WIRE

Go to component -> Forced entry circuit, except hybrid w/ smart key system (4 of 5) -> SMART DOOR CONTROL RECEIVER ASSEMBLY
