Wiring Diagrams for Toyota Corolla XII (2018-2024)

Acoustic vehicle altering system circuit Grille shutter circuit

1.8l, automatic a/c circuit

1.8l hybrid, automatic a/c circuit

2.0l, automatic a/c circuit, hatchback 2.0l, automatic a/c circuit, sedan

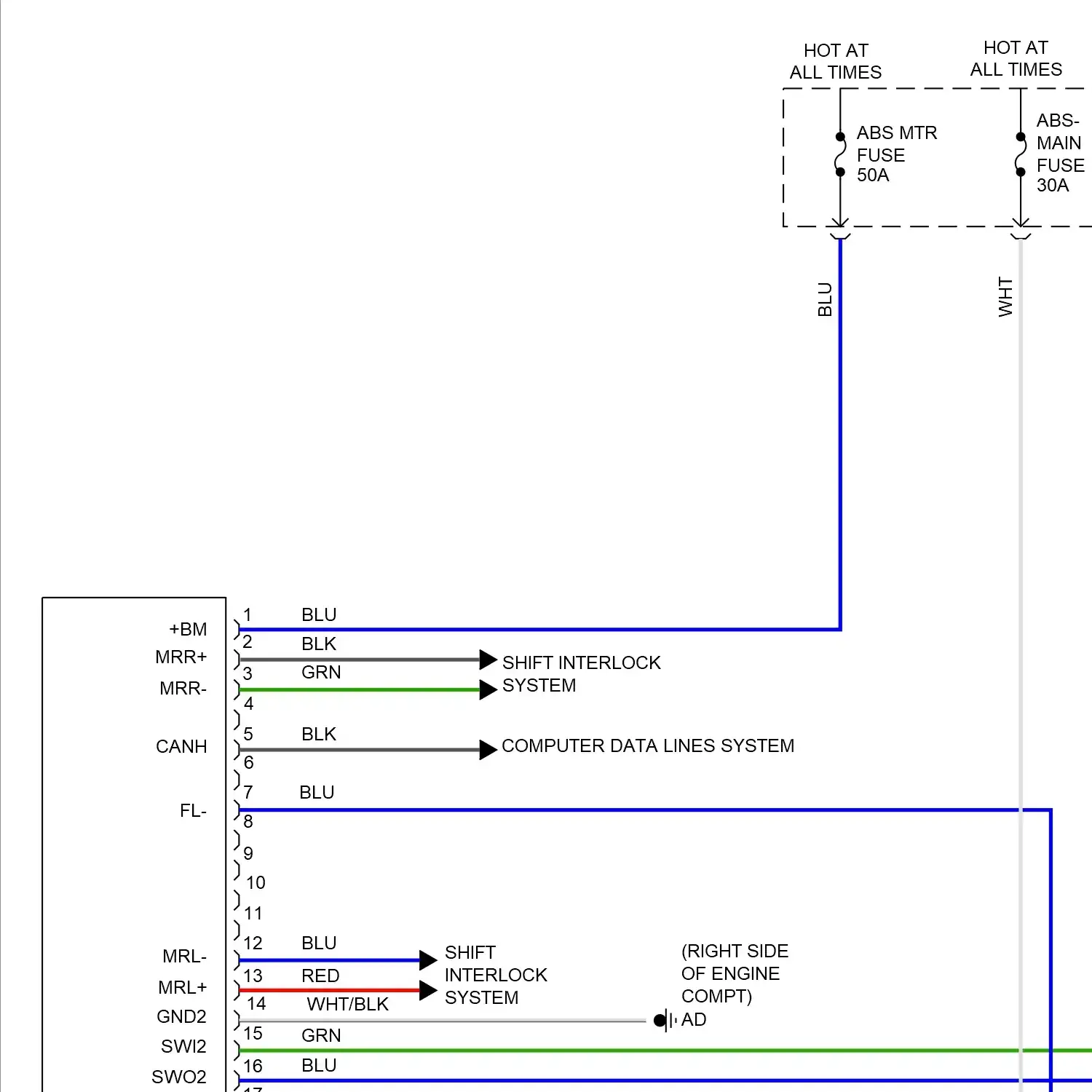

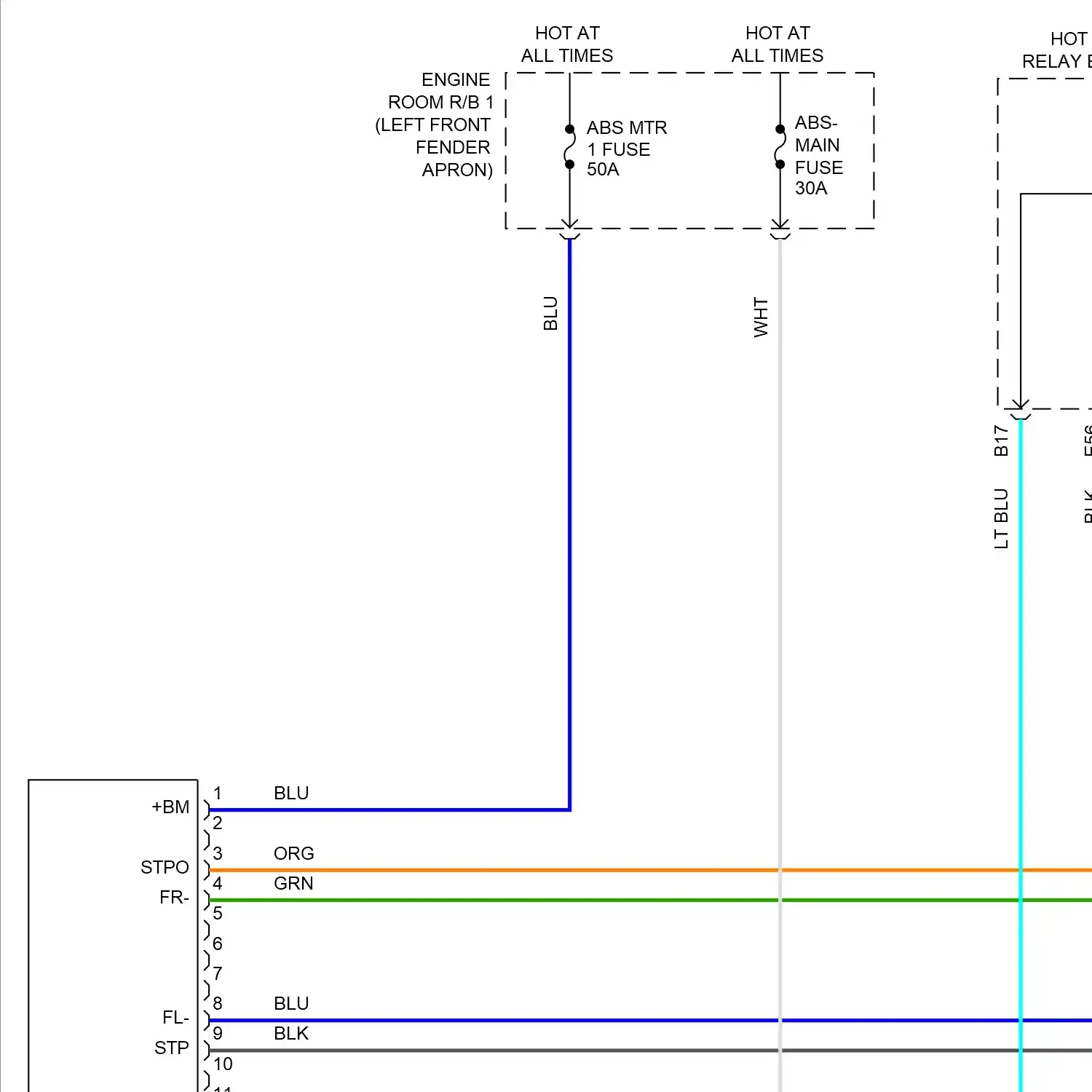

Anti-lock brakes circuit, hatchback Anti-lock brakes circuit, sedan except hybrid w/ electric parking brake Anti-lock brakes circuit, sedan except hybrid w/o electric parking brake Anti-lock brakes circuit, sedan hybrid

Anti-theft circuit, hatchback Anti-theft circuit, sedan w/o smart key system Anti-theft circuit, sedan w/ smart key system Immobilizer circuit, hatchback Immobilizer circuit, sedan w/o smart key system Immobilizer circuit, sedan w/ smart key system

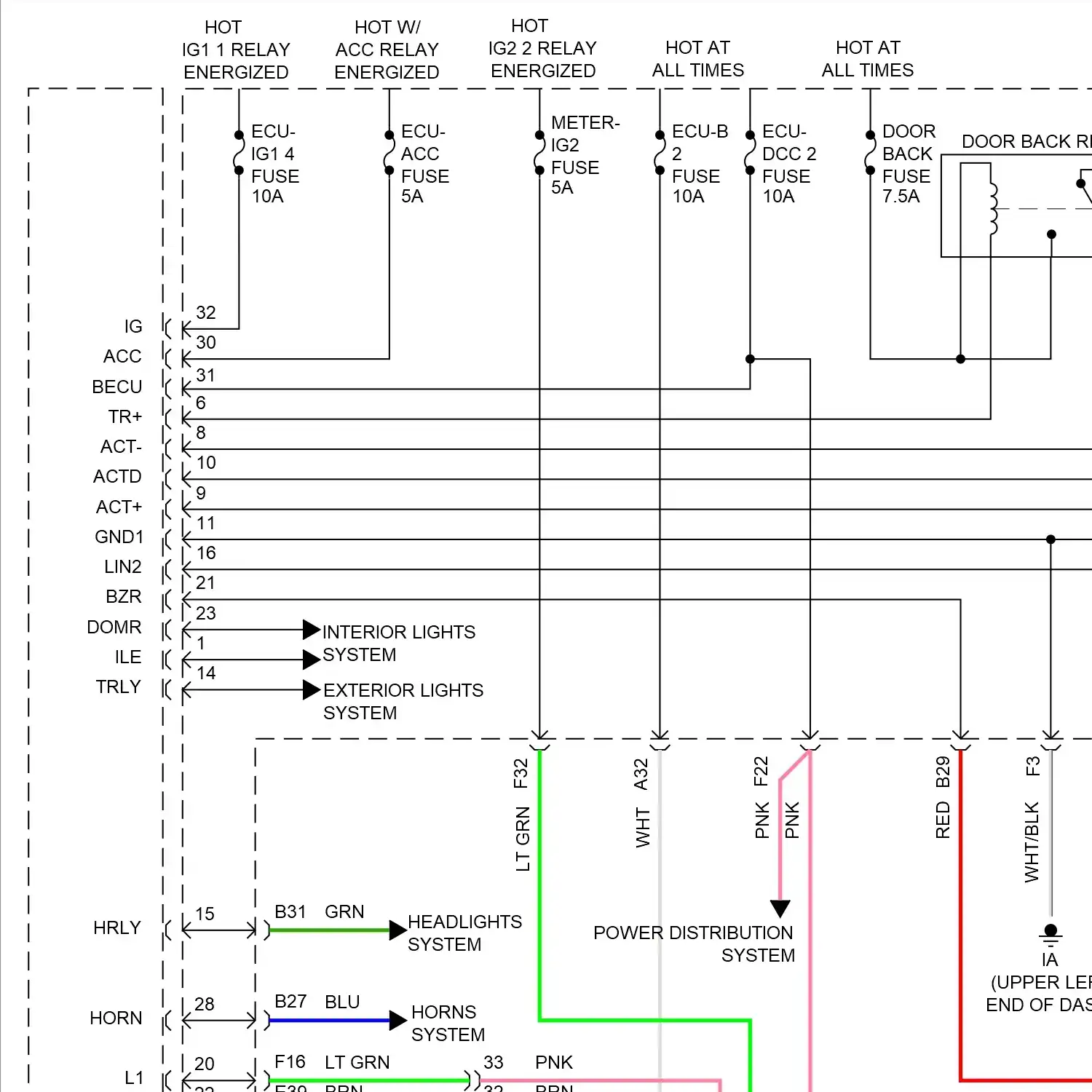

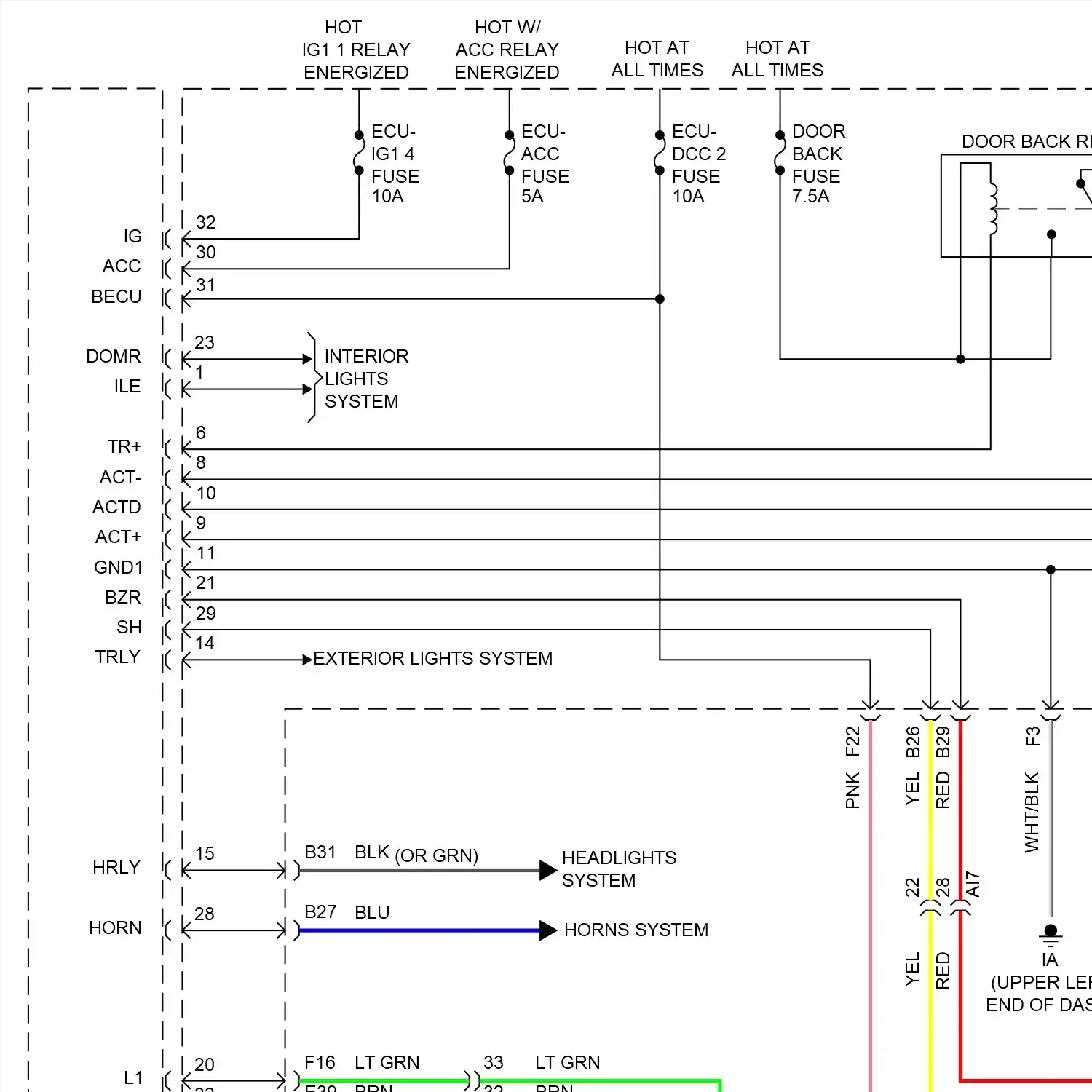

Body control modules circuit, hatchback Body control modules circuit, sedan

Computer data lines circuit, hatchback Computer data lines circuit, sedan

1.8l, cooling fan circuit

1.8l hybrid, battery cooling fan circuit 1.8l hybrid, cooling fan circuit

2.0l, cooling fan circuit, hatchback 2.0l, cooling fan circuit, sedan

1.8l, cruise control circuit

1.8l hybrid, cruise control circuit

2.0l, cruise control circuit, hatchback 2.0l, cruise control circuit, sedan

Front deicer circuit, hatchback Front deicer circuit, sedan Mirror heater & rear defogger circuit, hatchback Mirror heater & rear defogger circuit, sedan

Electronic power steering circuit

Wiring diagram engine performance 1.8l

Wiring diagram engine performance 1.8l hybrid, engine controls circuit Wiring diagram engine performance 1.8l hybrid, hybrid system circuit, lithium-ion battery Wiring diagram engine performance 1.8l hybrid, hybrid system circuit, nickel metal hydride battery

Wiring diagram engine performance 2.0l, hatchback Wiring diagram engine performance 2.0l, sedan

Backup lamps circuit, hatchback Backup lamps circuit, sedan Exterior lamps circuit, hatchback Exterior lamps circuit, sedan

Ground distribution circuit, hatchback Ground distribution circuit, sedan tmc made Ground distribution circuit, sedan tmmms made

Headlights circuit, hatchback Headlights circuit, sedan

Horn circuit, hatchback Horn circuit, sedan

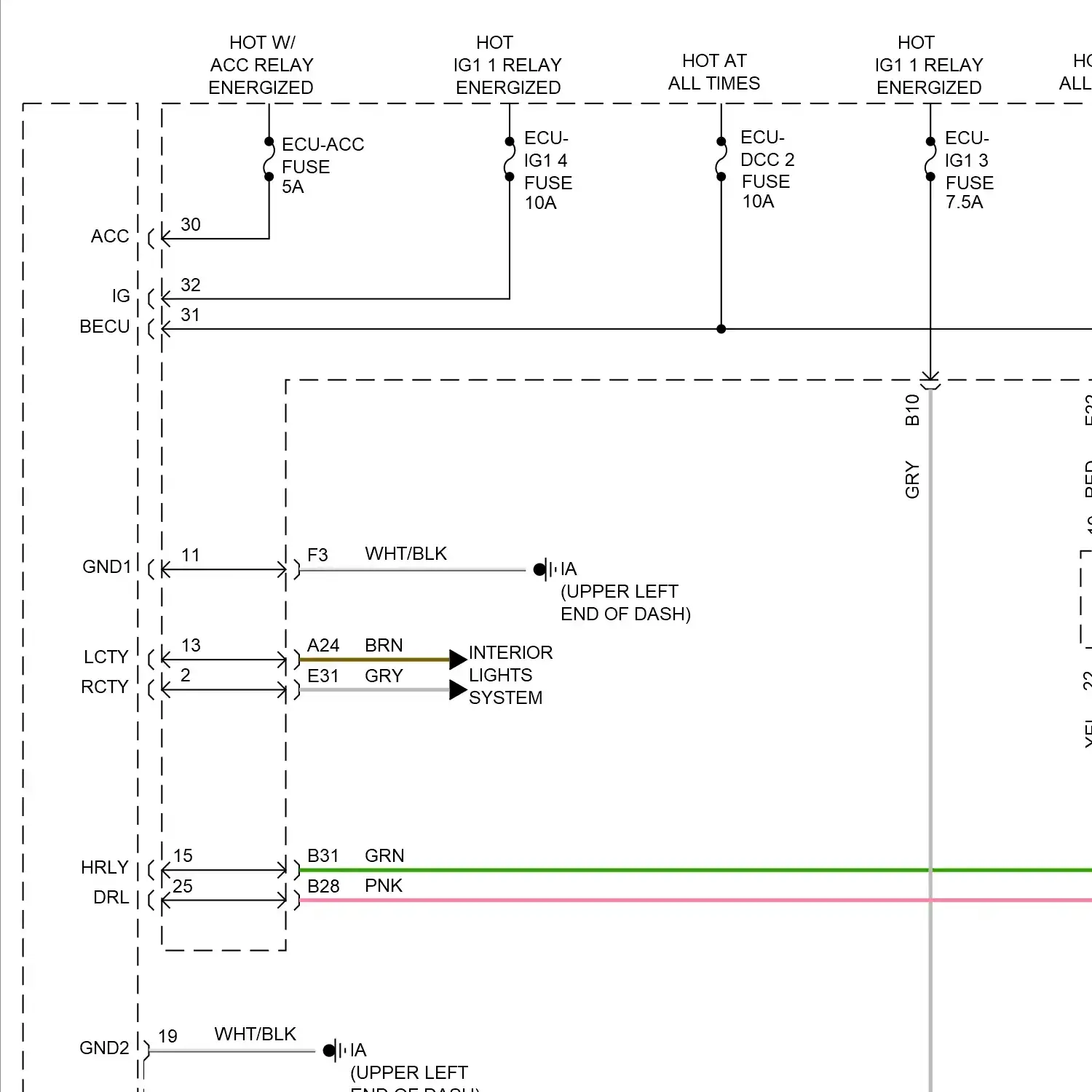

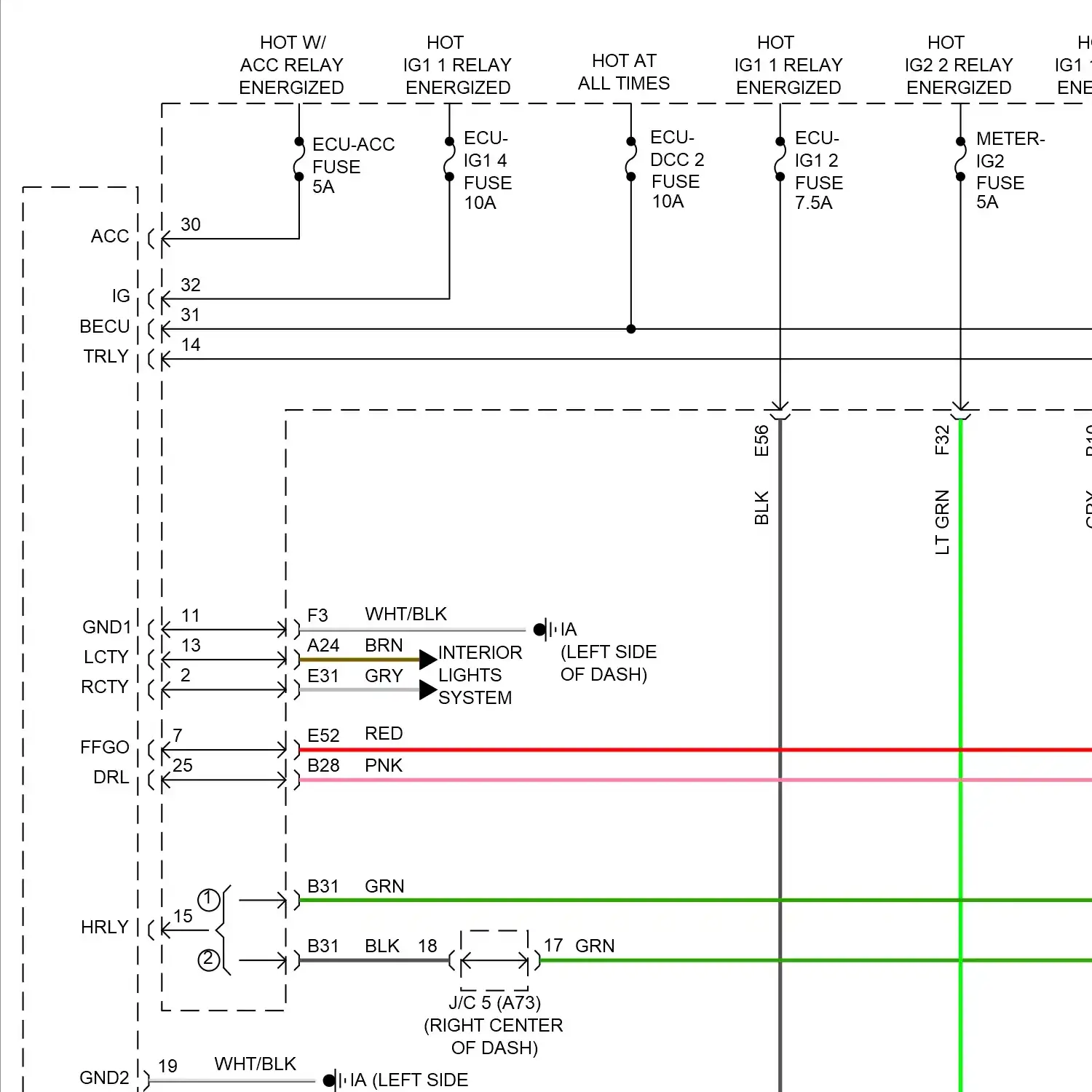

Instrument cluster circuit, hatchback Instrument cluster circuit, sedan except hybrid Instrument cluster circuit, sedan hybrid

Courtesy lamps circuit, hatchback Courtesy lamps circuit, sedan Instrument illumination circuit, hatchback Instrument illumination circuit, sedan

Blind spot monitoring circuit, hatchback Blind spot monitoring circuit, sedan Lane departure warning circuit, hatchback Lane departure warning circuit, sedan Navigation circuit, hatchback w/ built-in amplifier Navigation circuit, hatchback w/ separate amplifier Navigation circuit, sedan w/ built-in amplifier Navigation circuit, sedan w/ separate amplifier Telematics circuit

Power distribution circuit, hatchback Power distribution circuit, sedan except hybrid Power distribution circuit, sedan hybrid

Power door locks circuit, hatchback Power door locks circuit, sedan w/o smart key system Power door locks circuit, sedan w/ smart key system

Electrochromic mirror circuit Power mirrors circuit

Front heated seats circuit, hatchback Front heated seats circuit, sedan Front lumbar circuit Heated steering wheel circuit, hatchback Heated steering wheel circuit, sedan Power seats circuit Rear heated seats circuit

Power top/sunroof circuit

Power windows circuit

Radio circuit, hatchback w/ built-in amplifier Radio circuit, hatchback w/ separate amplifier Radio circuit, sedan w/ built-in amplifier Radio circuit, sedan w/ separate amplifier

Electric parking brake circuit, except hybrid Electric parking brake circuit, hybrid Shift interlock circuit, except hybrid hatchback Shift interlock circuit, except hybrid sedan Shift interlock circuit, hybrid Steering column circuit, hatchback Steering column circuit, sedan

Charging circuit Starting circuit, hatchback Starting circuit, sedan w/o smart key system Starting circuit, sedan w/ smart key system

Supplemental restraints circuit

1.8l, transmission circuit

1.8l hybrid, transmission circuit

2.0l, transmission circuit, hatchback 2.0l, transmission circuit, sedan

Back door opener circuit Tailgate release circuit

Key reminder & seat belt warning circuit, hatchback Key reminder & seat belt warning circuit, sedan Tire pressure monitoring circuit, hatchback Tire pressure monitoring circuit, sedan

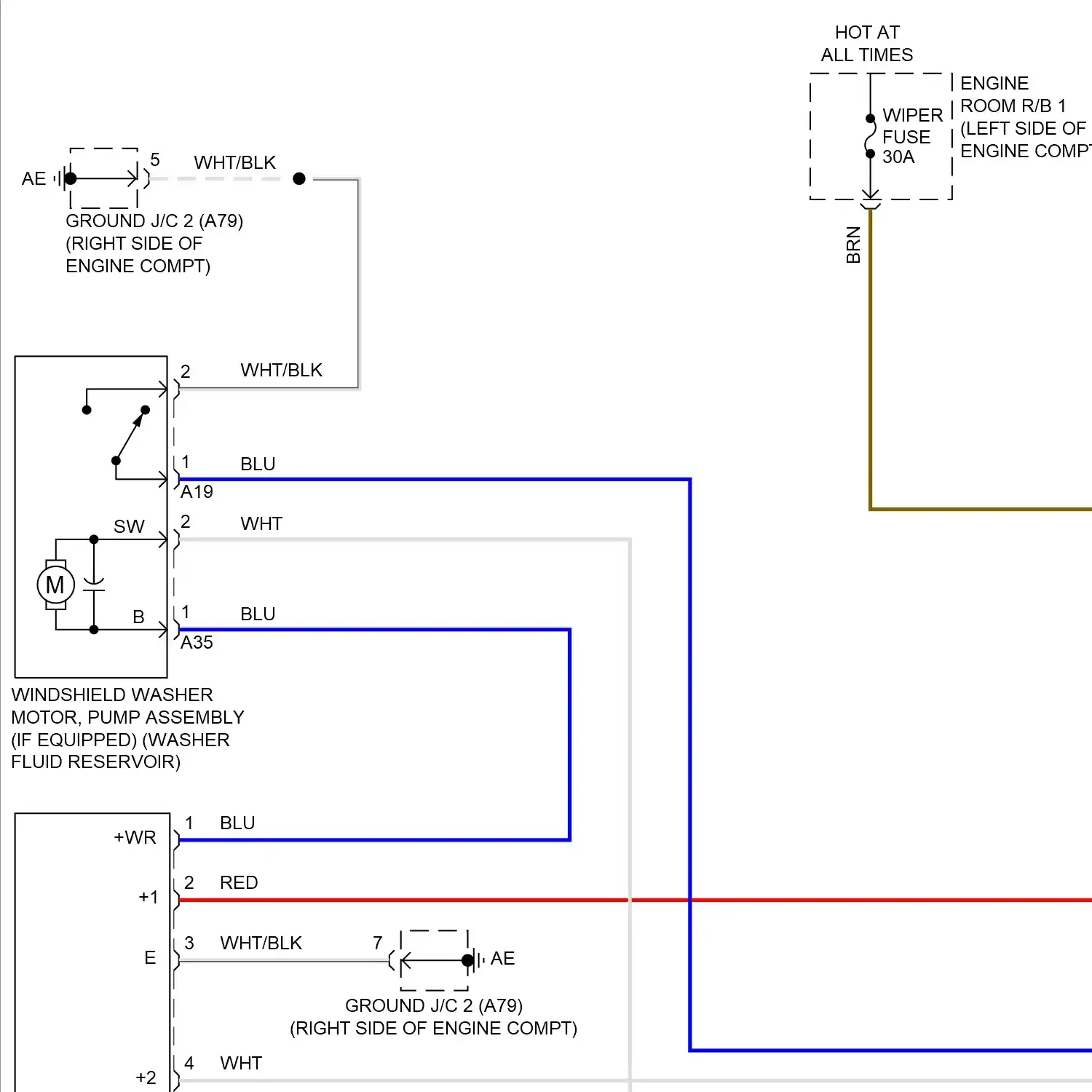

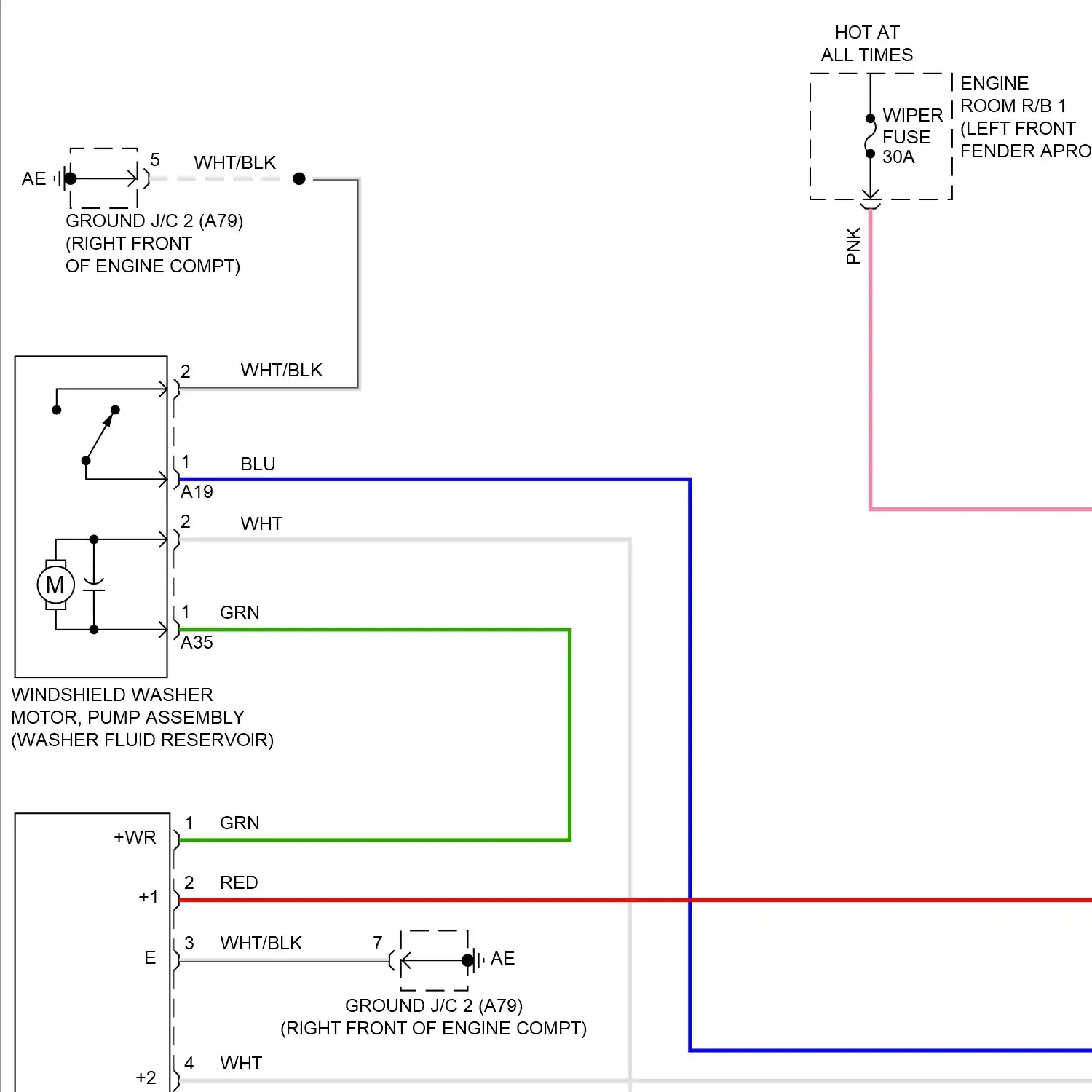

Wiper/washer circuit, hatchback Wiper/washer circuit, sedan

(W/ SEPARATE TYPE AMPLIFIER AIR CONDITIONING AMPLIFIER ASSEMBLY ANTI-LOCK BRAKES SYSTEM BATTERY COOLING BLOWER ASSEMBLY FRONT HYBRID VEHICLE BATTERY GENERATOR ASSEMBLY HV BATTERY JUNCTION BLOCK ASSEMBLY HV SUPPLY BATTERY ASSEMBLY HYBRID BATTERY TERMINAL BLOCK HYBRID VEHICLE BATTERY IGNITION COIL ASSEMBLY 1 IGNITION COIL ASSEMBLY 2 IGNITION COIL ASSEMBLY 3 IGNITION COIL ASSEMBLY 4 LOCK OFF LOW PITCHED HORN ASSEMBLY LUGGAGE COMPARTMENT DOOR LOCK ASSEMBLY MICROPHONE AMPLIFIER REAR HYBRID VEHICLE BATTERY SECURITY HORN ASSEMBLY STARTER ASSEMBLY STEREO COMPONENT AMPLIFIER ASSEMBLY TELEPHONE TRANSCEIVER ASSEMBLY TRANSPONDER KEY COIL W/ BUILT-IN AMPLIFIER W/ SEPARATE AMPLIFIER W/ SMART KEY SYSTEM W/O SMART KEY SYSTEM, W/ WIRELESS DOOR LOCK CONTROL W/ WIRELESS DOOR LOCK W/ WIRELESS DOOR LOCK CONTROL W/O SMART KEY SYSTEM W/ WIRELESS DOOR LOCK CONTROL W/O WIRELESS DOOR LOCK WIRELESS DOOR LOCK BUZZER

(RIGHT FRONT OF ENGINE BLOWER MOTOR W/ FAN SUB-ASSEMBLY BRAKE ACTUATOR ASSEMBLY CAM TIMING CONTROL MOTOR W/ EDU ASSEMBLY COMPRESSOR W/ MOTOR ASSEMBLY COOLING FAN MOTOR ENGINE CONTROLS SYSTEM ENGINE ROOM J/B 1 ENGINE ROOM R/B 1 ENGINE WATER PUMP ASSEMBLY FUEL LID W/ MOTOR LOCK ASSEMBLY HOT AT ALL TIMES ENGINE ROOM R/B 1 LEFT COOLING FAN MOTOR LEFT FRONT DOOR LOCK W/ MOTOR ASSEMBLY LEFT PARKING BRAKE ACTUATOR ASSEMBLY LEFT REAR DOOR LOCK W/ MOTOR ASSEMBLY LEVELING, SWIVEL MOTOR REAR OF ENGINE COMPT) REAR WIPER MOTOR ASSEMBLY RIGHT COOLING FAN MOTOR RIGHT FRONT DOOR LOCK W/ MOTOR ASSEMBLY RIGHT PARKING BRAKE ACTUATOR ASSEMBLY RIGHT REAR DOOR LOCK W/ MOTOR ASSEMBLY SWING GRILLE ACTUATOR ASSEMBLY THROTTLE BODY W/ MOTOR ASSEMBLY TOP OF ENGINE) WINDSHIELD WASHER MOTOR, PUMP ASSEMBLY WINDSHIELD WIPER MOTOR ASSEMBLY

ELECTRICAL KEY ANTENNA GPS ANTENNA INDOOR ELECTRICAL KEY ANTENNA ASSEMBLY 1 INDOOR ELECTRICAL KEY ANTENNA ASSEMBLY 2 INDOOR ELECTRICAL KEY ANTENNA ASSEMBLY 3 INSTRUMENT PANEL ANTENNA RADIO ANTENNA ROOF ANTENNA SDARS ANTENNA TELEPHONE MAIN ANTENNA TELEPHONE SUB ANTENNA

LEFT FRONT POWER WINDOW REGULATOR MOTOR ASSEMBLY LEFT REAR POWER WINDOW REGULATOR MOTOR ASSEMBLY LEFT REAR POWER WINDOW REGULATOR SWITCH ASSEMBLY RIGHT FRONT POWER WINDOW REGULATOR MOTOR ASSEMBLY RIGHT FRONT POWER WINDOW REGULATOR SWITCH ASSEMBLY RIGHT REAR POWER WINDOW REGULATOR MOTOR ASSEMBLY RIGHT REAR POWER WINDOW REGULATOR SWITCH ASSEMBLY

FORWARD RECOGNITION CAMERA REAR TELEVISION CAMERA ASSEMBLY

DATA LINK CONNECTOR 3 POWER OUTLET SOCKET ASSEMBLY 1 USB CHARGER SOCKET

BATTERY ECU ASSEMBLY CERTIFICATION ECU COOLING FAN ECU ECU- DCC 1 FUSE ECU-ACC FUSE ECU-B 1 FUSE ECU-B 2 FUSE ECU-DCC 2 FUSE FUEL PUMP CONTROL ECU GRILLE SHUTTER ECU HYBRID VEHICLE CONTROL ECU LEFT HEADLIGHT UNIT ASSEMBLY MAIN BODY ECU MAIN BODY ECU INSTRUMENT PANEL J/B NAVIGATION ECU NETWORK GATEWAY ECU OCCUPANT DETECTION ECU POWER STEERING ECU W/ MOTOR ASSEMBLY RIGHT HEADLIGHT UNIT ASSEMBLY SHIFT LOCK CONTROL UNIT ASSEMBLY TRANSMISSION CONTROL ECU TRANSPONDER KEY ECU ASSEMBLY W/ NAVIGATION ECU W/O NAVIGATION ECU

ABS 2 FUSE ABS 3 FUSE ABS MTR 1 ABS MTR FUSE ABS MTR 1 FUSE ABS MTR 2 FUSE ABS MTR 3 FUSE ABS MTR FUSE ABS- MAIN FUSE ALT FUSE AMP FUSE BATT FAN FUSE BATT- MAIN FUSE BATT-S FUSE BKUP LP FUSE D INJ FUSE D INJ INJ-B FUSE D/C CUT FUSE D/L FUSE DC/DC FUSE DCM/ MAYDAY FUSE DEF FUSE DEF- MAIN FUSE DEF-MAIN DEF FUSE DEICER FUSE DOME FUSE DOOR BACK FUSE DOOR DBL/L FUSE DOOR FUSE DOOR R/L FUSE DOOR R/R FUSE EFI 1 FUSE EFI 2 FUSE EFI 3 FUSE EFI 4 FUSE EFI 5 FUSE EFI MAIN FUSE EFI- MAIN 1 FUSE EFI- MAIN 2 FUSE EFI- MAIN 3 FUSE ENG W/PMP FUSE EPB FUSE EPS FUSE ETCS FUSE FAN 1 FUSE FAN-2 FUSE FOG FR FUSE FUEL OPN FUSE H-LP HI FUSE H-LP LH FUSE H-LP RH FUSE HAZ FUSE HORN FUSE HTR FUSE IGCT 2 FUSE IGCT-IG FUSE INJ B FUSE INJ FUSE INV W/PMP FUSE J/B-AM FUSE J/B-B FUSE MIR HTR FUSE OBD FUSE P SEAT FUSE P/ OUTLET 1 FUSE P/ OUTLET 2 FUSE P/OUTLET 1 FUSE P/OUTLET 2 FUSE P/SEAT FUSE PANEL FUSE PCU FR FUSE PM IGCT FUSE POWER FUSE PTC HTR 1 FUSE PTC HTR 2 FUSE PTC HTR 3 FUSE RADIO FUSE S-HORN FUSE S/HTR F/L FUSE S/HTR F/R FUSE S/HTR RR FUSE S/HTR- MAIN FUSE S/ROOF FUSE SFT LOCK- ACC FUSE ST FUSE STOP FUSE STRG HTR FUSE STRG LOCK FUSE TAIL FUSE VVT FUSE WASHER FUSE WIPER FUSE WIPER RR FUSE

FORWARD RECOGNITION W/ HEATER HOOD SUB-ASSEMBLY HEATER CONTROLLER LEFT FRONT SEAT CUSHION HEATER ASSEMBLY LEFT REAR SEAT HEATER ASSEMBLY MIRROR HEATER QUICK HEATER ASSEMBLY RIGHT FRONT SEAT CUSHION HEATER ASSEMBLY RIGHT REAR SEAT HEATER ASSEMBLY SEAT BACK HEATER SEAT CUSHION HEATER STEERING HEATER W/ SEAT HEATER

BLIND SPOT MONITOR INDICATOR PASSENGER AIR BAG ON/OFF INDICATOR

LIGHTS)

BRAKE BOOSTER PUMP ASSEMBLY CANISTER PUMP MODULE FUEL PUMP ASSEMBLY FUEL SUCTION TUBE W/ PUMP, GAUGE ASSEMBLY WATER INLET W/ WATER PUMP HOUSING SUB-ASSEMBLY

ACC RELAY ALL DR LOCK RELAY BKUP LP RELAY C/OPN RELAY C/OPN RELAY R/B ASSEMBLY 2 D DR UNLOCK RELAY D INJ RELAY DEF RELAY DEF RELAY ENGINE ROOM R/B 1 DEF RELAY R/B ASSEMBLY 2 DEICER RELAY DEICER RELAY R/B ASSEMBLY 2 DIM RELAY DOME CUT RELAY DOOR BACK RELAY EFI MAIN 2 RELAY EFI MAIN RELAY EFI MAIN RELAY 2 EFI- MAIN 3 RELAY EFI- MAIN RELAY 3 EFI-MAIN RELAY ENGINE ROOM J/B 1 ENG W/ PMP RELAY ENG W/PMP RELAY ENGINE ROOM R/B 1 FAN 2 RELAY FAN 1 RELAY FAN 3 RELAY FAN RELAY 1 FAN RELAY 2 FAN RELAY 3 FR FOG RELAY FR FOG RELAY R/B ASSEMBLY 3 FUEL OPN RELAY R/B ASSEMBLY 3 H-LP LH RELAY H-LP RH RELAY H-LP RH RELAY ENGINE ROOM J/B 1 HORN RELAY HOT W/ ACC RELAY ENERGIZED HOT W/ EFI MAIN RELAY ENERGIZED HOT W/ IGCT RELAY ENERGIZED IGCT RELAY IGN/INJ/ D INJ RELAY IGN/INJ/D INJ RELAY L/D-DR UNLOCK RELAY MAIN RELAY P/OUTLET 2 RELAY PRECHARGE RELAY PTC HTR 1 RELAY PTC HTR 2 RELAY PTC HTR 3 RELAY R/B ASSEMBLY 2 VVT RELAY RELAY ENERGIZED S-HORN RELAY S-HORN RELAY R/B ASSEMBLY 3 S/HTR R/L RELAY S/HTR R/R RELAY S/HTR RR RELAY R/B ASSEMBLY 3 ST RELAY STRG HTR RELAY TAIL RELAY VVT RELAY VVT RELAY R/B ASSEMBLY 2 WINDSHIELD WIPER RELAY ASSEMBLY

A/C EVAPORATOR TEMPERATURE SENSOR ACCELERATOR PEDAL SENSOR ASSEMBLY AIR BAG SENSOR ASSEMBLY AIR CONDITIONER PRESSURE SENSOR AUTOMATIC LIGHT CONTROL SENSOR BATTERY STATE SENSOR ASSEMBLY BATTERY VOLTAGE SENSOR BRAKE PEDAL STROKE SENSOR ASSEMBLY CAMSHAFT POSITION SENSOR CLUTCH PEDAL STROKE SENSOR ASSEMBLY CLUTCH STROKE SENSOR CRANK POSITION SENSOR CRANK POSITION SENSOR SHIELD CURRENT SENSOR E.F.I. ENGINE COOLANT TEMPERATURE SENSOR EFI VACUUM SENSOR ASSEMBLY ENGINE COOLANT TEMPERATURE SENSOR ENGINE OIL LEVEL SENSOR FRONT IN WEIGHT DETECTION SENSOR SUB ASSEMBLY LEFT BLIND SPOT MONITOR SENSOR LEFT FRONT AIR BAG SENSOR LEFT FRONT SPEED SENSOR LEFT HEIGHT CONTROL SENSOR SUB-ASSEMBLY LEFT REAR HEIGHT CONTROL SENSOR SUB-ASSEMBLY LEFT REAR SPEED SENSOR LEFT SIDE AIR BAG PRESSURE SENSOR LEFT SIDE AIR BAG SENSOR 1 LEFT SIDE AIR BAG SENSOR 2 MILLIMETER WAVE RADAR SENSOR ASSEMBLY OIL PRESSURE SENSOR OIL PRESSURE/ TEMPERATURE SENSOR OIL TEMPERATURE SENSOR REAR IN WEIGHT DETECTION SENSOR SUB ASSEMBLY RIGHT BLIND SPOT MONITOR SENSOR RIGHT FRONT AIR BAG SENSOR RIGHT FRONT SPEED SENSOR RIGHT REAR SPEED SENSOR RIGHT SIDE AIR BAG PRESSURE SENSOR RIGHT SIDE AIR BAG SENSOR 1 RIGHT SIDE AIR BAG SENSOR 2 SEAT POSITION AIR BAG SENSOR SHIFT LEVER POSITION SENSOR STEERING SENSOR TORQUE SENSOR TRANSMISSION REVOLUTION SENSOR VAPOR PRESSURE SENSOR YAW RATE SENSOR

LEFT FRONT SPEAKER ASSEMBLY 1 LEFT FRONT SPEAKER ASSEMBLY 2 LEFT FRONT SPEAKER ASSEMBLY 3 LEFT REAR SPEAKER ASSEMBLY REAR SPEAKER ASSEMBLY 3 RIGHT FRONT SPEAKER ASSEMBLY 1 RIGHT FRONT SPEAKER ASSEMBLY 2 RIGHT FRONT SPEAKER ASSEMBLY 3 RIGHT REAR SPEAKER ASSEMBLY VEHICLE APPROACHING SPEAKER ASSEMBLY VEHICLE APPROACHING SPEAKER CONTROLLER

AUTO HIGH BEAM SWITCH BACK DOOR LOCK W/ COURTESY LIGHT SWITCH ASSEMBLY BACK DOOR OPENER SWITCH SUB-ASSEMBLY BACKUP LIGHT SWITCH ASSEMBLY BRAKE FLUID LEVEL WARNING SWITCH BUCKLE SWITCH CLUTCH SWITCH ASSEMBLY COMBINATION SWITCH ASSEMBLY COURTESY SWITCH DEICER SWITCH DIMMER SWITCH DOOR CONTROL SWITCH ASSEMBLY DOOR LIGHT SWITCH DOOR LINKED SWITCH DOOR LOCK SWITCH DRIVER SIDE AUTO SWITCH DRIVER SIDE DOWN SWITCH DRIVER SIDE UP SWITCH ELECTRIC PARKING BRAKE SWITCH ASSEMBLY END SHAFT SWITCH ENGINE OIL PRESSURE SWITCH ASSEMBLY ENGINE SWITCH FOG SWITCH FRONT LUMBAR POWER SWITCH FRONT PASSENGER SIDE CONTROL SWITCH FRONT POWER SEAT SWITCH FRONT VERTICAL SWITCH FRONT WIPER DEICER SWITCH FRONT WIPER SWITCH FUEL LID OPENER SWITCH HAZARD WARNING SIGNAL SWITCH ASSEMBLY HOLD SWITCH HORN SWITCH IGNITION/STARTER SWITCH ASSEMBLY INTER LOCK SWITCH INTERLOCK SWITCH LEFT FRONT DOOR COURTESY LIGHT SWITCH ASSEMBLY LEFT FRONT SEAT HEATER SWITCH LEFT REAR DOOR COURTESY LIGHT SWITCH ASSEMBLY LEFT REAR SEAT HEATER SWITCH LEFT REAR SIDE CONTROL SWITCH LEFT SIDE SHIFT DOWN SWITCH LEFT STEERING PAD SWITCH LIFTER SWITCH LIGHT CONTROL SWITCH LOCK SWITCH LUGGAGE ELECTRICAL KEY SWITCH LUMBAR SUPPORT SWITCH MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY OUTER MIRROR SWITCH ASSEMBLY P POSITION DETECTION SWITCH PARK/ NEUTRAL POSITION SWITCH ASSEMBLY PARK/NEUTRAL POSITION SWITCH ASSEMBLY PARKING BRAKE SWITCH ASSEMBLY POSITION SWITCH) POWER SWITCH REAR WINDOW DEFOGGER SWITCH REAR WIPER SWITCH RECLINING SWITCH RELEASE SWITCH RIGHT FRONT DOOR COURTESY LIGHT SWITCH ASSEMBLY RIGHT FRONT SEAT HEATER SWITCH RIGHT REAR DOOR COURTESY LIGHT SWITCH ASSEMBLY RIGHT REAR SEAT HEATER SWITCH RIGHT REAR SIDE CONTROL SWITCH RIGHT SIDE SHIFT DOWN SWITCH RIGHT STEERING PAD SWITCH RIGHT STEERING PAD SWITCH STEERING PAD SWITCH ASSEMBLY SLIDE SWITCH SOS SWITCH STEERING HEATER SWITCH STEERING HEATER SWITCH METER MIRROR SUB-ASSEMBLY STEERING PAD SWITCH ASSEMBLY STEERING PAD SWITCH ASSEMBLY RIGHT STEERING PAD SWITCH STEERING WHEEL SWITCH HOUSING STOP LIGHT SWITCH ASSEMBLY THERMISTOR SWITCH TURN SIGNAL SWITCH TURN SWITCH UN-LOCK WARNING SWITCH ASSEMBLY UNLOCK WARNING SWITCH ASSEMBLY VACUUM WARNING SWITCH ASSEMBLY VOLUME SWITCH VSC OFF SWITCH W/ ELECTRIC PARKING BRAKE SWITCH W/O ELECTRIC PARKING BRAKE SWITCH WASHER SWITCH WINDOW LOCK SWITCH WINDSHIELD WIPER SWITCH ASSEMBLY

CONTINUOUSLY VARIABLE VALVE LIFT CONTROLLER ASSEMBLY FUEL TANK SOLENOID MAIN VALVE ASSEMBLY KEY INTERLOCK SOLENOID OIL PRESSURE CONTROL VALVE ASSEMBLY SHIFT LOCK SOLENOID VACUUM SWITCHING VALVE ASSEMBLY

(OR RED/ WIRE B+ PNK WIRE BGND PNK WIRE BLK WIRE BLK/BLU WIRE BLK/DK GRN WIRE BLK/GRY WIRE BLK/RED WIRE BLK/WHT WIRE BLK/YEL WIRE BLU WIRE BLU/WHT WIRE BRN WIRE CAN+ PNK CAN- WIRE CANH PNK LINS WIRE CANL PNK CAN- WIRE CANL PNK WIRE DK GRN WIRE GND PNK SP+ WIRE GREEN IND GRN WIRE GRY OR WHT WIRE GRY WIRE IG PNK STP PNK WIRE LT BLU WIRE LT GRN WIRE M- PNK WIRE NCA WIRE NTB PNK NOB WIRE NTO PNK NTB WIRE ORG/ WIRE ORG/BLK WIRE ORG/BLU WIRE ORG/LT GRN WIRE ORG/WHT WIRE PNK BGND WIRE PNK BRB WIRE PNK BSL+ WIRE PNK CCS WIRE PNK CLS WIRE PNK IG WIRE PNK IGE WIRE PNK ILL+ WIRE PNK LIN WIRE PNK LINS WIRE PNK M+ WIRE PNK OMIL WIRE PNK RDA WIRE PNK SC WIRE PNK SLR+ WIRE PNK STP WIRE PNK SW WIRE PNK WIRE PNK/BLK WIRE PPL/BLK WIRE PPL/BLU WIRE PPL/GRN WIRE PPL/GRY WIRE PPL/LT BLU WIRE PPL/LT GRN WIRE PPL/PNK WIRE PPL/RED WIRE PPL/VIO WIRE PPL/WHT WIRE PPL/YEL WIRE RED WIRE SLG- PNK NSSB PNK WIRE SLP PNK WIRE SPDO PNK WIRE STP PNK WIRE VCPA PNK WIRE VIO WIRE WHT WIRE WHT/BLK WIRE WHT/GRN WIRE YEL WIRE YEL/BLK WIRE YEL/GRN WIRE YEL/RED WIRE

1.8L 1.8L 2.0L 2.0L 2.0L 1.8L 2.0L CA 33 34 STPO 41 42 STP (NOT +BM +BWP +SM -DP -TW -WR A/C RADIATOR DAMPER A/C RADIATOR DAMPER SERVO SUB-ASSEMBLY 3 AIA- AIR CONDITIONING CONTROL ASSEMBLY AIR CONDITIONING HARNESS ASSEMBLY AIR CONDITIONING SYSTEM ANTI-THEFT SYSTEM AUTO TAIL BACKUP LAMPS CIRCUIT BBL+ BBR+ BCL+ BCR+ BDL- BFL+ BFR+ BLOWER DAMPER SERVO SUB-ASSEMBLY 1 BRAKE BOOSTER W/ MASTER CYLINDER ASSEMBLY BSL+ BSR+ BTH+ BUS - BUSBAR MODULE CA+ CAN JUNCTION TERMINAL CAN L CAN P CAN-N CANL EP CB+ CBR+ CC CD CENTER STOP LIGHT ASSEMBLY CLUSTER SYSTEM COMBINATION METER ASSEMBLY COMPRESSOR W/ PULLEY ASSEMBLY COMPUTER DATA LINES SYSTEM CONSOLE BOX ILLUMINATION LIGHT ASSEMBLY CONTROL CIRCUIT COOLER THERMISTOR 1 COOLING FANS SYSTEM CRUISE CONTROL SYSTEM CV+ DATA LINES COMPUTER DEFOGGER SYSTEM DIRECT FUEL INJECTOR ASSEMBLY 1 DIRECT FUEL INJECTOR ASSEMBLY 2 DIRECT FUEL INJECTOR ASSEMBLY 3 DIRECT FUEL INJECTOR ASSEMBLY 4 DK+ DLC 3 DOOR LOCKS SYSTEM DOOR LOCKS, ANTI-THEFT SYSTEMS DOOR LOCKS, TRUNK, TAILGATE, FUEL DOORS SYSTEMS DOWN RIGHT DRIVE MODE DRL OFF EGA+ EGB- EL BFG EL HU ELECTRIC POWER STEERING COLUMN SUB-ASSEMBLY ETHW THW EV MODE EXCEPT CANADA EXCEPT HYBRID EXCEPT HYBRID W/O LED TURN SIGNAL LIGHT FCP+ FE, B FL- FL+ FLASH HIGH FLCY CANL FP- FR+ FR- FRCY 1 4 FLCY FUEL INJECTOR ASSEMBLY 1 FUEL INJECTOR ASSEMBLY 2 FUEL INJECTOR ASSEMBLY 3 FUEL INJECTOR ASSEMBLY 4 FUEL SENDER GAGE FUEL SENDER GAUGE FUEL SENDER GAUGE HALL IC FUSIBLE LINK BLOCK FUSIBLE LINK BLOCK ASSEMBLY GLOVE BOX LIGHT ASSEMBLY GVO+ HALL IC 1 HATCHBACK, SEDAN W/ LUMBAR SUPPORT HEAD DRL OFF OFF HEAD OFF DRL OFF HEAD TAIL DRL OFF OFF HEADLIGHTS SYSTEM HF LOW HIGH/LOW DRL HORNS SYSTEM HOT AT ALL TIMES HOT W/ HU LOW HYBRID VEHICLE TRANSAXLE ASSEMBLY HYBRID, EXCEPT HYBRID W/ LED TURN SIGNAL LIGHT ICL- ICR+ ILL ILL IMMOBILIZER CIRCUIT IMT SPORT INNER REAR VIEW MIRROR ASSEMBLY INSTRUMENT CLUSTER SYSTEM INSTRUMENT PANEL J/B INSTRUMENT PANEL J/B ASSEMBLY INSTRUMENT PANEL LIGHT ASSEMBLY INSTRUMENT PANEL PASSENGER AIR BAG W/O DOOR ASSEMBLY INTAKE MASS AIR FLOW METER SUB-ASSEMBLY INVERTER W/ CONVERTER ASSEMBLY KLS+ L OFF LBR- LEFT "C" PILLAR) LEFT BUSBAR MODULE LEFT CURTAIN SHIELD AIR BAG ASSEMBLY LEFT FOG LIGHT ASSEMBLY LEFT FRONT DOOR OUTSIDE HANDLE ASSEMBLY LEFT FRONT SEAT AIR BAG ASSEMBLY LEFT FRONT SEAT INNER BELT ASSEMBLY LEFT FRONT SEAT OUTER BELT ASSEMBLY LEFT LED ILLUMINATION LIGHT LEFT LICENSE PLATE LIGHT ASSEMBLY LEFT LUMBAR SUPPORT ADJUSTER ASSEMBLY LEFT OUTER REAR VIEW MIRROR ASSEMBLY LEFT REAR COMBINATION LIGHT ASSEMBLY LEFT REAR LIGHT ASSEMBLY LEFT REAR SEAT AIR BAG ASSEMBLY LEFT REAR SEAT INNER BELT W/ CENTER ASSEMBLY LEFT SIDE OF DASH) IA LEFT VANITY LIGHT ASSEMBLY LEFT VISOR ASSEMBLY LF+ LIGHT CONTROL RHEOSTAT LIGHT IC LIN 1 LOW/HIGH DRL LOWER INSTRUMENT PANEL AIR BAG ASSEMBLY 1 LSP + LUGGAGE COMPARTMENT LIGHT ASSEMBLY 1 M+ MV M/T CVT MAIN BOARD MAIN BOARD MAP LIGHT ASSEMBLY MAP LIGHT ASSEMBLY MCI- MCO- METER MIRROR SUB-ASSEMBLY MH M+ MIC - MOBILE WIRELESS CHARGER CRADLE ASSEMBLY MRL+ MSM+ NAVIGATION SYSTEM NAVIGATION, SOUND SYSTEMS NE+ NE- NE+ NIN- NOT USED NOT USED OF RIGHT "C" PILLAR) ON OFF PL- POL 19 20 CANL PORT FUEL INJECTOR ASSEMBLY 1 PORT FUEL INJECTOR ASSEMBLY 2 PORT FUEL INJECTOR ASSEMBLY 3 PORT FUEL INJECTOR ASSEMBLY 4 POWER DISTRIBUTION SYSTEM POWER TOPS SYSTEM POWER WINDOWS SYSTEM PR- PRETENSIONER RIGHT FRONT SEAT OUTER BELT ASSEMBLY PURGE VSV R/B ASSEMBLY 2 R/B ASSEMBLY 3 RADIATOR SHUTTER SUB- ASSEMBLY RADIO, DISPLAY RECEIVER RADIO, DISPLAY RECEIVER ASSEMBLY RBR- RF+ RIGHT BUSBAR MODULE RIGHT CURTAIN SHIELD AIR BAG ASSEMBLY RIGHT END OF DASH) RIGHT FOG LIGHT ASSEMBLY RIGHT FRONT DOOR OUTSIDE HANDLE ASSEMBLY RIGHT FRONT SEAT AIR BAG ASSEMBLY RIGHT FRONT SEAT CUSHION AIR BAG ASSEMBLY RIGHT FRONT SEAT INNER BELT ASSEMBLY RIGHT LED ILLUMINATION LIGHT RIGHT LEFT RIGHT LICENSE PLATE LIGHT ASSEMBLY RIGHT OUTER REAR VIEW MIRROR ASSEMBLY RIGHT REAR COMBINATION LIGHT ASSEMBLY RIGHT REAR LIGHT ASSEMBLY RIGHT REAR SEAT 3 POINT TYPE BELT ASSEMBLY RIGHT REAR SEAT AIR BAG ASSEMBLY RIGHT VANITY LIGHT ASSEMBLY RIGHT VISOR ASSEMBLY ROOM LIGHT ASSEMBLY 1 SEATS SYSTEM SEDAN W/O LUMBAR SUPPORT SEN-1 SEN-2 SERVICE PLUG SFL- SFR- SG-1 SG-2 SG-3 SG-4 SHIFT INTERLOCK SYSTEM SIDE MARKER SIDE MARKER PARKING TURN SL- SLG- SLS+ SLU+ SMART DOOR CONTROL RECEIVER ASSEMBLY SOL + SP- SPI+ SPIRAL CABLE SUB-ASSEMBLY SPO- SR- SRL- SRR+ STARTING CIRCUIT STARTING/ CHARGING SYSTEM STARTING/CHARGING SYSTEM STEERING COLUMN) STEERING WHEEL) STEREO JACK ADAPTER ASSEMBLY 1 SUPPLEMENTAL RESTRAINTS SYSTEM SW 1 SW 2 TAIL DRL OFF OFF TELLTALE LIGHT ASSEMBLY THERMOSTAT W/ WATER INLET SUB-ASSEMBLY TIRE PRESSURE MONITOR RECEIVER ASSEMBLY TMC MADE TMMMS MADE TO GROUND OE TRANSAXLE ASSEMBLY) TRANSMISSIONS SYSTEM TRUNK, TAILGATE, FUEL DOORS SYSTEM TWL- TWR+ UDO+ UP LEFT USED) VHP- VOR- VOT+ VVE- VVI+ W-OFF W/ ADAPTIVE FRONT LIGHTING SYSTEM W/ BLIND SPOT MONITOR SYSTEM W/ BLIND SPOT MONITOR SYSTEM, W/ REAR SEAT BELT WARNING SYSTEM W/ DUAL A/C W/ ELECTRIC PARKING BRAKE SYSTEM W/ ENTRY FUNCTION W/ FRONT FOG LIGHT W/ HEAD UP DISPLAY W/ LED TURN SIGNAL LIGHT W/ LUGGAGE COMPARTMENT DOOR OPENER W/ LUMBAR SUPPORT W/ NAVIGATION W/ POWER SEAT W/ POWER SEAT W/O LUMBAR SUPPORT W/ POWER SEAT W/O LUMBER SUPPORT W/ POWER SEAT, LUMBAR SUPPORT W/ REAR SEAT BELT WARNING SYSTEM W/ SLIDING ROOF W/ SLIDING ROOF W/O SLIDING ROOF W/ SMART KEY W/ TELEMATICS W/ TELEMATICS SYSTEM W/ TIRE PRESSURE WARNING SYSTEM W/O ADAPTIVE FRONT-LIGHTING SYSTEM W/O BLIND SPOT MONITOR SYSTEM W/O ELECTRIC PARKING BRAKE SYSTEM W/O LED TURN SIGNAL LIGHT W/O LUMBAR SUPPORT W/O NAVIGATION W/O POWER SEAT W/ POWER SEAT, LUMBAR SUPPORT W/O POWER SEAT, W/ POWER SEAT, LUMBER SUPPORT W/O SMART KEY W/O TELEMATICS SYSTEM W/O TIRE PRESSURE WARNING SYSTEM WASHER FLUID RESERVOIR) WIPER/ WASHER SYSTEM WIPER/WASHER SYSTEM WPS CANL
