Toyota Corolla VII (1991-2002) w/ power windows w/o power windows Wiring diagrams
This page contains all the electrical diagrams for the component. w/ power windows w/o power windows, in which he is found in the car Toyota Corolla VII (1991-2002). You can view various wiring diagrams where this component is used, as well as go to more detailed diagrams to see the complete connection and interaction in the system. All diagrams have links to quickly jump to the corresponding section with the component for easy viewing..

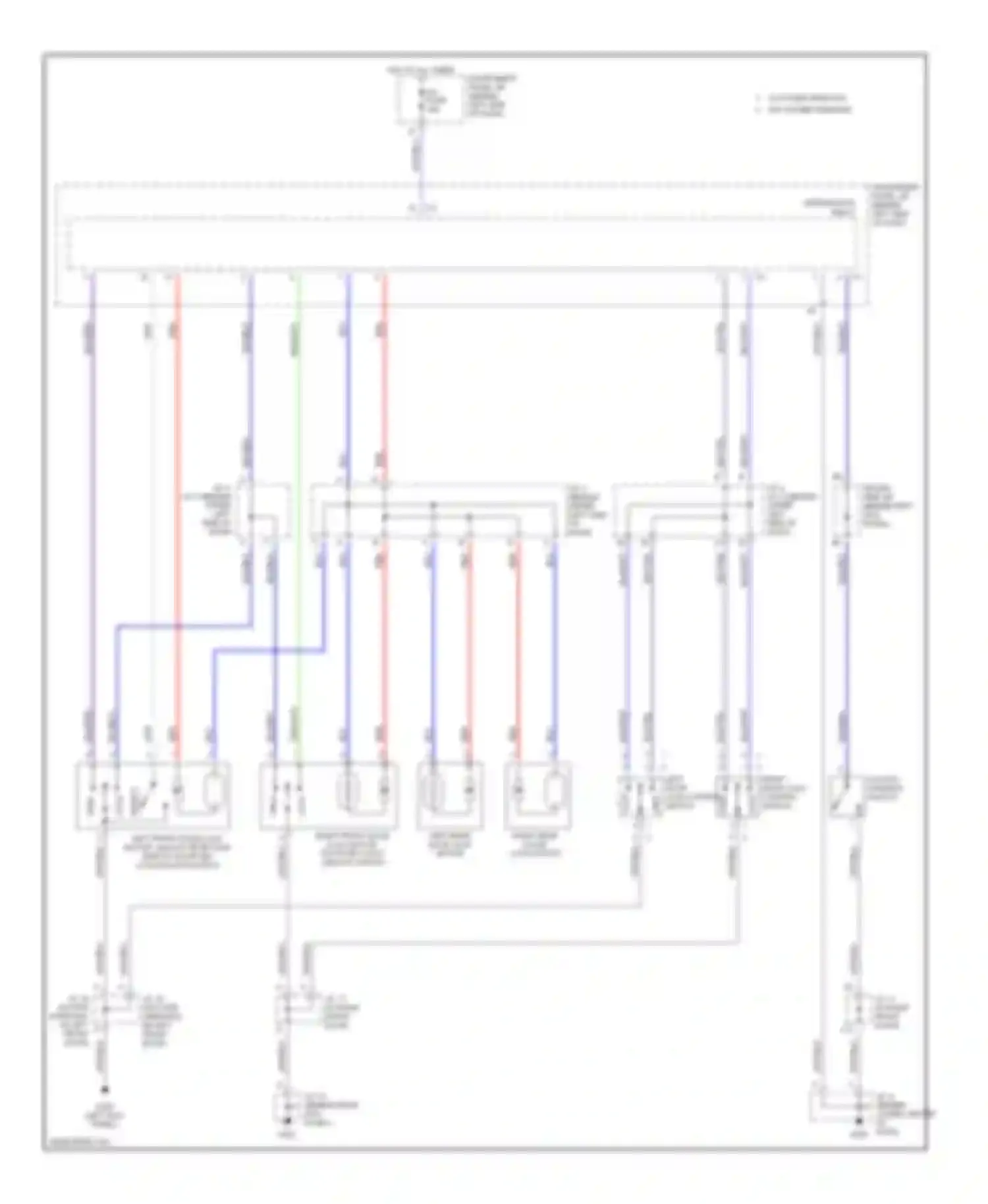

Wiring diagram w/ power windows w/o power windows (1 of 2)
BLU WIRE
BLU/BLK WIRE
BLU/RED WIRE
BLU/WHT WIRE
BLU/YEL WIRE
D/L FUSE
DETECT
DRIVER SIDE J/B (BEHIND LEFT KICK PANEL)
GRN/WHT WIRE
HOT AT ALL TIMES
INSTRUMENT PANEL J/B (BEHIND LEFT SIDE OF DASH)
INTEGRATION RELAY
J/C 14 (BEHIND RIGHT KICK PANEL)
J/C 15 (W/O PWR WINDOWS) (IN LEFT FRONT DOOR)
J/C 16 (W/ PWR WINDOWS) (IN LEFT FRONT DOOR)
J/C 17 (IN RIGHT FRONT DOOR)
J/C 3 (BEHIND UPPER LEFT SIDE OF DASH)
J/C 4, J/C 5 (BEHIND UPPER LEFT SIDE OF DASH)
J/C 8 (BEHIND LOWER CENTER OF DASH)
LEFT DOOR LOCK CONTROL SWITCH
LEFT FRONT DOOR LOCK MOTOR, UNLOCK DETECTION SWITCH, DOOR KEY LOCK/UNLOCK SWITCH
LEFT REAR DOOR LOCK MOTOR
LOCK
RED WIRE
RIGHT DOOR LOCK CONTROL SWITCH
RIGHT FRONT DOOR LOCK MOTOR, DOOR KEY LOCK/ UNLOCK SWITCH
RIGHT REAR DOOR LOCK MOTOR
UNLK
UNLOCK WARNING SWITCH
W/ POWER WINDOWS W/O POWER WINDOWS
WHT WIRE
WHT/BLK WIRE
WHT/BLU WIRE
Go to component -> Power door lock circuit, nummi made -> W/ POWER WINDOWS W/O POWER WINDOWS

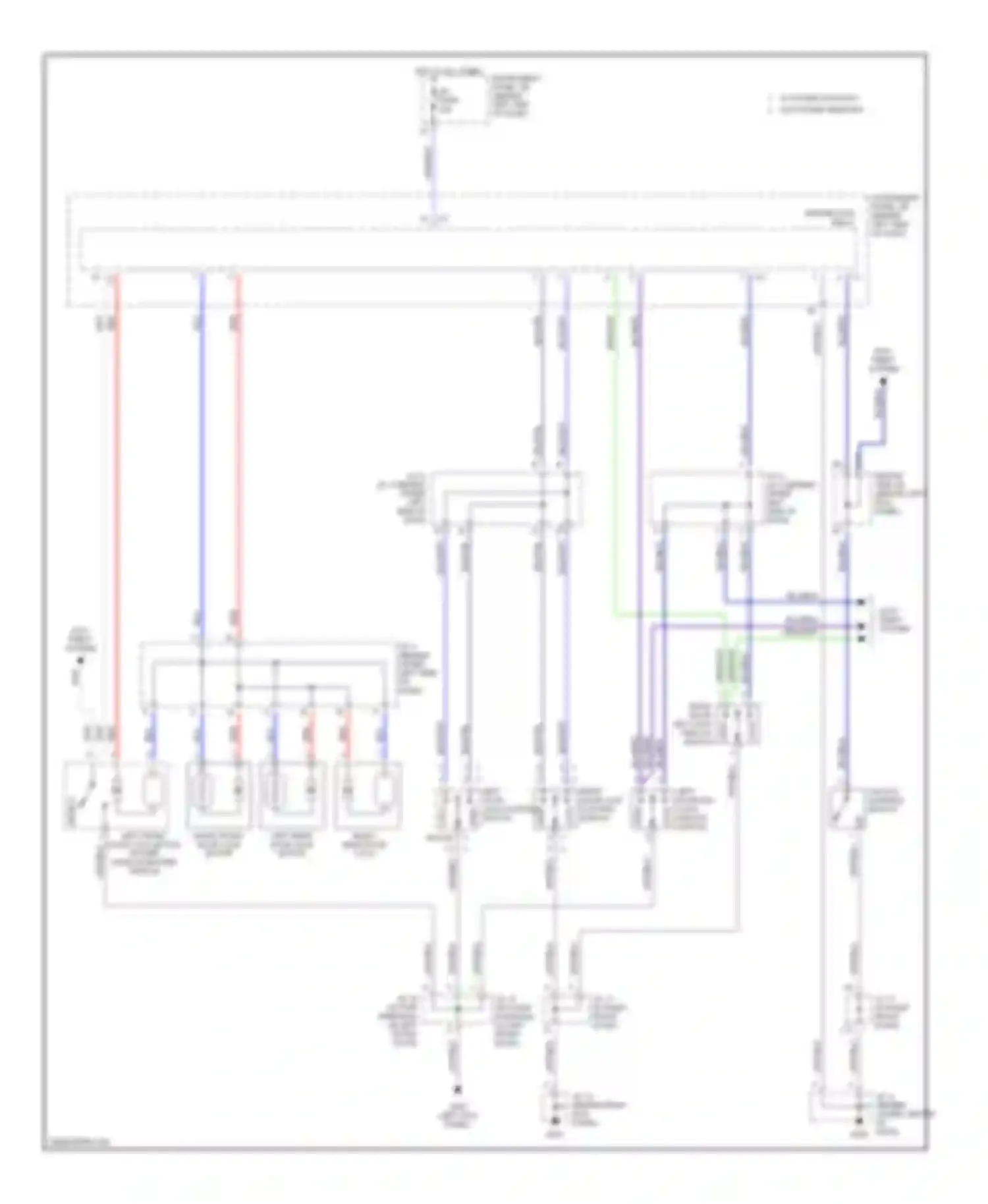

Wiring diagram w/ power windows w/o power windows (2 of 2)
ANTI-THEFT SYSTEM
BLU WIRE
BLU/BLK WIRE
BLU/RED WIRE
BLU/WHT WIRE
BLU/YEL WIRE
D/L FUSE
DETECT
DRIVER SIDE J/B (BEHIND LEFT KICK PANEL)
GRN/WHT WIRE
HOT AT ALL TIMES
INSTRUMENT PANEL J/B (BEHIND LEFT SIDE OF DASH)
INTEGRATION RELAY
J/C 14 (BEHIND RIGHT KICK PANEL)
J/C 17 (IN RIGHT FRONT DOOR)
J/C 3 (BEHIND UPPER LEFT SIDE OF DASH)
J/C 4, J/C 5 (BEHIND UPPER LEFT SIDE OF DASH)
J/C 8 (BEHIND LOWER CENTER OF DASH)
LEFT DOOR KEY LOCK/ UNLOCK SWITCH
LEFT DOOR LOCK CONTROL SWITCH
LEFT FRONT DOOR LOCK MOTOR (POWER WINDOW MASTER SWITCH)
LEFT REAR DOOR LOCK MOTOR
LOCK
RED WIRE
RIGHT DOOR KEY LOCK/ UNLOCK SWITCH
RIGHT DOOR LOCK CONTROL SWITCH
RIGHT FRONT DOOR LOCK MOTOR
RIGHT REAR DOOR LOCK MOTOR 3 3
UNLK
UNLOCK WARNING SWITCH
W/ POWER WINDOWS W/O POWER WINDOWS
WHT WIRE
WHT/BLK WIRE
WHT/BLU WIRE
Go to component -> Power door lock circuit, tmmc made -> W/ POWER WINDOWS W/O POWER WINDOWS
