Back-up lamps circuit for Toyota Celica T230 (1999-2002)

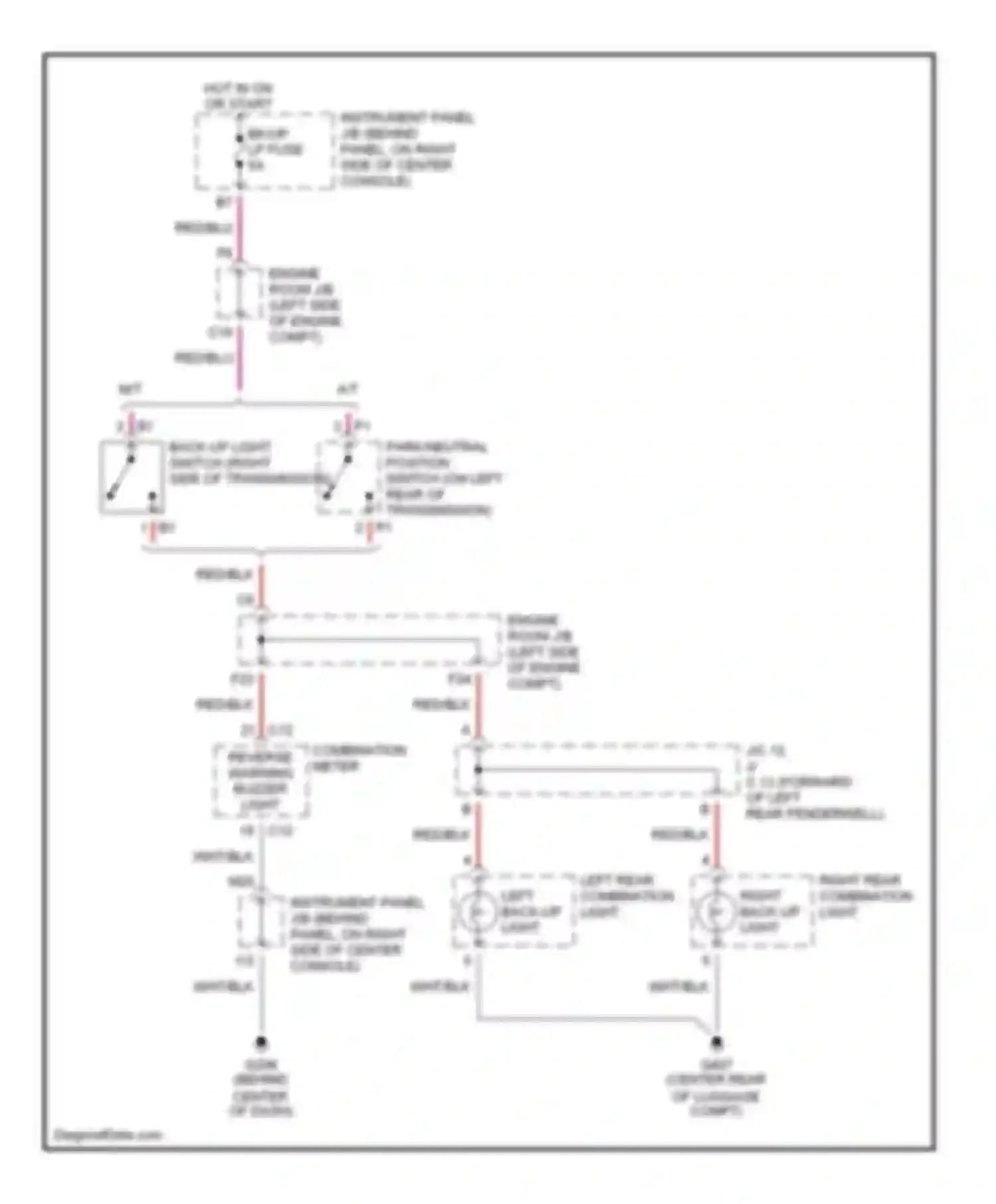

Back-up lamps circuit
A/T
BACK-UP LIGHT SWITCH (RIGHT SIDE OF TRANSMISSION)
BKUP LP FUSE
CENTER REAR OF LUGGAGE COMPT)
COMBINATION METER REVERSE WARNING BUZZER LIGHT
ENGINE ROOM J/B (LEFT SIDE OF ENGINE COMPT)
HOT IN ON OR START
INSTRUMENT PANEL J/B (BEHIND PANEL ON RIGHT SIDE OF CENTER CONSOLE)
J/C 12, J/C 13 (FORWARD OF LEFT REAR FENDERWELL)
LEFT BACK-UP LIGHT
LEFT REAR COMBINATION LIGHT
M/T
PARK/NEUTRAL POSITION SWITCH (ON LEFT REAR OF TRANSMISSION)
RED/BLK WIRE
RED/BLU WIRE
RIGHT BACK-UP LIGHT
RIGHT REAR COMBINATION LIGHT
WHT/BLK WIRE
