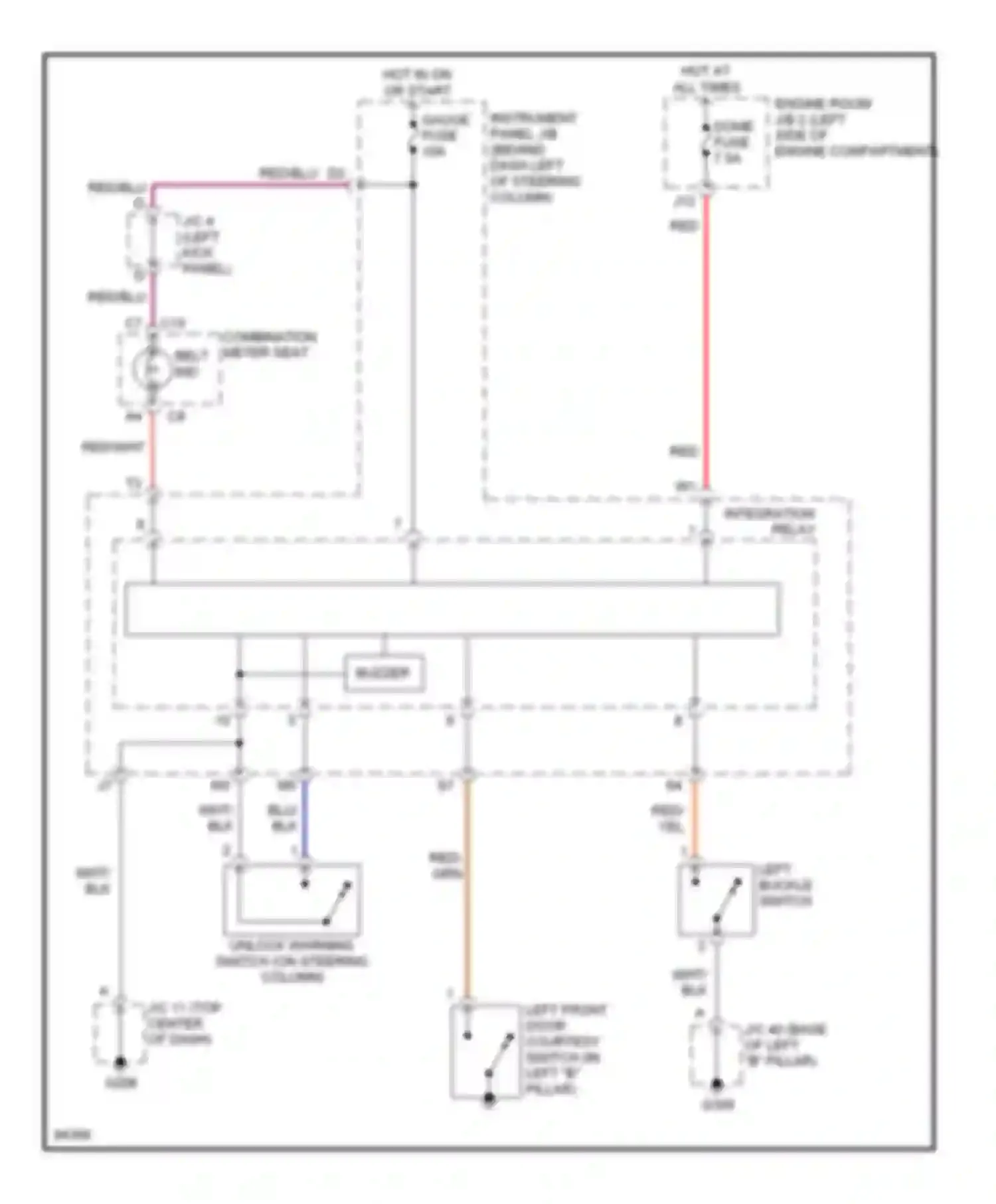

Car Wiring Diagrams for 3.0l, warning system circuits for Toyota Camry XV20 (1994-2002)

BLK WIRE BLU WIRE BUZZER COMBINATION METER SEAT BELT IND DOME FUSE ENGINE ROOM J/B 2 (LEFT SIDE OF ENGINE COMPARTMENT) GAUGE FUSE GRN WIRE HOT AT ALL TIMES HOT IN ON OR START INSTRUMENT PANEL J/B (BEHIND DASH, LEFT OF STEERING COLUMN) INTEGRATION RELAY J/C 11 (TOP CENTER OF DASH) J/C 4 (LEFT KICK PANEL) J/C 40 (BASE OF LEFT "B" PILLAR) LEFT BUCKLE SWITCH LEFT FRONT DOOR COURTESY SWITCH (IN LEFT "B" PILLAR) RED WIRE RED/BLU WIRE RED/WHT WIRE UNLOCK WARNING SWITCH (ON STEERING COLUMN) WHT WIRE YEL WIRE
