Toyota bZ4X I (2022-2024) lane tracing assist switch Wiring diagrams
This page contains all the electrical diagrams for the component. lane tracing assist switch, in which he is found in the car Toyota bZ4X I (2022-2024). You can view various wiring diagrams where this component is used, as well as go to more detailed diagrams to see the complete connection and interaction in the system. All diagrams have links to quickly jump to the corresponding section with the component for easy viewing..

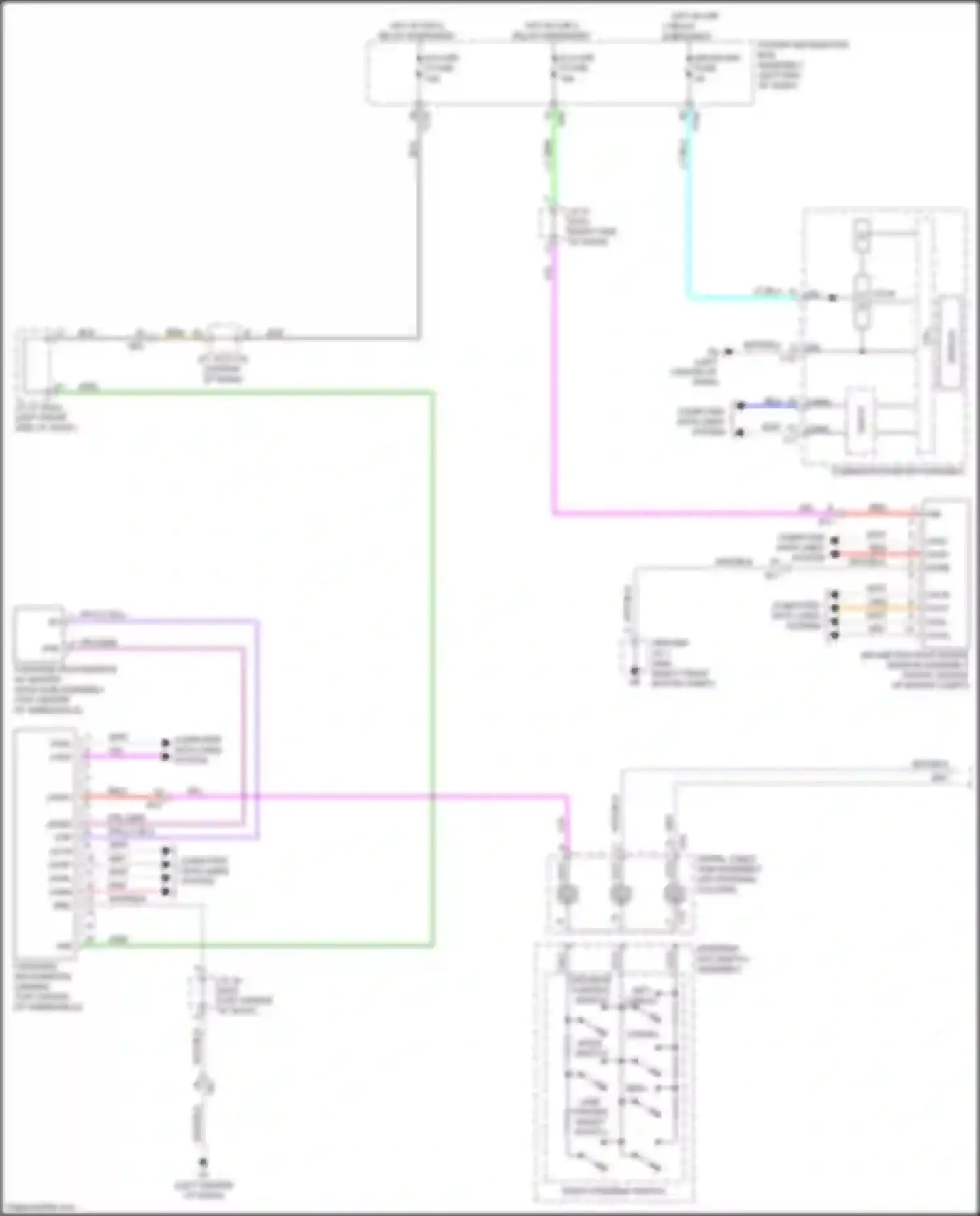

Wiring diagram lane tracing assist switch (1 of 2)
-SET CANCEL
BLK WIRE
BLU WIRE
BRN WIRE
CAN I/F
CANP
COMBINATION METER ASSEMBLY
COMPUTER DATA LINES SYSTEM
DISPLAY
DISTANCE CONTROL SWITCH
ECU-IGR 2 FUSE
ECU-IGR 5 FUSE
FORWARD RECOGNITION CAMERA
FORWARD RECOGNITION W/ HEATER HOOD SUB-ASSEMBLY
GRN WIRE
GRY WIRE
HOT W/ IGR 1 RELAY ENERGIZED
HOT W/ IGR 2 RELAY ENERGIZED
HTR
IGB
LANE TRACING ASSIST SWITCH
LKSW
LT BLU WIRE
LT GRN WIRE
METER-IGR FUSE
MILLIMETER WAVE RADAR SENSOR ASSEMBLY
MODE SWITCH
ORG/ WIRE
PNK WIRE
POWER DISTRIBUTION BOX ASSEMBLY
PPL/GRN WIRE
PPL/LT BLU WIRE
RED WIRE
RES+
RIGHT STEERING SWITCH
SGND
SPIRAL CABLE SUB-ASSEMBLY
STEERING PAD SWITCH ASSEMBLY
VIO WIRE
WHT WIRE
WHT/BLK WIRE
Go to component -> Dynamic laser cruise control circuit (1 of 2) -> LANE TRACING ASSIST SWITCH

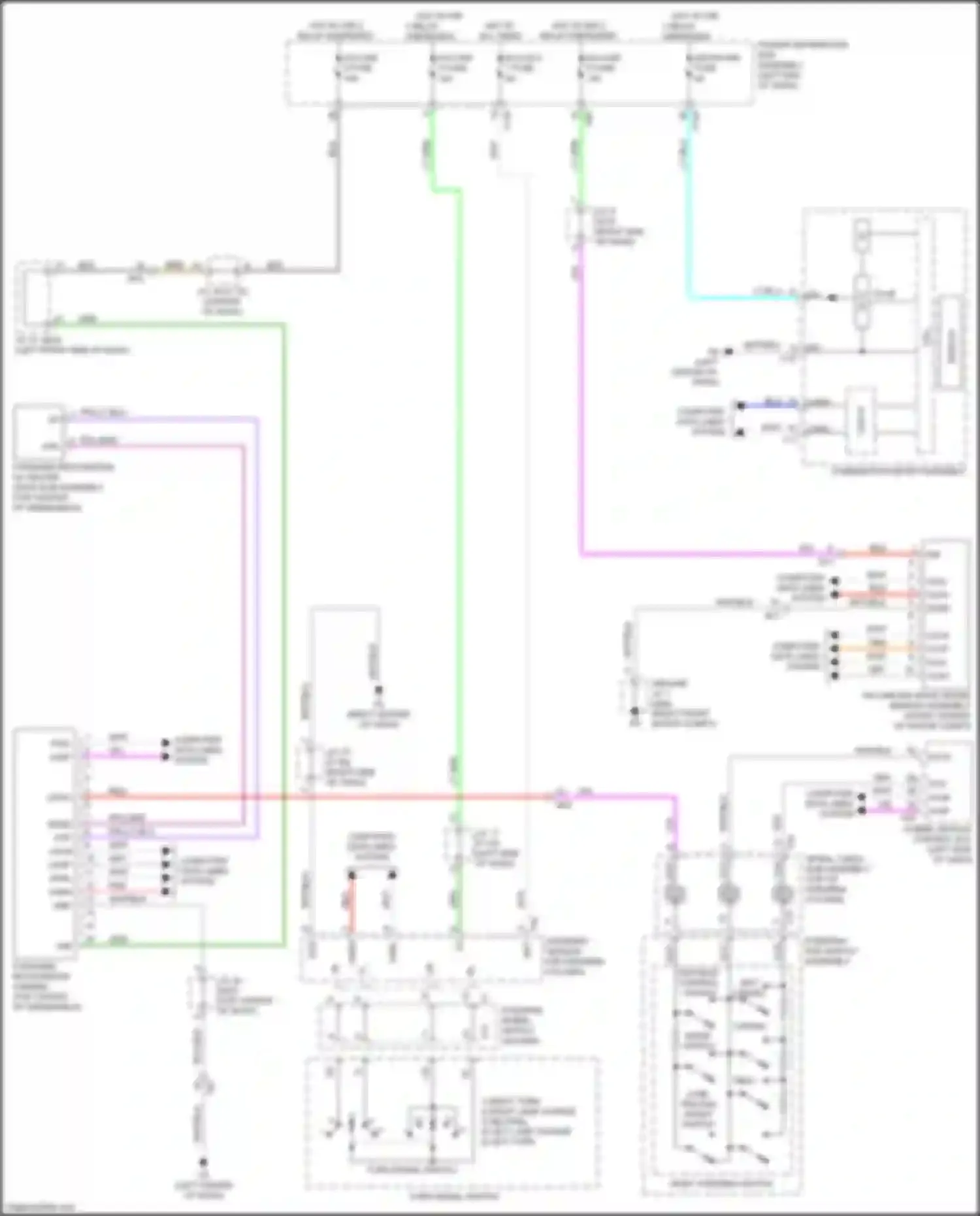

Wiring diagram lane tracing assist switch (2 of 2)
-SET CANCEL
1) RIGHT TURN 2) RIGHT LANE CHANGE 3) NEUTRAL 4) LEFT LANE CHANGE 5) LEFT TURN
BLK WIRE
BLU WIRE
BRN WIRE
CAN I/F
CANP
COMBINATION METER ASSEMBLY
COMPUTER DATA LINES SYSTEM
DISPLAY
DISTANCE CONTROL SWITCH
ECCS
ECU- DCC 1 FUSE
ECU-IGR 2 FUSE
ECU-IGR 3 FUSE
ECU-IGR 5 FUSE
FORWARD RECOGNITION CAMERA
FORWARD RECOGNITION W/ HEATER HOOD SUB-ASSEMBLY
GRN WIRE
GRY WIRE
HOT AT ALL TIMES
HOT W/ IGR 1 RELAY ENERGIZED
HOT W/ IGR 2 RELAY ENERGIZED
HTR
HYBRID VEHICLE CONTROL ECU
IGB
LANE TRACING ASSIST SWITCH
LKSW
LT BLU WIRE
LT GRN WIRE
METER-IGR FUSE
MILLIMETER WAVE RADAR SENSOR ASSEMBLY
MODE SWITCH
ORG/ WIRE
PNK WIRE
POWER DISTRIBUTION BOX ASSEMBLY
PPL/GRN WIRE
PPL/LT BLU WIRE
RED WIRE
RES+
RIGHT STEERING SWITCH
SGND
SPIRAL CABLE SUB-ASSEMBLY
STEERING PAD SWITCH ASSEMBLY
STEERING SENSOR
STEERING WHEEL SWITCH HOUSING
TURN SIGNAL SWITCH
VIO WIRE
WHT WIRE
WHT/BLK WIRE
Go to component -> Lane departure warning circuit -> LANE TRACING ASSIST SWITCH
