Toyota bZ4X I (2022-2024) inp std 1 fuse Wiring diagrams
This page contains all the electrical diagrams for the component. inp std 1 fuse, in which he is found in the car Toyota bZ4X I (2022-2024). You can view various wiring diagrams where this component is used, as well as go to more detailed diagrams to see the complete connection and interaction in the system. All diagrams have links to quickly jump to the corresponding section with the component for easy viewing..
Wiring diagram inp std 1 fuse (1 of 4)
BACKUP LIGHT
BKUP LP RELAY
BLK WIRE
BLU WIRE
CXPI
HOT AT ALL TIMES
INP STD 1 FUSE
LT GRN WIRE
MAIN BODY ECU
MOTOR COMPARTMENT R/B 1
PARKING ASSIST ECU
POWER DISTRIBUTION BOX ASSEMBLY
PPL
PPL/RED WIRE
RADIO, DISPLAY RECEIVER ASSEMBLY
REAR LIGHT ASSEMBLY
RED WIRE
REV
REVD
TRANSMISSION FLOOR SHIFT ASSEMBLY
VIO WIRE
W/O PANORAMIC VIEW MONITOR SYSTEM
WHT WIRE
WHT/BLK WIRE
Go to component -> Backup lamps circuit -> INP STD 1 FUSE

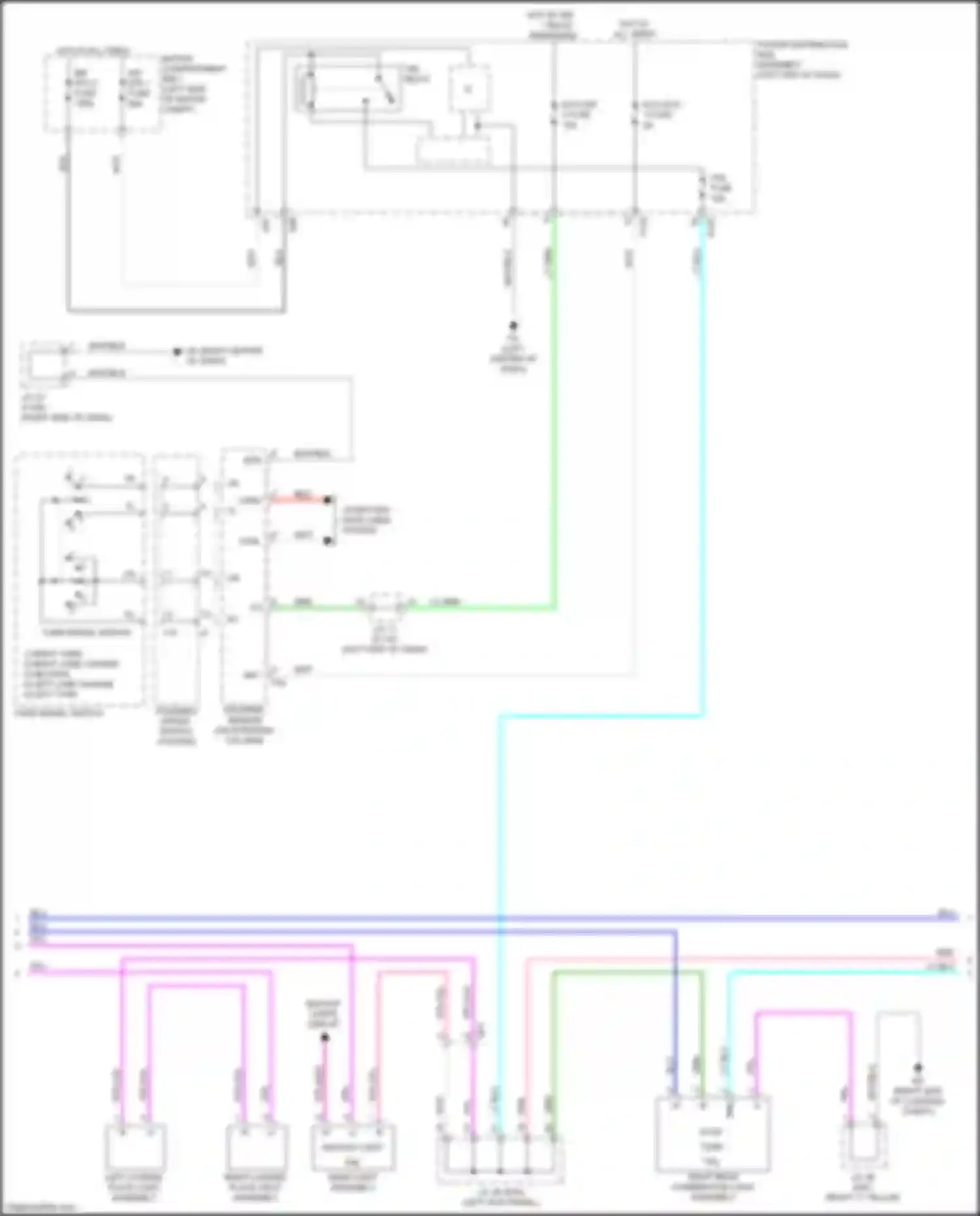

Wiring diagram inp std 1 fuse (2 of 4)
1) RIGHT TURN 2) RIGHT LANE CHANGE 3) NEUTRAL 4) LEFT LANE CHANGE 5) LEFT TURN
BACKUP LAMPS CIRCUIT
BACKUP LIGHT
BLK WIRE
BLU WIRE
COMPUTER DATA LINES SYSTEM
ECU- DCC 1 FUSE
ECU-IGR 3 FUSE
FE (RIGHT CENTER OF DASH)
GRN WIRE
HOT AT ALL TIMES
HOT W/ IGR 1 RELAY ENERGIZED
INP STD 1 FUSE
INP STD 2 FUSE
LEFT LICENSE PLATE LIGHT ASSEMBLY
LT BLU WIRE
LT GRN WIRE
MOTOR COMPARTMENT R/B 1
PNK WIRE
POWER DISTRIBUTION BOX ASSEMBLY
PPL
PPL/RED WIRE
PPL/VIO WIRE
PPL/YEL WIRE
REAR LIGHT ASSEMBLY
RED WIRE
RIGHT LICENSE PLATE LIGHT ASSEMBLY
RIGHT REAR COMBINATION LIGHT ASSEMBLY
STEERING SENSOR
STEERING WHEEL SWITCH HOUSING
STOP
TAIL
TAIL FUSE
TAIL RELAY
TRN+
TURN
TURN SIGNAL SWITCH
VIO WIRE
WHT WIRE
WHT/BLK WIRE
Go to component -> Exterior lamps circuit (2 of 3) -> INP STD 1 FUSE
Wiring diagram inp std 1 fuse (3 of 4)
AIR CONDITIONING AMPLIFIER ASSEMBLY
AIR CONDITIONING CONTROL ASSEMBLY
BLK WIRE
BLK/RED WIRE
BLU WIRE
COMPUTER DATA LINES SYSTEM
CXPI
DEF
ECU- IGP 2 FUSE
ECU-B 5 FUSE
GRN WIRE
GRY WIRE
HOT AT ALL TIMES
HOT W/ IGP 1 RELAY ENERGIZED
INP STD 1 FUSE
LEFT OUTER REAR VIEW MIRROR ASSEMBLY
LT GRN WIRE
MAIN BODY ECU
MIR HTR RELAY
MIRROR HEATER
MOTOR COMPARTMENT R/B 1
PNK WIRE
POWER DISTRIBUTION BOX ASSEMBLY
RADIO SETTING CONDENSER
REAR WINDOW DEFOGGER (BACK DOOR GLASS)
RIGHT OUTER REAR VIEW MIRROR ASSEMBLY
RR DEF RELAY
SGND
VIO WIRE
W/O PANORAMIC VIEW MONITOR SYSTEM
WHT WIRE
WHT/BLK WIRE
Go to component -> Mirror heater & rear defogger circuit -> INP STD 1 FUSE
Wiring diagram inp std 1 fuse (4 of 4)
ABS 1 FUSE
ABS 2 FUSE
ABS MTR FUSE
ABS- MAIN FUSE
BATT-S 1 FUSE
BATT-S 2 FUSE
BATTERY
BATTERY STATE SENSOR ASSEMBLY
BLK WIRE
BLU WIRE
BRAKE BOOSTER CONTROL ECU (BRAKE BOOSTER W/ MASTER CYLINDER ASSEMBLY)
BRAKE CONTROL POWER SUPPLY ASSEMBLY
CAPACITOR FUSE
DC/DC FUSE
DK GRN WIRE
ELECTRIC CONVERTER UNIT ASSEMBLY
EPS-1 FUSE
FRONT EV MOTOR CONTROL INVERTER ASSEMBLY
FUSIBLE LINK BLOCK ASSEMBLY
G/SHUTTER FUSE
GRN WIRE
HYBRID VEHICLE CONTROL ECU
IGCT 4 FUSE
IGCT- IG 1 FUSE
IGCT-IG 1 RELAY
IGCT-IG 2 RELAY
IGP- MAIN 2 FUSE
INP STD 1 FUSE
INP STD 2 FUSE
LEFT CHARGE INLET BOX ASSEMBLY
LT BLU WIRE
MAIN FUSE
MOTOR COMPARTMENT J/B 1
ORG/ WIRE
PCU FR FUSE
PCU RR FUSE
POWER DISTRIBUTION BOX ASSEMBLY
POWER STEERING ECU (RACK, PINION POWER STEERING GEAR ASSEMBLY)
PPL/WHT WIRE
RADIATOR SHUTTER ASSEMBLY
RADIO FUSE
RADIO, DISPLAY RECEIVER ASSEMBLY
REAR TRANSAXLE W/ MOTOR, INVERTER ASSEMBLY
RED WIRE
SEMICONDUCTOR POWER INTEGRATION ECU
SKID CONTROL ECU (BRAKE ACTUATOR ASSEMBLY)
STD PI 1 FUSE
TO FUSE IGCT-SCENE (DIAGRAM 2 OF 8)
TO MOTOR COMPARTMENT R/B 1 (DIAGRAM 3 OF 8)
TO POWER DISTRIBUTION BOX ASSEMBLY (DIAGRAM 5 OF 8)
VIO WIRE
WHT WIRE
WHT/BLK WIRE
Go to component -> Power distribution circuit (1 of 8) -> INP STD 1 FUSE
