Back-up lamps circuit, with floor shift for Toyota Avalon XX20 facelift (2002-2005)

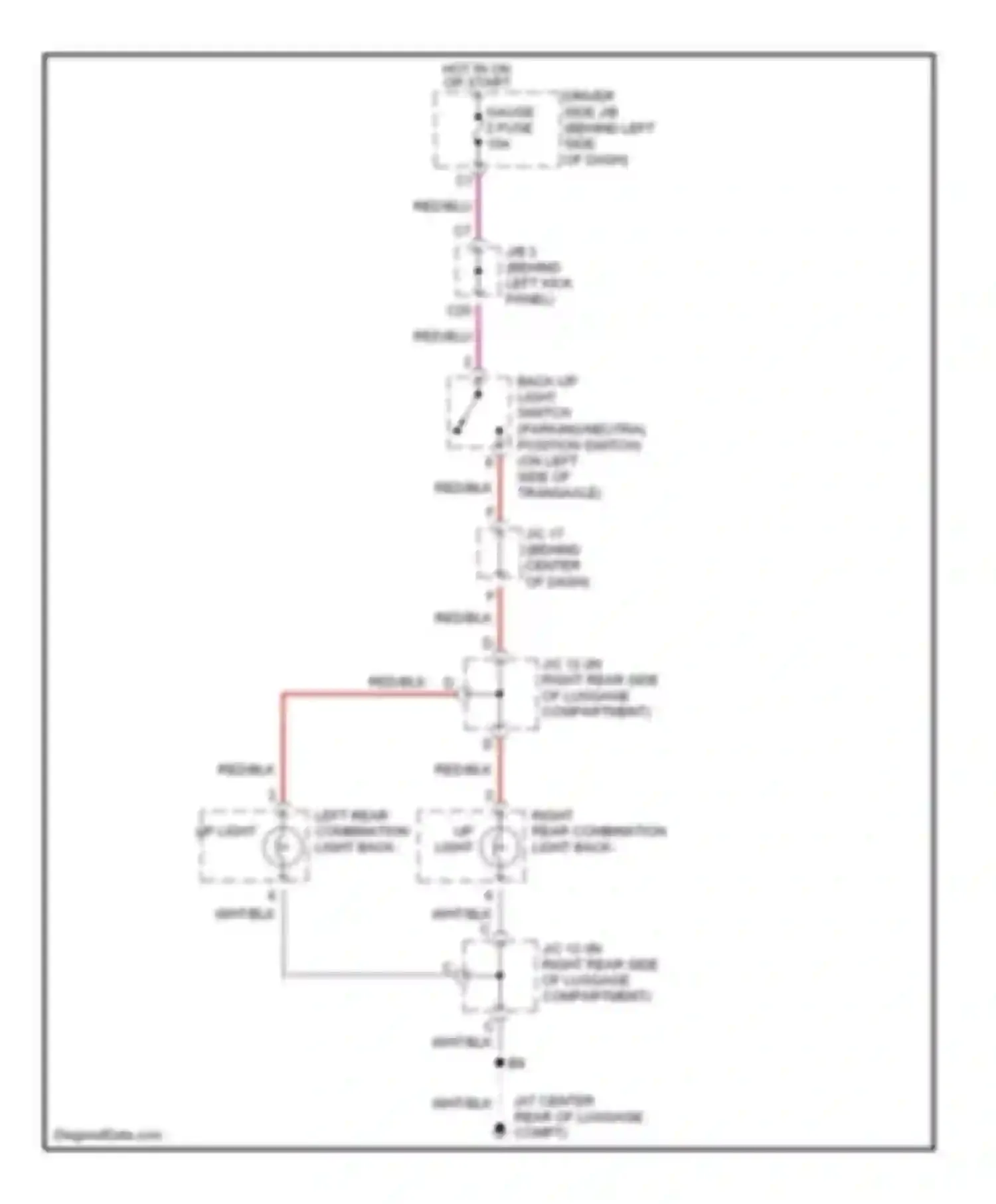

Back-up lamps circuit, with floor shift
DRIVER SIDE J/B (BEHIND LEFT SIDE OF DASH)
GAUGE 2 FUSE
HOT IN ON OR START
J/B 3 (BEHIND LEFT KICK PANEL)
J/C 12 (IN RIGHT REAR SIDE OF LUGGAGE COMPARTMENT)
J/C 17 (BEHIND CENTER OF DASH)
LEFT REAR COMBINATION LIGHT BACK-UP LIGHT
RED/BLK WIRE
RED/BLU WIRE
RIGHT REAR COMBINATION LIGHT BACK-UP LIGHT
WHT/BLK WIRE
