Suzuki XL7 I (1998-2009) to ign main relay 31 Wiring diagram
This page shows the only wiring diagram for the component.to ign main relay 31, which is found in the car Suzuki XL7 I (1998-2009). This component is only found in one wiring diagram on your vehicle, and you can see its details here. If necessary, you can also go to other diagrams for this system for more information..

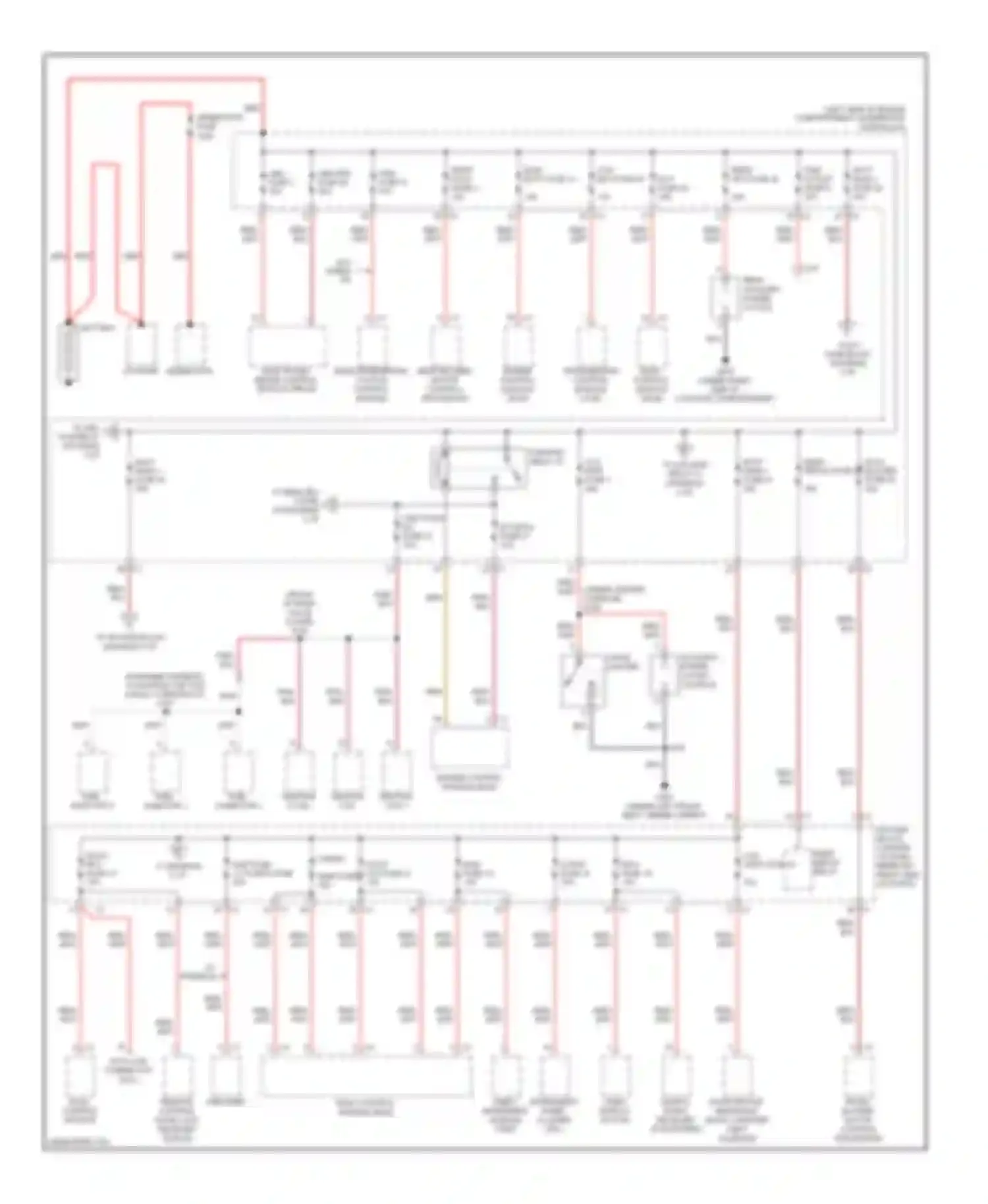

Wiring diagram to ign main relay 31 (1 of 1)
ABS FUSE #7
ABS MTR FUSE 49
AMP FUSE 12 TO RDO FUSE 17 (DIAGRAM 2 OF 3)
AMPLIFIER REMOTE CONTROL DOOR LOCK RECEIVER (RCDLR)
AUX PWR FUSE 3
AUXILIARY POWER OUTLET (CONSOLE)
AWD FUSE 41
BATT MAIN 1 FUSE 57
BATT MAIN 2 FUSE 50
BATT MAIN 3 FUSE 30
BATTERY
BCM FUSE 20
BLK WIRE
BODY CONTROL MODULE (BCM)
BRN WIRE
CAN VENT FUSE 16
CHMSL/ DIMR FUSE 22 INT LTS FUSE 23
CIGAR LIGHTER
CLSTR FUSE 18
DATA LINK CONNECTOR (DLC)
DIGITAL RADIO RECEIVER (IF EQUIPPED)
ECM BATT FUSE 33
ELECTRONIC BRAKE CONTROL MODULE (EBCM)
ENGINE CONTROL MODULE (ECM)
ETC/ECM FUSE 21
EVAPORATIVE EMISSIONS (EVAP) CANISTER VENT
FRONT BLOWER MOTOR CONTROL
FUEL INJECTOR 1
FUEL INJECTOR 5
FUSE 19
GENERATOR
GENERATOR FUSE
HVAC BLOWER FUSE 54
HVAC CONTROL MODULE
HVAC/ RFA FUSE 15
I/P FUSE BLOCK (CENTER OF DASH, BENEATH
IGNITION COIL 1
IGNITION IGNITION FUEL COIL 5 COIL 3 INJECTOR 3
INFO FUSE 14
INSTRUMENT PANEL CLUSTER (IPC)
ODD COILS/INJ
PNK PNK WIRE
PNK WIRE
PROCESSOR
PWR OUTLET FUSE 6
PWR/TRN RELAY 47
REAR APO FUSE 40
REAR AUXILIARY POWER OUTLET
REAR BLOWER MOTOR CONTROL PROCESSOR
REAR DEFOG FUSE 48
REAR DEFOG RELAY
REAR DIFFERENTIAL CLUTCH CONTROL MODULE
REAR HVAC FUSE 4
RED WIRE
RVC FUSE 42
SOLENOID
STARTER
TCM BAT FUSE 34
THEFT DETERRENT MODULE (TDM)
TO DRL PCB RELAY (DIAGRAM 3 OF 3)
TO EMM DEV 2 FUSE 20 (DIAGRAM 2 OF 3)
TO I/P FUSE BLOCK (DIAGRAM 2 OF 3)
TO I/P FUSE BLOCK (DIAGRAM 3 OF 3)
TO IGN MAIN RELAY 31
TRANSMISSION CONTROL MODULE (TCM)
VIDEO DISPLAY (W/ DVD)
W/ 6 SPEED A/T
W/ PREMIUM
WHT WIRE
Go to component -> Power distribution circuit (1 of 3) -> TO IGN MAIN RELAY 31
