Charging circuit for Suzuki Verona I (2003-2006)

Charging circuit

Get access

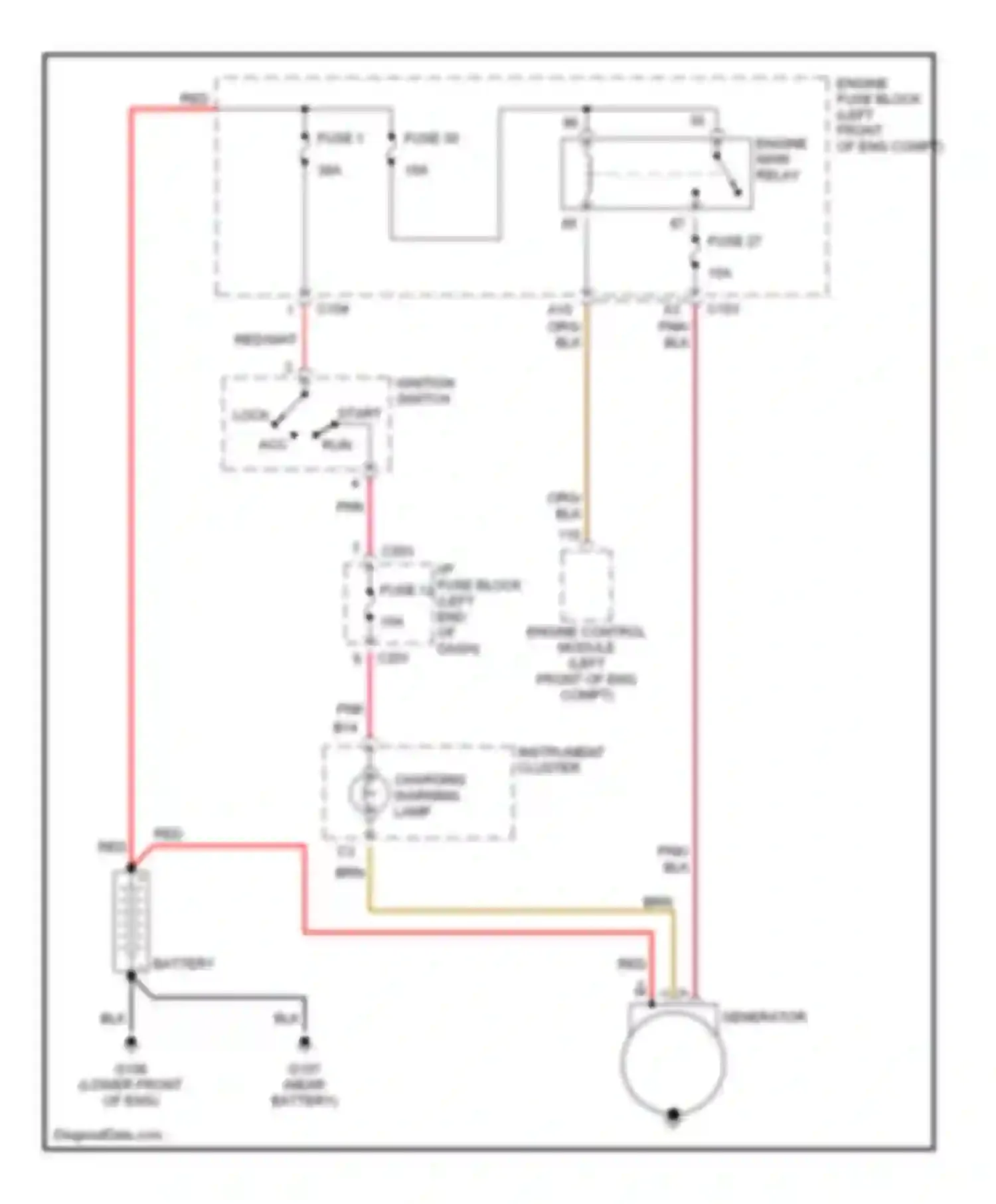

BATTERY BLK WIRE BRN WIRE CHARGING WARNING LAMP ENGINE CONTROL MODULE (LEFT FRONT OF ENG COMPT) ENGINE FUSE BLOCK (LEFT FRONT OF ENG COMPT) ENGINE MAIN RELAY FUSE 1 FUSE 12 FUSE 27 FUSE 30 GENERATOR I/P FUSE BLOCK (LEFT END OF DASH) IGNITION SWITCH INSTRUMENT CLUSTER LOCK ORG/ WIRE PNK WIRE RED WIRE RED/WHT WIRE RUN WIRE
