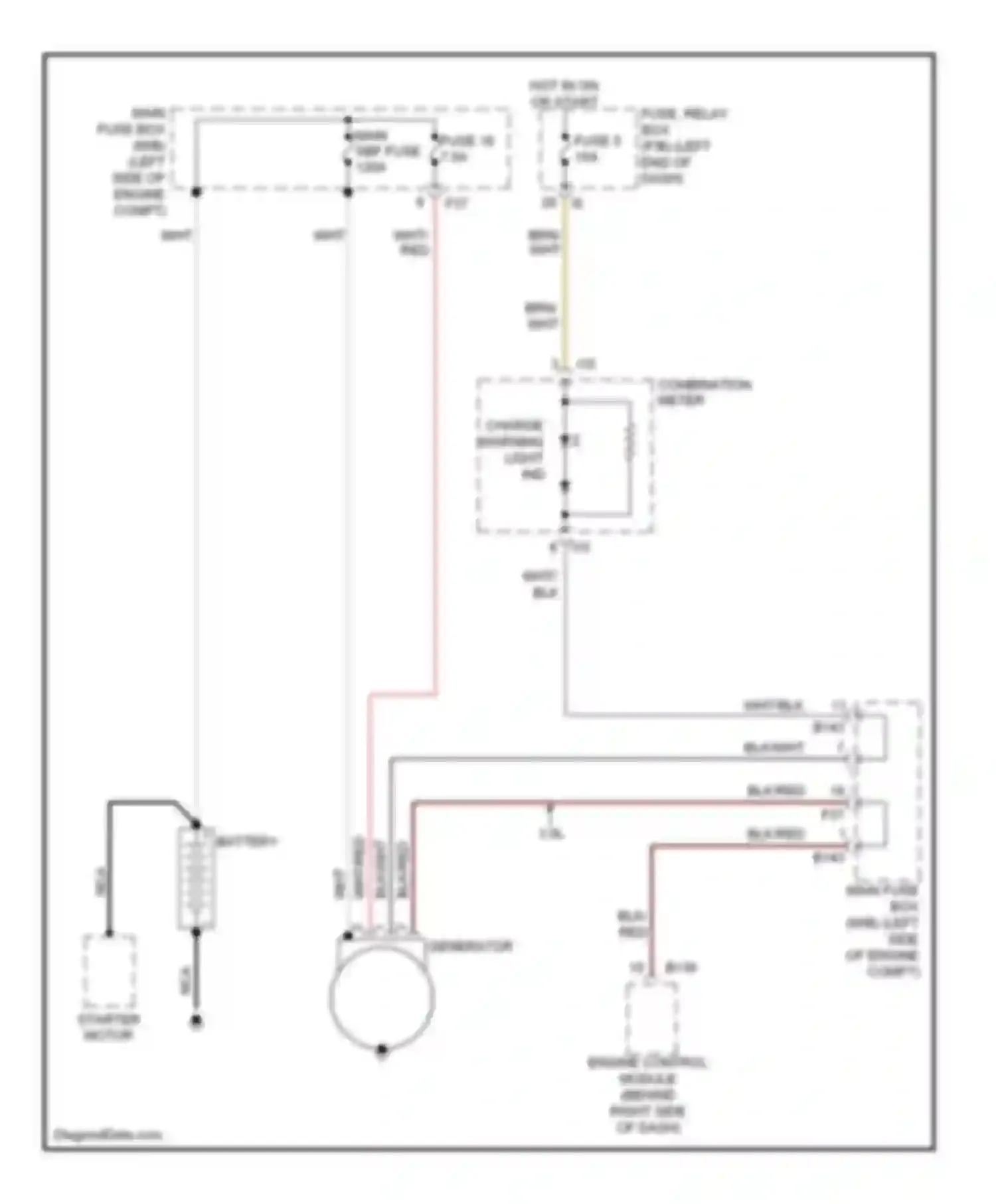

Car Wiring Diagrams for Charging circuit for Subaru Outback BP facelift (2006-2009)

3.0L BATTERY BLK WIRE BLK/RED WIRE BLK/WHT WIRE BRN WIRE CHARGE WARNING LIGHT IND COMBINATION METER ENGINE CONTROL MODULE (BEHIND RIGHT SIDE OF DASH) FUSE 16 FUSE 5 FUSE, RELAY BOX (F/B) (LEFT END OF DASH) GENERATOR HOT IN ON OR START MAIN FUSE BOX (M/B) (LEFT SIDE OF ENGINE COMPT) MAIN SBF FUSE NCA WIRE RED WIRE STARTER MOTOR WHT WHT/RED WIRE WHT WIRE WHT/BLK WIRE
