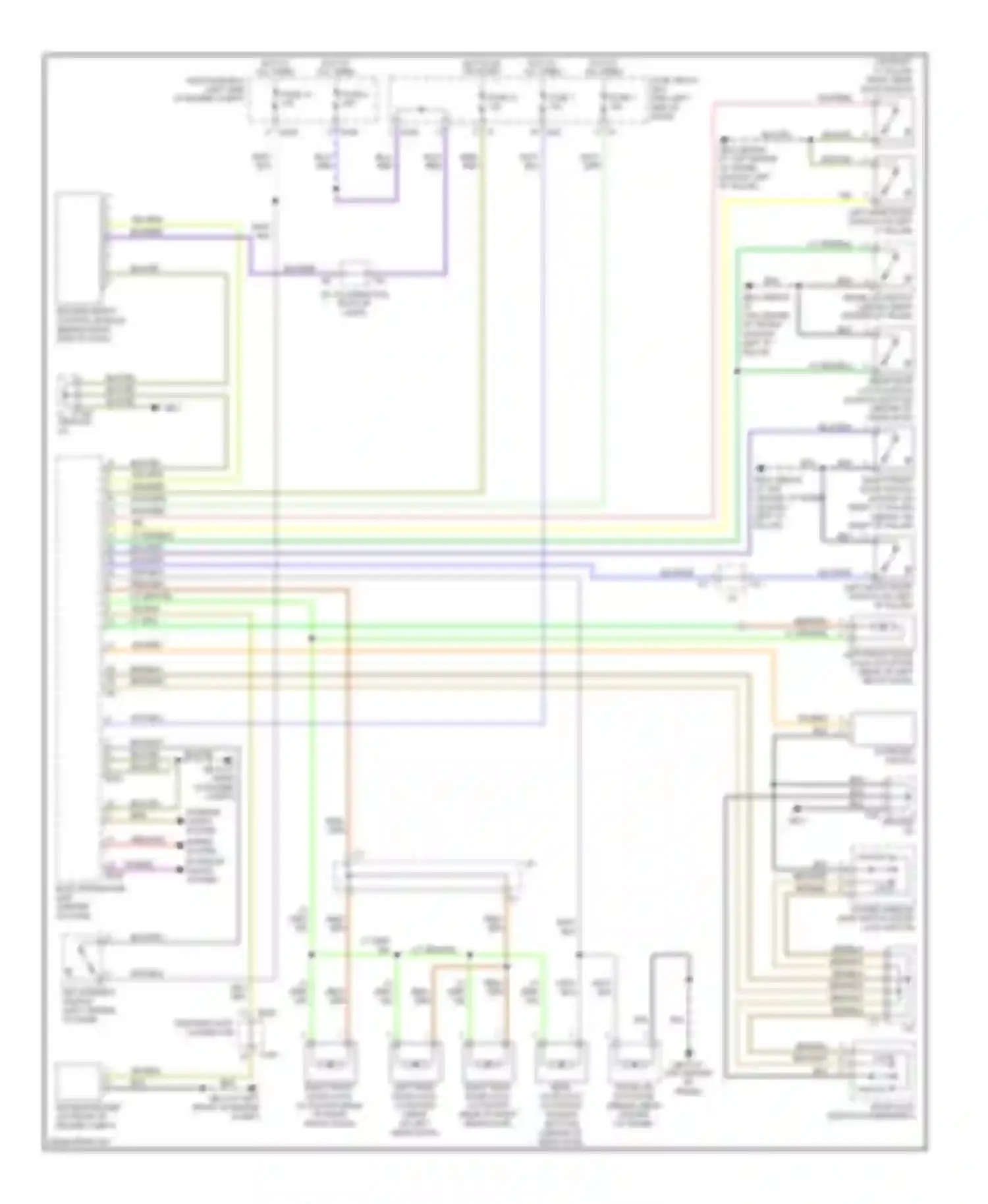

Car Wiring Diagrams for Power door locks circuit for Subaru Outback BP facelift (2006-2009)

BLK WIRE BLK/WHT WIRE BLK/YEL WIRE BLU WIRE BLU/ORG WIRE BLU/RED WIRE BLU/WHT WIRE BODY INTEGRATED UNIT BRN WIRE BRN/BLK WIRE BRN/WHT WIRE DOOR KEY SWITCH DOOR LOCK SWITCH (PASSENGER'S) FUSE 12 FUSE 3 FUSE 7 FUSE 8 FUSE, RELAY BOX (F/B) (LEFT END OF DASH) GB-2 (AT LEFT FRONT OF ENGINE COMPT) GB-3 GB-4 (AT REAR OF ENGINE COMPT) GB-9 (AT TOP CENTER OF TRUNK) GB-9 (SEDAN: AT TOP CENTER OF TRUNK) (WAGON: LEFT "D" PILLAR) GRN WIRE GRN/RED WIRE GROUND J/C HORNS SYSTEM HOT AT ALL TIMES HOT IN ON OR START J/C J/C (ILLUMINATION, BACK-UP LIGHT) KEY WARNING SWITCH KEYLESS BUZZER (AT FRONT OF ENGINE COMPT) KEYLESS ENTRY CONTROL MODULE (BEHIND RIGHT SIDE OF DASH) LEFT FRONT DOOR LOCK ACTUATOR (REAR OF LEFT FRONT DOOR) LEFT FRONT DOOR SWITCH (ON LEFT "B" PILLAR) LEFT REAR DOOR LOCK ACTUATOR (REAR OF LEFT REAR DOOR) LEFT REAR DOOR SWITCH (ON LEFT "C" PILLAR) LOCK LT GRN WIRE LT GRN/BLK WIRE LT GRN/YEL WIRE LT LT MAIN FUSE BOX (LEFT SIDE OF ENGINE COMPT) FUSE 14 POWER WINDOW MAIN SWITCH (DOOR LOCK SWITCH) REAR GATE LATCH SWITCH RED WIRE RED/GRN WIRE RED/WHT WIRE RIGHT FRONT DOOR LOCK ACTUATOR (REAR OF RIGHT FRONT DOOR) RIGHT REAR DOOR SWITCH THROUGH JOINT CONNECTOR TRUNK LID ACTUATOR (SEDAN) (REAR CENTER OF TRUNK) TRUNK LID SWITCH (SEDAN) (REAR CENTER OF TRUNK) UNLOCK VIO/BLK WIRE WHT WIRE WHT/BLK WIRE WHT/BLU WIRE WHT/GRN WIRE WHT/RED WIRE YEL WIRE YEL/BLK WIRE YEL/GRN WIRE YEL/RED WIRE
