Wiring Diagrams for Subaru Outback BH (1999-2003)

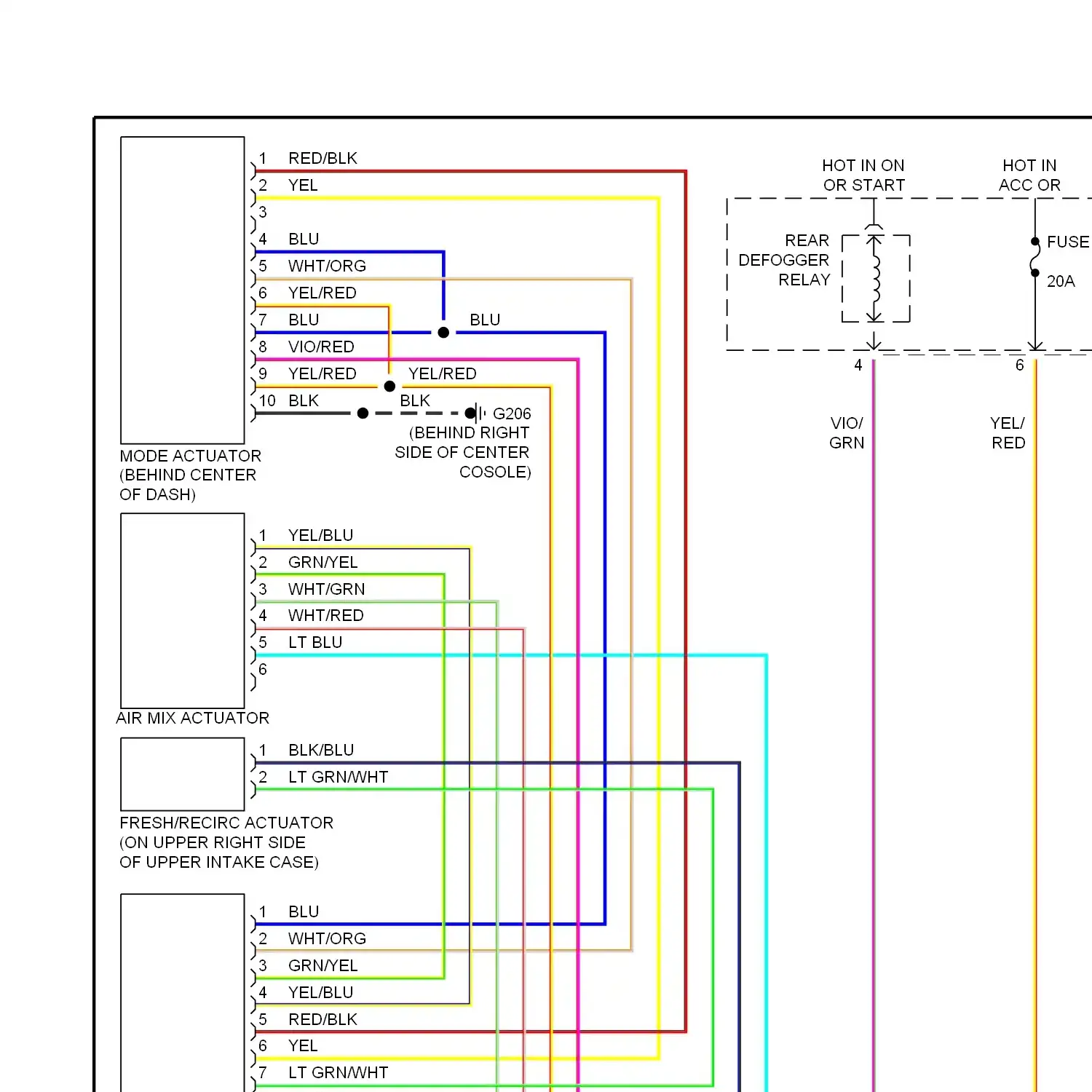

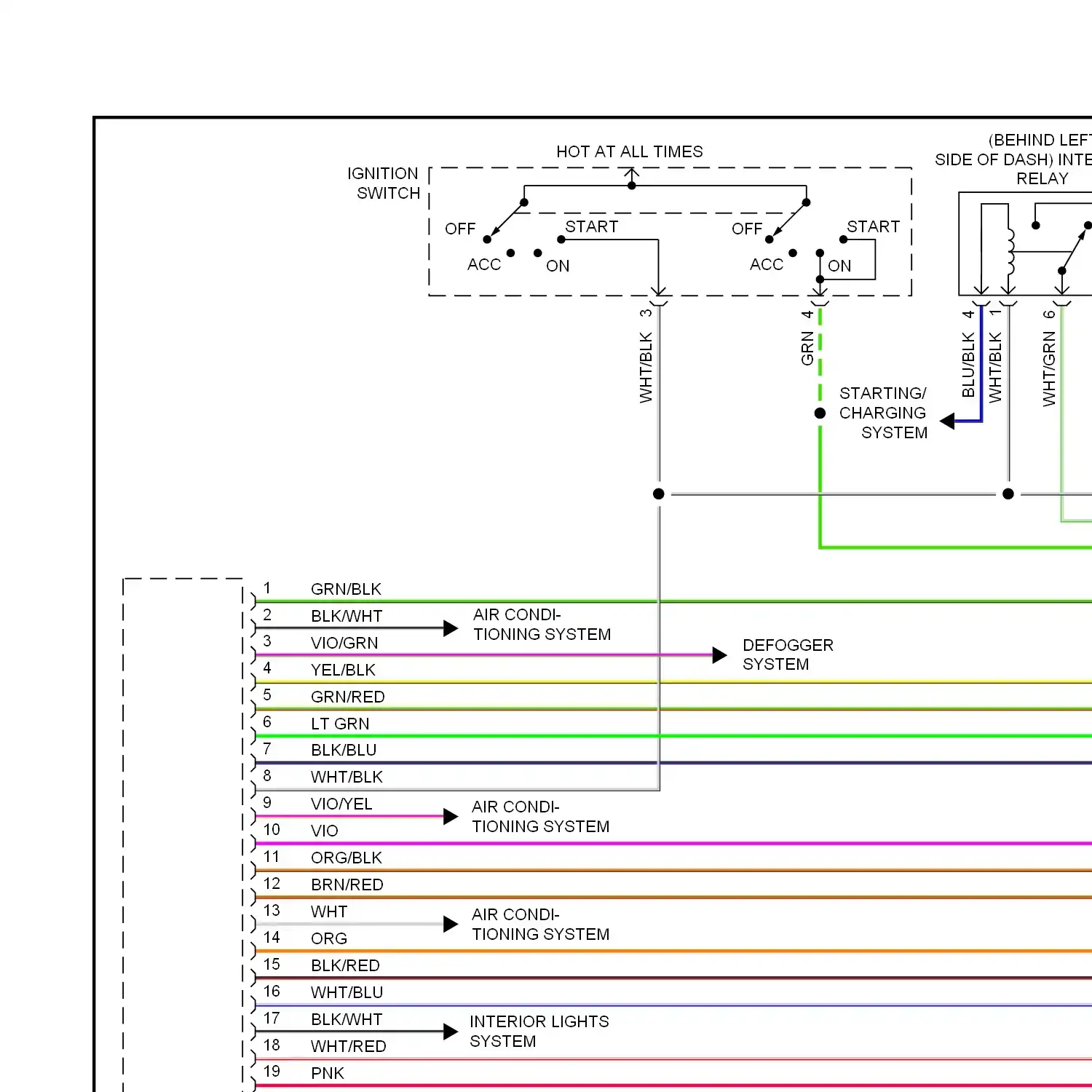

Manual a/c circuit

2.5l, manual a/c circuit Automatic a/c circuit

3.0l, manual a/c circuit Automatic a/c circuit

Anti-lock brake circuits Anti-lock brake circuits, without traction control Anti-lock brake circuits, with traction control

Anti-theft circuit

Computer data lines

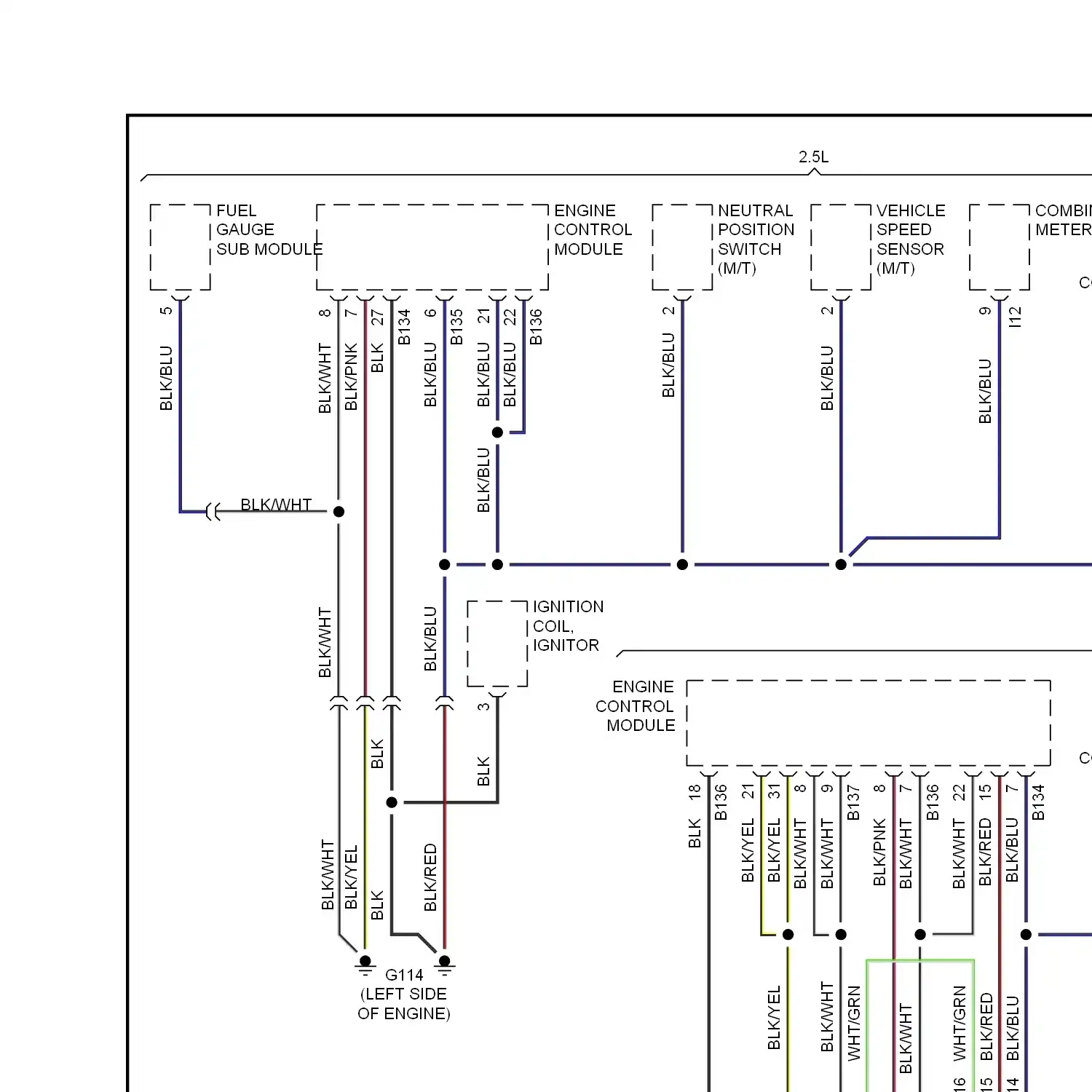

2.5l, computer data lines

3.0l, computer data lines

Cooling fan circuit

2.5l, cooling fan circuit

3.0l, cooling fan circuit

Cruise control circuit

Defogger circuit Heated mirrors circuit Rear defogger circuit Wiper deicer circuit

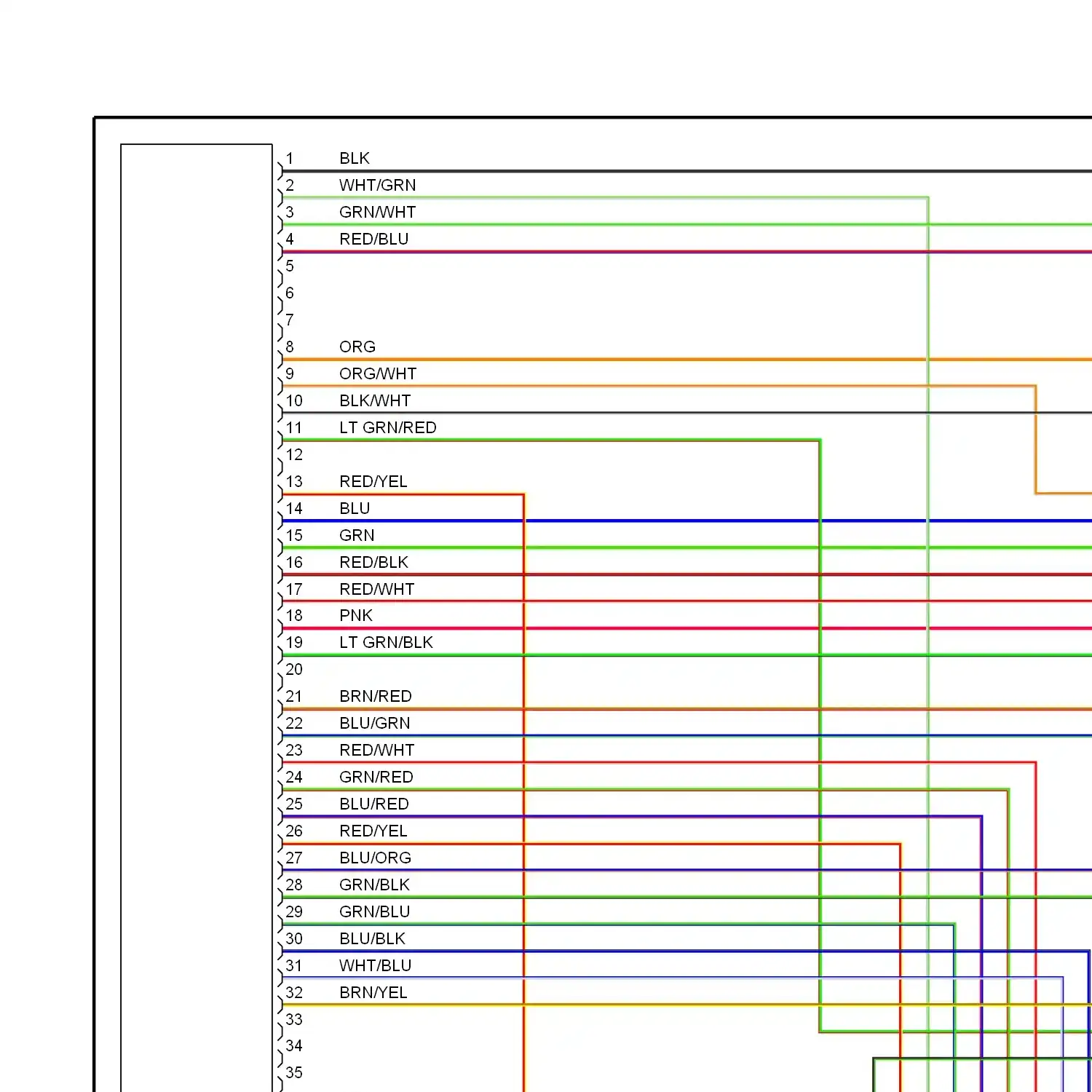

Wiring diagram engine performance 2.2ls

Wiring diagram engine performance 2.5ls

Wiring diagram engine performance 3.0ls

Back-up lamps circuit Exterior lamps circuit

Ground distribution circuit

Headlight circuit Headlight circuit, with drl Headlight circuit, without drl

Horn circuit

Instrument cluster circuit

Courtesy lamps circuit Instrument illumination circuit Interior light circuit

Power distribution circuit

Power door lock circuit Power door lock circuit, with keyless entry Power door lock circuit, without keyless entry

Power mirror circuit

Heated seats circuit Power seat circuit

Power top/sunroof circuits Sunroof circuit, sedan Sunroof circuit, wagon

Power window circuit Power window circuit, coupe Power window circuit, sedan & wagon

Radio circuits Radio circuits, with macintosh audio system Radio circuits, without macintosh audio system

Shift interlock circuit

Charging circuit Starting circuit

Supplemental restraint circuit

A/t circuit

2.5l, a/t circuit

3.0l, a/t circuit, without traction control 3.0l, a/t circuit, with traction control

Warning system circuits

Front washer/wiper circuit Front wiper/washer circuit Rear washer/wiper circuit Rear wiper/washer circuit

ANTI-LOCK BRAKES SYSTEM ANTI-LOCK BRAKES SYSTEM ANTI-LOCK BRAKES SYSTEM ANTI-LOCK BRAKES SYSTEM ANTI-LOCK BRAKES SYSTEM ANTI-LOCK BRAKES SYSTEM DAYTIME RUNNING LIGHT RESISTOR DOOR LOCK TIMER IGNITION COIL 1 IGNITION COIL 2 IGNITION COIL 5 IGNITION COIL 6 IGNITION COIL IGNITION COIL 1 IGNITION COIL 2 IGNITION COIL 3 IGNITION COIL 4 IGNITION COIL, IGNITER IGNITION COIL, IGNITOR IGNITION IGNITION COIL 3 COIL 4 LOCK UP POWER AMPLIFIER WARNINGS SYSTEM ANTI-LOCK BRAKES SYSTEM

AIR MIX ACTUATOR DRIVER'S SIDE DOOR LOCK ACTUATOR ENGINE CONTROLS SYSTEM FRONT TILT MOTOR FRONT WIPER MOTOR FRONT WIPER MOTOR FRONT WASHER MOTOR FRONT WIPER MOTOR LO HIGH LEFT FRONT DOOR LOCK ACTUATOR LEFT FRONT POWER WINDOW MOTOR LEFT REAR DOOR LOCK ACTUATOR LEFT REAR POWER WINDOW MOTOR LEFT/ RIGHT MOTOR MAIN FAN MOTOR PASSENGER'S SIDE DOOR LOCK ACTUATOR PUMP MOTOR RADIATOR MAIN FAN MOTOR RADIATOR SUB FAN MOTOR REAR GATE LOCK ACTUATOR LEFT REAR DOOR LOCK ACTUATOR REAR TILT MOTOR REAR WASHER MOTOR REAR WIPER MOTOR REAR WIPER MOTOR RECLINING MOTOR RIGHT FRONT DOOR LOCK ACTUATOR RIGHT FRONT POWER WINDOW MOTOR RIGHT REAR DOOR LOCK ACTUATOR RIGHT REAR POWER WINDOW MOTOR SLIDE MOTOR STARTER MOTOR STARTING/CHARGING SYSTEM ENGINE CONTROLS SYSTEM SUB FAN MOTOR SUB FAN MOTOR MAIN FAN MOTOR UP/ DOWN MOTOR W/2.5L ENGINE WIPER MOTOR WIPER MOTOR PARK

ABS SHIELD JOINT CONNECTOR CHECK CONNECTOR DATA LINK CONNECTOR DATA LINK CONNECTOR SEAT BELT TIMER FRONT ACCESSORY POWER SUPPLY SOCKET ILLUMINATION LIGHT LEFT SPEAKER JOINT CONNECTOR MULTIPLE POWER SOCKET MULTIPLE POWER SOCKET FUSE HOLDER OF DASH) FLASH MEMORY CONNECTOR OF DASH) OP CONNECTOR OF DASH) TEST MODE CONNECTOR REAR ACCESSORY POWER SUPPLY SOCKET RIGHT SPEAKER JOINT CONNECTOR SHIELD JOINT CONNECTOR SHORT CONNECTOR STEERING ROLL CONNECTOR TEST MODE CONNECTOR TRAILER CONNECTOR W/ SECURITY CONNECTOR W/O SECURITY CONNECTOR

A/T SELECTOR LEVER ILLUMINATION LIGHT ILLUMINATION CONTROL MODULE A/T SHIFT LOCK CONTROL MODULE A/T SHIFT LOCK CONTROL MODULE SEAT BELT TIMER ABS CONTROL MODULE AIR BAG CONTROL MODULE AIRBAG CONTROL MODULE AUTO A/C CONTROL MODULE AUTO A/C CONTROL MODULE ILLUMINATION BLOWER MOTOR RELAY ABS CONTROL MODULE VALVE RELAY COMBINATION METER AUTO A/C CONTROL MODULE CRUISE CONTROL MODULE CRUISE CONTROL MODULE WIPER DEICER RELAY WIPER DEICER TIMER DAYTIME RUNNING LIGHT CONTROL MODULE DAYTIME RUNNING LIGHTS CONTROL MODULE DOOR LOCK TIMER KEYLESS ENTRY CONTROL MODULE ENGINE CONTROL MODULE ILLUMINATION CONTROL MODULE KEYLESS ENTRY CONTROL MODULE PARKING SWITCH SECURITY CONTROL MODULE SECURITY CONTROL MODULE SECURITY CONTROL MODULE CRUISE CONTROL ACTUATOR BRAKE FLUID LEVEL SWITCH SECURITY CONTROL MODULE SECURITY HORN RELAY STARTING SYSTEM DAY TIME RUNNING LIGHT CONTROL MODULE, STARTER MOTOR TRANSMISSION CONTROL MODULE VDC CONTROL MODULE VEHICLE DYNAMIC CONTROL MODULE W/ SECURITY CONTROL MODULE CONN W/O SECURITY CONTROL MODULE CONN

INTERMITTENT WIPER UNIT

AIR CONDITIONER FUSE FUSE 1 FUSE 2 FUSE 1 FUSE 7 FUSE 2 FUSE 2 FUSE 1 FUSE 3 FUSE 4 FUSE 5 FUSE 5 FUSE 7 FUSE 5 FUSE SBF-5 FUSE 6 FUSE 6 FUSE 11 FUSE 7 FUSE 8 FUSE 8 FUSE 2 FUSE 9 FUSE 10 FUSE 11 FUSE 12 FUSE 13 FUSE 14 FUSE 15 FUSE 16 FUSE 17 FUSE 18 FUSE 19 FUSE FUSE HOT AT ALL TIMES MAIN FUSE BOX FUSE 1 HOT AT ALL TIMES MAIN FUSE BOX FUSE 2 HOT AT ALL TIMES MAIN FUSE BOX SBF-6 FUSE HOT AT ALL TIMES SBF HOLDER SBF-7 FUSE HOT IN ACC, ON MAIN FUSE BOX FUSE 4 MAIN FUSE BOX MAIN FUSE BOX FUSE 6 SBF-1 FUSE SBF-2 FUSE SBF-3 FUSE FUSE 1 SBF-4 FUSE SBF-5 FUSE SBF-6 FUSE SBF-7 FUSE SBF-8 FUSE SEAT HEATER FUSE HOLDER

LEFT HEADLIGHT LEFT HEADLIGHT RIGHT HEADLIGHT RIGHT HEADLIGHT

LEFT SEAT HEATER MIRROR HEATER RIGHT SEAT HEATER

ABS INDICATOR AIR BAG INDICATOR LIGHT AIR BAG CIRCUIT CHARGE INDICATOR MAL- FUNCTION INDICATOR LAMP MALFUNCTION INDICATOR MALFUNCTION INDICATOR LAMP SECURITY INDICATOR VDC OFF INDICATOR LIGHT VDC OPERATION INDICATOR LIGHT

EXTERIOR LIGHTS SYSTEM SUPPLEMENTAL RESTRAINTS SYSTEM EXTERIOR LIGHTS SYSTEM EXTERIOR LIGHTS SYSYEM HEADLIGHTS SYSTEM HEADLIGHTS SYSTEM EXTERIOR LIGHTS SYSTEM HEADLIGHTS SYSTEM HEADLIGHTS SYSTEM INTERIOR LIGHTS SYSTEM INTERIOR LIGHTS SYSTEM INTERIOR LIGHTS SYSTEM INTERIOR LIGHTS SYSTEM INTERIOR LIGHTS SYSTEM INTERIOR LIGHTS SYSTEM WARNINGS SYSTEM LEFT FRONT DOOR LAMP LEFT REAR COMBINATION LAMP LEFT REAR DOOR LAMP REAR GATE LAMP RIGHT FRONT DOOR LAMP RIGHT REAR COMBINATION LAMP RIGHT LICENSE PLATE LIGHT RIGHT REAR DOOR LAMP

FUEL PUMP ASSEMBLY FUEL PUMP, FUEL GAUGE MODULE FUEL PUMP, FUEL GAUGE MODULE (TOP RIGHT REAR

A/C RELAY AIR CONDITIONING RELAY AIR CONDITIONING RELAY HOLDER AIR CONDITIONING RELAY HOLDER MAIN FAN RELAY BLOWER MOTOR RELAY A/C PRESSURE SWITCH FAN RELAY FROM FUSE/ RELAY BOX FRONT FOGLIGHT RELAY FUEL PUMP RELAY FUSE, RELAY BOX FUSE 5 FUSE/ RELAY BOX HORN RELAY HOT IN ON, START FUSE, RELAY BOX FUSE 18 HOT W/ TAIL, ILLUMINATION RELAY ENERGIZED IGNITION RELAY INHIBITOR SWITCH STARTER INTERLOCK RELAY INTERRUPT RELAY LEFT HEADLIGHT RELAY MAIN FAN RELAY MAIN FAN RELAY 1 MAIN FAN RELAY 2 MAIN RELAY MOTOR RELAY MULTIPLE POWER SOCKET RELAY POWER WINDOW RELAY LEFT FRONT SEAT POWER WINDOW, SUNROOF RELAY RADIATOR MAIN FAN RELAY RADIATOR SUB-FAN RELAY REAR ACCESSORY POWER SUPPLY RELAY REAR DEFOGGER RELAY RELAY BLOCK RELAY BLOCK IGNITION RELAY POWER WINDOW RELAY RELAY BOX RIGHT HEADLIGHT RELAY SEAT HEATER RELAY SEAT HEATER RELAY/ REAR ACCESSORY POWER SUPPLY RELAY SEAT HEATER/ REAR ACCESSORY POWER SUPPLY RELAY STARTER INTERLOCK RELAY SUB FAN RELAY SUB FAN RELAY 1 MAIN FAN RELAY SUB FAN RELAY 2 SUB-FAN RELAY-1 SUN ROOF RELAY TAIL, ILLUMINATION RELAY VALVE RELAY WIPER DEICER RELAY

ABS G SENSOR SHIELD ATF TEMPERATURE SENSOR CAMSHAFT POSITION SENSOR SHIELD CRANKSHAFT POSITION SENSOR SHIELD ENGINE COOLANT TEMPERATURE SENSOR FUEL LEVEL SENSOR FUEL SUB LEVEL SENSOR FUEL TEMP SENSOR KNOCK SENSOR SHIELD LEFT FRONT ABS SENSOR LEFT FRONT ABS SENSOR LEFT REAR ABS SENSOR LEFT FRONT ABS SENSOR SHIELD LEFT REAR ABS SENSOR RIGHT FRONT ABS SENSOR RIGHT FRONT ABS SENSOR SHIELD RIGHT REAR ABS SENSOR SHIELD, SENSOR JOINT CONNECTOR STEERING ANGLE SENSOR JOINT CONNECTOR TURBINE SPEED SENSOR VEHICLE SPEED SENSOR 1 VEHICLE SPEED SENSOR 2 VEHICLE SPEED SENSOR 2 VEHICLE SPEED SENSOR 2 TORQUE CONVERTER/ TURBINE SPEED SENSOR VEHICLE SPEED SENSOR #1

LEFT FRONT DOOR SPEAKER LEFT REAR DOOR SPEAKER RIGHT FRONT DOOR SPEAKER RIGHT REAR DOOR SPEAKER W/ REAR TWEETER SPEAKER W/O REAR TWEETER SPEAKER

A/C SWITCH BLOWER FAN SWITCH BRAKE FLUID LEVEL SWITCH CHANGE OVER SWITCH COMBINATION SWITCH CRUISE CONTROL MAIN SWITCH CRUISE CONTROL MAIN SWITCH ILLUMINATION LIGHT CRUISE CONTROL SUB SWITCH DRIVER'S SIDE DOOR LOCK SWITCH FAN SWITCH FOGLIGHT SWITCH FRONT FOG LIGHT SWITCH FRONT FOG LIGHT SWITCH ILLUMINATION LIGHT FRONT FOGLIGHT SWITCH FRONT FOGLIGHT SWITCH ILLUMINATION LIGHT FRONT TILT LIMIT SWITCH FRONT TILT SWITCH FRONT WIPER SWITCH REAR WIPER INTERMITTENT MODULE FWD SWITCH FWD SWITCH OR VDC OFF SWITCH HAZARD SWITCH HAZARD SWITCH ILLUMINATION LIGHT HAZARD SWITCH KEY WARNING SWITCH HI LO LO FLASH DIMMER, PASSING SWITCH HI PASS PASS LO LO DIMMER/ PASSING SWITCH HORN SWITCH IGNITION SWITCH INHIBITOR SWITCH KEY WARNING SWITCH LEFT DOOR LOCK SWITCH LEFT FRONT DOOR SWITCH LEFT REAR DOOR SWITCH LEFT REAR POWER WINDOW SUB SWITCH LEFT SEAT HEATER SWITCH LEFT SEAT HEATER SWITCH ILLUMINATION LIGHT LIGHT SWITCH LIGHTING SWITCH LOCK OUT SWITCH LOCK- OUT SWITCH DOWN RIGHT FRONT MIRROR HEATER SWITCH MIST OFF HI OFF MIST SWITCH INT LO MIST OFF MIST SWITCH ON SWITCH PARK HEAD OFF LIGHT SWITCH PARKING POSITION SWITCH, SHIFT LOCK SOLENOID PARKING SWITCH PASSENGER'S SIDE DOOR LOCK SWITCH POWER WINDOW MAIN SWITCH POWER WINDOW MAIN SWITCH ILLUMINATION LIGHT POWER WINDOW/ DOOR LOCK MAIN SWITCH PRESSURE SWITCH REAR DEFOGGER SWITCH REAR DEFOGGER SWITCH ILLUMINATION LIGHT REAR GATE LATCH SWITCH REAR TILT LIMIT SWITCH REAR TILT SWITCH REAR WIPER/ WASHER SWITCH RECLINING SWITCH REMOTE CONTROL MIRROR SWITCH REMOTE CONTROL REARVIEW MIRROR SWITCH RIGHT DOOR LOCK SWITCH RIGHT FRONT DOOR SWITCH RIGHT FRONT POWER WINDOW SUB SWITCH RIGHT REAR DOOR SWITCH RIGHT REAR DOOR SWITCH LEFT REAR DOOR SWITCH RIGHT REAR POWER WINDOW SUB SWITCH RIGHT SEAT HEATER SWITCH RIGHT SEAT HEATER SWITCH ILLUMINATION LIGHT ROOM LIGHT SPOT LIGHT PASSEN- GER'S SIDE DOOR LOCK SWITCH SEAT BELT SWITCH SLIDE SWITCH STOP LIGHT SWITCH STOPLIGHT SWITCH SUN ROOF SWITCH TRUNK ROOM LIGHT SWITCH TURN SIGNAL SWITCH VDC OFF SWITCH WASHER SWITCH WIPER DEICER SWITCH WIPER DEICER SWITCH ILLUMINATION LIGHT WIPER DEICER SWITCH ON IND WIPER SWITCH

FL INTLT VALVE FL OUTLT VALVE FR INTLT VALVE FR OUTLT VALVE IDLE SPEED CONTROL SOLENOID VALVE L/C TIMING SOLENOID LINE PRESSURE SOLENOID LOCK-UP SOLENOID PRESSURE CONTROL SOLENOID VALVE PRI CUT VALVE PRI SUCT VALVE RL INTLT VALVE RL OUTLT VALVE RR INTLT VALVE RR OUTLT VALVE SEC CUT VALVE SEC SUCT VALVE SHIFT SOLENOID 1 SOLENOID 1 SHIFT SOLENOID 2 SOLENOID 2 SHIFT SOLENOID AWD TRANSFER DUTY SOLENOID VALVE COM

1 2 PNK WIRE 13 14 15 16 17 18 19 PNK WIRE 13 14 15 PNK WIRE 22 23 PNK WIRE 24 25 PNK WIRE BLK WIRE BLK/ BLU WIRE BLK/ YEL WIRE BLK/BLU WIRE BLK/GRN WIRE BLK/ORG WIRE BLK/PNK WIRE BLK/RED WIRE BLK/WHT WIRE BLK/YEL WIRE BLU WIRE BLU/ GRN WIRE BLU/BLK WIRE BLU/GRN WIRE BLU/ORG WIRE BLU/RED WIRE BLU/WHT WIRE BLU/YEL WIRE BRN WIRE BRN/BLK WIRE BRN/GRN WIRE BRN/ORG WIRE BRN/RED WIRE BRN/WHT WIRE BRN/YEL WIRE GRN VIO/ WIRE GRN WIRE GRN/ BLU WIRE GRN/BLK WIRE GRN/BLU WIRE GRN/ORG WIRE GRN/RED WIRE GRN/WHT BLK/RED WIRE GRN/WHT WIRE GRN/YEL WIRE GRY WIRE GRY/BLK WIRE LT BLU WIRE LT GRN WIRE LT GRN/BLK WIRE LT GRN/RED WIRE LT GRN/WHT WIRE LT GRN/YEL WIRE NCA WIRE ORG/ WIRE ORG/BLK WIRE ORG/BLU WIRE ORG/GRN WIRE ORG/WHT WIRE PNK 3 2 1 6 4 WIRE PNK (OR WIRE PNK BRAIDED BRAIDED WIRE PNK PNK WIRE PNK WIRE PNK/BLK WIRE PNK/BLU WIRE PNK/GRN WIRE PNK/WHT WIRE RED GRN/ WIRE RED WIRE RED/ WHT WIRE RED/BLK WIRE RED/BLU WIRE RED/GRN WIRE RED/WHT WIRE RED/YEL WIRE RUN WIRE VIO WIRE VIO/GRN WIRE VIO/RED WIRE VIO/WHT WIRE VIO/YEL WIRE WHT BRN WIRE WHT RED/ WIRE WHT WIRE WHT/ BLK WIRE WHT/BLK WIRE WHT/BLU WIRE WHT/GRN WIRE WHT/ORG WIRE WHT/RED WIRE WHT/YEL WIRE YEL WIRE YEL/BLK WIRE YEL/BLU WIRE YEL/GRN WIRE YEL/PNK WIRE YEL/RED WIRE YEL/WHT WIRE

2 LIGHT MODEL 2.5L 2.5L 2.2L 2.5L 3.0L 1 4 2.5L 3.0L 7 5 2.5L 24 3.0L 1 2.5L, 3.0L 3.0L 3.0L W/ VDC 2.5L A/T, 3.0L W/O VDC 4 LIGHT MODEL 6- CYL 26 30 2.5L 3.0L 28 31 2.5L 3.0L 29 25 3.0L 2.5L 33 27 3.0L 2.5L (BEHIND AT CENTER (BEHIND RIGHT CENTER OF DASH, (DIAGRAM (IF (OR A/C COM- PRESSOR A/T A/T A/T M/T A/T OIL TEMP IND A/T ONLY A/T SELECT LEVER ILLUMI- NATION LIGHT A/T SELECTOR LEVER ILLUMINATION LIGHT A/T W/O SECURITY SYSTEM ABS IND. ABS WARNING IND ABS WARNING LIGHT AIR BAG IND AIR CONDI- TIONING SYSTEM AIR CONDITIONING STARTING SYSTEM AIR CONDITIONING SYSTEM AIRBAG WARNING IND ANTI-THEFT SYSTEM ASHTRAY ILLUMI- NATION LIGHT ASHTRAY ILLUMINATION LIGHT AUDIO GROUND AUTO DOWN AUTO UP/DOWN CIRCUIT BACK- UP LIGHT BRAIDED BRAIDED BRAIDED BRAIDED 15 16 BRAIDED BRAIDED 17 18 CD ILLUMINATION LIGHT CD PLAYER ILLUMINATION LIGHT CHARGE IND CHARGE WARNING IND CLOSE OPEN COMBINATION METER COMPRESSOR) COMPUTER DATA LINES SYSTEM COOLING FANS SYSTEM COUPE OTHERS CPU ODOMETER CRUISE CNTRL SYSTEM CRUISE CONTROL SYSTEM CUSTOM CPU DEFOGGER SYSTEM DIAGNOSIS TERMINAL DIMMER CIRCUIT DIN CORD DOOR IND DOOR WARNING IND DOWN LEFT FRONT DOWN LEFT REAR DOWN RIGHT FRONT DOWN RIGHT REAR DRIVER SIDE INFLATOR EXTERIOR LIGHT SYSTEM FROM GROUND FRONT ACCESSORY POWER SUPPLY FUEL GAUGE FUEL GAUGE MODULE FUEL GAUGE SUB MODULE FUEL INJECTORS FUEL TEMP GAUGE FWD IND GLOVE BOX ILLUMI- NATION LIGHT GLOVE BOX ILLUMINATION LIGHT HEAD OFF PARK HI FLASH HI OFF HI-BEAM IND HIGH MOUNTED STOP LIGHT HIGH OFF LOW HORNS SYSTEM HOT AT ALL TIMES HOT IN ACC OR ON HOT IN ACC, ON HOT IN ACCY, ON HOT IN ON OR ACCY HOT IN ON OR START HOT IN ON, START HOT IN RUN OR START ILLUMINATION LIGHT INSTRU- MENT CLUSTER SYSTEM INSTRUMENT CLUSTER INSTRUMENT CLUSTER SYSTEM INTERIOR LIGHTING INTERMITTENT WIPER TIME CONTROL KEY WARNING MODULE L/C TIMING LEFT FINISHER LIGHT LEFT FOG LIGHT LEFT FRONT CLEARANCE LIGHT LEFT FRONT CLEARANCE LIGHT RADIO LEFT FRONT DOOR TWEETER LEFT FRONT FOG LIGHT LEFT FRONT FOGLIGHT LEFT FRONT SEAT LEFT FRONT TURN SIGNAL LIGHT LEFT LICENSE PLATE LIGHT LEFT POWER SEAT LEFT REAR COMBINATION LIGHT LEFT REAR COMBINATION LIGHT SEDAN WAGON LEFT REAR TWEETER LEFT REAR VIEW MIRROR LEFT REARVIEW MIRROR LEFT SIDE INFLATOR LEFT SIDE TURN SIGNAL LIGHT LEFT STEP LIGHT LEFT TURN IND LEFT VANITY MIRROR ILLUMI- NATION LIGHT LEFT VANITY MIRROR ILLUMINATION LIGHT LICENSE PLATE LIGHT LOW FUEL WARNING IND LT LT M/T A/T M/T ONLY MAGNET CLUTCH MAGNETIC CLUTCH MH HI MODE CONTROL PANEL MODE CONTROL PANEL ILLUMINATION LIGHT NOT USED NOT USED NOT USED ODO/ TRIP LCD BACK LIGHT CLOCK/ OUT TEMP BACK LIGHT OF FUEL TANK) OFF HI HI OFF INT LO LO OFF HI INT LO OFF HI INT LO LO OFF LO ML OFF LO ML MH HI OFF ON OFF ON OFF PARK OFF ST OFF WASH ON OIL PRESSURE IND OIL PRESSURE WARNING IND ON DOOR OFF ON IG ON OFF PARK BRAKE/ BRAKE FLUID LEVEL WARNING IND PARK BRAKE/ FLUID LEVEL WARNING IND PARK HEAD OFF PASSENGER SIDE INFLATOR POWER CIRCUIT FUEL GAUGE POWER TOPS SYSTEM POWER WINDOW POWER WINDOW CIRCUIT BREAKER POWER WINDOW, SUN ROOF CIRCUIT BREAKER PRI PRESS SENS RADIATOR MAIN FAN RADIATOR SUB FAN RADIO COMBINATION METER RADIO ILLUMIN- ATION LIGHT RADIO ILLUMINATION LIGHT REAR ACCESSORY POWER SUPPLY REAR DEFOGGER REAR DEFOGGER CONDENSER REAR GATE WARN IND RIGHT REAR DOOR WARN IND REAR INTER- NITTENT MODULE REAR WIPER CIRCUIT RIGHT FINISHER LIGHT RIGHT FINISHER LIGHT LEFT FINISHER LIGHT RIGHT FOG LIGHT RIGHT FRONT CLEARANCE LIGHT RIGHT FRONT CLEARANCE LIGHT LEFT LICENSE PLATE LIGHT RIGHT FRONT DOOR TWEETER RIGHT FRONT FOG LIGHT RIGHT FRONT FOGLIGHT RIGHT FRONT TURN SIGNAL LIGHT RIGHT LICENSE PLATE LIGHT RIGHT REAR COMBINATION LIGHT RIGHT REAR FINISHER LIGHT RIGHT REAR TWEETER RIGHT REAR VIEW MIRROR RIGHT REARVIEW MIRROR RIGHT SIDE INFLATOR RIGHT SIDE TURN SIGNAL LIGHT RIGHT STEP LIGHT RIGHT TURN IND RIGHT VANITY MIRROR ILLUMI- NATION LIGHT RIGHT VANITY MIRROR ILLUMI- NATION LIGHT LEFT VANITY MIRROR ILLUMI- NATION LIGHT RIGHT VANITY MIRROR ILLUMINATION LIGHT ROOM LIGHT SBF 5 SBF HOLDER SEAT BELT WARNING IND SEC PRESS SENS SEDAN WAGON SEDAN, COUPE SET- SOUND SYSTEM SPEEDO- METER CIRCUIT SPEEDO- METER CIRCUIT TACHO- METER SPEEDOMETER, TACHOMETER CIRCUIT SPOT LIGHT SPOT LIGHT ROOM LIGHT ST OFF ON STARTING CIRCUIT STARTING SYSTEM STARTING/ CHARGING SYSTEM STARTING/CHARGING SYSTEM STOP LIGHT STOP LIGHT TAIL LIGHT SUB GAUGE SUB GAUGE FUEL GAUGE SUB-WOOFER SUPPLEMENTAL RESTRAINTS SYSTEM TACHO- METER TAIL- LIGHT TEMP IND A/T OIL TEMPERATURE GAUGE THERMAL PROTECTOR THERMOMETER (TOP RIGHT FRONT OF TILT DOWN TILT UP TILT SLIDE TO GROUND TRANSMISSION CONTROLS SYSTEM TURN LIGHT TURN LIGHT TAIL- LIGHT STOP- LIGHT TURN, HAZARD MODULE TWISTED PAIR UP AUTO UP LEFT FRONT UP LEFT REAR UP RIGHT FRONT UP RIGHT REAR VDC OFF LIGHT VDC OPERATION LIGHT VDC WARNING LIGHT VEHICLE OUTLINE W/0 ANTI-THEFT W/ ANTI-THEFT W/ ANTI- THEFT W/ AUTO A/C W/ CRUISE W/ CRUISE W/O CRUISE W/ KEYLESS ENTRY W/ KEYLESS ENTRY W/0 KEYLESS ENTRY W/ MANUAL A/C W/ SECURITY W/ SECURITY SYSTEM W/ VDC W/O CRUISE W/O KEYLESS ENTRY W/O SECURITY W/O SECURITY SYSTEM W/O VDC W/O VDC MODEL W/VDC MODEL WAGON SEDAN WARNING SYSTEMS WASH ON WASH ON FRONT WIPER/ WASHER CIRCUIT WIPER DEICER WIPER DEICER TIMER
