Subaru Legacy BW (2019-2024) wash lev Wiring diagrams
This page contains all the electrical diagrams for the component. wash lev, in which he is found in the car Subaru Legacy BW (2019-2024). You can view various wiring diagrams where this component is used, as well as go to more detailed diagrams to see the complete connection and interaction in the system. All diagrams have links to quickly jump to the corresponding section with the component for easy viewing..

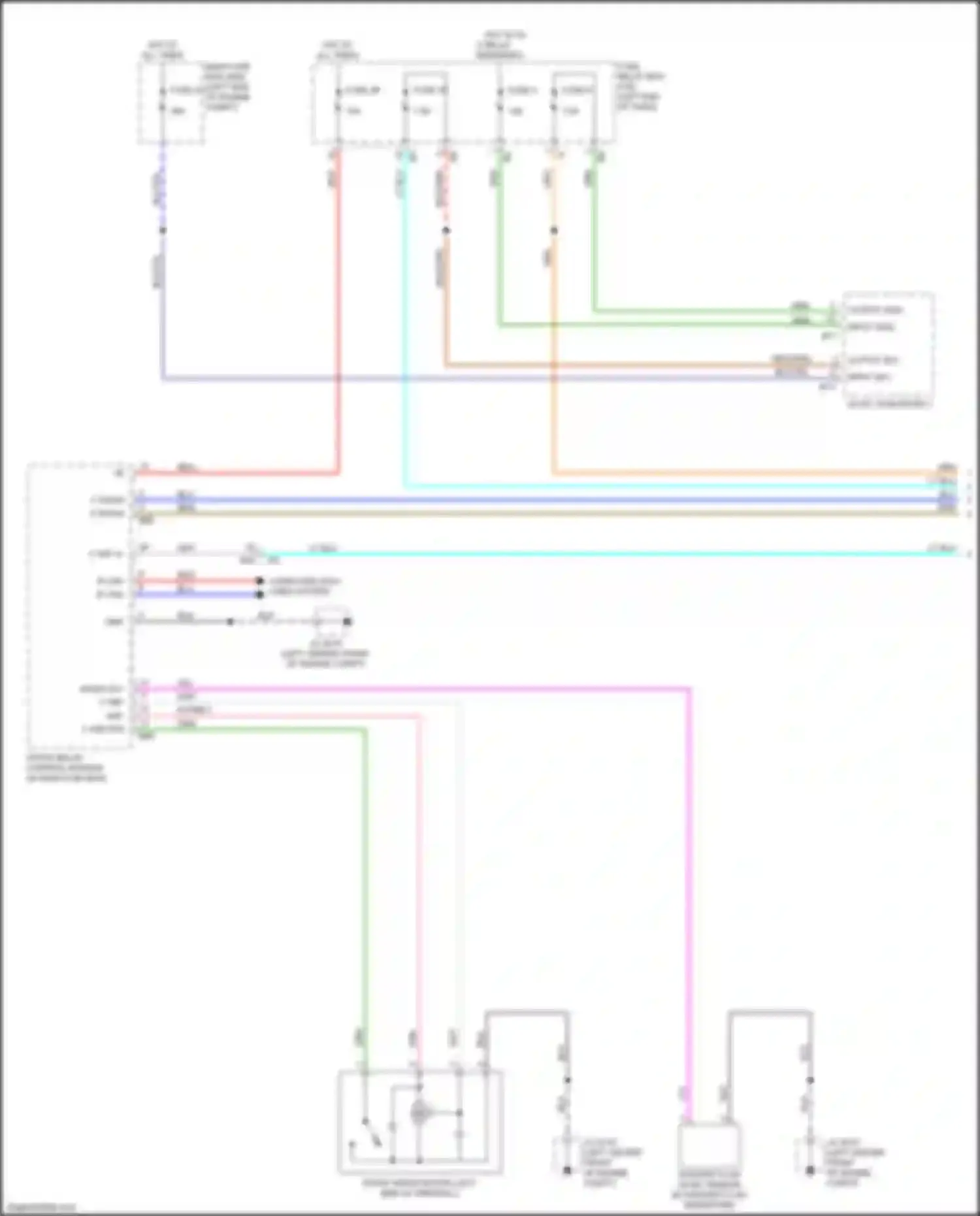

Wiring diagram wash lev (1 of 2)
B-CAN H
B-CAN L
BLK WIRE
BLU WIRE
BLU/YEL WIRE
BRN WIRE
COMPUTER DATA LINES SYSTEM
DC/DC CONVERTER 1
F WASH
F WIP HI PNK F WIP LO WIRE
F WIP HI SW
F WIP RTN
FRONT RELAY CONTROL MODULE
FRONT WIPER MOTOR (LEFT SIDE OF FIREWALL)
FUSE 26
FUSE 30
FUSE 34
FUSE 5
FUSE 6
FUSE, RELAY BOX (F/B)
GRN WIRE
GRY WIRE
HOT AT ALL TIMES
HOT W/ IG 2 RELAY ENERGIZED
INPUT (IGN)
LT BLU WIRE
MAIN FUSE BOX (M/B)
ORG/ WIRE
OUTPUT (IGN)
PNK WIRE
R WASH
RED WIRE
RED/GRN WIRE
VIO WIRE
WASH LEV
WASHER FLUID LEVEL SENSOR
WHT WIRE
Go to component -> Front wiper/washer circuit (1 of 2) -> WASH LEV

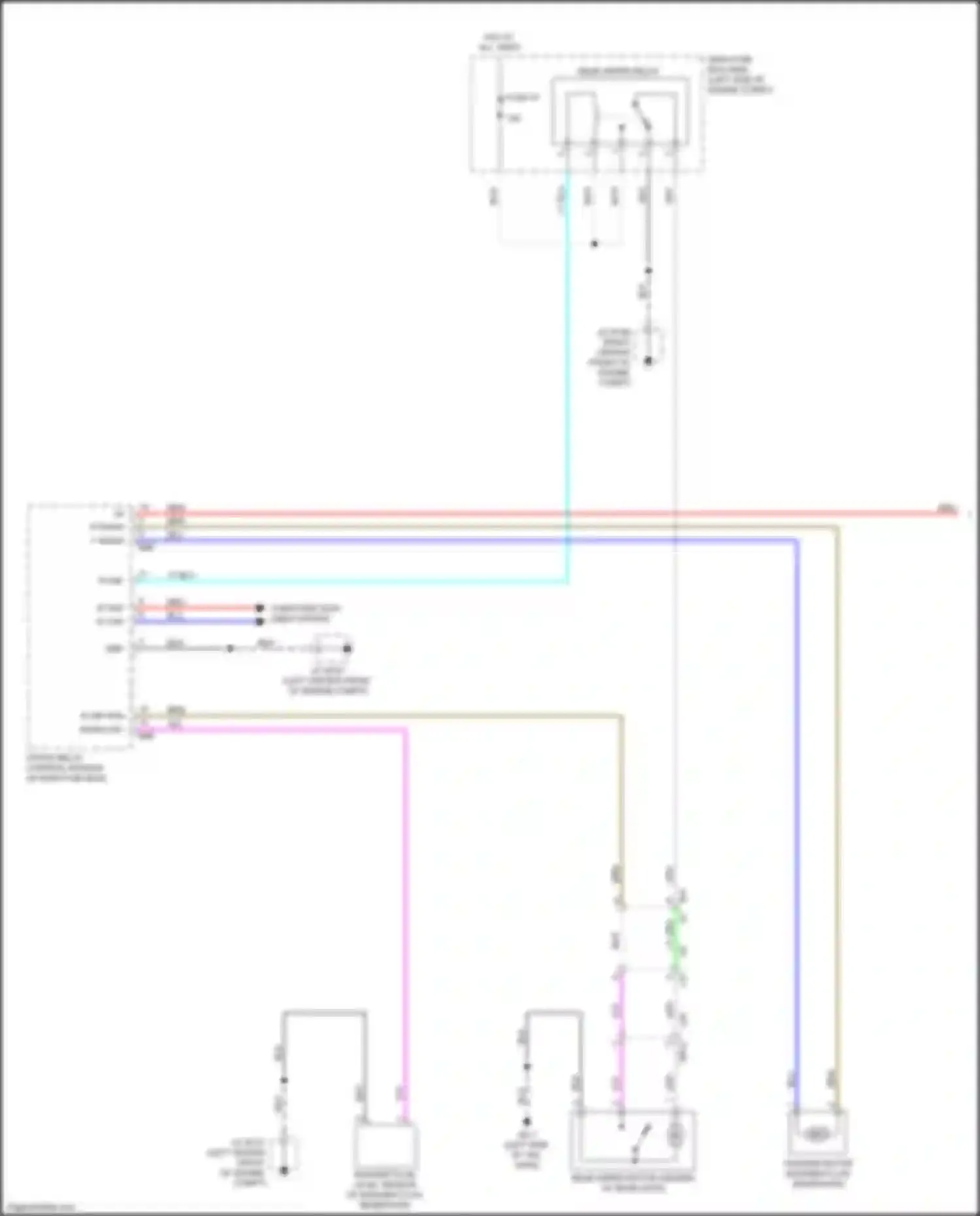

Wiring diagram wash lev (2 of 2)
B-CAN H
B-CAN L
BLK WIRE
BLU WIRE
BRN WIRE
COMPUTER DATA LINES SYSTEM
F WASH
FRONT RELAY CONTROL MODULE
FUSE 37
GG-1
GRY WIRE
HOT AT ALL TIMES
LT BLU WIRE
LT GRN WIRE
MAIN FUSE BOX (M/B)
R WASH
R WIP ON
R WIP RTN
REAR WIPER MOTOR (CENTER OF REAR GATE)
REAR WIPER RELAY
RED WIRE
VIO WIRE
WASH LEV
WASHER FLUID LEVEL SENSOR
WASHER FLUID RESERVOIR)
WASHER MOTOR
WHT WIRE
Go to component -> Rear wiper/washer circuit (1 of 2) -> WASH LEV
