Subaru Legacy BW (2019-2024) button sos Wiring diagrams

This page contains all the electrical diagrams for the component. button sos, in which he is found in the car Subaru Legacy BW (2019-2024). You can view various wiring diagrams where this component is used, as well as go to more detailed diagrams to see the complete connection and interaction in the system. All diagrams have links to quickly jump to the corresponding section with the component for easy viewing..

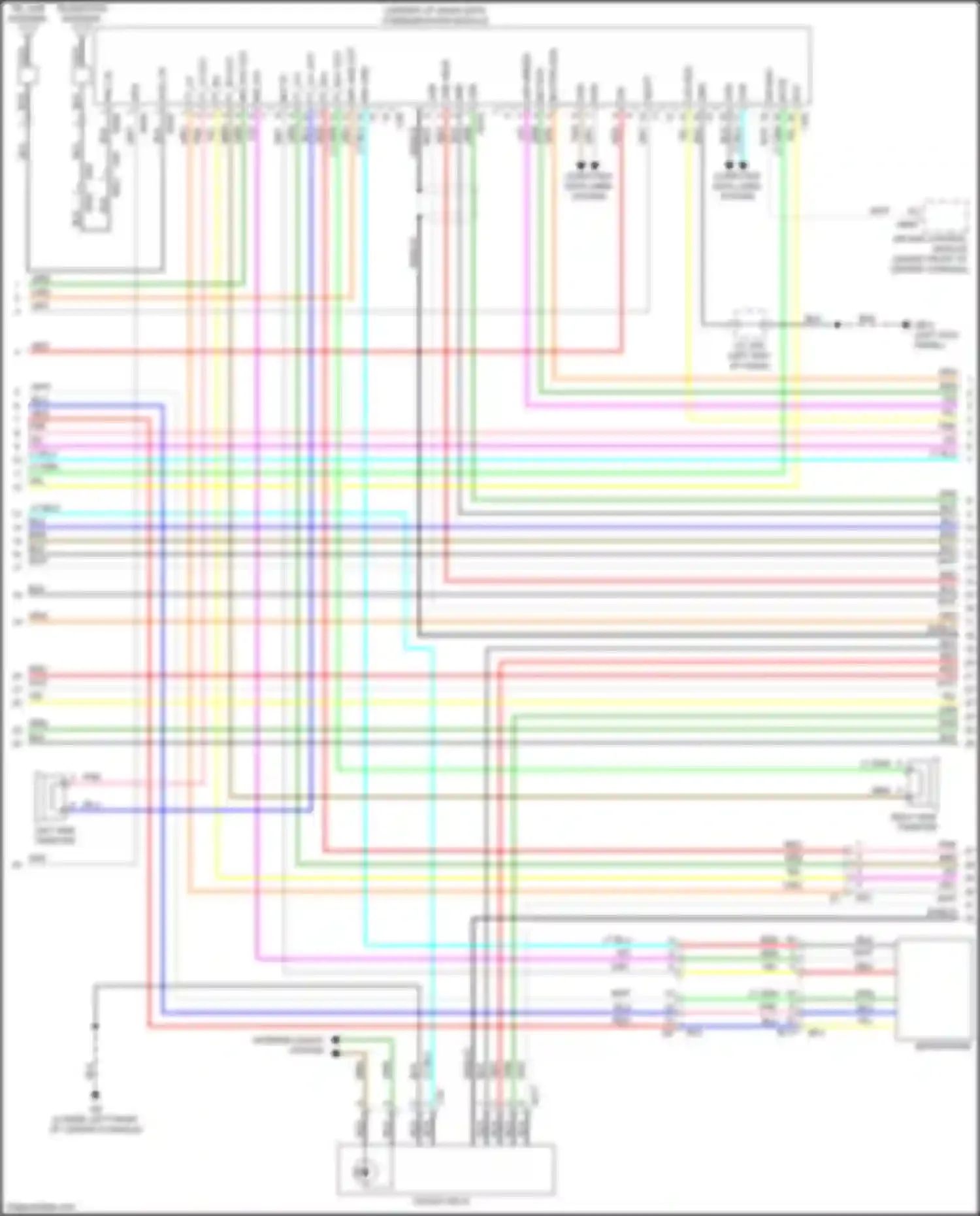

Wiring diagram button sos (1 of 4)

Wiring diagram button sos for Subaru Legacy BW (2019-2024) (1 of 4)

Get access

AIR BAG AIR BAG CONTROL MODULE BLK WIRE BLU WIRE BRN WIRE BUTTON RS BUTTON SOS CAN L CD/DVD DECK COMPUTER DATA LINES SYSTEM FT_LH+ IN FT_LH+ OUT FT_RH+ IN FT_RH+ OUT GB-2 GPS RF GRN WIRE GRY WIRE IGN LED GREEN LED RED WIRE LEFT SIDE TWEETER LT BLU WIRE LT GRN WIRE MIC GND OUT MIC SIG OUT MIC-GND-(IN-) MIC-SIG-(IN+) MICROPHONE MUTE NCA WIRE ORG/ WIRE PNK WIRE PRI LTE RF RED WIRE RIGHT SIDE TWEETER SCN LTE RF SHIELD TAN WIRE TEL SUB ANTENNA TELEMATICS ANTENNA USB D- USB VBUS VBATT VIO WIRE WHT WIRE YEL WIRE

Go to component -> Navigation circuit, w/ audio amplifier (2 of 4) -> BUTTON SOS

Wiring diagram button sos (2 of 4)

Wiring diagram button sos for Subaru Legacy BW (2019-2024) (2 of 4)

Get access

AIR BAG AIR BAG CONTROL MODULE BLK WIRE BLU WIRE BRN WIRE BUTTON RS BUTTON SOS CAN L CAN-H COMPUTER DATA LINES SYSTEM FT_LH+ IN FT_LH+ OUT FT_RH+ IN FT_RH+ OUT GB-2 GPS RF GRN WIRE GRY WIRE IGN LED GREEN LED RED WIRE LEFT FRONT DOOR SPEAKER LEFT REAR DOOR SPEAKER LEFT SIDE TWEETER LT BLU WIRE LT GRN WIRE MIC GND OUT MIC SIG OUT MIC-GND-(IN-) MIC-SIG-(IN+) MICROPHONE MUTE NCA WIRE OP CONNECTOR (POWER AMPLIFIER) ORG/ WIRE PNK WIRE PRI LTE RF RED WIRE RED/WHT WIRE RIGHT FRONT DOOR SPEAKER RIGHT REAR DOOR SPEAKER RIGHT SIDE TWEETER SCN LTE RF SHIELD TAN WIRE TEL SUB ANTENNA TELEMATICS ANTENNA USB D- USB VBUS VBATT VIO WIRE WHT WIRE YEL WIRE

Go to component -> Navigation circuit, w/o audio amplifier (2 of 3) -> BUTTON SOS
