Subaru Legacy BM/BR (2009-2012) tire inflation pressure warning light ind Wiring diagrams
This page contains all the electrical diagrams for the component. tire inflation pressure warning light ind, in which he is found in the car Subaru Legacy BM/BR (2009-2012). You can view various wiring diagrams where this component is used, as well as go to more detailed diagrams to see the complete connection and interaction in the system. All diagrams have links to quickly jump to the corresponding section with the component for easy viewing..
Wiring diagram tire inflation pressure warning light ind (1 of 2)
ABS WARNING LIGHT IND
AIR BAG LIGHT IND PASSENGER'S
AIR BAG OFF IND PASSENGER'S
AIR BAG ON IND PASSENGER'S
AIR BAG WARNING LIGHT IND
AWD WARNING LIGHT IND
BLK WIRE
BLK/BLU WIRE
BLK/ORG WIRE
BLK/YEL WIRE
BLU WIRE
BLU/ORG WIRE
BLU/RED WIRE
BLU/WHT WIRE
BODY INTEGRATED UNIT (CENTER OF DASH)
BRN/WHT WIRE
CLOCK
COMBINATION METER
COMPUTER DATA LINES
CVT/AT OIL TEMPERATURE WARNING LIGHT IND
DRIVE CIRCUIT
DRIVE DRIVE CIRCUIT CIRCUIT
ENGINE COOLANT TEMPERATURE IND
ENGINE COOLANT TEMPERATURE WARNING LIGHT IND
FROM OIL PRESSURE WARNING LIGHT IND (DIAGRAM 1 OF 2)
FUEL PUMP ASSEMBLY (FUEL LEVEL SENSOR) (IN FUEL TANK)
FUEL SUB LEVEL SENSOR (IN FUEL TANK)
GB-10 (BASE OF LEFT "B" PILLAR)
GB-11 (RIGHT TOP OF REAR GATE)
GB-5 (RIGHT KICK PANEL)
GB-7 (SEDAN: CENTER FRONT OF LUGGAGE COMPT) (WAGON: RIGHT QUARTERPANEL)
HILL HOLD ON IND
LEFT FRONT DOOR SWITCH (LEFT "B" PILLAR)
LEFT REAR DOOR SWITCH (LEFT "C" PILLAR)
LEFT TURN SIGNAL LIGHT IND
LOW ENGINE OIL WARNING LIGHT IND
LOW-WASHER FLUID WARNING LIGHT IND
LT GRN/BLK WIRE
MICRO COMPUTER
PASSENGER'S SEAT BELT WARNING LIGHT IND
RED WIRE
REVERSE CIRCUIT
RIGHT FRONT DOOR SWITCH (RIGHT "B" PILLAR)
RIGHT TURN SIGNAL LIGHT IND
SEAT BELT WARNING LIGHT IND
SUPPLEMENTAL RESTRAINTS SYSTEM
SYSTEM
TIRE INFLATION PRESSURE WARNING LIGHT IND
VDC OFF IND
VDC WARNING LIGHT/ VDC OPERATION LIGHT IND
WAGON SEDAN
WHT/BLU WIRE
WHT/RED WIRE
YEL WIRE
YEL/BLK WIRE
YEL/BLU WIRE
YEL/RED WIRE
Go to component -> Instrument cluster circuit (2 of 2) -> TIRE INFLATION PRESSURE WARNING LIGHT IND

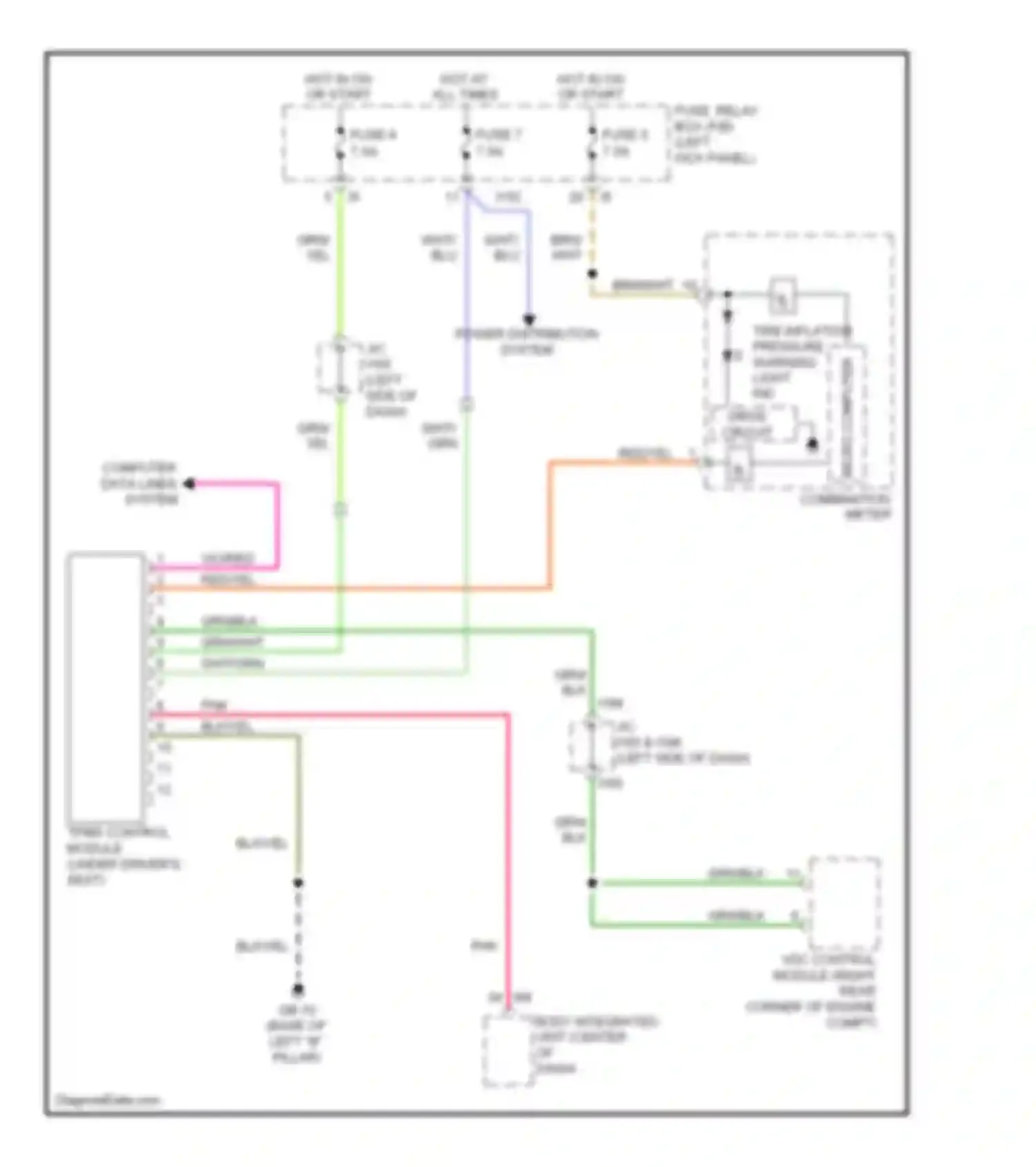

Wiring diagram tire inflation pressure warning light ind (2 of 2)
BLK WIRE
BLK/YEL WIRE
BLU WIRE
BODY INTEGRATED UNIT (CENTER OF DASH)
BRN WIRE
BRN/WHT WIRE
COMBINATION METER
COMPUTER DATA LINES SYSTEM
DRIVE CIRCUIT
FUSE 4
FUSE 5
FUSE 7
FUSE, RELAY BOX (F/B) (LEFT KICK PANEL)
GB-10 (BASE OF LEFT "B" PILLAR)
GRN WIRE
GRN/BLK WIRE
GRN/WHT WIRE
HOT AT ALL TIMES
HOT IN ON OR START
J/C
MICRO COMPUTER
PNK WIRE
POWER DISTRIBUTION SYSTEM
RED/YEL WIRE
TIRE INFLATION PRESSURE WARNING LIGHT IND
TPMS CONTROL MODULE (UNDER DRIVER'S SEAT)
VDC CONTROL MODULE (RIGHT REAR CORNER OF ENGINE COMPT)
VIO/RED WIRE
WHT WIRE
WHT/GRN WIRE
YEL WIRE
Go to component -> Tire pressure monitoring circuit -> TIRE INFLATION PRESSURE WARNING LIGHT IND
