Subaru Legacy BL/BP (2003-2006) red Wiring diagrams
This page contains all the electrical diagrams for the component. red, in which he is found in the car Subaru Legacy BL/BP (2003-2006). You can view various wiring diagrams where this component is used, as well as go to more detailed diagrams to see the complete connection and interaction in the system. All diagrams have links to quickly jump to the corresponding section with the component for easy viewing..
Wiring diagram red (21 of 44)
BLK WIRE
BLU WIRE
BLU/BLK WIRE
BLU/ORG WIRE
BLU/RED WIRE
BLU/WHT WIRE
BRN/RED WIRE
COMBINATION METER
DIODE (KEY WARNING SWITCH) (BEHIND RIGHT SIDE OF DASH)
DIODE (WAGON) (RIGHT REAR CORNER OF VEHICLE)
DOOR OFF
DOOR WARNING BACK LIGHT
DOOR WARNING SPORTS SHIFTS (LCD)
FUSE 2
FUSE 4
FUSE/ RELAY BOX (LEFT END OF DASH)
GB-5 (UNDER FRONT OF CENTER CONSOLE)
GB-9
HOT AT ALL TIMES
HOT IN ACC OR ON
INTEGRATED MODULE (LOWER LEFT SIDE OF DASH)
KEY ILLUMINATION LIGHT
KEYLESS ENTRY CONTROL MODULE (BEHIND RIGHT SIDE OF DASH)
LEFT FRONT DOOR SWITCH
LEFT REAR DOOR SWITCH
LEFT STEP LIGHT
LEFT VANITY MIRROR ILLUMI- NATION LIGHT
LUGGAGE ROOM LIGHT (WAGON)
MAIN FUSE BOX (LEFT SIDE OF ENGINE COMPARTMENT)
MICRO COMPUTER
ON DOOR OFF
OP CONNECTOR (BEHIND LEFT CENTER OF DASH)
PNK/BLK WIRE
REAR GATE LATCH SWITCH (WAGON) (BOTTOM CENTER OF REAR GATE)
RED WIRE
RED/BLU WIRE
RIGHT FRONT DOOR SWITCH
RIGHT REAR DOOR SWITCH
RIGHT STEP LIGHT
RIGHT VANITY MIRROR ILLUMI- NATION LIGHT
ROOM LIGHT
SPOT LIGHT
TRUNK ROOM LIGHT (SEDAN)
TRUNK ROOM LIGHT SWITCH (SEDAN)
WHT/GRN WIRE
WHT/RED WIRE
YEL/BLU WIRE
YEL/RED WIRE
Go to component -> Courtesy lamps circuit -> RED WIRE
Wiring diagram red (22 of 44)
BLK WIRE
BLK/WHT WIRE
BLU WIRE
BLU/WHT WIRE
FUSE
FUSE 4
FUSE/ RELAY BOX (LEFT END OF DASH)
GB-3 (AT REAR OF ENGINE COMPARTMENT)
GB-9 (SEDAN: AT TOP CENTER OF TRUNK)
HIGH OFF LOW
HOT AT ALL TIMES MAIN FUSE BOX (AT LEFT SIDE OF ENGINE COMPT) SBF-2 FUSE
HOT IN ACC OR ON
LEFT SEAT HEATER (UNDER LEFT FRONT SEAT)
LEFT SEAT HEATER SWITCH
LT GRN WIRE
RED WIRE
RED/BLU WIRE
RED/WHT WIRE
RELAY BLOCK (RIGHT SIDE OF ENGINE COMPT)
RIGHT SEAT HEATER (UNDER RIGHT FRONT SEAT)
RIGHT SEAT HEATER SWITCH
SEAT HEATER/ REAR ACCESSORY POWER SUPPLY RELAY (BEHIND LEFT SIDE OF DASH)
VIO WIRE
YEL WIRE
YEL/RED WIRE
Go to component -> Heated seats circuit -> RED WIRE
Wiring diagram red (23 of 44)
A/T OIL TEMP WARNING IND VDC OPERATION IND
ABS WARNING IND
AIR BAG WARNING IND
ANTI-LOCK BRAKES SYSTEM
ANTI-THEFT SYSTEM
ANTI-THEFT SYSTEM INTERIOR LIGHTS SYSTEM
BLK WIRE
BLK/BLU WIRE
BLK/GRN WIRE
BLK/ORG WIRE
BLK/WHT WIRE
BLU WIRE
BLU/BLK WIRE
BLU/RED WIRE
BLU/WHT WIRE
BRN WIRE
BRN/BLK WIRE
BRN/RED WIRE
BRN/YEL WIRE
CARGO LIGHT IND
CHARGE WARNING IND
CIRCUIT AIR BAG
CLOCK/ OUT TEMP
COMBINATION METER
CRUISE SET IND
DIMMER CIRCUIT
ENGINE CONTROLS SYSTEM ENGINE CONTROLS SYSTEM
FUSE 12
FUSE/ RELAY BOX
FWD IND
GRN WIRE
GRN/BLK WIRE
GRN/ORG WIRE
GRN/RED WIRE
GRN/WHT WIRE
HEADLIGHTS SYSTEM
HI-BEAM IND
HOT W/ TAIL, ILLUMINATION RELAY ENERGIZED
ILLUM LAMPS (4)
INTERIOR LIGHTS SYSTEM ENGINE CONTROLS SYSTEM EXTERIOR LIGHTS SYSTEM
LEFT TURN IND
LOW FUEL WARNING IND
LT GRN/BLK WIRE
LT GRN/YEL WIRE
MALFUNCTION INDICATOR
NCA WIRE
ODO METER/ TRIPMETER
ODO/ TRIP LCD BACK LIGHT CLOCK/ OUT TEMP BACK LIGHT
OIL PRESSURE WARNING IND
ORG/ WIRE
ORG/WHT WIRE
OUTLINE VEHICLE
PARK BRAKE/ BRAKE FLUID LEVEL WARNING IND
PNK 8 9 10 WIRE
PNK WIRE
PNK/WHT WIRE
POWER CIRCUIT FUEL GAUGE
RED WIRE
RED/BLU WIRE
RED/GRN WIRE
RED/WHT WIRE
RIGHT TURN IND
SEAT BELT WARNING IND
SECURITY IND
SPEEDOMETER
STARTING/CHARGING SYSTEM CRUISE CONTROL SYSTEM
SUPPLEMENTAL RESTRAINTS SYSTEM
SWITCHBACK GATE WARNING IND
TACHOMETER
TEMPERATURE GAUGE
TRANSMISSIONS SYSTEM
TRANSMISSIONS SYSTEM ENGINE CONTROLS SYSTEM
VDC OFF IND
VDC WARNING IND
VIO WIRE
WARNING IND REAR GATE
WHT/GRN WIRE
WHT/RED WIRE
YEL/BLU WIRE
YEL/GRN WIRE
YEL/RED WIRE
Go to component -> Instrument cluster circuit, without sport shift (1 of 2) -> RED WIRE
Wiring diagram red (24 of 44)
2.5L
3.0L
BLK WIRE
BLK/BLU WIRE
BLK/RED WIRE
BLK/WHT WIRE
BLU WIRE
BLU/BLK WIRE
BLU/RED WIRE
BLU/WHT WIRE
BRAKE FLUID LEVEL SWITCH (IN BRAKE MASTER CYLINDER)
BRN WIRE
BRN/BLK WIRE
BRN/RED WIRE
BRN/WHT WIRE
BUMPER) AMBIENT SENSOR
DIODE (SPORT LIGHT) (BEHIND RIGHT SIDE OF DASH)
DK GRN/RED WIRE
ENGINE CONTROLS SYSTEM
EXCEPT 2.5L TURBO
FUEL LEVEL SENSOR
FUEL SUB LEVEL SENSOR
FUSE 2
FUSE 5
GB-3 (AT REAR OF ENGINE COMPT)
GB-7 (AT FRONT LEFT SIDE OF CENTER CONSOLE)
GB-8 (UNDER RIGHT FRONT SEAT)
GE (ON RIGHT REAR OF ENGINE)
GE-1 (ON TOP LEFT OF ENGINE)
GRN WIRE
GRN/ORG WIRE
GRN/WHT WIRE
HOT AT ALL TIMES
HOT IN ON OR START
IGNITION RELAY (IN RELAY BLOCK)
LEFT FRONT DOOR SWITCH
LEFT REAR DOOR SWITCH
MAIN FUSE BOX (LEFT SIDE OF ENGINE COMPT)
OP CONNECTOR (BEHIND LEFT CENTER OF DASH) PNK WIRE
ORG/ WIRE
PARKING BRAKE SWITCH (AT BASE OF PARKING BRAKE LEVER)
PICK-UP
PNK 1 WIRE
PNK 8 9 10 WIRE
PNK WIRE
RED WIRE
RIGHT FRONT DOOR SWITCH
RIGHT REAR DOOR SWITCH
SEDAN WAGON
SHIELD, SENSOR GROUND JOINT CONNECTOR (LOWER RIGHT END OF DASH)
WHT WIRE
WHT/BLU WIRE
WHT/GRN WIRE
YEL WIRE
YEL/RED WIRE
Go to component -> Instrument cluster circuit, without sport shift (2 of 2) -> RED WIRE
Wiring diagram red (25 of 44)
16 1 (3.0L) (2.5L)
2.5L: W/ LOW EMISSION
2.5L: W/O LOW EMISSION
ABS VDC
AUTO A/C CONTROL MODULE
BATTERY
BLK WIRE
BLK/RED WIRE
BLOWER MOTOR RELAY ABS CONTROL MODULE VALVE RELAY
BLU WIRE
BLU/RED WIRE
CHECK CONNECTOR OXYGEN SENSOR HEATER RELAY
COMBINATION METER
DASH)
DATA LINK CONNECTOR
ELECTRIC THROTTLE RELAY
ENGINE CONTROL MODULE
FUEL PUMP RELAY
FUSE 1 FUSE 7
FUSE 13
FUSE 2
FUSE 3
FUSE 4
FUSE 5
FUSE 6
FUSE 7
FUSE 8
FUSE 8 FUSE 2
FUSE 9
FUSE, RELAY BOX (LEFT END OF
GENERATOR
GRN WIRE
GRN/WHT WIRE
HAZARD SWITCH
HEADLIGHTS SYSTEM TO IGNITION SWITCH (DIAGRAM 2 OF 4)
HORN RELAY
IGNITION RELAY
KEY WARNING SWITCH STOP, TURN MODULE HAZARD SWITCH
KEYLESS ENTRY CONTROL MODULE
LEFT HEADLIGHT RELAY
MAIN RELAY
NCA WIRE
PARKING SWITCH
POWER WINDOW CIRCUIT BREAKER
POWER WINDOW RELAY POWER SEAT
RADIO COMBINATION METER
REAR DEFOGGER RELAY
RED WIRE
RED/YEL WIRE
RELAY BOX
RIGHT HEADLIGHT RELAY
ROOM LIGHT
SBF-1 FUSE
SBF-3 FUSE FUSE 1
SBF-5 FUSE
SBF-6 FUSE
SECURITY CONTROL MODULE
SECURITY CONTROL MODULE SECURITY HORN RELAY
SPOT LIGHT
STARTER MOTOR
TO IGNITION SWITCH (DIAGRAM 2 OF 4)
TO MAIN FUSE BOX SBF-4 (DIAGRAM 2 OF 4)
TO MULTIPLE POWER SOCKET FUSE HOLDER (DIAGRAM 4 OF 4)
TO TAIL, ILLUMINATION RELAY (DIAGRAM 3 OF 4)
TRANSMISSION CONTROL MODULE
VEHICLE SPEED SENSOR (M/T)
W/ ONSTAR FRONT FOGLIGHT RELAY W/O ONSTAR
W/ SPORT SHIFT
WHT WIRE
WHT/GRN WIRE
WHT/RED WIRE
YEL WIRE
Go to component -> Power distribution circuit (1 of 4) -> RED WIRE
Wiring diagram red (26 of 44)
2.5L: W/ LOW EMISSION
2.5L: W/O LOW EMISSION
25 24 (3.0L) (2.5L)
3.0L
A/T
A/T SELECT LEVER ILLUMINATION LIGHT INTEGRATED MODULE
ABS CONTROL MODULE
AIR CONDITIONING RELAY
AIR CONDITIONING RELAY HOLDER
AIRBAG CONTROL MODULE
AUTO A/C CONTROL MODULE
AUTO A/C CONTROL MODULE (A/T)
BACK-UP LIGHT SWITCH (M/T)
BLK WIRE
BLK/WHT WIRE
BLOWER MOTOR RELAY PRESSURE SWITCH
BLU WIRE
CLUTCH SWITCH
COMBINATION METER FRONT ACCESSORY POWER SUPPLY SOCKET ILLUMINATION LIGHT
CRUISE CONTROL MAIN SWITCH
CRUISE CONTROL MAIN SWITCH ILLUMINATION LIGHT ASHTRAY ILLUMINATION LIGHT
ENGINE CONTROL MODULE
FAN RELAY (3.0L)
FROM FUSE/ RELAY BOX
FROM IGNITION SWITCH (DIAGRAM 2 OF 4)
FRONT FOG LIGHT SWITCH ILLUMINATION LIGHT
FUEL PUMP RELAY TRANSMISSION CONTROL MODULE
FUSE 11
FUSE 12
FUSE 17
FUSE 18
FUSE 6
GLOVE BOX ILLUMINATION LIGHT
GRN WIRE
GRN/BLK WIRE
GRN/RED WIRE
HAZARD SWITCH ILLUMINATION LIGHT RADIO ILLUMINATION LIGHT
IGNITION COIL 1 IGNITION COIL 2 IGNITION COIL 3
IGNITION COIL 4 IGNITION COIL 5
IGNITION COIL 6
IGNITION COIL, IGNITOR
INHIBITOR SWITCH (A/T) CRUISE CONTROL MODULE
LEFT SEAT HEATER SWITCH ILLUMINATION LIGHT
LT GRN WIRE
M/T
MAIN FAN RELAY (2.5L) SUB FAN RELAY 1 (3.0L)
MAIN FAN RELAY 1 MAIN FAN RELAY 2
MANUAL A/C AUTOMATIC A/C
MODE CONTROL PANEL (M/T)
MODE CONTROL PANEL ILLUMINATION LIGHT
NCA WIRE
PARKING SWITCH
POWER WINDOW MAIN SWITCH ILLUMINATION LIGHT
REAR DEFOGGER RELAY
RED WIRE
RIGHT SEAT HEATER SWITCH ILLUMINATION LIGHT
SUB FAN RELAY SUB FAN RELAY 2
TAIL, ILLUMINATION RELAY
VDC OFF SWITCH (SEDAN, WAGON)
VEHICLE DYNAMIC CONTROL MODULE
VIO WIRE
WHT WIRE
WIPER DEICER SWITCH ILLUMINATION LIGHT
YEL WIRE
Go to component -> Power distribution circuit (3 of 4) -> RED WIRE

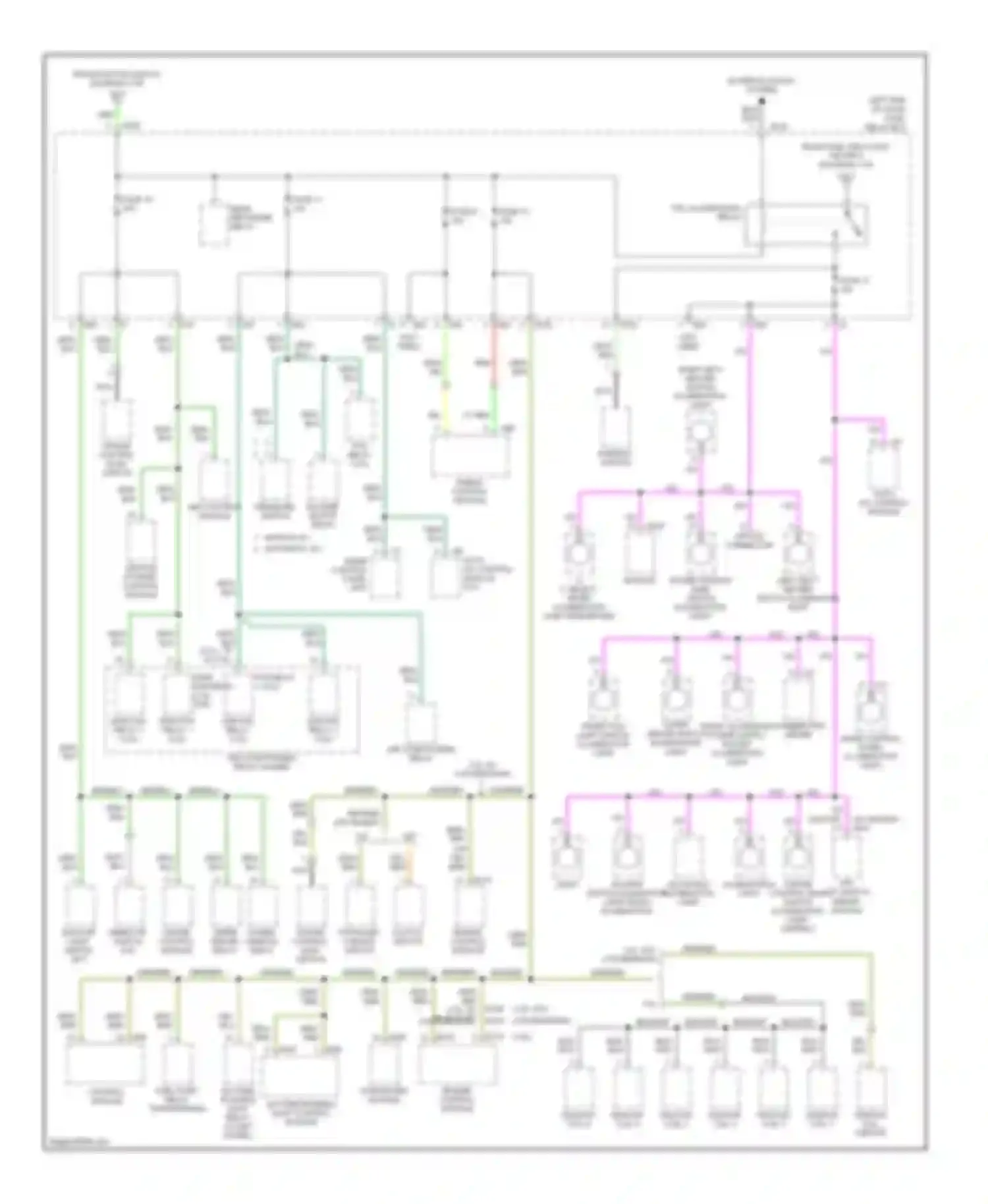

Wiring diagram red (27 of 44)
2.5L
3.0L
ABS CONTROL MODULE MOTOR RELAY
ABS VDC
AIR CONDITIONING RELAY HOLDER
AIR CONDITIONING RELAY HOLDER MAIN FAN RELAY 1
AUTO A/C CONTROL MODULE
BLK WIRE
BLU WIRE
BLU/BLK WIRE
FROM BATTERY (DIAGRAM 1 OF 4)
FROM FUSE, RELAY BOX (DIAGRAM 2 OF 4)
FROM MAIN FUSE BOX (DIAGRAM 2 OF 4)
FROM MAIN FUSE BOX SBF-2 (DIAGRAM 2 OF 4)
FRONT ACCESSORY POWER SUPPLY SOCKET
FUSE
FUSE (W/ VDC) (W/ ABS)
FUSE 10
FUSE 16
FUSE 19
FUSE 4
GB-7 (AT FRONT LEFT SIDE OF CENTER CONSOLE)
GRN WIRE
INTEGRATED MODULE
LEFT VANITY MIRROR ILLUMINATION LIGHT
MAIN FAN RELAY SUB FAN RELAY
MULTIPLE POWER SOCKET
MULTIPLE POWER SOCKET FUSE HOLDER
MULTIPLE POWER SOCKET RELAY
NCA WIRE
OXYGEN SENSOR HEATER RELAY (2.5L: W/ LOW EMISSION)
POWER AMPLIFIER
RED WIRE
RED/BLK WIRE
RELAY BLOCK
RELAY BOX
REMOTE CONTROLLED REARVIEW MIRROR SWITCH
RIGHT REARVIEW MIRROR (HEATER) LEFT REARVIEW MIRROR (HEATER)
RIGHT VANITY MIRROR ILLUMINATION LIGHT
SBF HOLDER
STOP LIGHT RELAY
STOPLIGHT SWITCH
SUB FAN RELAY 2
SUB-FAN RELAY-1
TO SEAT HEATER RELAY/REAR ACCESSORY POWER SUPPLY RELAY (DIAGRAM 2 OF 4)
TRAILER CONNECTOR
W/ MCINTOSH AUDIO
WHT WIRE
WHT/BLK WIRE
WHT/RED WIRE
WIPER DEICER RELAY
YEL WIRE
YEL/RED WIRE
Go to component -> Power distribution circuit (4 of 4) -> RED WIRE
Wiring diagram red (28 of 44)
BLK WIRE
DRIVER'S SIDE DOOR LOCK SWITCH
DRIVER'S SIDE FRONT DOOR LOCK ACTUATOR (REAR OF LEFT FRONT DOOR)
FUSE 3
FUSE/ RELAY BOX (LEFT END OF DASH)
GB-5 (UNDER FRONT OF CENTER CONSOLE)
GB-7 (AT FRONT LEFT SIDE OF CENTER CONSOLE)
GRN WIRE
GRN/RED WIRE
HOT AT ALL TIMES
INTEGRATED MODULE (LOWER LEFT SIDE OF DASH)
LEFT REAR DOOR LOCK ACTUATOR (REAR OF LEFT REAR DOOR)
LT GRN/YEL WIRE
LT LT
PASSENGER'S SIDE DOOR LOCK SWITCH
PASSENGER'S SIDE FRONT DOOR LOCK ACTUATOR (REAR OF RIGHT REAR DOOR)
REAR GATE LOCK ACTUATOR (WAGON) (BOTTOM CENTER OF REAR GATE)
RED WIRE
RED/BLK WIRE
RED/GRN WIRE
RIGHT REAR DOOR LOCK ACTUATOR (REAR OF RIGHT REAR DOOR)
WHT WIRE
WHT/RED WIRE
YEL WIRE
Go to component -> Power door locks circuit, without keyless entry -> RED WIRE

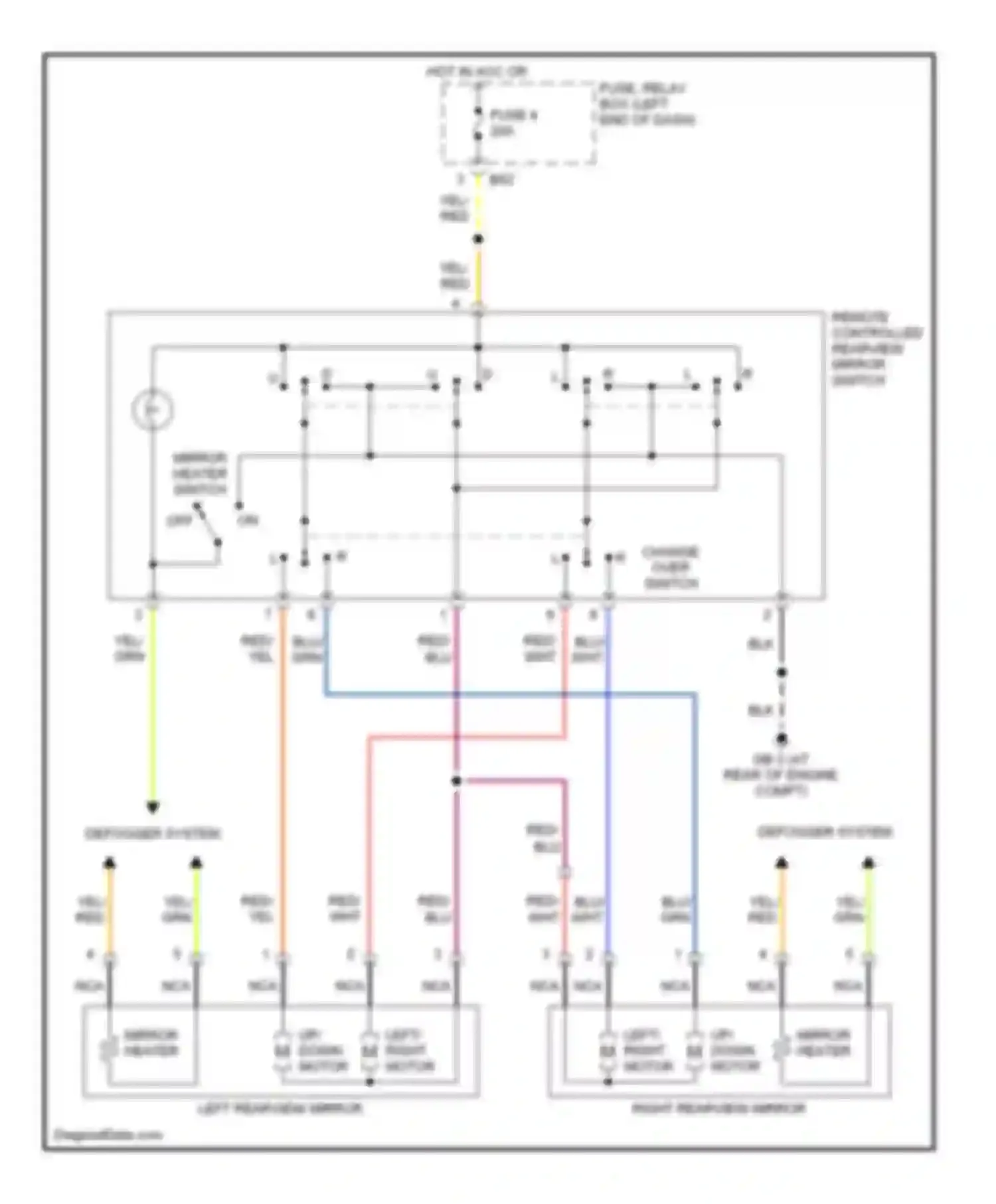

Wiring diagram red (29 of 44)
BLK WIRE
BLU WIRE
CHANGE OVER SWITCH
DEFOGGER SYSTEM
FUSE 4
FUSE/ RELAY BOX (LEFT END OF DASH)
GB-3 (AT REAR OF ENGINE COMPT)
GRN WIRE
HOT IN ACC OR ON
LEFT REARVIEW MIRROR
LEFT/ RIGHT MOTOR
MIRROR HEATER
MIRROR HEATER SWITCH
NCA WIRE
OFF
RED WIRE
REMOTE CONTROLLED REARVIEW MIRROR SWITCH
RIGHT REARVIEW MIRROR
UP/ DOWN MOTOR
WHT WIRE
YEL WIRE
Go to component -> Power mirrors circuit -> RED WIRE

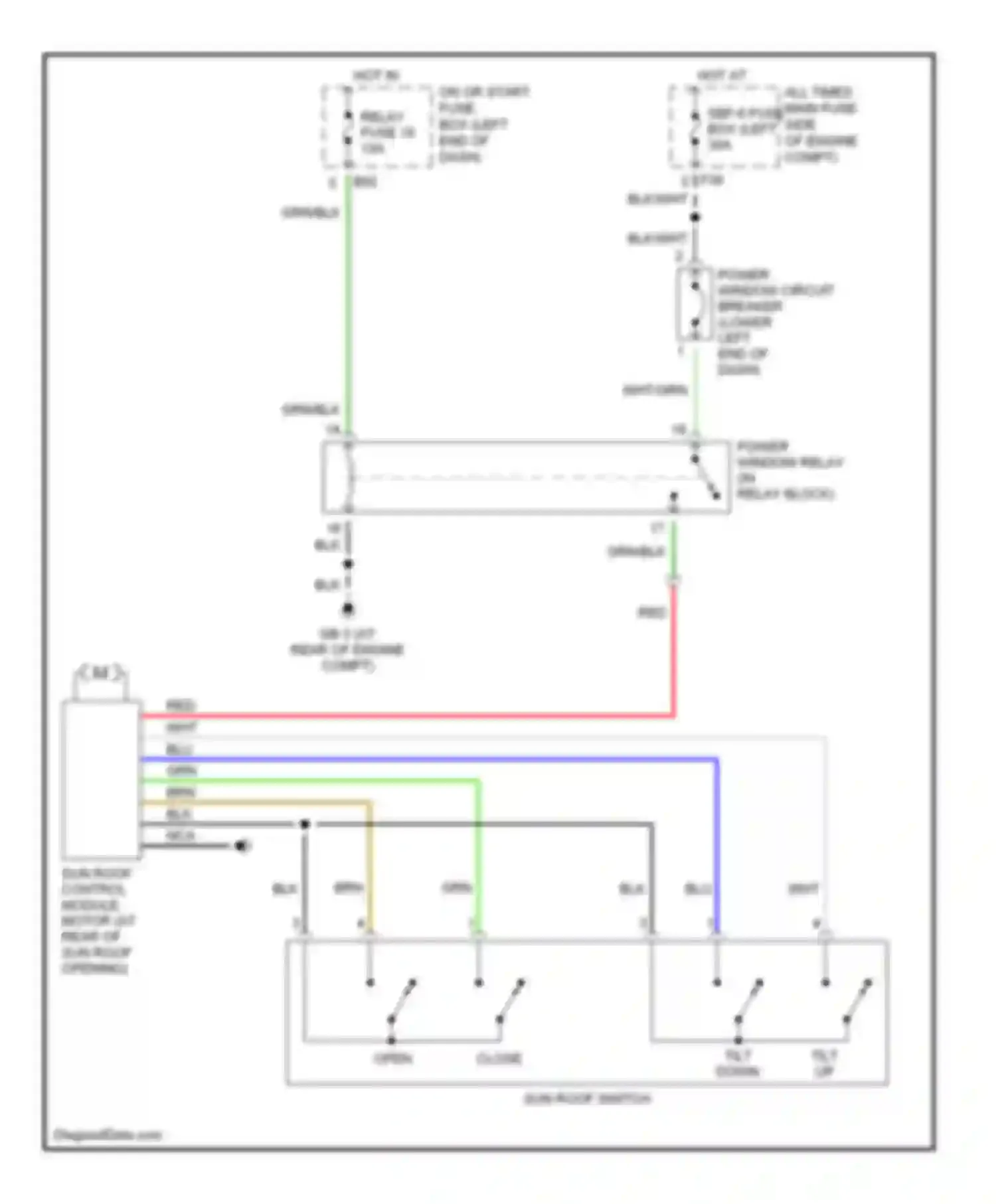

Wiring diagram red (30 of 44)
BLK WIRE
BLK/WHT WIRE
BLU WIRE
BRN WIRE
CLOSE OPEN
GB-3 (AT REAR OF ENGINE COMPT)
GRN WIRE
GRN/BLK WIRE
HOT AT ALL TIMES MAIN FUSE SBF-6 FUSE BOX (LEFT SIDE OF ENGINE COMPT)
HOT IN ON OR START FUSE, RELAY FUSE 18 BOX (LEFT END OF DASH)
NCA WIRE
POWER WINDOW CIRCUIT BREAKER (LOWER LEFT END OF DASH)
POWER WINDOW RELAY (IN RELAY BLOCK)
RED WIRE
SUN ROOF CONTROL MODULE, MOTOR (AT REAR OF SUN ROOF OPENING)
SUN ROOF SWITCH
TILT DOWN TILT UP
WHT WIRE
WHT/GRN WIRE
Go to component -> Sunroof circuit, sedan -> RED WIRE
