Subaru Legacy BE/BH/BT (1998-2004) wiper deicer Wiring diagram
This page shows the only wiring diagram for the component.wiper deicer, which is found in the car Subaru Legacy BE/BH/BT (1998-2004). This component is only found in one wiring diagram on your vehicle, and you can see its details here. If necessary, you can also go to other diagrams for this system for more information..

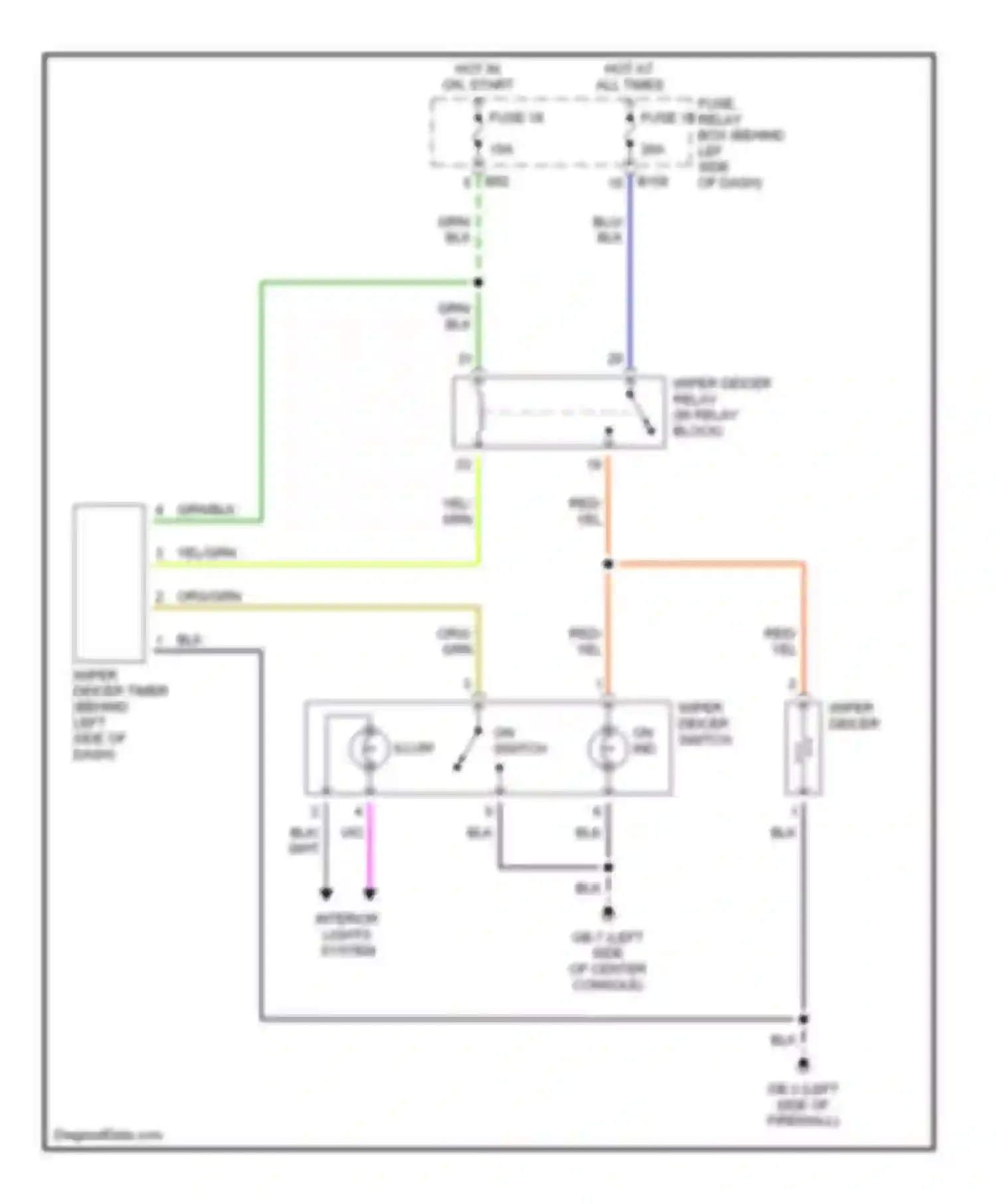

Wiring diagram wiper deicer (1 of 1)
BLK WIRE
BLU WIRE
FUSE 18
FUSE 19
FUSE, RELAY BOX (BEHIND LEF SIDE OF DASH)
GB-3 (LEFT SIDE OF FIREWALL)
GB-7 (LEFT SIDE OF CENTER CONSOLE)
GRN WIRE
GRN/BLK WIRE
HOT AT ALL TIMES
HOT IN ON, START
ILLUM
ON SWITCH
ORG/ WIRE
ORG/GRN WIRE
RED WIRE
VIO WIRE
WHT WIRE
WIPER DEICER
WIPER DEICER RELAY (IN RELAY BLOCK)
WIPER DEICER SWITCH ON IND
WIPER DEICER TIMER (BEHIND LEFT SIDE OF DASH)
YEL WIRE
YEL/GRN WIRE
Go to component -> Wiper deicer circuit -> WIPER DEICER
