Back-up lamps circuit for Subaru Impreza GD/GC/GG facelift (2002-2005)

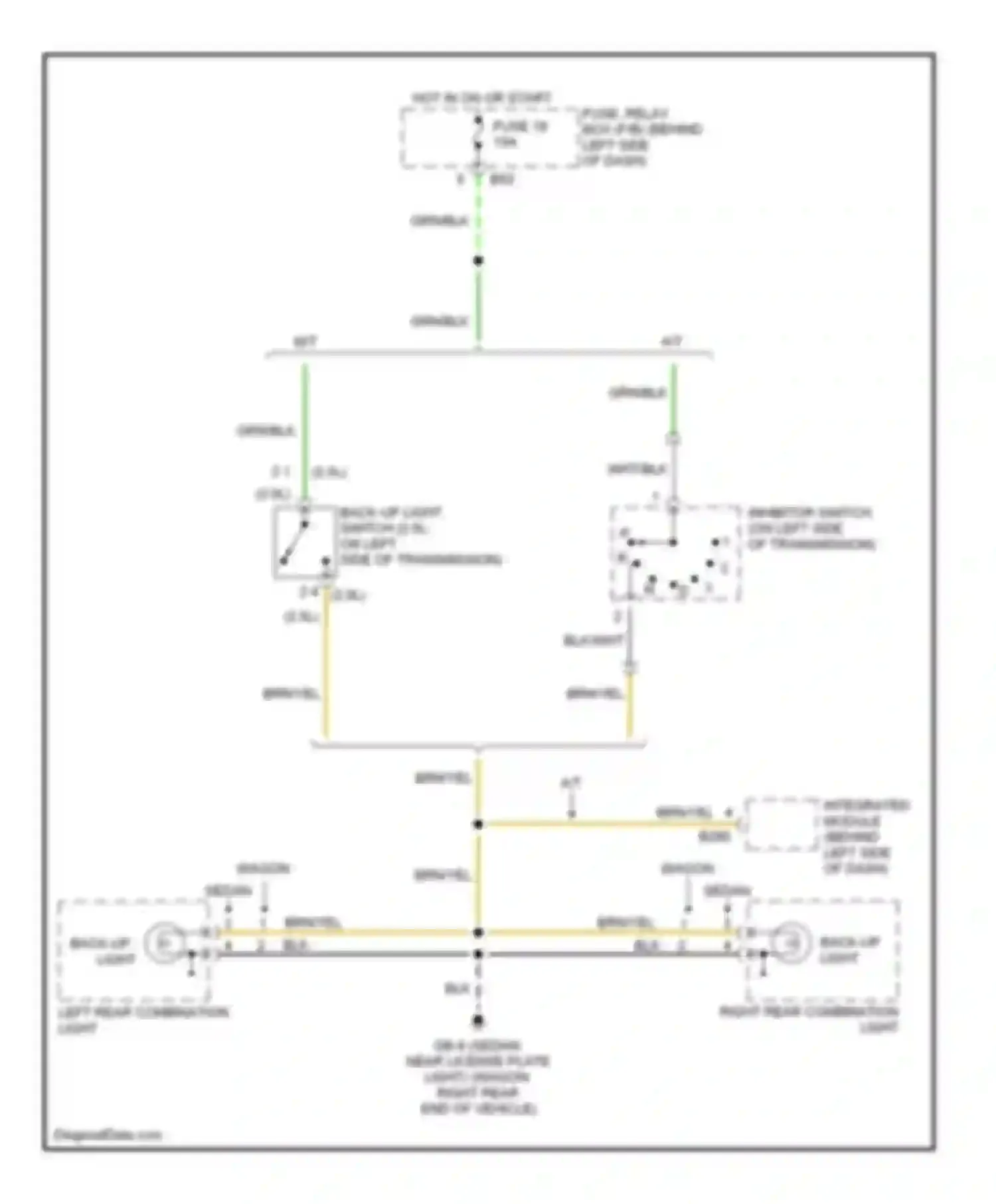

Back-up lamps circuit
2 1 (2.0L) (2.5L)
2 4 (2.5L) (2.0L)
A/T
BACK- UP LIGHT
BACK-UP LIGHT SWITCH (2.5L: ON LEFT SIDE OF TRANSMISSION)
BLK WIRE
BLK/WHT WIRE
BRN/YEL WIRE
FUSE 18
FUSE, RELAY BOX (F/B) (BEHIND LEFT SIDE OF DASH)
GB-8 (SEDAN: NEAR LICENSE PLATE LIGHT) (WAGON: RIGHT REAR END OF VEHICLE)
GRN/BLK WIRE
HOT IN ON OR START
INHIBITOR SWITCH (ON LEFT SIDE OF TRANSMISSION)
INTEGRATED MODULE (BEHIND LEFT SIDE OF DASH)
LEFT REAR COMBINATION LIGHT
M/T
RIGHT REAR COMBINATION LIGHT
WAGON SEDAN
WHT/BLK WIRE
