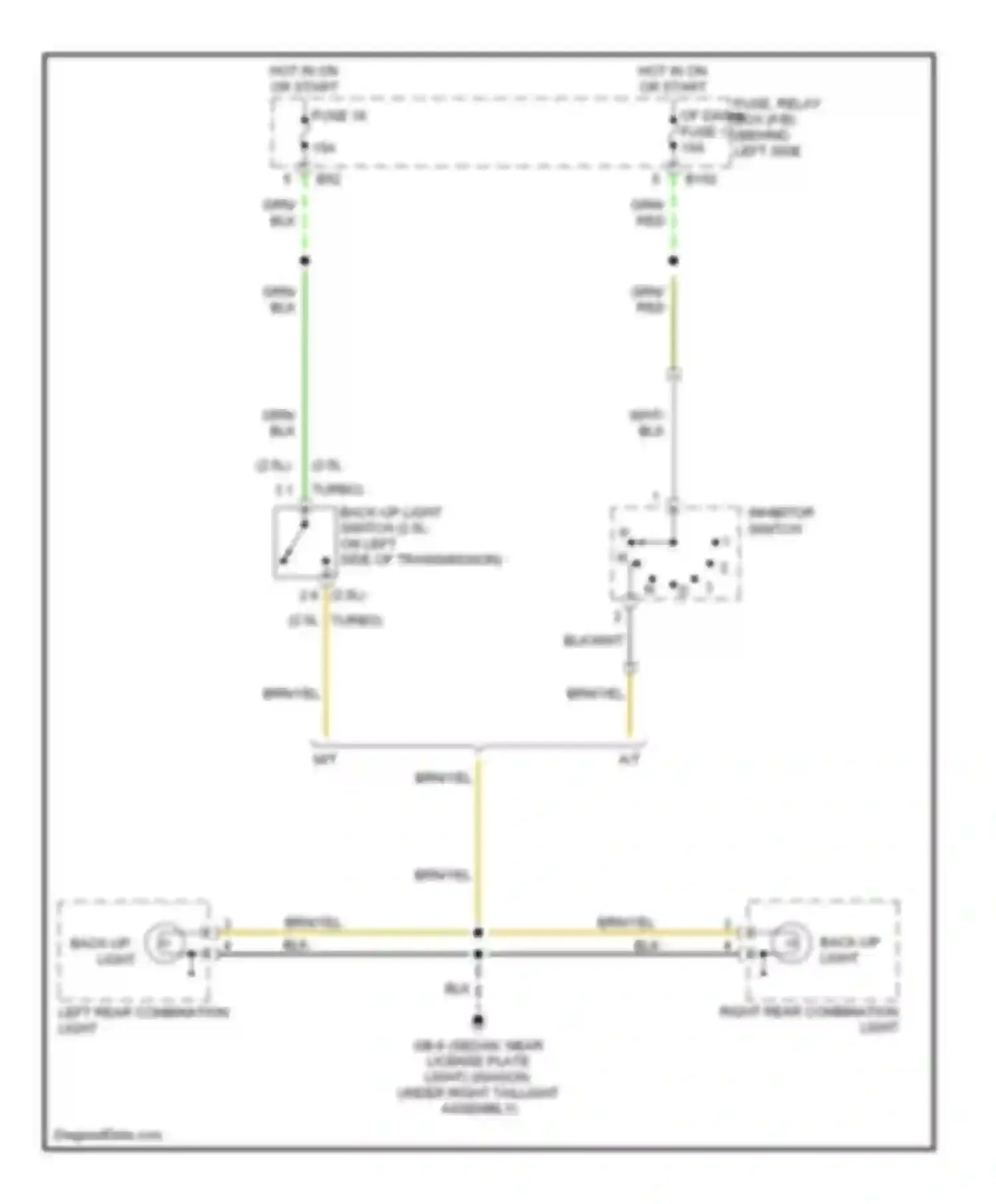

Back-up lamps circuit for Subaru Impreza GD/GC/GG facelift 2 (2005-2007)
Back-up lamps circuit
A/T
BACK- UP LIGHT
BACK-UP LIGHT SWITCH (2.5L: ON LEFT SIDE OF TRANSMISSION)
BLK WIRE
BLK/WHT WIRE
BRN/YEL WIRE
FUSE 18
FUSE, RELAY BOX (F/B) (BEHIND LEFT SIDE OF DASH) FUSE 11
GB-8 (SEDAN: NEAR LICENSE PLATE LIGHT) (WAGON: UNDER RIGHT TAILLIGHT ASSEMBLY)
GRN WIRE
HOT IN ON OR START
INHIBITOR SWITCH
LEFT REAR COMBINATION LIGHT
M/T
RED WIRE
RIGHT REAR COMBINATION LIGHT
WHT WIRE
