Exterior lamps circuit for Subaru Forester SH facelift (2010-2013)

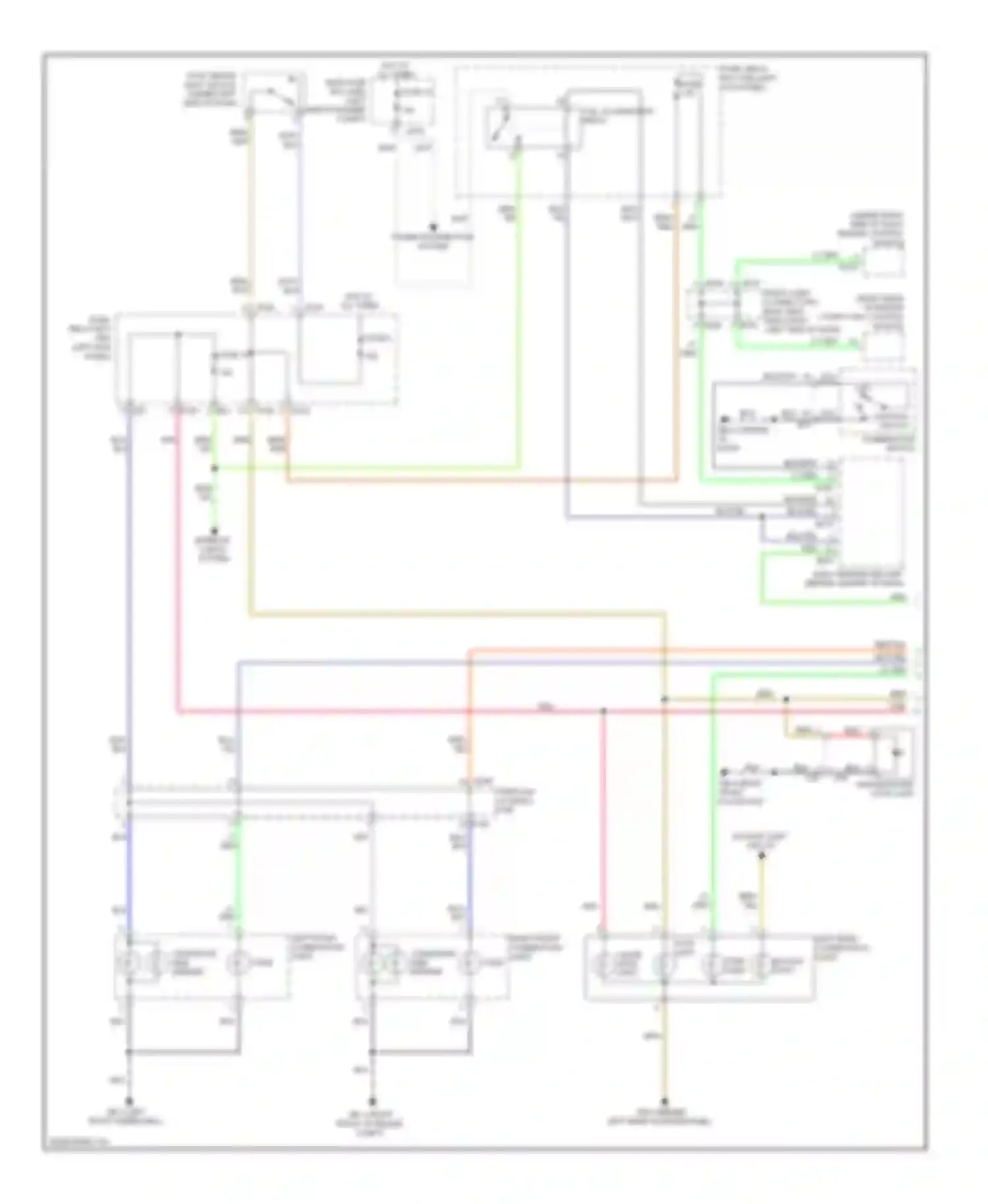

BACKUP LIGHT BACKUP LIGHT CIRCUIT BLK WIRE BLK/WHT WIRE BLU WIRE BLU/YEL WIRE BODY INTEGRATED UNIT (BEHIND CENTER OF DASH) BRN WIRE CLEAR- ANCE LIGHT CLEARANCE, SIDE MARKER COMBINATION SWITCH FUSE FUSE 14 FUSE 8 FUSE, RELAY BOX (F/B) (LEFT KICK PANEL) GB-1 (RIGHT FRONT OF ENGINE COMPT) GB-2 (LEFT FRONT WHEELWELL) GB-6 (CENTER OF DASH) GB-8 (RIGHT FRONT FLOOR PAN) GB-9 (BEHIND LEFT REAR QUARTERPANEL) GRN WIRE GRY WIRE HIGH MOUNTED STOP LIGHT HOT AT ALL TIMES HOT AT ALL TIMES MAIN FUSE BOX (M/B) (LEFT SIDE OF ENGINE COMPT) FUSE 15 LEFT FRONT COMBINATION LIGHT LEFT REAR COMBINATION LIGHT LIGHTING SWITCH LT GRN WIRE MULTI JOINT CONNECTORS NCA WIRE OFF PNK WIRE POWER DISTRIBUTION SYSTEM RED WIRE RED/YEL WIRE RIGHT FRONT COMBINATION LIGHT TURN STOP LIGHT STOP, BRAKE LIGHT SWITCH (UNDER LEFT SIDE OF DASH) TAIL, ILLUMINATION RELAY THROUGH TURN TURN LIGHT WHT WIRE YEL WIRE

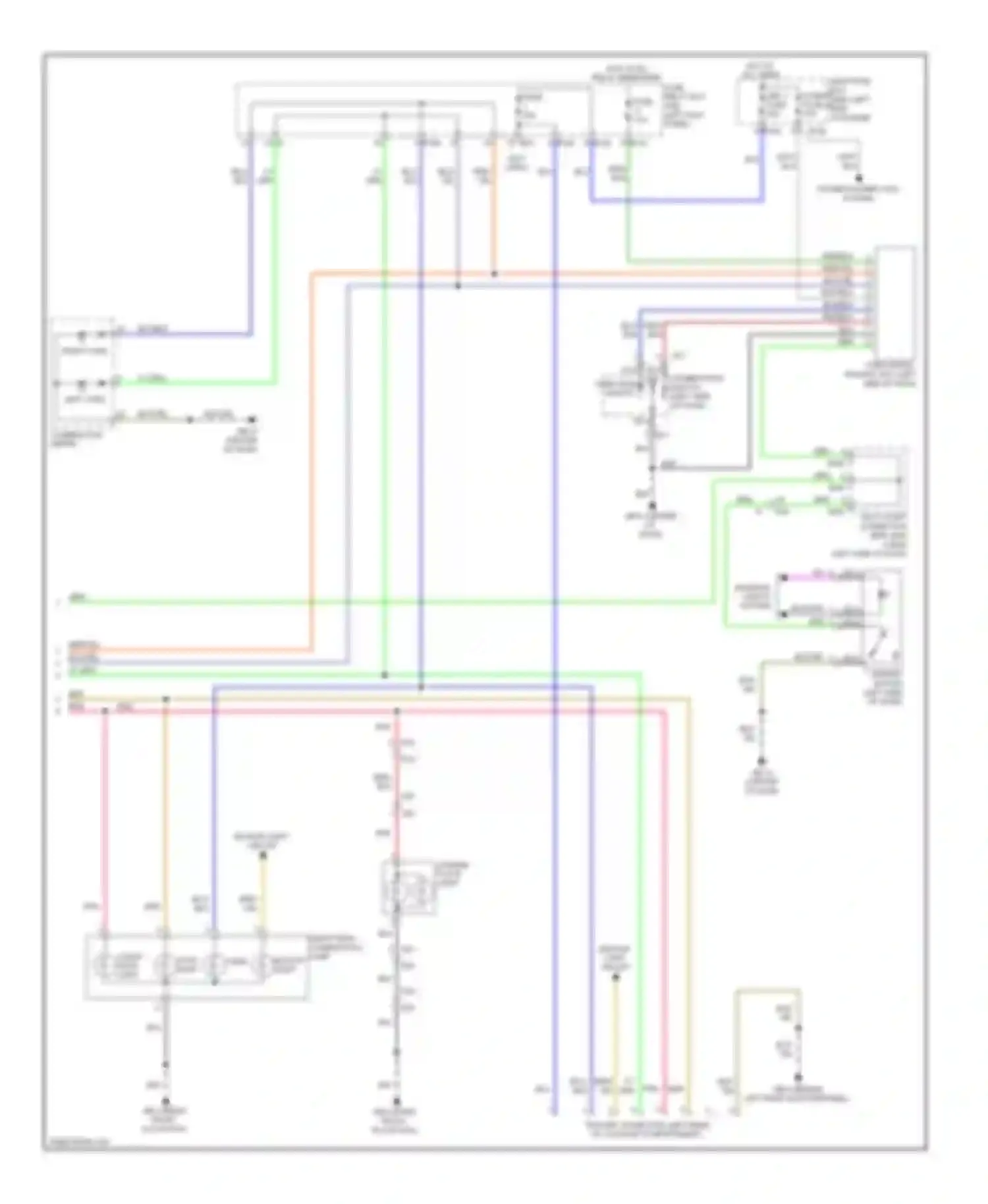

BACKUP LIGHT CIRCUIT BACKUP LIGHT TURN BLK WIRE BLK/WHT WIRE BLK/YEL WIRE BLU WIRE BLU/BLK WIRE BLU/YEL WIRE BRN WIRE CLEAR- ANCE LIGHT COMBINATION METER COMBINATION SWITCH (LEFT SIDE OF DASH) FUSE FUSE, RELAY BOX (F/B) (LEFT KICK PANEL) GB-10 (CENTER OF DASH) GB-6 (CENTER OF DASH) GB-8 (RIGHT FRONT FLOOR PAN) GB-9 (BEHIND LEFT REAR QUARTERPANEL) GRN WIRE GRN/BLK WIRE HAZARD SWITCH HOT AT ALL TIMES LEFT TURN LICENSE PLATE LIGHT LT GRN WIRE LT PNK WIRE MAIN FUSE BOX (M/B) (LEFT SIDE OF ENGINE COMPT) FUSE 14 MULTI JOINT CONNECTOR NCA WIRE OFF TURN SIGNAL SWITCH PNK PNK WIRE PNK WIRE POWER DISTRIBUTION SYSTEM RED WIRE RED/BLK WIRE RED/YEL WIRE RELAY ENERGIZED RIGHT REAR COMBINATION LAMP RIGHT TURN SBF-2 FUSE STOP LIGHT TRAILER CONNECTOR (LEFT REAR OF LUGGAGE COMPARTMENT) TURN SIGNAL, HAZARD UNIT (LEFT SIDE OF DASH) VIO WIRE WHT WIRE WHT/BLK WIRE YEL WIRE
