Wiring Diagrams for Subaru Ascent I (2017-2022)

Automatic a/c circuit

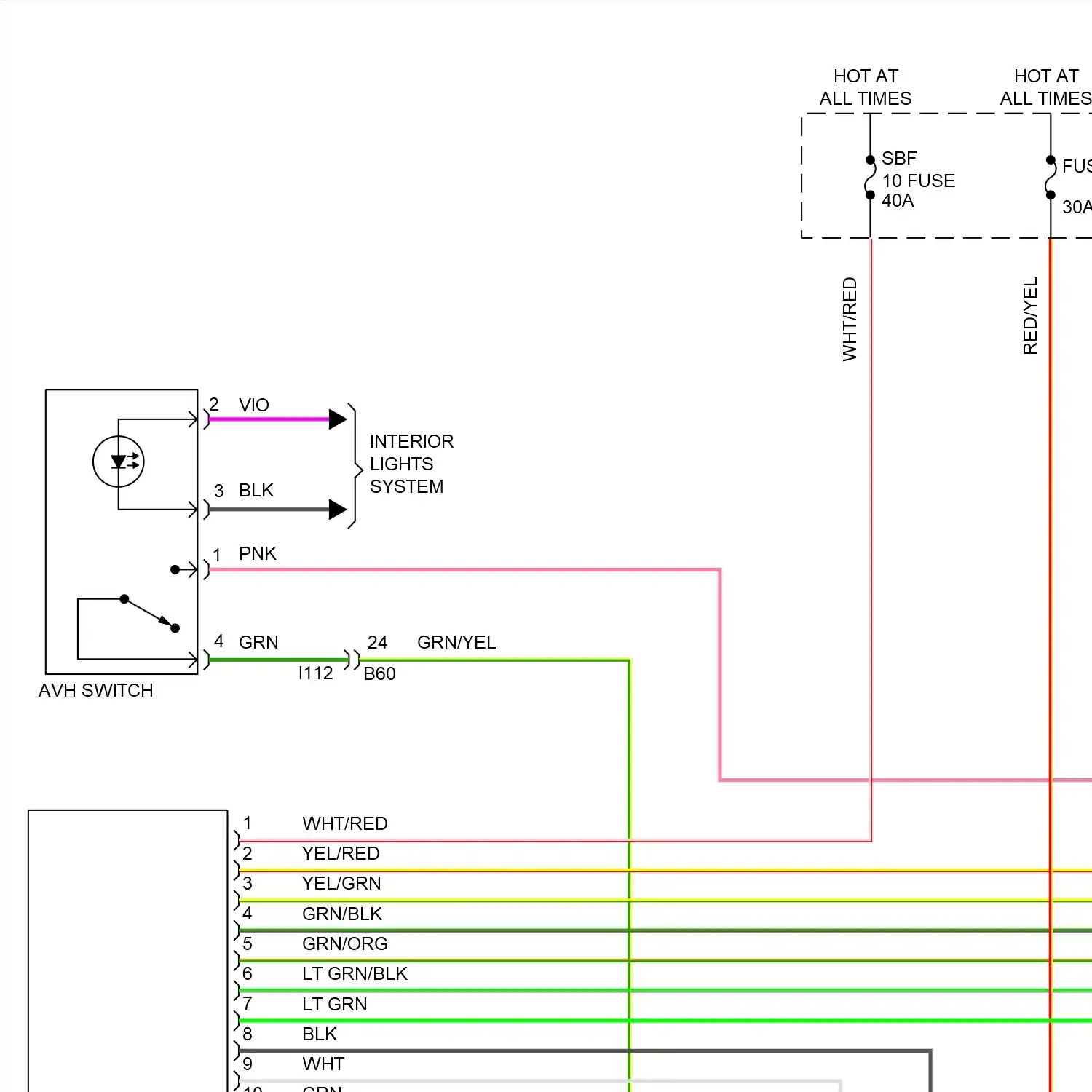

Anti-lock brakes circuit

Forced entry circuit, w/ keyless access system Forced entry circuit, w/o keyless access system Immobilizer circuit

Body control modules circuit

Computer data lines circuit

Cooling fan circuit

Cruise control circuit

Mirror heater & rear defogger circuit Wiper deicer circuit

Electronic power steering circuit

Wiring diagram engine performance 2.4l turbo

Backup lamps circuit Exterior lamps circuit

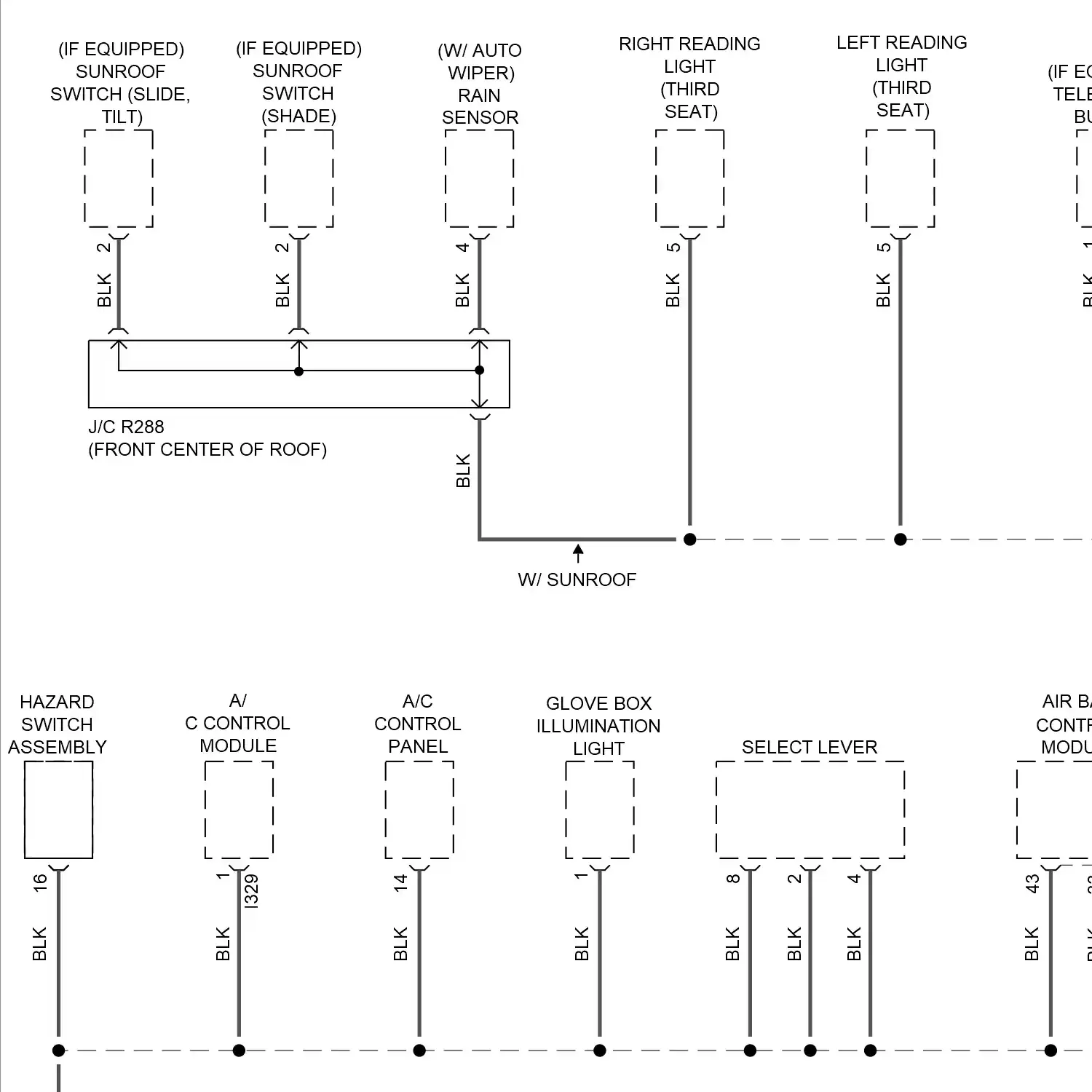

Ground distribution circuit

Headlamps circuit Headlamps leveling circuit

Horn circuit

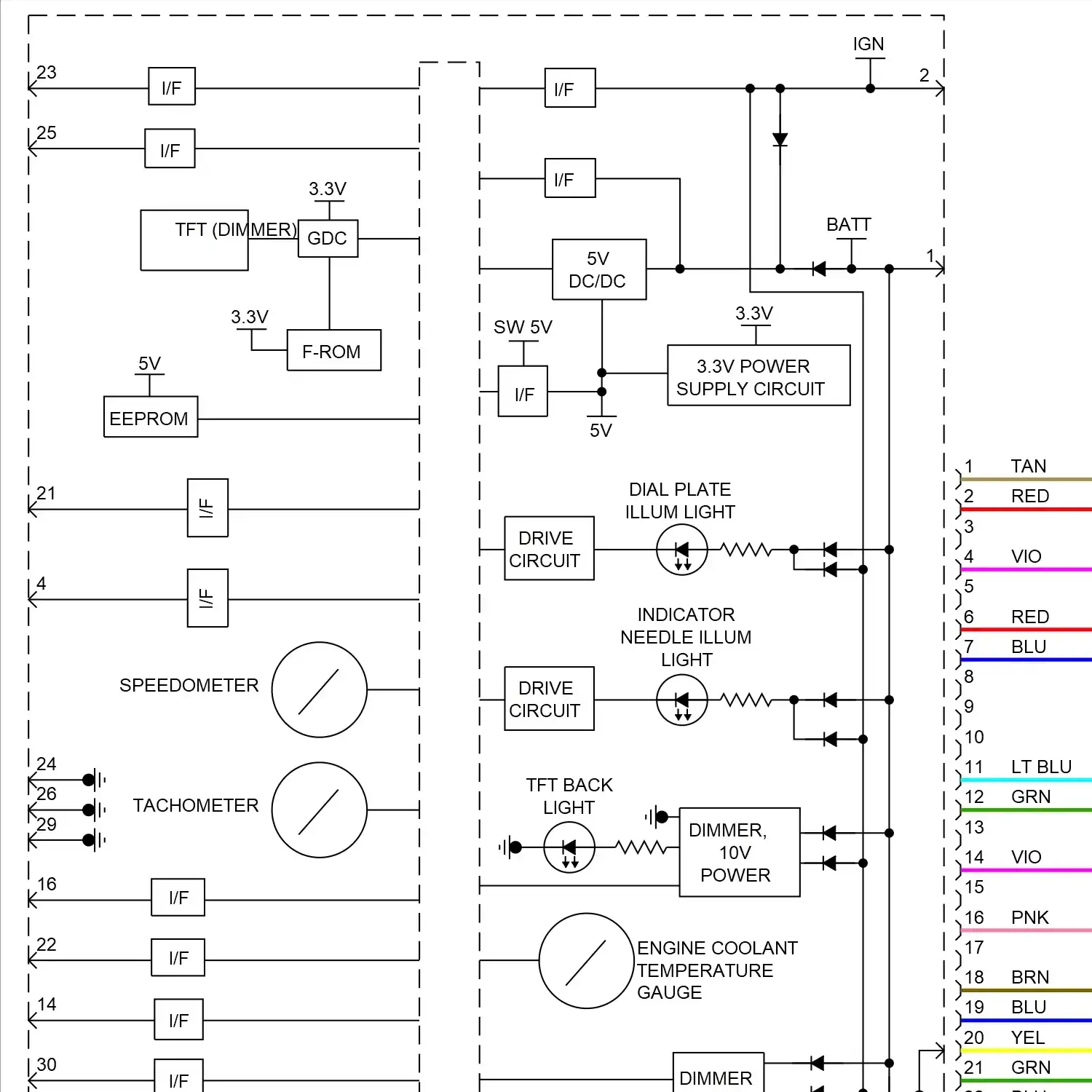

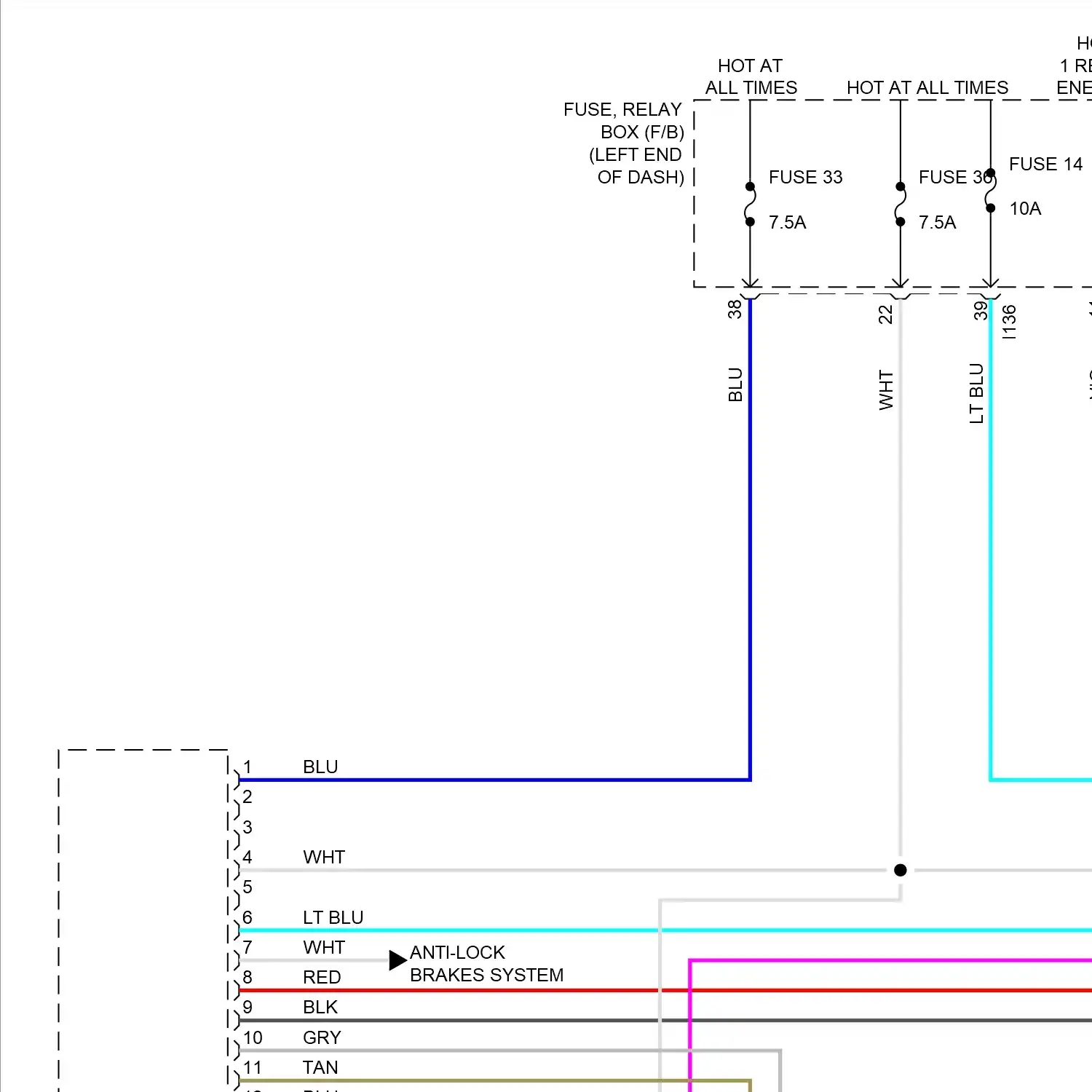

Instrument cluster circuit

Courtesy lamps circuit Instrument illumination circuit

Memory systems circuit

Eyesight circuit Front view monitor circuit Navigation circuit, w/ audio amplifier & telematics Navigation circuit, w/ audio amplifier w/o telematics Navigation circuit, w/o audio amplifier Rear vehicle detection circuit Rear view camera circuit Reverse automatic braking system circuit

Power distribution circuit

Power door locks circuit, w/ keyless access system Power door locks circuit, w/o keyless access system

Automatic day/night mirror circuit, w/o smart rear view camera & op connector Automatic day/night mirror circuit, w/o smart rear view camera w/ op connector Automatic day/night mirror circuit, w/ smart rear view camera Power mirror circuit

Front heated seats circuit, w/o seat ventilation Front heated seats circuit, w/ seat ventilation Heated steering wheel circuit Power seat circuit Rear heated seats circuit

Power top/sunroof circuit

Power windows circuit, w/o rear seats off delay function Power windows circuit, w/ rear seats off delay function

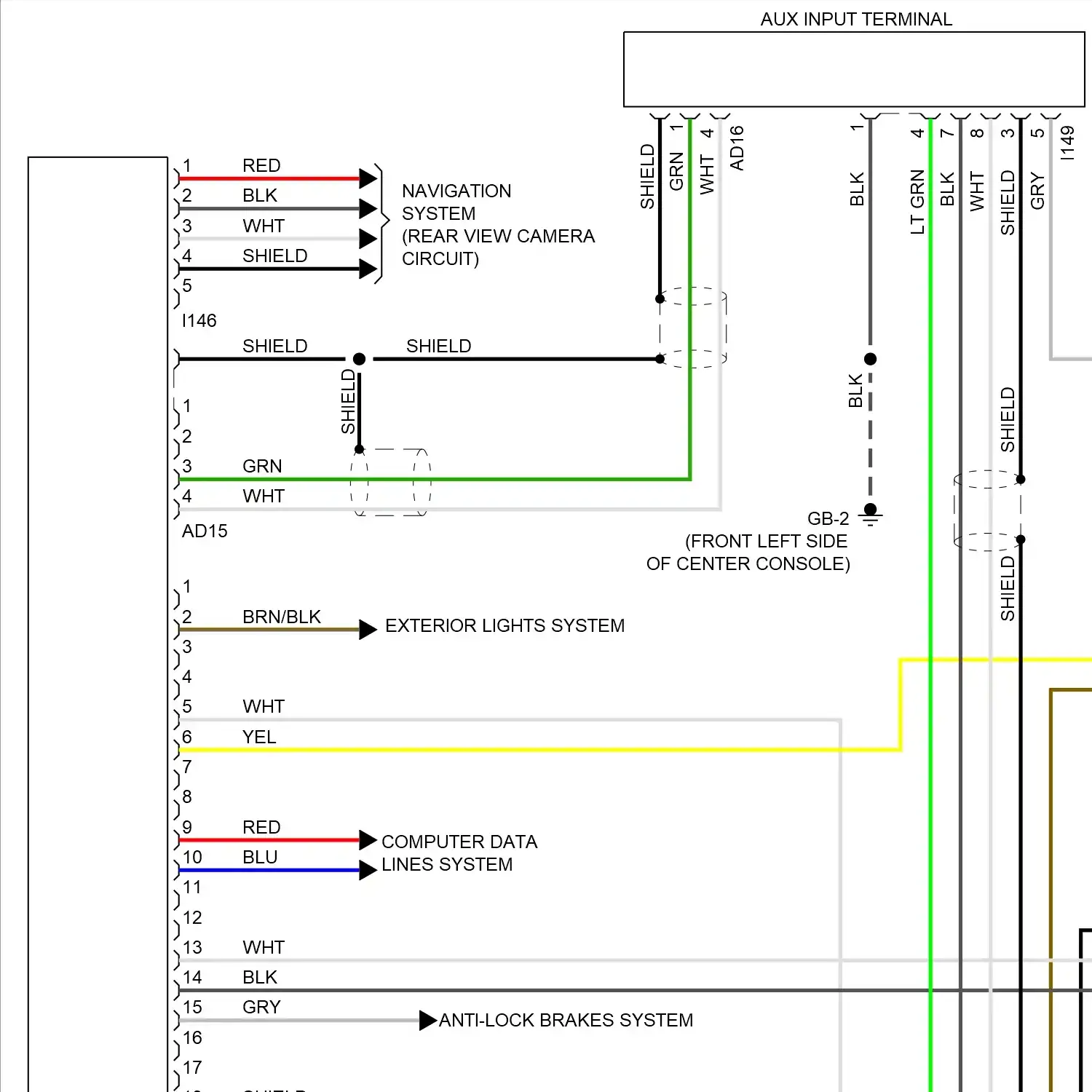

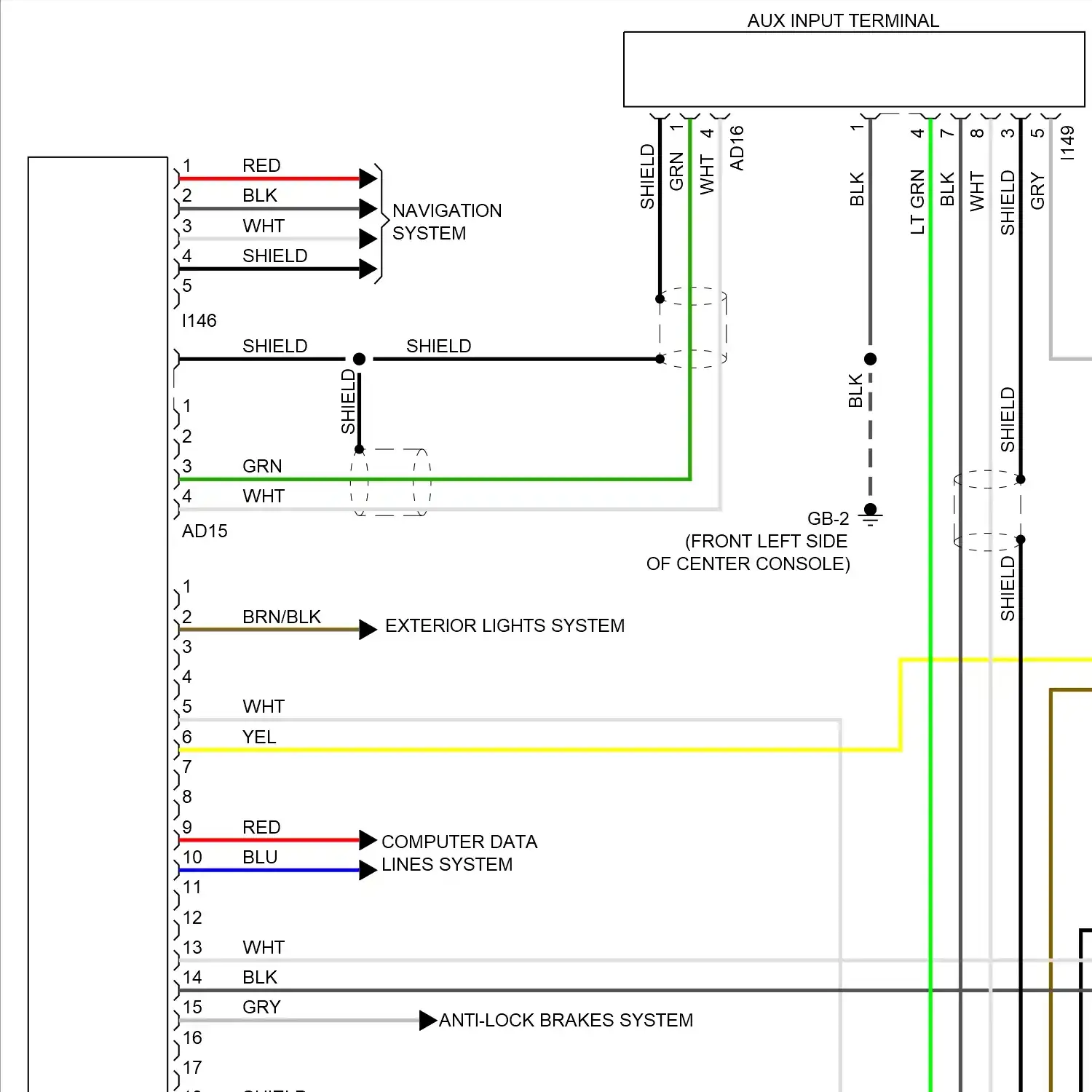

Radio circuit, w/ navigation, audio amplifier & telematics Radio circuit, w/ navigation & audio amplifier w/o telematics Radio circuit, w/ navigation w/o audio amplifier Radio circuit, w/o navigation & telematics Radio circuit, w/o navigation w/ telematics

Shift interlock circuit

Charging circuit Starting circuit

Supplemental restraints circuit

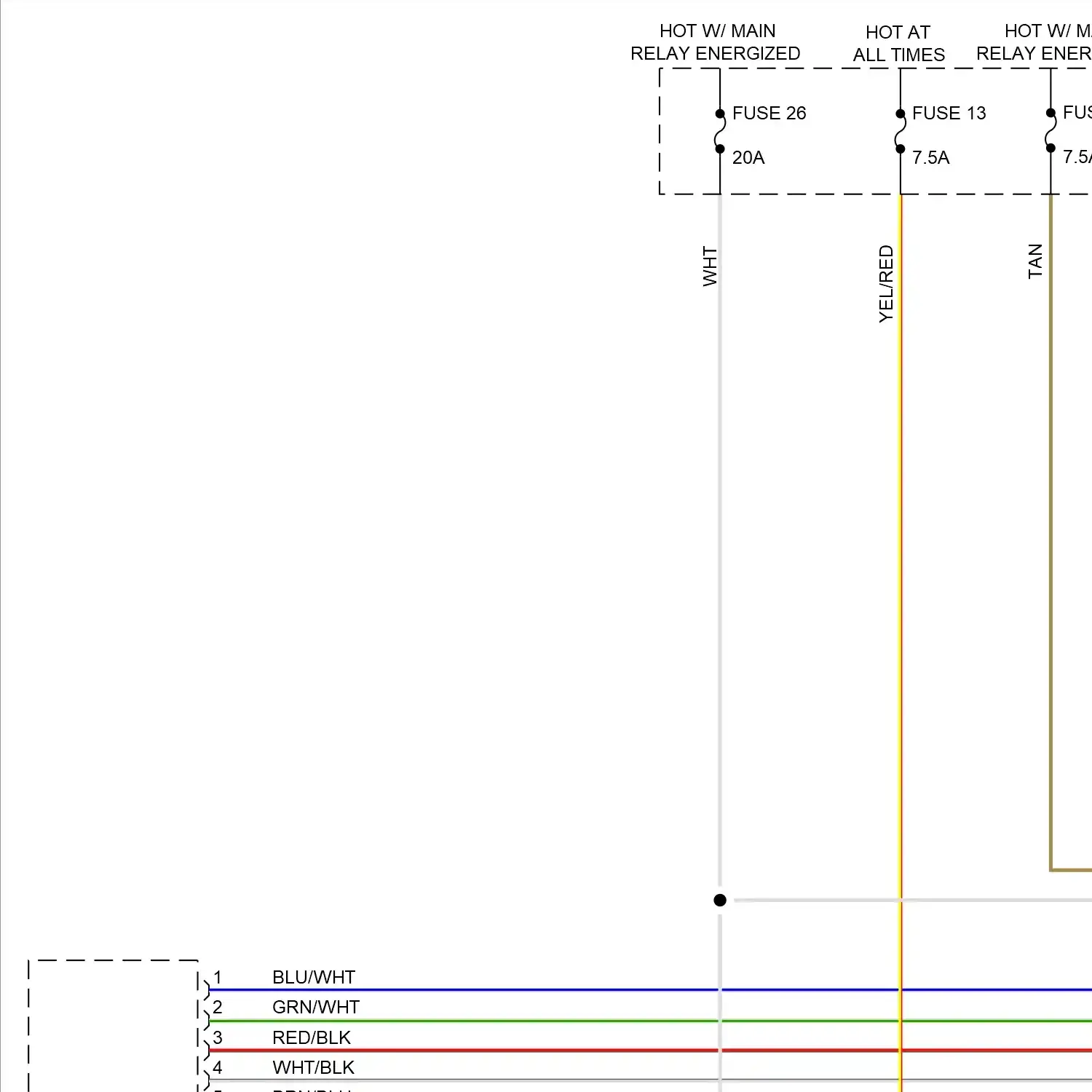

Transmission circuit

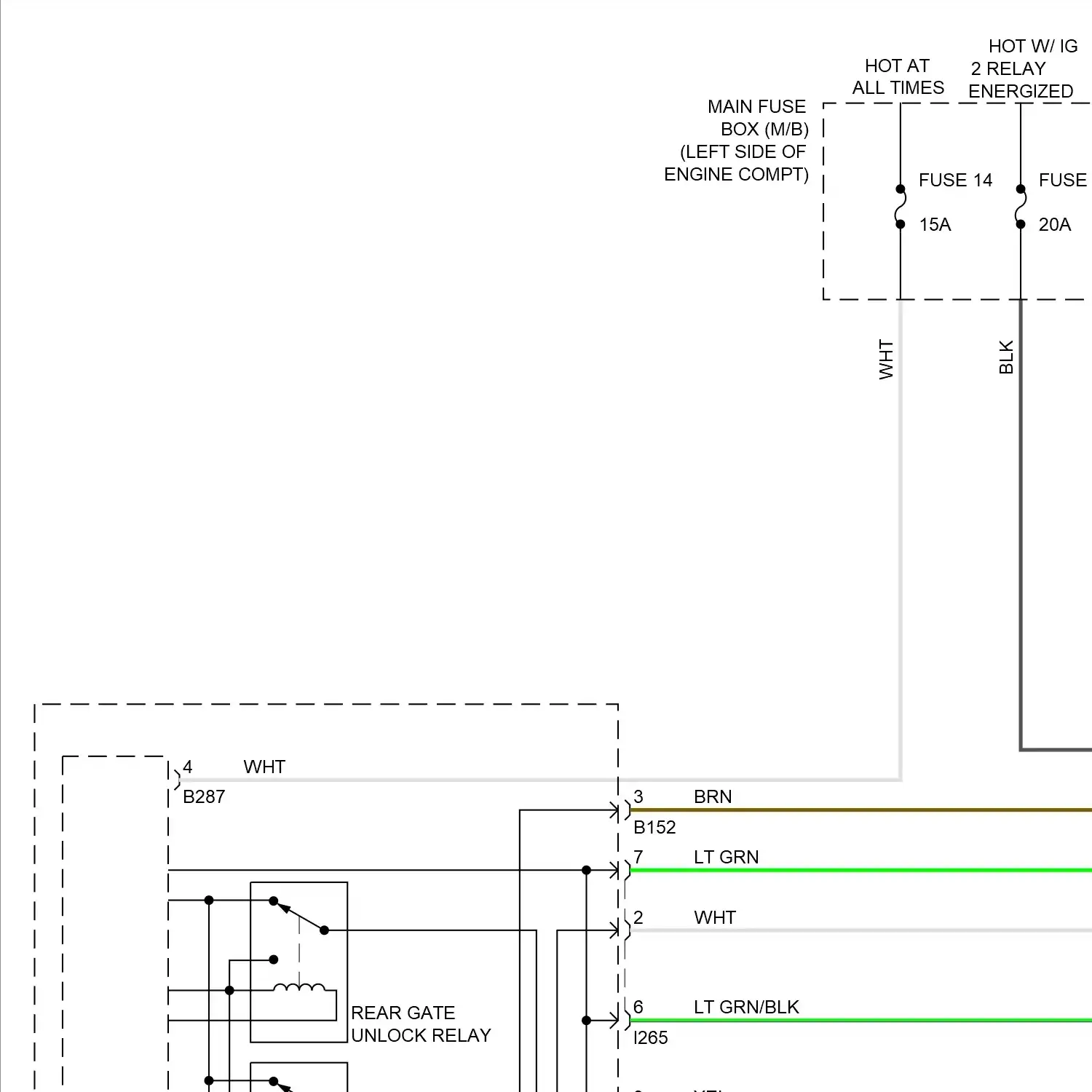

Power door closer circuit Trunk/tailgate release circuit

Chime circuit Tire pressure monitoring circuit

Front wiper/washer circuit, w/ auto wiper system Front wiper/washer circuit, w/o auto wiper system Rear wiper/washer circuit

ANTI-LOCK BRAKES SYSTEM AUDIO AMPLIFIER CAN TRANSCEIVER CAN TRANSCEIVER, RECEIVER IGNITION COIL 1 IGNITION COIL 2 IGNITION COIL 3 IGNITION COIL 4 LEFT HORN LOCK UP POWER AMPLIFIER RIGHT HORN W/ AUDIO AMPLIFIER W/O AUDIO AMPLIFIER

(RIGHT FRONT OF ENGINE BLOWER MOTOR ENGINE COOLANT TEMPERATURE GAUGE FRONT WASHER MOTOR FRONT WIPER MOTOR INTAKE DOOR ACTUATOR LEFT AIR MIX DOOR ACTUATOR LEFT FRONT CONTROL DOOR LOCK ACTUATOR LEFT FRONT DOOR LOCK ACTUATOR LEFT FRONT POWER WINDOW MOTOR LEFT REAR DOOR LOCK ACTUATOR LEFT REAR POWER WINDOW MOTOR LEFT REAR QUARTERPANEL, BELOW BLOWER MOTOR LEFT TUMBLE GENERATOR VALVE ACTUATOR LIFTER MOTOR LUMBAR MOTOR MAIN FAN MOTOR MODE DOOR ACTUATOR REAR AIR MIX DOOR ACTUATOR REAR BLOWER MOTOR REAR MODE DOOR ACTUATOR REAR WASHER MOTOR REAR WIPER MOTOR RECLINING MOTOR RIGHT AIR MIX DOOR ACTUATOR RIGHT FRONT DOOR LOCK ACTUATOR RIGHT FRONT POWER WINDOW MOTOR RIGHT REAR DOOR LOCK ACTUATOR RIGHT REAR POWER WINDOW MOTOR RIGHT TUMBLE GENERATOR VALVE ACTUATOR SLIDE MOTOR STARTER MOTOR SUB FAN MOTOR TILT MOTOR

CENTER KEYLESS ACCESS INTERIOR ANTENNA FRONT KEYLESS ACCESS INTERIOR ANTENNA GPS ANTENNA IMMOBILIZER ANTENNA REAR KEYLESS ACCESS EXTERIOR ANTENNA REAR KEYLESS ACCESS INTERIOR ANTENNA SATELLITE ANTENNA TEL SUB ANTENNA TELEMATICS ANTENNA

POWER REAR GATE LOCK BUTTON PUSH BUTTON IGNITION SWITCH REAR GATE OPENER BUTTON REAR GATE OPENER, LOCK BUTTON REAR LOCK BUTTON, REAR GATE OPENER BUTTON TELEMATICS BUTTON W/ HALOGEN W/O HALOGEN W/O PUSH BUTTON START W/ PUSH BUTTON START W/ MEMORY W/O MEMORY W/O PUSH BUTTON START W/ TPMS W/ PUSH BUTTON START W/O PUSH BUTTON START W/ PUSH BUTTON START W/O PUSH BUTTON START W/ STANDARD MFD W/ HIGH GRADE MFD W/O PUSH BUTTON START W/ PUSH BUTTON START

FRONT VIEW MONITOR CAMERA REAR VIEW CAMERA REAR VIEW CAMERA CIRCUIT STEREO CAMERA W/ SMART REAR VIEW CAMERA W/O SMART REAR VIEW CAMERA

BRAKE CONNECTOR DATA LINK CONNECTOR FRONT ACCESSORY POWER SUPPLY SOCKET ROLL CONNECTOR TRAILER CONNECTOR W/ OPTION CONNECTOR W/O OPTION CONNECTOR W/O OP CONNECTOR

A/C CONTROL MODULE AIR BAG CONTROL MODULE AUTO HEADLIGHT BEAM LEVELER CONTROL MODULE FUEL PUMP CONTROL MODULE FUEL PUMP CONTROL MODULE SHIELD GLASS ROOF CONTROL MODULE IMMOBILIZER CONTROL MODULE KEYLESS ACCESS CONTROL MODULE KEYLESS ACCESSORY CONTROL MODULE KEYLESS ENTRY CONTROL MODULE MAIN RADIATOR FAN CONTROL MODULE OCCUPANT DETECTION CONTROL MODULE POWER REAR GATE CONTROL MODULE POWER SEAT CONTROL MODULE POWER SEAT CONTROL MODULE LEFT POWER SEAT POWER STEERING CONTROL MODULE RAB CONTROL MODULE REAR SEAT HEATER CONTROL MODULE REMOTE ENGINE START CONTROL MODULE REMOTE ENGINE START CONTROL MODULE CONNECTOR SEAT VENTILATION CONTROL MODULE SHADE CONTROL MODULE STEERING HEATER CONTROL MODULE STEERING LOCK CONTROL MODULE SUB RADIATOR FAN CONTROL MODULE TPMS CONTROL MODULE TPMS, KEYLESS ENTRY CONTROL MODULE TRANSMISSION CONTROL MODULE VDC CONTROL MODULE

BODY INTEGRATED UNIT CONTROL UNIT) DOOR LOCK BACK UP UNIT DOOR LOCK BACKUP UNIT DRIVING UNIT NAVIGATION UNIT POWER REAR GATE DRIVE UNIT WIPER RELAY UNIT

DELIVERY MODE FUSE DELIVERY MODE FUSE 39 FUSE 1 FUSE 2 FUSE 3 FUSE 4 FUSE 5 FUSE 6 FUSE 7 FUSE 8 FUSE 9 FUSE 10 FUSE 11 FUSE 12 FUSE 13 FUSE 14 FUSE 15 FUSE 15 N/A FUSE 16 FUSE 17 FUSE 18 FUSE 19 FUSE 20 FUSE 21 FUSE 22 FUSE 23 FUSE 24 FUSE 25 FUSE 26 FUSE 27 FUSE 28 FUSE 29 FUSE 30 FUSE 31 FUSE 32 FUSE 33 FUSE 34 FUSE 35 FUSE 36 FUSE 36 N/A FUSE 37 FUSE 38 FUSE 40 FUSE 41 FUSE 42 FUSE 43 N/A FUSE 44 N/A MAIN SBF 1 FUSE MAIN SBF FUSE SBF 10 FUSE SBF 12 FUSE SBF FUSE SBF FUSE 4 SBF-1 FUSE SBF-2 FUSE SBF-3 FUSE SBF-4 FUSE SBF-5 FUSE SBF-7 FUSE SBF-8 FUSE SBF-9 FUSE SBF-11 FUSE SBF-13 FUSE SBF-14 FUSE SPF 5 FUSE TERMINAL MAIN FUSE

BACK REST HEATER FB HEATER FC HEATER LEFT REAR SEAT HEATER LEFT SEAT HEATER MAIN PTC HEATER MIRROR HEATER MIRROR HEATER, REAR DEFOGGER CIRCUIT RIGHT REAR SEAT HEATER RIGHT SEAT HEATER SEAT CUSHION HEATER W/ SEAT HEATER W/ STEERING HEATER

INDICATOR NEEDLE ILLUM LIGHT NEEDLE, ILLUMINATION LIGHT INDICATOR

EXTERIOR LIGHTS SYSTEM DOOR LOCKS SYSTEM INTERIOR LIGHTS SYSTEMS

FUEL PUMP FUEL PUMP ASSEMBLY HIGH PRESSURE FUEL PUMP HIGH PRESSURE FUEL PUMP SHIELD OIL PUMP ON/OFF VACUUM PUMP

ACCESSORY RELAY 1 ACCESSORY RELAY 2 BLOWER MOTOR RELAY ELECTRONIC THROTTLE CONTROL RELAY FRONT FOG LIGHT RELAY FRONT LOCK RELAY FRONT SEAT HEATER RELAY FRONT UNLOCK RELAY FUEL PUMP RELAY FULL PUMP RELAY H/L LO RELAY HORN RELAY HOT W/ ACC RELAY 1 ENERGIZED HOT W/ ACCESSORY RELAY 2 ENERGIZED HOT W/ ACCESSORY RELAY-1 ENERGIZED HOT W/ IG 1 RELAY ENERGIZED HOT W/ IG 2 RELAY HOT W/ IG 2 RELAY ENERGIZED HOT W/ ING 1 RELAY ENERGIZED HOT W/ ING 2 RELAY ENERGIZED HOT W/ MAIN RELAY ENERGIZED HOT W/IG 1 RELAY ENERGIZED IG 1 RELAY IG 2 RELAY LEFT DAYTIME RUNNING LIGHT RELAY MAIN FAN RELAY MAIN RELAY MIRROR HEATER RELAY ONE-TOUCH INTERIOR ILLUMINATION RELAY POWER WINDOW RELAY PTC HEATER RELAY A PTC HEATER RELAY B PTC HEATER RELAY C REAR BLOWER MOTOR RELAY REAR DEFOGGER RELAY REAR GATE UNLOCK RELAY REAR WIPER RELAY RELAY 1 ENERGIZED RELAY ENERGIZED RELAY HOLDER RIGHT DAYTIME RUNNING LIGHT RELAY SOCKET RELAY STARTER CUT RELAY STARTER RELAY STEERING HEATER RELAY STOP LIGHT RELAY SUB FAN RELAY WIPER DEICER RELAY WIPER RELAY

ACCELERATOR PEDAL POSITION SENSOR AMBIENT SENSOR AUTO LIGHT SENSOR BATTERY SENSOR BRAKE BOOSTER PRESSURE SENSOR CRANKSHAFT POSITION SENSOR DIAGNOSIS CPC PRESSURE SENSOR ENGINE COOLANT TEMPERATURE SENSOR ENGINE OIL TEMPERATURE SENSOR EVAPORATOR SENSOR FLOW SENSOR FRONT WHEEL SPEED SENSOR FUEL LEVEL SENSOR FUEL PRESSURE SENSOR FUEL SUB LEVEL SENSOR IN-VEHICLE SENSOR LEFT CORNER SONAR SENSOR LEFT EXHAUST CAMSHAFT POSITION SENSOR LEFT FRONT ABS WHEEL SPEED SENSOR LEFT FRONT IMPACT SENSOR LEFT FRONT LOAD SENSOR 1 LEFT INNER SONAR SENSOR LEFT INTAKE CAMSHAFT POSITION SENSOR LEFT KNOCK SENSOR LEFT KNOCK SENSOR SHIELD LEFT POWER REAR GATE TOUCH SENSOR LEFT REAR ABS WHEEL SPEED SENSOR LEFT REAR GATE TOUCH SENSOR LEFT REAR LOAD SENSOR 3 LINE PRESSURE SENSOR MANIFOLD ABSOLUTE PRESSURE, INTAKE AIR TEMPERATURE SENSOR MASS AIR FLOW/ INTAKE AIR TEMPERATURE SENSOR PRESSURE SENSOR PRIMARY SPEED SENSOR RAIN SENSOR REAR DIFFERENTIAL OIL TEMPERATURE SENSOR REAR EVAPORATOR SENSOR REAR IN-VEHICLE SENSOR REAR OXYGEN SENSOR RIGHT CORNER SONAR SENSOR RIGHT EXHAUST CAMSHAFT POSITION SENSOR RIGHT FRONT ABS WHEEL SPEED SENSOR RIGHT FRONT IMPACT SENSOR RIGHT FRONT LOAD SENSOR 2 RIGHT INNER SONAR SENSOR RIGHT INTAKE CAMSHAFT POSITION SENSOR RIGHT KNOCK SENSOR RIGHT POWER REAR GATE TOUCH SENSOR RIGHT REAR ABS WHEEL SPEED SENSOR RIGHT REAR LOAD SENSOR 4 RIGHT SEAT POSITION SENSOR SECONDARY PRESSURE SENSOR SECONDARY SPEED SENSOR STEERING ANGLE SENSOR SUNLOAD SENSOR TORQUE SENSOR WASHER FLUID LEVEL SENSOR

LEFT FRONT DOOR SPEAKER LEFT REAR DOOR SPEAKER LEFT SATELLITE SPEAKER RIGHT FRONT DOOR SPEAKER RIGHT REAR DOOR SPEAKER RIGHT SATELLITE SPEAKER

AUTO SWITCH AVH SWITCH BRAKE FLUID LEVEL SWITCH BREAK FLUID LEVEL SWITCH BREAK OFF SWITCH BRIGHT SWITCH BSD/ RCTA OFF SWITCH BSD/RCTA OFF SWITCH CHANGE OVER SWITCH COMBINATION SWITCH CRUISE SWITCH DIMMER, PASSING SWITCH DRIVER'S POWER REAR GATE SWITCH EPB CONTROL SWITCH FOG LIGHT SWITCH FRONT POWER WINDOW SUB SWITCH FRONT WASHER SWITCH FRONT WIPER SWITCH HAZARD SWITCH ASSEMBLY HOOD SWITCH HORN SWITCH IGNITION SWITCH ILLUMINATION CONTROL SWITCH INHIBITOR SWITCH KEY WARNING SWITCH LANE KEEP SWITCH LEFT FRONT DOOR SWITCH LEFT POWER SEAT SWITCH LEFT REAR DOOR SWITCH LEFT REAR POWER WINDOW SWITCH LEFT SEAT BELT SWITCH LIFTER SWITCH LIGHTING SWITCH LOW/MANUAL MODE SWITCH LUMBAR SWITCH MEMORY HEIGHT SWITCH OFF SWITCH OIL LEVEL SWITCH OIL PRESSURE SWITCH ONE-TOUCH INTERIOR ILLUMINATION SWITCH P RANGE SWITCH PADDLE SHIFT SWITCH PASSENGERS DOOR LOCK SWITCH POWER REAR GATE DRIVER SWITCH POWER REAR GATE DRIVER'S SWITCH POWER REAR GATE INNER SWITCH POWER SEAT CONTROL SWITCH POWER WINDOW LOCK SWITCH POWER WINDOW MAIN SWITCH POWER WINDOW SWITCH CONTROLLER REAR BLOWER CONTROL SWITCH REAR DEFOGGER SWITCH REAR GATE LOCK ACTUATOR, LATCH SWITCH REAR WIPER/ WASHER SWITCH RECLINING SWITCH REMOTE CONTROL MIRROR SWITCH REMOTE CONTROL SWITCH RES/+ SWITCH RIGHT BUCKLE SWITCH RIGHT FRONT DOOR SWITCH RIGHT POWER SEAT SWITCH RIGHT REAR DOOR SWITCH RIGHT REAR POWER WINDOW SWITCH RIGHT SEAT BELT SWITCH SATELLITE SWITCH SATELLITE SWITCH ILLUMINATION LIGHT SEAT POSITION MEMORY SWITCH SET SWITCH SLIDE SWITCH STEERING HEATER SWITCH STEERING SWITCH STOP LIGHT, BRAKE SWITCH STOP LIGHT, BREAK SWITCH SWITCH ILLUMI LIGHT SWITCH ILLUMINATION LIGHT TILT SWITCH TRIP SWITCH TURN SIGNAL SWITCH VDC OFF SWITCH VEHICLE DISTANCE + SWITCH WARNING OFF SWITCH X MODE SWITCH

AWD SOLENOID COMPRESSOR SOLENOID DUTY SOLENOID EGR CONTROL VALVE ELECTRIC AIR BYPASS VALVE ELECTRIC WASTEGATE VALVE KEY LOCK SOLENOID LEAK CHECK VALVE ASSEMBLY LEFT EXHAUST OIL CONTROL SOLENOID LEFT INTAKE OIL CONTROL SOLENOID PURGE CONTROL SOLENOID VALVE RIGHT EXHAUST OIL CONTROL SOLENOID RIGHT INTAKE OIL CONTROL SOLENOID SHIFT LOCK SOLENOID

BLK WIRE BLK/BLU WIRE BLK/GRN WIRE BLK/RED WIRE BLK/WHT WIRE BLK/YEL WIRE BLU WIRE BLU/BLK WIRE BLU/GRN WIRE BLU/PNK WIRE BLU/RED WIRE BLU/WHT WIRE BLU/YEL WIRE BRN WIRE BRN/BLK WIRE BRN/BLU WIRE BRN/GRN WIRE BRN/RED WIRE BRN/WHT WIRE BRN/YEL WIRE GRN WIRE GRN/BLK WIRE GRN/BLU WIRE GRN/ORG WIRE GRN/RED WIRE GRN/WHT WIRE GRN/YEL WIRE GRY WIRE GRY/GRN WIRE GRY/RED WIRE GRY/WHT WIRE LT BLU WIRE LT GRN WIRE LT GRN/BLK WIRE LT GRN/RED WIRE LT GRN/WHT WIRE LT GRN/YEL WIRE NCA WIRE ORG/ WIRE PNK BATT WIRE PNK WIRE PNK/BLK WIRE PNK/BLU WIRE PNK/GRN WIRE PNK/WHT WIRE RED WIRE RED/BLK WIRE RED/BLU WIRE RED/GRN WIRE RED/WHT WIRE RED/YEL WIRE TAN WIRE VIO WIRE VIO/GRN WIRE VIO/RED WIRE VIO/WHT WIRE WHT WIRE WHT/BLK WIRE WHT/BLU WIRE WHT/GRN WIRE WHT/RED WIRE WHT/VIO WIRE WHT/YEL WIRE YEL WIRE YEL/BLK WIRE YEL/BLU WIRE YEL/GRN WIRE YEL/PNK WIRE YEL/RED WIRE YEL/WHT WIRE YELLOW)

& RECEIVER (IF (LEFT SIDE OF A/C CONTROL PANEL ABS IND. AIR BAG IND AIR CONDITIONING SYSTEM AIRBAG CM ANTI-THEFT SYSTEM ATF TEMPERATURE AUDIO CASE GROUND AUTO UP AUTOMATIC DAY/NIGHT MIRROR CIRCUIT AUX INPUT TERMINAL AUXILIARY INPUT TERMINAL AVH ON IND AVH OPERATION IND AWD IND BACKUP LAMPS CIRCUIT BACKUP LIGHT BELT IND BLOWBY DIAGNOSIS BRAKE FLUID LEVEL IND BRAKE OFF BUZ RTN CAN H B CENTER TRAY ILLUMINATION CENTER TWEETER CHARGE IND COLOR TFT METER COMBINATION METER COMPUTER DATA COMPUTER DATA LINES COMPUTER DATA LINES SYSTEM CONSTANT VOLTAGE CIRCUIT CONTROL CIRCUIT COURTESY SW CVT/ATF TEMPERATURE IND DATA COMMUNICATION MODULE DC-DC DC/DC - DEFOGGER SYSTEM DIAL PLATE ILLUM LIGHT DIAL PLATE ILLUMINATION LIGHT DIMMER DIMMER DOOR LOCKS DOOR LOCKS, ANTI-THEFT SYSTEM DOOR LOCKS SYSTEM DOOR LOCKS, ANTI-THEFT SYSTEMS DOOR LOCKS, ANTI-THEFT, TRUNK, TAILGATE, FUEL DOORS SYSTEMS DOOR LOCKS, SHIFT INTERLOCK SYSTEMS DR SW DRIVE CIRCUIT DRIVE DRIVE CIRCUIT CIRCUIT DRIVE GDC CIRCUIT DRIVER'S AIR BAG MODULE DRIVER'S KNEE AIR BAG MODULE DRIVER'S SEAT DRIVER'S SEAT BELT IND DRIVER'S SIDE ELECTRONIC THROTTLE CONTROL ELECTRONIC THROTTLE CONTROL SHIELD EPB ON EPB ON IND EPB WARNING IND EYESIGHT ASSIST MONITOR F, R F-ROM FLUID LEVEL IND FRONT CUP HOLDER ILLUMINATION 1 FRONT CUP HOLDER ILLUMINATION 2 FRONT FOG LIGHT IND FRONT POWER WINDOW SUB-SYSTEM FUEL GAUGE FUEL INJECTOR 1 FUEL INJECTOR 1 SHIELD FUEL INJECTOR 2 FUEL INJECTOR 2 SHIELD FUEL INJECTOR 3 FUEL INJECTOR 3 SHIELD FUEL INJECTOR 4 FUEL INJECTOR 4 SHIELD FUEL LID OPENER GAP- GB-1 GB-2 GB-3 GB-3 (LEFT KICK GB-4 GB-5 GB-6 GB-7 GB-8 GB-09 GB-9 GB-10 GB-11 GE-1 GE-2 GLASS ROOF CM GLOVE BOX ILLUMINATION LIGHT GT-1 GT-2 HALL 1 HALL 2 HALL FEED HALL RTN HAZARD OUT HEADLIGHTS SYSTEM HI-BEAM IND HIGH GRADE MFD HIGH MOUNTED STOP LIGHT HORNS SYSTEM HOT AT ALL TIMES HOT IN ON OR START HOT W/ I/F DC/DC I/F I/F I/F IGN ID CODE BOX IGN SW ILLUMI LIGHT ILLUMINATION IND ILLUMINATION LIGHT INSTRUMENT CLUSTER SYSTEM INSTRUMENT ILLUMINATION CIRCUIT KEY ILLUMINATION KEYLESS BUZZER KEYLESS ENTER SYSTEM LANE DEPARTURE LANE DEPARTURE WARNING OFF LANE DEPARTURE WARNING OFF IND LANE KEEP LATCH SW LEFT "C" PILLAR) LEFT CURTAIN AIR BAG MODULE LEFT FB BLOWER LEFT FC BLOWER LEFT FRONT COMBINATION LIGHT LEFT FRONT DOOR AMBIENT LIGHT LEFT FRONT DOOR STEP LIGHT LEFT FRONT FOG LIGHT LEFT FRONT SEAT FOOT LIGHT LEFT INSTRUMENT PANEL AMBIENT LIGHT LEFT LICENSE PLATE LIGHT LEFT OUTER HANDLE LEFT OUTER MIRROR ASSEMBLY LEFT POWER SEAT LEFT PRETENSIONER LAP BELT LEFT PRETENSIONER SECOND-ROW SEAT BELT LEFT REAR COMBINATION LIGHT LEFT REAR COMBINATION WINDOW LEFT REAR DOOR AMBIENT LIGHT LEFT REAR DOOR STEP LIGHT LEFT SEAT BELT PRETENSIONER, ADAPTIVE FORCE LIMITER LEFT SECOND SEAT FOOT LIGHT LEFT SIDE AIR BAG MODULE LEFT SIDE TWEETER LEFT TURN SIGNAL IND LEFT VANITY MIRROR LIGHT LIFTER PULSE LIGHTING IND LIN 1 LINE PRESSURE LINES SYSTEM LO AUTO LO HI LO HI OFF LOW FUEL LEVEL IND LUGGAGE ROOM LIGHT MAIN MICROCOMPUTER MALFUNCTION IND MEM SW MEMORY 1 MEMORY 2 MFD SHIELD MICRO COMPUTER MIST HI HI N/A N/A NAVIGATION SYSTEM NOISE SUPPRESSOR OCCUPANT DETECTION CM OFF AUTO OFF HOOK OFF LO OFF LO INT OFF LO LO INT INT OIL PRESSURE IND ON HOOK ON+WASH ON+WASH WASH ONE STEP DIMMER OPERATION IND PANEL) PASSENGER'S AIR BAG MODULE PC BOARD POWER BATT POWER DISTRIBUTION SYSTEM POWER REAR GATE AUTO CLOSER POWER REAR GATE BUZZER POWER SEAT CM LEFT POWER SEAT POWER TRANSISTOR POWER WINDOW CIRCUIT BREAKER POWER WINDOWS SYSTEM PRE-COLLISION PRE-COLLISION BRAKE PRE-COLLISION BRAKE OFF IND PRIMARY DOWN PRIMARY UP REAR A/C CONTROL PANEL REAR DEFOGGER REAR DEFOGGER SHIELD REAR OXYGEN SHIELD REAR VIEW MIRROR) RECLINING PULSE RES+ RG INR SW RIGHT CURTAIN AIR BAG MODULE RIGHT END OF DASH) RIGHT FB BLOWER RIGHT FC BLOWER RIGHT FRONT COMBINATION LIGHT RIGHT FRONT DOOR AMBIENT LIGHT RIGHT FRONT DOOR STEP LIGHT RIGHT FRONT FOG LIGHT RIGHT FRONT SEAT FOOT LIGHT RIGHT INSTRUMENT PANEL AMBIENT LIGHT RIGHT LICENSE PLATE LIGHT RIGHT OUTER HANDLE RIGHT OUTER MIRROR ASSEMBLY RIGHT POWER SEAT RIGHT PRETENSIONER LAP BELT RIGHT PRETENSIONER SECOND-ROW SEAT BELT RIGHT REAR COMBINATION LIGHT RIGHT REAR DOOR AMBIENT LIGHT RIGHT REAR DOOR STEP LIGHT RIGHT SEAT BELT PRETENSIONER, ADAPTIVE FORCE LIMITER RIGHT SECOND SEAT FOOT LIGHT RIGHT SIDE AIR BAG MODULE RIGHT SIDE TWEETER RIGHT TURN SIGNAL IND RIGHT VANITY MIRROR LIGHT SEATS SYSTEM SECTOR SW SECURITY IND SEEK LEFT/ SEEK RIGHT/ SELECT LEVER SET- SHADE CM SHIELD SHIELD SHIFT INTERLOCK SYSTEM SHIFT REGISTER SIDE MARKER SLIDE PULSE SMART REAR VIEW MIRROR SPOT MAP LIGHT STANDARD MFD STARTING CIRCUIT STARTING/ CHARGING SYSTEM STARTING/CHARGING SYSTEM STEERING COLUMN) STEERING IND STEERING WHEEL) STOP LIGHT SUPPLY CIRCUIT/ TAIL- LIGHT TFT BACK LIGHT TFT BACK LIGHT IND TILT PULSE TIRE INFLATION PRESSURE IND TPMS, KEYLESS ENTRY CM TRANSMISSIONS SYSTEM TRUNK, TAILGATE, FUEL DOORS SYSTEM TURN IND UP DRIVER'S SIDE UP LEFT REAR UP RIGHT REAR VDC OFF IND VDC WARNING/ VDC OPERATION IND VDC WARNING/VDC VEHICLE DISTANCE+ W/ BSD/RCTA W/ EYESIGHT W/ FRONT SEAT FOOT LIGHT W/ HIGH GRADE W/ HIGH GRADE MFD W/ ID CODE BOX W/ LED W/ LED W/O LED W/ MEMORY W/ NAVIGATION W/ POWER REAR GATE W/O POWER REAR GATE W/ RAB W/ REAR SEATS OFF DELAY FUNCTION W/ SEAT VENTILATION W/ SUNROOF W/ TELEMATICS W/O CUSHION LENGTH ADJUSTER W/ CUSHION LENGTH ADJUSTER W/O HALOGEN W/ HALOGEN W/O ID CODE BOX W/O MEMORY W/O NAVIGATION W/O SEAT VENTILATION W/O SEAT VENTILATION W/ SEAT VENTILATION WARNING OFF WASHER FLUID RESERVOIR) WIPER DEICER WIPER/WASHER SYSTEM WIPER/WASHER, HEADLIGHTS SYSTEMS
