Scion xB II (2007-2010) steering pad switch Wiring diagrams
This page contains all the electrical diagrams for the component. steering pad switch, in which he is found in the car Scion xB II (2007-2010). You can view various wiring diagrams where this component is used, as well as go to more detailed diagrams to see the complete connection and interaction in the system. All diagrams have links to quickly jump to the corresponding section with the component for easy viewing..
Wiring diagram steering pad switch (1 of 2)
A/C SWITCH
AIR INLET CONTROL SWITCH (BEHIND CENTER OF DASH)
ALT FUSE
BLK WIRE
BRN WIRE
COMBINATION METER
ENGINE ROOM J/B (LEFT SIDE OF ENGINE COMPT)
GRN WIRE
HAZARD WARNING SIGNAL SWITCH
HEAD
HOT AT ALL TIMES
HOT IN ON OR START
ILLUMINATION
INSTRUMENT PANEL J/B (BEHIND LEFT SIDE OF DASH)
INTEGRATION CONTROL, PANEL ASSEMBLY
J/B 3 (LEFT SIDE OF DASH)
J/B 4 (CENTER OF DASH)
LIGHT CONTROL SWITCH HEADLIGHT DIMMER SWITCH ASSEMBLY
LT GRN WIRE
METER FUSE
ORG/ WIRE
PANEL FUSE
PNK PNK WIRE
PNK WIRE
RADIO RECEIVER ASSEMBLY
RHEOSTAT
SPIRAL CABLE (IN STEERING COLUMN)
STEERING PAD SWITCH
SWG
T-LP RELAY
TAIL OFF
TELLTALE LAMP ASSEMBLY
TRANSMISSION CONTROL SWITCH
VCC OFF SWITCH
WHT WIRE
WHT/BLK WIRE
YEL WIRE
Go to component -> Instrument illumination circuit -> STEERING PAD SWITCH

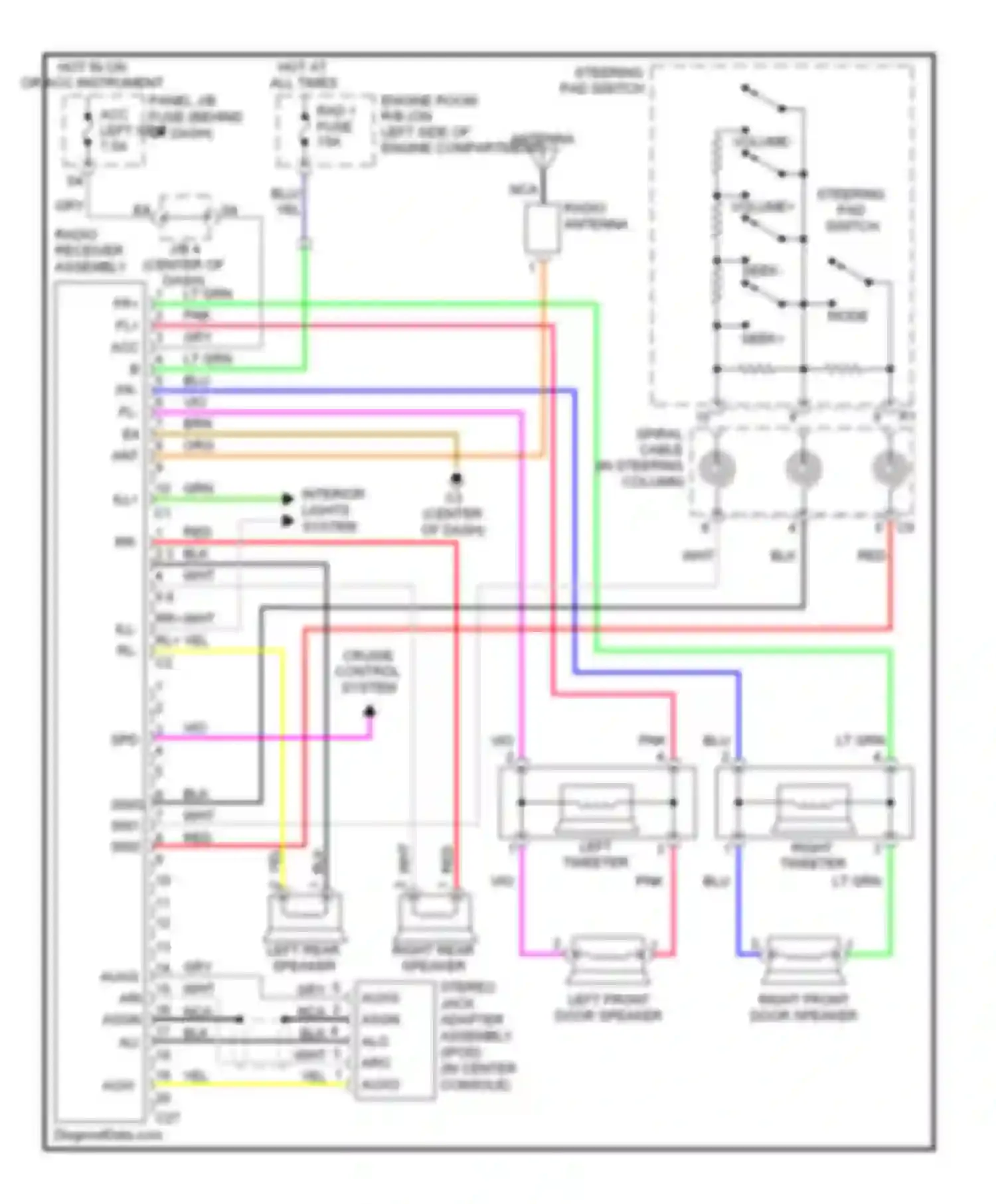

Wiring diagram steering pad switch (2 of 2)
1 2 3 4 5 6 RR+ RL+ RR-
ANT
ANTENNA
AUXG ARI ASGN ALI
AUXI
BLK WIRE
BLU WIRE
BRN WIRE
CRUISE CONTROL SYSTEM
ENGINE ROOM R/B (ON LEFT SIDE OF ENGINE COMPARTMENT)
GRN WIRE
GRY WIRE
HOT AT ALL TIMES
HOT IN ON OR ACC INSTRUMENT PANEL J/B FUSE (BEHIND LEFT SIDE OF DASH)
ILL- RL-
LEFT FRONT DOOR SPEAKER
LEFT TWEETER PNK WIRE
LT GRN WIRE
MODE
NCA WIRE
ORG/ WIRE
PNK WIRE
RAD 1 FUSE
RADIO ANTENNA
RED WIRE
RIGHT FRONT DOOR SPEAKER
RIGHT TWEETER
SEEK
SPIRAL CABLE (IN STEERING COLUMN)
STEERING PAD SWITCH
SWG
VIO WIRE
VOLUME-
WHT WIRE
YEL WIRE
Go to component -> Radio circuit -> STEERING PAD SWITCH
