Scion xB II (2007-2010) headlight dimmer switch assembly Wiring diagrams
This page contains all the electrical diagrams for the component. headlight dimmer switch assembly, in which he is found in the car Scion xB II (2007-2010). You can view various wiring diagrams where this component is used, as well as go to more detailed diagrams to see the complete connection and interaction in the system. All diagrams have links to quickly jump to the corresponding section with the component for easy viewing..

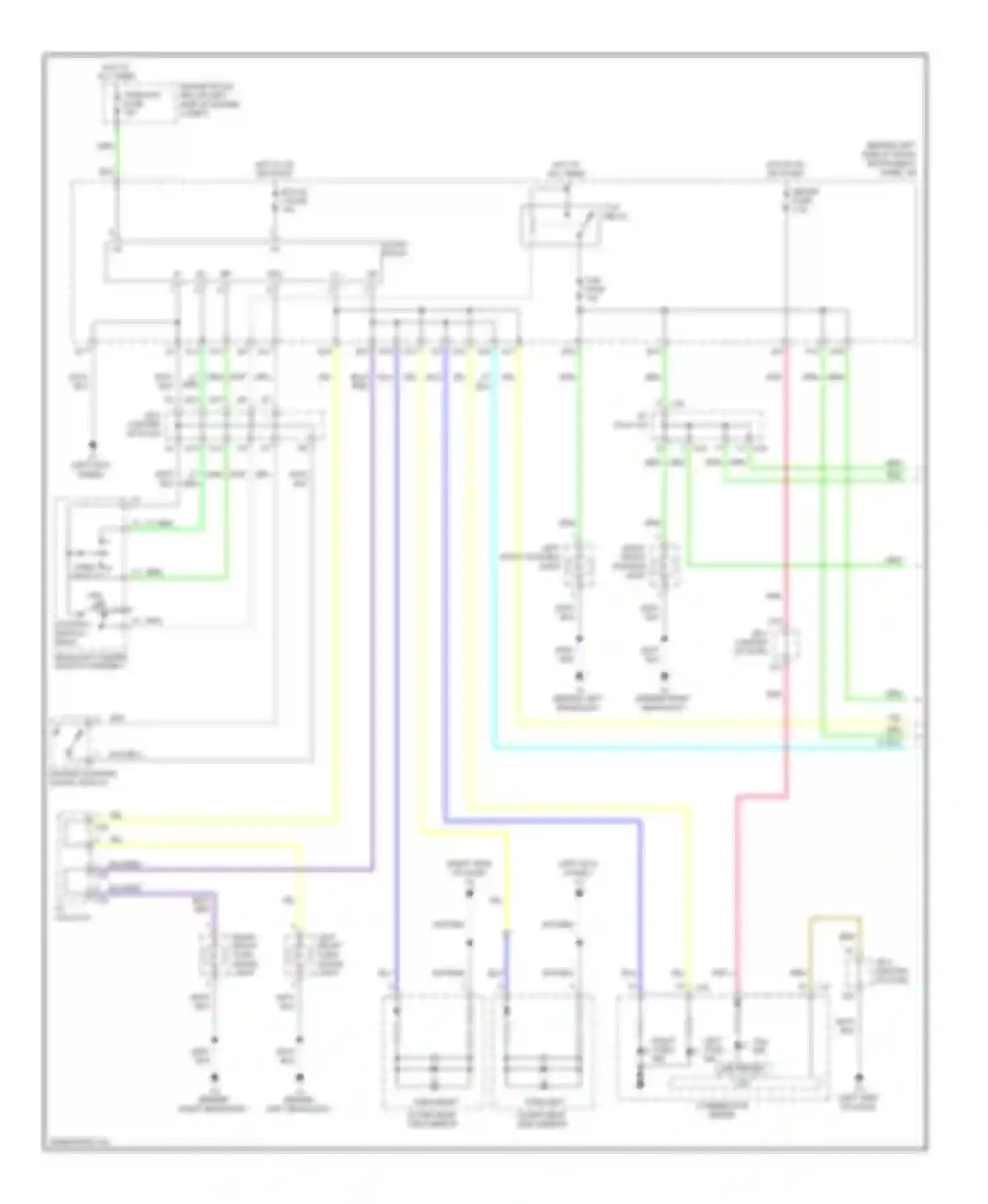

Wiring diagram headlight dimmer switch assembly (1 of 4)
BLK WIRE
BLU WIRE
BLU/RED WIRE
BRN WIRE
COMBINATION METER
ECU-IG 2 FUSE
ENGINE ROOM R/B (ON LEFT SIDE OF ENGINE COMPT)
FLASH RELAY
GRN WIRE
GRY WIRE
HAZARD WARNING SIGNAL SWITCH
HEADLIGHT DIMMER SWITCH ASSEMBLY
HOT AT ALL TIMES
HOT IN ON OR START
J/B 4 (CENTER OF DASH)
J/C
LED DRIVER
LEFT FRONT PARKING LIGHT
LEFT FRONT TURN SIGNAL LIGHT
LEFT TURN IND TAIL IND
LT BLU WIRE
LT GRN WIRE
METER FUSE
OFF TAIL LIGHT CONTROL SWITCH HEAD
PNK 2 WIRE
PNK WIRE
RED WIRE
RIGHT FRONT PARKING LIGHT
RIGHT FRONT TURN SIGNAL LIGHT
RIGHT TURN IND
T-LP RELAY
TAIL FUSE
TURN LEFT OUTER REAR VIEW MIRROR
TURN RIGHT OUTER REAR VIEW MIRROR
TURN SWITCH
TURN, HAZ FUSE
WHT WIRE
WHT/BLK WIRE
YEL WIRE
Go to component -> Exterior lamps circuit (1 of 2) -> HEADLIGHT DIMMER SWITCH ASSEMBLY

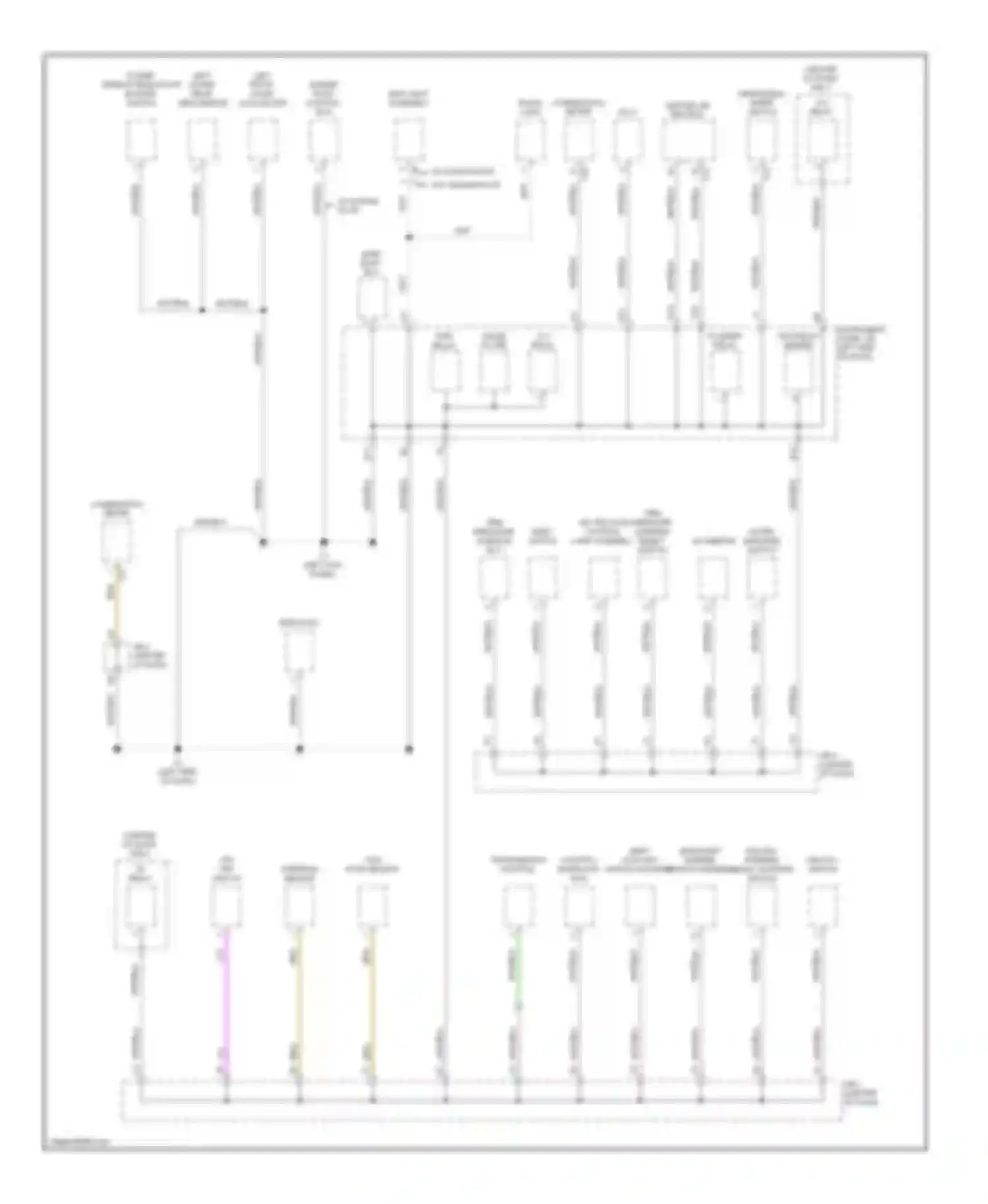

Wiring diagram headlight dimmer switch assembly (2 of 4)
AIR TELLTALE INLET CONTROL LAMP ASSEMBLY SWITCH
BRN WIRE
CENTER AIR BAG ECU
COMBINATION METER
FLASHER RELAY
GRN/BLK WIRE
HAZARD UNLOCK WARNING SIGNAL WARNING SWITCH SWITCH
HEADLIGHT DIMMER SWITCH ASSEMBLY
IG 1 RELAY
INSTRUMENT PANEL J/B HTR RELAY (BEHIND LEFT SIDE OF DASH)
J/B 4 (CENTER OF DASH)
LEFT FRONT DOOR LOCK MOTOR
LEFT OUTER REAR VIEW MIRROR
MAIN BODY ECU
MAP LIGHT ASSEMBLY
NOISE FILTER
OUTER A/C MIRROR AMPLIFIER
POWER WINDOW REGULATOR MASTER SWITCH
PWR RELAY
RELAY
RHEOSTAT
ROOM LIGHT
SHIFT LOCK KEY TRANSMISSION CONTROL INTERLOCK CONTROL SWITCH SOLENOID ECU
SLIDING ROOF CONTROL ECU
ST RELAY
STEERING SENSOR
SWITCH
TIRE PRESSURE WARNING ECU
TIRE PRESSURE WARNING RESET SWITCH
VIO WIRE
VSC OFF SWITCH
W/ SLIDING ROOF
W/ SLIDING ROOF W/O SLIDING ROOF
WHT WIRE
WHT/BLK WIRE
WINDSHIELD WIPER SWITCH
YAW RATE SENSOR
Go to component -> Ground distribution circuit (2 of 3) -> HEADLIGHT DIMMER SWITCH ASSEMBLY

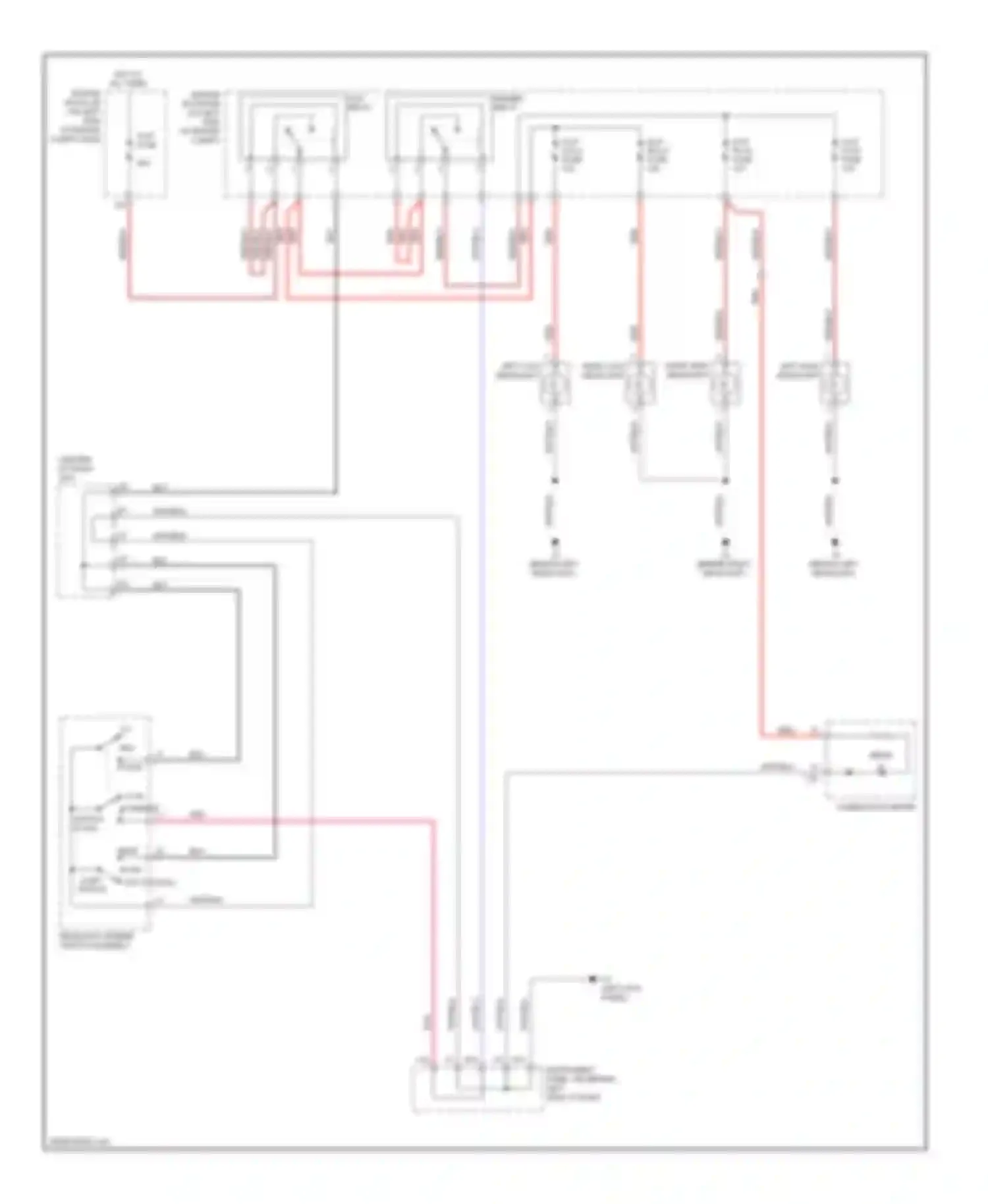

Wiring diagram headlight dimmer switch assembly (3 of 4)
BEAM
BLK WIRE
COMBINATION METER
DIMMER RELAY
ENGINE ROOM R/B (ON LEFT SIDE OF ENGINE COMPT)
H-LP LH HI FUSE
H-LP LH LO FUSE
H-LP RELAY
H-LP RH HI FUSE
H-LP RH LO FUSE
HEAD
HEADLIGHT DIMMER SWITCH ASSEMBLY
HOT AT ALL TIMES ENGINE ROOM J/B (ON LEFT SIDE OF ENGINE H-LP COMPT) MAIN FUSE
INSTRUMENT PANEL J/B (BEHIND LEFT SIDE OF DASH)
LEFT HIGH HEADLIGHT
LEFT LOW HEADLIGHT
LO HI DIMMER SWITCH FLASH
PNK WIRE
RED WIRE
RED/BLK WIRE
RIGHT HIGH HEADLIGHT
RIGHT LOW HEADLIGHT
TAIL LIGHT OFF CONTROL SWITCH
WHT/BLK WIRE
WHT/BLU WIRE
Go to component -> Headlights circuit -> HEADLIGHT DIMMER SWITCH ASSEMBLY

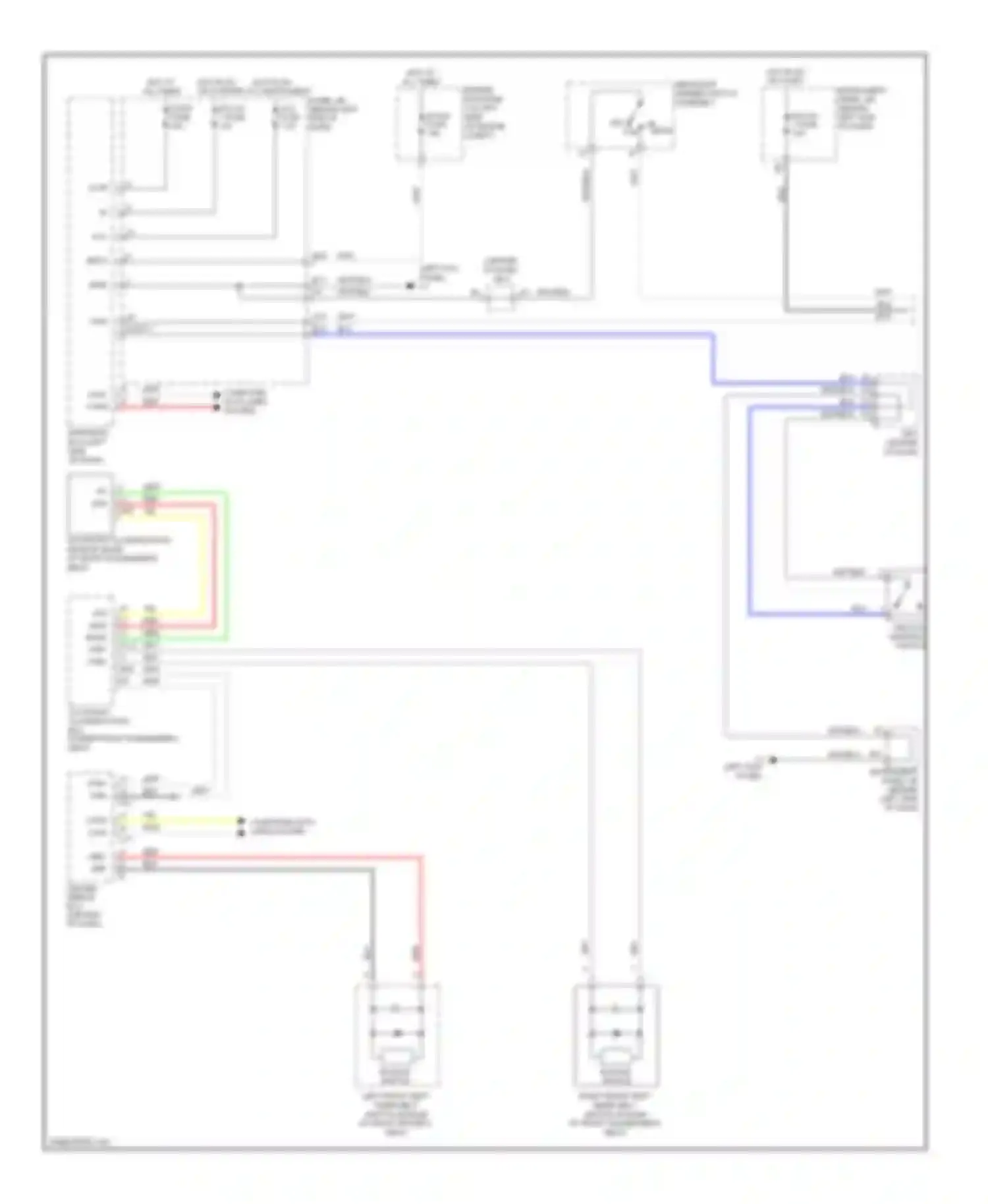

Wiring diagram headlight dimmer switch assembly (4 of 4)
11 12 LBE+ LBE-
12 13 FSR + FSR -
13 22 CANH CANL
15 6 7 13 14 12 11 GPS PS VPS BSW BGND FSR- FSR+
22 23 CANL CANH
26 9 DCTY KSW
3 2 1 VPS PS GPS
BLK WIRE
BLU WIRE
BUCKLE SWITCH
CENTER AIRBAG ECU
COMPUTER DATA LINES SYSTEM
DOOR FUSE
ECU- IG 1 FUSE
ECU-B FUSE
ECU-IG 2 FUSE
ENGINE ROOM R/B (ON LEFT SIDE OF ENGINE COMPT)
FUSE
GRN WIRE
GRY WIRE
HEAD TAIL
HEADLIGHT DIMMER SWITCH ASSEMBLY
HOT AT ALL TIMES
HOT IN ON OR ACC INSTRUMENT PANEL J/B (BEHIND LEFT SIDE OF DASH)
HOT IN ON OR START
INSTRUMENT PANEL J/B (BEHIND LEFT SIDE OF DASH)
J/B 4 (CENTER OF DASH)
LEFT FRONT SEAT INNER BELT SWITCH (IN BASE OF FRONT DRIVER'S SEAT)
MAIN BODY ECU (LEFT SIDE OF DASH)
OCCUPANT CLASSIFICATION ECU
OCCUPANT CLASSIFICATION SENSOR (BASE OF FRONT PASSENGER'S SEAT)
OFF
RED WIRE
RIGHT FRONT SEAT INNER BELT SWITCH (IN BASE OF FRONT PASSENGER'S SEAT)
UNLOCK WARNING SWITCH
WHT WIRE
WHT/BLK WIRE
YEL WIRE
Go to component -> Key reminder & seat belt warning circuit (1 of 2) -> HEADLIGHT DIMMER SWITCH ASSEMBLY
