Scion iM I (2015-2016) Cooling fan circuit

Cooling fan circuit

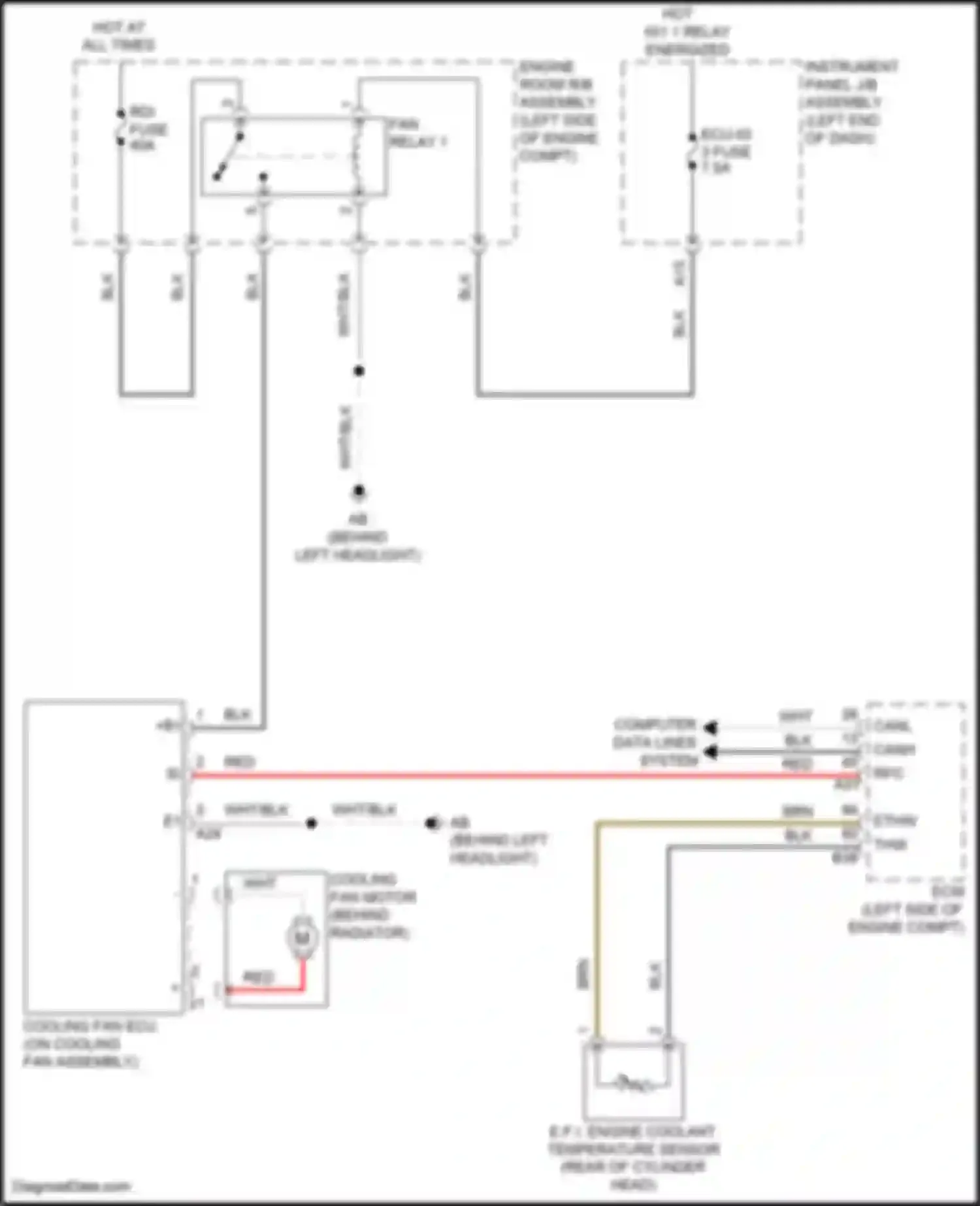

Car Wiring Diagrams for iM Scion I (2015-2016): Cooling fan circuit

BLK WIRE BRN WIRE COMPUTER DATA LINES SYSTEM COOLING FAN ECU COOLING FAN MOTOR E.F.I. ENGINE COOLANT TEMPERATURE SENSOR ECU-IG 3 FUSE ENGINE ROOM R/B ASSEMBLY FAN RELAY 1 HOT AT ALL TIMES HOT W/ INSTRUMENT PANEL J/B ASSEMBLY RDI FUSE RED WIRE RFC WHT WIRE WHT/BLK WIRE
