Saturn VUE II (2007-2009) sunroof motor sunroof motor limit open switch closed Wiring diagram
This page shows the only wiring diagram for the component.sunroof motor sunroof motor limit open switch closed, which is found in the car Saturn VUE II (2007-2009). This component is only found in one wiring diagram on your vehicle, and you can see its details here. If necessary, you can also go to other diagrams for this system for more information..

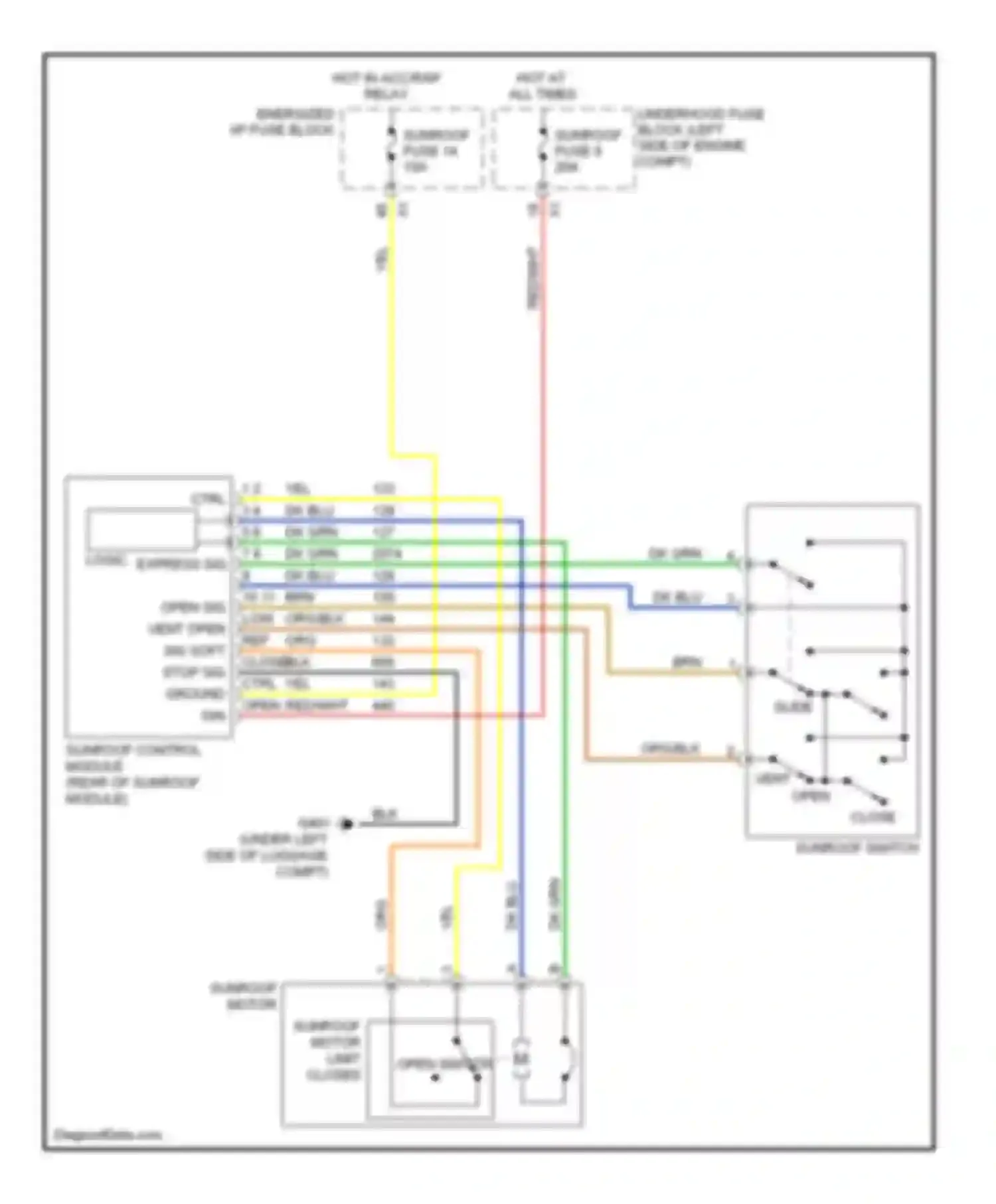

Wiring diagram sunroof motor sunroof motor limit open switch closed (1 of 1)
1 2 3 4 5 6 7 8 9 10 11 LOW REF CLOSE CTRL OPEN CTRL
BLK WIRE
BRN WIRE
DK BLU WIRE
DK GRN WIRE
EXPRESS SIG
HOT AT ALL TIMES
HOT IN ACC/RAP RELAY ENERGIZED I/P FUSE BLOCK SUNROOF FUSE 14
LOGIC
OPEN SIG VENT OPEN SIG SOFT STOP SIG GROUND IGN B+
ORG/ WIRE
ORG/BLK WIRE
RED/WHT WIRE
SLIDE
SUNROOF CONTROL MODULE (REAR OF SUNROOF MODULE)
SUNROOF FUSE 9
SUNROOF MOTOR SUNROOF MOTOR LIMIT OPEN SWITCH CLOSED
SUNROOF SWITCH
UNDERHOOD FUSE BLOCK (LEFT SIDE OF ENGINE COMPT)
VENT OPEN CLOSE
YEL WIRE
Go to component -> Power top/sunroof circuit -> SUNROOF MOTOR SUNROOF MOTOR LIMIT OPEN SWITCH CLOSED
