Saturn VUE II (2007-2009) horn pcb relay 13 Wiring diagrams
This page contains all the electrical diagrams for the component. horn pcb relay 13, in which he is found in the car Saturn VUE II (2007-2009). You can view various wiring diagrams where this component is used, as well as go to more detailed diagrams to see the complete connection and interaction in the system. All diagrams have links to quickly jump to the corresponding section with the component for easy viewing..

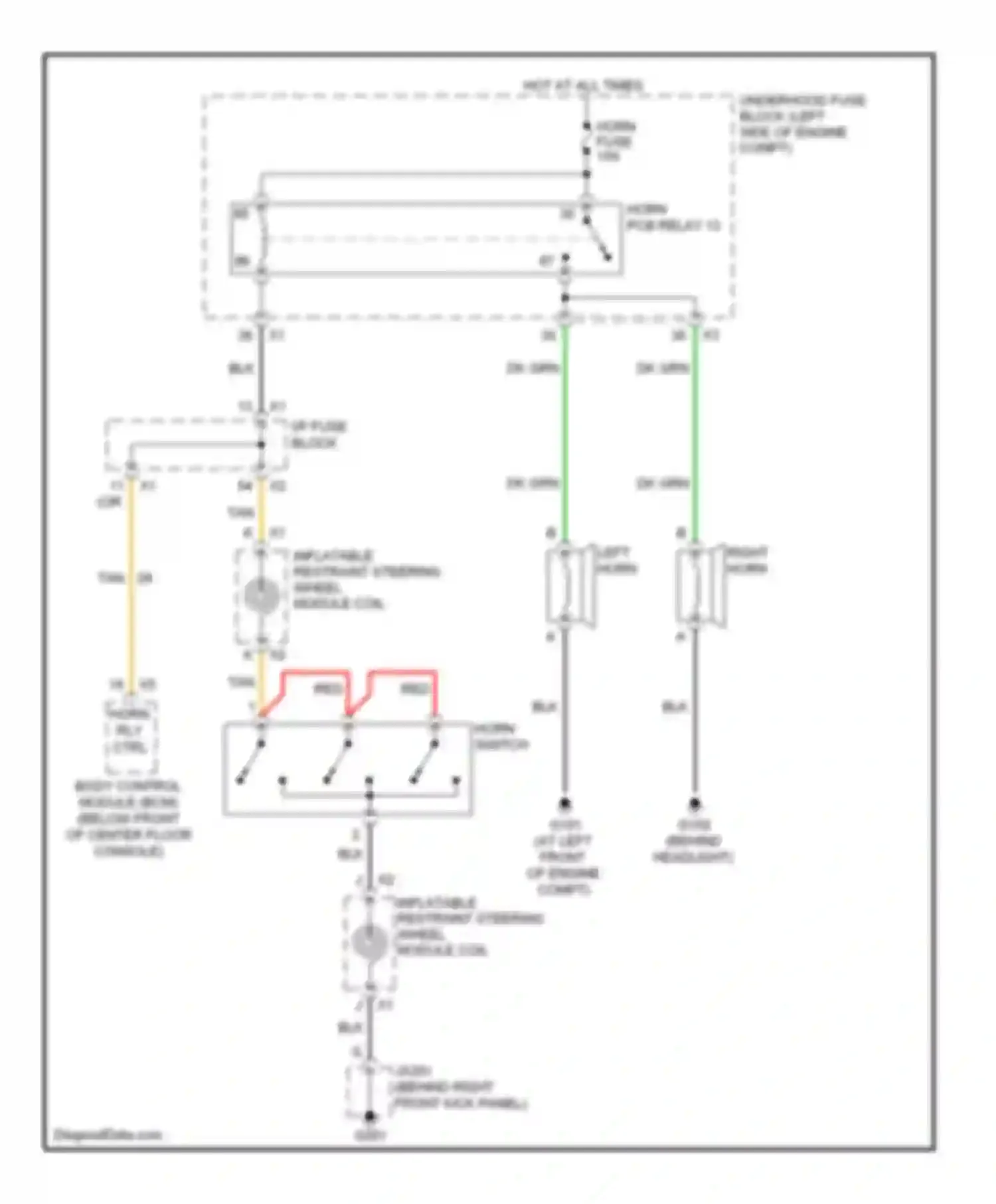

Wiring diagram horn pcb relay 13 (1 of 2)
BEHIND HEADLIGHT)
BLK WIRE
BODY CONTROL MODULE (BCM) (BELOW FRONT OF CENTER FLOOR CONSOLE)
DK GRN WIRE
HORN FUSE
HORN PCB RELAY 13
HORN RLY CTRL
HORN SWITCH
HOT AT ALL TIMES
I/P FUSE BLOCK
INFLATABLE RESTRAINT STEERING WHEEL MODULE COIL
LEFT HORN
RED WIRE
RIGHT HORN
TAN WIRE
UNDERHOOD FUSE BLOCK (LEFT SIDE OF ENGINE COMPT)
Go to component -> Horn circuit -> HORN PCB RELAY 13
Wiring diagram horn pcb relay 13 (2 of 2)
2.4L
2.4L (VIN P)
2.4L (VIN Z)
2.4L/3.5L
3.5L
3.5L/3.6L
3.5L/3.6L 2.4L 3.5L/3.6L
3.6L
32 19 (4 SPEED A/T) (6 SPEED A/T)
A/C FAN CLTCH MAIN FUSE RELAY 4
ABS FUSE
ABS FUSE I/P BEC FUSE
AMP FUSE HORN FUSE
AUDIO AMPLIFIER (DELUXE W/ SPEAKER SYSTEM 10)
BANK 1 SENSOR 1
BANK 1 SENSOR 2
BANK 2 SENSOR 1 BANK 2 SENSOR 2 BANK 1 SENSOR 2
BATTERY
BATTERY DISCONNECT SWITCH (2.4L (VIN Z))
BCM FUSE 12
BLK WIRE
BLOWER TRANSMISSION MOTOR CONTROL CONTROL MODULE (TCM) MODULE
BLWR MTR FUSE ECM/TCM/ SGCM FUSE
BRN WIRE
DEFOG RELAY 1
DRIVER PASSENGER HEATED HEATED SEAT SEAT CONTROL CONTROL MODULE MODULE
ECM FUSE
ELECTRIC POWER STEERING (EPS) MODULE
ELECTRONIC BRAKE CONTROL MODULE (EBCM)
ENG 3 FROM ECM FUSE FUSE (UNDERHOOD FUSE BLOCK) (DIAGRAM 1 OF 3)
ENGINE CONTROL MODULE (ECM)
EPS INLINE EPS FUSE FUSE HOLDER
ESCM FUSE
EVAPORATIVE EMISSION (EVAP) CANISTER PURGE SOLENOID VALVE
EVAPORATIVE EMISSION (EVAP) CANISTER PURGE SOLENOID VALVE (3.6L)
EVAPORATIVE EMISSION (EVAP) CANISTER VENT SOLENOID VALVE
FAN AUX
FAN AUX FUSE
FAN MAIN FAN CNTRL
FROM BCM FUSE 12 (UNDERHOOD FUSE BLOCK) (DIAGRAM 1 OF 3)
FROM ENG 1 FUSE (UNDERHOOD FUSE BLOCK) (DIAGRAM 2 OF 3)
FROM HYBRID BEC FUSE (UNDERHOOD FUSE BLOCK) (DIAGRAM 1 OF 3)
FRT FOG FUSE 21
FRT FOG RELAY 3
FUSE
FUSE BLOCK) (DIAGRAM 1 OF 3)
FUSIBLE LINK 50
GENERATOR
HDLP HI HDLP LO RELAY 8 RELAY 7
HEATED OXYGEN SENSOR
HEATED OXYGEN SENSOR HEATED OXYGEN SENSOR HEATED OXYGEN SENSOR
HORN PCB RELAY 13
HTD SEAT FUSE
HYBRID BEC FUSE
I/P BEC FUSE 1 RELAY 14
IGNITION COIL/ MODULE 3
LT GRN WIRE
MASS AIR FLOW (MAF) SENSOR/ INTAKE AIR TEMPERATURE (IAT) SENSOR
PNK PNK PNK WIRE
PNK WIRE
PWR/TRN RELAY 6
REAR DIFFERENTIAL CLUTCH CONTROL MODULE
REAR WINDOW WIPER CONTROL MODULE
REAR WPR FUSE
RED WIRE
RELAY 12
RELAY 16 RELAY 15
RUN WIRE
S/ROOF FUSE 9
STARTER GENERATOR CONTROL MODULE (SGCM) (2.4L (VIN Z))
STARTER MOTOR
STOP LP RELAY 2
STRTR FUSE
STRTR RELAY 5
SUNROOF BODY CONTROL CONTROL MODULE MODULE (BCM)
TO ACC/RAP RELAY (I/P FUSE BLOCK) (DIAGRAM 3 OF 3)
TO BLWR MTR FUSE (UNDERHOOD FUSE BLOCK) (DIAGRAM 1 OF 3)
TO ENG 1 FUSE (UNDERHOOD A/C FUSE BLOCK) (DIAGRAM 2 OF 3) CLTCH FUSE
TO ENG 3 FUSE (UNDERHOOD
TO RUN RELAY 14 (UNDERHOOD
WHT WIRE
WPR CNTRL RELAY 10 T/LAMP RELAY 9
WPR FUSE 25
YEL WIRE
Go to component -> Power distribution circuit (1 of 3) -> HORN PCB RELAY 13
