Saturn VUE II (2007-2009) fan aux relay Wiring diagrams

This page contains all the electrical diagrams for the component. fan aux relay, in which he is found in the car Saturn VUE II (2007-2009). You can view various wiring diagrams where this component is used, as well as go to more detailed diagrams to see the complete connection and interaction in the system. All diagrams have links to quickly jump to the corresponding section with the component for easy viewing..

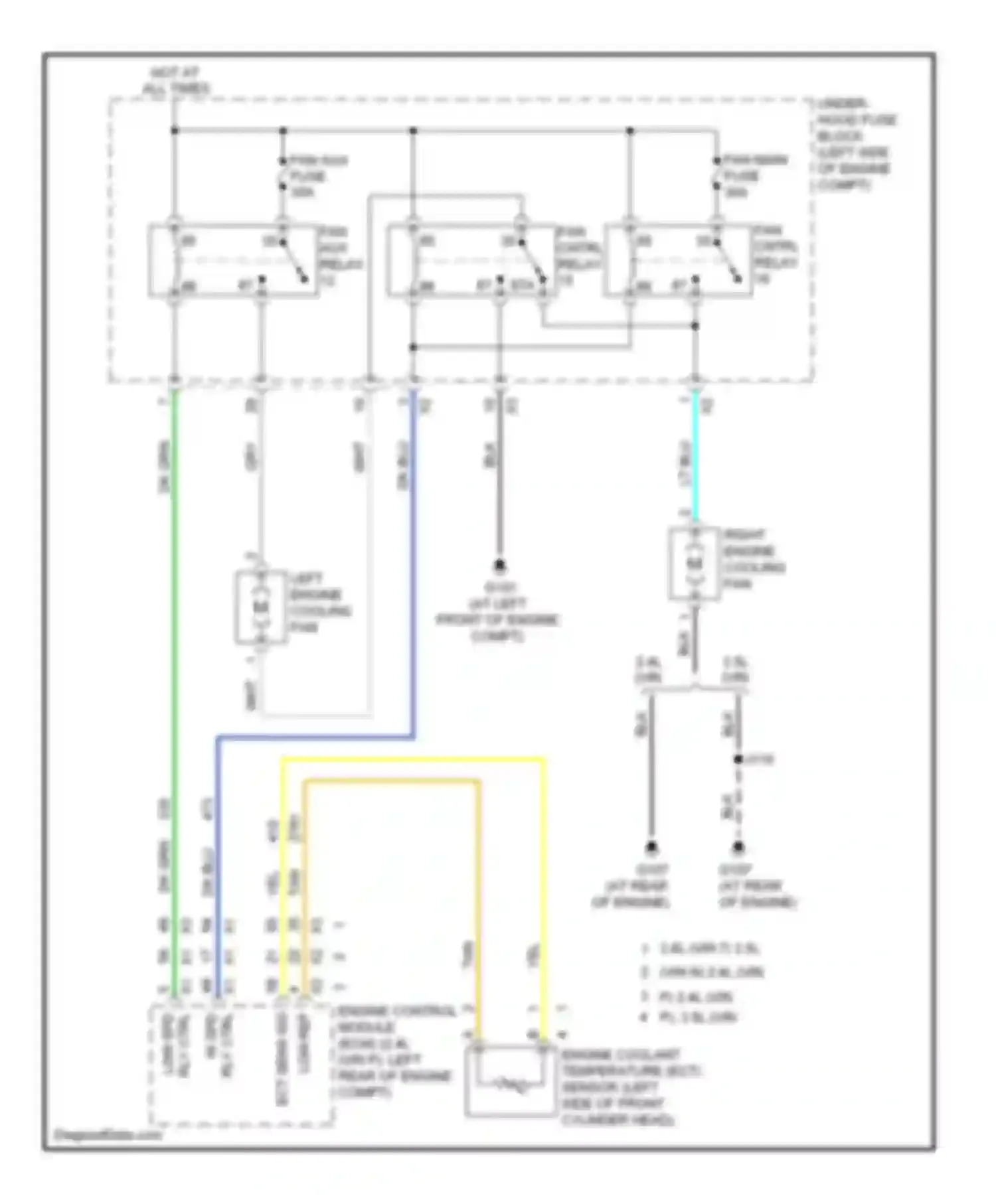

Wiring diagram fan aux relay (1 of 4)

Wiring diagram fan aux relay for Saturn VUE II (2007-2009) (1 of 4)

Get access

2.4L (VIN P) 3.5L (VIN N) 3.6L (VIN 7) 3.5L (VIN N) 2.4L (VIN P) 2.4L (VIN P), 3.5L (VIN N) BLK WIRE DK BLU WIRE DK GRN WIRE ECT SENS SIG ENGINE CONTROL MODULE (ECM) (2.4L (VIN P): LEFT REAR OF ENGINE COMPT) ENGINE COOLANT TEMPERATURE (ECT) SENSOR (LEFT SIDE OF FRONT CYLINDER HEAD) FAN AUX FUSE FAN AUX RELAY FAN CNTRL RELAY FAN MAIN FUSE GRY WIRE HI SPD RLY CTRL HOT AT ALL TIMES LEFT ENGINE COOLING FAN LOW REF LOW SPD RLY CTRL LT BLU WIRE RIGHT ENGINE COOLING FAN TAN WIRE UNDER- HOOD FUSE BLOCK (LEFT SIDE OF ENGINE COMPT) WHT WIRE YEL WIRE

Go to component -> 2.4l vin p, cooling fan circuit -> FAN AUX RELAY

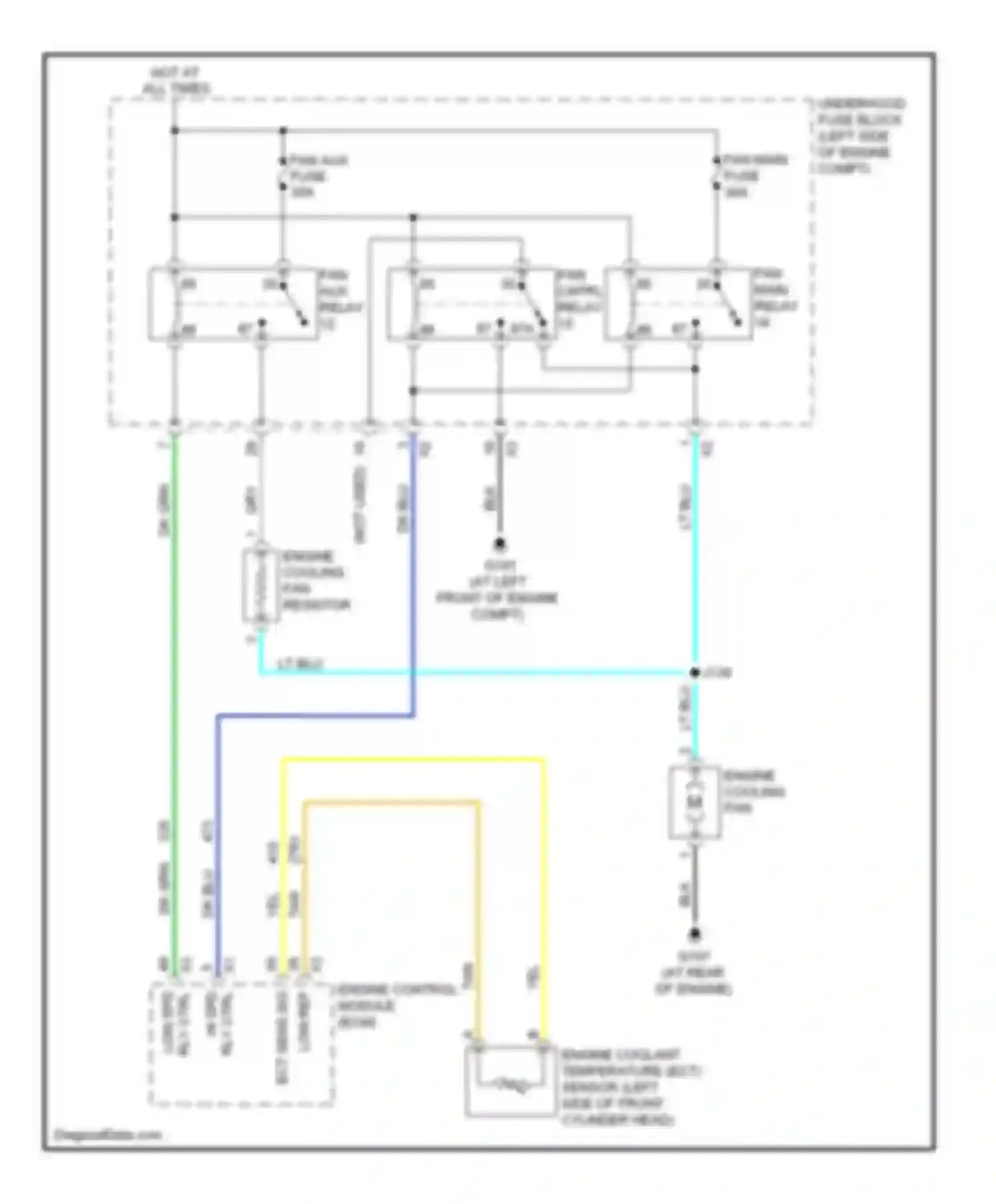

Wiring diagram fan aux relay (2 of 4)

Wiring diagram fan aux relay for Saturn VUE II (2007-2009) (2 of 4)

Get access

BLK WIRE DK BLU WIRE DK GRN WIRE ECT SENS SIG ENGINE CONTROL MODULE (ECM) ENGINE COOLANT TEMPERATURE (ECT) SENSOR (LEFT SIDE OF FRONT CYLINDER HEAD) ENGINE COOLING FAN ENGINE COOLING FAN RESISTOR FAN AUX FUSE FAN AUX RELAY FAN CNTRL RELAY FAN MAIN FUSE FAN MAIN RELAY GRY WIRE HI SPD HOT AT ALL TIMES LOW REF LT BLU WIRE RLY CTRL RLY CTRL LOW SPD TAN WIRE UNDERHOOD FUSE BLOCK (LEFT SIDE OF ENGINE COMPT) YEL WIRE

Go to component -> 2.4l vin z, engine compartment cooling fan circuit -> FAN AUX RELAY
