Saturn VUE II (2007-2009) driver seat rear vertical motor Wiring diagram
This page shows the only wiring diagram for the component.driver seat rear vertical motor, which is found in the car Saturn VUE II (2007-2009). This component is only found in one wiring diagram on your vehicle, and you can see its details here. If necessary, you can also go to other diagrams for this system for more information..

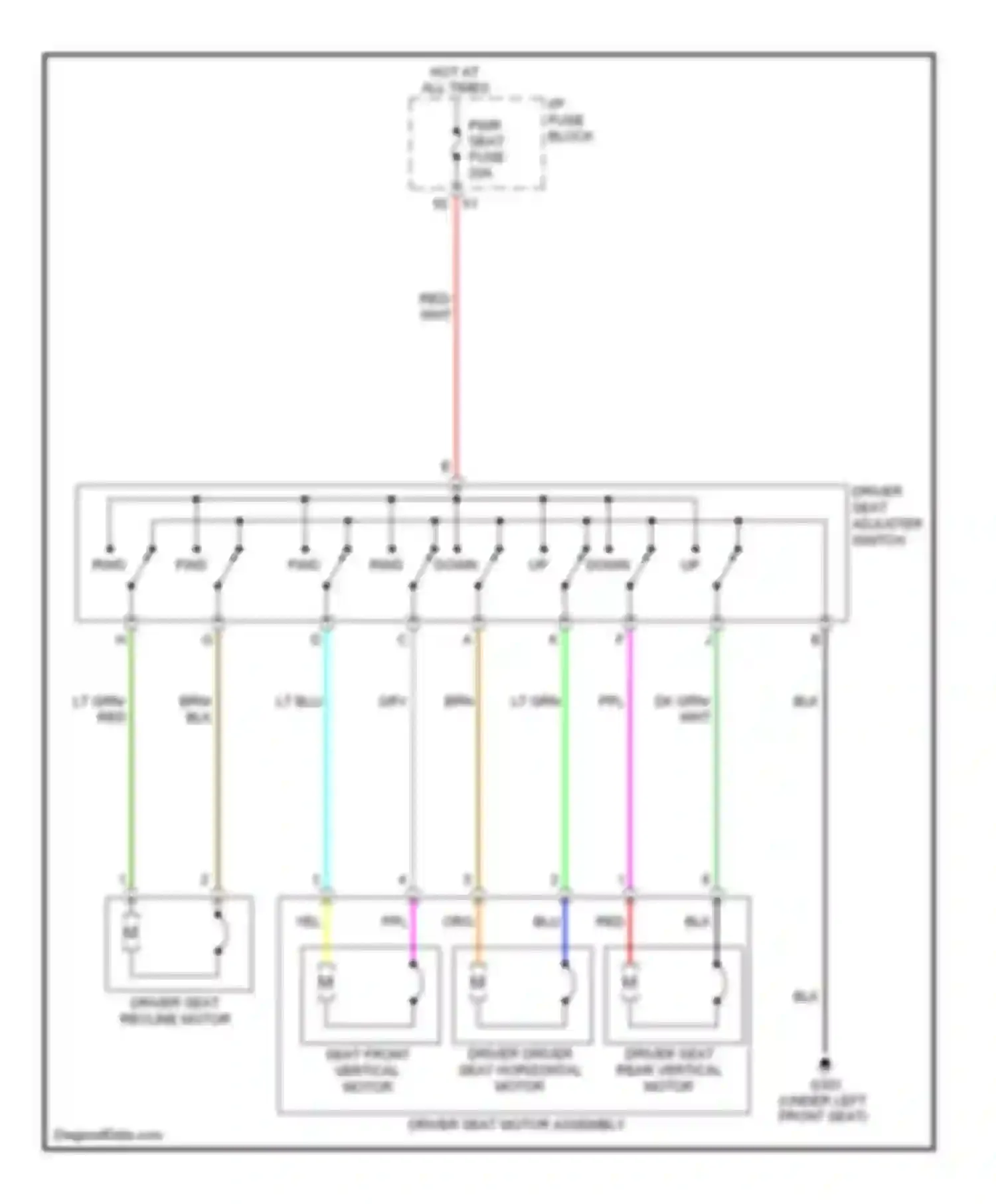

Wiring diagram driver seat rear vertical motor (1 of 1)
BLK WIRE
BLU WIRE
BRN WIRE
DK GRN WIRE
DOWN
DRIVER DRIVER SEAT FRONT SEAT HORIZONTAL VERTICAL MOTOR MOTOR
DRIVER SEAT ADJUSTER SWITCH
DRIVER SEAT MOTOR ASSEMBLY
DRIVER SEAT REAR VERTICAL MOTOR
DRIVER SEAT RECLINE MOTOR
GRY WIRE
HOT AT ALL TIMES
I/P FUSE BLOCK
LT BLU WIRE
LT GRN WIRE
ORG/ WIRE
PPL
PWR SEAT FUSE
RED WIRE
RWD
UP DOWN
WHT WIRE
YEL WIRE
Go to component -> Driver seat circuit -> DRIVER SEAT REAR VERTICAL MOTOR
