Saturn Sky I (2006-2009) down left front Wiring diagram
This page shows the only wiring diagram for the component.down left front, which is found in the car Saturn Sky I (2006-2009). This component is only found in one wiring diagram on your vehicle, and you can see its details here. If necessary, you can also go to other diagrams for this system for more information..

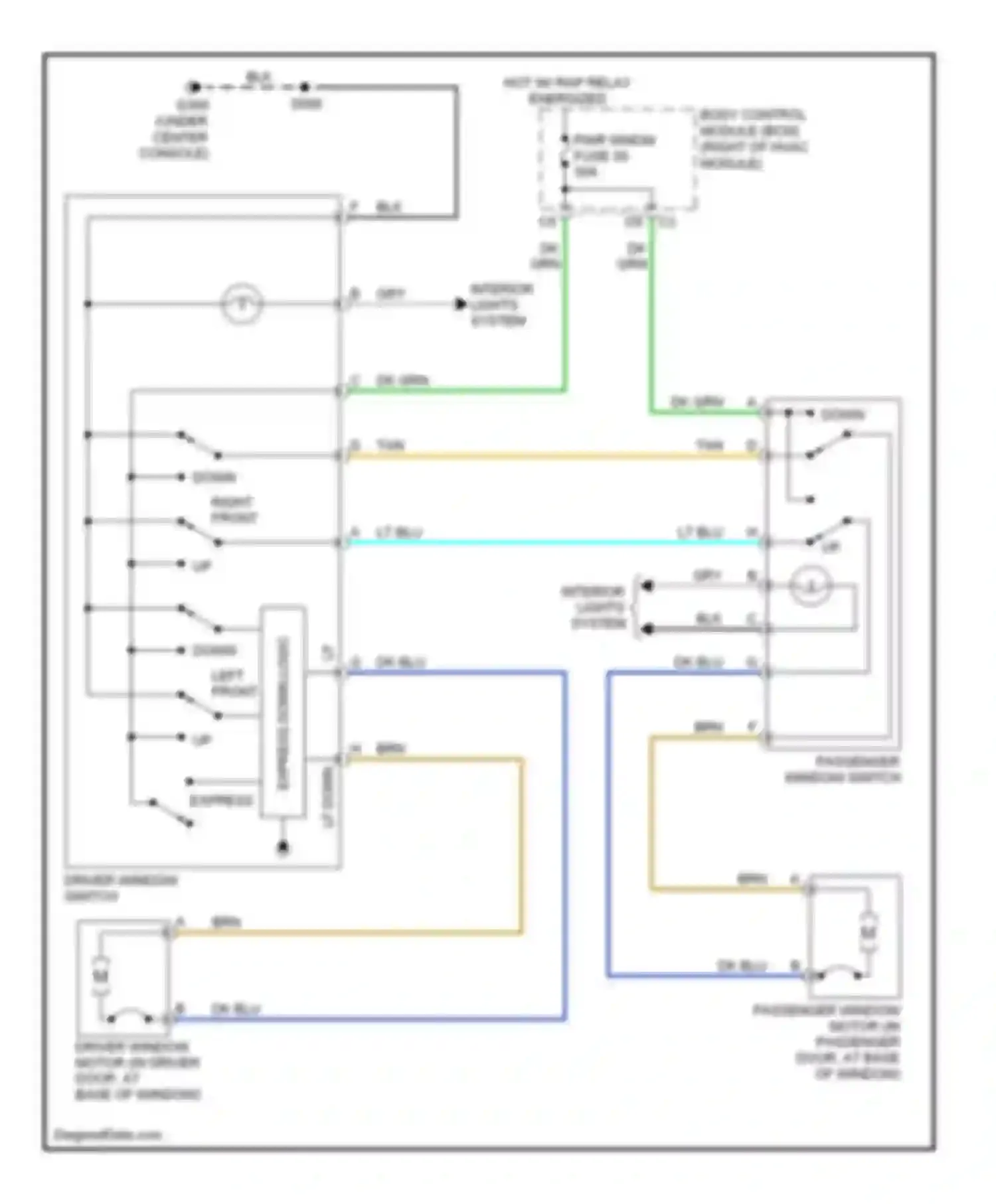

Wiring diagram down left front (1 of 1)
BLK WIRE
BODY CONTROL MODULE (BCM) (RIGHT OF HVAC MODULE)
BRN WIRE
DK BLU WIRE
DK GRN WIRE
DOWN
DOWN LEFT FRONT
DOWN RIGHT FRONT
DRIVER WINDOW MOTOR (IN DRIVER DOOR, AT BASE OF WINDOW)
DRIVER WINDOW SWITCH
EXPRESS
EXPRESS DOWN LOGIC
GRN WIRE
GRY WIRE
HOT W/ RAP RELAY ENERGIZED
LF DOWN
LF UP
LT BLU WIRE
PASSENGER WINDOW MOTOR (IN PASSENGER DOOR, AT BASE OF WINDOW)
PASSENGER WINDOW SWITCH
PWR WNDW FUSE 29
TAN WIRE
Go to component -> Power windows circuit -> DOWN LEFT FRONT
