Saturn Outlook I (2006-2010) underhood fuse block (above Wiring diagram
This page shows the only wiring diagram for the component.underhood fuse block (above, which is found in the car Saturn Outlook I (2006-2010). This component is only found in one wiring diagram on your vehicle, and you can see its details here. If necessary, you can also go to other diagrams for this system for more information..

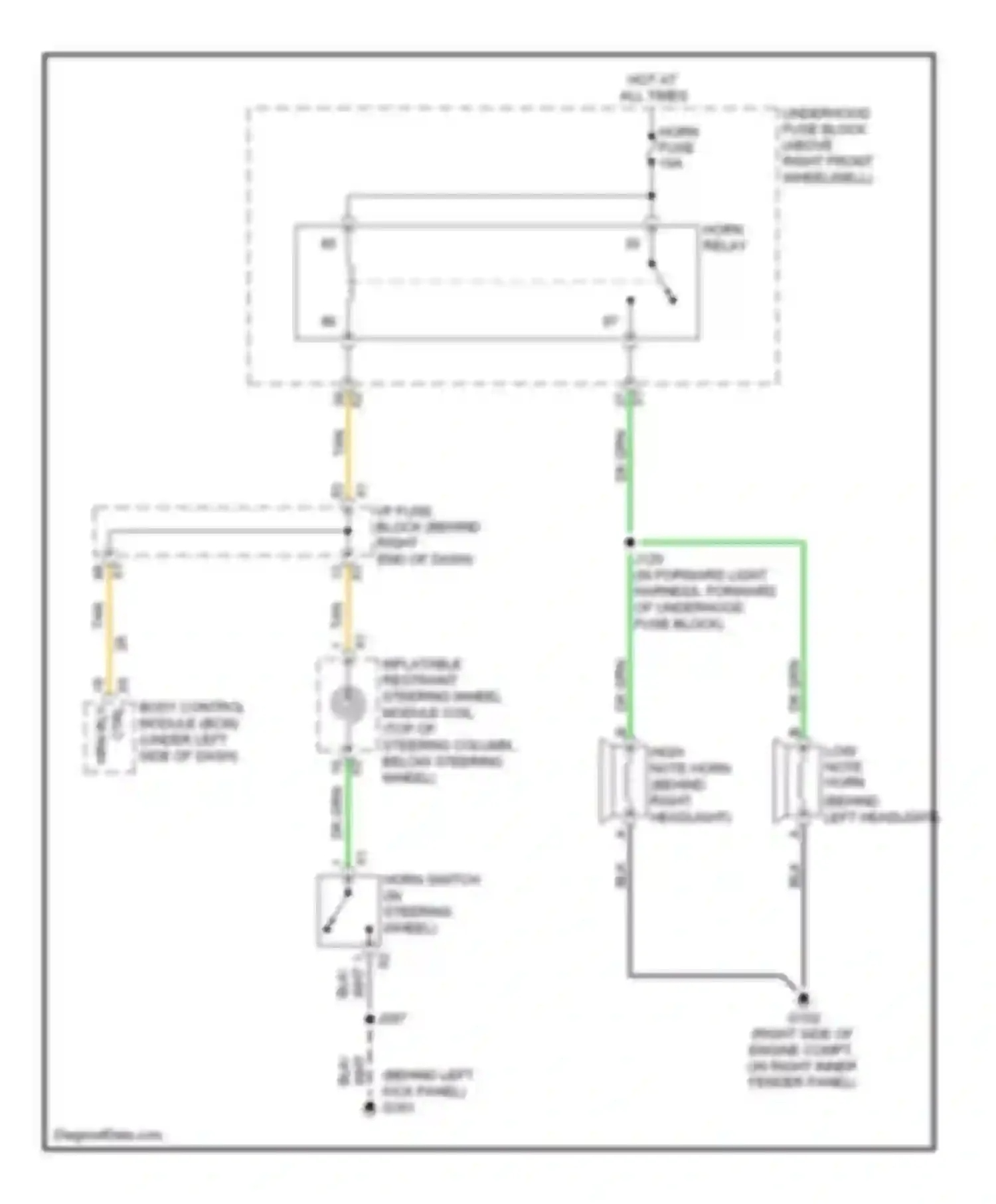

Wiring diagram underhood fuse block (above (1 of 1)
BLK WIRE
BLK/ WHT WIRE
BODY CONTROL MODULE (BCM) (UNDER LEFT SIDE OF DASH)
CTRL
DK GRN WIRE
END OF DASH)
HIGH NOTE HORN (BEHIND RIGHT HEADLIGHT)
HORN FUSE
HORN RELAY
HORN SWITCH (IN STEERING WHEEL)
HOT AT ALL TIMES
HRN RLY
I/P FUSE BLOCK (BEHIND RIGHT
LOW NOTE HORN
TAN WIRE
UNDERHOOD FUSE BLOCK (ABOVE
WHT/ BLK WIRE
Go to component -> Horn circuit -> UNDERHOOD FUSE BLOCK (ABOVE
