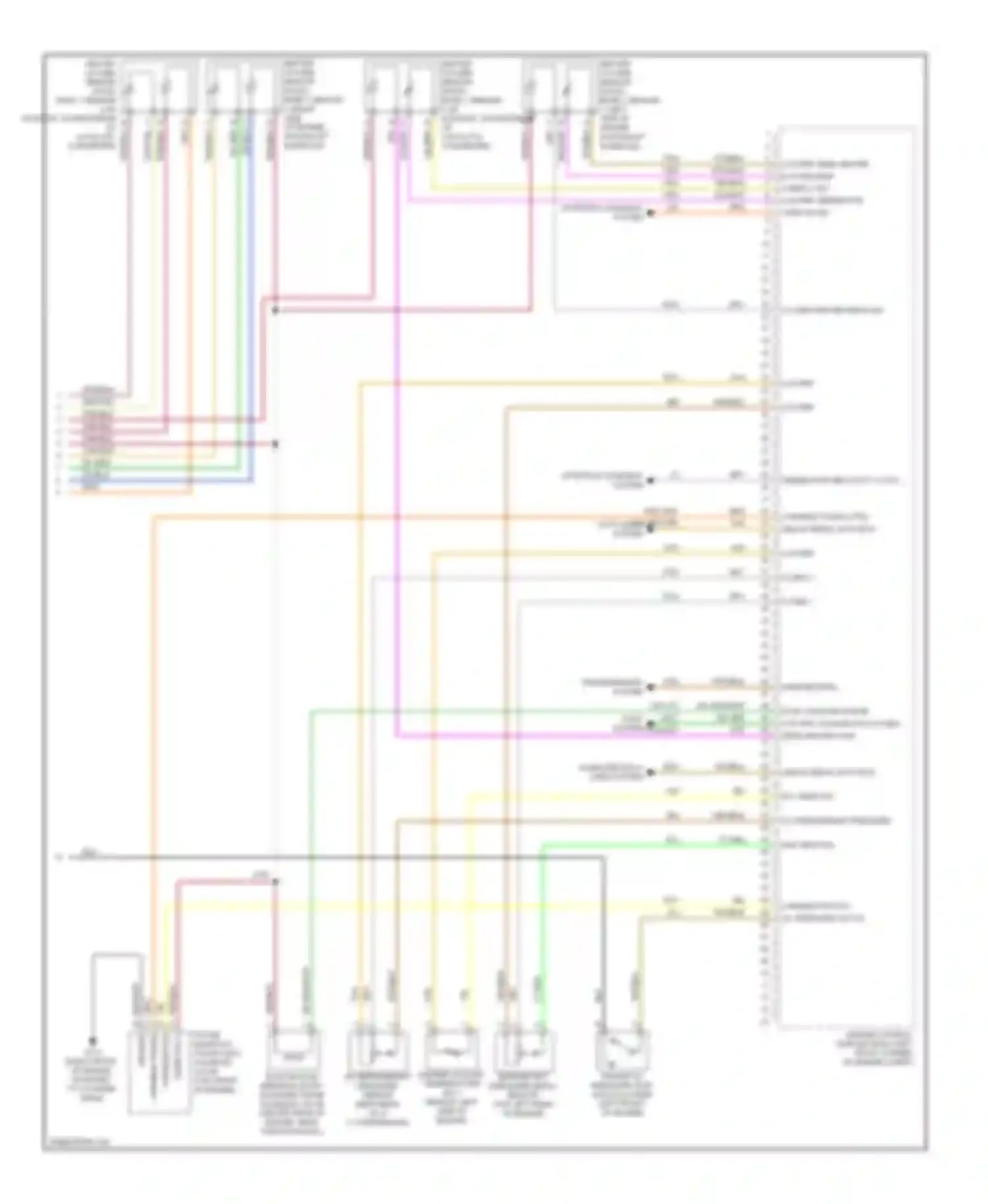

Saturn Outlook I (2006-2010) evap canister purge low spd cooling fan oxygen sens heated d sig wiring diagram

428 335 6427 COOLING FANS SYSTEM 6392 2501 COMPUTER DATA LINES SYSTEM A/C REFRIGERANT PRESSURE A/C REFRIGERANT PRESSURE SENSOR (NEAR REAR OF A/C COMPRESSOR) BANK 1 SENSOR 1 (RIGHT SIDE OF ENGINE, IN EXHAUST MANIFOLD) BANK 1 SENSOR 2 (IN EXHAUST, DOWNSTREAM OF CATALYTIC CONVERTER) BANK 2 SENSOR 1 (LEFT SIDE OF ENGINE, IN EXHAUST MANIFOLD) BANK 2 SENSOR 2 (IN EXHAUST, DOWNSTREAM OF CATALYTIC CONVERTER) BAROMETRIC PRESSURE (BARO) SENSOR (TOP LEFT REAR OF ENGINE) BLK WIRE BLK/WHT WIRE COMPUTER DATA LINES SYSTEM DK BLU WIRE DK GRN WIRE DK GRN/WHT WIRE ECT SENS SIG ENGINE CONTROL MODULE (ECM) (LEFT FRONT CORNER OF ENGINE COMPT) ENGINE COOLANT TEMPERATURE (ECT) SENSOR (LEFT SIDE OF ENGINE) ENGINE OIL PRESSURE (EOP) SWITCH (LOWER LEFT FRONT OF ENGINE) EVAP CANISTER PURGE LOW SPD COOLING FAN OXYGEN SENS HEATED D SIG FUSED SPLY GENERATOR FIELD DUTY CYCLE GMLAN SERIAL DATA BUS + GROUND GRY WIRE HEATED OXYGEN SENSOR INTAKE MANIFOLD TUNING (IMT) SOLENOID VALVE (TOP FRONT OF ENGINE) LOW REF LOW REF SENS HEATED B HI REF BANK 2 SENS 2 SIG LOW REF GENERATOR TURN ON SIG LT GRN WIRE MAP SENS SIG ORG/ WIRE ORG/BLK WIRE ORG/BLU WIRE OXYGEN SEN HEATED B SIG PARK/NEUTRAL PNK/BLK WIRE PPL PPL/WHT WIRE STARTING/ CHARGING SYSTEM TAN WIRE TAN/BLK WIRE TAN/WHT WIRE TRANSMISSIONS SYSTEM VARIABLE POS VARIABLE POS SIG OIL PRESSURE SW SIG VARIABLE TUNING VARIABLE TUNING CTRL GMLAN SERIAL DATA BUS- VIO/WHT WIRE WHT/YEL WIRE YEL WIRE YEL/BRN WIRE
