Air conditioning circuits for Saab 9000 I facelift (1991-1998)

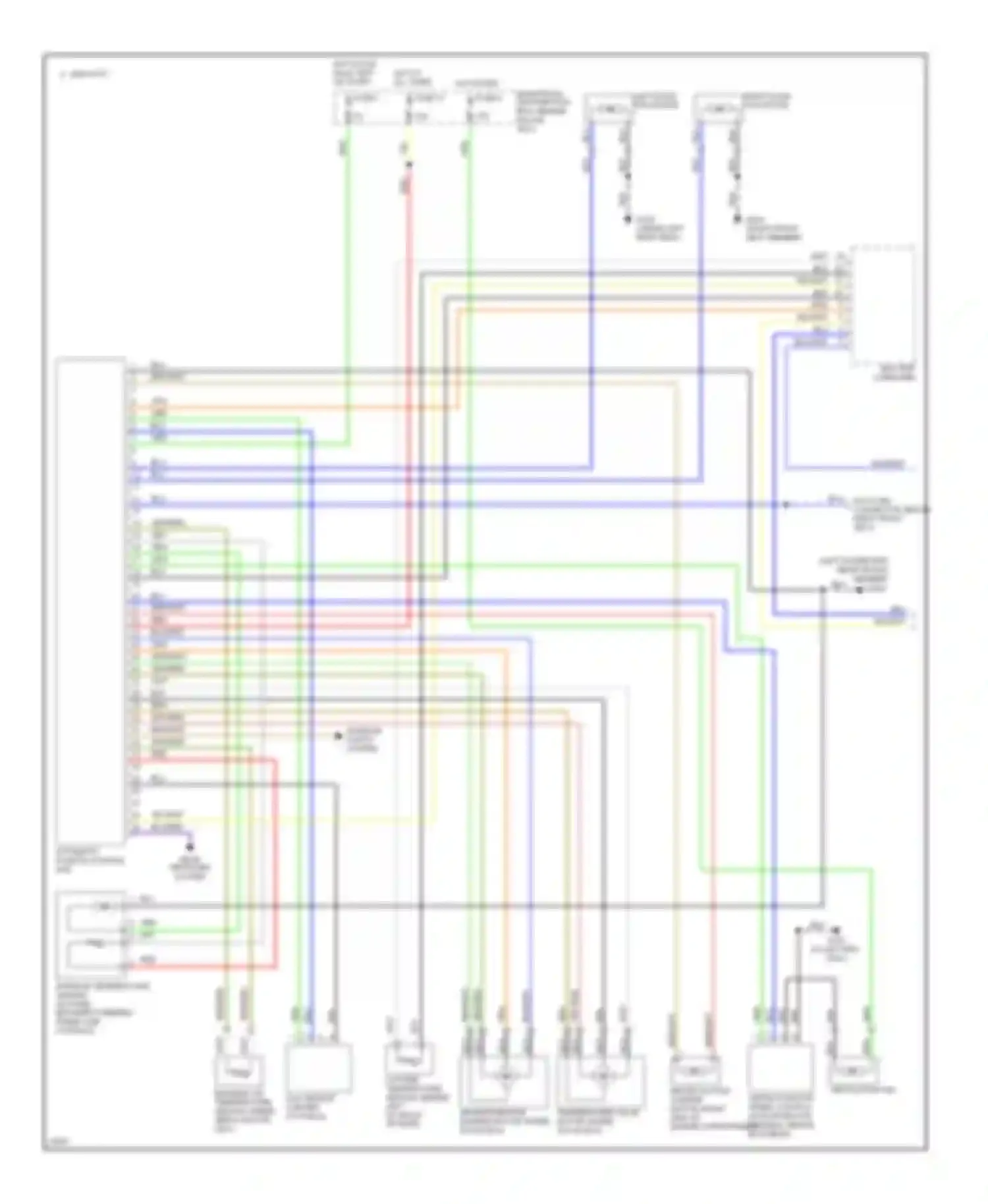

1995 VFTC AIR DISTRIBUTION DAMPER MOTOR (INSIDE GLOVE BOX) AUTOMATIC CLIMATE CONTROL UNIT BLENDED AIR TEMPERATURE SENSOR (UNDER SERVO MOTOR UNIT) BLK BLK WIRE BLK WIRE BLU WIRE BLU/RED WIRE BLU/WHT WIRE BRN WIRE BRN/WHT WIRE DATA LINK CONNECTOR (BELOW RIGHT FRONT SEAT) EDU TRIP COMPUTER ELECTRICAL DISTRIBUTION BOX (BEHIND GLOVE BOX) FUSE 1 FUSE 17 FUSE 6 GRN WIRE GRN/RED WIRE GRN/WHT WIRE GRY WIRE GRY/RED WIRE HOT AT ALL TIMES HOT IN RUN HOT IN RUN, BULB TEST OR START INTERIOR TEMPERATURE SENSOR (IN PANEL BETWEEN STEERING WHEEL AND CONSOLE) LEFT DOOR FAN MOTOR NCA WIRE ORG/ WIRE OUTSIDE TEMPERATURE SENSOR (BEHIND LEFT OF FRONT SPOILER) REAR DEFOGGER RECIRCULATION DAMPER MOTOR (RIGHT SIDE OF ENGINE COMPARTMENT) RED WIRE RED/WHT WIRE RIGHT DOOR FAN MOTOR SUN SENSOR (CENTER OF FASCIA) SYSTEM TEMPERATURE VALVE MOTOR (INSIDE GLOVE BOX) VENTILATION FAN VENTILATION FAN SPEED CONTROL (IN EVAPORATOR HOUSING, BEHIND BULKHEAD) WHT WIRE YEL WIRE YEL/WHT WIRE

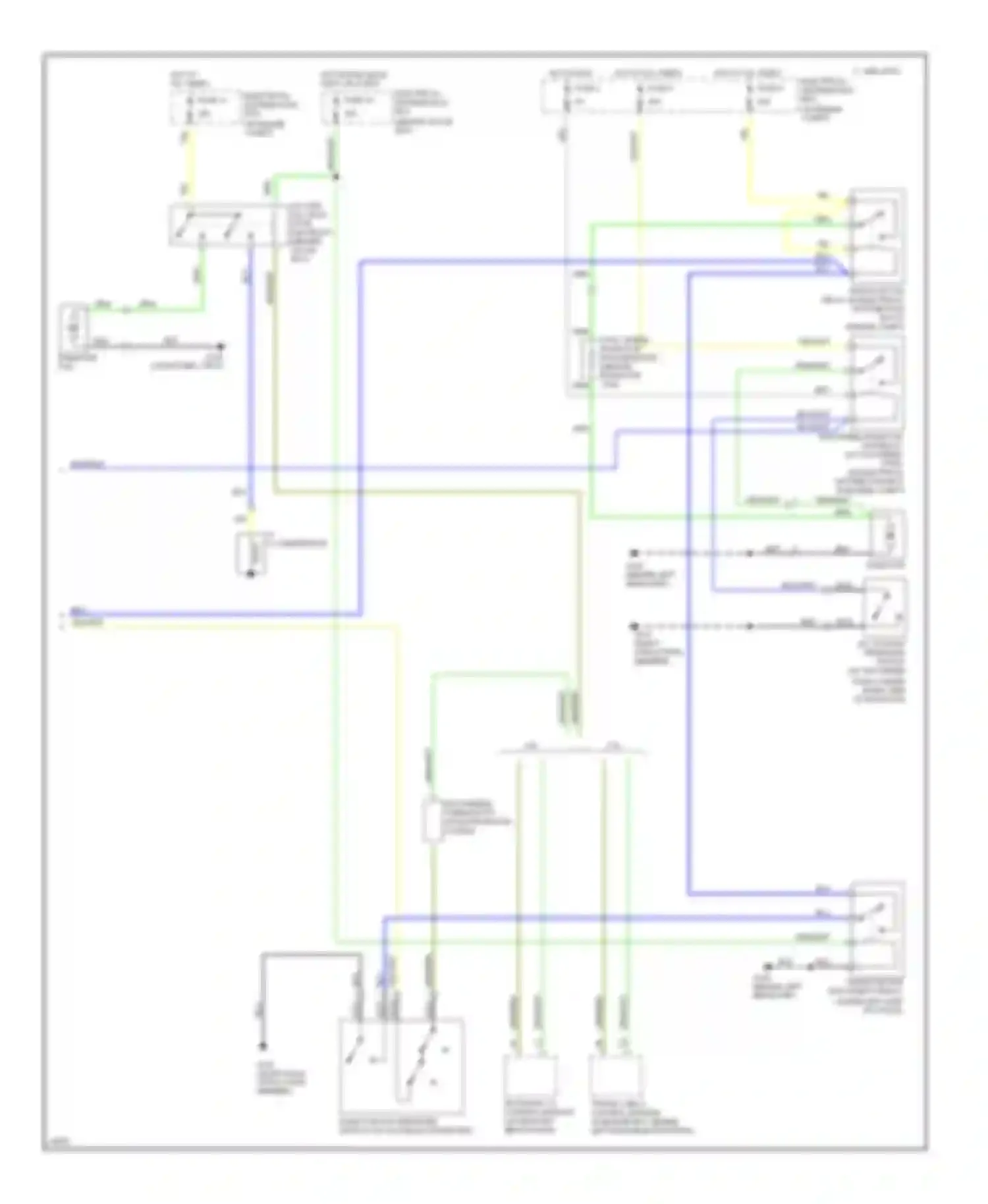

1995 VFTC A/C AND ACC RADI- ATOR FAN RELAY (BEHIND GLOVE BOX) A/C COMPRESSOR A/C COOLING PRESSURE SWITCH ANTI-FREEZE THERMOSTAT (ON EVAPORATOR CASING) BLK WIRE BLU WIRE BLU/WHT WIRE ELECTRICAL DISTRIBUTION BOX (BEHIND GLOVE BOX) ELECTRICAL DISTRIBUTION BOX (IN ENGINE COMPT) FUSE 11 FUSE 13 FUSE 2 FUSE 3 FUSE 4 GRN WIRE GRN/RED WIRE GRN/WHT WIRE GRY WIRE HOT AT ALL TIMES HOT IN RUN HOT IN RUN, BULB TEST OR START NCA WIRE RADIATOR FAN RADIATOR FAN DISCONNECT RELAY (UNDER LEFT SIDE OF FASCIA) RADIATOR FAN PRESSURE SWITCH (ON ACCUMULATOR/DRYER) RADIATOR FAN RELAY (IN ELECTRICAL DISTRIBUTION BOX IN ENGINE COMPT) RADIATOR) TWO- SPEED RADIATOR FAN RESISTOR (BESIDE RADIATOR FAN) TWO-SPEED RADIATOR FAN RELAY (W/ TWO-SPEED FANS) YEL WIRE YEL/WHT WIRE
