Saab 9000 I facelift (1991-1998) fuse 29 Wiring diagrams
This page contains all the electrical diagrams for the component. fuse 29, in which he is found in the car Saab 9000 I facelift (1991-1998). You can view various wiring diagrams where this component is used, as well as go to more detailed diagrams to see the complete connection and interaction in the system. All diagrams have links to quickly jump to the corresponding section with the component for easy viewing..
Wiring diagram fuse 29 (1 of 3)
1/5
6 2 TRAILER CONNECTOR
BLK WIRE
BLU WIRE
BLU/WHT WIRE
BRAKE LIGHTS SWITCH (AT BRAKE PEDAL)
BRN/WHT WIRE
DASHBOARD ELECTRICAL DISTRIBUTION BOX (BEHIND GLOVE BOX)
DISTRIBUTION TERMINAL (BEHIND GLOVE BOX)
FUSE 13
FUSE 24
FUSE 29
FUSE 30
GRN WIRE
GRN/RED WIRE
GRN/WHT WIRE
HAZARD FLASHER SWITCH
HOT AT ALL TIMES
HOT IN RUN OR START
ILLUM
INTERIOR LIGHTS SYSTEM (RHEOSTAT)
LEFT FRONT PARK LIGHT
LEFT FRONT TURN SIGNAL LIGHT LEFT SIDE MARKER LIGHT
LEFT SIDE TURN SIGNAL LIGHT
PICTOGRAM (TAILLIGHT OUT IND.)
RED WIRE
RED/WHT WIRE
RIGHT FRONT PARK LIGHT
RIGHT FRONT TURN SIGNAL LIGHT
RIGHT SIDE MARKER LIGHT
RIGHT SIDE TURN SIGNAL LIGHT
TAILLAMPS FILAMENT MONITOR (RIGHT REAR OF LUGGAGE COMPARTMENT)
TRAILER CONNECTOR
WHT WIRE
Go to component -> Exterior lamps circuit (1 of 2) -> FUSE 29

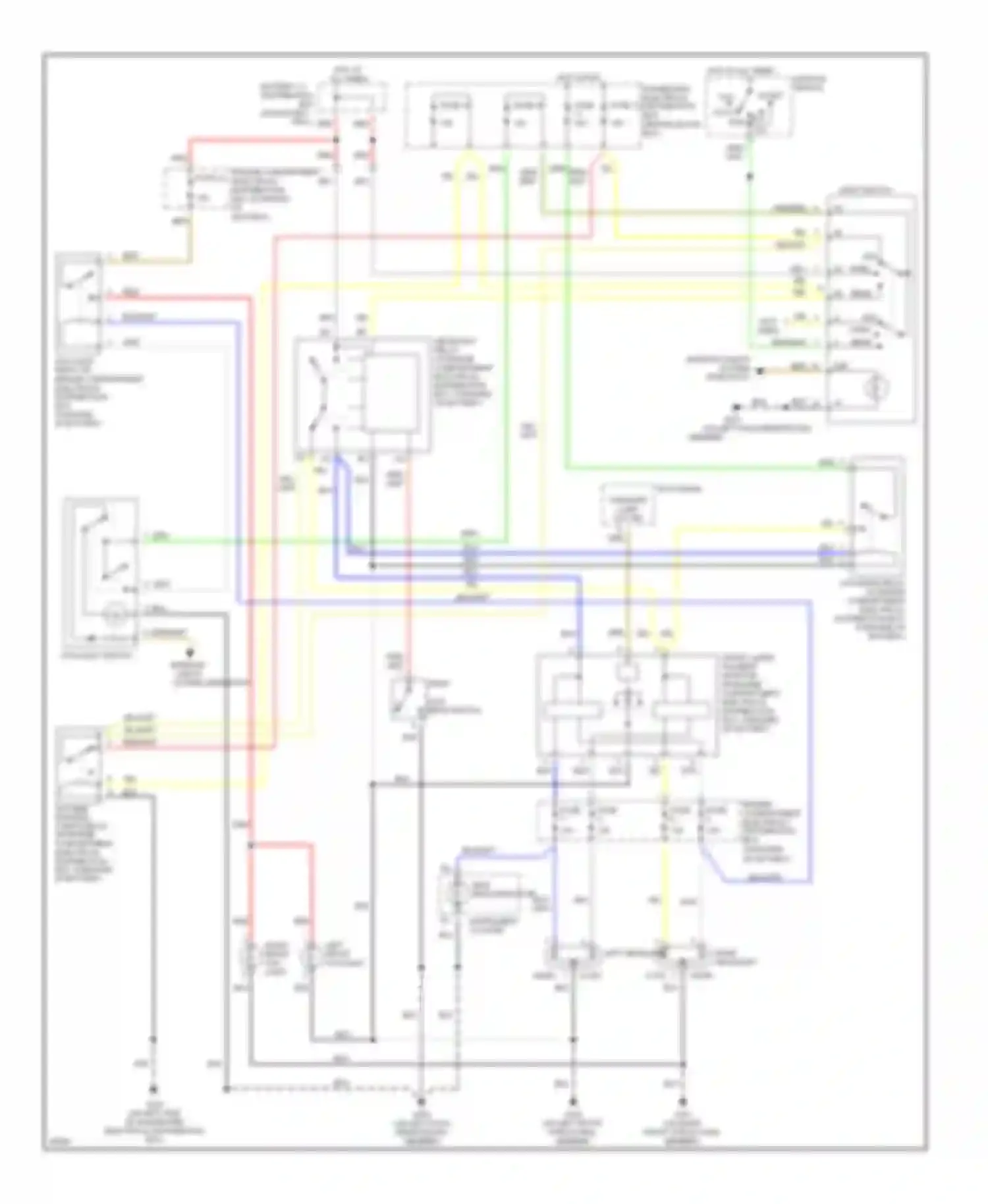

Wiring diagram fuse 29 (2 of 3)
B-T 15+
BATTERY (+) DISTRIBUTION
BLK WIRE
BLU WIRE
BLU/WHT WIRE
BOX)
BRN WIRE
BRN/WHT WIRE
DASHBOARD ELECTRICAL DISTRIBUTION BOX (BEHIND GLOVE BOX)
ENGINE COMPARTMENT ELECTRICAL DISTRIBUTION BOX (FORWARD OF BATTERY) FUSE 12
FOG LIGHT RELAY (IN ENGINE COMPARTMENT ELECTRICAL DISTRIBUTION BOX, FORWARD
FOG LIGHT SWITCH
FUSE 11 FUSE 31
FUSE 29
FUSE 32
GRN WIRE
GRN/RED WIRE
GRN/WHT WIRE
GRY WIRE
HEAD
HIGH BEAM INDICATOR
HIGH HIGH LOW LOW
HIGH/ LOW BEAM SWITCH
HOT AT ALL TIMES
HOT IN RUN
IGNITION SWITCH
INSTRUMENT CLUSTER
INTERIOR LIGHTS SYSTEM (RHEOSTAT)
LEFT FRONT FOG LIGHT
LIGHT SWITCH
LOCK
OFF PARK
OFF PARK HEAD
PICTOGRAM FORWARD LAMP OUT IND.
RED WIRE
RED/WHT WIRE
RIGHT FRONT FOG LIGHT
RIGHT HEADLIGHT LEFT HEADLIGHT
RUN WIRE
WHT WIRE
YEL WIRE
YEL/WHT WIRE
Go to component -> Headlamps/front fog lamps circuit -> FUSE 29

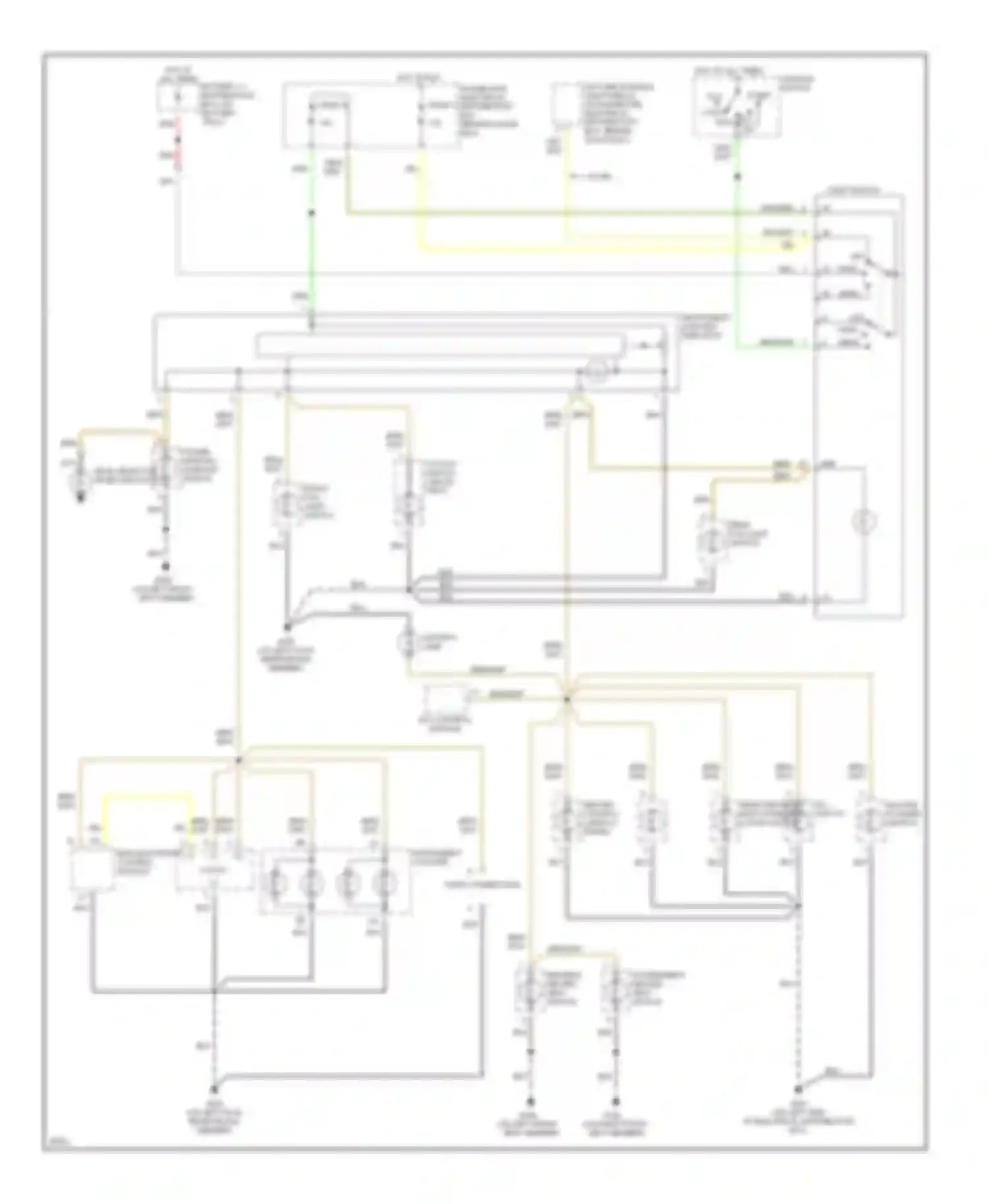

Wiring diagram fuse 29 (3 of 3)
A/C SWITCH
ACC CONTROL MODULE
ASHTRAY LAMP
B-T 15+
BATTERY (+) DISTRIBUTION
BLK WIRE
BOX (ON BATTERY TRAY)
BRN WIRE
BRN/WHT WIRE
CLOCK
DASHBOARD ELECTRICAL DISTRIBUTION BOX (BEHIND GLOVE BOX)
DRIVER'S HEATED SEAT SWITCH
EDU ELECTRONIC CONTROL MODULE
FRONT FOG LIGHT SWITCH
FUSE 29
FUSE 31
GEAR SELECTOR LEVER INDICATOR
GRN WIRE
GRN/RED WIRE
GRN/WHT WIRE
GRY WIRE
HAZARD FLASHER SWITCH
HEAD
HEATER CONTROL LAMPS (3 BULBS)
HOT AT ALL TIMES
HOT IN RUN
IGNITION SWITCH
INSTRUMENT CLUSTER
INSTRUMENT LIGHTING RHEOSTAT
LIGHT SWITCH
LOCK
NCA WIRE
OFF PARK
OFF PARK HEAD
PASSENGER'S HEATED SEAT SWITCH
POWER WINDOW/ SUNROOF SWITCH
RADIO CONNECTION
REAR DEFOGGER SWITCH RECIRCU- LATION SWITCH
REAR FOG LIGHT SWITCH
RED WIRE
RUN WIRE
TCS OFF SWITCH (1995-97 ONLY)
W/ DRL
WHT WIRE
YEL WIRE
YEL/WHT WIRE
Go to component -> Instrument illumination circuit -> FUSE 29
