Saab 900 II (1993-1998) left vanity mirror/ reading lamp Wiring diagram
This page shows the only wiring diagram for the component.left vanity mirror/ reading lamp, which is found in the car Saab 900 II (1993-1998). This component is only found in one wiring diagram on your vehicle, and you can see its details here. If necessary, you can also go to other diagrams for this system for more information..

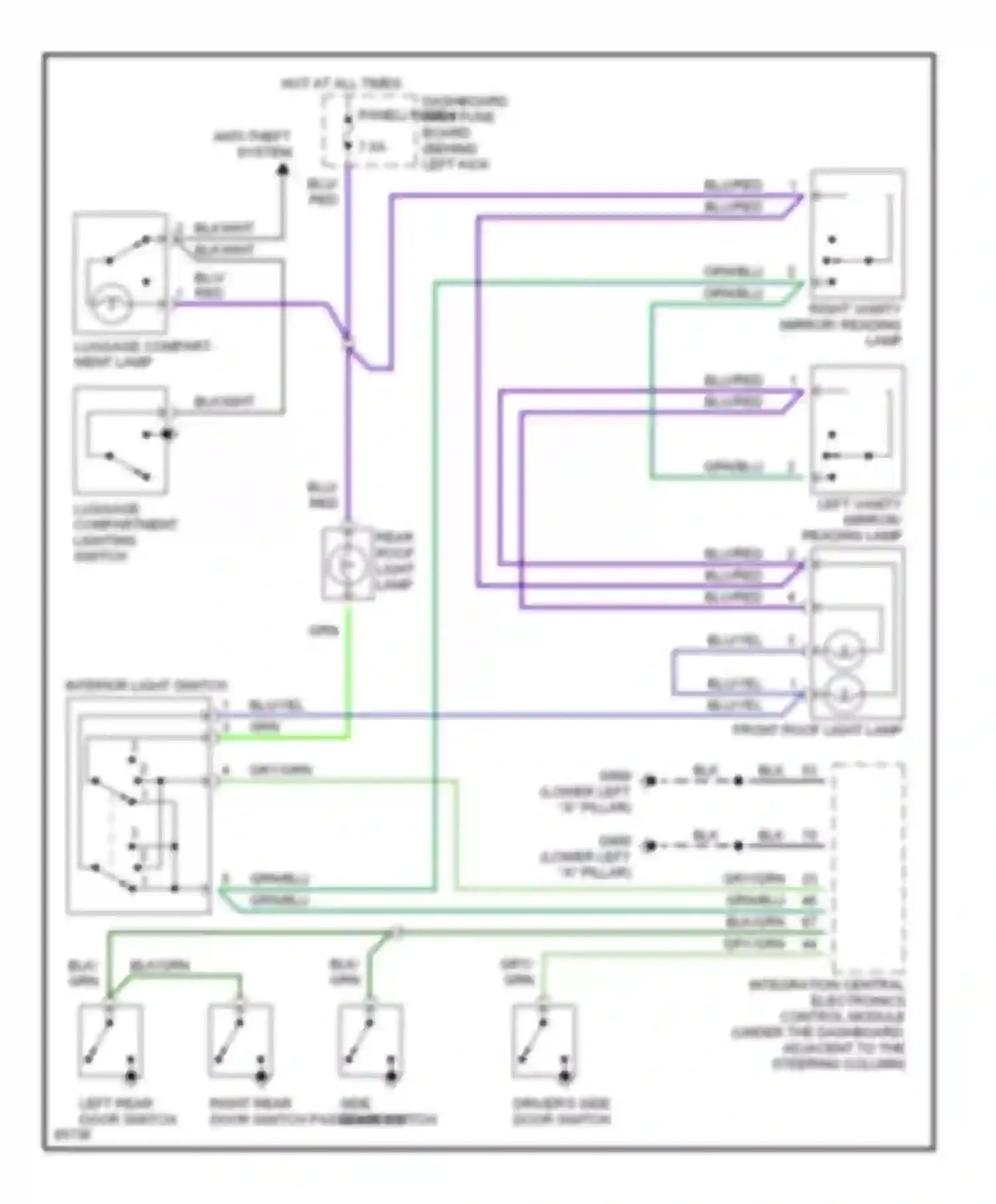

Wiring diagram left vanity mirror/ reading lamp (1 of 1)
ANTI-THEFT SYSTEM
BLK WIRE
BLK/GRN WIRE
BLK/WHT WIRE
BLU WIRE
BLU/RED WIRE
BLU/YEL WIRE
DASHBOARD MAIN FUSE BOARD (BEHIND LEFT KICK PANEL) FUSE 4
DRIVER'S SIDE DOOR SWITCH
FRONT ROOF LIGHT LAMP
GRN WIRE
GRN/BLU WIRE
GRY WIRE
GRY/GRN WIRE
HOT AT ALL TIMES
INTERIOR LIGHT SWITCH
LEFT REAR DOOR SWITCH
LEFT VANITY MIRROR/ READING LAMP
LUGGAGE COMPART- MENT LAMP
LUGGAGE COMPARTMENT LIGHTING SWITCH
REAR ROOF LIGHT LAMP
RED WIRE
RIGHT REAR DOOR SWITCH PASSENGER'S SIDE DOOR SWITCH
RIGHT VANITY MIRROR/ READING LAMP
Go to component -> Courtesy lamps circuit, except convertible -> LEFT VANITY MIRROR/ READING LAMP
