Saab 9-5 II (2010-2012) low speed gmlan serial data low speed gmlan serial data battery positive voltage Wiring diagram
This page shows the only wiring diagram for the component.low speed gmlan serial data low speed gmlan serial data battery positive voltage, which is found in the car Saab 9-5 II (2010-2012). This component is only found in one wiring diagram on your vehicle, and you can see its details here. If necessary, you can also go to other diagrams for this system for more information..

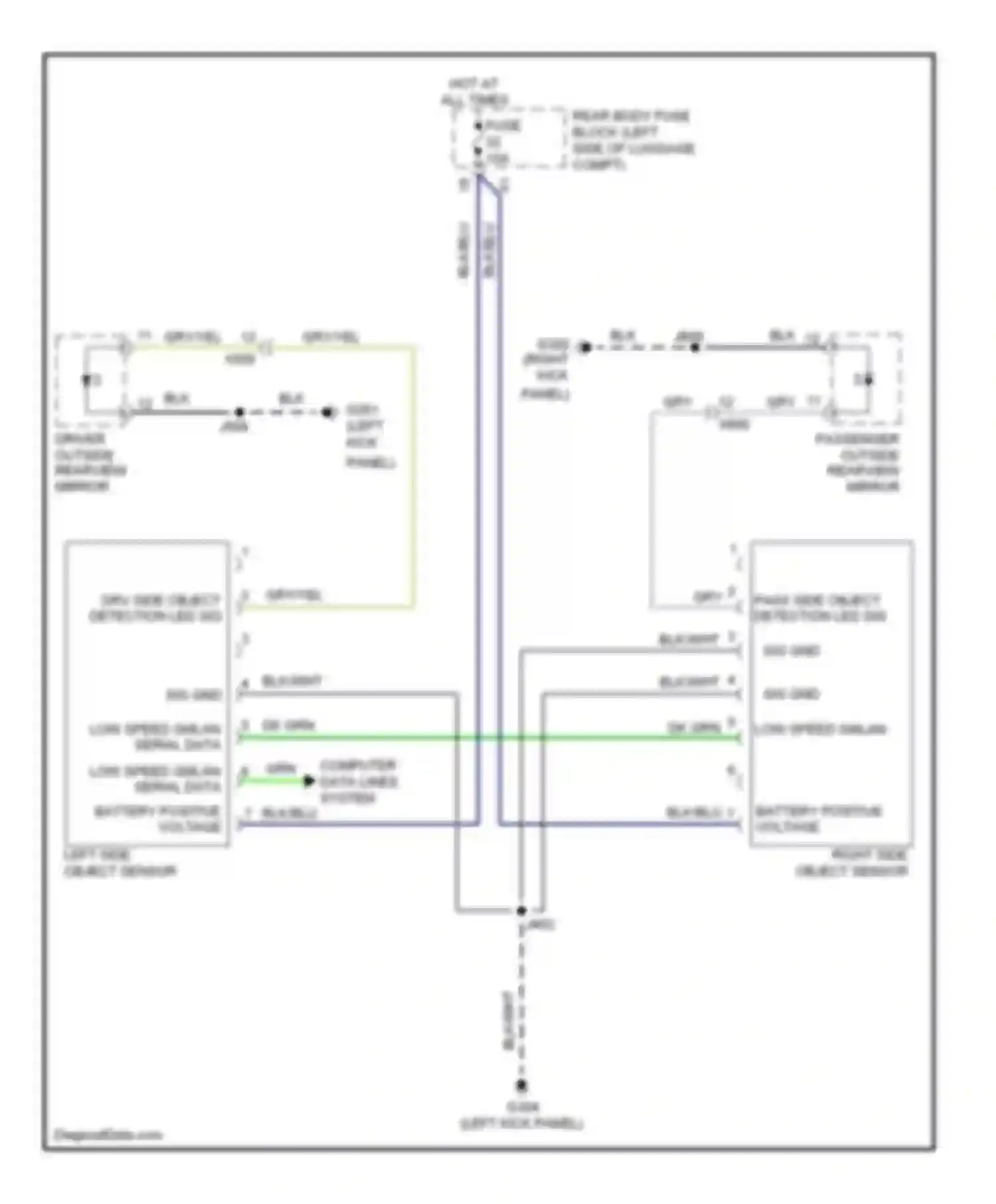

Wiring diagram low speed gmlan serial data low speed gmlan serial data battery positive voltage (1 of 1)
BATTERY POSITIVE VOLTAGE
BLK WIRE
BLK/BLU WIRE
BLK/WHT WIRE
COMPUTER DATA LINES SYSTEM
DK GRN WIRE
DRIVER OUTSIDE REARVIEW MIRROR
DRV SIDE OBJECT DETECTION LED SIG
GRN WIRE
GRY WIRE
GRY/YEL WIRE
HOT AT ALL TIMES FUSE
LEFT SIDE OBJECT SENSOR
LOW SPEED GMLAN
LOW SPEED GMLAN SERIAL DATA LOW SPEED GMLAN SERIAL DATA BATTERY POSITIVE VOLTAGE
PASS SIDE OBJECT DETECTION LED SIG
PASSENGER OUTSIDE REARVIEW MIRROR
REAR BODY FUSE BLOCK (LEFT SIDE OF LUGGAGE COMPT)
RIGHT SIDE OBJECT SENSOR
SIG GND
Go to component -> Lane departure warning circuit -> LOW SPEED GMLAN SERIAL DATA LOW SPEED GMLAN SERIAL DATA BATTERY POSITIVE VOLTAGE
