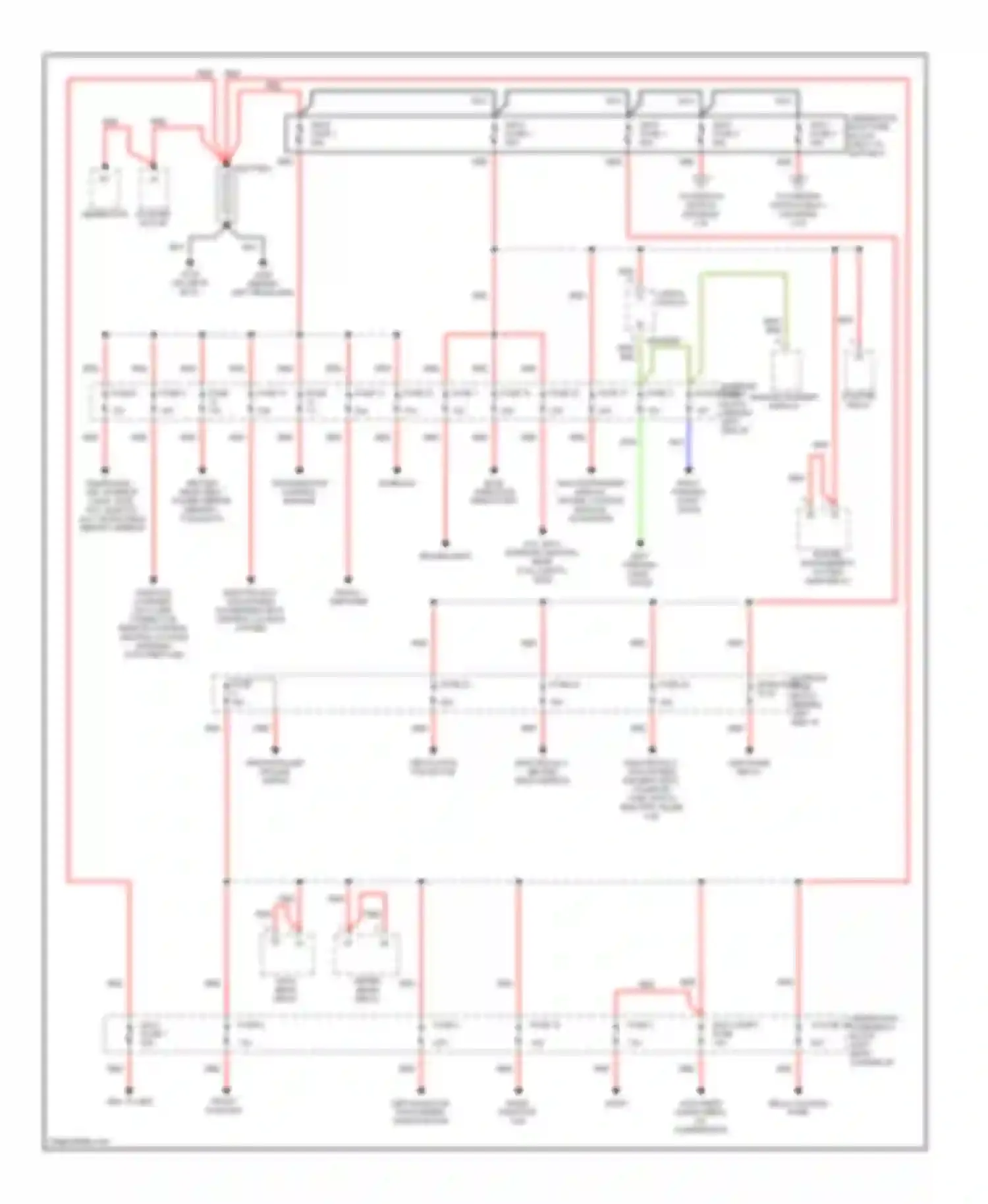

Saab 9-5 I (1997-2001) main instrument display Wiring diagrams

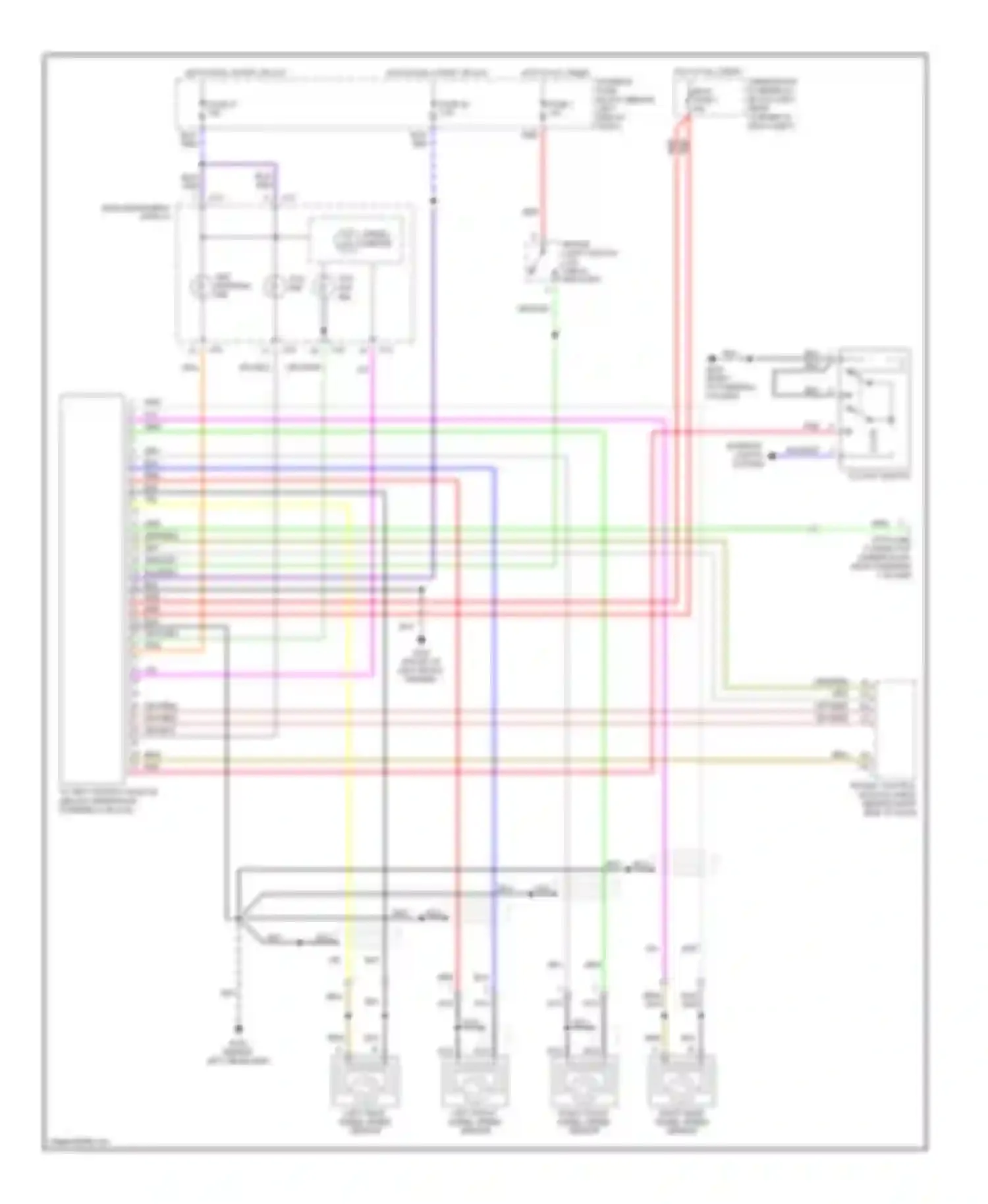

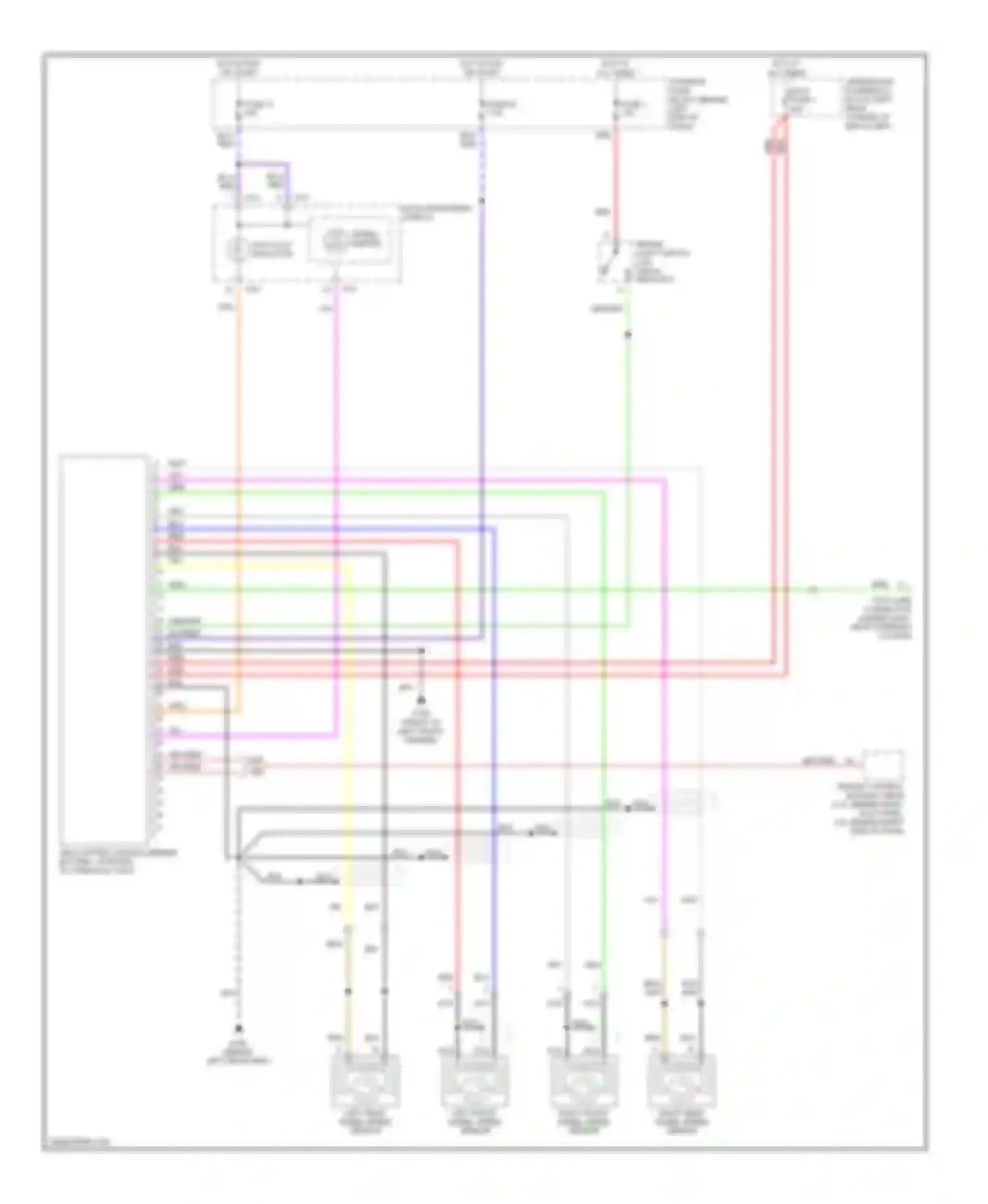

ABS CONTROL MODULE (BEHIND BATTERY, INTEGRAL TO HYDRAULIC UNIT) ANTI-LOCK INDICATOR BLK WIRE BLU WIRE BLU/RED WIRE BRAKE LIGHT SWITCH (ON PEDAL BRACKET) BRN WIRE DATA LINK CONNECTOR (UNDER DASH, NEAR STEERING COLUMN) FUSE 1 FUSE 26 FUSE 27 GRN WIRE GRN/GRY WIRE GRY WIRE GRY/RED WIRE HOT AT ALL TIMES HOT IN RUN OR START INTERIOR FUSE BLOCK (BEHIND LEFT END OF DASH) LEFT FRONT WHEEL SPEED SENSOR LEFT REAR WHEEL SPEED SENSOR MAIN INSTRUMENT DISPLAY MAXI FUSE 1 NCA WIRE ORG/ WIRE RED WIRE RIGHT FRONT WHEEL SPEED SENSOR RIGHT REAR WHEEL SPEED SENSOR SPEED- OMETER VS OUT UNDERHOOD FUSE/RELAY BLOCK (LEFT REAR CORNER OF ENG COMPT) VIO WIRE WHT WIRE YEL WIRE

ABS WARNING IND BLK WIRE BLU WIRE BLU/RED WIRE BLU/WHT WIRE BRAKE LIGHT SWITCH (ON PEDAL BRACKET) BRN WIRE DATA LINK CONNECTOR (UNDER DASH, NEAR STEERING COLUMN) FUSE 1 FUSE 26 FUSE 27 GRN WIRE GRN/GRY WIRE GRN/RED WIRE GRY WIRE GRY/BLK WIRE GRY/GRN WIRE GRY/RED WIRE HOT AT ALL TIMES HOT IN RUN, START OR ACC ILLUM INTERIOR FUSE BLOCK (BEHIND LEFT END OF DASH) LEFT FRONT WHEEL SPEED SENSOR LEFT REAR WHEEL SPEED SENSOR MAIN INSTRUMENT DISPLAY MAXI FUSE 1 NCA WIRE ORG/ WIRE PNK WIRE RED WIRE RIGHT FRONT WHEEL SPEED SENSOR RIGHT REAR WHEEL SPEED SENSOR SPEED- OMETER VS OUT TC-ABS CONTROL MODULE (BELOW UNDERHOOD FUSE/RELAY BLOCK) TCS IND TCS OFF IND TCS OFF SWITCH TRIONIC CONTROL MODULE (OBDII) (BEHIND RIGHT SIDE OF DASH) UNDERHOOD FUSE/RELAY BLOCK (LEFT REAR CORNER OF ENG COMPT) VIO WIRE WHT WIRE YEL WIRE

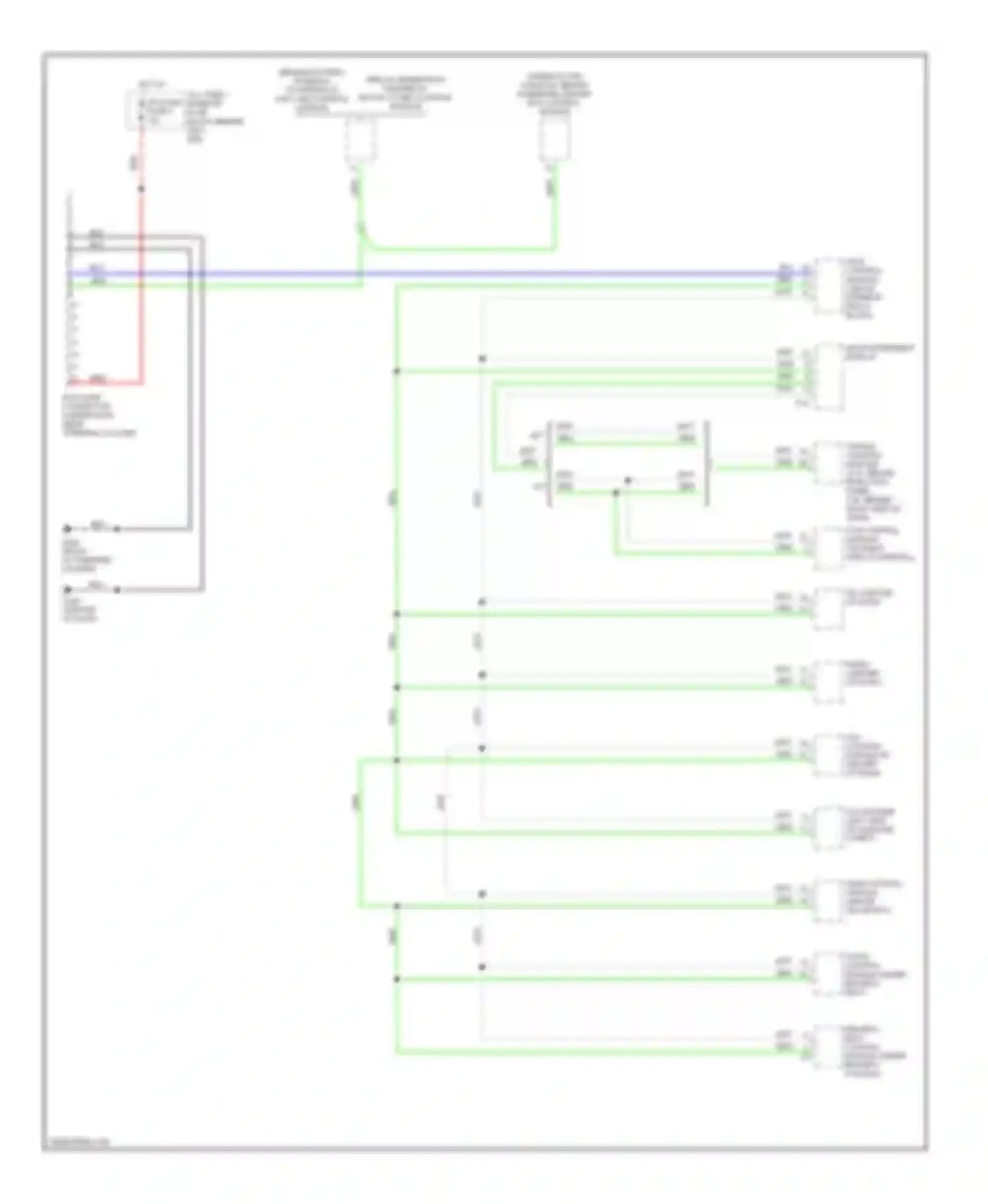

A/T BLK WIRE BLU WIRE CD CHANGER (LEFT SIDE OF LUGGAGE COMPT) CONTROL MODULE (IN CENTER OF DASH) DATA LINK CONNECTOR (UNDER DASH, NEAR STEERING COLUMN) DICE CONTROL MODULE (ABOVE INTERIOR RELAY BLOCK) DRIVER'S SEAT CONTROL MODULE (UNDER DRIVER'S CUSHION) GRN WIRE HOT AT ALL TIMES INTERIOR FUSE BLOCK (BEHIND LEFT END OF DASH) FUSE 9 M/T MAIN INSTRUMENT DISPLAY PMM CONTROL MODULE (ABOVE GLOVE BOX) RADIO (CENTER OF DASH) RED WIRE SID (CENTER OF DASH) TCM CONTROL MODULE (ON RIGHT SIDE OF FIREWALL) TWICE CONTROL MODULE (UNDER DRIVER'S SEAT) WHT WIRE

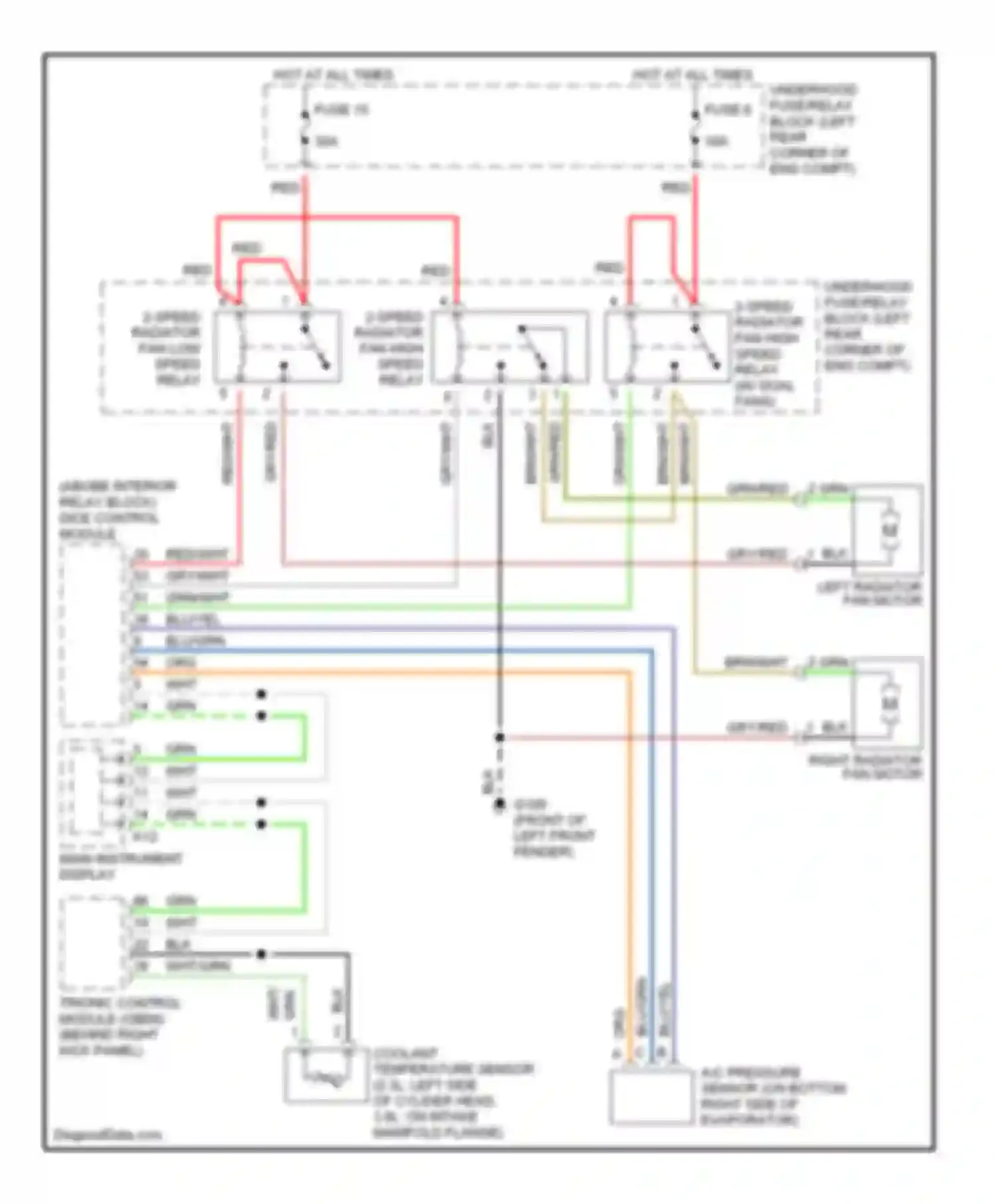

2-SPEED RADIATOR FAN HIGH SPEED RELAY 2-SPEED RADIATOR FAN HIGH SPEED RELAY (W/ DUAL FANS) 2-SPEED RADIATOR FAN LOW SPEED RELAY A/C PRESSURE SENSOR (ON BOTTOM RIGHT SIDE OF EVAPORATOR) BLK WIRE BLU/GRN WIRE BLU/YEL WIRE BRN/WHT WIRE FUSE 15 FUSE 6 GRN WIRE GRN/RED WIRE GRN/WHT WIRE GRY/RED WIRE GRY/WHT WIRE HOT AT ALL TIMES LEFT RADIATOR FAN MOTOR MAIN INSTRUMENT DISPLAY ORG/ WIRE RED WIRE RED/WHT WIRE RIGHT RADIATOR FAN MOTOR TRIONIC CONTROL MODULE (OBDII) (BEHIND RIGHT KICK PANEL) UNDERHOOD FUSE/RELAY BLOCK (LEFT REAR CORNER OF ENG COMPT) WHT GRN/ WIRE WHT WIRE WHT/GRN WIRE

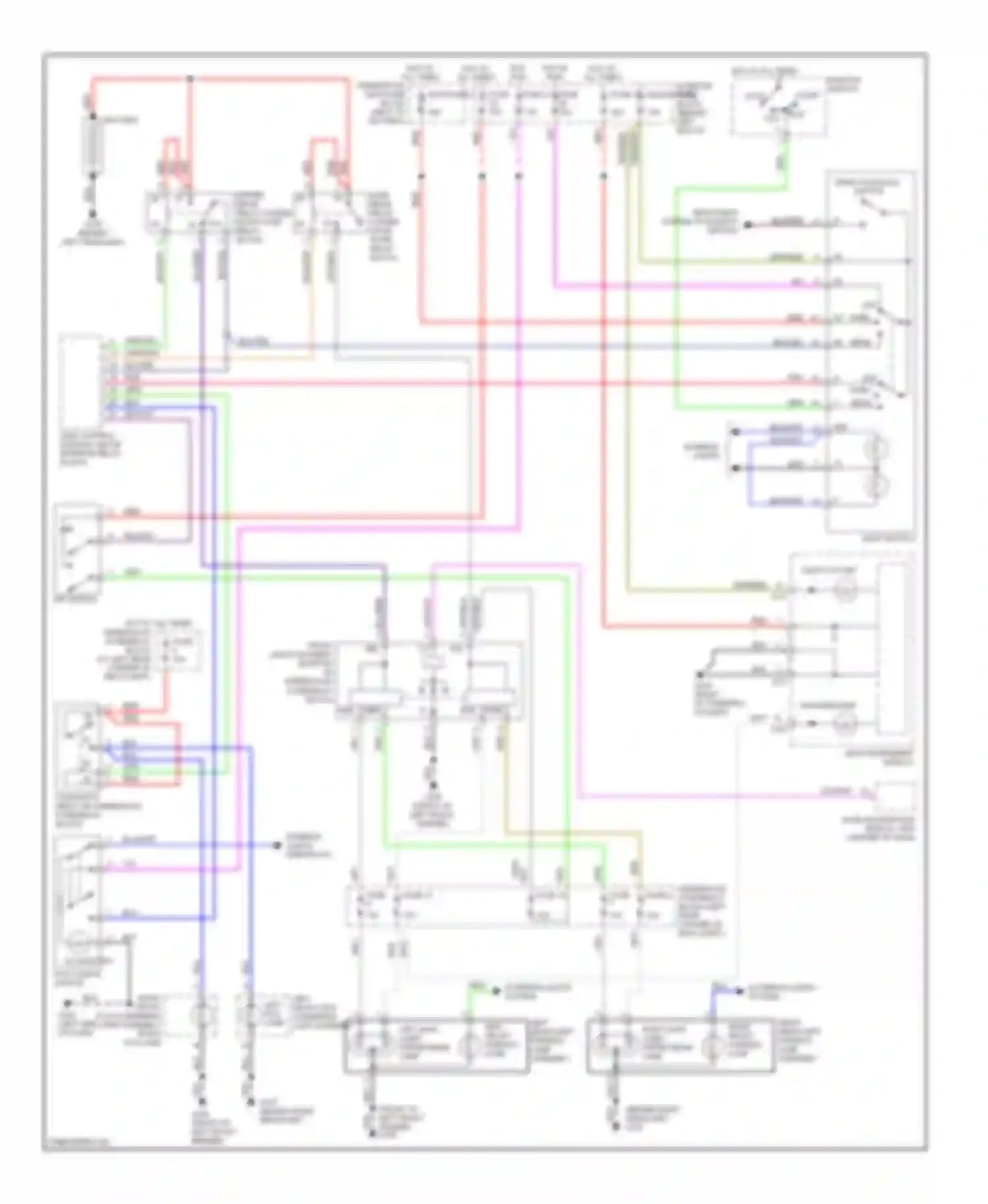

A/T BLK WIRE BLK/RED WIRE BLU WIRE BLU/RED WIRE BLU/WHT WIRE BLU/YEL WIRE BRAKE LAMP FUSE 27 GRN WIRE GRN/RED WIRE GRY/RED WIRE HEAD HEADLAMPS SYSTEM (FOG LIGHTS CIRCUIT) HEADLIGHTS SYSTEM HIGH- LEVEL BRAKE LAMP HOT AT ALL TIMES HOT IN HOT IN RUN, START OR ACC IGNITION SWITCH INTERIOR FUSE BLOCK (BEHIND LEFT END OF DASH) FUSE 35 INTERIOR LIGHTS LEFT FRONT FOG/ CORNERING LAMP ASSEMBLY LEFT CORNERING LAMP LEFT REAR LIGHT CLUSTER LEFT SIDE DIREC- TION INDI- CATOR LAMP RIGHT SIDE DIREC- TION INDI- CATOR LAMP LEFT TURN IND LIGHT SWITCH LIGHTS ON IND LOCK M/T MAIN INSTRUMENT DISPLAY OFF PARK PNK OFF PARK HEAD WIRE PNK WIRE REAR FOG LAMPS SWITCH REAR PARK- ING LAMP DIRECTION INDICATOR LAMP RED WIRE RED/BLK WIRE REVERSING LIGHT RELAY (ON INTERIOR RELAY BLOCK) RIGHT FRONT FOG/ CORNERING LAMP ASSEMBLY RIGHT CORNERING LAMP RIGHT REAR LIGHT CLUSTER RIGHT TURN IND RUN WIRE UNDERHOOD FUSE/RELAY BLOCK (LEFT REAR CORNER OF ENG COMPT) MAXI FUSE 2 VIO WIRE WHT WIRE YEL WIRE YEL/GRY WIRE YEL/RED WIRE YEL/WHT WIRE

BATTERY BLK WIRE BLK/RED WIRE BLK/VIO WIRE BLU WIRE BLU/RED WIRE BLU/WHT WIRE BLU/YEL WIRE BRN WIRE DICE CONTROL MODULE (ABOVE INTERIOR RELAY BLOCK) DIP SWITCH DIPPED BEAM RELAY (UNDER- HOOD FUSE/ RELAY BLOCK) FOGLIGHTS RELAY (IN UNDERHOOD FUSE/RELAY BLOCK) FRONT LAMPS FILAMENT MONITOR (IN UNDERHOOD FUSE/RELAY BLOCK) FUSE 13 FUSE 17 FUSE 35 FUSE 20 FUSE 31 FUSE 7 FUSE 8 FUSE 9 FUSE 10 GRN WIRE GRN/GRY WIRE GRN/RED WIRE GRY WIRE HEAD HEADLAMPS SYSTEM (FOGLIGHTS CIRCUIT) HOT AT ALL TIMES HOT AT ALL TIMES UNDERHOOD MAXI FUSE BLOCK (NEXT TO BATTERY) MAXI FUSE 2 HOT IN HOT IN IGNITION SWITCH ILLUM EXTRA FOG- LIGHTS SWITCH INTERIOR FUSE BLOCK (BEHIND LEFT END OF DASH) FUSE 3 INTERIOR LIGHTS INTERIOR LIGHTS (RHEOSTAT) LEFT FOG LAMP LEFT FRONT FOG/ CORNERING LAMP ASSEMBLY LEFT HEADLAMP/ PARKING LAMP ASSEMBLY LEFT FRONT PARKING LAMP LEFT MAIN LAMP/ DIPPED BEAM LAMP LIGHT SWITCH LIGHTS ON IND LOCK MAIN BEAM IND MAIN BEAM RELAY (UNDER- HOOD FUSE/ RELAY BLOCK) MAIN INSTRUMENT DISPLAY OFF PARK ORG/WHT WIRE PNK OFF PARK HEAD WIRE PNK WIRE REAR FOGLIGHTS SWITCH RED WIRE RIGHT FRONT FOG/ CORNERING LAMP ASSEMBLY RIGHT FOG LAMP RIGHT HEADLAMP/ PARKING LAMP ASSEMBLY RIGHT FRONT PARKING LAMP RIGHT MAIN LAMP/ DIPPED BEAM LAMP RUN WIRE SAAB INFORMATION DISPLAY (SID) (CENTER OF DASH) UNDERHOOD FUSE/RELAY BLOCK (LEFT REAR CORNER OF ENG COMPT) VIO WIRE VIO/WHT WIRE WHT WIRE WHT/BLK WIRE

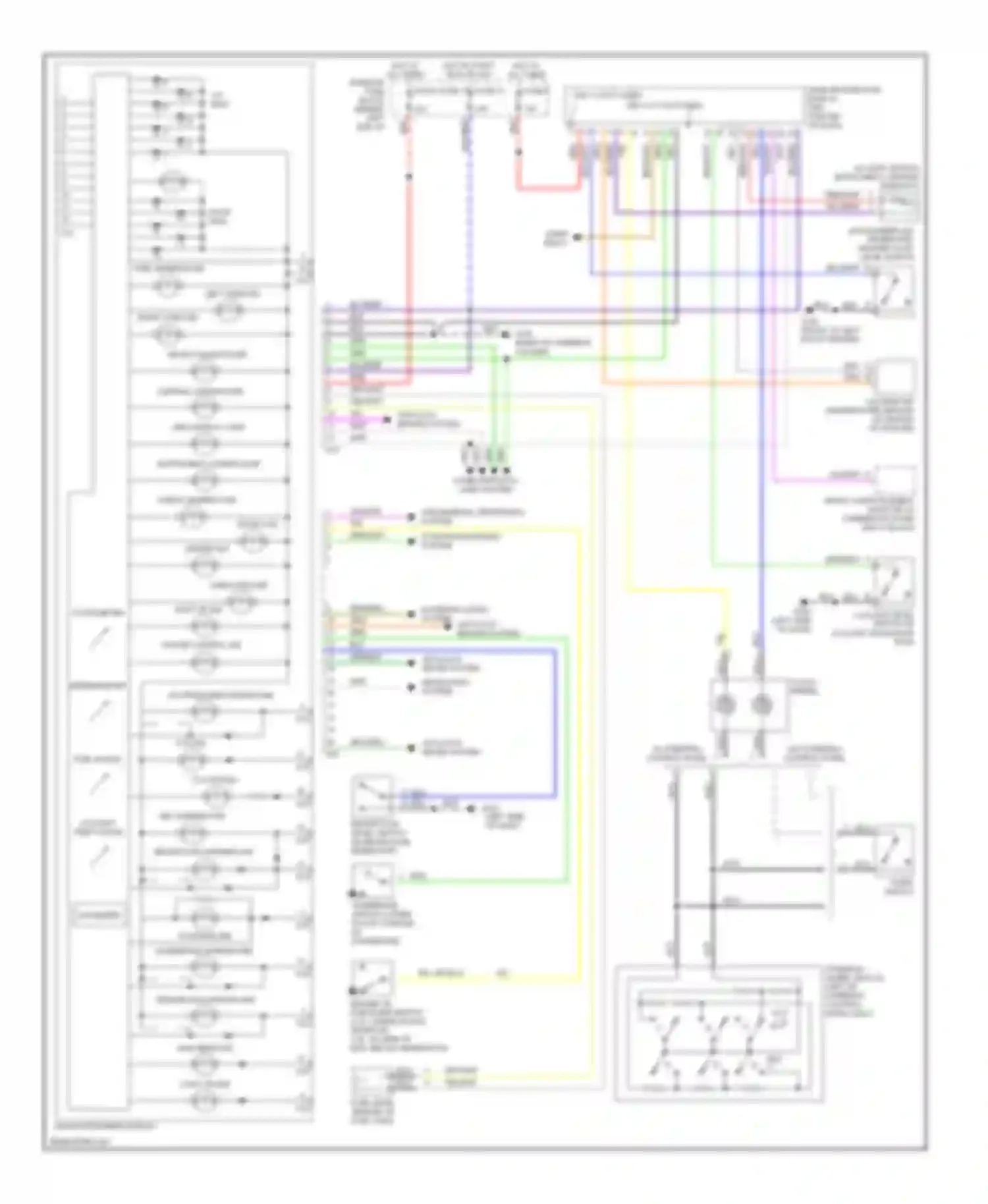

A/T INDS ABS WARNING IND ANTI-LOCK BRAKE SYSTEM ANTI-LOCK BRAKES SYSTEM BLK WIRE BLU WIRE BLU/RED WIRE BLU/WHT WIRE BRAKE FLUID LEVEL SWITCH (IN BRAKE FLUID RESERVOIR) BRAKE FLUID WARNING IND BRN/ORG WIRE CENTRAL WARNING IND CHARGING IND CHECK ENG IND CHECK GEARBOX IND CLOCK- SPRING COMPUTER DATA LINES SYSTEM COOLANT LEVEL SWITCH (IN COOLANT EXPANSION TANK) COOLANT TEMP GAUGE CRUISE CONTROL IND DOOR INDS FRONT LAMPS FILAMENT MONITOR (IN UNDERHOOD FUSE/ RELAY BLOCK) FUEL GAUGE FUEL LEVEL SENSOR (IN FUEL TANK) FUEL RESERVE IND FUSE 27 FUSE 8 GRN WIRE GRN/BLK WIRE GRN/RED WIRE GRN/WHT WIRE GRY WIRE GRY/GRN WIRE GRY/WHT WIRE HANDBRAKE SWITCH (UNDER FLOOR CONSOLE, BY HANDBRAKE) HANDBRAKE WARNING IND HEADLIGHTS SYSTEM HORN RELAY HORN SWITCH HOT AT ALL TIMES HOT IN START, RUN OR ACC INFO DISPLAY LAMP INSTRUMENT LIGHING LAMP INTERIOR FUSE BLOCK (BEHIND LEFT END OF DASH) FUSE 17 LEFT TURN IND LIGHT ON IND MAIN BEAM IND MAIN INSTRUMENT DISPLAY NCA WIRE NXT ODOMETER OF DASH) OIL PRESSURE WARNING IND ORG/ WIRE OUTSIDE AIR TEMPERATURE SENSOR (IN CENTER OF SPOILER) REAR FOGLIGHTS IND RED WIRE RED/WHT WIRE RIGHT TURN IND SAAB INFORMATION DIAPLAY (SID) (CENTER OF DASH) SHIFT UP IND SPEEDOMETER SPORT IND SRC SRS/AIR BAG WARNING IND STARTING/CHARGING SYSTEM STEERING WHEEL SWITCH UNIT (W/ STEERING CONTROL RADIO ONLY) SUPLEMENTAL RESTRAINTS SYSTEM TACHOMETER TCS IND TCS OFF IND VIO WIRE VIO/WHT WIRE W/ STEERING CONTROL PANEL W/O STEERING CONTROL PANEL WHT WIRE WINTER IND YEL (OR BLU) WIRE YEL WIRE YEL/WHT WIRE

ABS, TC-ABS ACC, MCC, INTERIOR LIGHTING, REAR FOG- LIGHTS, DICE ANTI-THEFT ALARM SIREN, A/C COMPRESSOR RELAY VACUUM PUMP BATTERY BLK WIRE BLU WIRE BRAKELIGHTS DICE/ DIRECTION INDICATORS ELECTRICALLY ADJUSTABLE DRIVER'S SEAT, SOLENOID TANK HATCH, ELECTRIC FILLER CAP ELECTRICALLY ADJUSTABLE PASSENGER SEAT, CENTRAL LOCKING SYSTEM ELECTRICALLY HEATED REAR WINDOW ENGINE MANAGEMENT SYSTEM MAIN RELAY FRONT FOGLIGHT FUSE FUSE 1 FUSE 10 FUSE 11 FUSE 12 7.5 FUSE 13 FUSE 15 FUSE 16 FUSE 17 FUSE 20 FUSE 22 FUSE 23 FUSE 24 FUSE 25 FUSE 3 FUSE 5 FUSE 6 FUSE 8 FUSE 9 GENERATOR GRN WIRE GRN/RED WIRE HEATED REAR SEAT, POWER MIRROR MEMORY, FOGLIGHTS HORN INTERIOR FUSE BLOCK (BEHIND LEFT END OF DASH) FUSE 39 20 INTERIOR FUSE BLOCK (BEHIND LEFT END OF DASH) FUSE 4 LEFT PARKING LIGHT, TWICE LEFT RADIATOR FAN/2-SPEED RADIATOR FAN LIGHTS SWITCH LIMP-HOME RELAY MAIN BEAM RELAY DIPPED BEAM RELAY MAIN INSTRUMENT DISPLAY MAIN INSTRUMENT DISPLAY, TRIONIC CONTROL MODULE, DICE/TWICE MAXI FUSE 1 MAXI FUSE 2 MAXI FUSE 3 MAXI FUSE 4 MAXI FUSE 5 NCA WIRE PRE-INSTALLED TRAILER WIRING RADIO, AMPLIFIER RED WIRE RIGHT PARKING LIGHT TWICE RIGHT RADIATOR FAN STARTER MOTOR STARTER RELAY SUNROOF TO IGNITION SWITCH (DIAGRAM 2 OF 2) TO IGNITION SWITCH RELAY (DIAGRAM 2 OF 2) TRANSMISSION CONTROL MODULE UNDERHOOD FUSE/RELAY BLOCK (LEFT REAR CORNER OF ENG COMPT) FUSE 14 FUSE 16 UNDERHOOD MAXI FUSE BLOCK (NEXT TO BATTERY) VENTILATION FAN MOTOR

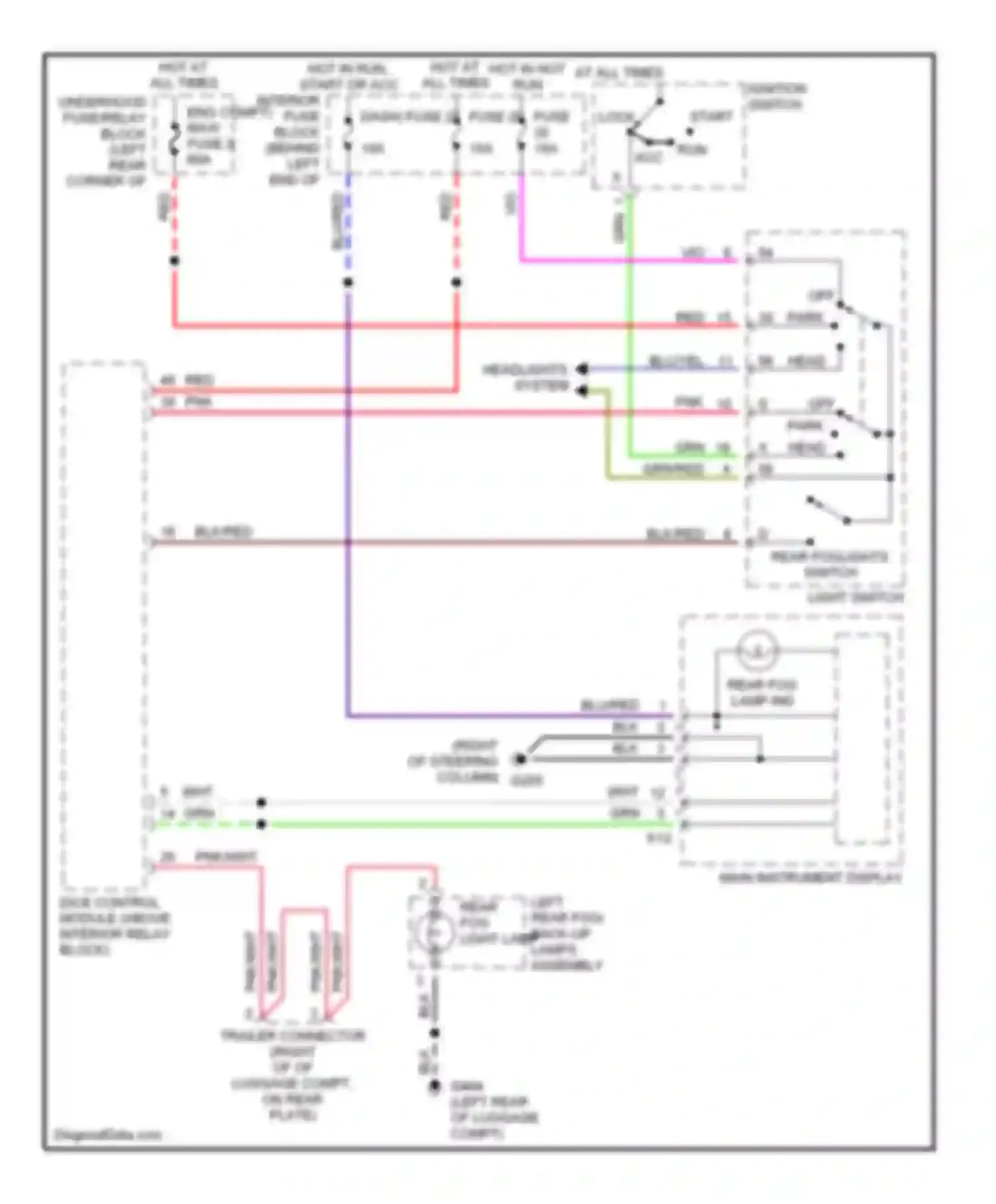

48 39 PNK WIRE BLK WIRE BLK/RED WIRE BLU/RED WIRE BLU/YEL WIRE DICE CONTROL MODULE (ABOVE INTERIOR RELAY BLOCK) FUSE 20 FUSE 35 LOCK GRN WIRE GRN/RED WIRE HEAD HEADLIGHTS SYSTEM HOT AT ALL TIMES HOT IN HOT AT ALL TIMES HOT IN RUN, START OR ACC IGNITION SWITCH INTERIOR FUSE BLOCK (BEHIND LEFT END OF DASH) FUSE 27 LEFT REAR FOG/ BACK-UP LAMPS ASSEMBLY REAR FOG LIGHT LAMP LIGHT SWITCH MAIN INSTRUMENT DISPLAY OFF PARK PNK OFF PARK 16 4 HEAD WIRE PNK/WHT WIRE REAR FOG LAMP IND REAR FOGLIGHTS SWITCH RED WIRE RUN WIRE TRAILER CONNECTOR (RIGHT OF OF LUGGAGE COMPT, ON REAR PLATE) UNDERHOOD FUSE/RELAY BLOCK (LEFT REAR CORNER OF ENG COMPT) MAXI FUSE 2 VIO WIRE WHT WIRE

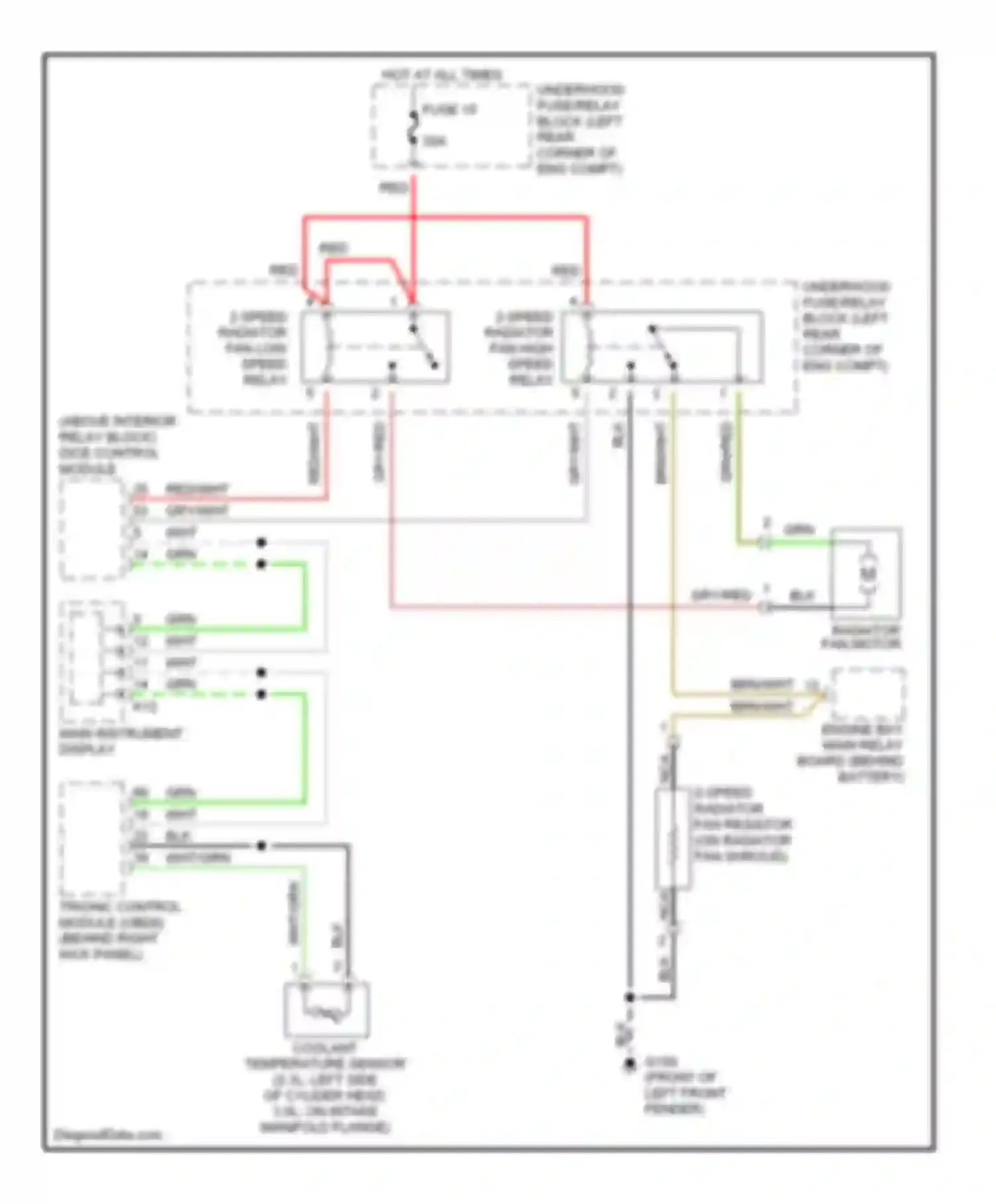

2-SPEED RADIATOR 2-SPEED RADIATOR FAN HIGH SPEED RELAY 2-SPEED RADIATOR FAN LOW SPEED RELAY BLK WIRE BRN/WHT WIRE ENGINE BAY MAIN RELAY BOARD (BEHIND BATTERY) FAN RESISTOR (ON RADIATOR FAN SHROUD) FUSE 15 GRN WIRE GRN/RED WIRE GRY/RED WIRE GRY/WHT WIRE HOT AT ALL TIMES MAIN INSTRUMENT DISPLAY NCA WIRE RADIATOR FAN MOTOR RED WIRE RED/WHT WIRE TRIONIC CONTROL MODULE (OBDII) (BEHIND RIGHT KICK PANEL) UNDERHOOD FUSE/RELAY BLOCK (LEFT REAR CORNER OF ENG COMPT) WHT WIRE WHT/GRN WIRE
