Saab 9-2X I (2004-2006) left rearview mirror Wiring diagrams
This page contains all the electrical diagrams for the component. left rearview mirror, in which he is found in the car Saab 9-2X I (2004-2006). You can view various wiring diagrams where this component is used, as well as go to more detailed diagrams to see the complete connection and interaction in the system. All diagrams have links to quickly jump to the corresponding section with the component for easy viewing..

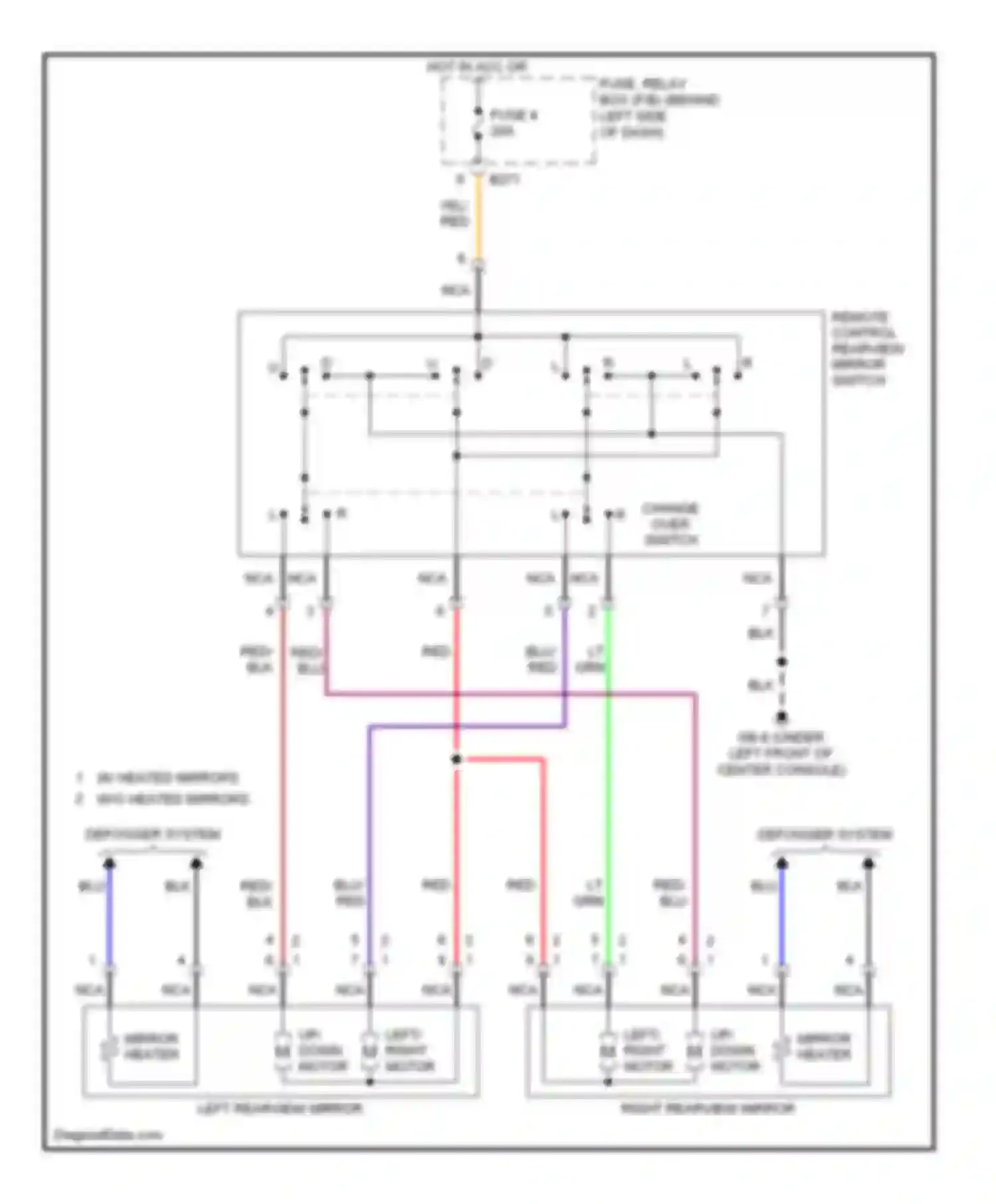

Wiring diagram left rearview mirror (1 of 2)
BLK WIRE
BLU WIRE
CHANGE OVER SWITCH
DEFOGGER SYSTEM
FUSE 4
FUSE, RELAY BOX (F/B) (BEHIND LEFT SIDE OF DASH)
GB-6 (UNDER LEFT FRONT OF CENTER CONSOLE)
GRN WIRE
HOT IN ACC OR ON
LEFT REARVIEW MIRROR
LEFT/ RIGHT MOTOR LEFT/ RIGHT MOTOR
MIRROR HEATER
NCA WIRE
RED WIRE
REMOTE CONTROL REARVIEW MIRROR SWITCH
RIGHT REARVIEW MIRROR
UP/ DOWN MOTOR
W/ HEATED MIRRORS W/O HEATED MIRRORS
YEL WIRE
Go to component -> Power mirror circuit -> LEFT REARVIEW MIRROR
Wiring diagram left rearview mirror (2 of 2)
2.0L TURBO 2.5L
AUTO A/C CONTROL MODULE (BELOW CENTER OF DASH)
AUTOMATIC A/C MANUAL A/C
BLK WIRE
BLK/YEL WIRE
BLU WIRE
ENGINE CONTROL MODULE (BEHIND RIGHT SIDE OF DASH)
FUSE 11
FUSE 19
FUSE, RELAY BOX (F/B) (BEHIND LEFT SIDE OF DASH)
GB-6 (UNDER LEFT FRONT OF CENTER CONSOLE)
GB-8 (UNDER RIGHT TAILGATE ASSEMBLY)
GRN WIRE
GRN/RED WIRE
HOT AT ALL TIMES
HOT IN ON OR START
IGNITION SWITCH
INTEGRATED MODULE (BEHIND LEFT SIDE OF DASH)
INTERIOR LIGHTS SYSTEM GB-5 (BEHIND CENTER OF DASH)
LEFT REARVIEW MIRROR
MAIN FUSE BOX (M/B) (ON LEFT SIDE OF ENGINE COMPT) FUSE 1
MIRROR HEATER
MIRROR HEATER RELAY (BEHIND LEFT SIDE OF DASH, IN RELAY BLOCK)
NCA WIRE
ON LOCK OFF
ORG/WHT WIRE
REAR DEFOGGER (AT LOWER RIGHT CORNER
REAR DEFOGGER RELAY
REAR DEFOGGER SWITCH
RED WIRE
RED/BLU WIRE
RED/WHT WIRE
RIGHT REARVIEW MIRROR
VIO WIRE
Go to component -> Rear defogger circuit -> LEFT REARVIEW MIRROR
