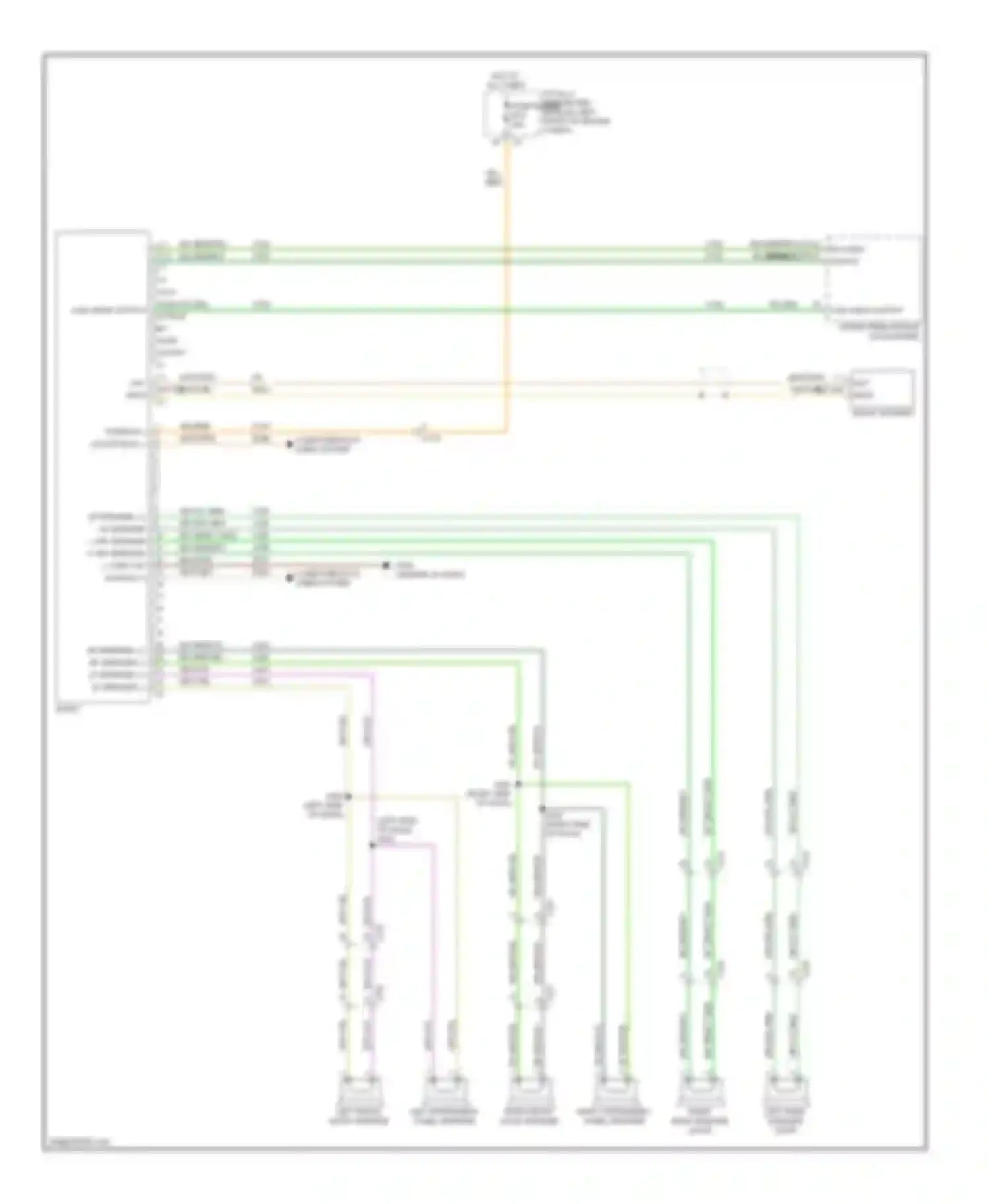

Base radio circuit for RAM Cab & Chassis 3500 HD (2012-2012)

1 2 3 4 5 6 7 8 9 10 LH AUDIO OUTPUT RH AUDIO OUTPUT 1 2 ANT SIG ANT SHLD 8 9 LH AUDIO OUTPUT RH AUDIO OUTPUT BLK/ORG WIRE COM AUDIO OUTPUT COMPUTER DATA LINES SYSTEM DK GRN WIRE DK GRN/BLK WIRE DK GRN/GRY WIRE DK GRN/LT GRN WIRE DK GRN/ORG WIRE DK GRN/VIO WIRE DK GRN/YEL WIRE FUSE POWER MODULE (LEFT FRONT OF ENGINE COMPT) GRY/DK GRN WIRE GRY/LT GRN WIRE GRY/VIO WIRE GRY/YEL WIRE HANDS FREE MODULE (IF EQUIPPED) HOT AT ALL TIMES LEFT FRONT DOOR SPEAKER LEFT INSTRUMENT PANEL SPEAKER LEFT REAR SPEAKER DOOR LR SPEAKER (+) LR SPEAKER (-) RR SPEAKER (+) RR SPEAKER (-) GND CAN IHS BUS (+) RADIO RADIO ANTENNA RED WIRE RF SPEAKER (+) RF SPEAKER (-) LF SPEAKER (+) LF SPEAKER (-) RIGHT FRONT DOOR SPEAKER RIGHT INSTRUMENT PANEL SPEAKER RIGHT REAR SPEAKER DOOR TOTALLY INTEGRATED WHT/GRY WIRE WHT/ORG WIRE WHT/YEL WIRE YEL WIRE YEL/RED WIRE
