Wiring diagrams for Porsche Panamera Turbo 971 (2016-2020)

Active bodyworks circuit

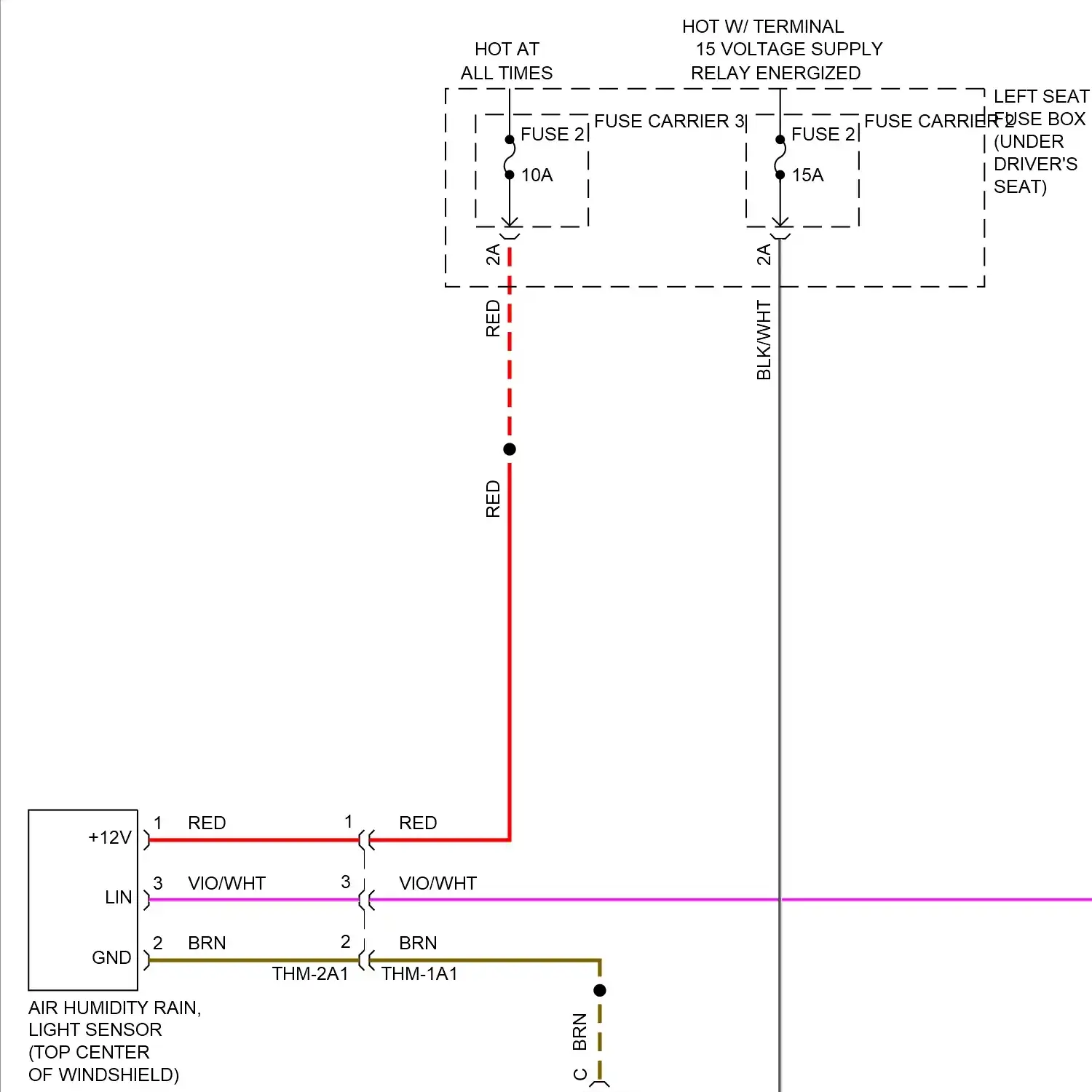

Automatic a/c circuit

Anti-lock brakes circuit

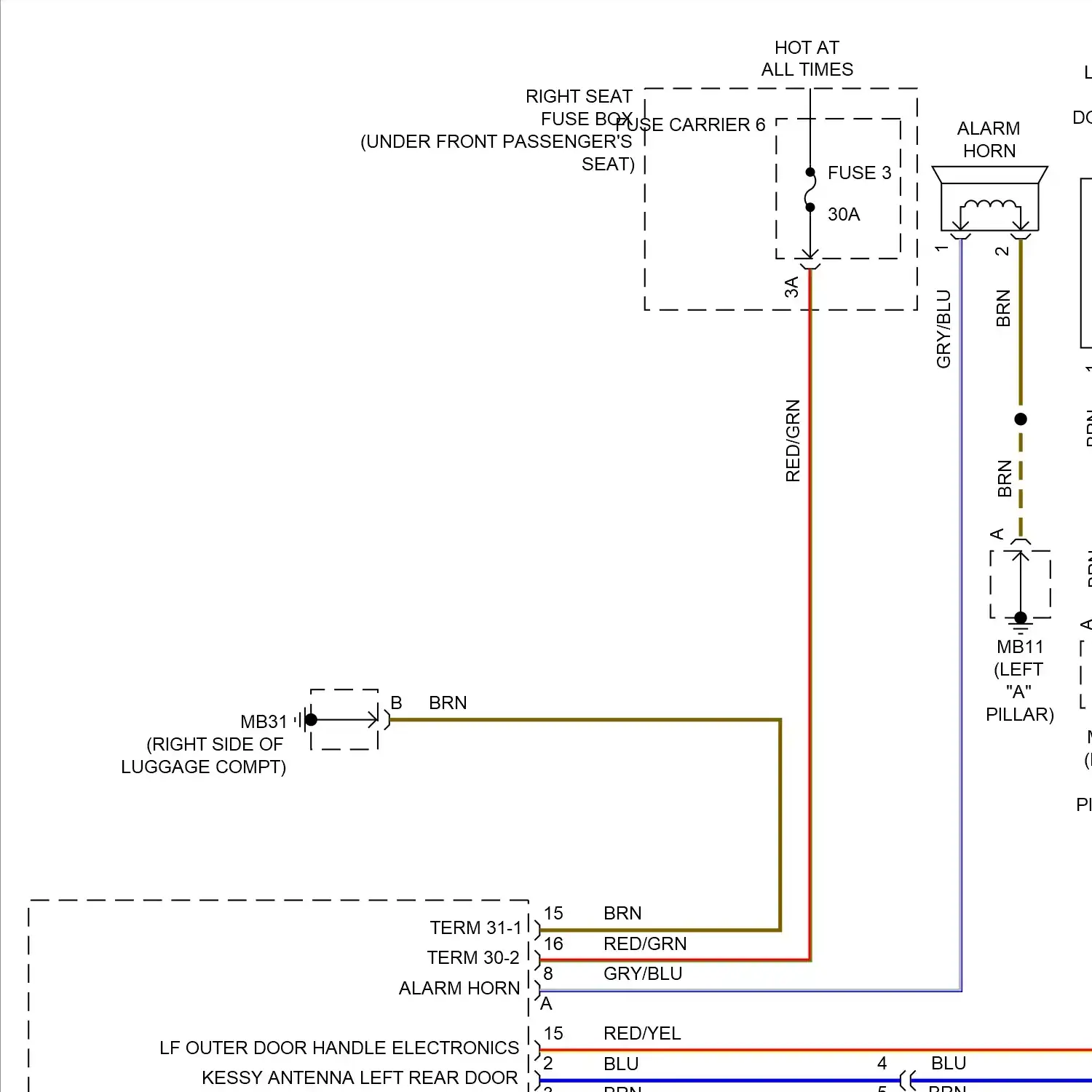

Anti-theft circuit

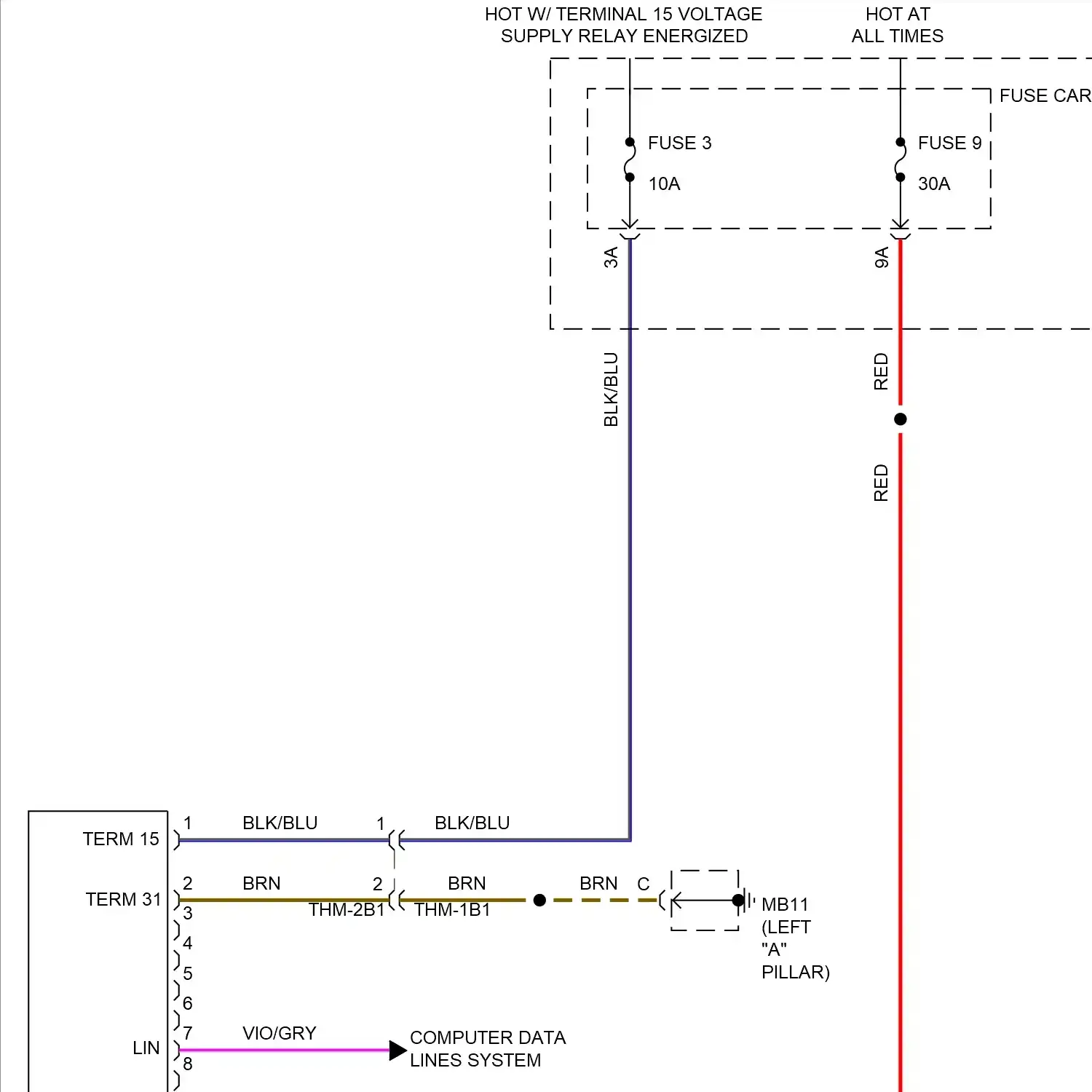

Body control modules circuit

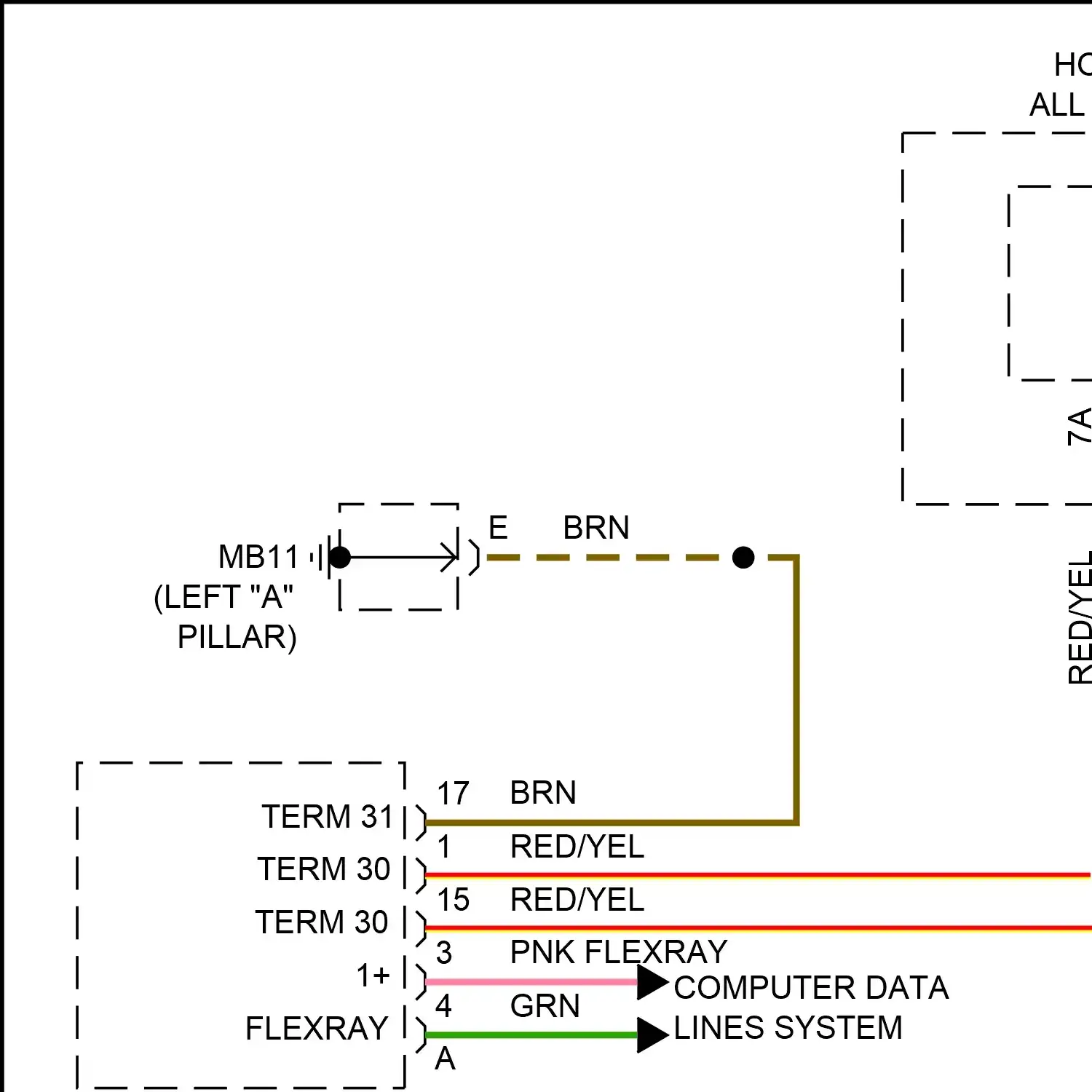

Computer data lines circuit

2.9l twin turbo, cooling fan circuit

2.9l twin turbo hybrid, cooling fan circuit 2.9l twin turbo hybrid, hybrid cooling system circuit

3.0l turbo, cooling fan circuit

4.0l turbo, cooling fan circuit

4.0l twin turbo hybrid, cooling fan circuit 4.0l twin turbo hybrid, hybrid cooling system circuit

Cruise control circuit

Defogger circuit Heated mirrors circuit

Electronic power steering circuit Power tilt steering column circuit Rear axle steering circuit

Dynamic chassis control circuit Electronic level control circuit

Wiring diagram engine performance 2.9l twin turbo

Wiring diagram engine performance 2.9l twin turbo hybrid, engine controls circuit Wiring diagram engine performance 2.9l twin turbo hybrid, hybrid system circuit

Wiring diagram engine performance 3.0l turbo

Wiring diagram engine performance 4.0l turbo

Wiring diagram engine performance 4.0l twin turbo hybrid, engine controls circuit Wiring diagram engine performance 4.0l twin turbo hybrid, hybrid system circuit

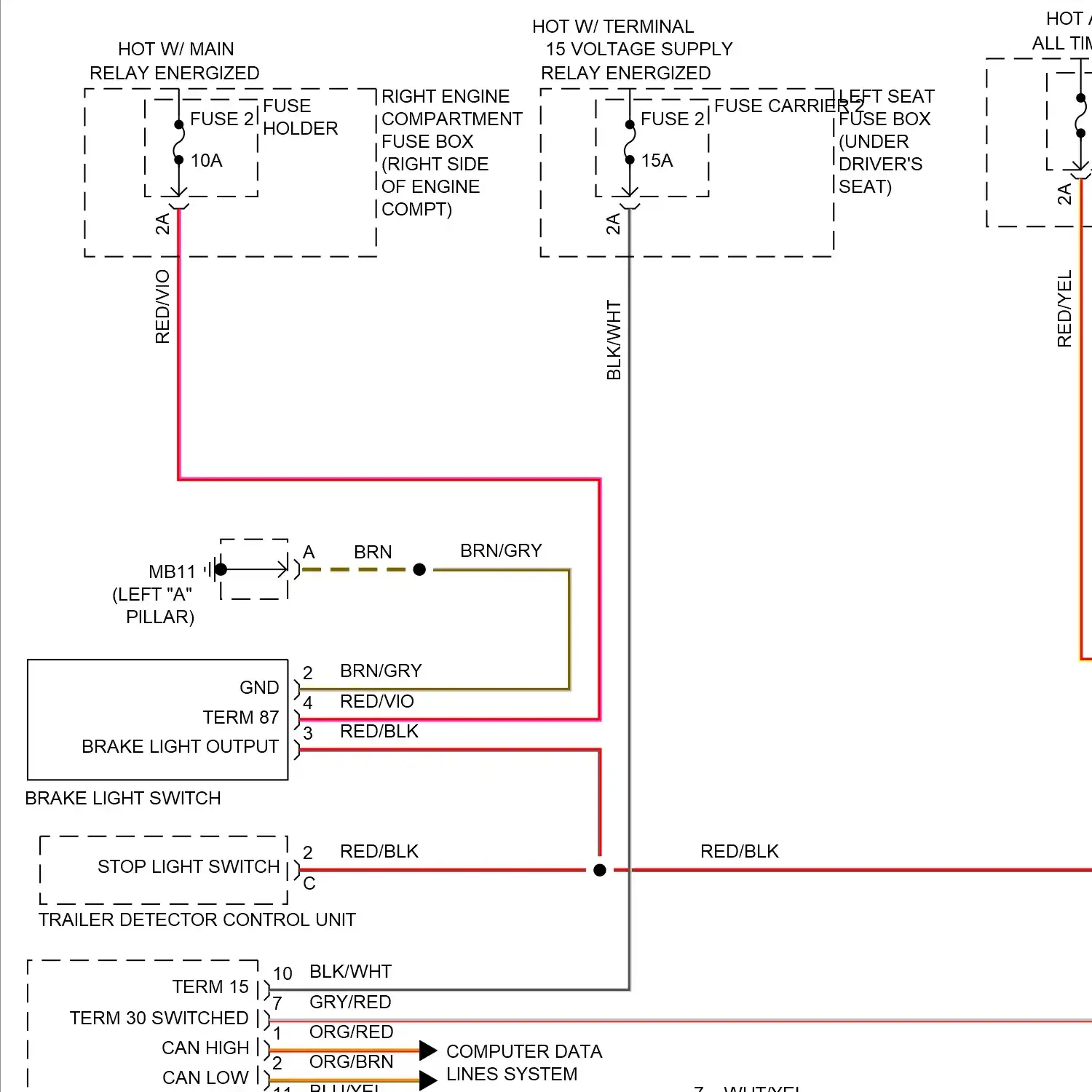

Backup lamps circuit Exterior lamps circuit, w/ led headlights Exterior lamps circuit, w/o led headlights Trailer tow circuit

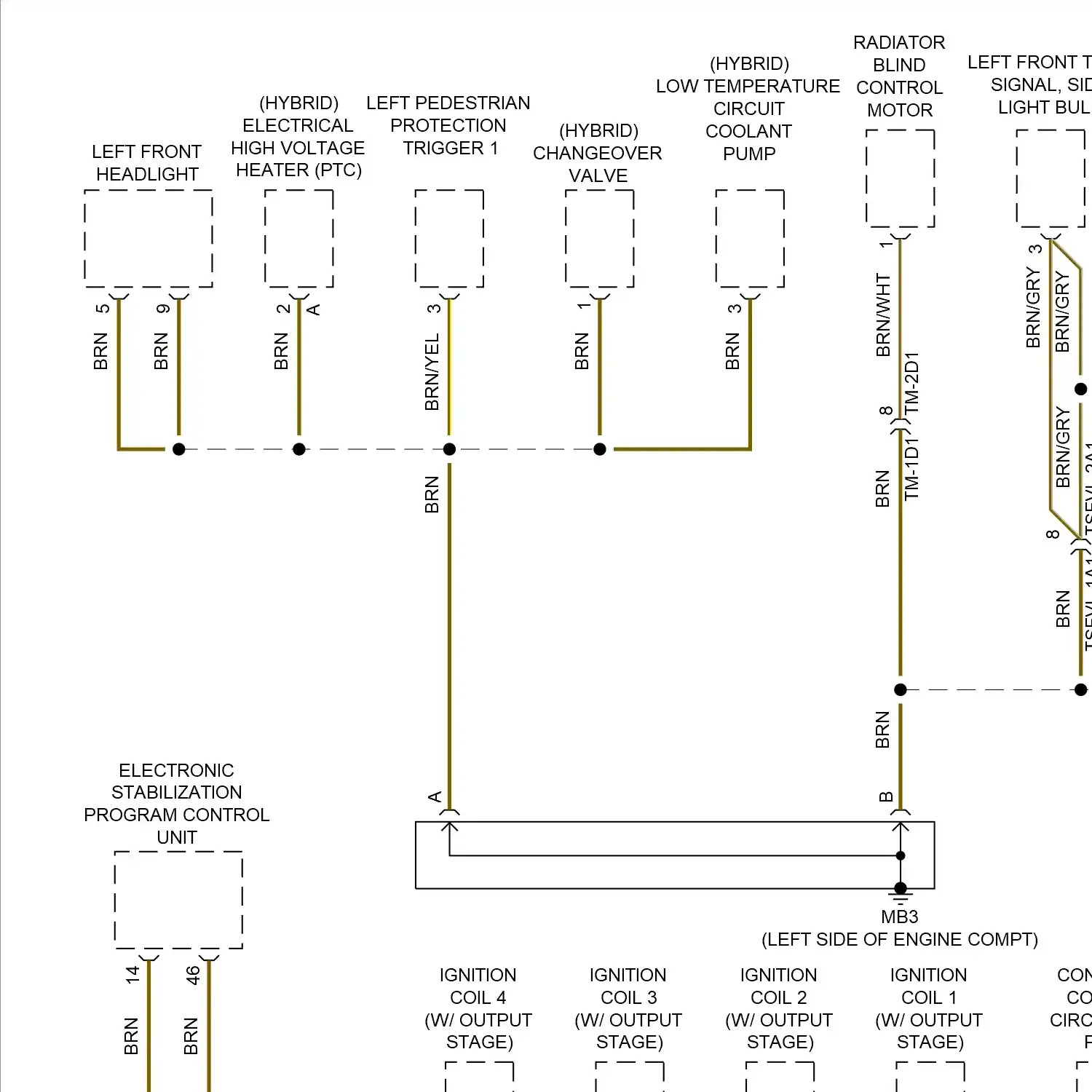

Ground distribution circuit

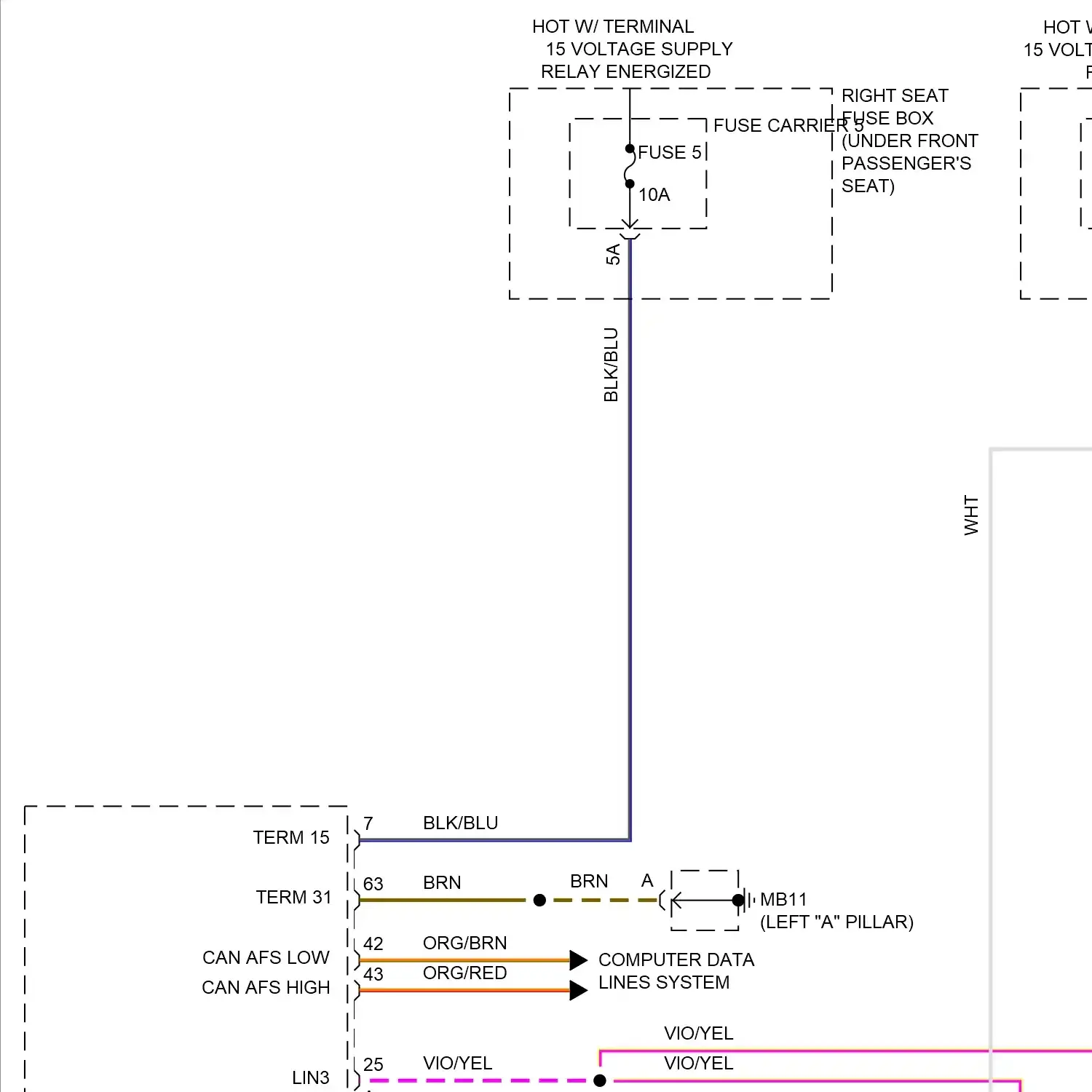

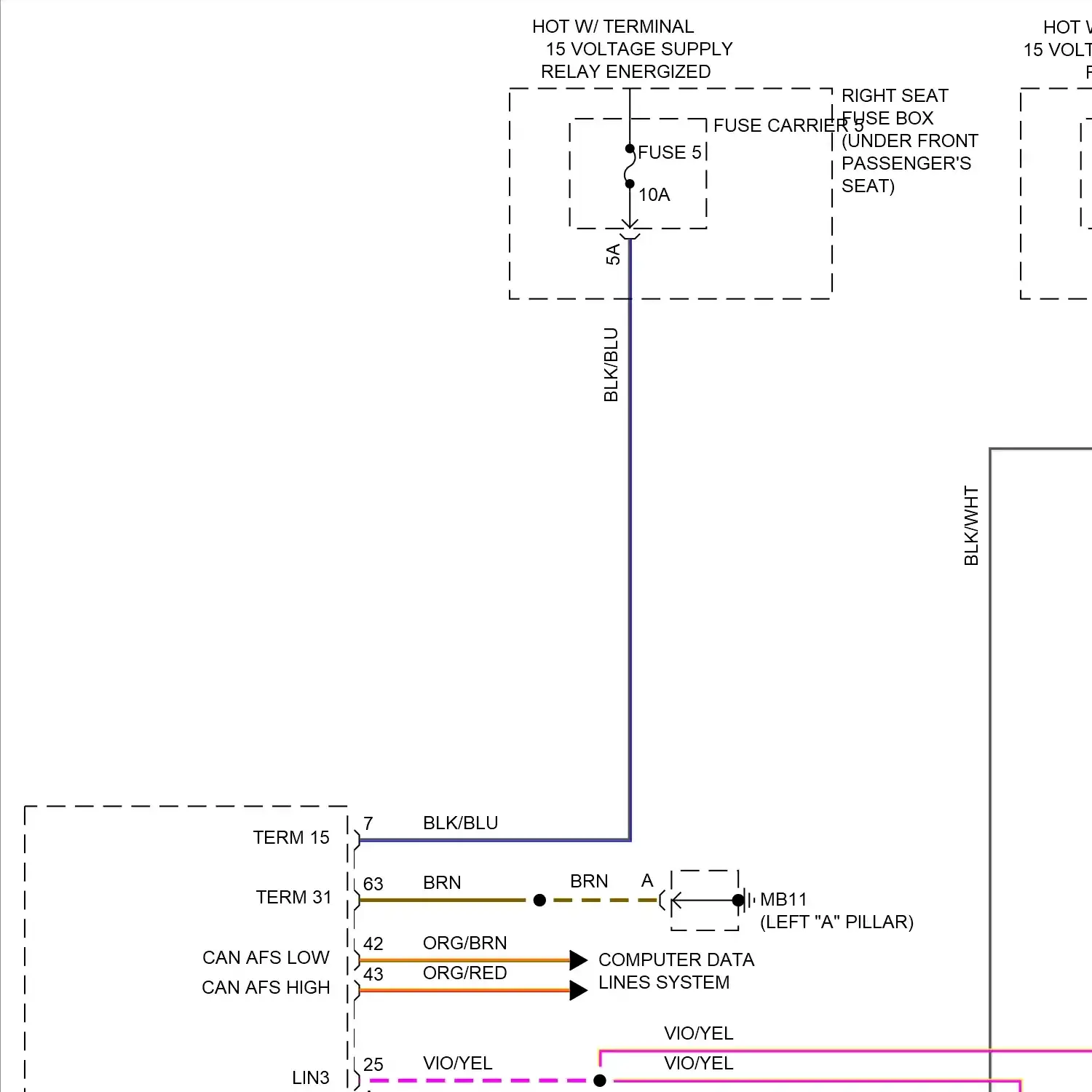

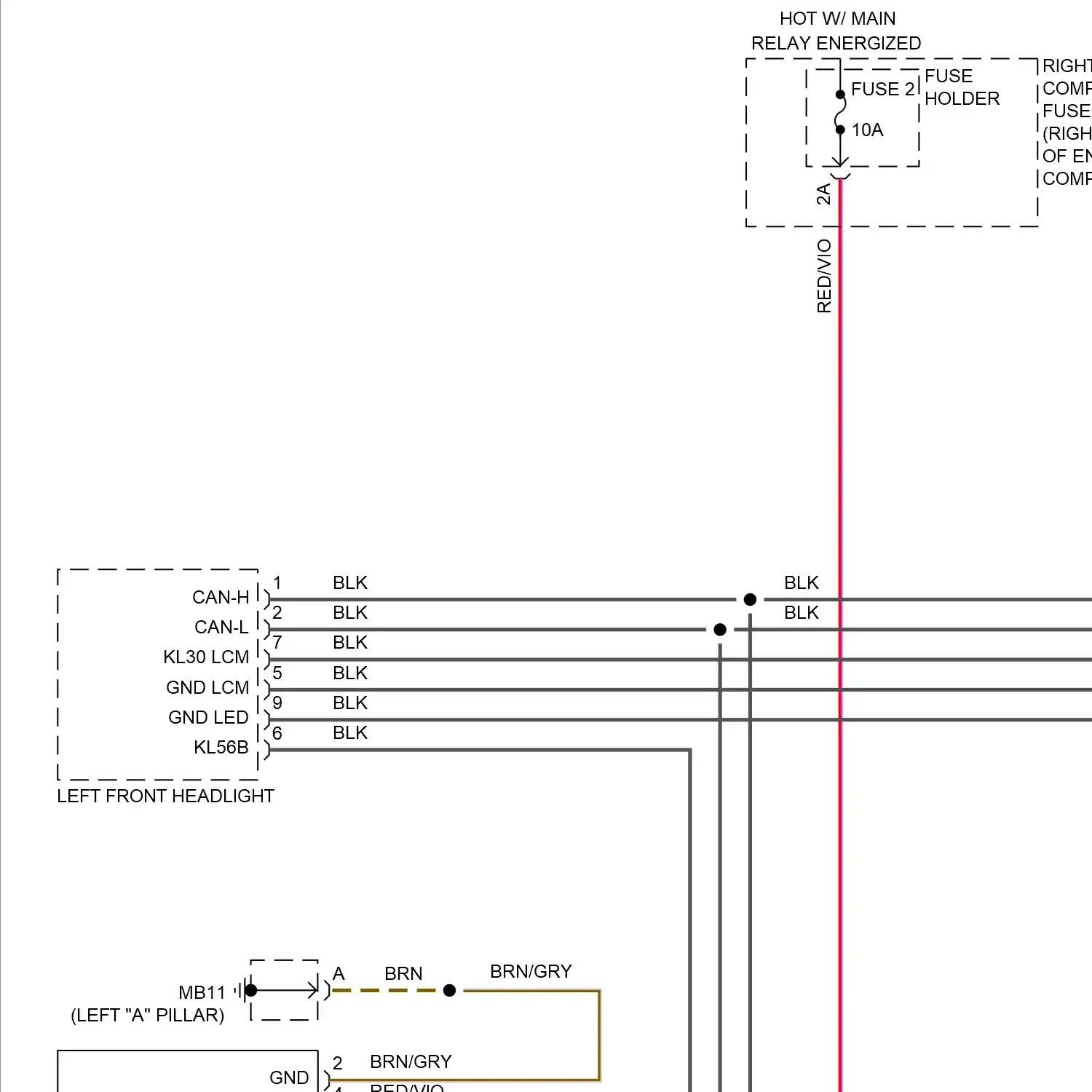

Headlights circuit, w/ led headlights Headlights circuit, w/o led headlights

Horn circuit

Instrument cluster circuit Night vision circuit Overhead console circuit

Interior lights circuit

Driver"s memory seat circuit Left rear memory seat circuit Memory mirrors circuit Passenger"s memory seat circuit Right rear memory seat circuit Steering column memory circuit

Front camera circuit Lane change assistance circuit Navigation circuit, base Navigation circuit, premium w/ bose Navigation circuit, premium w/ burmester Parking assistant circuit Real top view circuit Rear camera circuit Vehicle positioning system circuit

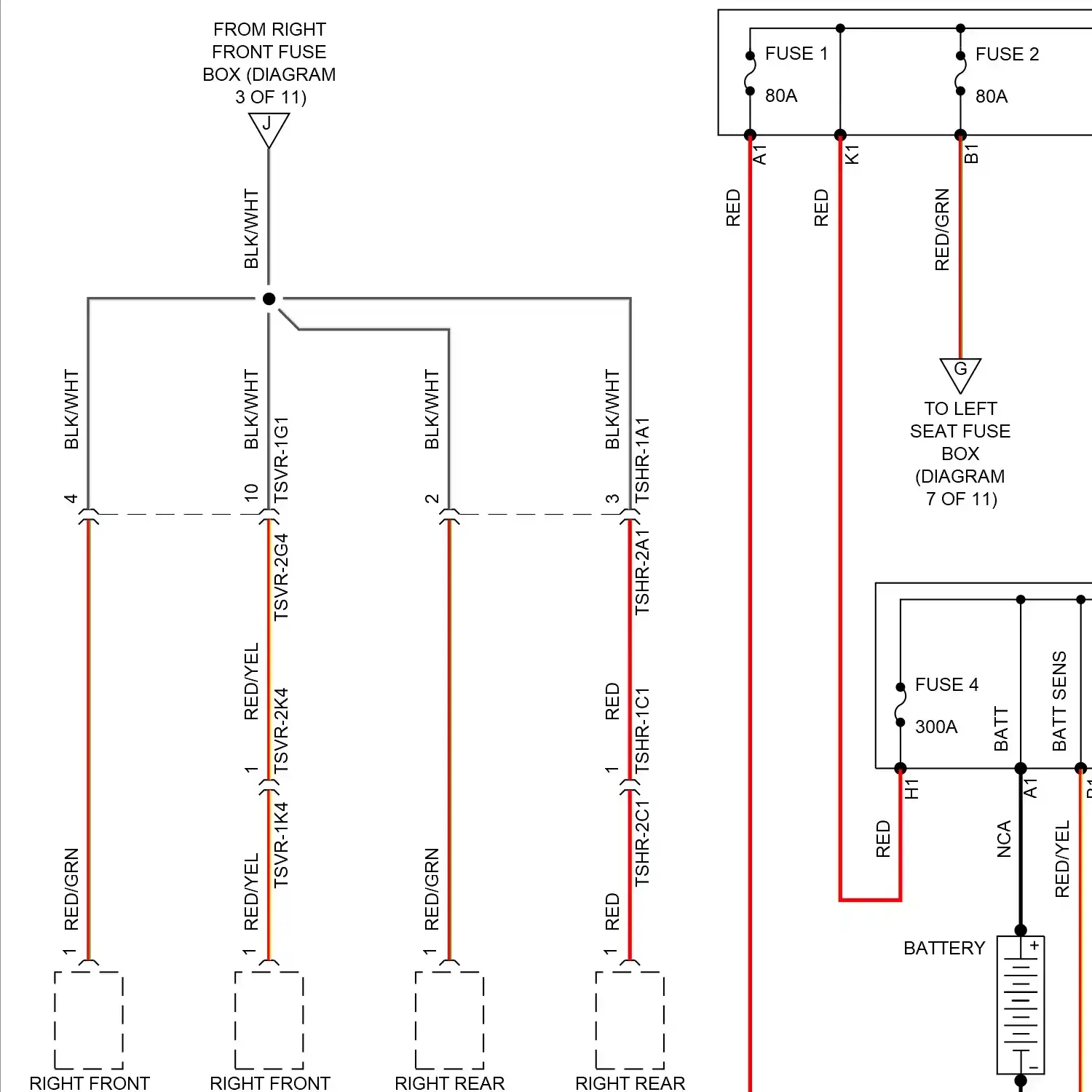

Power distribution circuit

Power door locks circuit

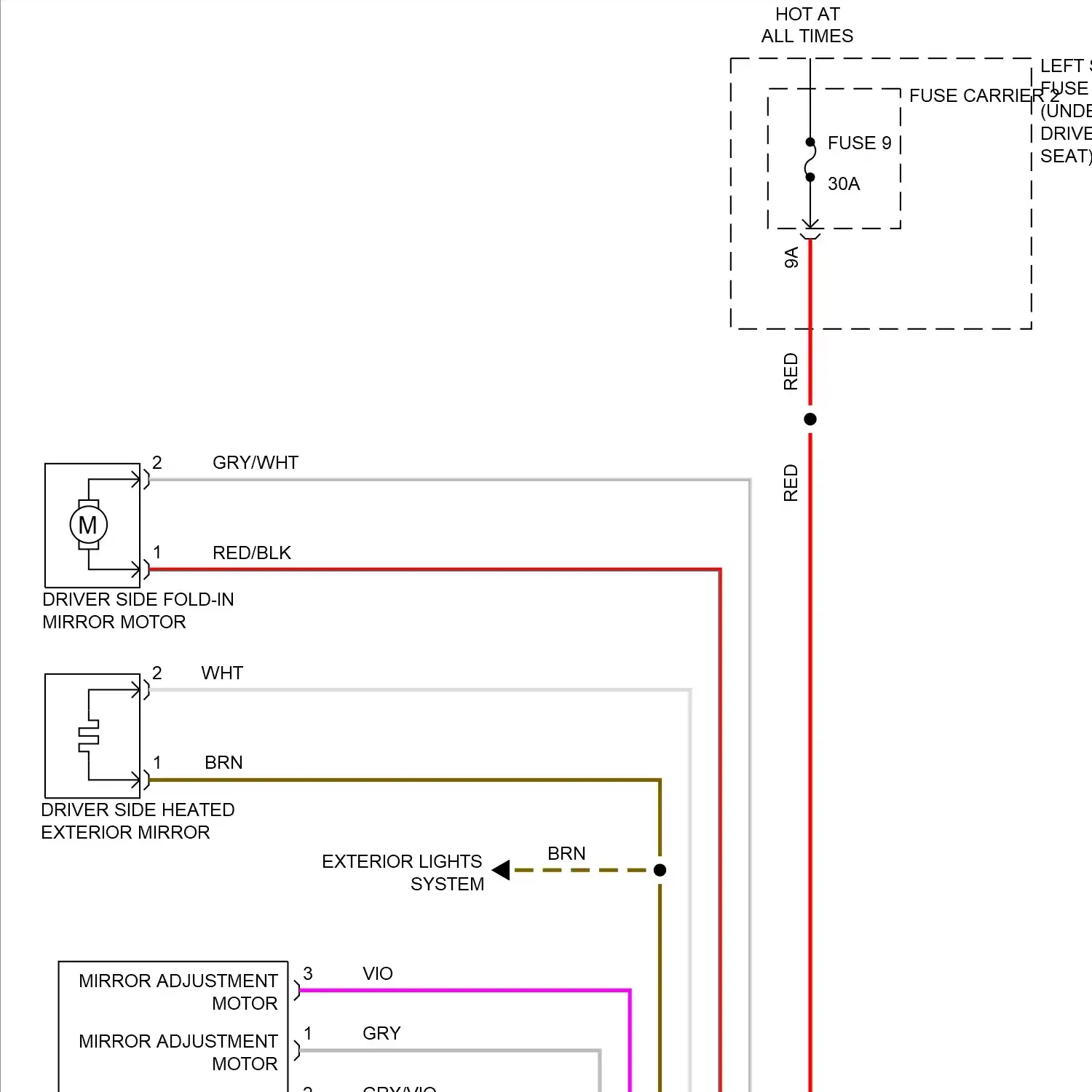

Auto anti-dazzling mirror circuit Power mirrors circuit

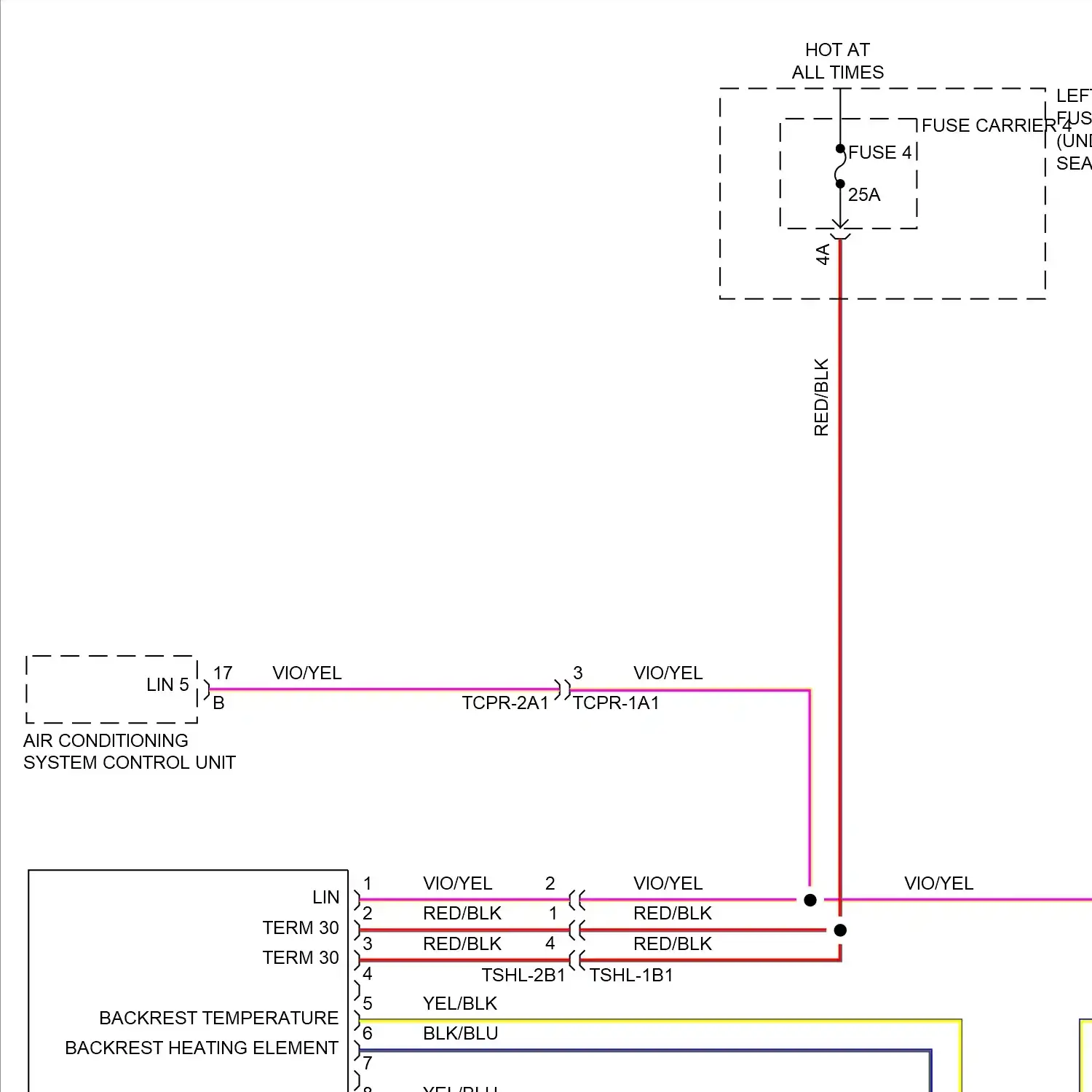

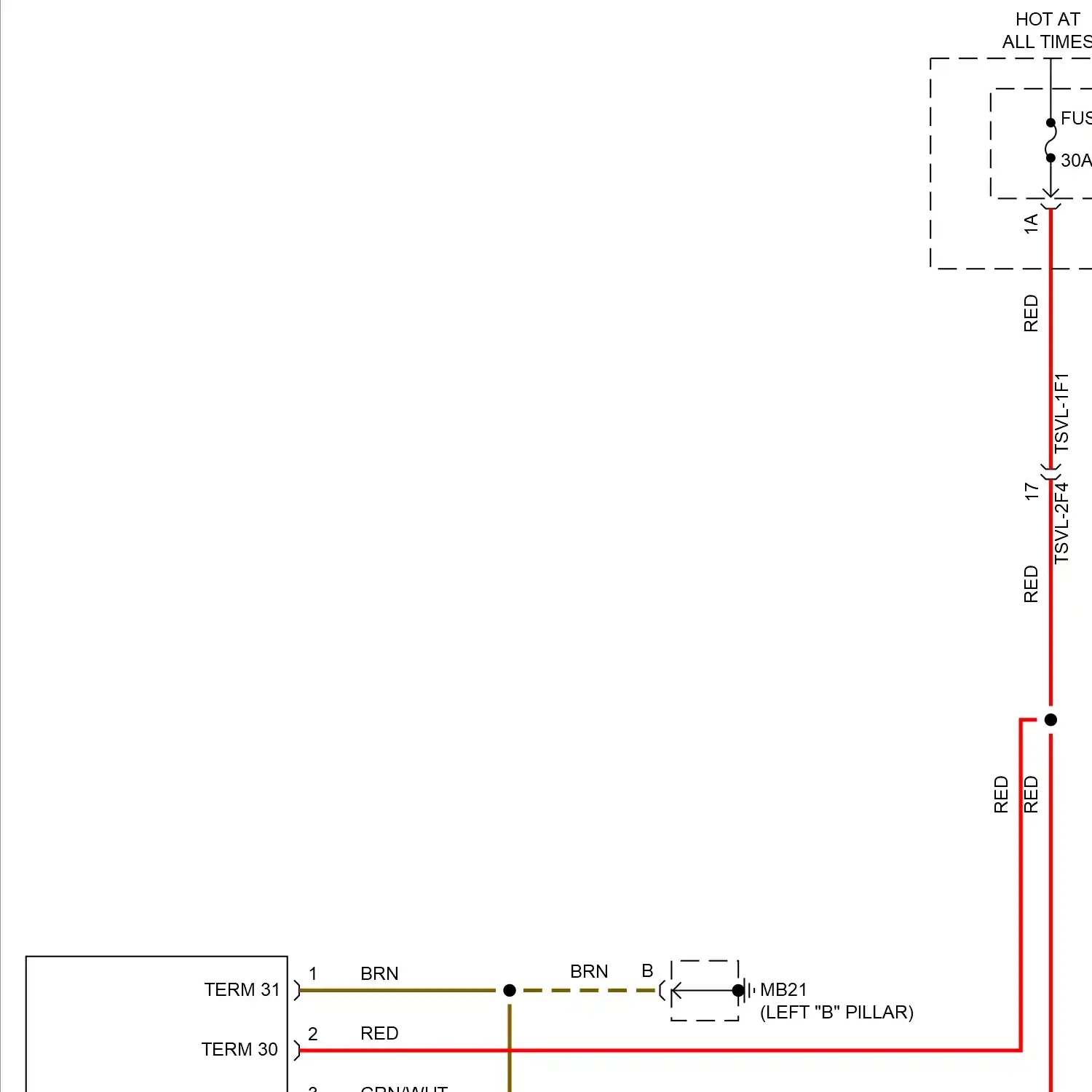

Driver heated seat circuit Driver power seat circuit Front passenger heated seat circuit Front passenger power seat circuit Heated steering wheel circuit Rear heated seats circuit

Power top/sunroof circuit

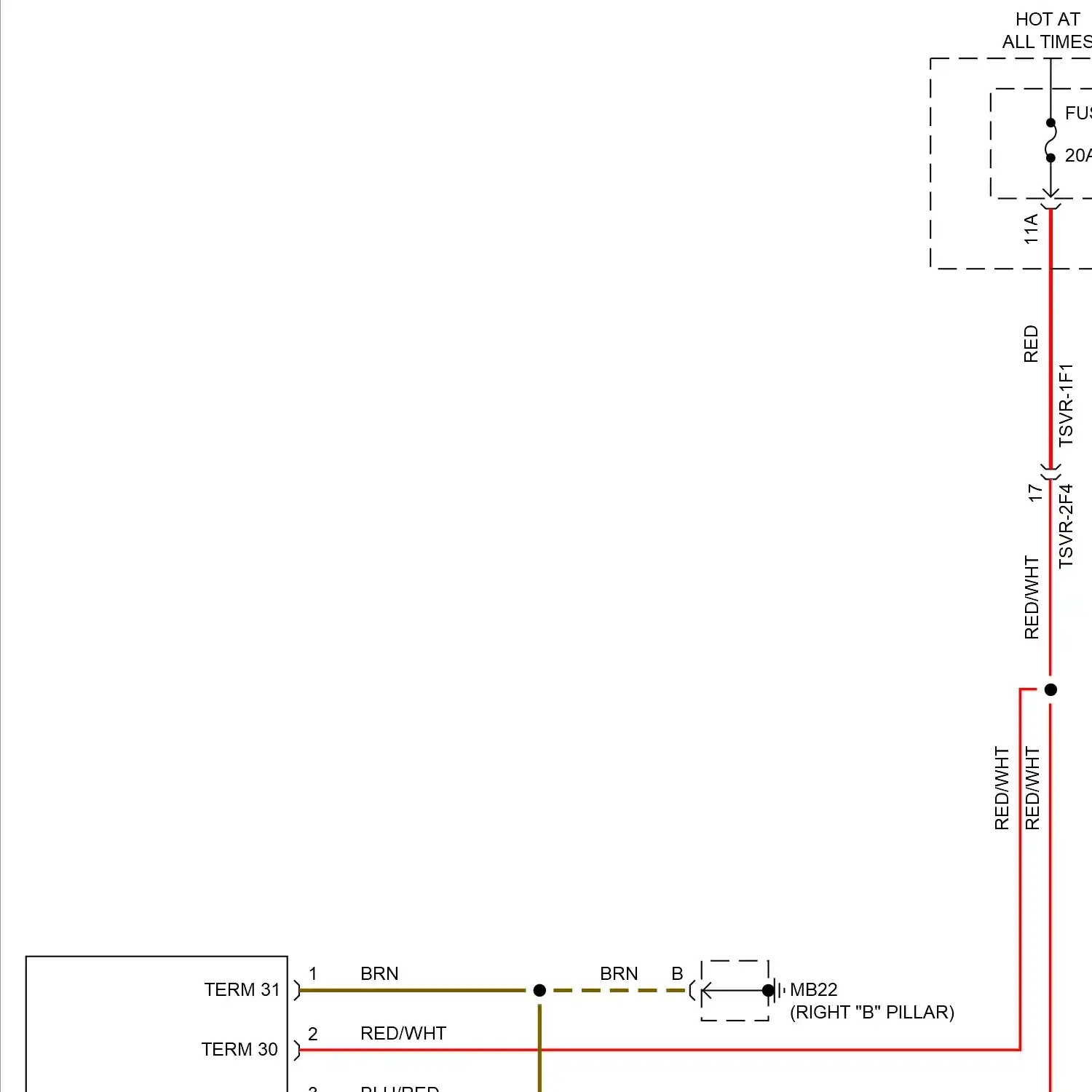

Power windows circuit Roller sun blind circuit

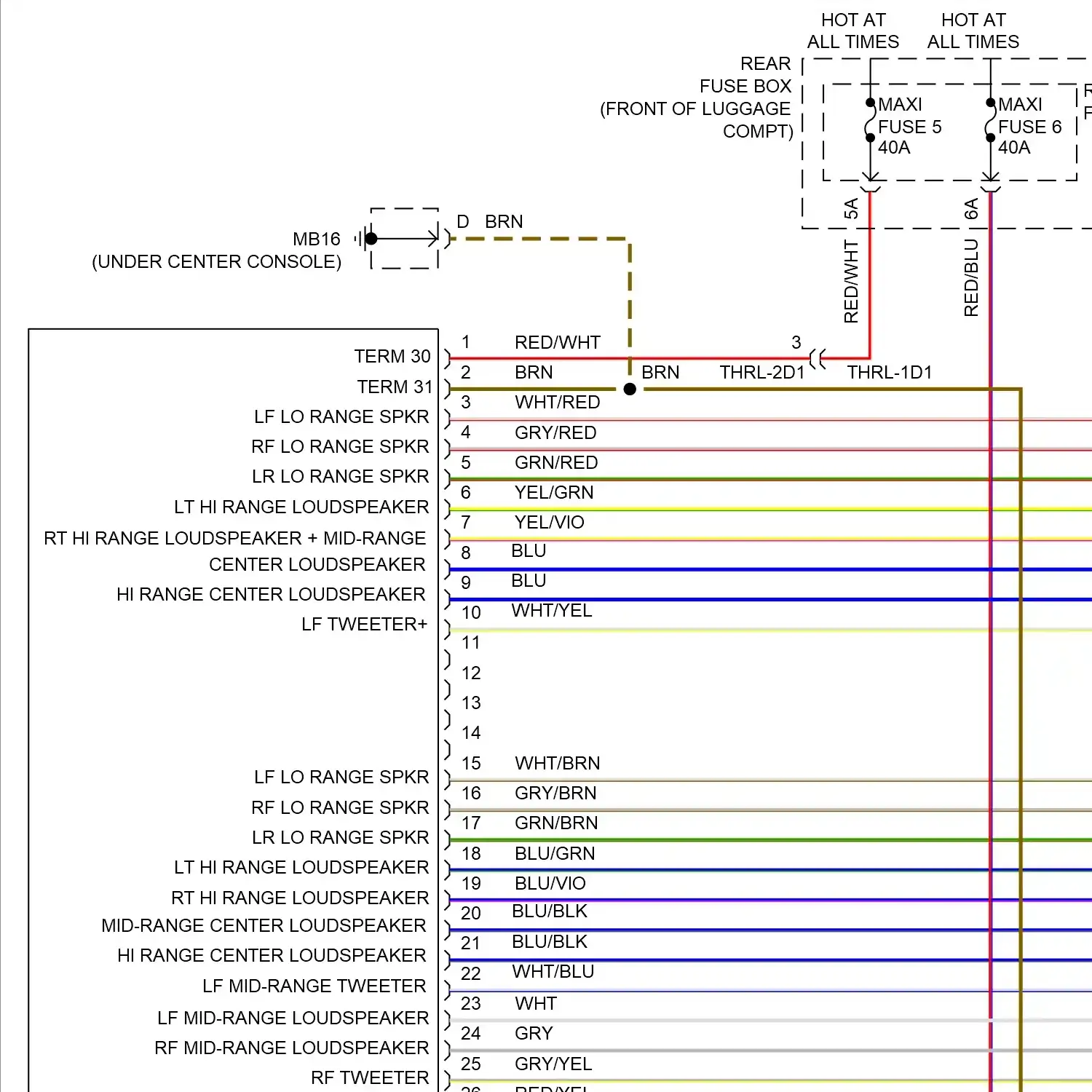

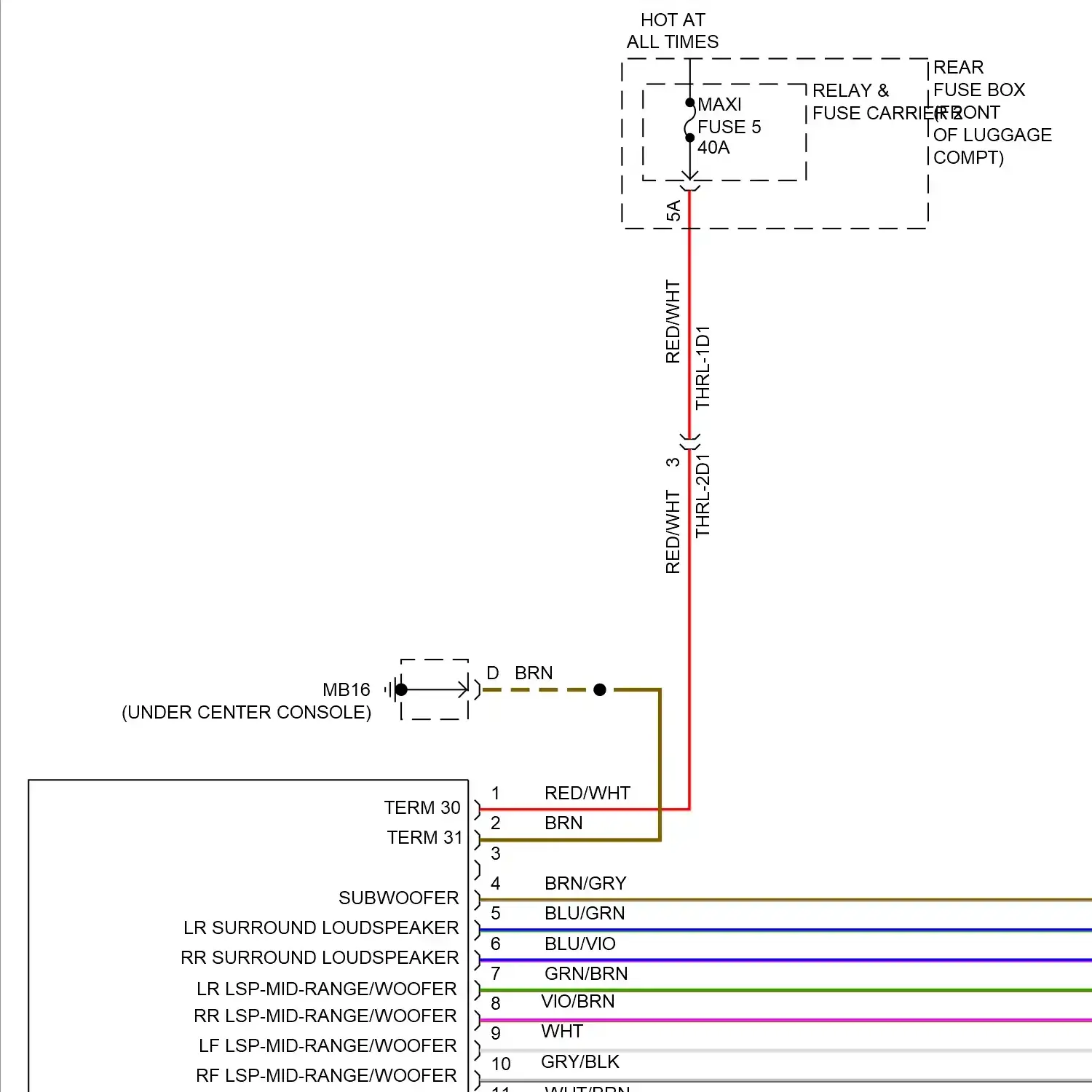

Base radio circuit Optical wave guide circuit Premium radio circuit, w/ bose Premium radio circuit, w/ burmester

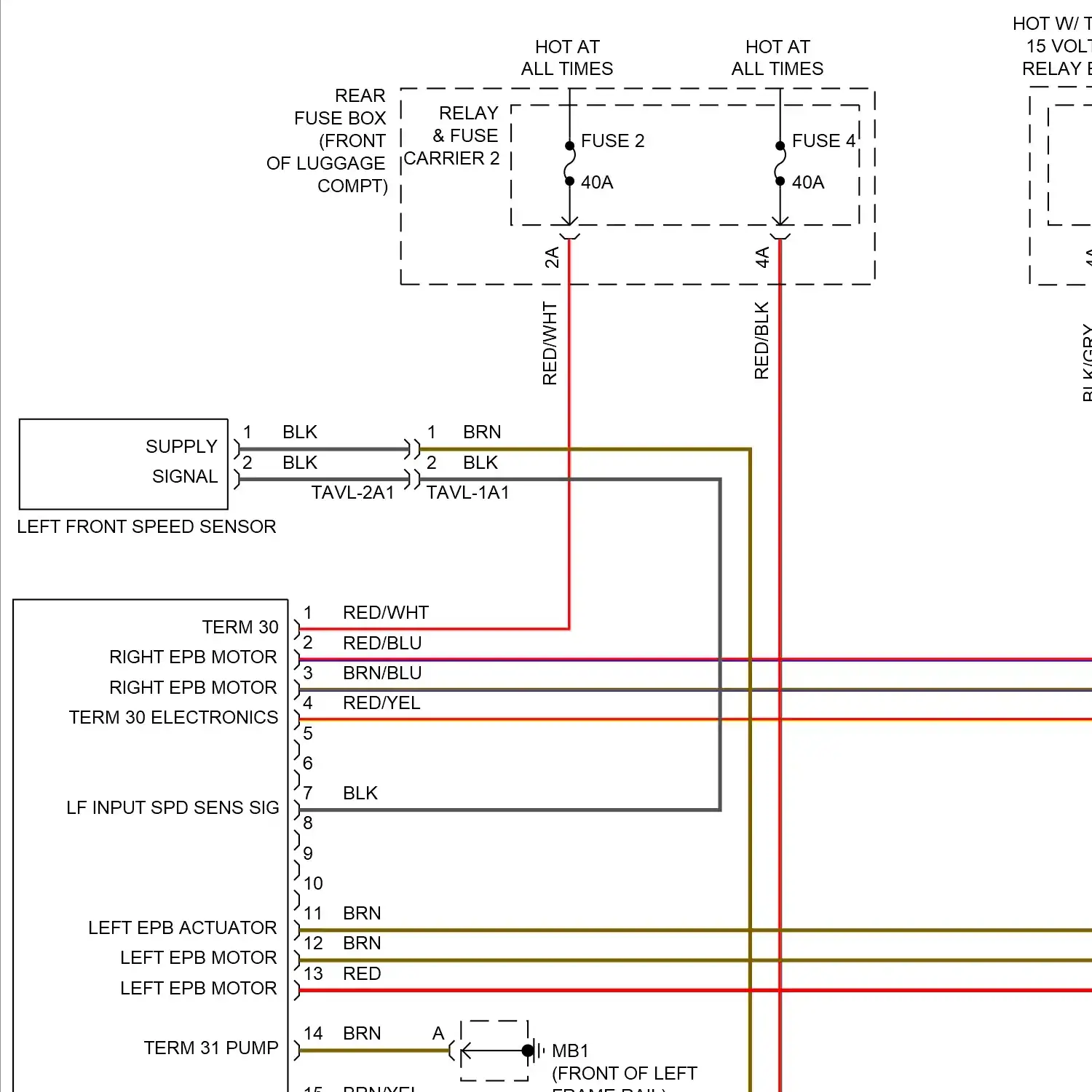

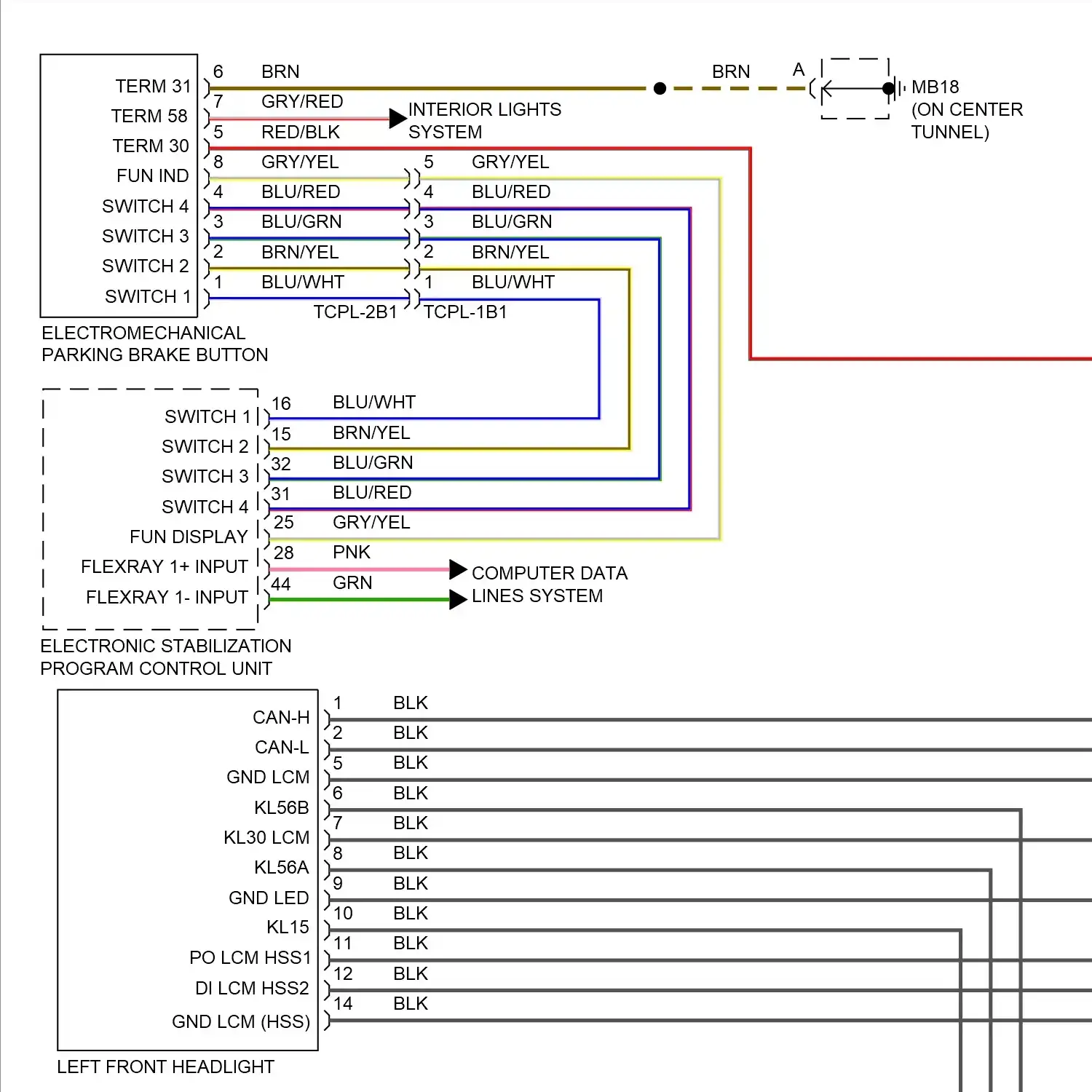

Electronic parking brake circuit Shift interlock circuit

Charging circuit Starting circuit

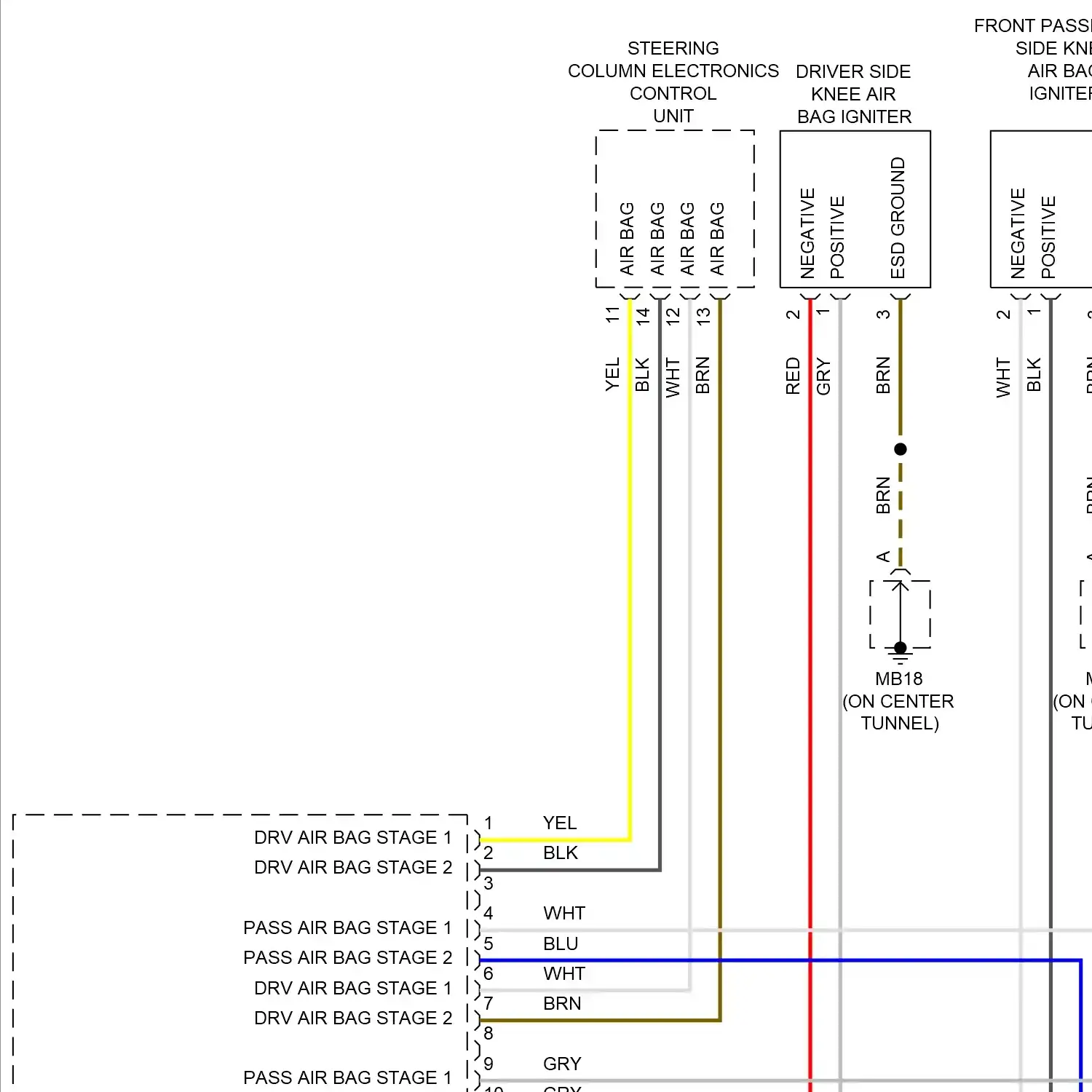

Supplemental restraints circuit

A/t circuit Rear differential lock circuit

Tailgate release circuit

Warning systems circuit

Front wiper/washer circuit Rear wiper circuit

ALARM HORN ANTI-LOCK BRAKES SYSTEM BASS HORN BATTERY CHARGE SELECTOR BUTTONS MODULE BATTERY FAN 1 BURMESTER DIGITAL SOUND PACKAGE AMPLIFIER CENTER LOCK SAFE LOCKED STATUS CENTRAL LOCK DOOR CONTACT CENTRAL LOCK ROTARY LATCH CENTRAL LOCK SAFE CENTRAL LOCK SAFE LOCKED STATUS CENTRAL LOCKING SAFE LOCK FUNCTION WARNING LAMP CHILD LOCK FEEDBACK CHILD LOCK STATUS COIL 1 COIL 2 CONN 1 LOCK + COVER LOCK 1+ CYL 2 SW OFF EXHAUST COIL 1 CYL 2 SW OFF EXHAUST COIL 2 CYL 2 SW OFF INTAKE COIL 1 CYL 2 SW OFF INTAKE COIL 2 CYL 3 SW OFF EXHAUST COIL 1 CYL 3 SW OFF EXHAUST COIL 2 CYL 3 SW OFF INTAKE COIL 1 CYL 3 SW OFF INTAKE COIL 2 CYL 5 SW OFF EXHAUST COIL 1 CYL 5 SW OFF EXHAUST COIL 2 CYL 5 SW OFF INTAKE COIL 1 CYL 5 SW OFF INTAKE COIL 2 CYL 8 SW OFF EXHAUST COIL 1 CYL 8 SW OFF EXHAUST COIL 2 CYL 8 SW OFF INTAKE COIL 1 CYL 8 SW OFF INTAKE COIL 2 DIGITAL SOUND PACKAGE AMPLIFIER ELECTRONIC IGNITION LOCK FRONT PASSENGER SIDE CENTRAL LOCKING SAFE LOCK FUNCTION WARNING LAMP GNI COIL CYL 5 HIGH VOLTAGE BATTERY 1 IGN COIL CYL 1 IGN COIL CYL 2 IGN COIL CYL 3 IGN COIL CYL 4 IGN COIL CYL 5 IGN COIL CYL 6 IGN COIL CYL 7 IGN COIL CYL 8 LEFT CHILD LOCK LEFT/RIGHT CHILD LOCK LOCK REAR LID LOCK UNLOCK LOCK/UNLOCK STATUS LED MOBILE TELEPHONE AERIAL AMPLIFIER MOBILE TELEPHONE AERIAL AMPLIFIER 2 PISTON SPRAY NOZZLE VLV RIGHT CHILD LOCK RIGHT CHILD LOCK DISPLAY START LOCK STARTER LOCK STEERING COLUMN LOCK CONTROL ELEMENT TRACTION HV BATTERY - TREBLE HORN W/ AMPLIFIER W/O AMPLIFIER W/ BOSE AMPLIFIER W/ BOSE AMPLIFIER, DVD CHANGER W/ BURMESTER AMPLIFIER W/ BURMESTER AMPLIFIER, DVD CHANGER

ACTUATOR - TERM 15 ACTUATOR MOTOR GROUND ACTUATOR MOTORS ADJUSTABLE REAR SPOILER MOTOR ADJUSTABLE REAR SPOILER MOTOR 2 AIR FLOW FLAP CONTROL MOTOR AIR RECIRCULATION FLAP CONTROL MOTOR AXLE DIFFERENTIAL LOCK MOTOR CENTER LOCK MOTOR LOCK CENTER LOCK MOTOR UNLOCK CENTER LOCKING MOTOR SAFE CENTER VENT CONTROL MOTOR CENTRAL LOCK MOTOR LOCK CENTRAL LOCK MOTOR UNLOCK CENTRAL LOCKING MOTOR SAFE CENTRAL LOCKING SYSTEM MOTOR CHILD LOCK MOTOR PCL CLOSE MOTOR CLOSE MOTOR 1 CLOSE MOTOR 2 CLOSING AID MOTOR CLOSING MOTOR COMMON MOTOR CONNECTION COOLANT TEMP ENGINE OUTLET DEFROSTER FLAP CONTROL MOTOR DRIVER SEAT DEPTH ADJUSTMENT MOTOR DRIVER SIDE FOLD-IN MIRROR MOTOR DRIVER SIDE MIRROR ADJUSTMENT MOTOR 2 ELECTRIC DRIVE MOTOR ENGINE CONTROLS SYSTEM ENGINE CONTROLS, INSTRUMENT CLUSTER SYSTEMS ENGINE COVER PANEL COMPARTMENT TEMPERATURE SENDER ENGINE COVER PANEL TEMPERATURE SENDER ENGINE GND ENGINE OIL COOLER VALVE ENGINE OIL TEMPERATURE SENDER ENGINE OUTLET COOLANT TEMPERATURE SENDER ENGINE SOUND GENERATOR ACTUATOR 3 ENGINE SPEED SENDER ENGINE TEMPERATURE SENDER ENGINE WIRING SHIELD ENGINE WIRING SHLD FRONT PASSENGER DOOR POWER LATCHING MOTOR FRONT PASSENGER SEAT DEPTH ADJUSTMENT MOTOR FRONT PASSENGER SIDE FOLD-IN MIRROR MOTOR FRONT PASSENGER SIDE MIRROR ADJUSTMENT MOTOR 2 FRONT RIGHT CHEST VENT CONTROL MOTOR FUEL TANK FILLER FLAP CENTRAL LOCKING ACTUATOR HALL 1 MOTOR 1 HALL 1 MOTOR 2 HALL 2 MOTOR 1 HALL 2 MOTOR 1 EXT HALL 2 MOTOR 2 HEADLIGHTS MOTOR 1 - HEADLIGHTS MOTOR 2 + HIGH-VOLTAGE CHARGING FLAP LOCK 1 ACTUATOR INDIRECT VENTILATION FLAP CONTROL MOTOR LEFT CENTER VENT CONTROL MOTOR LEFT DYNAMIC CORNERING LIGHT CONTROL MOTOR LEFT EPB ACTUATOR + LEFT EPB MOTOR + LEFT FOOTWELL FLAP CONTROL MOTOR LEFT FOOTWELL TEMPERATURE FLAP CONTROL MOTOR LEFT FOOTWELL TEMPERATURE FLAP CONTROL MOTOR 2 LEFT FRONT BACKREST ADJUSTMENT MOTOR LEFT FRONT CHEST VENT CONTROL MOTOR LEFT FRONT SEAT BACKREST ADJUSTMENT MOTOR LEFT FRONT SEAT HEIGHT ADJUSTMENT MOTOR LEFT FRONT SEAT LONGITUDINAL ADJUSTMENT MOTOR LEFT FRONT SEAT RAKE ADJUSTMENT MOTOR LEFT FRONT SIDE VENT CONTROL MOTOR LEFT HEADLIGHT CONTROL MOTOR LEFT HEADLIGHT RANGE CONTROL MOTOR LEFT PARKING BRAKE MOTOR LEFT REAR AIR DISTRIBUTION CONTROL MOTOR LEFT REAR AIR QUANTITY FLAP CONTROL MOTOR LEFT REAR CENTER VENT CONTROL MOTOR 1 LEFT REAR LID MOTOR 1 LEFT REAR POWER LATCHING MOTOR LEFT REAR SEAT LONGITUDINAL ADJUSTMENT MOTOR LEFT REAR TEMPERATURE FLAP CONTROL MOTOR LEFT SIDE DRIVER DOOR POWER LATCHING MOTOR LEFT SIDE REAR ROLLER BLIND MOTOR LEFT SIDE VENT CONTROL MOTOR LOCK MOTOR LOCKING MOTOR MAP-CONTROLLED ENGINE COOLING SYSTEM THERMOSTAT MIDDLE REAR CENTER VENT CONTROL MOTOR 2 MIRROR ADJUSTMENT MOTOR X MIRROR ADJUSTMENT MOTOR Y MIRROR MOTOR SPLY MOTOR 1 MOTOR 1 EXTENSION MOTOR 1 OUTPUT A MOTOR 1 OUTPUT B MOTOR 1 RETRACTION MOTOR 1/2 MOTOR 2 MOTOR 2 EXTENSION MOTOR 2 RETRACTION MOTOR +FORE/AFT MOTOR GND OPEN MOTOR OPEN MOTOR 1 OPEN MOTOR 2 RADIATOR BLIND CONTROL MOTOR REAR ROLLER BLIND MOTOR REAR WINDOW WIPER MOTOR RIGHT CENTER VENT CONTROL MOTOR RIGHT DYNAMIC CORNERING LIGHT CONTROL MOTOR RIGHT EPB ACTUATOR + RIGHT EPB MOTOR - RIGHT FOOTWELL FLAP CONTROL MOTOR RIGHT FOOTWELL TEMPERATURE FLAP CONTROL MOTOR RIGHT FOOTWELL TEMPERATURE FLAP CONTROL MOTOR 2 RIGHT FRONT BACKREST ADJUSTMENT MOTOR RIGHT FRONT SEAT BACKREST ADJUSTMENT MOTOR RIGHT FRONT SEAT HEIGHT ADJUSTMENT MOTOR RIGHT FRONT SEAT LONGITUDINAL ADJUSTMENT MOTOR RIGHT FRONT SEAT RAKE ADJUSTMENT MOTOR RIGHT FRONT SIDE VENT CONTROL MOTOR RIGHT HEADLIGHT CONTROL MOTOR RIGHT HEADLIGHT RANGE CONTROL MOTOR RIGHT PARKING BRAKE MOTOR RIGHT REAR AIR DISTRIBUTION CONTROL MOTOR 2 RIGHT REAR AIR QUANTITY FLAP CONTROL MOTOR RIGHT REAR CENTER VENT CONTROL MOTOR 3 RIGHT REAR LID MOTOR 2 RIGHT REAR POWER LATCHING MOTOR RIGHT REAR SEAT LONGITUDINAL ADJUSTMENT MOTOR RIGHT REAR TEMPERATURE FLAP CONTROL MOTOR RIGHT SIDE REAR ROLLER BLIND MOTOR RIGHT SIDE VENT CONTROL MOTOR SAVE MOTOR SECOND ROW LEFT SEAT BACKREST ADJUSTMENT MOTOR SECOND ROW RIGHT SEAT BACKREST ADJUSTMENT MOTOR SLIDING SUNROOF MOTOR STEERING COLUMN AXIAL ADJUSTMENT MOTOR STEERING COLUMN VERTICAL ADJUSTMENT MOTOR STRUCTURE BORNE SOUND ACTUATOR SUN BLIND MOTOR SUNROOF ROLLER BLIND MOTOR SUNROOF ROLLER BLIND MOTOR 2 SWIVEL MOTOR TAILGATE LOCK MOTOR TANK FILLER FLAP LOCKING MOTOR TEMP SENS ENGINE OIL - TEMP SENS ON ENGINE COVER - TEMPERATURE SENDER 1 CHARGE AIR COOLER ENGINE COMPARTMENT TEMPERATURE SENDER 2 CHARGE AIR COOLER ENGINE COMPARTMENT TERM 30 ENGINE TERM 30 PIVOTING MOTOR TERM 31 CENTRAL LOCKING MOTOR SAFE THROTTLE VLV 2 ENGINE + THROTTLE VLV MOTOR + TO MAP-CONTROLLED ENGINE COOLING SYSTEM VERTICAL ADJUST MOTOR+ WIPER MOTOR

KESSY ANTENNA FRONT CENTER CONSOLE - KESSY ANTENNA LEFT REAR DOOR + KESSY ANTENNA LUGGAGE COMPT + KESSY ANTENNA RIGHT REAR DOOR + KESSY ANTENNA RR DOOR + REAR KESSY ANTENNA CENTER CONSOLE +

1 2 SET BUTTON ADJ BUTTON + ADJUST BUTTON + ANALOG CODING BUTTON ANALOG CODING BUTTON 2 BACKREST ANG ADJ BUTTON BATTERY CHARGE SELECTORS BUTTON MODULE BUTTON 1, 2, 3 BUTTON 1, 2, 3 SET BUTTON BUTTON STATUS CHILD LOCK BUTTON CLOSE BUTTON + LOCK CLOSE LID BUTTON DRIVER SIDE CENTRAL LOCKING SYSTEM INTERIOR LOCKING BUTTON DRIVER SIDE INTERIOR LOCKING BUTTON CENTRAL LOCKING SYSTEM DRIVER SIDE WINDOW REGULATOR MOTOR ELECTRIC HINGED TOW COUPLING ATTACHMENT BUTTON ELECTROMECHANICAL PARKING BRAKE BUTTON FRONT PASSENGER DOOR WINDOW REGULATOR SWITCH FRONT PASSENGER SIDE CENTRAL LOCKING SYSTEM INTERIOR LOCKING BUTTON FRONT PASSENGER SIDE INTERIOR LOCKING BUTTON CENTRAL LOCKING SYSTEM FRONT PASSENGER SIDE WINDOW REGULATOR MOTOR FUEL TANK FLAP RELEASE BUTTON HAZ WARN LIGHT BUTTON HAZARD WARN LIGHT BUTTON LEFT REAR CENTRAL LOCKING SYSTEM INTERIOR LOCKING BUTTON LEFT REAR INTERIOR LOCKING BUTTON CENTRAL LOCKING SYSTEM LEFT REAR SEAT MEMORY FUNCTION BUTTON POSITIONS 1, 2 LEFT REAR WINDOW REGULATOR MOTOR LEFT REAR WINDOW REGULATOR SWITCH LEFT STEERING WHEEL TIPTRONIC BUTTON LOCK/UNLOCK BUTTON LR PWR WINDOW BUTTON LR READING LIGHT BUTTON MASSAGE BUTTON MESSAGE BUTTON OUTSIDE RELEASE REAR LID BUTTON PWR WINDOW BUTTON CTRL SW REAR LID CLOSING BUTTON REAR LID CLOSURE BUTTON REAR LID LOCK CYLINDER RELEASE BUTTON REAR LID OPEN BUTTON REAR LID OUTSIDE RELEASE BUTTON RF PASS PWR WINDOW BUTTON RIGHT REAR CENTRAL LOCKING SYSTEM INTERIOR LOCKING BUTTON RIGHT REAR INTERIOR LOCKING BUTTON CENTRAL LOCKING SYSTEM RIGHT REAR SEAT MEMORY FUNCTION BUTTON POSITIONS 1, 2 RIGHT REAR WINDOW REGULATOR MOTOR RIGHT REAR WINDOW REGULATOR SWITCH RIGHT STEERING WHEEL TIPTRONIC BUTTON ROOF ROLLER BLIND BUTTON 1 RR PWR WINDOW BUTTON RR READING LIGHT BUTTON SEAT ANGLE ADJ BUTTON SEAT DEPTH ADJ BUTTON SEAT F/A ADJ BUTTON SEAT HEIGHT ADJ BUTTON SET BUTTON STEERING WHEEL HEATING BUTTON STEERING WHEEL HORN BUTTON TERM 31 BUTTON

CAMERA GROUND CAMERA INPUT CAMERA INPUT HANDSFREE MICROPHONE - CAMERA SHIELD CAMERA SUPPLY DRIVER EXTERIOR MIRROR CAMERA FRONT CAMERA ETH+ FRONT CAMERA GND FRONT OVERHEAD VIEW CAMERA FRONT PASSENGER EXTERIOR MIRROR CAMERA FRONT VCC CAMERA LEFT CAMERA ETH+ LEFT CAMERA GND LEFT VCC CAMERA NIGHT VISION SYSTEM CAMERA REAR CAMERA ETH+ REAR CAMERA GND REAR OVERHEAD VIEW CAMERA REAR VCC CAMERA RIGHT CAMERA ETH+ RIGHT CAMERA GND RIGHT VCC CAMERA

COIL CONNECTOR DC/AC CONVERTER W/ SOCKET FRONT CENTER CONSOLE 12 V SOCKET 2 HIGH-VOLTAGE BATTERY CHARGING SOCKET 1 HIGH-VOLTAGE CHARGING SOCKET LOCK 1 ACTUATOR LEFT LUGGAGE COMPARTMENT 12 V SOCKET 6 REAR CENTER CONSOLE 12 V SOCKET 3 RIGHT REAR CENTER CONSOLE 12 V SOCKET 5 USB CHARGING SOCKET 1

ADAPTIVE CRUISE CONTROL UNIT ADAPTIVE CRUISE CONTROL UNIT 2 ADAPTIVE CRUISE CONTROL UNIT 3 ADAPTIVE SUSPENSION CONTROL UNIT ADJUSTABLE REAR SPOILER CONTROL UNIT AIR BAG CONTROL UNIT AIR CONDITIONING SYSTEM CONTROL UNIT AUDIO, VIDEO ADDITIONAL CONNECTIONS UNIT AUTOMATIC GEARBOX CONTROL UNIT AUTOMATIC GLOW PERIOD CONTROL UNIT AXLE DIFFERENTIAL LOCK CONTROL UNIT BATTERY ISOLATION UNIT BATTERY MONITOR CONTROL UNIT BATTERY REGULATION CONTROL UNIT BRAKE SERVO CONTROL UNIT CTRL UNIT 1 CTRL UNIT 2 CTRL UNIT 3 DETECTION CTRL UNIT DOOR CTRL OPERATOR UNIT DOOR EXIT OP CTRL UNIT DRIVER CTRL UNIT LED MEMORY SET DRIVER CTRL UNIT LED MEMORY SET POSITION BUTTONS DRIVER CTRL UNIT LED MEMORY SET POSITION BUTTONS MEMORY CTRL SW DRIVER DOOR CONTROL UNIT DRIVER DOOR WINDOW REGULATOR OPERATING UNIT DRIVER MULTICONTOUR SEAT CONTROL UNIT DRIVER SEAT CONTROL UNIT GROUND DRIVER SEAT MEMORY OPERATING UNIT DRIVER SIDE CENTRAL LOCKING LOCK UNIT DUAL CLUTCH GEARBOX MECHATRONIC UNIT EARTH POINT 2 SEAT CONTROL UNIT ELECTRICALLY ADJUSTABLE STEERING COLUMN CONTROL UNIT ELECTRONIC STABILIZATION PROGRAM CONTROL UNIT ELECTRONICS STEERING WHEEL CONTROL UNIT EMERGENCY CALL MODULE CONTROL UNIT, COMMUNICATION UNIT ENGINE CONTROL UNIT ENGINE SOUND GENERATOR CONTROL UNIT 2 EXHAUST FLAP CONTROL UNIT EXHAUST FLAP CONTROL UNIT 2 EXHAUST FLAP CTRL UNIT EXHAUST FLAP CTRL UNIT 2 FRONT ANTI-ROLL BAR CONTROL UNIT FRONT CAMERA CONTROL UNIT FRONT CENTER CONSOLE OPERATING UNIT FRONT PASSENGER AIR BAG UNIT FRONT PASSENGER DOOR CONTROL UNIT FRONT PASSENGER MULTICONTOUR SEAT CONTROL UNIT FRONT PASSENGER SEAT CONTROL UNIT GROUND FRONT PASSENGER SEAT MEMORY OPERATING UNIT FRONT PASSENGER SIDE CENTRAL LOCKING LOCK UNIT FUEL DELIVERY UNIT FUEL PUMP CONTROL UNIT GARAGE DOOR OPERATION CONTROL UNIT GLOW PERIOD CONTROL UNIT 2 HIGH VOLTAGE BATTERY CHARGING UNIT 1 HIGH VOLTAGE CHARGING UNIT 1 INNER DOOR HANDLE LIGHTING OP UNIT INNER DOORHANDLE LIGHTING OP UNIT LANE CHANGE ASSIST CONTROL UNIT LANE CHANGE ASSIST CONTROL UNIT 2 LEFT FRONT MASSAGE SEAT CONTROL UNIT LEFT FRONT SEAT ADJUSTMENT CONTROL UNIT LEFT FRONT SEAT ADJUSTMENT OPERATING UNIT LEFT OPENING EXHAUST FLAP 2 CONTROL UNIT 2 LEFT REAR CENTRAL LOCKING LOCK UNIT LEFT REAR DOOR CONTROL UNIT LEFT REAR MASSAGE SEAT CONTROL UNIT LEFT REAR SEAT ADJUSTMENT OPERATING UNIT LEFT REAR SEAT HEATING CONTROL UNIT LEFT REAR SMART DISPLAY CONTROL UNIT LIFT LARGE INTAKE AVS UNIT CYL 1 LIFT LARGE INTAKE AVS UNIT CYL 2 LIFT LARGE INTAKE AVS UNIT CYL 3 LIFT LARGE INTAKE AVS UNIT CYL 4 LIFT LARGE INTAKE AVS UNIT CYL 5 LIFT LARGE INTAKE AVS UNIT CYL 6 LIFT SMALL INTAKE AVS UNIT CYL 1 LIFT SMALL INTAKE AVS UNIT CYL 2 LIFT SMALL INTAKE AVS UNIT CYL 3 LIFT SMALL INTAKE AVS UNIT CYL 4 LIFT SMALL INTAKE AVS UNIT CYL 5 LIFT SMALL INTAKE AVS UNIT CYL 6 MASTER ADAPTIVE CRUISE CONTROL UNIT MASTER LANE CHANGE ASSIST CONTROL UNIT MULTIMEDIA SYSTEM OPERATING UNIT MULTIMEDIA SYSTEM OPERATING UNIT 2 MULTIMEDIA SYSTEM OPERATING, DISPLAY UNIT NIGHT VISION SYSTEM CONTROL UNIT ONBOARD SUPPLY CONTROL UNIT ONBOARD SUPPLY CONTROL UNIT 2 OP CTRL UNIT TERM 31 OPENING FLAP 1 EXHAUST FLAP CONTROL UNIT OPENING FLAP 2 EXHAUST FLAP CONTROL UNIT 2 OVERHEAD VIEW CAMERA CONTROL UNIT REAR AIR CONDITIONING SYSTEM OPERATING, DISPLAY UNIT REAR ANTI-ROLL BAR CONTROL UNIT 2 REAR CENTER CONSOLE OPERATING UNIT REAR DRIVER SIDE MULTICONTOUR SEAT CONTROL UNIT REAR FRONT PASSENGER SIDE MULTICONTOUR SEAT CONTROL UNIT REAR LID LOCK UNIT REAR LID POWER OPENING CONTROL UNIT REAR SLIDING SUNROOF CONTROL UNIT REAR WHEEL STEERING CONTROL UNIT REVERSING CAMERA SYSTEM CONTROL UNIT RIGHT FRONT MASSAGE SEAT CONTROL UNIT RIGHT FRONT SEAT ADJUSTER CONTROL UNIT RIGHT FRONT SEAT ADJUSTMENT CONTROL UNIT RIGHT FRONT SEAT ADJUSTMENT OPERATING UNIT RIGHT OPENING EXHAUST FLAP 1 CONTROL UNIT RIGHT REAR CENTRAL LOCKING LOCK UNIT RIGHT REAR DOOR CONTROL UNIT RIGHT REAR MASSAGE SEAT CONTROL UNIT RIGHT REAR SEAT ADJUSTMENT OPERATING UNIT RIGHT REAR SEAT HEATING CONTROL UNIT RIGHT REAR SMART DISPLAY CONTROL UNIT SEAT OCCUPIED RECOGNITION CONTROL UNIT SECOND ROW LEFT SEAT CONTROL UNIT SECOND ROW RIGHT SEAT CONTROL UNIT SELECTOR LEVER SENSORS CONTROL UNIT SERVOTRONIC CONTROL UNIT SLAVE ADAPTIVE CRUISE CONTROL UNIT 2 SLAVE LANE CHANGE ASSIST CONTROL UNIT 2 SLIDING SUNROOF ADJUSTMENT CONTROL UNIT STEERING COLUMN ELECTRONICS CONTROL UNIT STEERING WHEEL ELECTRONICS CONTROL UNIT STRUCTURE-BORNE SOUND CONTROL UNIT TERM 30 CTRL UNIT THERMAL MANAGEMENT CONTROL UNIT TIRE PRESSURE MONITORING SYSTEM CONTROL UNIT TRAILER DETECTOR CONTROL UNIT VEHICLE LOCATION SYSTEM CONTROL UNIT VEHICLE LOCATION SYSTEM CONTROL UNIT SHIELD

FUSE 1 FUSE 1 1 FUSE 2 FUSE 3 FUSE 4 FUSE 5 FUSE 6 FUSE 7 FUSE 8 FUSE 9 FUSE 10 FUSE 11 FUSE 12 FUSE CARRIER 1 FUSE CARRIER 2 FUSE CARRIER 3 FUSE CARRIER 4 FUSE CARRIER 5 FUSE CARRIER 6 FUSE CARRIER 7 FUSE CARRIER 8 FUSE HOLDER A FUSE HOLDER B FUSE HOLDER C FUSE HOLDER D FUSE HOLDER E FUSE HOLDER F FUSE HOLDER G FUSE HOLDER H FUSE HOLDER J FUSE HOLDER K LEFT DASHBOARD FUSE HOLDER LEFT SEAT FUSE BOX MAIN FUSE BOX MAXI FUSE 1 MAXI FUSE 2 MAXI FUSE 3 MAXI FUSE 4 MAXI FUSE 5 MAXI FUSE 6 MID FUSE 2 MIDI FUSE 3 MIDI FUSE 4 REAR FUSE BOX RIGHT DASHBOARD FUSE HOLDER RIGHT ENGINE COMPARTMENT FUSE BOX RIGHT FRONT FUSE BOX RIGHT SEAT FUSE BOX

HEADLIGHT VERTICAL CTRL MTR 1 - HEADLIGHT VERTICAL CTRL MTR 2 - HEADLIGHT WASHER PUMP HEADLIGHT WASHER SYSTEM PUMP LEFT FRONT HEADLIGHT LEFT HEADLIGHT TEMPERATURE SENDER 1 LEFT LED HEADLIGHT FAN POWER MODULE LEFT LED HEADLIGHT OUTPUT MODULE 1 LEFT LED HEADLIGHT OUTPUT MODULE 2 LEFT LED HEADLIGHT OUTPUT MODULE 3 LEFT LED HEADLIGHT OUTPUT MODULE 4 LEFT LED HEADLIGHT OUTPUT MODULE 5 RIGHT FRONT HEADLIGHT RIGHT HEADLIGHT TEMPERATURE SENDER 1 RIGHT LED HEADLIGHT FAN POWER MODULE RIGHT LED HEADLIGHT OUTPUT MODULE 1 RIGHT LED HEADLIGHT OUTPUT MODULE 2 RIGHT LED HEADLIGHT OUTPUT MODULE 3 RIGHT LED HEADLIGHT OUTPUT MODULE 4 RIGHT LED HEADLIGHT OUTPUT MODULE 5

AUXILIARY HEATER REMOTE CONTROL RECEIVER BACKREST HEATING ELEMENT CRANKCASE BREATHER HEATER ELEMENT 2 CRANKCASE BREATHER HEATER ELEMENT 3 CRANKCASE BREATHER INTAKE PIPE BANK 1 HEATER ELEMENT HEATER - COMPENSATING HEATER ELEMENT 2 CRANKCASE BREATHER HEATER ELEMENT 3 CRANKCASE BREATHER HEATER ELEMENT CRANKCASE BREATHER INTAKE PIPE BANK 1 HEATING BACKUP LEFT FRONT SEAT EXTENSION HEATER ELEMENT LEFT REAR SEAT LATERAL SUPPORT HEATER LF SEAT HEATING BACKREST LF SEAT HEATING SENS LF SEAT HEATING SURFACE POS CRANKCASE VENTILATION HEATER 1 POS CRANKCASE VENTILATION HEATER 3 RF SEAT HEATING BACKREST RF SEAT HEATING SENS RF SEAT HEATING SURFACE RIGHT FRONT SEAT EXTENSION HEATER ELEMENT RIGHT REAR SEAT LATERAL SUPPORT HEATER SEAT HEATING SEAT HEATING ELEMENT STEERING WHEEL HEATING

COOLANT SHORTAGE INDICATOR SENDER FUNCTION INDICATOR LOW TEMPERATURE COOLANT SHORTAGE INDICATOR SENDER 2

CENTRAL REAR VENT ILLUMINATION BULB DRIVER DOOR STORAGE COMPARTMENT ILLUMINATION BULB DRIVER SIDE EXTERIOR MIRROR LANE CHANGE ASSIST WARNING LAMP DRIVER SIDE TURN SIGNAL REPEATER BULB EXTERIOR LIGHTS, HEADLIGHTS, INTERIOR LIGHTS SYSTEMS FRONT PASSENGER DOOR STORAGE COMPARTMENT ILLUMINATION BULB FRONT PASSENGER SIDE SAFELOCK FUNCTION WARNING LAMP HAZARD WARNING LIGHTS HIGH-LEVEL BRAKE LIGHT BULB LEFT ADDITIONAL MAIN BEAM BULB LEFT B-PILLAR REAR VENT ILLUMINATION BULB LEFT END-OUTLINE MARKER LAMP BULB 1 LEFT END-OUTLINE MARKER LAMP BULB 2 LEFT END-OUTLINE MARKER LAMP BULB 3 LEFT FRONT SIDE MARKER BULB LEFT FRONT TURN SIGNAL, SIDE LIGHT BULB LEFT REAR INTERIOR DOOR HANDLE ILLUMINATION BULB LEFT REAR VENT ILLUMINATION BULB LIGHTS SYSTEM PASSENGER SIDE EXTERIOR MIRROR LANE CHANGE ASSIST WARNING LAMP PASSENGER SIDE TURN SIGNAL REPEATER BULB RIGHT ADDITIONAL MAIN BEAM BULB RIGHT B-PILLAR REAR VENT ILLUMINATION BULB RIGHT END-OUTLINE MARKER LAMP BULB 1 RIGHT END-OUTLINE MARKER LAMP BULB 2 RIGHT END-OUTLINE MARKER LAMP BULB 3 RIGHT FRONT SIDE MARKER BULB RIGHT FRONT TURN SIGNAL, SIDE LIGHT BULB RIGHT REAR INTERIOR DOOR HANDLE ILLUMINATION BULB

AFTER-RUN COOLANT PUMP CIRCULATION PUMP 2 CONTINUED COOLANT CIRCULATION PUMP COOLANT CIRCULATION PUMP COOLANT PUMP COOLING WATER PUMP DIAGNOSIS PUMP FRONT DUAL WASHER PUMP FUEL PUMP FUEL PUMP 1 FUEL SYSTEM DIAGNOSTIC PUMP HIGH PRESS PUMP FLOW CTRL VLV - HIGH VOLTAGE BATTERY COOLANT PUMP HIGH-TEMPERATURE CIRCULATION PUMP 2 LOW TEMPERATURE CIRCUIT COOLANT PUMP LOW TEMPERATURE CIRCUIT COOLANT PUMP 2 PUMP CURRENT PUMP CURRENT COMPENSATING PUMP RLY PWM PUMP REAR DUAL WASHER PUMP SECONDARY AIR PUMP SHIFT VLV + TERM 30 PUMP TERM 31 PUMP WASHER PUMP WATER PUMP WATER PUMP EGR COOLER WATER PUMP HEATING BACKUP WATER PUMP HS WATER PUMP LS

HEATED REAR WINDOW RELAY HOT W/ MAIN RELAY ENERGIZED HOT W/ TERMINAL 15 VOLTAGE SUPPLY RELAY ENERGIZED MAIN RELAY RELAY & FUSE CARRIER 2 RELAY KL 15 RELAY TERM 15 RELAY/ FUSE CARRIER STARTER RELAY 1 STARTER RELAY 2 TERMINAL 15 VOLTAGE SUPPLY RELAY WATER PUMP RELAY WATER PUMP RELAY RIGHT ENGINE COMPARTMENT FUSE BOX

5 V SUPPLY SENSOR AIR HUMIDITY RAIN, LIGHT SENSOR AIR QUALITY SENSOR AMBIENT TEMPERATURE SENSOR AUTOMATIC HEATER CONTROL INTERIOR SENSOR BLOWER SENSOR BRAKE FLUID SENSOR CENTER PEDESTRIAN PROTECTION CRASH SENSOR CLOSING AID SENSOR 1, SIG COMP TEMP SENSOR + CYLINDER HEAD BANK 1 TEMPERATURE SENSOR DRIVER SIDE A-PILLAR AIR BAG CRASH SENSOR DRIVER SIDE AIR BAG PRESSURE SENSOR DRIVER SIDE C-PILLAR REAR AIR BAG CRASH SENSOR DRIVER SIDE FRONT AIR BAG CRASH SENSOR DRIVER SIDE SEAT POSITION SENSOR EVAPORATOR TEMPERATURE SENSOR FRONT PASSENGER SIDE A-PILLAR AIR BAG CRASH SENSOR FRONT PASSENGER SIDE AIR BAG PRESSURE SENSOR FRONT PASSENGER SIDE C-PILLAR REAR AIR BAG CRASH SENSOR FRONT PASSENGER SIDE FRONT AIR BAG CRASH SENSOR FRONT PASSENGER SIDE PEDESTRIAN PROTECTION CRASH SENSOR FRONT PASSENGER SIDE SEAT POSITION SENSOR FUEL LEVEL SENSOR 1 FUEL LEVEL SENSOR 2 FUEL LEVEL SENSOR GND HALL SENDER 2 CAMSHAFT SENSOR INTAKE 2 HALL SENDER 3 CAMSHAFT SENSOR EXHAUST 1 HALL SENDER 3 OUTLET CAMSHAFT SENSOR BANK 1 HALL SENDER 4 CAMSHAFT SENSOR EXHAUST 2 HALL SENDER 4 OUTLET CAMSHAFT SENSOR BANK 2 HALL SENDER INTAKE CAMSHAFT SENSOR BANK 1 HALL SENSOR HALL SENSOR 1 HALL SENSOR 2 HALL SENSOR 3 HALL SENSOR + FORE/AFT HALL SENSOR + HEIGHT HALL SENSOR SIG A HALL SENSOR SIG B HALL SENSOR SIGNAL A HALL SENSOR SIGNAL B HALL SENSOR SUPPLY KNOCK SENSOR 1 KNOCK SENSOR 3 KNOCK SENSOR 4 KNOCK SENSOR #2 LAMBDA PROBE 1 AFTER CATALYTIC CONVERTER LAMBDA PROBE 1 BEFORE CATALYTIC CONVERTER LAMBDA PROBE 2 AFTER CATALYTIC CONVERTER LAMBDA PROBE 2 BEFORE CATALYTIC CONVERTER LEFT FRONT CHEST VENT TEMPERATURE SENSOR LEFT FRONT EXTERIOR DOOR HANDLE CONTACT SENSOR LEFT FRONT SPEED SENSOR LEFT REAR EXTERIOR DOOR HANDLE CONTACT SENSOR LEFT REAR SPEED SENSOR LEFT SWIVEL MODULE POSITION SENSOR LF BODY ACC SENSOR - LF LEVEL SENSOR + LF LVL SENSOR SIGNAL LF PDC SENSOR LF SEAT HEATING SENSOR BACKREST LF SEAT HEATING SENSOR SURFACE LR ACCEL SENSOR - LR BODY ACC SENSOR + LR LEVEL SENSOR + LR LVL SENSOR SIGNAL LR PDC SENSOR OUTSIDE TEMPERATURE SENSOR PASS COMP SENSOR BUTTON INTERIOR SURVEILLANCE LED BUTTON PDC SENSOR CFL PDC SENSOR CFR PDC SENSOR CRR PDC SENSOR OFL PDC SENSOR OFR PDC SENSOR ORL PDC SENSOR ORR PEDESTRIAN PROTECTION FRONT PRESSURE HOSE SENSOR POSITION SENSOR POWER, CONTROL ELECTRONICS CRASH SENSOR PRESSURE SENSOR PROTECTION SENSOR + RADIATOR OUTLET COOLANT TEMPERATURE SENSOR REAR DRV CRASH SENSOR - REAR PASS CRASH SENSOR - REAR WINDOW BREAKAGE SENSOR RF BODY ACC SENSOR - RF LEVEL SENSOR + RF LVL SENSOR SIGNAL RF PDC SENSOR RF SEAT HEATING SENSOR BACKREST RF SEAT HEATING SENSOR SURFACE RIGHT FRONT CHEST VENT TEMPERATURE SENSOR RIGHT FRONT EXTERIOR DOOR HANDLE CONTACT SENSOR RIGHT FRONT SPEED SENSOR RIGHT REAR EXTERIOR DOOR HANDLE CONTACT SENSOR RIGHT REAR SPEED SENSOR RIGHT SWIVEL MODULE POSITION SENSOR RR BODY ACC SENSOR - RR LEVEL SENSOR - RR LVL SENSOR SIGNAL RR PDC SENSOR SENSOR GROUND SENSOR GROUND 1 SENSOR GROUND 2 SENSOR SUPPLY SFL PDC SENSOR SFR PDC SENSOR SUNLIGHT PENETRATION PHOTO SENSOR TANK PRESSURE SENSOR 2 BANK 2 TANK PRESSURE SENSOR 3 TANK PRESSURE SENSOR BANK 1 TEMPERATURE SENSOR WASHER FLUID LEVEL SENSOR WINDSCREEN WASHER FLUID LEVEL SENSOR

LEFT EFFECT SPEAKER 2 LR MID-RANGE SPEAKER + REMOTE SUBWOOFER RIGHT EFFECT SPEAKER 2 RR MID-RANGE SPEAKER +

AIR CONDITIONING SYSTEM PRESSURE SWITCH BONNET CONTACT SWITCH BRAKE LIGHT SWITCH CENTER LOCK KEY SWITCH CTRL SWITCH, TERM 31 DRIVER VANITY MIRROR CONTACT SWITCH ENGINE LID SWITCH FRONT PASSENGER SIDE AIR BAG DEACTIVATE KEY OPERATED SWITCH FRONT PASSENGER VANITY MIRROR CONTACT SWITCH GLOVE COMPARTMENT LIGHT SWITCH HAZARD WARNING LIGHT SWITCH INTERIOR MONITORING DEACTIVATION SWITCH LEFT FRONT BELT SWITCH LOCKING PIN CONTACT SWITCH LUMBAR ROTARY SWITCH MECHANICAL COOLANT PUMP SWITCH VALVE MIRROR CHANGEOVER SWITCH OIL PRESSURE SWITCH OPEN/CLOSE KEY SWITCH RIGHT FRONT BELT SWITCH ROTARY LIGHT SWITCH STEERING COLUMN ADJUSTMENT SWITCH STOP LIGHT SWITCH SUNROOF SWITCH SWITCH 1 SWITCH 2 SWITCH 3 SWITCH 4

A/C COMPRESSOR VALVE + ADAPTIVE SUSPENSION VALVE BLOCK BLOW-OUT VALVE - CAMSHAFT CONTROL VALVE 2 CHANGEOVER VALVE CONTROL VALVE CONTROL VALVE 1 COOLANT HEATER SHUT-OFF VALVE COOLANT SHUT-OFF VALVE 8 CRANKCASE BREATHER VALVE CROSSTALK EXHAUST FLAP 2 VALVE CYLINDER 1 SHUT-OFF INLET DEACTIVATION VALVE CYLINDER 2 SHUT-OFF EXHAUST DEACTIVATION VALVE CYLINDER 2 SHUT-OFF INLET DEACTIVATION VALVE CYLINDER 3 SHUT-OFF EXHAUST DEACTIVATION VALVE CYLINDER 3 SHUT-OFF INLET DEACTIVATION VALVE CYLINDER 4 SHUT-OFF INLET DEACTIVATION VALVE CYLINDER 5 SHUT-OFF EXHAUST DEACTIVATION VALVE CYLINDER 5 SHUT-OFF INLET DEACTIVATION VALVE CYLINDER 6 SHUT-OFF INLET DEACTIVATION VALVE CYLINDER 8 SHUT-OFF EXHAUST DEACTIVATION VALVE CYLINDER 8 SHUT-OFF INLET DEACTIVATION VALVE DRAIN VALVE EXHAUST CAMSHAFT CONTROL VALVE 1 EXHAUST CAMSHAFT CONTROL VALVE 1 BANK 1 EXHAUST CAMSHAFT CONTROL VALVE 2 EXHAUST CAMSHAFT CONTROL VALVE 2 BANK 2 EXHAUST DEACTIVATION CYLINDER 2 SHUT-OFF VALVE EXHAUST DEACTIVATION CYLINDER 3 SHUT-OFF VALVE EXHAUST DEACTIVATION CYLINDER 5 SHUT-OFF VALVE EXHAUST DEACTIVATION CYLINDER 8 SHUT-OFF VALVE EXHAUST FLAP 2 VALVE EXHAUST FLAP VALVE 3 FRONT THROTTLE VALVE BANK 1 CHARGE PRESSURE SENDER 1 FRONT THROTTLE VALVE BANK 2 CHARGE PRESSURE SENDER 2 FRONT THROTTLE VALVE CHARGE PRESSURE SENDER FUEL METERING VALVE FUEL METERING VALVE 2 FUEL TANK SHUT-OFF VALVE 1 HEATER COOLANT SHUT-OFF VALVE HEATER SHUT-OFF VALVE INLET DEACTIVATION CYLINDER 1 SHUT-OFF VALVE INLET DEACTIVATION CYLINDER 2 SHUT-OFF VALVE INLET DEACTIVATION CYLINDER 3 SHUT-OFF VALVE INLET DEACTIVATION CYLINDER 4 SHUT-OFF VALVE INLET DEACTIVATION CYLINDER 5 SHUT-OFF VALVE INLET DEACTIVATION CYLINDER 6 SHUT-OFF VALVE INLET DEACTIVATION CYLINDER 8 SHUT-OFF VALVE INTAKE CAMSHAFT CONTROL VALVE 1 INTAKE CAMSHAFT CONTROL VALVE 1 BANK 1 INTAKE CAMSHAFT CONTROL VALVE 2 INTAKE CAMSHAFT CONTROL VALVE 2 BANK 2 LEFT FRONT ADDITIONAL AIR SPRING VOLUME VALVE 1 LEFT FRONT SHOCK ABSORBER DAMPING ADJUSTMENT VALVE LEFT REAR ADDITIONAL AIR SPRING VOLUME VALVE 1 LEFT REAR SHOCK ABSORBER DAMPING ADJUSTMENT VALVE LF AIR SPRING VALVE LR AIR SPRING VALVE OIL PRESS REG VALVE + OIL PRESSURE CONTROL VALVE OVERRUN AIR RECIRCULATION BANK 1 VALVE OVERRUN AIR RECIRCULATION VALVE BANK 1 OVERRUN AIR RECIRCULATION VALVE BANK 2 PISTON COOLING JET CONTROL VALVE PISTON COOLING NOZZLE JET CONTROL VALVE PISTON SPRAY NOZZLE VALVE OIL PRESSURE SW REFRIGERANT CIRCULATION SOLENOID VALVE REFRIGERANT EXPANSION VALVE 1 RF AIR SPRING VALVE RIGHT FRONT ADDITIONAL AIR SPRING VOLUME VALVE 1 RIGHT FRONT SHOCK ABSORBER DAMPING ADJUSTMENT VALVE RIGHT REAR ADDITIONAL AIR SPRING VOLUME VALVE 1 RIGHT REAR SHOCK ABSORBER DAMPING ADJUSTMENT VALVE RR AIR SPRING VALVE SOLENOID VALVE 2 SOLENOID VALVE 4 SOLENOID VLV 1 SOLENOID VLV 2 SOLENOID VLV 3 SOLENOID VLV 5 TANK BREATHER VALVE TANK BREATHER VALVE 2 TANK SHUTOFF VALVE THROTTLE VALVE INTAKE MANIFOLD PRESSURE SENDER 2 THROTTLE VALVE MODULE THROTTLE VALVE MODULE 2 VALVE 1 VALVE 2 VALVE BLOCK + VALVE BLOCK GROUND VALVE BLOCK SIGNAL VENTING VALVE -

(OR RED/ WIRE BLK WIRE BLK/BLU WIRE BLK/BRN WIRE BLK/GRN WIRE BLK/GRY WIRE BLK/RED WIRE BLK/VIO WIRE BLK/WHT WIRE BLK/YEL WIRE BLU WIRE BLU/BLK WIRE BLU/BRN WIRE BLU/GRN WIRE BLU/GRY WIRE BLU/RED WIRE BLU/VIO WIRE BLU/WHT WIRE BLU/YEL WIRE BRN WIRE BRN/BLK WIRE BRN/BLU WIRE BRN/GRN WIRE BRN/GRY WIRE BRN/RED WIRE BRN/VIO WIRE BRN/WHT WIRE BRN/YEL WIRE FLEXRAY 1- IN PNK FLEXRAY 1+ IN WIRE FLEXRAY 1- PNK FLEXRAY 1+ WIRE FLEXRAY 2- PNK FLEXRAY 2+ WIRE FLEXRAY BRANCH 5 BP PNK WIRE GRN WIRE GRN/BLK WIRE GRN/BLU WIRE GRN/BRN WIRE GRN/GRY WIRE GRN/RED WIRE GRN/VIO WIRE GRN/WHT WIRE GRN/YEL WIRE GRY WIRE GRY/BLK WIRE GRY/BLU WIRE GRY/BRN WIRE GRY/GRN WIRE GRY/RED WIRE GRY/VIO WIRE GRY/WHT WIRE GRY/YEL WIRE LED GREEN LED GREEN 1 LED RED WIRE NCA WIRE ORG/ WIRE ORG/BLK WIRE ORG/BLU WIRE ORG/BRN WIRE ORG/GRN WIRE ORG/GRY WIRE ORG/RED WIRE ORG/VIO WIRE ORG/WHT WIRE PNK FLEXRAY 1+ OUTPUT WIRE PNK FLEXRAY 1+ WIRE PNK WIRE RED WIRE RED/BLK WIRE RED/BLU WIRE RED/BRN WIRE RED/GRN WIRE RED/GRY WIRE RED/VIO WIRE RED/WHT WIRE RED/YEL WIRE TERM 30 PNK FLEXRAY 1+ WIRE VIO WIRE VIO/BLK WIRE VIO/BLU WIRE VIO/BRN WIRE VIO/GRN WIRE VIO/GRY WIRE VIO/RED WIRE VIO/WHT WIRE VIO/YEL WIRE WHT WIRE WHT/BLK WIRE WHT/BLU WIRE WHT/BRN WIRE WHT/GRN WIRE WHT/GRY WIRE WHT/RED WIRE WHT/VIO WIRE WHT/YEL WIRE YEL WIRE YEL/BLK WIRE YEL/BLU WIRE YEL/BRN WIRE YEL/GRN WIRE YEL/GRY WIRE YEL/RED WIRE YEL/VIO WIRE YEL/WHT WIRE YELLOW LED YELLOW LED 1

1/+ 2 3 KL 31 2 3 RING BREAK DIAGNOSIS 2.9L TWIN TURBO HYBRID, 4.0L TWIN TURBO HYBRID 2.9L TWIN TURBO, 2.9L TWIN TURBO HYBRID, 3.0L TURBO 3.0L TURBO 2.9L TWIN TURBO 4.0L TWIN TURBO 3.0L TURBO, 2.9L TWIN TURBO 3.0L TURBO, 4.0L TWIN TURBO 4.0L TWIN TURBO 3.0L TURBO 2.9L TWIN TURBO 4.0L TURBO, 4.0L TWIN TURBO HYBRID 4.0L TWIN TURBO 2.9L TWIN TURBO, 3.0L TURBO 4.0L TWIN TURBO HYBRID 2.9L TWIN TURBO HYBRID 4.0L TWIN TURBO, 4.0L TWIN TURBO HYBRID 5 V SUPPLY (FRONT OF -VE ACC ACT VLV 1 ACC ACT VLV 2 ACC GND ACCELERATOR PEDAL MODULE ACT 1 + ACT 1 SPLY ACT 2 + ACT 2 SPLY ACT 3 + ACT 3 SPLY ACT 4 + ACT 4 SPLY ACT SPLY 4 ACTIVE BONNET DRIVER + ACTR ACTUAL VLV 1 ACTR ACTUAL VLV 2 ACTR GND ACTR GND POT 2 ACTUATION 1 ACTUATION 2 ADDITIONAL INSTRUMENTS ADJ 1 ADJ 2 AFS HIGH AFS LOW AHEAD THROTTLE VLV SENS 1 - AHEAD THROTTLE VLV SENS 2 - AIR BAG 1- AIR BAG 2 BF - AIR BAG 2+ AIR BAG GROUND AIR BAG STEERING COLUMN 1 AIR CONDITIONER COMPRESSOR AIR CONDITIONING AIR CONDITIONING SYSTEM AMBIENT LIGHT AMBIENT LIGHT LIN AMBIENT LIGHTING DOORS + ANALOG COD ANALOG GND ANALOG GROUND ANALOGUE 1 ANALOGUE 2 ANALOGUE 3 ANODE CHANNEL 1 ANTI-PINCH STRIP - AREA LIGHTING AREA) AUX 1 IN L + AUX 1 IN R + AUX GND AUX L + AUX R + AUX SHIELD BACK BACKREST BACK SEAT DEPTH BACKREST ANG ADJ HALL BACKREST ANGLE ADJ 1 BACKREST ANGLE ADJ 2 BACKREST BACK BACKREST FORWARD BACKREST TEMPERATURE BACKUP LAMPS CIRCUIT BACKUP LIGHT BAG HV- BATT + BATT SENS BEHIND THROTTLE VLV BEHIND THROTTLE VLV SENS 1 - BEHIND THROTTLE VLV SENS 2 - BELT FORCE LIMITER + BELT TENSIONER + BLOWER CENTER VENT LEFT BLOWER CENTER VENT RIGHT BLUETOOTH MOBILE PHONE BLUETOOTH MOBILE PHONE COUPLING AERIAL BLUETOOTH MOBILE PHONE COUPLING AERIAL 2 BODY EARTH STRAP GEARBOX GROUND BODY GND BOOST PRESS ADJ WASTEGATE 1 BOOST PRESS ADJ WASTEGATE 2 BRAKE FLUID BRAKE FLUID LEVEL WARNING CONTACT BRAKE LIGHT OUTPUT BRAKE PAD WEAR BRAKE SERVO VACUUM SENDER BRK LT OUT CAMSHAFT CONTROLLER 1 INTAKE CAMSHAFT CONTROLLER 2 INTAKE CAN AFS HIGH CAN AFS LOW CAN COMFORT CAN COMFORT HI CAN COMFORT HIGH CAN COMFORT LO CAN COMFORT LOW CAN CRASH HIGH CAN CRASH LOW CAN DIAGNOSTICS HIGH CAN DIAGNOSTICS LOW CAN DRIVE 1 HI CAN DRIVE 1 HIGH CAN DRIVE 1 LO CAN DRIVE 1 LOW CAN DRIVE HIGH CAN DRIVE LOW CAN EXTENDED HIGH CAN EXTENDED LOW CAN HI CAN HI MIB CAN HIGH CAN HIGH LIN CAN HIGH MIB CAN HYBRID HIGH CAN HYBRID LOW CAN INFO HIGH CAN INFO LOW CAN L CAN LO CAN LO MIB CAN LOW CAN LOW CHANNEL 3 ANODE CAN MMI HI CAN MMI HIGH CAN MMI LO CAN MMI LOW CAN PRIVAT HIGH CAN PRIVAT LOW CAN PRIVATE HIGH CAN PRIVATE LOW CAN-H CARBON FILTER 1 + CARBON FILTER 2 + CATHODE CHANNEL 1 CENTER CONSOLE FRONT CIGAR LIGHTER CENTER LOUDSPEAKER CENTER LOUDSPEAKER 2 CENTER LSP - CENTRAL LOCKING MTR SAFE CENTRAL LOCKING STATUS LOCKED CHAIN ID IN CHAIN ID OUT CHANNEL 1 CHANNEL 1 CATHODE CHANNEL 2 ANODE CHANNEL 2 CATHODE CHANNEL 3 CHANNEL 3 CATHODE CHARGE AIR TEMP 1 - CHARGE AIR TEMP 2 CHARGE PRESSURE POSITIONER 2 TRANSDUCER WASTEGATE 2 CHARGE PRESSURE POSITIONER 2 WASTEGATE BANK 2 CHARGE PRESSURE POSITIONER TRANSDUCER WASTEGATE CHARGE PRESSURE POSITIONER WASTEGATE BANK 1 CHARGE-NOW CLOSE REAR LID CLOSING AID - CLOSING AID CLOSED CLOSING AID OPEN CMC SPLY + CODIERPIN 1 CODIERPIN 2 CODIERPIN 3 CODING 1 CODING PIN CODING PIN CHANNEL 1 COM MTR COMFORT HIGH COMFORT LOW COMPENSATING SENS VOL - COMPENSATING SENS VOLTAGE - COMPRESSOR CLUTCH COMPUTER DATA LINES SYSTEM COOLANT LEVEL COOLANT TEMP COOLANT TEMPERATURE SENDER 2 COOLANT TEMPERATURE SENDER 3 COOLANT TEMPERATURE SENDER 4 COOLANT TEMPERATURE SENDER 5 COOLANT TEMPERATURE SENDER 6 COOLANT TEMPERATURE SENDER 7 COOLANT TEMPERATURE SENDER BEFORE HEAT EXCHANGER COOLING WATER LVL SW COOLING WATER SWITCHOVER 1 COOLING WATER SWITCHOVER 3 COUPLING AERIAL COUPLING AERIAL 2 COUPLING BOX STATUS CRANKSHAFT SPEED SENS GND CRASH GND CRASH HIGH CRASH LOW CRASH SIG CRUISE CONT MAIN SW CRUISE CONTACT MAIN SW CRUISE CONTROL SYSTEM CTRL PANEL) CTRL PILOT 1 CYLINDER HEAD GROUND POINT 1 CYLINDER HEAD GROUND POINT 2 CYLINDER HEAD GROUND POINT 3 CYLINDER HEAD GROUND POINT 4 CYLINDER HEAD GROUND POINT 5 CYLINDER HEAD GROUND POINT 6 CYLINDER HEAD GROUND POINT 7 CYLINDER HEAD GROUND POINT 8 DASH PANEL INSERT DATA BUS DIAGNOSTIC INTERFACE DC SIGNAL DEFOGGER SYSTEM DIAGNOSTIC CONNECTION DIGITAL RADIO AERIAL DISCONNECT + DISPOSAL LINE ACL DIST SENS 1 DIST SENS 2 DIST SENS 3 DIST SENS 4 DIST SENS 5 DIVERTER VLV 1 DIVERTER VLV 2 DOOR CONTACT DOOR LOCKS, ANTI-THEFT SYSTEMS DOOR SILL LIGHTING DRIVE HIGH DRIVE LOW DRIVER + DRIVER DOOR AMBIENT LIGHTING 2 DRIVER DOOR AMBIENT LIGHTING 3 DRIVER SAFE LED DRIVER SEAT MULTICONTOUR COMPRESSOR DRIVER SIDE AIR BAG IGNITER DRIVER SIDE AUTOMATIC ANTI-DAZZLE EXTERIOR MIRROR DRIVER SIDE CURTAIN AIR BAG IGNITER DRIVER SIDE ENTRY LIGHT DRIVER SIDE HEATED EXTERIOR MIRROR DRIVER SIDE ILLUMINATED VANITY MIRROR DRIVER SIDE INTERIOR DOOR HANDLE ILLUMINATION LIGHT DRIVER SIDE KNEE AIR BAG IGNITER DRIVER SIDE LIGHT REAR SILL PANEL MOULDING AMBIENT LIGHT DRIVER SIDE LIGHT SILL PANEL MOULDING AMBIENT LIGHTING DRIVER SIDE REAR AIR BAG IGNITER DRIVER SIDE REAR BELT TENSIONER IGNITER DRV AIR BAG STAGE 1 - DRV AIR BAG STAGE 2 - DRV BELT TENSIONER - DRV BUCKLE DRV DOOR PRESS SENS - DRV FORCE LIMITER - DRV PEDESTRIAN DRV PEDESTRIAN PROTECTION SENS - DRV SEAT POSITION DRV SIDE A-PILLAR CRASH SENS + DRV SIDE HEAD AIR BAG - DRV SIDE KNEE AIR BAG + DRV SIDE REAR BELT TENSIONER - DRV SIDE REAR THORAX AIR BAG - DRV THORAX AIR BAG - DRV UP FRONT SENS + DVD CHANGER E-BOX STEERING WHEEL EC MIRROR ELEC PRESS ADJ 1 ELEC PRESS ADJ 2 ELEC PRESS ADJ 3 ELEC PRESS ADJ 4 ELEC PRESS ADJ 5 ELEC PRESS ADJ 6 ELEC PRESS ADJ 7 ELEC PRESS ADJ 8 ELECTRIC DRIVE POWER, CONTROL ELECTRONICS ELECTRICAL AIR CONDITIONER COMPRESSOR ENABLE RADIATOR FAN 1 ENG TEMP GND ENG TEMP SPLY ENTRY, START SYSTEM INTERIOR AERIAL 1 ENTRY, START SYSTEM LUGGAGE COMPARTMENT AERIAL ESD GROUND ETHERNET 1 RX LOW ETHERNET 1 RX PLUS ETHERNET 1 TX LOW ETHERNET 1 TX PLUS EXCEPT 2.9L TWIN TURBO HYBRID, 4.0L TWIN TURBO HYBRID EXCEPT 3.0L TURBO EXCEPT HYBRID EXHAUST FLAP EXHAUST FLAP VLV 3 EXTERIOR LAMPS CIRCUIT EXTERNAL AUDIO SOURCES INTERFACE FILLER FLAP CLOSED FILLER FLAP OPEN FLEXRAY 1+ IN FLEXRAY 1+ OUT FLEXRAY 1- FLEXRAY 1- INPUT FLEXRAY 1- OUTPUT FLEXRAY 2 - FLEXRAY 2- OUTPUT FLEXRAY BRANCH 1 BM FLEXRAY BRANCH 1 BP FLEXRAY BRANCH 2 BM FLEXRAY BRANCH 2 BP FLEXRAY BRANCH 3 BM FLEXRAY BRANCH 3 BP FLEXRAY BRANCH 4 BM FLEXRAY BRANCH 4 BP FLEXRAY BRANCH 5 BM FLEXRAY BRANCH 5 BP FLEXRAY BRANCH 7 BM FLEXRAY BRANCH 7 BP FLEXRAY BRANCH 8 BM FLEXRAY BRANCH 8 BP FLEXRAY INPUT 1+ FLEXRAY INPUT 2 - FLEXRAY TERM 1 BUS - FLEXRAY TERM 2 BUS + FLOW CTRL VLV 1 HS FLOW CTRL VLV 1 LS FLOW CTRL VLV 2 HS FLOW CTRL VLV 2 LS FM 2 FM 2 SCHIRM FOLDING MIRROR POS 1 FOLDING MIRROR POS 2 FORWARD SEAT DEPTH FRESH AIR BLOWER FRONT CENTER CONSOLE BACKGROUND LIGHTING 1 FRONT IONISER 1 FRONT PASSENGER SEAT MULTICONTOUR COMPRESSOR FRONT PASSENGER SIDE AIR BAG IGNITER FRONT PASSENGER SIDE AUTOMATIC ANTI-DAZZLE EXTERIOR MIRROR FRONT PASSENGER SIDE CURTAIN AIR BAG IGNITER FRONT PASSENGER SIDE HEATED EXTERIOR MIRROR FRONT PASSENGER SIDE ILLUMINATED VANITY MIRROR FRONT PASSENGER SIDE KNEE AIR BAG IGNITER FRONT PASSENGER SIDE LIGHT REAR SILL PANEL MOULDING AMBIENT LIGHTING FRONT PASSENGER SIDE LIGHT SILL PANEL MOULDING AMBIENT LIGHTING FRONT PASSENGER SIDE REAR AIR BAG IGNITER FRONT PASSENGER SIDE REAR BELT TENSIONER IGNITER FRONT PDC SENSORS + FRONT ROOF MODULE FRONT SEAT HEIGHT ADJ FRONT SEAT HIGH FRONT SEAT LOW FRT PASS BELT TENSIONER + FRT PASS DOOR PRESS SENS - FRT PASS SIDE REAR THORAX AIR BAG + FUEL HIGH PRESS SENS FUEL HIGH PRESS SENS GND FUEL HIGH PRESS SENS SPLY FUEL INJ 1 FUEL INJ 2 FUEL INJ 3 FUEL INJ 4 FUEL INJ 5 FUEL INJ 6 FUEL LEVEL SENS 1 FUEL LEVEL SENS 2 FUEL LOW PRESS SENS + FUEL LOW PRESS SENS GND FUEL LOW PRESS SENS SPLY FUEL PRESSURE SENDER FUEL PRESSURE SENDER 2 FUEL TANK FILLER NECK EARTH CONNECTION FUN DISPLAY FUN IND FUNCTION DISPLAY FUNCTION IND FUNCTION LED 1 GAS SUSPENSION COMPRESSOR GLASS BREAKAGE DIAGNOSTICS GLASS ROOF OUTPUT 1 MTR 1 GLASS ROOF OUTPUT 1 MTR 2 GLASS ROOF OUTPUT 2 MTR 1 GLASS ROOF OUTPUT 2 MTR 2 GLOVE COMPARTMENT LIGHT GND FUEL LEVEL SENS GND LCM GND LED GND LINE GND POTI GND SENS GND SENSORS GPS AERIAL GPS SIGNAL GROUND ACTUATORS GROUND LINE GROUND POTI GSM SIGNAL HALL SENDER HALL SENDER 2 HALL SENS HALL SENS FORE/AFT + HALL SENS HEIGHT + HALL SENS SIG HANDSFREE MICROPHONE + HEAD BLOCK VLV - HEADLIGHTS SYSTEM HEAT EXCHANGER HEATED REAR WINDOW HI RANGE CENTER LOUDSPEAKER - HI VOLT MINUS HI VOLT PLUS HIGH MOUNTED STOP LIGHT HIGH PRESS FUEL INJ CYL 1 HS HIGH PRESS FUEL INJ CYL 1 LS HIGH PRESS FUEL INJ CYL 2 HS HIGH PRESS FUEL INJ CYL 2 LS HIGH PRESS FUEL INJ CYL 3 HS HIGH PRESS FUEL INJ CYL 3 LS HIGH PRESS FUEL INJ CYL 4 HS HIGH PRESS FUEL INJ CYL 4 LS HIGH PRESS FUEL INJ CYL 5 HS HIGH PRESS FUEL INJ CYL 5 LS HIGH PRESS FUEL INJ CYL 6 HS HIGH PRESS FUEL INJ CYL 6 LS HIGH PRESS FUEL INJ CYL 7 HS HIGH PRESS FUEL INJ CYL 7 LS HIGH PRESS FUEL INJ CYL 8 HS HIGH PRESS FUEL INJ CYL 8 LS HIGH RAIL FUEL PRESSURE SENDER HIGH VOLT MINUS HIGH VOLT PLUS HIGH VOLTAGE MINUS HIGH VOLTAGE PLUS HORIZONTAL LUMBAR HORNS SYSTEM HOT AT ALL TIMES HV BATT - HW DISABLE IGN SIG IN E-CALL PWM IN FRONT OF INFO HIGH INFO LOW INITIAL CATCH TAILGATE INJECTOR CYLINDER 1 INJECTOR CYLINDER 2 INJECTOR CYLINDER 3 INJECTOR CYLINDER 4 INJECTOR CYLINDER 5 INJECTOR CYLINDER 6 INJECTOR CYLINDER 7 INJECTOR CYLINDER 8 INPUT CRASH PWM INSTRUMENT CLUSTER INSTRUMENT CLUSTER CIRCUIT INSTRUMENT CLUSTER SYSTEM INTAKE CAMSHAFT CONTROLLER 1 INTAKE CAMSHAFT CONTROLLER 2 INTAKE CAMSHAFT SENS BANK 1 - INTAKE CAMSHAFT SENS BANK 2 - INTAKE MANIFOLD PRESSURE SENDER INTAKE MANIFOLD PRESSURE SENDER 2 INTERIOR LIGHT) INTERIOR MIRROR JUMP START CONNECTION KL 30 KL 31 KL 87 KNOCK SENS 1 BANK 1 SIG 1 KNOCK SENS 1 BANK 1 SIG 2 KNOCK SENS 1 BANK 2 SIG 1 KNOCK SENS 1 BANK 2 SIG 2 KNOCK SENS 2 BANK 1 SIG 1 KNOCK SENS 2 BANK 1 SIG 2 KNOCK SENS 2 BANK 2 SIG 1 KNOCK SENS 2 BANK 2 SIG 2 LAMBDA CTRL LCA LED - LCA LED LE LDVS IN - LDVS OUT 1 + LDVS OUT 2 + LE BR/IND LIGHT 1 LE BR/IND LIGHT 2 LE DIR IND BRAKE LED A LED ANODE LED CATHODE LED GND 1 LED K LED SUPPLY LEFT CENTER READING LIGHT LEFT DAYTIME RUNNING LIGHT, SIDE LIGHT LED MODULE 1 LEFT DAYTIME RUNNING LIGHT, SIDE LIGHT LED MODULE 2 LEFT DAYTIME RUNNING LIGHT, SIDE LIGHT LED MODULE 3 LEFT DAYTIME RUNNING LIGHT, SIDE LIGHT LED MODULE 4 LEFT EFFECT LOUDSPEAKER LEFT EXHAUST-GAS FLAP LEFT FOOTWELL VENT TEMPERATURE SENDER LEFT FRONT ACTIVE WIDE BAND LOUDSPEAKER LEFT FRONT BASS LOUDSPEAKER LEFT FRONT BODY ACCELERATION SENDER LEFT FRONT BRAKE PAD WEAR SENDER LEFT FRONT CENTER CONSOLE BACKGROUND LIGHTING 2 LEFT FRONT CENTER PARKING AID SENDER LEFT FRONT FLASHING LIGHT LEFT FRONT FOOTWELL LIGHT 1 LEFT FRONT FOOTWELL LIGHT 2 LEFT FRONT MID-RANGE LOUDSPEAKER LEFT FRONT PARKING AID SENDER LEFT FRONT SEAT BACKREST FAN 1 LEFT FRONT SEAT BELT LEFT FRONT SEAT CUSHION FAN 1 LEFT FRONT SEAT HEATED BACKREST LEFT FRONT SEAT HEATED CUSHION LEFT FRONT SEAT HEATED SEAT CUSHION LEFT FRONT TREBLE LOUDSPEAKER LEFT FRONT VEHICLE LEVEL SENDER LEFT FRONT WHEEL ACCELERATION SENDER LEFT FUNCTION IND LEFT HIGH BEAM LEFT LOW BEAM LEFT LUGGAGE COMPARTMENT LIGHT LEFT NUMBER PLATE LIGHT LEFT PEDESTRIAN PROTECTION TRIGGER 1 LEFT POTENTIOMETER SIG LEFT READING LIGHT LEFT REAR BASS LOUDSPEAKER LEFT REAR BODY ACCELERATION SENDER LEFT REAR BRAKE PAD WEAR SENDER LEFT REAR CENTER PARKING AID SENDER LEFT REAR DOOR BACKGROUND LIGHTING 1 LEFT REAR DOOR STORAGE COMPARTMENT ILLUMINATION LIGHT LEFT REAR ENTRY LIGHT LEFT REAR ENTRY, START AUTHORIZATION AERIAL LEFT REAR FOOTWELL LIGHT LEFT REAR FOOTWELL VENT TEMPERATURE SENDER LEFT REAR ILLUMINATED VANITY MIRROR LEFT REAR INTERIOR LIGHT LEFT REAR MID-RANGE/ LOUDSPEAKER LEFT REAR PARKING AID SENDER LEFT REAR SEAT BACKREST FAN 1 LEFT REAR SEAT CUSHION FAN 1 LEFT REAR SEAT HEATED BACKREST LEFT REAR SEAT HEATED BENCH CUSHION LEFT REAR SEAT HEATED BENCH SEAT CUSHION LEFT REAR SMART DISPLAY CHARGING STATION LEFT REAR TREBLE LOUDSPEAKER LEFT REAR VEHICLE LEVEL SENDER LEFT REAR WHEEL ACCELERATION SENDER LEFT REVERSING LIGHT LEFT SIDE FRONT PARKING AID SENDER 2 LEFT SIDE VENT BLOWER LEFT STATIC CORNERING LIGHT LEFT STEERING WHEEL REMOTE CONTROL LEFT TAIL LIGHT 1 LEFT TAIL LIGHT 1 REAR LID WARN LUGG COMP LIGHT LEFT TAIL LIGHT 2 LEFT TAILGATE GROUND POINT 2 LEFT TAILLIGHT LEFT TAILLIGHT 2 LEFT TERM 30 LF ACCEL SENS - LF ADD VOLUME 2- LF ADD VOLUME 3- LF AIR LINE LF AIR SPRING VLV - LF FOOTWELL LIGHT LF INPUT SPD SENS SIG LF LO RANGE SPKR - LF LSP-MID-RANGE/WOOFER LF MID-RANGE LOUDSPEAKER - LF MID-RANGE TWEETER - LF MID-RANGE/WOOFER LSP + LF OUTER DOOR HANDLE ELECTRONICS LF PARKING LIGHT LF SHOCK ABSORBERS VLV - LF SIDE MARKER LIGHT LF SPD SENS SPLY LF SPKR LF TWEETER LSP + LF TWEETER+ LF WINDOW LF WOOFER LSP + LH CENTER READING LIGHT LH EPB ACT + LH EPB MTR + LH HIGH BEAM LH LOW BEAM LIFT WINDOW LIN 1 LIN 2 LIN 3 LIN 3 VIRTUAL PEDAL + LIN 4 LIN 5 LIN 6 LIN CLIMATE LIN GROUND LIN INPUT LIN INT SURVEILLANCE LIN OCCUPANT LIN OUTPUT LIN ROOF CONSOLE LOCATING LIGHT LOCKING BOLT 1 LOCKING BOLT 2 LOCKING PAWL LONG WHEEL BASE LOW FUEL PRESSURE SENDER LOW PRESS SENS LOWER REAR SUN BLIND LOWER WINDOW LR ADD VOLUME 2+ LR ADD VOLUME 3+ LR AIR LINE LR AIR SPRING VLV - LR INPUT SPD SENS SIG LR LO RANGE SPKR - LR LSP-MID-RANGE/WOOFER RR LSP-MID-RANGE/WOOFER LR MID-RANGE SPKR - LR MID-RANGE/WOOFER LSP + LR OUTER DOOR HANDLE ELECTRONICS LR READING LIGHT LR SHOCK ABSORBERS VLV - LR SPD SENS SPLY LR SPKR LR SURROUND LOUDSPEAKER + LR TWEETER + LR TWEETER LSP - LR WINDOW LSP + LT COOLANT PILOTLINE IN LT COOLANT PMP RLY LT HI RANGE LOUDSPEAKER - LT MID-RANGE LOUDSPEAKER - LTE AERIAL 1 LTE AERIAL 2 DATEN LTE DATA LTE TELEPHONE LUGGAGE COMP LIGHT LUGGAGE COMPT) LUMBAR FORWARD/BACK LUMBAR HIGH LOW LVDS 1 - LVDS 2 - LVDS IN + MAIN CATCH TAILGATE MARKER LIGHT MASSE POTI MEMORY CTRL SW MEMORY OFF LED MIB LVDS + MICRO SW MICROPHONE 1 - MICROPHONE 2 + MID-RANGE CENTER LOUDSPEAKER - MIRROR ADJ MIRROR ADJUSTMENT MIRROR CHANGEOVER SW MIRROR COURTESY LIGHT MIRROR DIRECTION IND MIRROR EC GLASS MIRROR EC GLASS GND MIRROR FOLDING 1 MIRROR STATUS POS X MIRROR STATUS POS Y MIRROR SUPPLY MIRROR TERM 31 MIRRORS, MEMORY SYSTEMS MMI HIGH MMI LOW MOST IN MOST OUT MTR 1 - MTR 2 - MTR A MTR A BACK MTR B MTR B BACK MTR GND MULTIMEDIA SYSTEM N/A N/A NAVIGATION SYSTEM NERNST VOLTAGE BANK 1 NOT USED NTC CHANNEL 1 NTC- NUMBER PLATE LIGHT + O/T RLY F PLUG SOCKETS OCCUPANT DETECTION + OIL LEVEL TMP/OIL SENS + OIL LEVEL, OIL TEMPERATURE SENDER OIL PRESS REG VLV - OIL PRESS REGULATING VLV HS OIL PRESS REGULATING VLV LS OIL PRESS SENS OIL PRESS SENS GND OIL PRESS SW OIL PRESSURE SENDER OIL SENDER PULSE - OIL TEMP SENS OIL TEMPERATURE SENDER OPT WAVEGUIDE IN OPT WAVEGUIDE OUT OPTICAL WAVEGUIDE IN OPTICAL WAVEGUIDE OUT ORIENTATION LIGHT OUTER DOOR HANDLE OUTLET CAMSHAFT CONTROLLER 1 OUTLET CAMSHAFT CONTROLLER 2 OUTLET CAMSHAFT SENS BANK 1 - OUTLET CAMSHAFT SENS BANK 2 - OUTPUT RLY F PLUG SOCKETS P/N START RELEASE PARKING AID REAR LOUDSPEAKER PASS A-PILLAR SIDE SENS - PASS ACTIVE LID - PASS AIR BAG STAGE 1 - PASS AIR BAG STAGE 2 - PASS BUCKLE PASS FORCE LIMITER + PASS SEAT POS PASS SIDE HEAD AIR BAG + PASS SIDE KNEE AIR BAG + PASS THORAX AIR BAG + PASS UP FRONT SENS + PASS UPFRONT SENS - PASSENGER DOOR AMBIENT LIGHTING 2 PASSENGER DOOR AMBIENT LIGHTING 3 PASSENGER SIDE AUTOMATIC ANTI-DAZZLE EXTERIOR MIRROR PASSENGER SIDE ENTRY LIGHT PASSENGER SIDE HEATED EXTERIOR MIRROR PASSENGER SIDE INTERIOR DOOR HANDLE ILLUMINATION LIGHT PDC SENSORS FRONT - PDC SENSORS REAR + PEDAL SENS 1 ANALOGUE SIG PEDAL SENS 1 GND PEDAL SENS 1 SIG PEDAL SENS 2 ANALOGUE SIG PEDAL SENS 2 GND PEDAL SENS 2 SIG PEDAL-TRAVEL SENS CHANNEL 1 PEDAL-TRAVEL SENS CHANNEL 2 PEDAL-TRAVEL SENS GND PEDAL-TRAVEL SENS SPLY PHASE U PHASE V PHASE W PILOTLINE IN PILOTLINE OUT PIVOTING LED 1 PIVOTING LED 2 PLUG 1 PLUG 1 GND POS CRANKCASE VENTILATION HTR 2 POS CRANKCASE VENTILATION VLV POS SIG 1 POS SIG 2 POSITION BUTTONS POTENTIAL EQUALISATION POTENTIOMETER ENG 1 POTENTIOMETER ENG 2 POTENTIOMETER SUPPLY POWER DISTRIBUTION SYSTEM POWER ELECTRONICS SENS + POWER MIRROR TERM 31 POWER SUPPLY POWER WINDOW CTRL SW POWER WINDOWS SYSTEM POWER WINDOWS, LOCAL PRESS SENS 1 PRESS SENS 2 PRESS SENS 3 PRESS SENS IN ACTIVE PRIVAT HIGH PRIVAT LOW PRK BRK FUN DISPLAY PRK BRK FUNC DISPLAY PROXIMITY 1 PUSH-IN BRIDGE PWM CLOCK SIGNAL PWM OPENING FLAP 1 PWM OUTPUT MODULE 3 PWM SEARCH LIGHTING PWM SIG PWR ON R/L DETECTION RADIATOR FAN RADIATOR FAN 1 PWM RADIATOR OUTLET RAIL PRESS SENS 1 RAIL PRESS SENS 1 GND RAIL PRESS SENS 2 RAIL PRESS SENS 2 GND RAISE REAR SUN BLIND RAISE WINDOW + READING LIGHT REAR DRIVER SIDE DOOR LOUDSPEAKER TRIM LIGHT REAR DRIVER SIDE MULTICONTOUR SEAT COMPRESSOR REAR ENTRY, START SYSTEM AUTHORIZATION AERIAL REAR INTERIOR LIGHT REAR IONISER REAR IONISER 2 REAR LID LIGHT REAR LID LIGHT 2 REAR LID POWER LATCHING REAR LID POWER OPENING SENDER REAR LID WARNING REAR LID WARNING BUZZER REAR LOUDSPEAKER - REAR PASS SIDE BELT TENSIONER - REAR PASSENGER SIDE DOOR LOUDSPEAKER TRIM LIGHT REAR PASSENGER SIDE MULTICONTOUR SEAT COMPRESSOR REAR PDC SENSORS + REAR SEAT HEIGHT ADJ REAR SEAT HIGH REAR SEAT LOW REAR SPOILER POSITION SENDER REAR WINDOW BREAKAGE SENS REAR WINDOW WIPER REAR WINDOW WIPER LIMIT REFRIGERANT PRESSURE, TEMPERATURE SENDER REFRIGERANT PRESSURE, TEMPERATURE SENDER 2 REMOTE + RESET CENTER COMP DCP RESET DCP CENTER COMP RESET DISPLAY CTRL PANEL RETURN STOP RF ACCEL SENS - RF ADD VOLUME 2+ RF ADD VOLUME 3- RF AIR LINE RF AIR SPRING VLV - RF FOOTWELL LIGHT RF LO RANGE SPKR - RF LSP-MID-RANGE/WOOFER RF MID-RANGE LOUDSPEAKER - RF MID-RANGE/WOOFER LSP+ RF OUTER DOOR HANDLE ELECTRONICS RF PARKING LIGHT RF SHOCK ABSORBERS VLV - RF SIDE MARKER LIGHT RF SPD SENS IN RF SPD SENS SPLY RF SPKR RF SURFACE RF TWEETER - RF TWEETER LSP - RF WINDOW RF WOOFER LSP + RH CENTER READING LIGHT RH EPB ACT + RH EPB MTR - RH HIGH BEAM RH LOW BEAM RH POTENTIOMETER SIG RI BR/IND LIGHT 1 RI BR/IND LIGHT 2 RI DIR IND BRAKE RIGHT CENTER READING LIGHT RIGHT DAYTIME RUNNING LIGHT, SIDE LIGHT LED MODULE 1 RIGHT DAYTIME RUNNING LIGHT, SIDE LIGHT LED MODULE 2 RIGHT DAYTIME RUNNING LIGHT, SIDE LIGHT LED MODULE 3 RIGHT DAYTIME RUNNING LIGHT, SIDE LIGHT LED MODULE 4 RIGHT EFFECT LOUDSPEAKER RIGHT EXHAUST GAS FLAP RIGHT FOOTWELL VENT TEMPERATURE SENDER RIGHT FRAME RAIL) RIGHT FRONT ACTIVE WIDE BAND LOUDSPEAKER RIGHT FRONT BASS LOUDSPEAKER RIGHT FRONT BODY ACCELERATION SENDER RIGHT FRONT BRAKE PAD WEAR SENDER RIGHT FRONT CENTER CONSOLE BACKGROUND LIGHTING 3 RIGHT FRONT CENTER PARKING AID SENDER RIGHT FRONT FLASHING LIGHT RIGHT FRONT FOOTWELL LIGHT 1 RIGHT FRONT FOOTWELL LIGHT 2 RIGHT FRONT MID-RANGE LOUDSPEAKER RIGHT FRONT PARKING AID SENDER RIGHT FRONT SEAT BACKREST FAN 1 RIGHT FRONT SEAT BELT RIGHT FRONT SEAT CUSHION FAN 1 RIGHT FRONT SEAT HEATED BACKREST RIGHT FRONT SEAT HEATED CUSHION RIGHT FRONT SEAT HEATED SEAT CUSHION RIGHT FRONT TREBLE LOUDSPEAKER RIGHT FRONT VEHICLE LEVEL SENDER RIGHT FRONT WHEEL ACCELERATION SENDER RIGHT FUNCTION IND RIGHT HIGH BEAM RIGHT LOW BEAM RIGHT LUGGAGE COMPARTMENT LIGHT RIGHT NUMBER PLATE LIGHT RIGHT PEDESTRIAN PROTECTION TRIGGER 2 RIGHT READING LIGHT RIGHT REAR BASS LOUDSPEAKER RIGHT REAR BODY ACCELERATION SENDER RIGHT REAR BRAKE PAD WEAR SENDER RIGHT REAR CENTER PARKING AID SENDER RIGHT REAR DOOR BACKGROUND LIGHTING 1 RIGHT REAR DOOR STORAGE COMPARTMENT ILLUMINATION LIGHT RIGHT REAR ENTRY LIGHT RIGHT REAR ENTRY, START AUTHORIZATION AERIAL RIGHT REAR FOOTWELL LIGHT RIGHT REAR FOOTWELL VENT TEMPERATURE SENDER RIGHT REAR ILLUMINATED VANITY MIRROR RIGHT REAR INTERIOR LIGHT RIGHT REAR MID-RANGE/ LOUDSPEAKER RIGHT REAR PARKING AID SENDER RIGHT REAR SEAT BACKREST FAN 1 RIGHT REAR SEAT CUSHION FAN 1 RIGHT REAR SEAT HEATED BACKREST RIGHT REAR SEAT HEATED BENCH CUSHION RIGHT REAR SMART DISPLAY CHARGING STATION RIGHT REAR TREBLE LOUDSPEAKER RIGHT REAR VEHICLE LEVEL SENDER RIGHT REAR WHEEL ACCELERATION SENDER RIGHT REVERSING LIGHT RIGHT SIDE FRONT PARKING AID SENDER 2 RIGHT SIDE VENT BLOWER RIGHT STATIC CORNERING LIGHT RIGHT STEERING WHEEL REMOTE CONTROL RIGHT TAIL LIGHT 1 RIGHT TAIL LIGHT 2 RIGHT TAILGATE GROUND POINT RIGHT TAILGATE GROUND POINT 2 RIGHT TAILLIGHT RIGHT TAILLIGHT 2 RIGHT TERM 30 RING BRAKE DIAGNOSIS RING BREAK DIAGNOSIS ROLLER BLIND ROTARY VANE POSITION RR ADD VOLUME 2+ RR ADD VOLUME 3- RR AIR LINE RR AIR SPRING VLV - RR IN SPD SENS SIG RR LO RANGE SPKR - RR MID-RANGE SPKR - RR MID-RANGE/WOOFER LSP + RR OUTER DOOR HANDLE ELECTRONICS RR READING LIGHT RR SHOCK ABSORBERS VLV - RR SPD SENS SPLY RR SPKR RR SURROUND LOUDSPEAKER + RR TWEETER LSP - RR WIDE BAND SPKR TWEETER - RR WIDE-BAND SPKR - RR WINDOW RT HI RANGE LOUDSPEAKER + MID-RANGE CENTER LOUDSPEAKER + RT HI RANGE LOUDSPEAKER - RT MID-RANGE LOUDSPEAKER - RT MID-RANGE WIDE-BAND SPKR + RX DATA RX MOST SAFE LED, DRIVER SATELLITE TUNER AERIAL SEARCH LIGHTING SEAT ANG ADJ HALL SEN SEAT ANG ADJ HALL SENS SEAT ANGLE ADJ 1 SEAT ANGLE ADJ 2 SEAT BACKREST ADJ SEAT BACKREST BOLSTER ADJ SEAT BACKREST) SEAT BELT SEAT CUSHION BOLSTER ADJ SEAT CUSHION DEPTH ADJ SEAT DEPTH ADJ 1 SEAT DEPTH ADJ 2 SEAT DEPTH ADJ HALL SEN SEAT DEPTH ADJ HALL SENS SEAT F/A ADJ HALL SEN SEAT F/A ADJ HALL SENS SEAT FORE, AFT ADJ SEAT FORE, AFT ADJ 1 SEAT FORE, AFT ADJ 2 SEAT HEIGHT ADJ 1 SEAT HEIGHT ADJ 2 SEAT HIGH SEAT HT ADJ HALL SEN SEAT HT ADJ HALL SENS SEAT LOW SEAT TEMPERATURE SEATCUSHION DEPTH ADJ SEATS SYSTEM SEATS, SUPPLEMENTAL RESTRAINTS SYSTEMS SENS 1 GND SENS 1 SPLY SENS 2 GND SENS 2 SPLY SENS GND SENS SPLY SENS VOL - SENS VOLT SENS VOLTAGE - SHIFT CONTACT SHUT-OFF VLV SIG PRESS SENS SIGNAL 1 SIGNAL 2 SIGNAL 3 SIGNAL 4 CHANNEL 1 ANODE SIGNAL 5 SIGNAL 6 SIGNAL 6 CHANNEL 1 SIGNAL 7 SIGNAL - CHANNEL 2 CATHODE SIGNAL LIFT SLIDING ROOF SOUND ACQUISITION MICROPHONE + SOUND SYSTEMS SP DIST HV- SPEED CRANKSHAFT SPLY SERVO MOTORS 1 SPLY SERVO MOTORS 2 START RELEASE START RELEASE PARK/NEUTRAL STARTING CIRCUIT STARTING/ CHARGING SYSTEM STARTING/CHARGING SYSTEM STEERING WHEEL GROUND STEERING WHEEL GROUND 1 STEERING WHEEL GROUND 2 STEERING WHEEL) STOP LIGHT STOP LIGHT SW STOP LT SW STR RLY 1 STR RLY 2 SUNBLIND MTR + SUPPLEMENTAL RESTRAINTS SYSTEM SV STATUS SWIVEL IN SIGNAL SWIVEL OUT SIGNAL TAILGATE INITIAL CATCH TAILGATE MAIN CATCH TAILGATE RELEASE TANK CAP POSITION TANK LEAK DIAG VLV TANK LEAK DIAGN SIG TANK LEAK DIAGN SIGNAL TANK LEAK DIAGN VLV TANK LEAKAGE TANK LID RELEASE TANK PRESS SENS TANK SHUT-OFF VLV TANK VENT VLV 1 TANK VENT VLV 2 TEL ON TELEPHONE AERIAL 2 TELEPHONE AERIAL 3 TEMP RTN TEMP SENS TEMP SENS 1 + TEMP SENS 6 TEMP SENS 7 TEMP SENS 8 TEMP SENS 10 TEMP SENS 11 TEMP SENS 12 TEMP SENS AT TEMP SENS CYL HEAD - TEMP SENS E-M GND TEMP SENS E-M SHIELD TEMP SENS E-MACHINE TEMP SENS GND TEMP SENS ON CRANKCASE - TEMP SPLY + TERM 15 TERM 15 ACTIVATION TERM 15 COD VA TERM 15 LOAD TERM 15 WAKE UP TERM 30 TERM 30 1 TERM 30 2 TERM 30 ACTUATORS + SENSORS TERM 30 A/C TERM 30 CHARGING LINE TERM 30 ELECTRONICS TERM 30 HEATED SEATS TERM 30 INTERIOR LIGHT TERM 30 LOAD TERM 30 PLUG SOCKETS TERM 30 SD TERM 30 SWITCHED TERM 30 VALVES TERM 30-2 TERM 30-3 TERM 31 TERM 31 POWER TERM 31 POWER MIRROR TERM 31 SWITCHED TERM 31 VALVES TERM 31-1 TERM 31-2 TERM 31-3 TERM 31/42 TERM 40 TERM 41 TERM 50 TERM 58 D TERM 58 S TERM 58 XS TERM 87 TERMINAL 15 SV STATUS TERMINAL 30 SUNROOF TERMINAL 40 TERMINAL 40 WIRING JUNCTION TERMINAL 41 TERMINAL 50 FEEDBACK TERMINAL 58 S THERM PROT THERMOSTAT MAP THROTTLE VLV 2 ACTUAL VLV 1 THROTTLE VLV 2 ACTUAL VLV 2 THROTTLE VLV 2 GND THROTTLE VLV ACTUAL 1 THROTTLE VLV ACTUAL 2 THROTTLE VLV GND TIMER CHARGE TIP-DOWN TIP-UP TMO-14 TRAILER TOWING COUPLING TRANS OIL TEMP + TRANSFER PIN K TRANSFER PIN L TRANSFER PIN M TRANSFER PIN N TRANSFER PIN P TRANSFER PIN R TRANSMISSIONS SYSTEM TRUNK, TAILGATE, FUEL DOORS SYSTEM TRUNK, TAILGATE, FUEL DOORS, DOOR LOCKS, ANTI-THEFT SYSTEMS TURBOCHARGER SPEED 2 + TURN SIGNAL TX DATA TX MOST USB DATA - USB GND USB GROUND USB HUB ACTIVATION USB VCC VACUUM CTRL VLV 1 VACUUM CTRL VLV 2 VACUUM SENDER VACUUM SENDER 2 VEHICLE LOCATION SYSTEM AERIAL 1 VEHICLE LOCATION SYSTEM AERIAL 2 VEHICLE LOCATION SYSTEM AERIAL 3 VEHICLE LOCATION SYSTEM AERIAL 3 SHIELD VERTICAL LUMBAR VIDEO 1 SIGNAL VIDEO 2 SIGNAL VIDEO GND VIDEO OUT 1+ VIRTUAL PEDAL + VLV - VOGT COSINE SIG VOGT GND VOGT SCREEN VOGT SINE SIG VOGT SPLY VOLTAGE CONVERTER VOLUME- W/ BURMESTER W/ DVD CHANGER W/ MEMORY W/O BUSINESS PACKAGE W/O MEMORY WAKE-UP ETHERNET WASHER FLUID LEVEL WINDOW CODED WINDSCREEN WASHER FLUID LEVEL SENDER WINDSCREEN WIPER WIPER/ WASHER SYSTEM WIPER/WASHER SYSTEM WIPER/WASHER, INSTRUMENT CLUSTER SYSTEMS ZERO LINE ZK DIST HV+
