Porsche Cayman 987 (2005-2009) hot in run or start Wiring diagrams
This page contains all the electrical diagrams for the component. hot in run or start, in which he is found in the car Porsche Cayman 987 (2005-2009). You can view various wiring diagrams where this component is used, as well as go to more detailed diagrams to see the complete connection and interaction in the system. All diagrams have links to quickly jump to the corresponding section with the component for easy viewing..
Wiring diagram hot in run or start (1 of 2)
1 2 3 4 5 TERM 15 TERM 31 BACK UP SIGNAL ACTUATION + ACTUATION -
1 2 ANTI-DAZZLE MIRROR + ANTI-DAZZLE MIRROR -
A/T M/T
ANTI-DAZZLE INTERIOR MIRROR
BACK UP LIGHT SW CAN COMFORT HIGH CAN COMFORT LOW
BACK-UP LIGHT SWITCH (ON TOP RIGHT OF TRANSMISSION)
BLK WIRE
BLK/BLU WIRE
BLK/ORG WIRE
BRIDGE PLUG (RELAY SUPPORT 1)
BRN WIRE
BRN/WHT WIRE
CAN COMFORT HIGH CAN COMFORT LOW BACK UP LIGHT
COMPUTER DATA LINES SYSTEM
FUSE
FUSE HOLDER C (UNDER LEFT SIDE OF DASH, AT KICK PANEL)
GRN/BLK WIRE
HOT IN RUN OR START
MIRROR CONTROL UNIT
NCA WIRE
ON-BOARD COMPUTER NETWORK CONTROL UNIT (UNDER LEFT SIDE OF DASH)
REAR CONTROL UNIT (UNDER DRIVER'S SEAT)
YEL WIRE
YEL/BLK WIRE
Go to component -> Auto anti-dazzling mirror circuit -> HOT IN RUN OR START

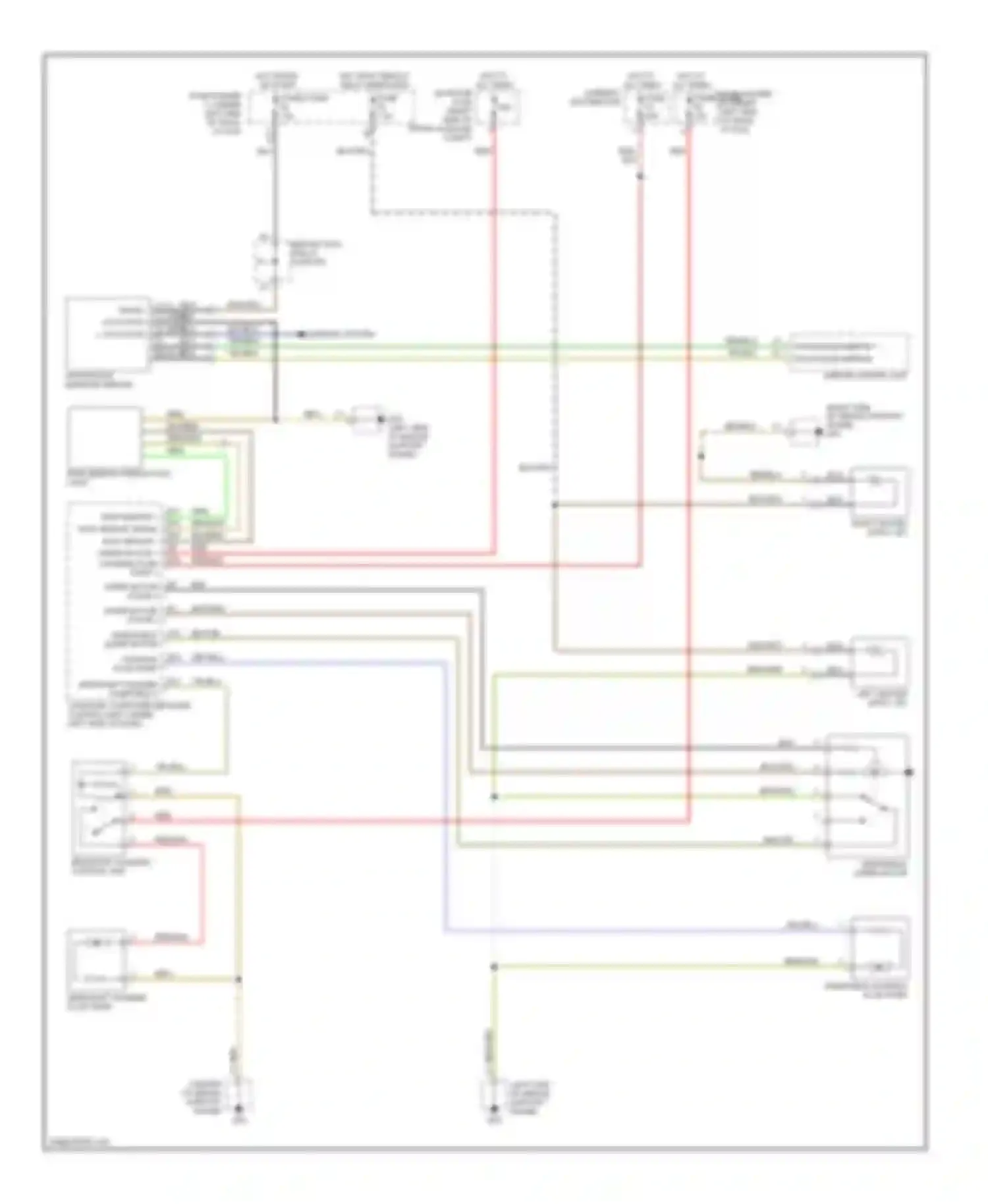

Wiring diagram hot in run or start (2 of 2)
1 2 3 4 5 TERM 15 TERM 31 BACK UP SIGNAL ACTUATION + ACTUATION -
ANTI-DAZZLE INTERIOR MIRROR
ANTI-DAZZLE MIRROR + ANTI-DAZZLE MIRROR -
BLK WIRE
BLK/BLU WIRE
BLK/BRN WIRE
BLK/ORG WIRE
BLK/YEL WIRE
BRIDGE PLUG (RELAY SUPPORT 1)
BRN WIRE
BRN/BLK WIRE
BRN/GRN WIRE
BRN/WHT WIRE
CURRENT DISTRIBUTOR FUSE
FUSE
FUSE HOLDER B (UNDER LEFT SIDE OF DASH, AT KICK PANEL) FUSE
FUSE HOLDER C (UNDER LEFT SIDE OF DASH, AT KICK PANEL) FUSE
GRN WIRE
GRN/BLK WIRE
GRY/BLU WIRE
HEADLIGHT CLEANER PUMP RELAY
HEADLIGHT WASHING CONTROL UNIT
HEADLIGHT WASHING FLUID PUMP
HOT AT ALL TIMES
HOT IN RUN OR START
HOT WITH TERM 15 RELAY ENERGIZED
LEFT HEATED SPRAY JET
MAXIFUSE (FAN) (RIGHT SIDE OF FRONT LUGGAGE COMPT)
MIRROR CINTROL UNIT
MIRRORS SYSTEM
NCA WIRE
ON-BOARD COMPUTER NETWORK CONTROL UNIT (UNDER LEFT SIDE OF DASH)
RAIN SENSOR ORIENTATION LIGHT
RED WIRE
RED/BLK WIRE
RED/GRY WIRE
RIGHT HEATED SPRAY JET
WASHING FLUID PUMP
WINDSHIELD WASHING FLUID PUMP
WINDSHIELD WIPER MOTOR
WIPER MOTOR STAGE 1
YEL/BLK WIRE
YEL/BLU WIRE
Go to component -> Front wiper/washer & headlamp washer circuit, with rain sensor -> HOT IN RUN OR START
