Wiring Diagrams for Porsche Cayman GT4 981 (2015-2016)

Active bodyworks circuit

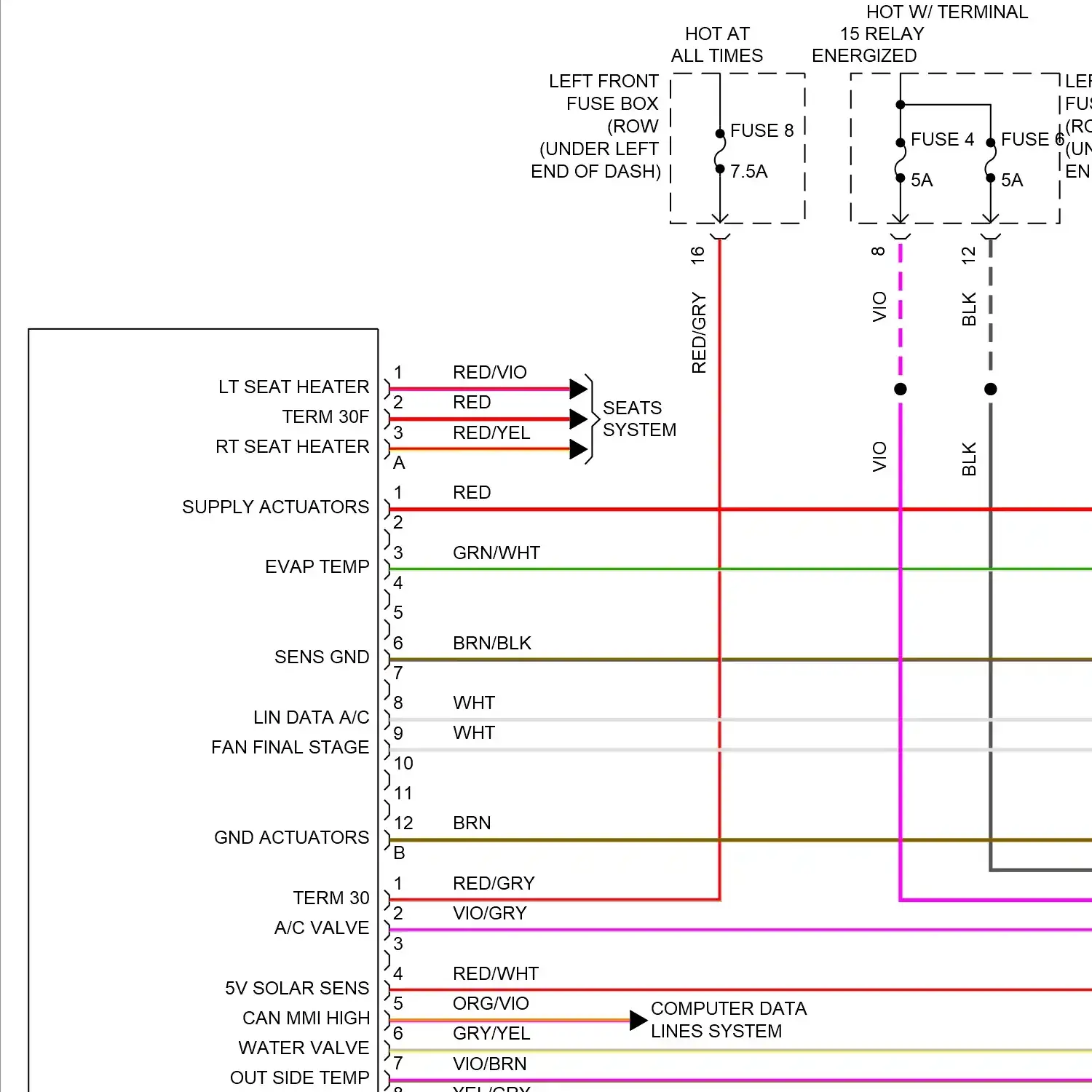

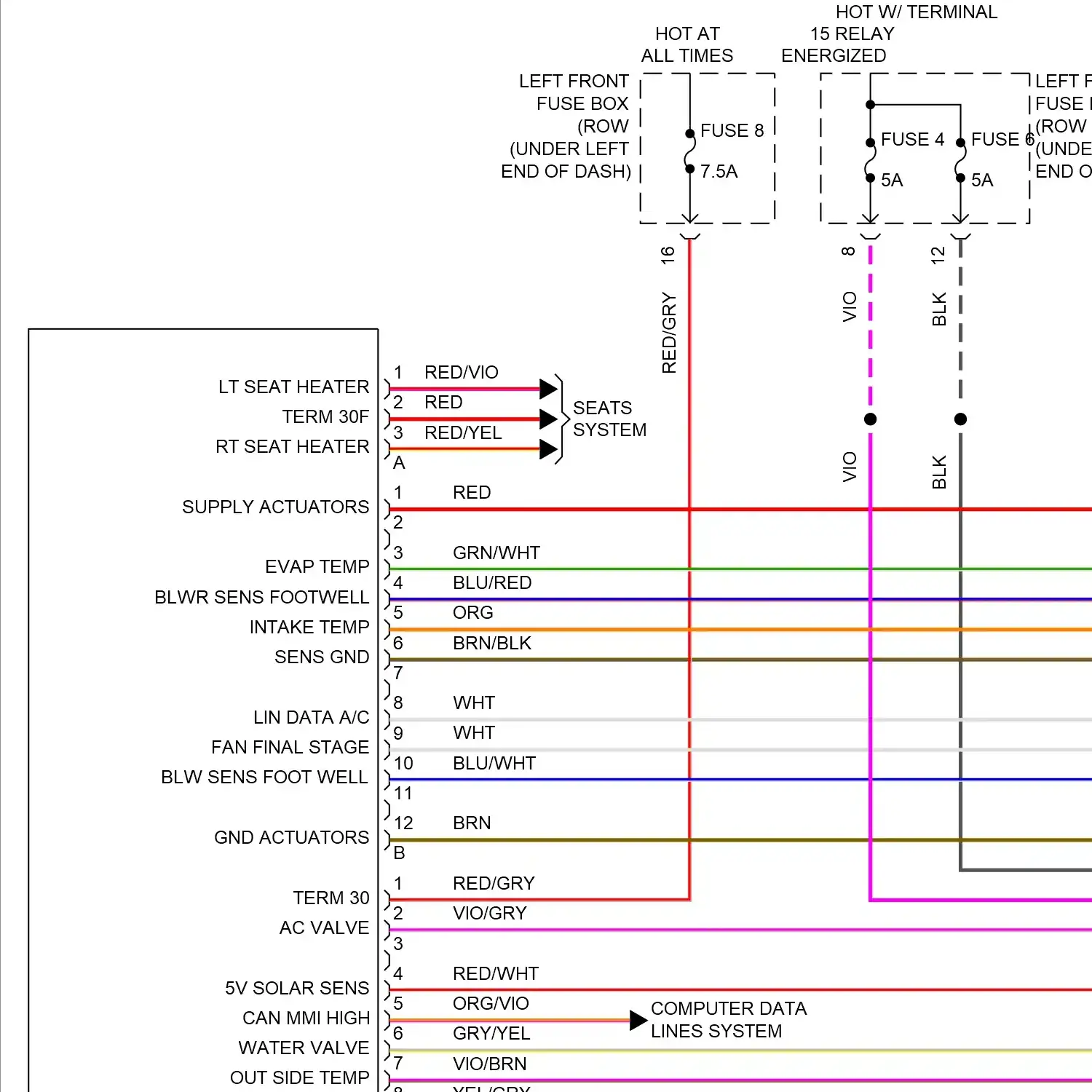

Automatic a/c circuit Manual a/c circuit

Anti-lock brakes circuit

Anti-theft circuit

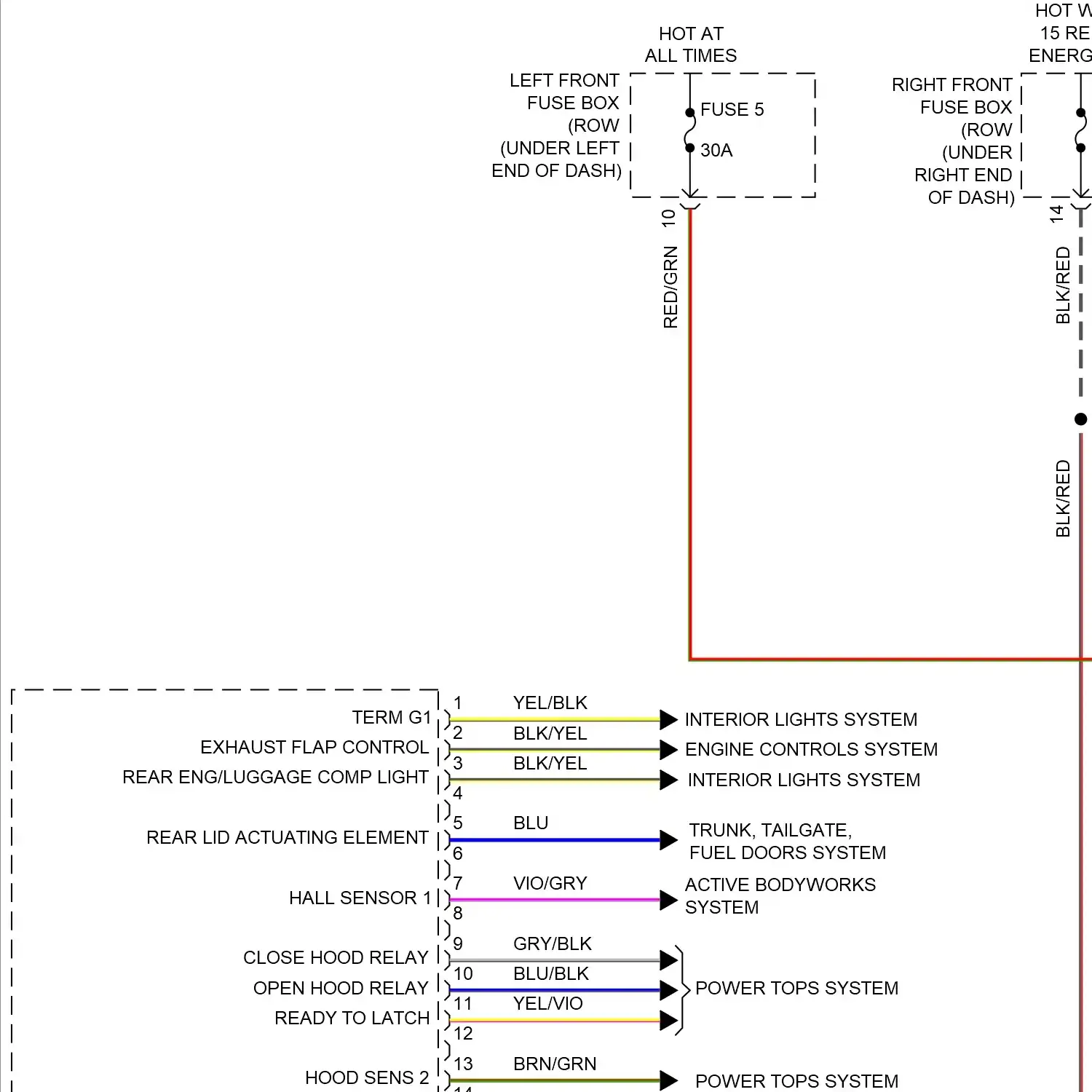

Front controller circuit Rear control unit circuit

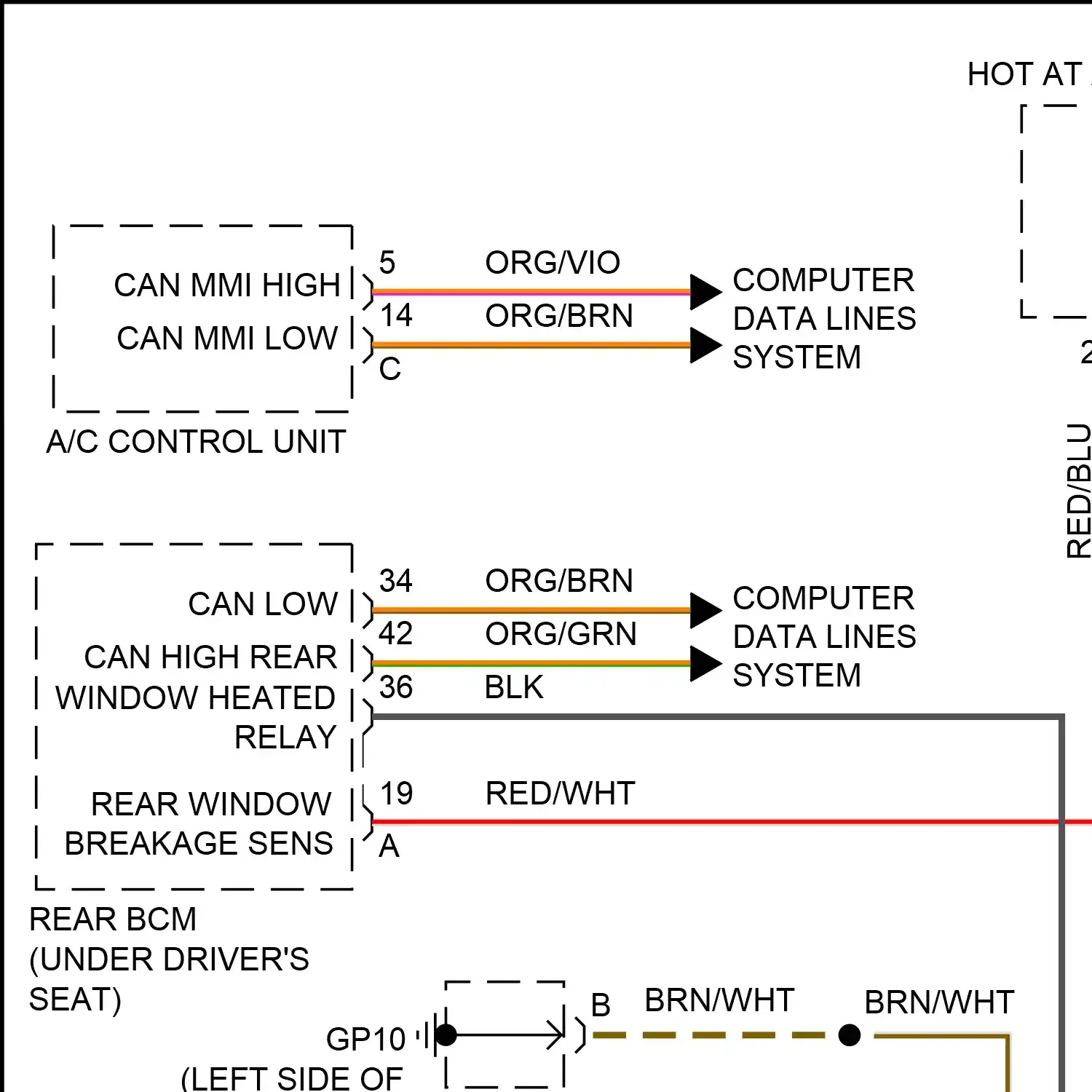

Computer data lines circuit

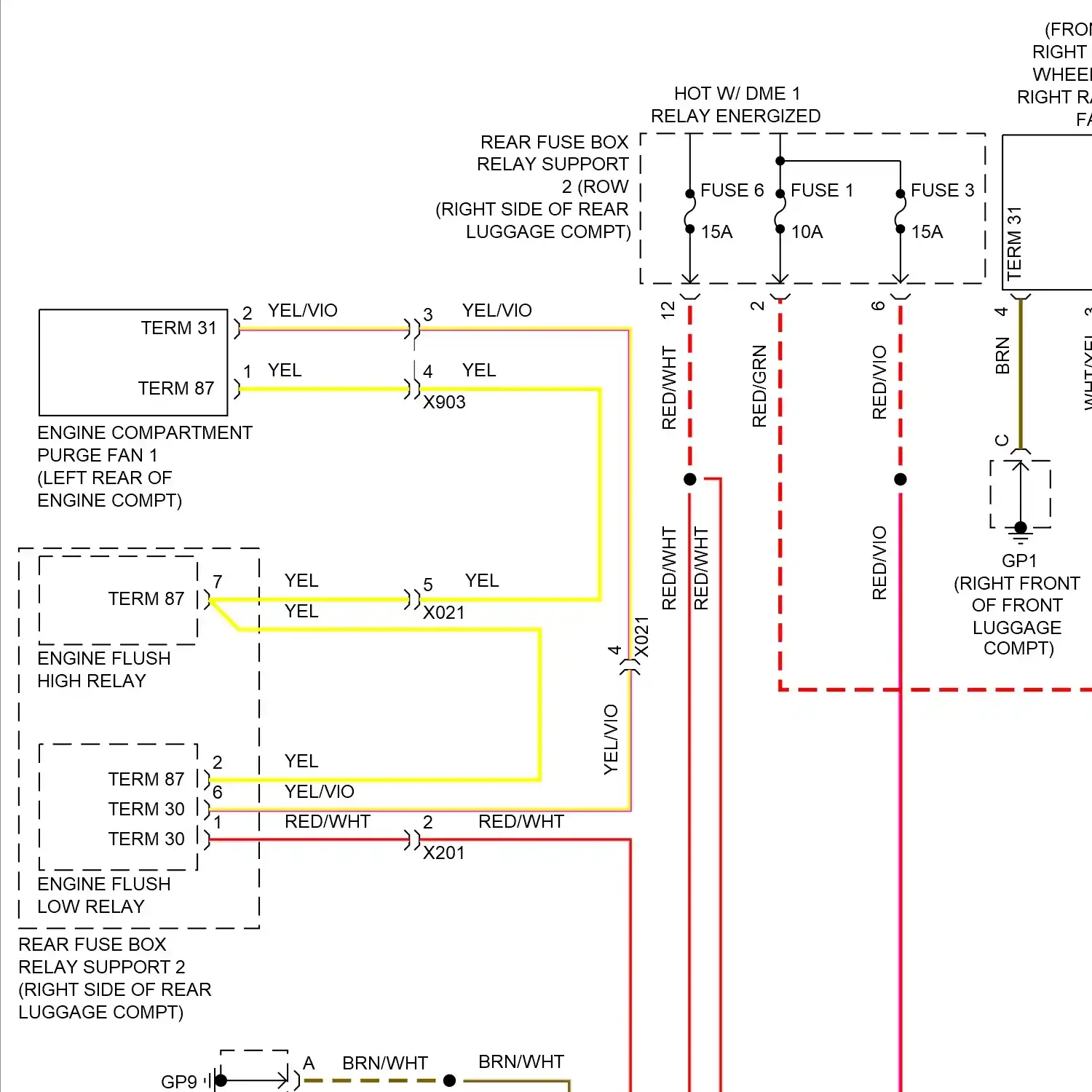

Cooling fan circuit

Cruise control circuit

Defogger circuit Heated mirrors circuit

Electronic power steering circuit Power tilt steering column circuit

Electronic suspension circuit

Wiring diagram engine performance 2.7l

Wiring diagram engine performance 3.4l

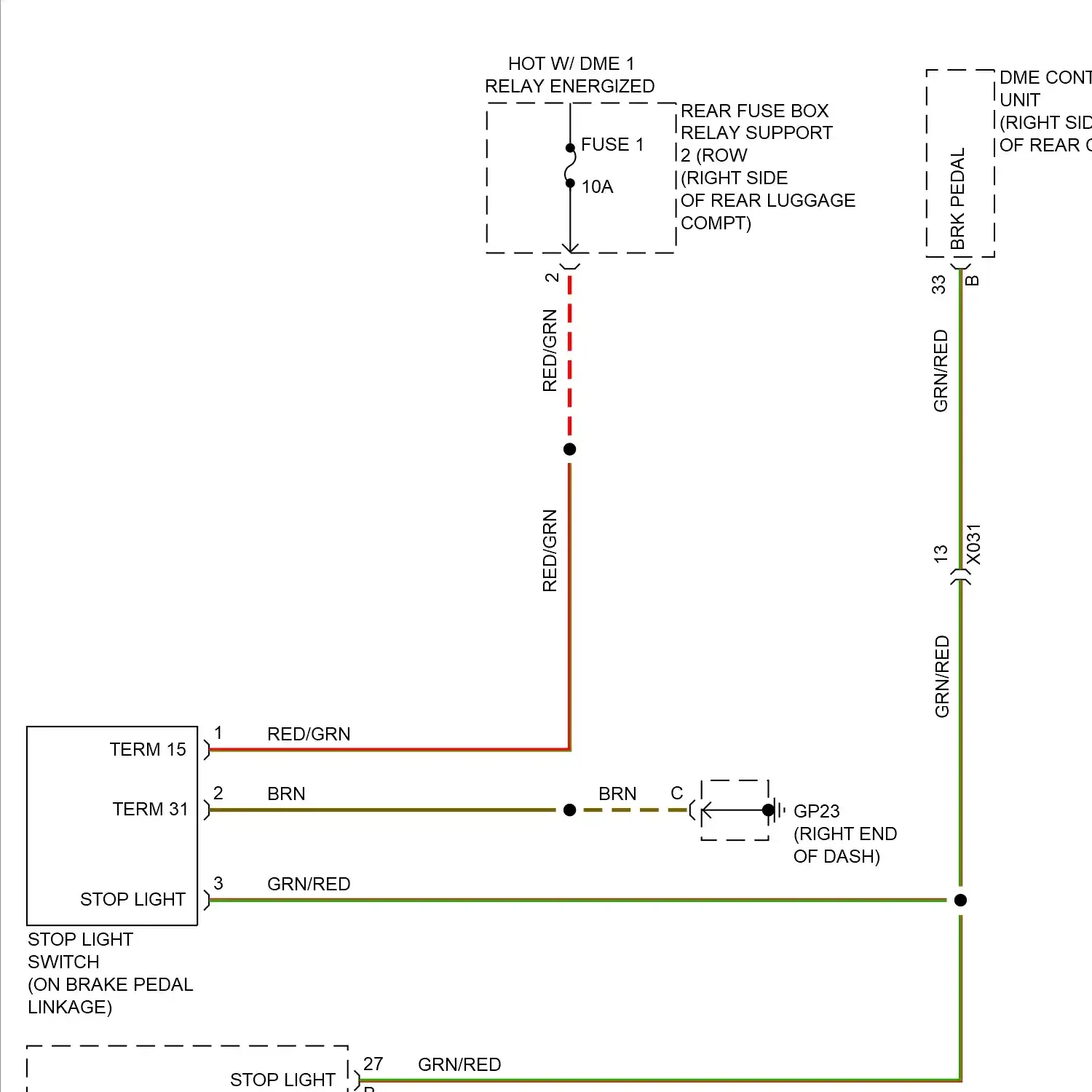

Backup lamps circuit Exterior lamps circuit

Ground distribution circuit

Headlights circuit

Horn circuit

Instrument cluster circuit

Interior lights circuit

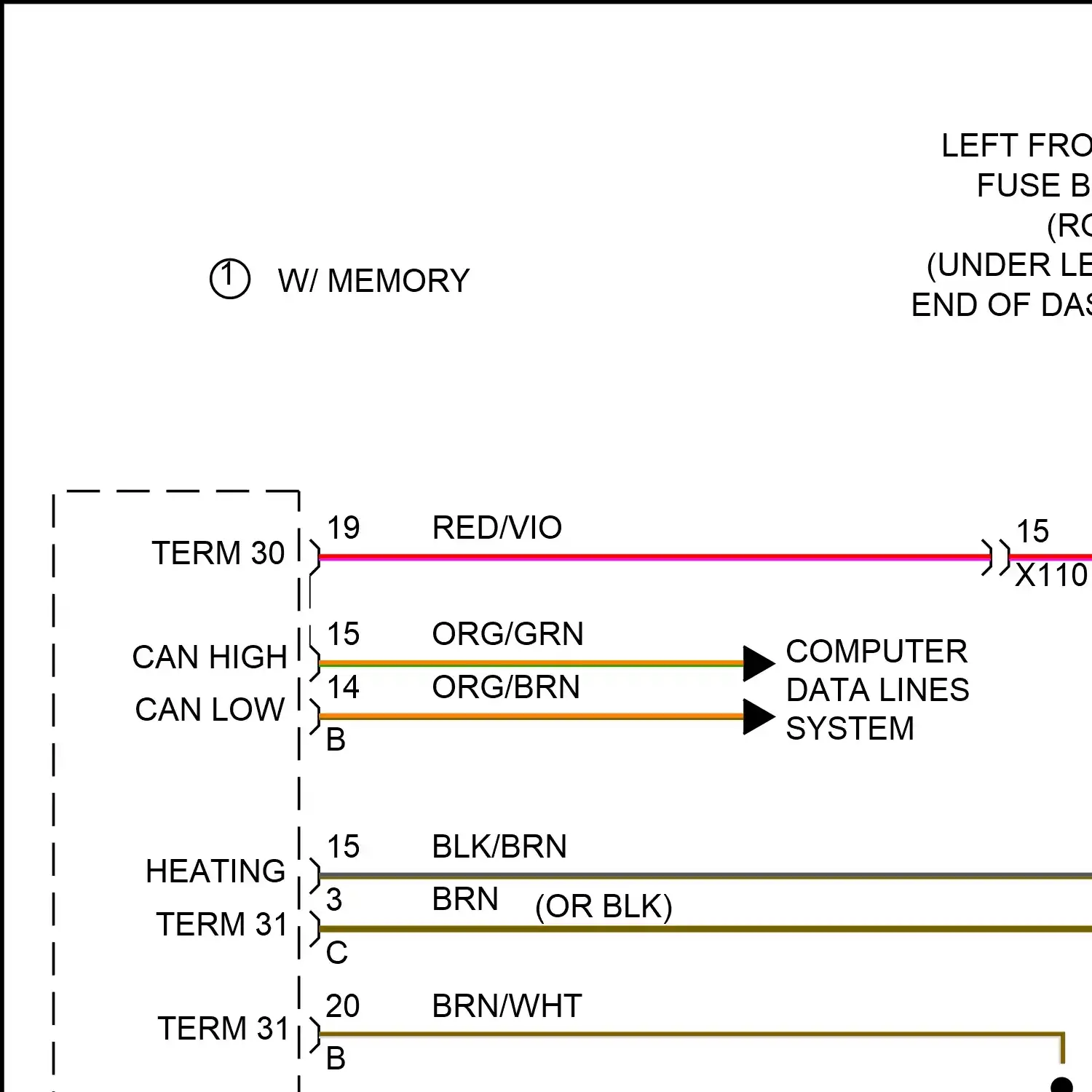

Driver"s memory seat circuit Memory mirrors circuit Passenger"s memory seat circuit Steering column memory circuit

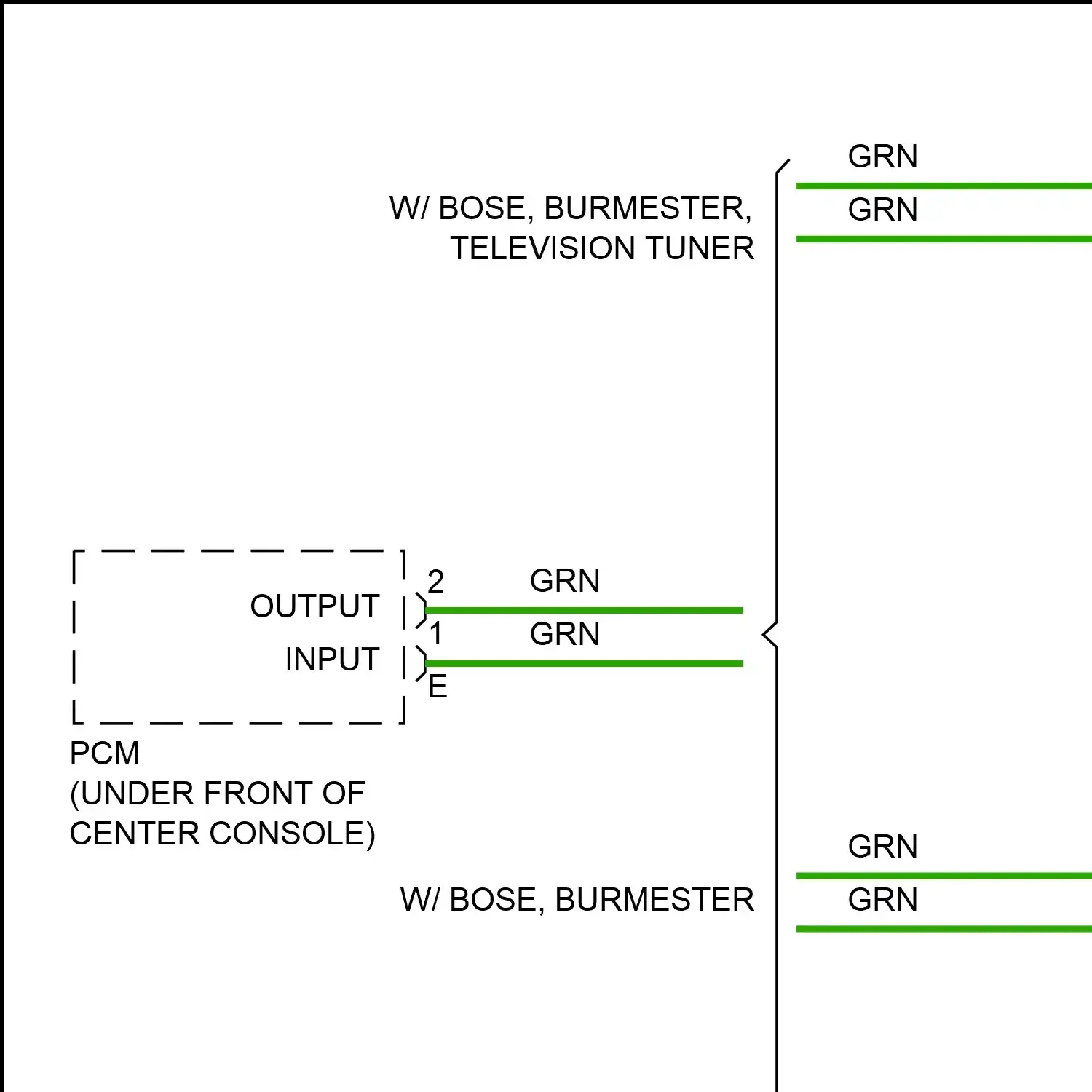

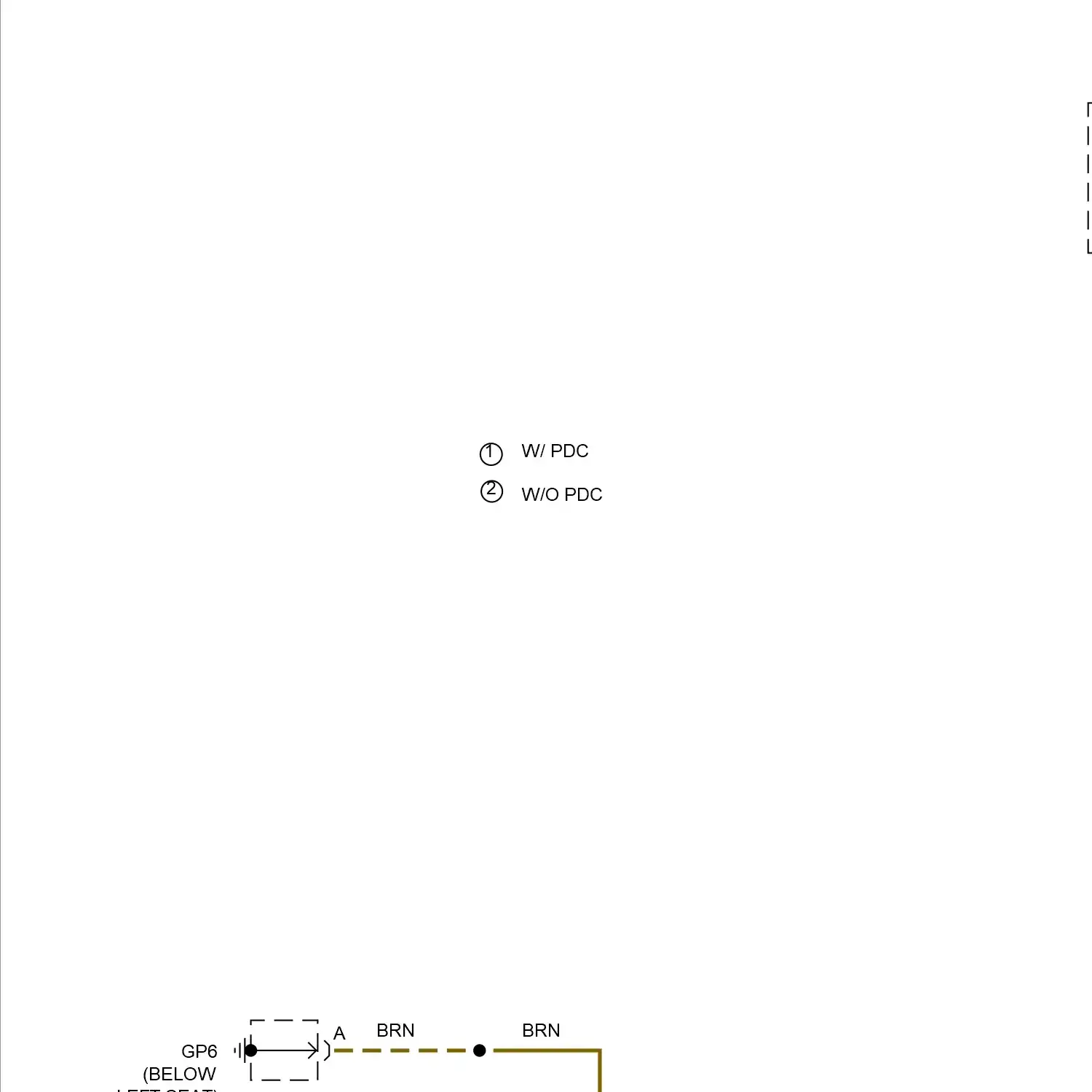

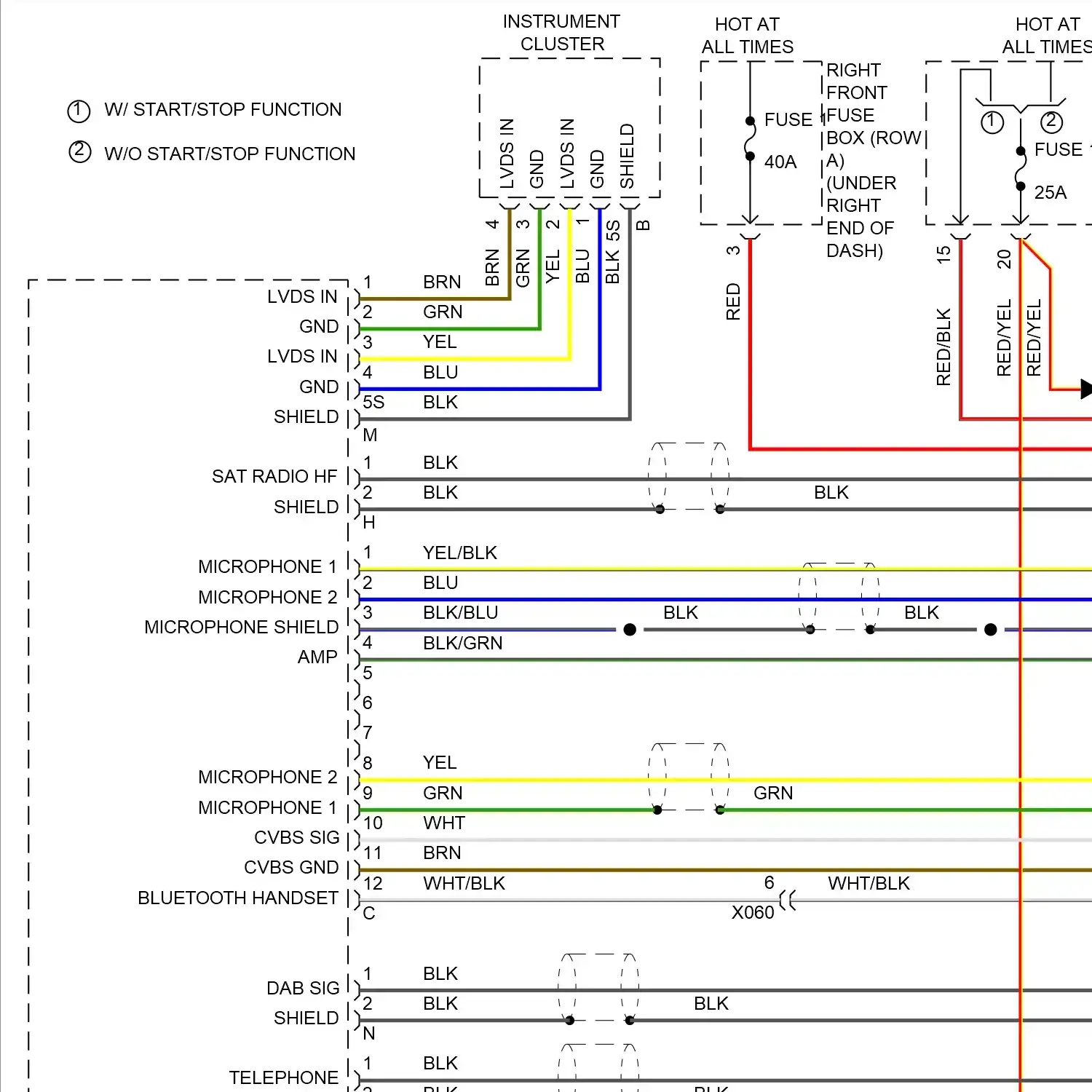

Front camera circuit Navigation circuit, w/ ask Navigation circuit, w/ bose Navigation circuit, w/ burmester Parking assistant circuit

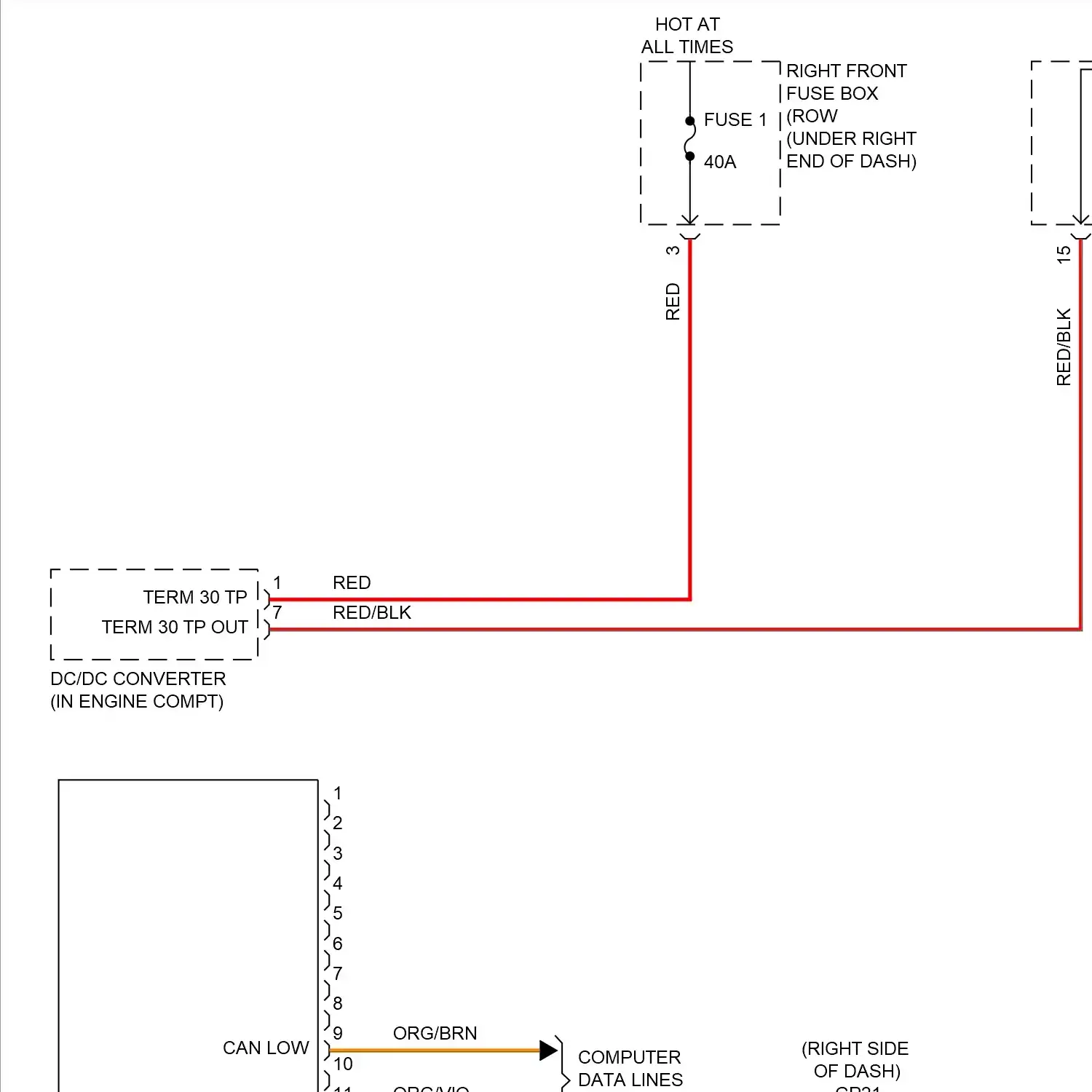

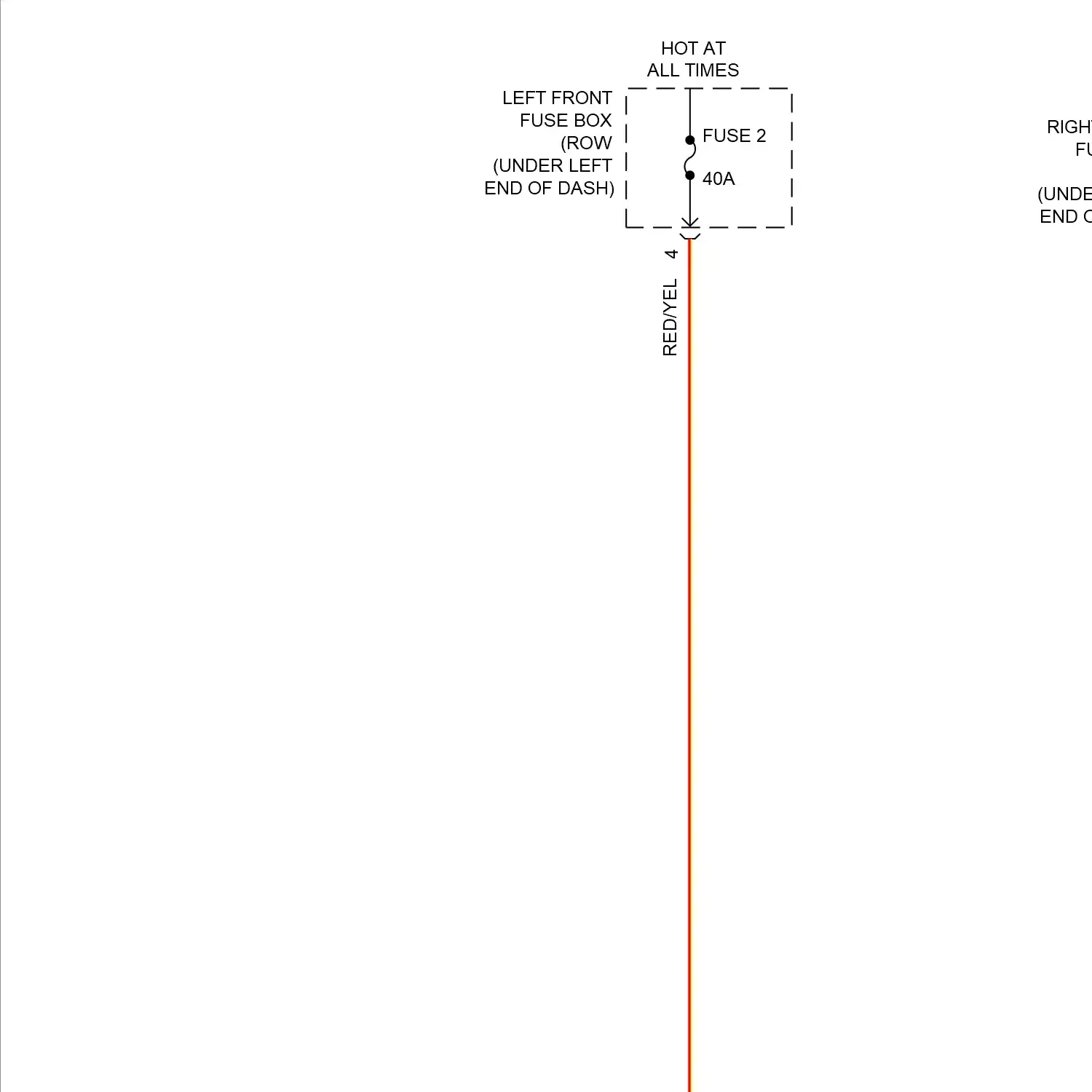

Power distribution circuit

Power door locks circuit

Auto anti-dazzling mirror circuit Power mirrors circuit

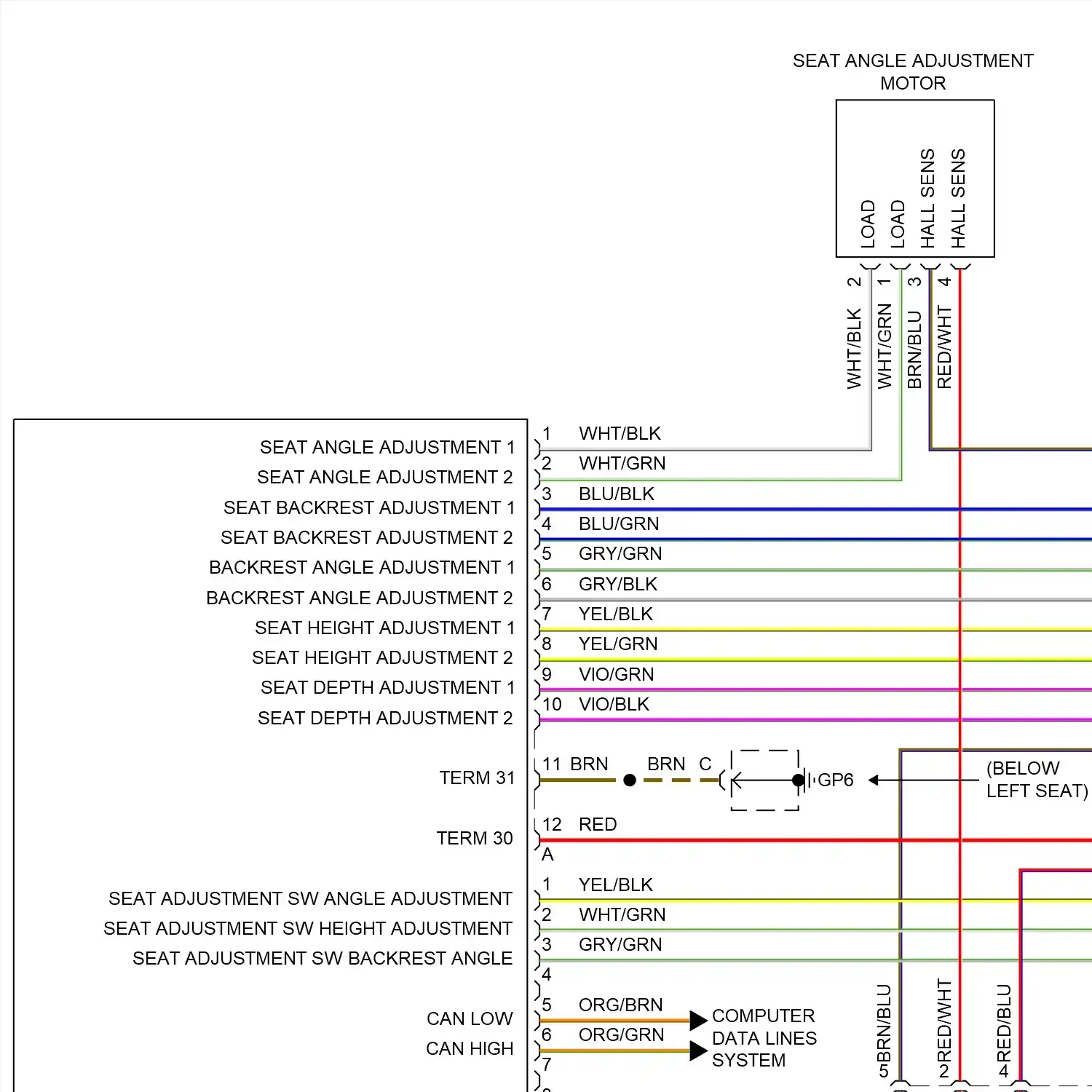

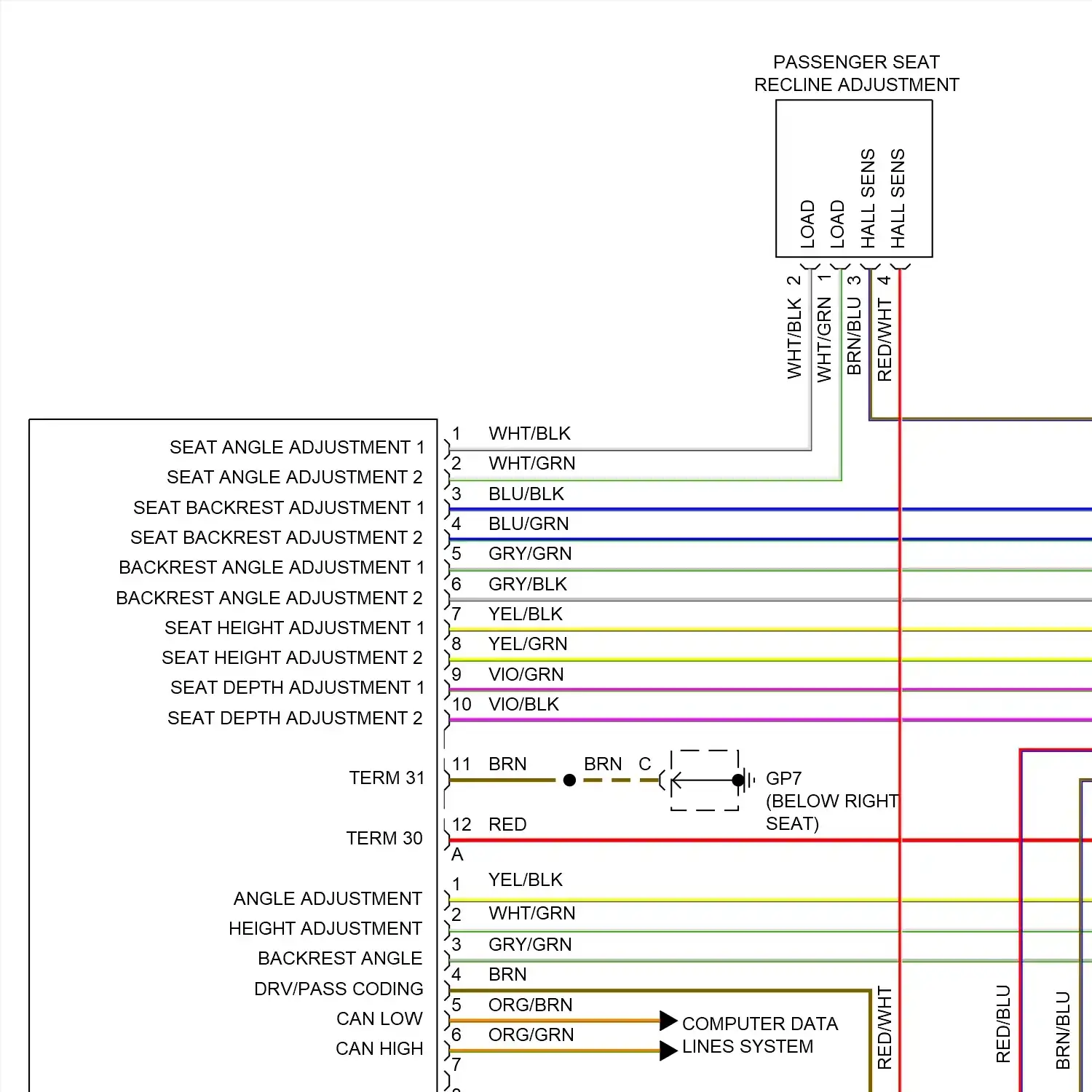

Driver heated seat circuit Driver power seat circuit Front passenger heated seat circuit Heated steering wheel circuit Passenger power seat circuit

Power top/sunroof circuit

Power windows circuit

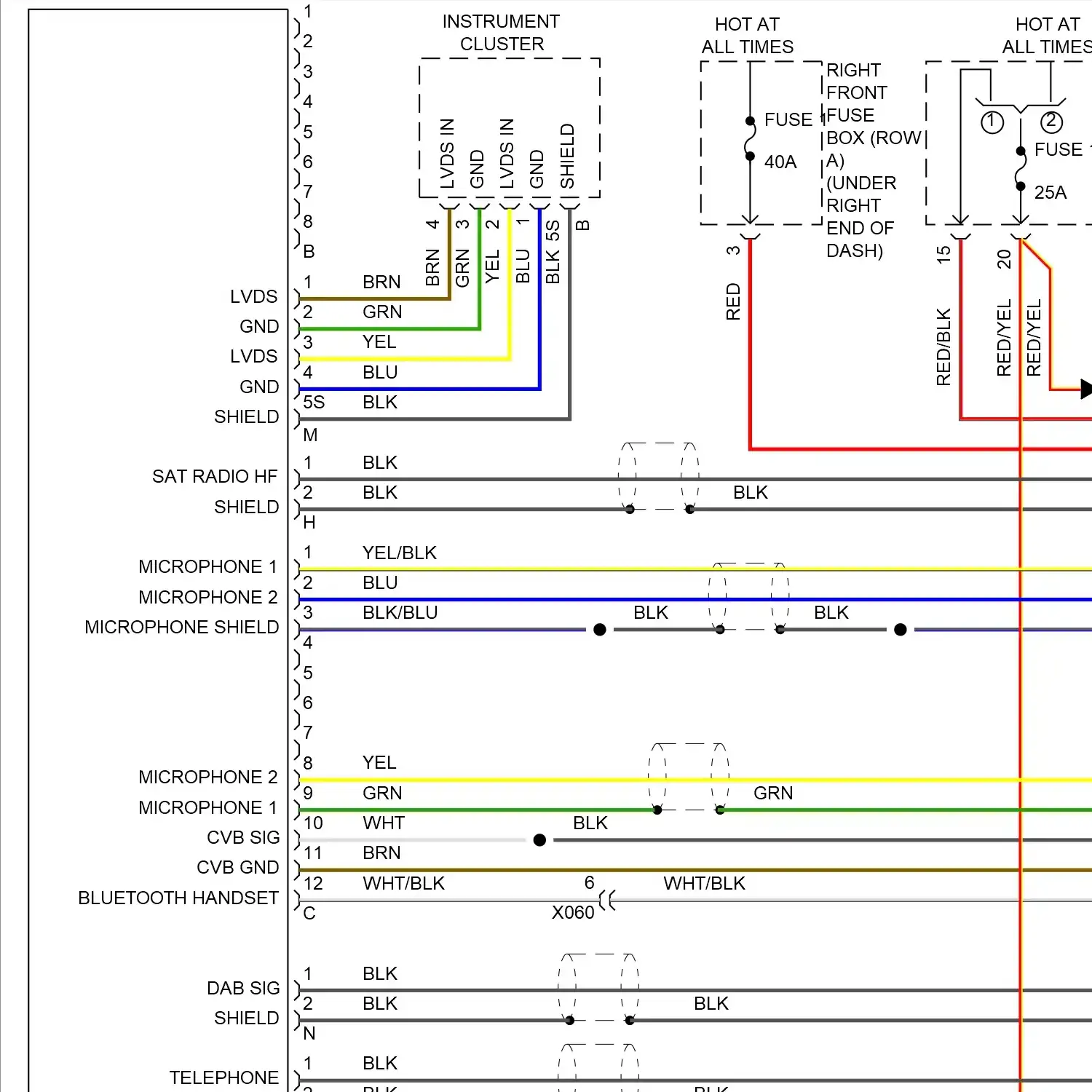

Base radio circuit Optical waveguide circuit Premium radio circuit, w/ ask Premium radio circuit, w/ bose Premium radio circuit, w/ burmester

Electronic parking brake circuit Shift interlock circuit

Charging circuit Starting circuit

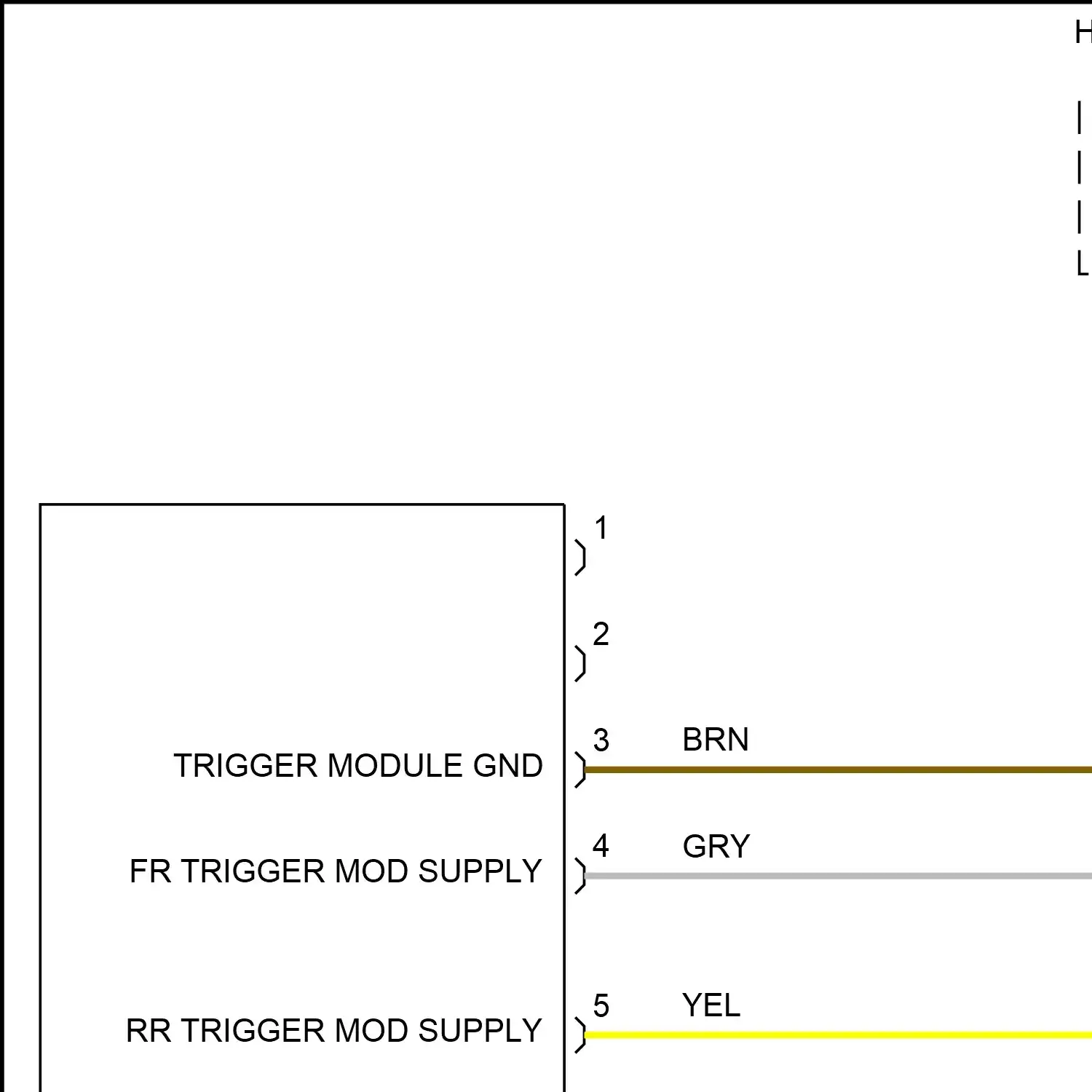

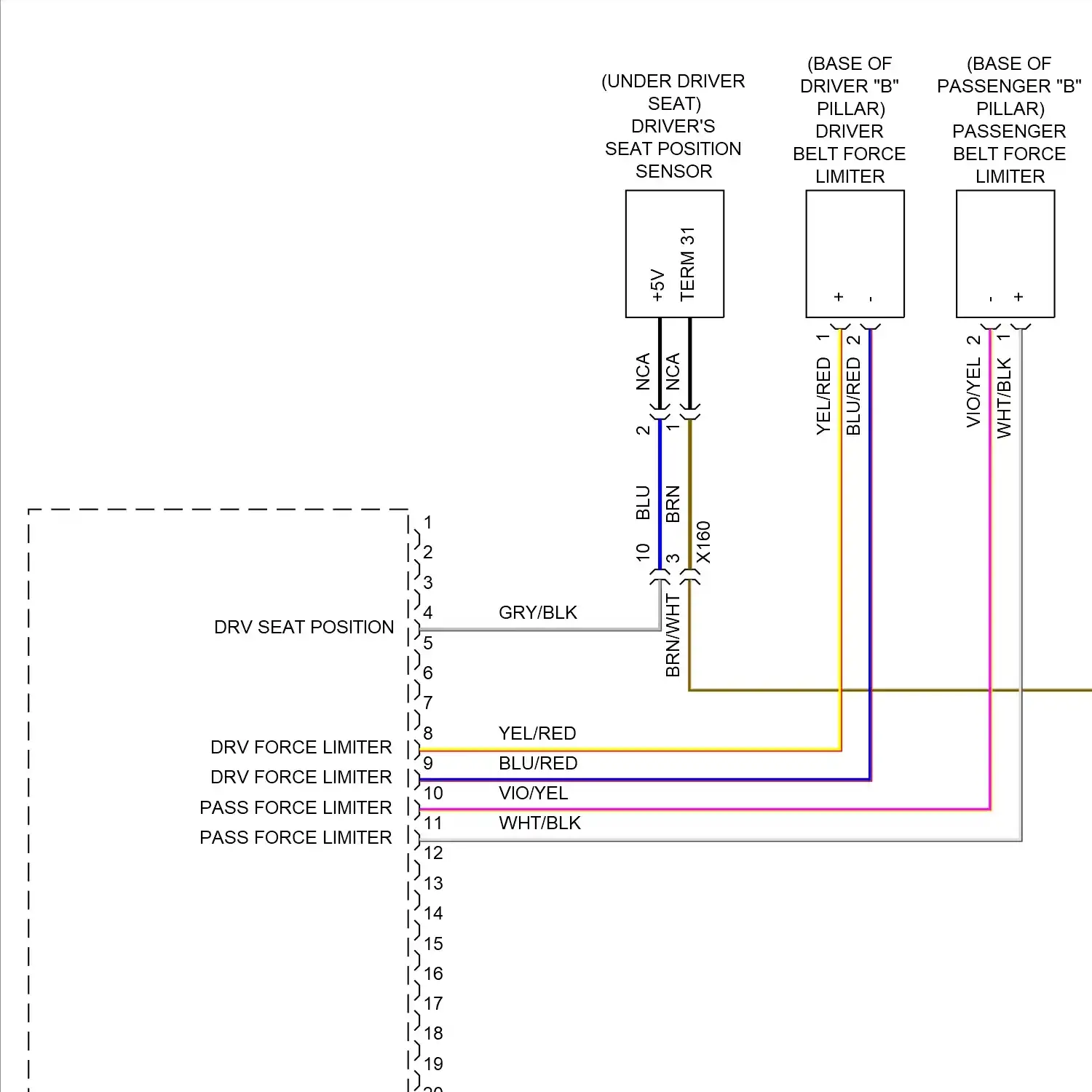

Supplemental restraints circuit

A/t circuit

Tailgate & fuel door release circuit

Warning systems circuit

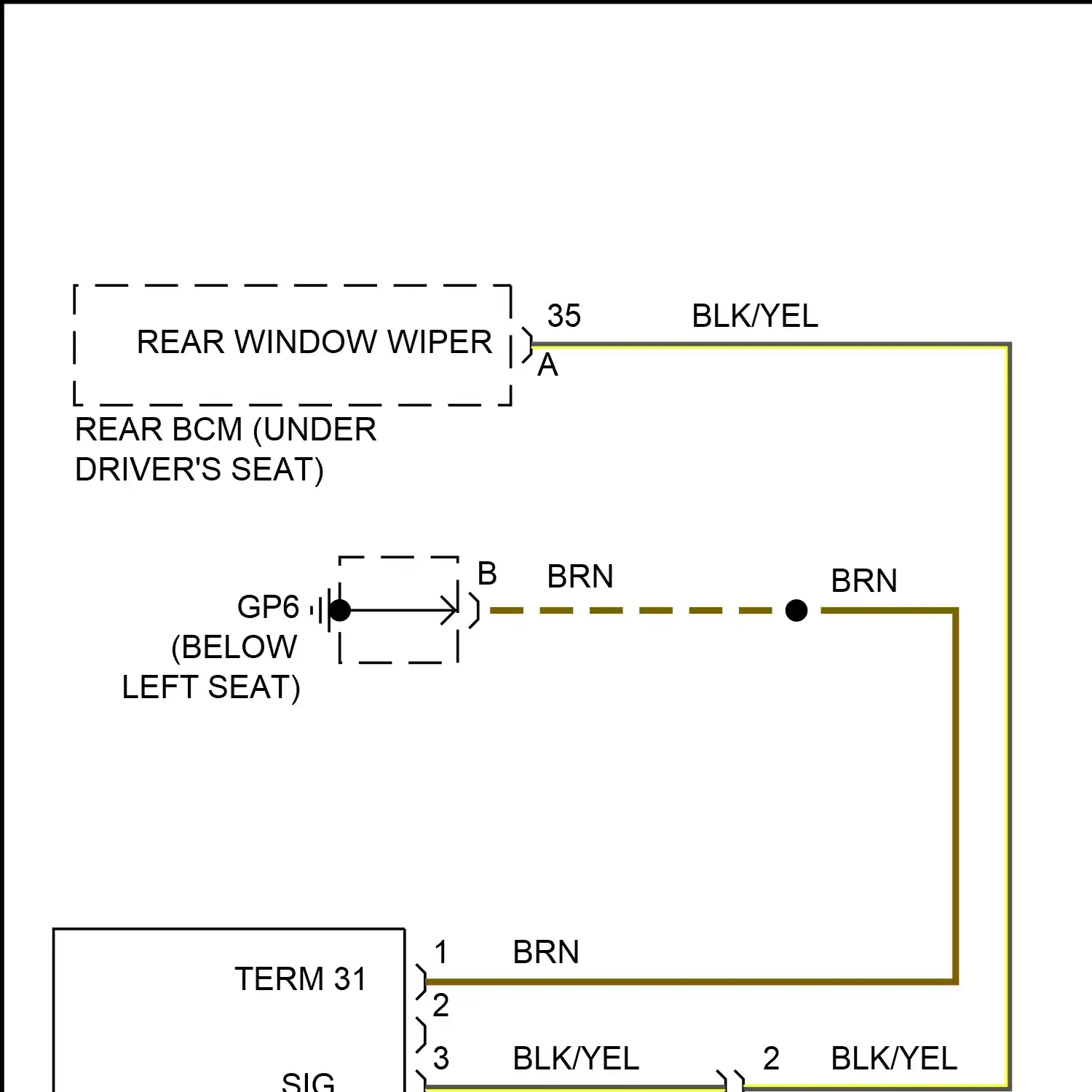

Front wiper/washer circuit Rear wiper circuit

ALARM HORN ALARM SIREN ANTI-LOCK BRAKES, INSTRUMENT CLUSTER SYSTEMS ANTI-REMOVAL LOCK ASK AMPLIFIER BOSE AMPLIFIER BURMESTER AMPLIFIER CENT LOCK ROTARY LATCH CENTRAL LOCK ANTENNA CENTRAL LOCK OUTER DOOR HANDLE CENTRAL LOCK ROTARY LATCH CENTRAL LOCK SAFE LOCKED STATUS CENTRAL LOCK SHIELDING DRIVER DOOR LOCK DRIVER'S DOOR CENTRAL LOCK SAFE LED DRIVER'S DOOR LOCK ELECTRONIC IGNITION LOCK FRONT PASSENGER CENTRAL LOCK SAFE LED FRONT PASSENGER DOOR CENTRAL LOCK SAFE LED FRONT PASSENGER DOOR LOCK IGNITION LOCK LIGHT IGNITION LOCK SW IGNITION LOCK SW 1 IGNITION LOCK SW 2 IGNITION LOCK SW 3 IGNITION LOCK SW 4 IGNITION LOCK SW 5 IGNITION LOCK SW 6 KEY LOCK LEFT DIODE LEFT TWEETER TWO-TONE HORN LEFT TWO-TONE HORN TWEETER LOCK MTR CDL LOCK SIG ON BATTERY) P/N START LOCK SIG P/N STARTER LOCK SIG POWER TOPS SYSTEM ANTI-LOCK BRAKES SYSTEM RIGHT DIODE RIGHT LOW RANGE TWO-TONE HORN STARTER RLY STEERING COLUMN LOCK SW 1 IGNITION LOCK SW 3 IGNITION LOCK SW 4 IGNITION LOCK THEFT PROTECTION ALARM HORN WITHDRAWAL LOCK

CATCH ACTUATOR CENTRAL LOCK MOTOR CENTRAL LOCK MOTOR SAFE/LOCK CENTRAL VALVE SERVO MOTOR CLOSE MOTOR 1 CLOSE MOTOR 2 DEFROST FLAP SERVO MOTOR DRIVER'S DOOR POWER WINDOW MOTOR DRIVER'S SEAT BACKREST ADJUSTMENT MOTOR DRIVER'S SEAT HEIGHT ADJUSTMENT MOTOR ELV MOTOR SUPPLY ENGINE COMPARTMENT PURGE FAN 1 ENGINE COMPARTMENT PURGE FAN 2 ENGINE COMPT TEMP ENGINE CONTROLS SYSTEM EXTENDED VENT ELEMENT SERVO MOTOR FL TEMPERATURE VALVE SERVO MOTOR FRESH AIR FAN MOTOR FRESH/ RECIRCULATED AIR FLAP SERVO MOTOR FRESH/RECIRCULATED AIR FLAP SERVO MOTOR FRONT FOOTWELL SERVO MOTOR FRONT PASSENGER DOOR POWER WINDOW MOTOR FRONT PASSENGER'S SEAT BACKREST ADJUSTMENT MOTOR FRONT SERVO MOTOR TEMPERATURE VALVE FRONT WIPER MOTOR HOOD LATCHING HOOK MOTOR LEFT BASIC EXTERIOR MIRROR SERVO MOTOR LEFT E-HOOD MOTOR LEFT EPB MOTOR + LEFT HALL 1 MOTOR 1 LEFT MEMORY EXTERIOR MIRROR SERVO MOTOR LEFT MIRROR FOLDING MOTOR LEFT MOTOR CLOSING LEFT MOTOR OPENING LOCK MOTOR LOCK MOTOR CDL LUGGAGE COMPARTMENT LID ACTUATOR MIRROR ADJUST MOTOR X MIRROR ADJUSTMENT MOTOR X MIRROR ADJUSTMENT MOTOR X MIRROR ADJUSTMENT MOTOR Y MIRROR ADJUSTMENT MOTOR Y MIRROR MOTOR SPLY MOTOR 1 MOTOR 1/2 MOTOR 2 MOTOR + UP MOTOR +FORE/AFT MOTOR A MOTOR B MOTOR SPLY MOTOR SPLY MIRROR ADJUSTMENT MOTOR X OPEN MOTOR 1 PASSENGER'S SEAT HEIGHT ADJUSTMENT MOTOR POTI ENGINE 1 POTI ENGINE 2 RAM AIR FLAP SERVO MOTOR REAR ENGINE LUGG COMPT LIGHT RIGHT BASIC EXTERIOR MIRROR SERVO MOTOR RIGHT E-HOOD MOTOR RIGHT EPB MOTOR - RIGHT HALL 1 MOTOR 2 RIGHT MEMORY EXTERIOR MIRROR SERVO MOTOR RIGHT MIRROR FOLDING MOTOR RIGHT MOTOR CLOSING RIGHT MOTOR OPENING SAFE MOTOR SEAT ANGLE ADJUSTMENT MOTOR SEAT DEPTH ADJUSTMENT MOTOR SEAT FORE/AFT ADJUSTMENT MOTOR STEERING COLUMN FORE/AFT ADJUSTMENT MOTOR STEERING COLUMN HEIGHT ADJUSTMENT MOTOR TAILGATE RELEASE ACTUATOR TANK COVER ACTUATOR THROTTLE VALVE MOTOR + TOP OF ENGINE)

ANTENNA 1 ANTENNA 2 ANTENNA 3 ANTENNA DIVERSITY BETWEEN THE SEATS - PAS ANTENNA CENTRAL LOCKING ANTENNA FRT CNTR CONSOLE- PAS ANTENNA FRT LUGGAGE COMPT - PAS ANTENNA GPS ANTENNA GSM ANTENNA LEFT ANTENNA AMPLIFIER LEFT REAR OUTER WHEEL HOUSING PAS ANTENNA LEFT REAR PAS ANTENNA + LUGGAGE COMPARTMENT 1 PAS ANTENNA LUGGAGE COMPT 1 ANTENNA + PAS COMPT 1 ANTENNA + PAS COMPT 2 ANTENNA + PASSENGER COMPARTMENT 1 PAS ANTENNA PASSENGER COMPARTMENT 2 PAS ANTENNA PASSENGER LUGGAGE COMPARTMENT PHANTOM ANTENNA 1 SHIELD RIGHT ANTENNA AMPLIFIER RIGHT REAR OUTER WHEEL HOUSING PAS ANTENNA RIGHT REAR PAS ANTENNA + RL - PAS ANTENNA RR - PAS ANTENNA SDARS ANTENNA

BUTTON 1, 2 OFF CENT LOCK BUTTON CENT LOCK BUTTON SIG CENTER CONSOLE BUTTON MODULE CENTRAL LOCK BUTTON SIGNAL CL BUTTON LED CLOSE BUTTON FL CLOSED BUTTON FR CNT LOCK BUTTON SIG DRIVER'S DOOR BUTTON MODULE DRIVER'S DOOR MEMORY BUTTON MODULE EPB BUTTON FRONT LID BUTTON FRONT LID BUTTON TRUNK ENTRAPMENT OPERATING SW FRONT LUGGAGE COMPARTMENT EMERGENCY OPENER BUTTON FRONT PASSENGER DOOR MEMORY BUTTON MODULE FRONT PASSENGER DOOR POWER WINDOW BUTTON FRONT/REAR OPEN LID BUTTON MODULE HAZARD WARNING BUTTON LEFT PWR WINDOW BUTTON CTRL SW LF BUTTON, CLOSE LK/UNLK BUTTON LOCK/UNLOCK BUTTON MEM OFF BUTTON PRESS REGULATOR 1 PRESS REGULATOR 2 PRESS REGULATOR 3 PRESS REGULATOR 4 PRESS REGULATOR 5 PRESS REGULATOR 6 PWR WINDOW BUTTON LOCAL CTRL SW REAR LID BUTTON REAR LUGGAGE COMPARTMENT EMERGENCY OPENER BUTTON RF BUTTON, CLOSE RIGHT PWR WINDOW BUTTON CTRL SW RT OK BUTTON SET BUTTON STEERING WHEEL HEATING BUTTON STEERING WHEEL HEATING BUTTON LIN STEERING WHEEL HORN BUTTON WARNING LIGHT BUTTON

FRONT CAMERA SHIELD GROUND FRONT CAMERA WINDOW HEATING HEATING FILM FT CAMERA

B+ PLUG SOCKET B+ SOCKET TRANSMISSION DIAGNOSTIC PLUG SOCKET FRONT CENTER CONSOLE PLUG SOCKET FRONT PASSENGER FOOTWELL PLUG SOCKET GLOVE BOX PLUG SOCKET RIGHT FRONT CENTER CONSOLE PLUG SOCKET RIGHT FRONT PASSENGER FOOTWELL PLUG SOCKET

DME CONTROL MODULE

A/C CONTROL UNIT ACC CONTROL UNIT AIR BAG CONTROL UNIT CONVERTIBLE TOP CONTROL UNIT CTRL UNIT 1 DEACT CTRL UNIT 2 CTRL UNIT 3 TERM 31 DME CONTROL UNIT DR PANEL LT OP CTRL UNIT DRIVER CTRL UNIT MIRROR DRIVER DOOR CONTROL UNIT DRIVER SPORT SEAT ADJUSTMENT OUTPUT CONTROL UNIT DRIVER STANDARD 2-WAY SEAT ADJUSTMENT CONTROL UNIT DRIVER STANDARD 2-WAY SEAT ADJUSTMENT OUTPUT CONTROL UNIT DRIVER STANDARD 4-WAY SEAT ADJUSTMENT CONTROL UNIT DRIVER STANDARD 4-WAY SEAT ADJUSTMENT OUTPUT CONTROL UNIT DRIVER'S DOOR CONTROL UNIT DRIVER'S SEAT CONTROL UNIT ELECTRONICS STEERING WHEEL CONTROL UNIT EPB CONTROL UNIT FAN CONTROL UNIT FRONT CAMERA CONTROL UNIT FRONT CAMERA CONTROL UNIT SHIELD FRONT PASSENGER DOOR CONTROL UNIT FRONT PASSENGER SEAT ADJUSTMENT OUTPUT CONTROL UNIT FRONT PASSENGER SEAT CONTROL UNIT FRONT PASSENGER STANDARD 2 WAY SEAT ADJUSTMENT CONTROL UNIT FRONT PASSENGER STANDARD 2-WAY SEAT ADJUSTMENT OUTPUT CONTROL UNIT FRONT PASSENGER STANDARD 4 WAY SEAT ADJUSTMENT OUTPUT/CONTROL UNIT FRONT PASSENGER STANDARD 4-WAY SEAT ADJUSTMENT CONTROL UNIT FRONT PASSENGER STANDARD 4-WAY SEAT ADJUSTMENT OUTPUT CONTROL UNIT FRONT PASSENGER'S DOOR CONTROL UNIT FRONT PASSENGER'S SEAT CONTROL UNIT FUEL PUMP CTRL UNIT FUEL PUMP SYSTEM CONTROL UNIT GATEWAY CONTROL UNIT HOME LINK CONTROL UNIT HOMELINK CONTROL UNIT LEAKAGE DIAGNOSIS UNIT PARK ASSIST CONTROL UNIT PASM CONTROL UNIT PDK CONTROL UNIT PSM CONTROL UNIT RDK CONTROL UNIT RH CTRL UNIT MIRROR SEAT OCCUPANCY DETECTION CONTROL UNIT SELECTOR LEVER CONTROL UNIT STEERING COLUMN ADJUSTMENT CONTROL UNIT STEERING WHEEL ELECTRONICS CONTROL UNIT TERM 30 UNIT MOUNT THROTTLE VALVE ADJUSTMENT UNIT UNIT MOUNT 1 HIGH UNIT MOUNT 1 LOW UNIT MOUNT 2 HIGH UNIT MOUNT 2 LOW

BATTERY FUSE BOX EPB FUSE FUSE 1 FUSE 2 FUSE 3 FUSE 4 FUSE 5 FUSE 6 FUSE 7 FUSE 8 FUSE 9 FUSE 10 FUSE 10 N/A FUSE FUSE LIN MAIN FUSE BOX MAIN FUSE BOX MAXI FUSE BOX MIDI FUSE

HEADLIGHT WASHER HEADLIGHT WASHER FLUID PUMP LEFT AUXILIARY HEADLIGHT LEFT HEADLIGHT RIGHT AUXILIARY HEADLIGHT RIGHT HEADLIGHT TERM 30 HEADLIGHT WASHER

CUSHION HEATING SEAT HEATING ELEMENT THERMOSTAT MAP LEFT DOOR HEATING MIRROR LEFT DOOR MIRROR HEATING LEFT SEAT HEATER LEFT SIDE BACKREST BOLSTER HEATING LT SEAT HEATER REAR WINDOW HEATER RIGHT DOOR HEATING MIRROR RIGHT DOOR MIRROR HEATING RIGHT SEAT HEATER RIGHT SIDE BACKREST BOLSTER HEATING RT SEAT HEATER SEAT CUSHION HEATING STEERING WHEEL HEATING

LEFT FRONT BRAKE PAD WEAR INDICATOR LEFT REAR BRAKE PAD WEAR INDICATOR RIGHT FRONT BRAKE PAD WEAR INDICATOR RIGHT REAR BRAKE PAD WEAR INDICATOR

DAYTIME RUNNING LIGHTS INTERIOR LIGHTS SYSTEM STARTING/CHARGING SYSTEM INTERIOR LIGHTS, EXTERIOR LIGHTS SYSTEMS LEFT COURTESY LIGHTS MIRROR RF DAYTIME RUNNING LIGHTS RIGHT COURTESY LIGHTS MIRROR

DUAL WASHING PUMP FRONT DUAL WASHING PUMP FRONT PUMP FUEL PUMP PUMP GROUND REAR DUAL WASHING PUMP REAR PUMP TERM 31/PUMP - U/PUMP +

CAN HIGH REAR WINDOW HEATED RELAY CLOSE HOOD RELAY DME RELAY DME RELAY 1 DME-1 RELAY EMERGENCY VOLT SUPPLY 1 RELAY EMERGENCY VOLT SUPPLY RELAY 1 ENGINE FLUSH HIGH RELAY ENGINE FLUSH LOW RELAY FUEL PUMP RELAY #1 HEATED REAR WINDOW RELAY HOT W/ DME 1 RELAY ENERGIZED HOT W/ DME RELAY 1 ENERGIZED HOT W/ EMERGENCY VOLT SUPPLY RELAY 1 ENERGIZED HOT W/ KL 15 RELAY ENERGIZED HOT W/ TERMINAL 15 RELAY ENERGIZED KL 15 RELAY LEFT FAN RELAY OPEN HOOD RELAY OPEN/CLOSE LATCH HOOK RELAY REAR FUSE BOX RELAY SUPPORT 2 REAR WINDOW HEATER RELAY REAR WINDOW HEATER RELAY RELAY SUPPORT 3 RELAY KL 15 RELAY SUPPORT 1 RELAY SUPPORT 3 RELAY TERM 30 RELAY TERM 50 RELAY TWO-TONE HORNS RIGHT FAN RELAY STARTER RELAY STARTER RELAY RELAY SUPPORT 2 TERM 50-IN RELAY DIOGNOSIS TWO- TONE HORNS RELAY RELAY SUPPORT 1 TWO-TONE HORNS RELAY

AIR QUALITY SENSOR AXLE SENSOR GND AXLE SENSOR SUP BATTERY SENSOR BRAKE FLUID SENSOR BRAKE VACUUM SENSOR CAMSHAFT SENSOR BANK 1 CAMSHAFT SENSOR BANK 2 CENTRAL LOCK PROXY SENSOR CLUSTER SENSOR COOLANT CYLINDER HEAD TEMPERATURE SENSOR COOLANT RETURN TEMPERATURE SENSOR CRANKSHAFT SPEED SENSOR CYLINDER HEAD COOLANT TEMPERATURE SENSOR DRIVER DOOR INNER DOOR HANDLE SENSOR DRIVER DOOR INNER HANDLE SENSOR DRIVER SIDE A-PILLAR SENSOR DRIVER UPFRONT SENSOR DRIVER'S DOOR OUTER HANDLE SENSOR DRIVER'S DOOR PRESSURE SENSOR DRIVER'S SEAT POSITION SENSOR ENGINE COMPARTMENT TEMPERATURE SENSOR ENGINE SENSOR FRONT LID PROXIMITY SENSOR FRONT PASSENGER DOOR INNER HANDLE SENSOR FRONT PASSENGER DOOR OUTER HANDLE SENSOR FRONT PASSENGER OUTER DOOR HANDLE SENSOR FRONT PASSENGER SIDE A-PILLAR SENSOR FRONT PASSENGER UPFRONT SENSOR FRONT PASSENGER'S DOOR PRESSURE SENSOR FUEL LEVEL SENSOR GND GROUND SENSOR HALL SENSOR HALL SENSOR 1 HALL SENSOR 2 HALL SENSOR GROUND HALL SENSOR SIGNAL HALL SENSOR, BACKREST ANGLE ADJUSTMENT HALL SENSOR, SEAT ANGLE ADJUSTMENT HALL SENSOR, SEAT DEPTH ADJUSTMENT HALL SENSOR, SEAT FORE/AFT ADJUSTMENT HALL SENSOR, SEAT HEIGHT ADJUSTMENT HIGH RAIL PRESSURE SENSOR HOOD LATCH SENSOR HOOD SENSOR 1 HOOD SENSOR 2 INTAKE AIR SENSOR INTAKE-MANIFOLD PRESSURE SENSOR INTERIOR SURVEILLANCE SENSOR KNOCK SENSOR 1 KNOCK SENSOR #2 LEAKAGE DIAGNOSIS UNIT TEMPERATURE SENSOR LEFT BLOWER SENSOR LEFT E-HOOD MOTOR SENSOR LEFT FRONT ACCELERATION SENSOR LEFT FRONT FOOTWELL BLOWER SENSOR LEFT FRONT HEIGHT SENSOR LEFT FRONT INSIDE PDC SENSOR LEFT FRONT OUTSIDE PDC SENSOR LEFT FRONT WHEEL SPEED SENSOR LEFT REAR HEIGHT SENSOR LEFT REAR INSIDE PDC SENSOR LEFT REAR OUTSIDE PDC SENSOR LEFT REAR WHEEL SPEED SENSOR LF ACC SENSOR GND LF ACC SENSOR SIG LF ACC SENSOR SUPPLY LF HEIGHT SENSOR GND LF HEIGHT SENSOR SIG LF HEIGHT SENSOR SUPPLY LR HEIGHT SENSOR GND LR HEIGHT SENSOR SIG LR HEIGHT SENSOR SUPPLY MAT PRESSURE SENSOR OIL LEVEL SENSOR OIL LEVEL SENSOR SHIELD OIL PRESSURE/ TEMPERATURE SENSOR OIL TEMPERATURE SENSOR GEAR WHEEL SET PDK 981 OUTSIDE TEMPERATURE SENSOR OXYGEN SENSOR DOWNSTREAM OF CATALYTIC BANK 1 OXYGEN SENSOR DOWNSTREAM OF CATALYTIC BANK 2 OXYGEN SENSOR UPSTREAM OF CATALYTIC BANK 1 OXYGEN SENSOR UPSTREAM OF CATALYTIC BANK 2 PASSENGER SEAT POSITION SENSOR PASSENGER TEMPERATURE SENSOR PEDAL VALUE SENSOR 1 PEDAL VALUE SENSOR 1 GROUND POTENTIOMETER PEDAL VALUE SENSOR 2 PEDAL VALUE SENSOR 2 GROUND POTENTIOMETER PEDAL VALVE SENSOR PEDAL VALVE SENSOR 2 PROXY SENSOR SUPPLY FL PROXY SENSOR SUPPLY FR RAIN SENSOR RAIN SENSOR SHIELD GROUND REAR ACC SENSOR GND REAR ACC SENSOR SIG REAR ACC SENSOR SUPPLY REAR CENTER ACCELERATION SENSOR REAR LID PROXIMITY SENSOR REFRIGERANT PRESSURE SENSOR RF ACC SENSOR GND RF ACC SENSOR SIG RF ACC SENSOR SUPPLY RF HEIGHT SENSOR GND RF HEIGHT SENSOR SIG RF HEIGHT SENSOR SUPPLY RIGHT BLOWER SENSOR RIGHT E-HOOD MOTOR SENSOR RIGHT FRONT ACCELERATION SENSOR RIGHT FRONT FOOTWELL BLOWER SENSOR RIGHT FRONT HEIGHT SENSOR RIGHT FRONT INSIDE PDC SENSOR RIGHT FRONT OUTSIDE PDC SENSOR RIGHT FRONT WHEEL SPEED SENSOR RIGHT REAR HEIGHT SENSOR RIGHT REAR INSIDE PDC SENSOR RIGHT REAR OUTSIDE PDC SENSOR RIGHT REAR WHEEL SPEED SENSOR RR HEIGHT SENSOR GND RR HEIGHT SENSOR SIG RR HEIGHT SENSOR SUPPLY SENSOR GND SENSOR GROUND SENSOR SIG SUN SENSOR TEMPERATURE SENSOR LEAKAGE DIAGNOSIS UNIT TERM 31 PROXIMITY SENSOR FL TERM 31 PROXIMITY SENSOR FR TORQUE SENSOR UNIT MOUNT 1 SENSOR GND UNIT MOUNT 1 SENSOR SIG UNIT MOUNT 1 SENSOR SUPPLY UNIT MOUNT 2 SENSOR GND UNIT MOUNT 2 SENSOR SIG UNIT MOUNT 2 SENSOR SUPPLY WASHER FLUID LEVEL SENSOR WEAR SENSOR

BURMESTER SUBWOOFER BURMESTER SUBWOOFER AMPLIFIER CEN SPEAKER - CENTER DASH BOARD LOUD SPEAKER CENTER DASHBOARD LOUD SPEAKER DRIVER DOOR MID-RANGE SPEAKER DRIVER'S DOOR MID-RANGE SPEAKER FRONT PASSENGER DOOR MID-RANGE SPEAKER HIGH END SUBWOOFER HIGH END SUBWOOFER AMPLIFIER LEFT DASHBOARD LOUD SPEAKER LEFT REAR MID-RANGE SPEAKER LF LOW SPEAKER - MID-RANGE SPEAKER REMOTE SUBWOOFER RF LOW SPEAKER - RIGHT DASHBOARD LOUD SPEAKER RIGHT REAR MID-RANGE SPEAKER

BELT BUCKLE QUERY SWITCH BRAKE PEDAL SWITCH COOLANT LEVEL SWITCH CTRL SWITCH MEMORY SAVE DRIVER'S SEAT BELT BUCKLE QUERY SWITCH FOLDING MIRROR CHANGE-OVER SWITCH GLOVE BOX LIGHT SWITCH HOOD LATCH HOOK SWITCH HOOD LATCHING HOOK SWITCH LEFT SWITCH PANEL LIGHT SWITCH POSITION 0 RIGHT SIDE MARKER LIGHT MEM CTRL SWITCH MICRO SWITCH A MICRO SWITCH B MIRROR ADJUSTMENT CTRL SWITCH MIRROR SEL CTRL SWITCH OPEN/CLOSE SWITCH PASSENGER AIR BAG OFF SWITCH REAR LID LOCK SWITCH REED SWITCH A REED SWITCH B REVERSING LIGHT SWITCH RIGHT SWITCH PANEL ROTARY LIGHT SWITCH STEERING COLUMN ADJUSTMENT SWITCH STOP LIGHT SWITCH SWITCH 1 SWITCH 2 SWITCH 3 SWITCH 4 SWITCH 5 SWITCH 6 SWITCH FOLDING

A/C COMPRESSOR VALVE + AC VALVE ADJUSTMENT VALVE 1 ADJUSTMENT VALVE 1 BLEED ADJUSTMENT VALVE 2 ADJUSTMENT VALVE 2 VENT ADJUSTMENT VALVE 3 BLEED ADJUSTMENT VALVE 4 VENT BACKREST WIDTH ADJUSTMENT VALVE 1 BLEED COOLANT BYPASS VALVE COOLANT SHUT-OFF VALVE 1 COOLANT SHUT-OFF VALVE 2 COOLANT SHUT-OFF VALVE 5 EXHAUST FLAP VALVE FLOW CONTROL VALVE GND AC VALVE LEFT FRONT SHOCK ABSORBERS VALVE LEFT REAR SHOCK ABSORBERS VALVE LF SHOCK ABS VALVE HIGH LF SHOCK ABS VALVE LOW LIFT VALVE ADJUSTER BANK 1 LIFT VALVE ADJUSTER BANK 2 LR SHOCK ABS VALVE HIGH LR SHOCK ABS VALVE LOW LUMBAR BOTTOM VALVE 3 LUMBAR BOTTOM VALVE 3 VENTILATE LUMBAR BOTTOM VALVE 4 LUMBAR BOTTOM VALVE 4 BLEED LUMBAR BOTTOM VALVE VENTILATE LUMBAR TOP VALVE 1 LUMBAR TOP VALVE 1 VENTILATE LUMBAR TOP VALVE 2 LUMBAR TOP VALVE 2 BLEED OIL PRESS VALVE HS OIL PRESS VALVE LS OIL PRESSURE REGULATING VALVE PEDAL SENS VALVE 2 PEDAL VALUE SENS VALVE 1 PLUS VALVE RF SHOCK ABS VALVE HIGH RF SHOCK ABS VALVE LOW RIGHT FRONT SHOCK ABSORBERS VALVE RIGHT REAR SHOCK ABSORBERS VALVE RR SHOCK ABS VALVE HIGH RR SHOCK ABS VALVE LOW SEAT WIDTH ADJUSTMENT VALVE 3 BLEED SEAT WIDTH ADJUSTMENT VALVE 4 VENTILATE SENS VALVE 1 SENS VALVE 2 SHUT-OFF VALVE SHUT-OFF VALVE PDK COOLANT SHUT-OFF VALVE PDK COOLER SOUND SYMPOSER VALVE TANK VENT VALVE THROT VALVE 2 THROTTLE VALVE THROTTLE VALVE ACTVAL 1 THROTTLE VALVE ACTVAL 2 THROTTLE VALVE GND THROTTLE VALVE GROUND VALVE 1 VENTILATE VALVE 2 BLEED VALVE 3 BLEED VALVE 3 VENTILATE VALVE 4 BLEED VALVE 4 VENTILATE VALVE BLOCK GROUND VALVE FOR TUNING FLAP 1 WATER VALVE

(OR RED/ WIRE BLK WIRE BLK/BLU WIRE BLK/BRN WIRE BLK/GRN WIRE BLK/GRY WIRE BLK/RED WIRE BLK/VIO WIRE BLK/WHT WIRE BLK/YEL WIRE BLU WIRE BLU/BLK WIRE BLU/BRN WIRE BLU/GRN WIRE BLU/GRY WIRE BLU/RED WIRE BLU/VIO WIRE BLU/WHT WIRE BLU/YEL WIRE BRN WIRE BRN/BLK WIRE BRN/BLU WIRE BRN/GRN WIRE BRN/GRY WIRE BRN/RED WIRE BRN/VIO WIRE BRN/WHT WIRE BRN/YEL WIRE GRN WIRE GRN/BLK WIRE GRN/BLU WIRE GRN/BRN WIRE GRN/GRY WIRE GRN/RED WIRE GRN/VIO WIRE GRN/WHT WIRE GRN/YEL WIRE GRY WIRE GRY/BLK WIRE GRY/BLU WIRE GRY/BRN WIRE GRY/GRN WIRE GRY/RED WIRE GRY/VIO WIRE GRY/WHT WIRE GRY/YEL WIRE NCA WIRE ORG/ WIRE ORG/BLK WIRE ORG/BLU WIRE ORG/BRN WIRE ORG/GRN WIRE ORG/RED WIRE ORG/VIO WIRE PNK WIRE RED WIRE RED/BLK WIRE RED/BLU WIRE RED/BRN WIRE RED/GRN WIRE RED/GRY WIRE RED/VIO WIRE RED/WHT WIRE RED/YEL WIRE VIO WIRE VIO/BLK WIRE VIO/BLU WIRE VIO/BRN WIRE VIO/GRN WIRE VIO/GRY WIRE VIO/RED WIRE VIO/WHT WIRE VIO/YEL WIRE WHT WIRE WHT/BLK WIRE WHT/BLU WIRE WHT/BRN WIRE WHT/GRN WIRE WHT/GRY WIRE WHT/RED WIRE WHT/VIO WIRE WHT/YEL WIRE YEL WIRE YEL/BLK WIRE YEL/BLU WIRE YEL/BRN WIRE YEL/GRN WIRE YEL/GRY WIRE YEL/RED WIRE YEL/VIO WIRE YEL/WHT WIRE

1, 2, OFF 12 V (NOT (OR ACTIVE BODYWORKS SYSTEM ADJUSTMENT BTN GND ADJUSTMENT BTN SIG ADJUSTMENT CODED AIR BAG 1- AIR BAG 2+ AIR BAG GND AIR BAG STEERING COLUMN 1 AIR BAG STEERING COLUMN 2 AIR BAG TERM 31 AM/FM 1 AM/FM 1+2 AMP ON ANGLE ADJUSTMENT ANTI- DAZZLE INTERIOR MIRROR SHIELD ANTI-DAZZLE INTERIOR MIRROR AREA LIGHTING AUX 1 IN L + AUX 1 IN R + AUX 1 RTN AUX IN R + AUX L + AUX R + AUX RTN AUX SHIELD AXLE SENS GND AXLE SENS SPLY BACKREST ADJUSTMENT BACKREST ADJUSTMENT BACK BACKREST ADJUSTMENT FORWARD BACKREST ANGLE BACKREST ANGLE ADJUSTMENT BACKREST ANGLE ADJUSTMENT 1 BACKREST ANGLE ADJUSTMENT 2 BACKREST BACK BACKREST FORWARD BACKREST VENTILATION BACKREST WIDTH BACKUP LIGHT BAR IGNITION CYLINDER 1 MODULE BAR IGNITION CYLINDER 2 MODULE BAR IGNITION CYLINDER 3 MODULE BAR IGNITION CYLINDER 4 MODULE BAR IGNITION CYLINDER 5 MODULE BAR IGNITION CYLINDER 6 MODULE BAR IGNITION MODULE CYLINDER 1 BAR IGNITION MODULE CYLINDER 2 BAR IGNITION MODULE CYLINDER 3 BAR IGNITION MODULE CYLINDER 4 BAR IGNITION MODULE CYLINDER 5 BAR IGNITION MODULE CYLINDER 6 BATT DISC BATT GND BLUETOOTH HANDSET BLW SENS FOOT WELL RI BLWR SENS FOOTWELL BRAKE BOOSTER PRESS SENS BRAKE FLUID LEVEL BRAKE PAD WEAR BRK FLUID LEVEL BRK PEDAL SW C SHIELD CAMSHAFT CONTROLLER BANK 1 CAMSHAFT CONTROLLER BANK 2 CAN CHASSIS HIGH CAN CHASSIS LOW CAN COMFORT HI CAN COMFORT HIGH CAN COMFORT LO CAN COMFORT LOW CAN CRASH HIGH CAN CRASH LOW CAN DIAGNOSTICS HIGH CAN DIAGNOSTICS LOW CAN DRIVE CAN DRIVE HIGH CAN DRIVE LOW CAN DRV HI CAN DRV LO CAN HI CAN HIGH CAN HIGH 1 CAN L CAN LO CAN LOW CAN LOW 1 CAN MMI HI CAN MMI HIGH CAN MMI LO CAN MMI LOW CAN VERTEILER CD RADIO CENTRAL LOCKED STATUS CENTRAL STATUS SAFE LOCKING CHARGE AIR TEMP CHARGING CRADLE SUPPRESSOR CHOKE CHASSIS HIGH CHASSIS LOW CIGAR LIGHTER CODING 1 CODING 2 CODING 3 COM TX COMFORT HIGH COMFORT LOW COMPUTER DATA LINES COMPUTER DATA LINES SYSTEM CONTACT 1 CONTACT 2 CONTROL LINE CONVERTIBLE COUPE COOLING FANS SYSTEM COOLING WATER COOLING WATER LEVEL COUPE CONVERTIBLE COURTESY LIGHT CRASH OUTPUT CRASH SIG CRASH SIGNAL CTRL LINE CVB GND CVB SIG CVBS GND CVBS SIG CVBS SIGNAL CYL 1 HS CYL 2 HS CYL 2 LS CYL 3 HS CYL 3 LS CYL 4 HS CYL 4 LS CYL 5 HS CYL 5 LS CYL 6 HS CYL 6 LS DAB SIG DC O/P DC/DC CONVERTER DEFOGGER SYSTEM DEFOGGER, POWER TOPS SYSTEMS DIAGNOSIS MSG DISPOSAL LINE DISTANCE SENS 1 DISTANCE SENS 2 DISTANCE SENS 3 DISTANCE SENS 4 DOOR CONTACT DOOR LOCKS SYSTEM DOOR LOCKS, ANTI-THEFT SYSTEMS DOOR LOCKS, ANTI-THEFT SYSTEMS POWER TOPS SYSTEM DOOR PANEL LED DOOR SILL LIGHTING DRIVE LINK ELV SPLY DRIVER AIR BAG ESD GROUND DRIVER BELT FORCE LIMITER DRIVER BELT TENSIONER DRIVER DOOR WOOFER DRIVER KNEE AIR BAG DRIVER SEAT ESD GROUND DRIVER SEAT THORAX AIR BAG DRIVER SIDE HEAD AIR BAG - DRIVER'S DOOR ODDMENTS TRAY LIGHTING DRIVER'S DOOR PANEL LIGHTING DRIVER'S DOOR WOOFER DRIVER'S SEAT HEIGHT ADJUSTMENT DRV AIR BAG STAGE 1 - DRV AIR BAG STAGE 2 - DRV BUCKLE DRV FORCE LIMITER - DRV IGN CKT BELT TENS + DRV PRESSURE SENS DOOR + DRV SEAT POSITION DRV SIDE HEAD AIR BAG - DRV SIDE KNEE AIR BAG + DRV SIDE SENS FOR C-PILLAR + DRV SIDE THORAX AIR BAG - DRV UPFRONT SENS + DRV/PASS CODING EC MIRROR EISS ILL EISS ILLUMINATION ELECTRICAL STEERING GEAR ELV DRIVE LINK SUPPLY ELV ENABLE ENABLE ELV ENABLE TERM 15 ENCODER PIN GROUND ENG COMP TEMP ENG GND EVAP TEMP EXHAUST FLAP EXHAUST FLAP CONTROL EXTEND MTR + EXTEND SPOILER FAN CTRL FAN CTRL 1 FAN CTRL 2 FAN FINAL STAGE FL LSP+ WOOFER FL LSP- MID-RANGE WOOFER FL LSP- TWEETER FL PROX SENS SPLY FL TERM 31 PROX SENS FL TRIGGER MOD SUPPLY FM 3+4 FOLDING MIRROR POS 1 FOLDING MIRROR POS 2 FOLDING MIRROR POSITION 1 FOLDING MIRROR POSITION 2 FOOTWELL LIGHT FORE/ AFT FR LSP+ MID-RANGE WOOFER FR LSP+ WOOFER FR LSP- TWEETER FR PASS IGN CKT BELT TENS - FR PASS SIDE HEAD AIR BAG + FR PASS SIDE THORAX AIR BAG + FR PROX SENS SPLY FR TERM 31 PROX SENS FR TRIGGER MOD SUPPLY FRONT BCM FRONT BLUETOOTH CHARGING TRAY FRONT EVAPORATOR TEMPERATURE FRONT LID FRONT LID ACTUATING ELEMENT FRONT LID LATCHING HOOK MICROSWITCH FRONT LID LIGHT FRONT LID MICRO SW FRONT LID PROX SENS FRONT LID PROX SENS SPLY FRONT LUGGAGE COMPARTMENT EMERGENCY POWER PIN FRONT LUGGAGE COMPARTMENT LIGHT FRONT PASSENGER DOOR ODDMENTS TRAY LIGHTING FRONT PASSENGER DOOR PANEL LIGHTING FRONT PASSENGER DOOR WOOFER FRONT PASSENGER SEAT ESD GROUND FRONT PASSENGER SEAT THORAX AIR BAG FRONT SENS SIG FRT LID PROX SENS SPLY FRT LID TERM 31 PROX SENS FUEL FILLER NECK GROUND FUEL INJECTOR 1 FUEL INJECTOR 2 FUEL INJECTOR 3 FUEL INJECTOR 4 FUEL INJECTOR 5 FUEL INJECTOR 6 FUEL LEVEL SENS GND FUN DISPLAY ON FUN IND FUN IND 2 FUN IND OFF FUNCTION DISPLAY ON FUNCTION IND OFF GLOVE BOX MICRO SW GLOVE COMPARTMENT GND ACTUATORS GND DIPPED BEAM GND HI BEAM GND POTENTIOMETER 1 GND POTENTIOMETER 2 GND PWR GND SENS GP AIR BAG GPS HF IN GROUND DISTRIBUTION SYSTEM GROUND POTI GROUND, MICROSWITCH HALL MTR + HALL MTR GND HALL SENS HALL SENS 1 - HALL SENS 2 HALL SENS FORE/AFT + HALL SENS HEIGHT + HEAD AIR BAG DS ESD GROUND HEAD AIR BAG PS ESD GROUND HEADLIGHTS SYSTEM HEATED BACKREST HEATED REAR WINDOW HEIGHT ADJUSTMENT HI PRESS SENS HIGH MOUNTED STOP LIGHT HIGH MOUNTED STOP LIGHT BODY HOOD LATCH CLOSED HOOD LATCH OPEN HOOD SENS 1 HOOD SENS 2 HORNS SYSTEM HOT AT ALL TIMES HT GND SENS HT SENS GND HT SENS SIG HT SENS SPLY HT SIG SENS HT SPLY SENS IGNITION CYL 1 IGNITION CYL 2 IGNITION CYL 3 IGNITION CYL 4 IGNITION CYL 5 IGNITION CYL 6 IGNITION SW IND 2 IND OFF INNER TEMP COMP INNER TEMP SURFACE INPUT SIG INSTRUMENT CLUSTER INSTRUMENT CLUSTER SYSTEM INTAKE PRESS INTAKE TEMP IPN GROUND IPOD ACC DET IPOD CHARGING VOLT + IPOD CON TX IPOD IDENT IPOD VOLTAGE + KL 31 KNEE AIR BAG DS ESD GROUND KNEE AIR BAG PS ESD GROUND KNOCK SENS 1 SHIELD KNOCK SENS 1 SIG CYL 1 LS KNOCK SENS 2 SHIELD KNOCK SENS 2 SIG LAMBDA CTRL LATCH HOOK IN RECEIVER LATCH HOOK UNLOCKED LATCH HOOK UNLOCKED OR REAR WINDOW BREAKAGE SENS LATCH HOOK RECEIVER LATCHING HOOK LOCKED LAUNCH CONTROL DISPLAY LE LSP- WOOFER LED ACTUATING ELEMENT LED MEM OFF LED MEM SET LED MEMORY OFF LED MEMORY SET LEFT BRAKE LIGHT LEFT CONTROL SPLY LEFT COURTESY LIGHT MIRROR LEFT DASHBOARD LOUDSPEAKER LEFT ELECTROCHROMIC HEATED MIRROR LEFT FRONT LEFT FRONT DOOR SILL LIGHTING LEFT FRONT FOOTWELL LIGHT LEFT FRONT HEATED SPRAY JET LEFT FRONT TPM TRIGGER MODULE LEFT HIGH BEAM LEFT LIFT MAGNET LEFT LOW BEAM LEFT LUGGAGE RACK LIGHT LEFT MAKE-UP LIGHT LEFT MIRROR FUNCTION DISPLAY LEFT MIRROR LED SELECTION LEFT NUMBER PLATE LIGHT LEFT RADIATOR FAN LEFT REAR LEFT REAR TPM TRIGGER MODULE LEFT REAR TWEETER LEFT REVERSING LIGHT LEFT SEAT TEMP LEFT SEAT VENTILATION LEFT SIDE HEATED BOLSTER LEFT SIDE MARKER LIGHT LEFT SIDE TURN SIGNAL LEFT STEERING WHEEL REMOTE CONTROL SLAVE-PRINTED CIRCUIT BOARD LEFT TAILLIGHT LEFT TAILLIGHT ASSEMBLY LEFT TURN SIG LF DAYTIME RUNNING LIGHT LF DAYTIME RUNNING LT LF SIDE DIRECTION IND LF SIDE IND LF SIDE MARKER LIGHT LF SPEED SENS SIG INPUT GROUND LF SPEED SENS SUPPLY LF SPKR LF TURN SIG LF TURN SIGNAL LF TWEETER+ LH HIGH BEAM LH LOW BEAM LH MIRROR FUNCTION LH MTR A LH MTR B LH SIDE MARKER LIGHT LID OPEN LID SHUT LIGHT REDUNDANT LIGHT SW LIGHT SW POSITION 0 LIN 1 LIN 2 LIN 3 LIN DATA A/C LIN DATA VEHICLE LIN INPUT LIN OUTPUT LK SIG LOCATING LIGHT LOCKING SOL - LOW START ENABLE PIN LOW/START ENABLE P/N LOWER SEAT LR FOG LIGHT LR IND LR SPEED SENS SIG INPUT LR SPEED SENS SUPPLY LR TRIGGER MOD SUPPLY LSP + LSP+ WOOFER LE LSP- CENTER LSP- WOOFER FL LSP- WOOFER FR LT REDUNDANT LT SCROLL WHEEL LT SEAT TEMP LT SIDE VENT BLOWER LT SW POSITION 0 LUGGAGE RACK LIGHT LUMBAR BOTTOM LUMBAR FWD/BACK LUMBAR GROUND LUMBAR HIGH LOW LUMBAR PRESSURE BOTTOM LUMBAR PRESSURE TOP LUMBAR SW FORWARD/BACK LUMBAR SW HIGH/LOW LUMBAR TOP LVDS IN + MEM CTRL SW MEM OFF MEM SET MEMORY SYSTEMS MIC - MICROPHONE 1 - MICROPHONE 2 + MICROPHONE SHIELD MICROSWITCH 18 MICROSWITCH 19 MIRROR ADJUSTMENT MIRROR CHANGEOVER MIRROR COURTESY LIGHT MIRROR EC GLASS MIRROR EC GLASS GND MOUNTING HIGH SIDE MOUNTING LOW SIDE NTC- NUMBER PLATE LIGHT + OIL PRESS SENS OIL TEMP + OIL TEMP SENS OPERATING SW OUT SIDE TEMP OUTER DOOR P SW/NEUT SW P SW/NEUTRAL SW P/N START P/N STR P/N SW PARKING BRAKE FUNCTION PASS AIR BAG OFF SW INPUT PASS AIR BAG STAGE 1 - PASS AIR BAG STAGE 2 - PASS BUCKLE PASS FORCE LIMITER + PASS PRESSURE SENS DOOR + PASS SEAT POSITION PASS SIDE KNEE AIR BAG + PASS SIDE SENS FOR C-PILLAR + PASS UPFRONT SENS - PASSENGER AIR BAG ESD GROUND PASSENGER AIR BAG STAGE 1 PASSENGER AIR BAG STAGE 2 PASSENGER BELT FORCE LIMITER PASSENGER BELT TENSIONER PASSENGER KNEE AIR BAG PASSENGER SEAT RECLINE ADJUSTMENT PASSENGER SIDE HEAD AIR BAG PASSENGER'S SEAT HEIGHT ADJUSTMENT PDK TRANSMISSION 1 PDK TRANSMISSION 2 PEDAL SENS PEDAL VALUE PEDAL VALUE SENS POTEN 1 PEDAL VALUE SENS POTEN 2 PICK UP TELEPHONE PMP CURRENT POTENTIOMETER SPLY POWER DISTRIBUTION SYSTEM POWER SUPPLY POWER TOPS SYSTEM PRESS SENS PRESS SENS 1 PRESS SENS 2 PRK BRK FUN PWM ACL DISPOSAL LINE PWM SIG PWR GROUND RADIATOR FAN CTRL 1 RADIATOR FAN CTRL 2 RADIO HF RAISE SEAT RB DIAG READY TO LATCH REAR BCM REAR ENG/LUGGAGE COMP LIGHT REAR FOG LIGHT REAR LID REAR LID ACTUATING ELEMENT REAR LID MICRO SW REAR LID MICROSWITCH REAR LID PROX SENS REAR LID PROX SENS SPLY REAR LUGGAGE COMPARTMENT LIGHT REAR SENS SIG REAR WINDOW BREAKAGE SENS REAR WINDOW MODULE REAR WINDOW WIPER REAR WINDOW WIPER/MICRO SW GND REFRIGERANT PRSS SENS RESONANCE FLAP RETRACT MTR + RETRACT SPOILER REVERSE LIGHT/ REAR FOG LIGHT REVERSING LIGHT REVERSING LIGHT/ REAR FOG LIGHT RF DAYTIME RUNNING LT RF LOW BEAM RF SIDE DIRECTION IND RF SIDE IND RF SIDE MARKER LIGHT RF SPEED SENS INPUT RF SPEED SENS SUPPLY RF SPKR RF TURN SIG RF TURN SIGNAL RF TWEETER - RH HIGH BEAM RH MIRROR FUNCTION RH MTR A RH MTR B RH SENS + RH SIDE MARKER LIGHT RI LSP- WOOFER RIGHT BRAKE LIGHT RIGHT CONTROL SPLY RIGHT COURTESY LIGHT MIRROR RIGHT DASHBOARD LOUDSPEAKER RIGHT ELECTROCHROMIC HEATED MIRROR RIGHT END OF DASH) RIGHT FRONT RIGHT FRONT BLUETOOTH CHARGING TRAY RIGHT FRONT DOOR SILL LIGHTING RIGHT FRONT FOOTWELL LIGHT RIGHT FRONT HEATED SPRAY JET RIGHT FRONT HIGH BEAM RIGHT FRONT LOW BEAM RIGHT FRONT TPM TRIGGER MODULE RIGHT LUGGAGE RACK LIGHT RIGHT MAKE-UP LIGHT RIGHT MIRROR FUNCTION DISPLAY RIGHT MIRROR LED SELECTION RIGHT NUMBER PLATE LIGHT RIGHT RADIATOR FAN RIGHT REAR RIGHT REAR TPM TRIGGER MODULE RIGHT REAR TWEETER RIGHT SEAT TEMP RIGHT SEAT VENTILATION RIGHT SIDE HEATED BOLSTER RIGHT SIDE TURN SIGNAL RIGHT STEERING WHEEL REMOTE CONTROL MASTER-PRINTED CIRCUIT BOARD RIGHT TAIL LIGHT ASSEMBLY RIGHT TAILLIGHT RIGHT TAILLIGHT ASSEMBLY RIGHT TURN SIG RIGHT/LEFT SHUTTER LID RING BRAKE DIAGNOSIS RING BRK DIAGNOSIS RL LSP- MID-RANGE WOOFER RL LSP- TWEETER RL WOOFER + RLY TERM 50 ROOF CONSOLE ROOF CONSOLE SHIELD ROTARY LATCH RPM SENS 1 RPM SENS 2 RR DIR IND RR LID PROX SENS RR LID TERM 31 PROX SENS RR LSP- MID-RANGE WOOFER RR LSP- TWEETER RR SPEED SENS SIG INPUT RR SPEED SENS SUPPLY RR TRIGGER MOD SUPPLY RT SCROLL WHEEL RT SEAT TEMP RT SIDE VENT BLOWER SAT RADIO HF IN SEAT ADJUSTMENT SW ANGLE ADJUSTMENT SEAT ADJUSTMENT SW BACKREST ADJ SEAT ADJUSTMENT SW BACKREST ANGLE SEAT ADJUSTMENT SW GROUND SEAT ADJUSTMENT SW HEIGHT ADJUSTMENT SEAT ANGLE ADJUSTMENT SEAT ANGLE ADJUSTMENT 1 SEAT ANGLE ADJUSTMENT 2 SEAT BACKREST ADJST SEAT BACKREST ADJUSTMENT SEAT BACKREST ADJUSTMENT 1 SEAT BACKREST ADJUSTMENT 2 SEAT BACKREST ADJUSTMENT SW SEAT CUSHION BOLSTER SEAT CUSHION DEPTH SEAT CUSHION SW SEAT CUSHION VENTILATION SEAT DEPTH ADJUSTMENT SEAT DEPTH ADJUSTMENT 1 SEAT DEPTH ADJUSTMENT 2 SEAT DEPTH ADJUSTMENT SW SEAT HEIGHT ADJUSTMENT SEAT HEIGHT ADJUSTMENT 1 SEAT HEIGHT ADJUSTMENT 2 SEAT WIDTH ADJUSTMENT SEATS SYSTEM SELECTOR LEVER POS SELECTOR LEVER POSITION SELECTOR LEVER SPLY SELECTOR LEVER SUPPLY SENS 2 SPLY SENS 3 GND SENS GND SENS GROUND SENS R- SENS SIG SENS SIG FA SENS SIG RA SENS SPLY SENSORS 1 GND SENSORS 2 GND SERIAL INTERFACE SHIFT INTERLOCK SYSTEM SHIFTLOCK - SHIFTLOCK SUPPLY SHUTTER LID RH/LH SIDE MARKER LIGHT SIGNAL 1 SIGNAL 2 SIGNAL FLI SIGNAL FLO SIGNAL FRI SIGNAL FRO SIGNAL RLI SIGNAL RLO SIGNAL RRI SIGNAL RRO SNS SIG SNSR GND SOL VLV 1 SOL VLV 2 SOLAR LT SOLAR RIGHT SOUND SYMPOSER - SOUND SYSTEMS SPD SEND HALL SIG SPLY ACT 2 SPLY ACT 3 SPLY ACTUATORS 1 SPLY ACTUATORS 2 SPLY ACTUATORS 3 SPLY POTENTIOMETER STARTING/ CHARGING SYSTEM STARTING/CHARGING SYSTEM STATUS POS X STATUS POS Y STEERING COLUMN SWITCHING MODULE STEERING WHEEL REMOTE CONTROL STEERING WHEEL) STOP LIGHT STOP LIGHT SW SUP PROX SENS SUPPLEMENTAL RESTRAINTS SYSTEM SUPPLY ACTUATORS SUPPLY VOLTAGE SW 1 SW 2 SW 3 SW 4 SW 5 SW 6 SW IN SW NVLD - SW OUT A SW OUT B SW OUT C SW OUT D SW SIG TAILGATE) TANK LEAK DIAGN TANK LID OPEN TANK LID SHUT TANK VENT VLV TELEVISION TUNER TEMP COMPT TEMP GND TEMP RADIATOR TEMP SURFACE TERM 15 TERM 15 HEATED SPRAY JETS TERM 15 IN DIAGNOSIS TERM 30 TERM 30 1 TERM 30 4 TERM 30 DAMPER TERM 30 TP IN TERM 30 TP OUT TERM 30-2 TERM 30-3 TERM 31 TERM 31 BACKREST ADJUSTMENT BACK BACKREST ADJUSTMENT FORWARD TERM 31 CTRL SW TERM 31 MEM SAVE CTRL SW TERM 31 POWER MIRROR TERM 31 PROX SENS TERM 58 TERM 58 D TERM 87 TERMINAL 15 TERMINAL 30 TERMINAL 31 TERMINAL 87 THERMOSTAT MAP THROT VLV 1 THROT VLV MTR - TIP-DOWN TIP-UP TRANS OIL TEMP SENS 1 GND TRIGGER MODULE GND TRIGGER MODULE SIGNAL TRUNK ENTERTAINMENT OPEN TRUNK ENTRAPMENT CLOSED TRUNK SW TRUNK, TAILGATE, FUEL DOORS SYSTEM TURN SIG TV 1 TV 2/DAB TV 2/DBA TV 3 USB GND USED) VALUE SENS VERTICAL ADJUSTMENT VIDEO GND VIDEO SIGNAL W/ BOSE 6 W/ ASK 7 W/ BURMESTER W/ BOSE, BURMESTER, TELEVISION TUNER W/ BURMESTER W/ DIGITAL AUDIO BROADCASTING RADIO RECEPTION W/ KEYLESS ENTRY W/ MEMORY W/ MEMORY W/O MEMORY W/ PASSENGER POWER SEAT W/ PDC W/ PDC W/O PDC W/ PORSCHE ACTIVE SUSPENSION MANAGEMENT W/ PORSCHE ACTIVE SUSPENSION MANAGEMENT, LOWERING W/ RADIO PREPARATION W/ RADIO PREPARATION W/O RADIO PREPARATION W/ MEMORY W/O MEMORY W/ RADIO PREPERATION W/O RADIO PREPERATION W/ START/STOP FUNCTION W/ START/STOP SYSTEM, RADIO PREPARATION W/ STOP WATCH W/ STOPWATCH W/ TELEVISION TUNER W/ TV TUNER W/O TV TUNER W/ XENON W/O DIGITAL AUDIO BROADCASTING RADIO RECEPTION W/O KEYLESS ENTRY W/O MEMORY W/O PARK ASSIST W/ PARK ASSIST W/O PASSENGER POWER SEAT W/O PDC W/O PORSCHE ACTIVE SUSPENSION MANAGEMENT W/O PORSCHE ACTIVE SUSPENSION MANAGEMENT, LOWERING W/O RADIO PREPARATION W/ MEMORY W/O START/STOP FUNCTION W/O START/STOP SYSTEM, RADIO PREPARATION WAKE-UP WASHER FLUID LEVEL WASHER FLUID RESERVOIR) WATER TEMP WINDOW CODED WINDOW LEFT WINDOW RIGHT WIPER/WASHER SYSTEM ZV FUNCTION IND
