Interior lights circuit for Porsche Cayenne III facelift (2023-2024)

BLU/RED WIRE BRN WIRE CAN HIGH CAN LOW CENTER CONSOLE REAR STORAGE COMPARTMENT ILLUMINATION BULB CIGARETTE LIGHTER COMPUTER DATA LINES SYSTEM DASHBOARD FUSE BOX ELECTROMECHANICAL CENTRE CONSOLE FRONT FRONT FOOTWELL LIGHT FRONT FUSE BOX FRONT-END ELECTRONICS (LEFT SIDE OF DASH) FUSE 11 FUSE 15 FUSE HOLDER E FUSE HOLDER F GLOVE COMPARTMENT LIGHT GLOVE COMPARTMENT LIGHT SWITCH GRN WIRE GROUND GROUND 31 GRY WIRE GRY/BLU WIRE GRY/RED WIRE GRY/WHT WIRE HOT AT ALL TIMES LED LEFT REAR VENT ILLUMINATION BULB LIN 1 LIN 5 LIN 6 ORG/BRN WIRE REAR CENTER ASHTRAY ILLUMINATION BULB REAR CENTRE ASHTRAY ILLUMINATION BULB REAR FOOTWELL LIGHTING RED WIRE RED/BLU WIRE RED/GRN WIRE RED/WHT WIRE RED/YEL WIRE RIGHT REAR VENT ILLUMINATION BULB ROTARY LIGHT SWITCH SIG SUPPLY SUPPLY 30 SUPPLY 58 TERM 30 TERM 31 VIO/RED WIRE VIO/WHT WIRE YEL/GRN WIRE

BRN WIRE GRN WIRE GROUND GRY/BLU WIRE GRY/WHT WIRE LEFT DRINKS HOLDER ILLUMINATION BULB LEFT FRONT FOOTWELL LIGHT LEFT LUGGAGE COMPARTMENT LIGHT LIN INPUT LIN OUTPUT LOWERING LOAD SILL, TOWING BRACKET OPERATING UNIT REAR LID CLOSURE BUTTON RED/GRN WIRE RED/WHT WIRE RED/YEL WIRE RIGHT FRONT FOOTWELL LIGHT RIGHT LUGGAGE COMPARTMENT LIGHT TERM 30 TERM 31 TERM 58 TRAILER DETECTOR CONTROL UNIT VIO/RED WIRE VIO/WHT WIRE YEL/GRN WIRE

BRN WIRE CAN COMFORT HIGH CAN COMFORT LOW COMPUTER DATA LINES SYSTEM CONN IN REAR FUSE 14 FUSE HOLDER J GRN WIRE GROUND GRY/BLU WIRE HOT AT ALL TIMES LEFT REAR FOOTWELL LIGHT LIN INPUT NEGATIVE ORG/BRN WIRE POSITIVE REAR FUSE BOX RED/GRN WIRE RED/WHT WIRE RED/YEL WIRE RIGHT REAR FOOTWELL LIGHT STORAGE COMPARTMENT ILLUMINATION BULB STORAGE COMPARTMENT ILLUMINATION SWITCH TERM 30 TERM 30 1 TERM 31 VIO/RED WIRE VIO/WHT WIRE WIRING HARNESS) YEL/RED WIRE

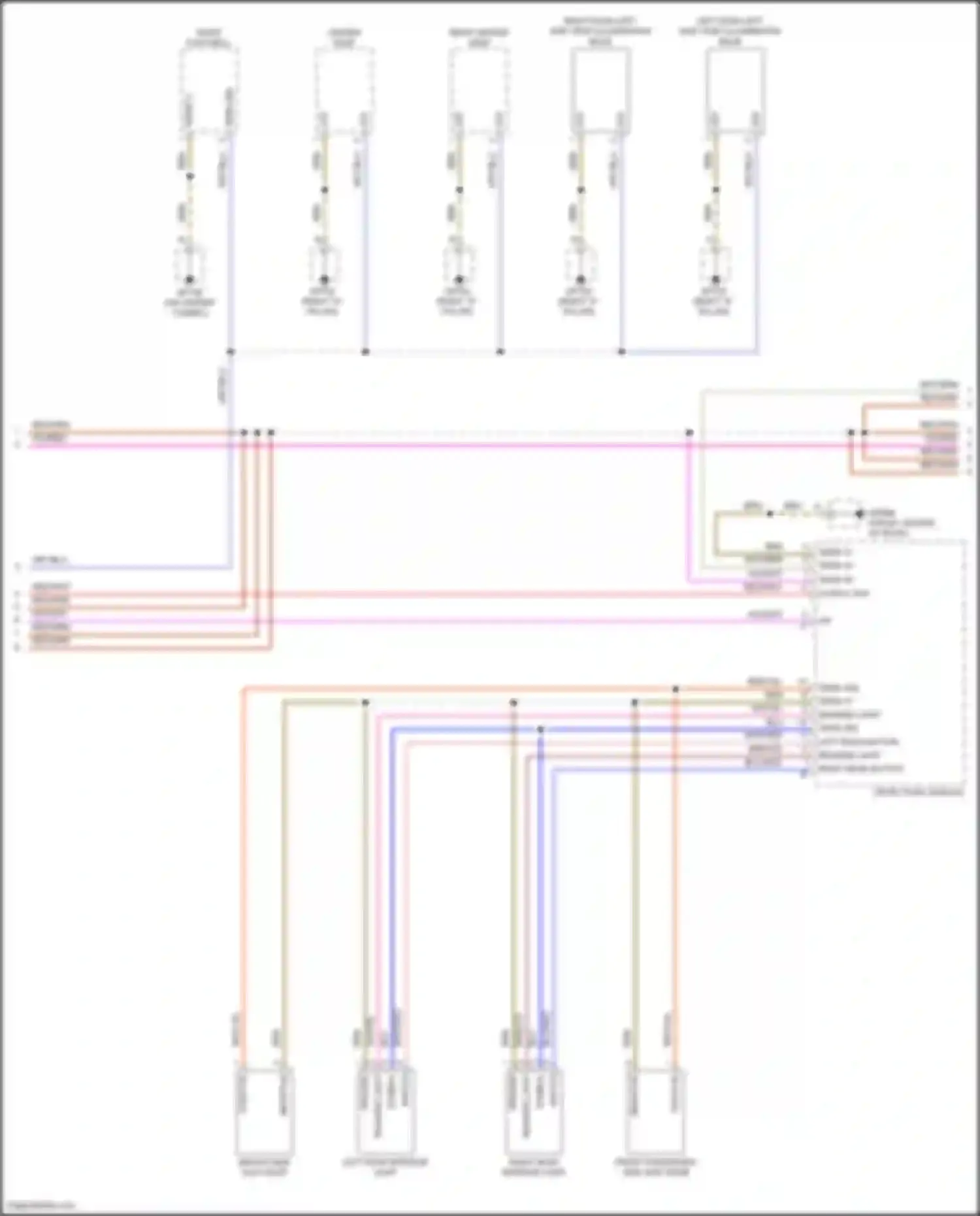

BLU WIRE BLU/WHT WIRE BRN WIRE BRN/VIO WIRE CENTER VENT DRIVER SIDE SUN VISOR FRONT PASSENGER SIDE SUN VISOR FRONT ROOF MODULE GROUND GRY/BLU WIRE LED LEFT DASH LEFT SIDE VENT ILLUMINATION BULB LEFT REAR BUTTON LEFT REAR INTERIOR LIGHT NEGATIVE POSITIVE READING LIGHT REAR CENTER VENT RED/GRN WIRE RED/WHT WIRE RED/YEL WIRE RIGHT DASH LEFT SIDE VENT ILLUMINATION BULB RIGHT REAR BUTTON RIGHT REAR INTERIOR LIGHT SWITCH SYMBOL TERM 30 TERM 31 VIO/RED WIRE VIO/WHT WIRE VIO/YEL WIRE WHT/BRN WIRE WHT/RED WIRE

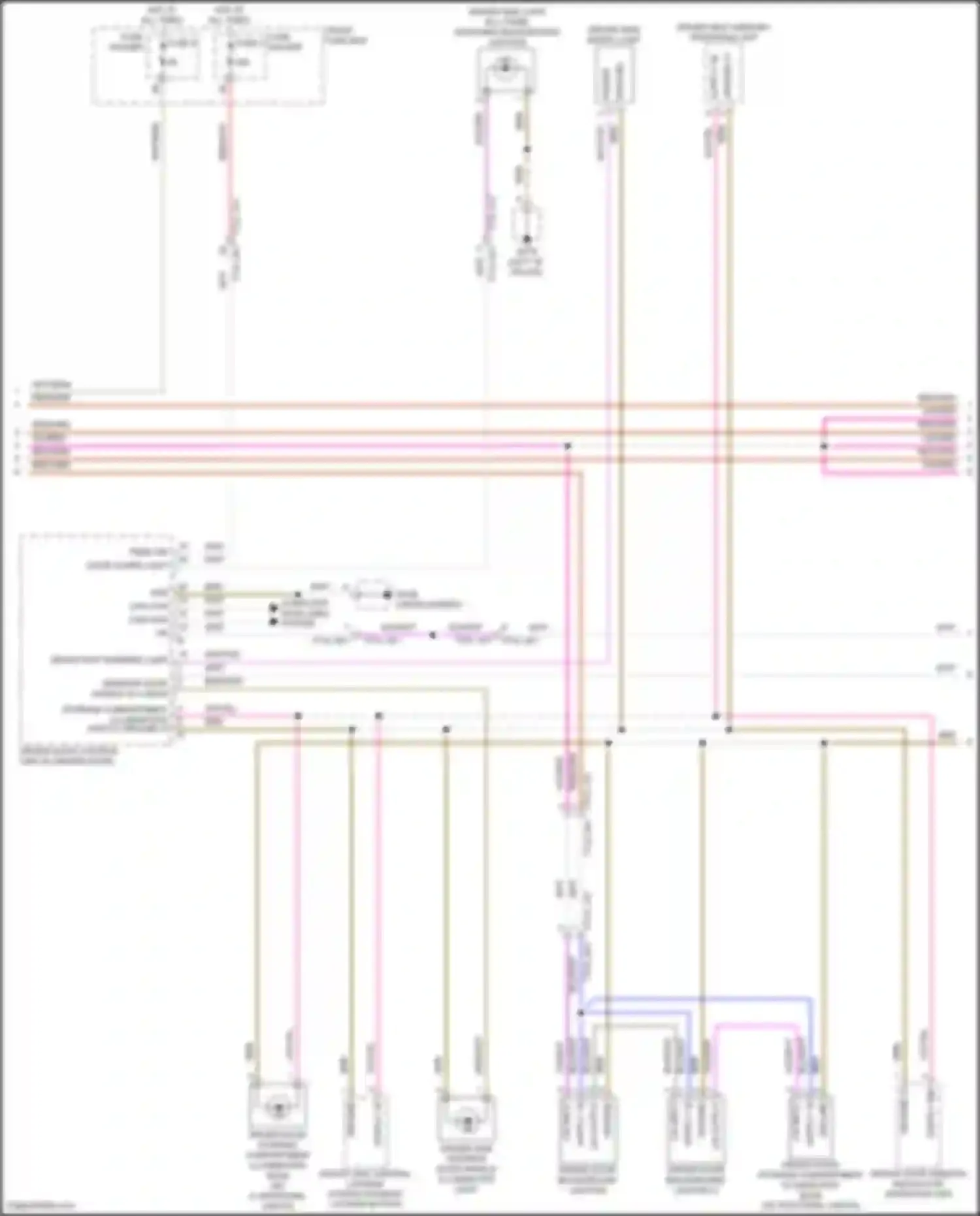

BLK/WHT WIRE BLU/WHT WIRE BRN WIRE BRN/WHT WIRE CAN HIGH CAN LOW COMPUTER DATA LINES SYSTEM DOOR GUARD LIGHT DRIVER DOOR BACKGROUND LIGHTING DRIVER DOOR BACKGROUND LIGHTING 2 DRIVER DOOR CONTROL UNIT (IN DRIVER DOOR) DRIVER DOOR STORAGE COMPARTMENT ILLUMINATION BULB DRIVER DOOR WINDOW REGULATOR OPERATING UNIT DRIVER EXIT WARNING LAMP DRIVER SEAT MEMORY OPERATING UNIT DRIVER SIDE CENTRAL LOCKING SYSTEM INTERIOR LOCKING BUTTON DRIVER SIDE ENTRY LIGHT DRIVER SIDE INTERIOR DOOR HANDLE ILLUMINATION LIGHT DRIVER SIDE LIGHT SILL PANEL MOULDING BACKGROUND LIGHTING FRONT FUSE BOX FUSE 2 FUSE 8 FUSE HOLDER C FUSE HOLDER E GROUND GROUND 31 HOT AT ALL TIMES INTERIOR DOOR HANDLE ILLU BULB LIN INPUT LIN OUTPUT POWER RED/GRN WIRE RED/WHT WIRE STORAGE COMPARTMENT ILLUMINATION SWITCH GROUND 31 SUPPLY 30 SUPPLY 58 VIO/BLK WIRE VIO/GRN WIRE VIO/RED WIRE VIO/WHT WIRE VIO/YEL WIRE WHT WIRE WHT/BRN WIRE WHT/VIO WIRE

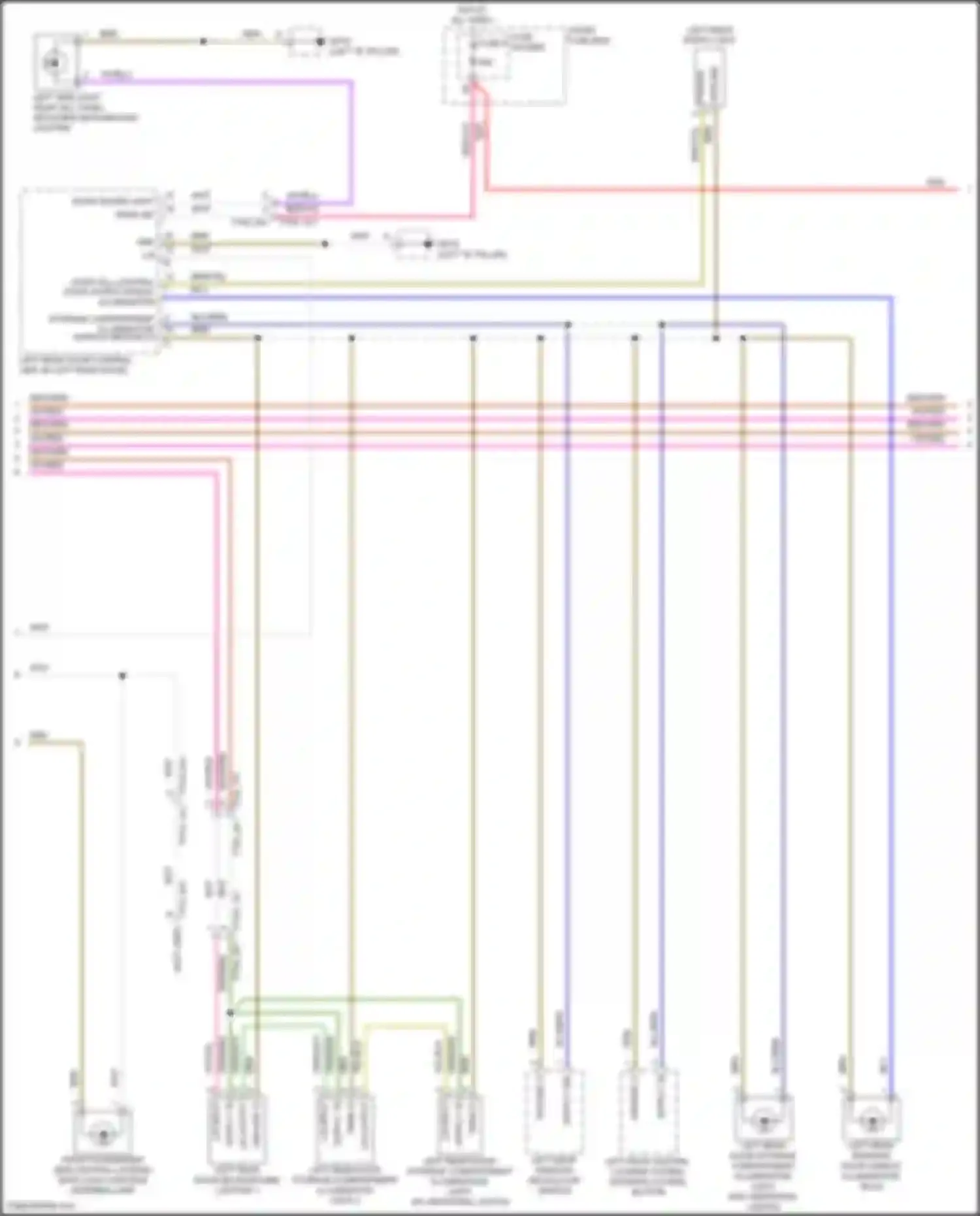

BLU WIRE BLU/BRN WIRE BRN WIRE BRN/YEL WIRE DOOR GUARD LIGHT DOOR SILL LIGHTING DOOR OUTER HANDLE ILLUMINATION FRONT FUSE BOX FRONT PASSENGER SIDE CENTRAL LOCKING SAFE LOCK FUNCTION WARNING LAMP FUSE 6 FUSE HOLDER C GRN/BRN WIRE GRN/WHT WIRE GROUND GROUND 31 HOT AT ALL TIMES LEFT REAR CENTRAL LOCKING SYSTEM INTERIOR LOCKING BUTTON LEFT REAR DOOR BACKGROUND LIGHTING 1 LEFT REAR DOOR CONTROL UNIT (IN LEFT REAR DOOR) LEFT REAR DOOR STORAGE COMPARTMENT ILLUMINATION LIGHT LEFT REAR DOOR STORAGE COMPARTMENT ILLUMINATION LIGHT 2 LEFT REAR ENTRY LIGHT LEFT REAR INTERIOR DOOR HANDLE ILLUMINATION BULB LEFT REAR WINDOW REGULATOR SWITCH LEFT SIDE LIGHT REAR SILL PANEL MOULDING BACKGROUND LIGHTING LIN INPUT LIN OUTPUT POWER RED WIRE RED/GRN WIRE RED/VIO WIRE STORAGE COMPARTMENT ILLUMINATION SWITCH GROUND 31 SUPPLY 30 SUPPLY 58 TERM 31 VIO/BLU WIRE VIO/RED WIRE VIO/YEL WIRE WHT WIRE YEL/BLK WIRE

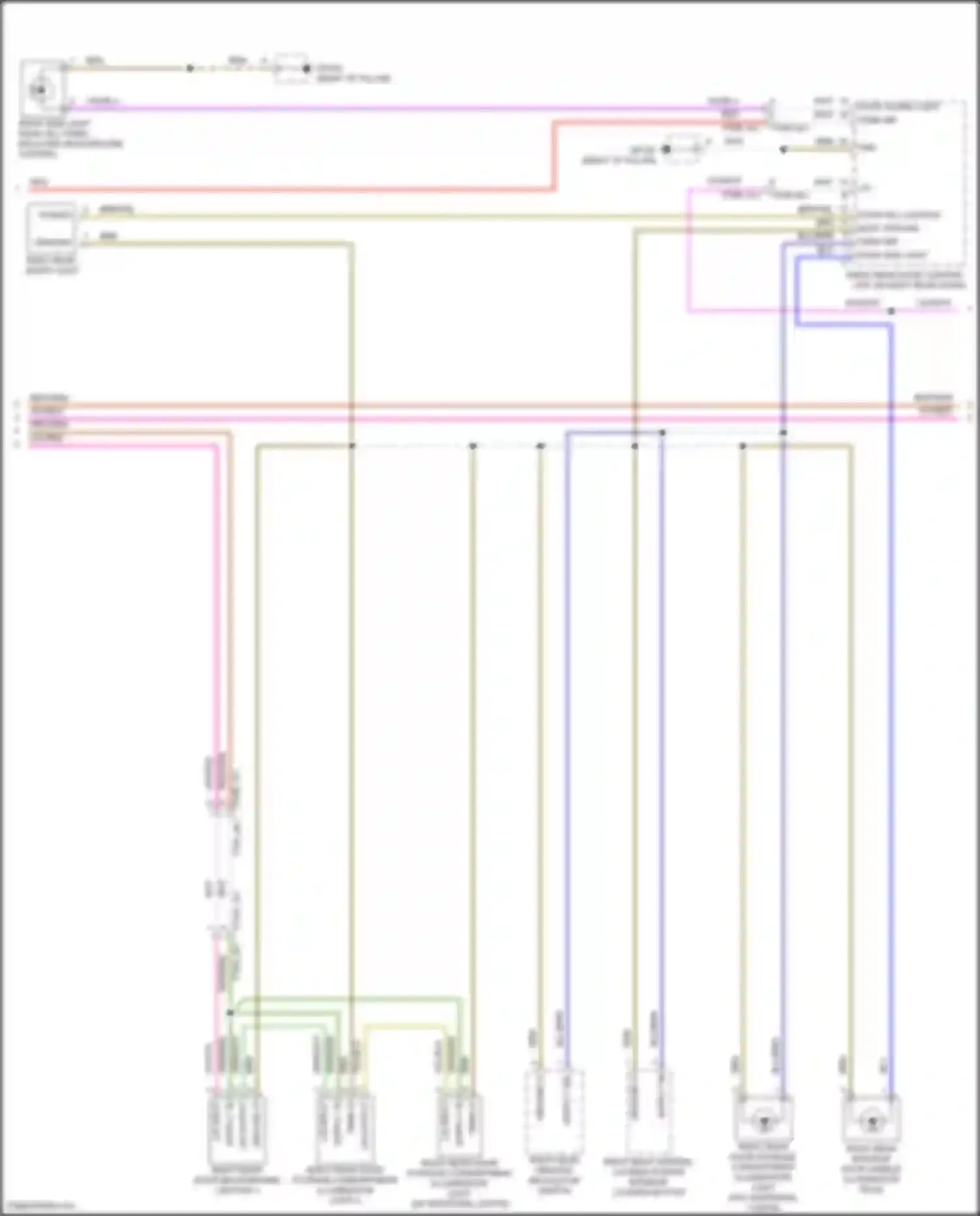

BLU WIRE BLU/BRN WIRE BRN WIRE BRN/YEL WIRE DOOR GUARD LIGHT DOOR SILL LIGHTING GRN/BRN WIRE GRN/WHT WIRE GROUND GROUND 31 LIN INPUT LIN OUTPUT PASS SIDE LIGHT POWER RED WIRE RED/GRN WIRE RIGHT REAR CENTRAL LOCKING SYSTEM INTERIOR LOCKING BUTTON RIGHT REAR DOOR BACKGROUND LIGHTING 1 RIGHT REAR DOOR CONTROL UNIT (IN RIGHT REAR DOOR) RIGHT REAR DOOR STORAGE COMPARTMENT ILLUMINATION LIGHT RIGHT REAR DOOR STORAGE COMPARTMENT ILLUMINATION LIGHT 2 RIGHT REAR ENTRY LIGHT RIGHT REAR INTERIOR DOOR HANDLE ILLUMINATION BULB RIGHT REAR WINDOW REGULATOR SWITCH RIGHT SIDE LIGHT REAR SILL PANEL MOULDING BACKGROUND LIGHTING SUPPLY 30 SUPPLY 58 TERM 31 VIO/BLU WIRE VIO/RED WIRE VIO/WHT WIRE VIO/YEL WIRE WHT WIRE YEL/BLK WIRE

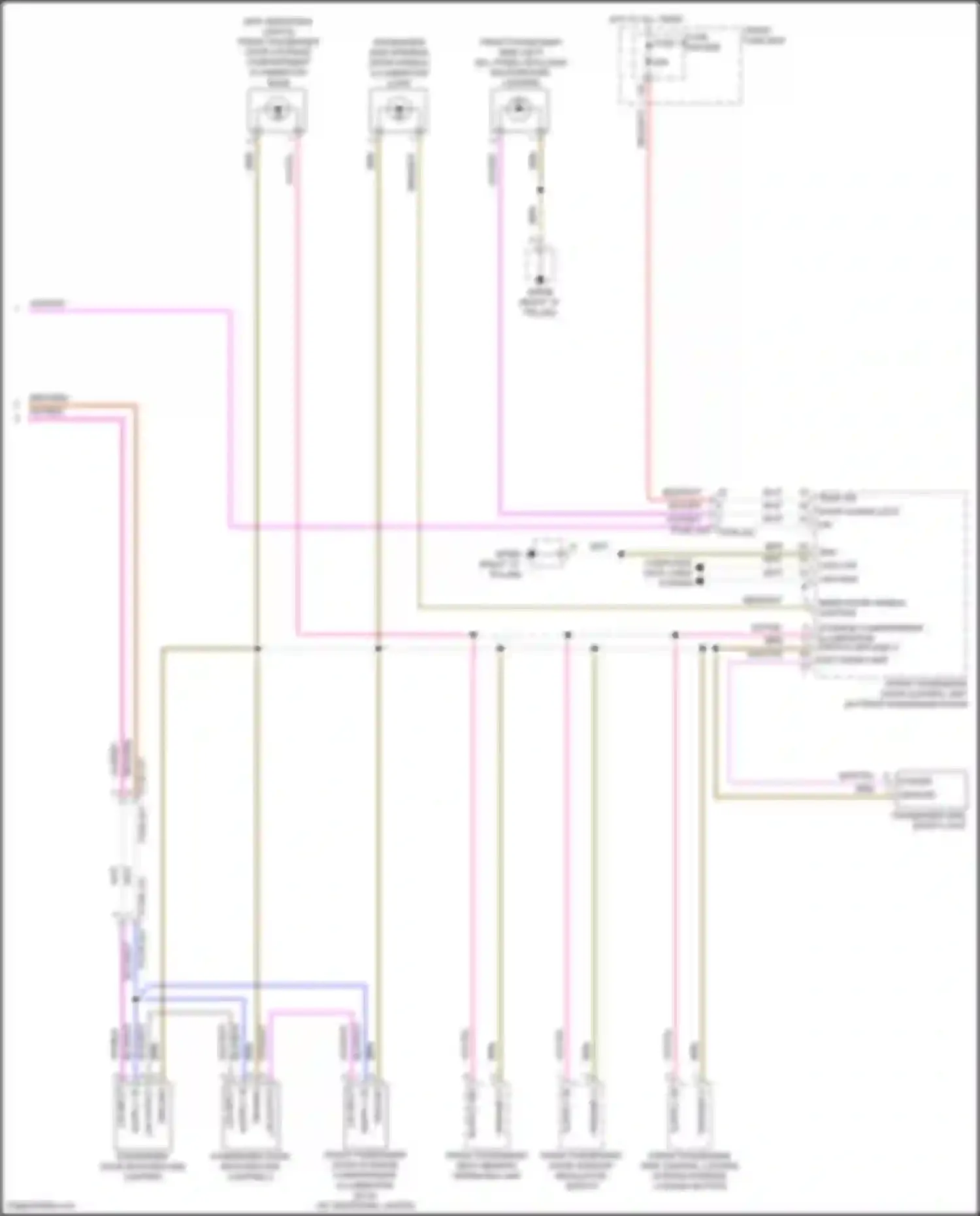

BLK/WHT WIRE BLU/WHT WIRE BRN WIRE BRN/WHT WIRE CAN HIGH CAN LOW COMPUTER DATA LINES SYSTEM DOOR GUARD LIGHT EXIT WARN LAMP FRONT FUSE BOX FRONT PASSENGER DOOR CONTROL UNIT FRONT PASSENGER DOOR STORAGE COMPARTMENT ILLUMINATION BULB FRONT PASSENGER DOOR WINDOW REGULATOR SWITCH FRONT PASSENGER SEAT MEMORY OPERATING UNIT FRONT PASSENGER SIDE CENTRAL LOCKING SYSTEM INTERIOR LOCKING BUTTON FRONT PASSENGER SIDE LIGHT SILL PANEL MOULDING BACKGROUND LIGHTING FUSE 14 FUSE HOLDER E GROUND GROUND 31 HOT AT ALL TIMES INNER DOOR HANDLE LIGHTING LIN INPUT LIN OUTPUT PASSENGER DOOR BACKGROUND LIGHTING PASSENGER DOOR BACKGROUND LIGHTING 2 PASSENGER SIDE ENTRY LIGHT PASSENGER SIDE INTERIOR DOOR HANDLE ILLUMINATION LIGHT POWER RED/GRN WIRE RED/WHT WIRE STORAGE COMPARTMENT ILLUMINATION SWITCH GROUND 31 SUPPLY 30 SUPPLY 58 VIO/BLK WIRE VIO/GRY WIRE VIO/RED WIRE VIO/WHT WIRE VIO/YEL WIRE WHT WIRE WHT/VIO WIRE
