Porsche Cayenne Turbo III (2017-2023) power, control electronics electric drive Wiring diagrams
This page contains all the electrical diagrams for the component. power, control electronics electric drive, in which he is found in the car Porsche Cayenne Turbo III (2017-2023). You can view various wiring diagrams where this component is used, as well as go to more detailed diagrams to see the complete connection and interaction in the system. All diagrams have links to quickly jump to the corresponding section with the component for easy viewing..

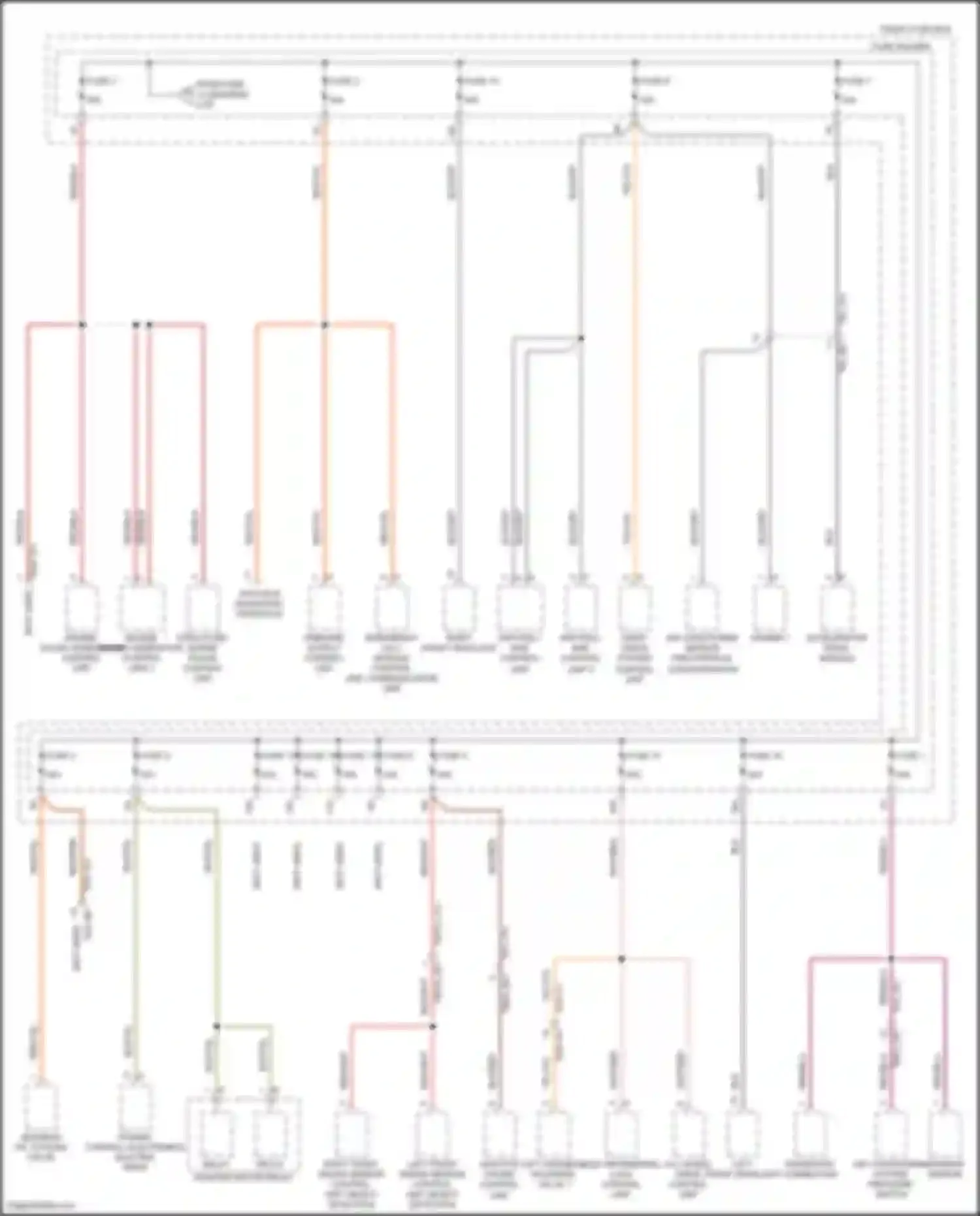

Wiring diagram power, control electronics electric drive (1 of 2)
ACCELERATOR PEDAL MODULE
ADAPTIVE CRUISE CONTROL UNIT
AIR CONDITIONER SENSOR FINE PARTICLE CONCENTRATION
AIR CONDITIONING SYSTEM PRESSURE SWITCH
ALL-WHEEL DRIVE CONTROL UNIT
ANTI-ROLL BAR CONTROL UNIT
ANTI-ROLL BAR CONTROL UNIT 2
AXLE DIFFERENTIAL LOCK CONTROL UNIT
BLK WIRE
BLK/GRY WIRE
BLK/RED WIRE
BLK/YEL WIRE
DATA BUS DIAGNOSTIC INTERFACE
DIAGNOSTIC CONNECTION
EMERGENCY CALL MODULE CONTROL UNIT, COMMUNICATION UNIT
ENGINE SOUND GENERATOR CONTROL UNIT
ENGINE SOUND GENERATOR CONTROL UNIT 2
FROM FUSE 12 (DIAGRAM 2 OF 9)
FRONT FUSE BOX
FUSE 1
FUSE 10
FUSE 11
FUSE 13
FUSE 14
FUSE 15
FUSE 16
FUSE 2
FUSE 3
FUSE 4
FUSE 5
FUSE 6
FUSE 7
FUSE 8
FUSE 9
FUSE HOLDER D
GEARBOX OIL COOLING VALVE
INTERIOR MIRROR
IONIZER 1
LEFT FRONT HEADLIGHT
LEFT FRONT RADAR SENSOR CONTROL UNIT OBJECT DETECTION
LEFT GEARBOX MOUNTING VALVE 1
N/A
N/A N/A
NIGHT VISION SYSTEM CONTROL UNIT
ONBOARD SUPPLY CONTROL UNIT
POWER, CONTROL ELECTRONICS ELECTRIC DRIVE
RED/BLK WIRE
RED/BLU WIRE
RED/GRN WIRE
RED/WHT WIRE
RED/YEL WIRE
RELAY A
RELAY B
RIGHT FRONT HEADLIGHT
RIGHT FRONT RADAR SENSOR CONTROL UNIT OBJECT DETECTION
STARTER MOTOR RELAY
STRUCTURE-BORNE SOUND CONTROL UNIT
WHT/RED WIRE
YEL/VIO WIRE
Go to component -> Power distribution circuit (3 of 9) -> POWER, CONTROL ELECTRONICS ELECTRIC DRIVE

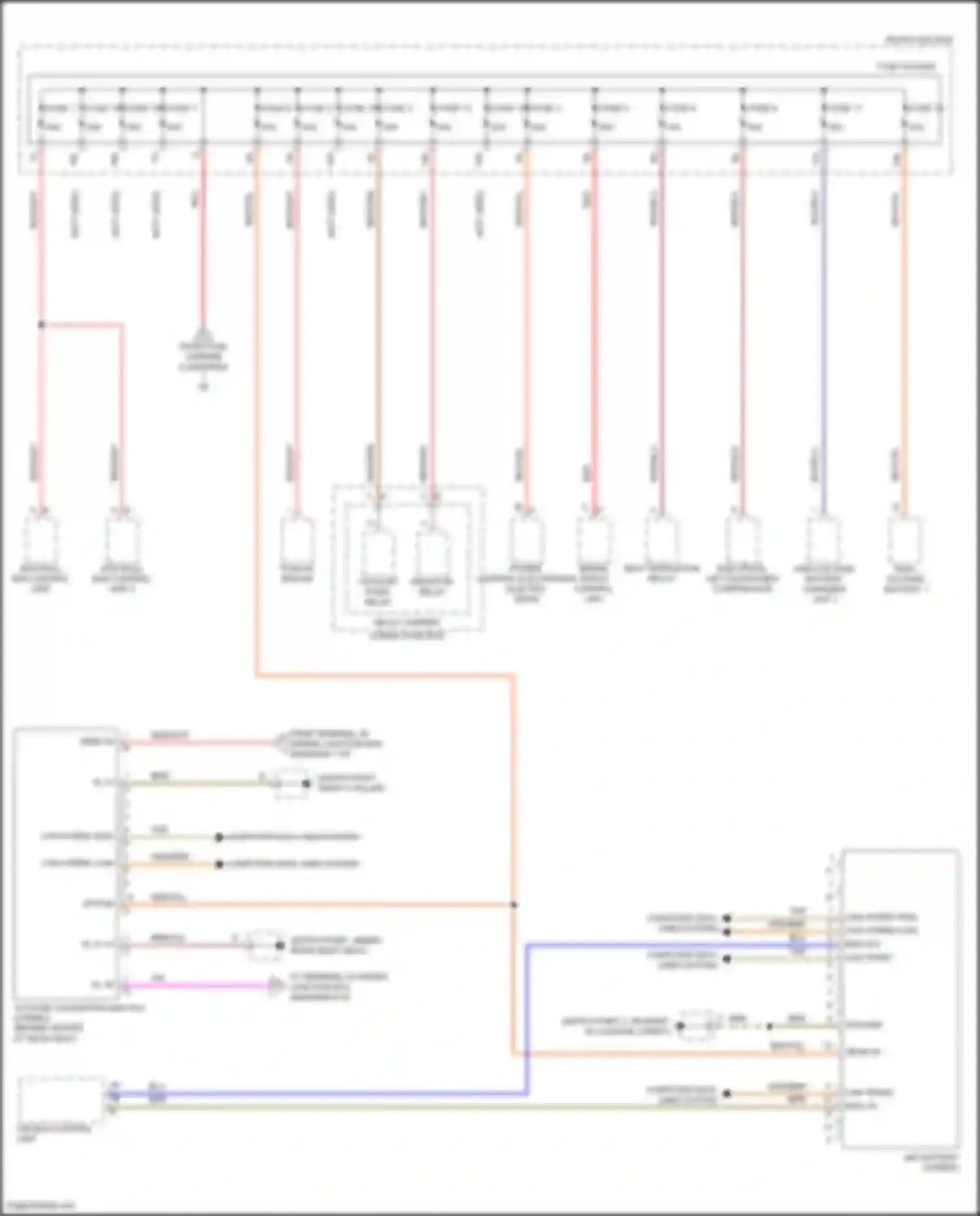

Wiring diagram power, control electronics electric drive (2 of 2)
AIR BAG CONTROL UNIT
ANTI-ROLL BAR CONTROL UNIT
ANTI-ROLL BAR CONTROL UNIT 2
BAG HV-
BLK/BLU WIRE
BLU WIRE
BRAKE SERVO CONTROL UNIT
BRN WIRE
BRN/VIO WIRE
CAN HYBRID HIGH
CAN HYBRID LOW
COMPUTER DATA LINES SYSTEM
COOLANT PUMP RELAY
ELECTRICAL AIR CONDITIONER COMPRESSOR
FROM FUSE CARRIER 9 (DIAGRAM 7 OF 9)
FROM TERMINAL 30 WIRING JUNCTION BOX (DIAGRAM 1 OF 9)
FUSE 1
FUSE 10
FUSE 11
FUSE 12
FUSE 13
FUSE 14
FUSE 15
FUSE 16
FUSE 2
FUSE 3
FUSE 4
FUSE 5
FUSE 6
FUSE 7
FUSE 8
FUSE 9
FUSE HOLDER K
GROUND
HIGH VOLTAGE BATTERY 1
HIGH VOLTAGE BATTERY CHARGING UNIT 1
KL 31
KL 31 41
KL 40
N/A
OPTION 2+
ORG/BRN WIRE
POWER, CONTROL ELECTRONICS ELECTRIC DRIVE
PUSH-IN BRIDGE
RADIATOR RELAY
REAR FUSE BOX
RED WIRE
RED/BLK WIRE
RED/BLU WIRE
RED/GRN WIRE
RED/GRY WIRE
RED/WHT WIRE
RED/YEL WIRE
RELAY CARRIER 6 REAR FUSE BOX
SEAT VENTILATION RELAY
TAN WIRE
TERM 30
TO TERMINAL 40 WIRING JUNCTION BOX (DIAGRAM 8 OF 9)
VIO WIRE
Go to component -> Power distribution circuit (6 of 9) -> POWER, CONTROL ELECTRONICS ELECTRIC DRIVE
