Porsche Cayenne Turbo III (2017-2023) pnk flexray 2+ output pnk flexray 2+ input Wiring diagrams
This page contains all the electrical diagrams for the component. pnk flexray 2+ output pnk flexray 2+ input, in which he is found in the car Porsche Cayenne Turbo III (2017-2023). You can view various wiring diagrams where this component is used, as well as go to more detailed diagrams to see the complete connection and interaction in the system. All diagrams have links to quickly jump to the corresponding section with the component for easy viewing..
Wiring diagram pnk flexray 2+ output pnk flexray 2+ input (1 of 2)
BRN WIRE
CAN HIGH
CAN LOW
COMPUTER DATA LINES SYSTEM
FLEXRAY 2+ INPUT
FLEXRAY 2- OUTPUT
FLEXRAY 2- OUTPUT FLEXRAY 2- INPUT
FUSE 4
FUSE HOLDER J
GRN WIRE
HOT AT ALL TIMES
LANE CHANGE ASSIST CONTROL UNIT
LANE CHANGE ASSIST CONTROL UNIT 2
N/A
ORG/ WIRE
ORG/BRN WIRE
PNK FLEXRAY 2+ OUTPUT PNK FLEXRAY 2+ INPUT WIRE
REAR FUSE BOX
RED/GRN WIRE
TERM 30 LEFT
TERM 30 RIGHT PNK FLEXRAY 2+ OUTPUT PNK FLEXRAY 2+ INPUT WIRE
Go to component -> Lane change assistance circuit -> PNK FLEXRAY 2+ OUTPUT PNK FLEXRAY 2+ INPUT WIRE

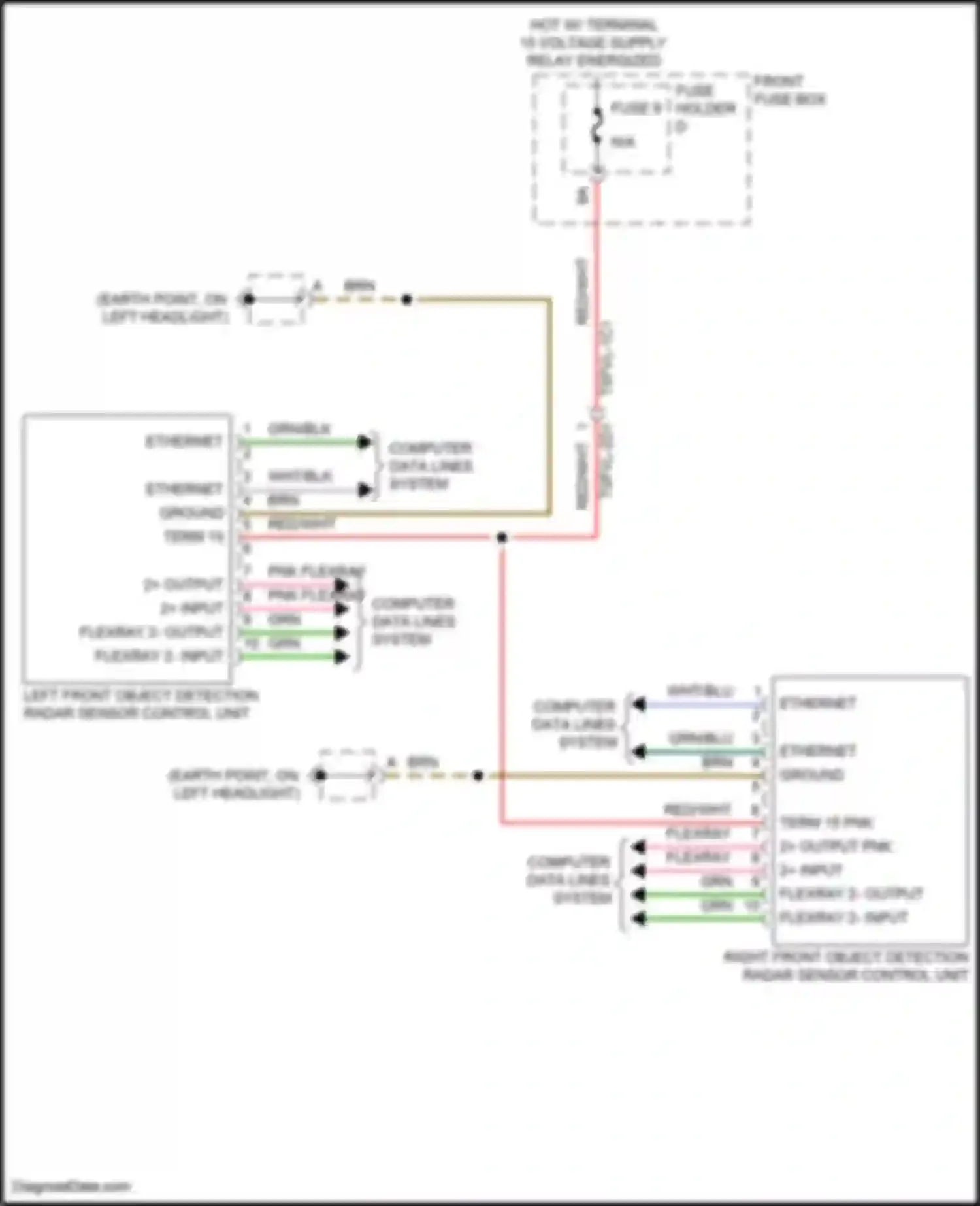

Wiring diagram pnk flexray 2+ output pnk flexray 2+ input (2 of 2)
BRN WIRE
COMPUTER DATA LINES SYSTEM
ETHERNET
FLEXRAY 2+ INPUT
FLEXRAY 2- OUTPUT
FRONT FUSE BOX
FUSE 9
FUSE HOLDER D
GRN WIRE
GRN/BLK WIRE
GRN/BLU WIRE
GROUND
HOT W/ TERMINAL 15 VOLTAGE SUPPLY RELAY ENERGIZED
LEFT FRONT OBJECT DETECTION RADAR SENSOR CONTROL UNIT
N/A
PNK FLEXRAY 2+ OUTPUT PNK FLEXRAY 2+ INPUT WIRE
RED/WHT WIRE
RIGHT FRONT OBJECT DETECTION RADAR SENSOR CONTROL UNIT
TERM 15
TERM 15 PNK FLEXRAY 2+ OUTPUT PNK FLEXRAY 2+ INPUT WIRE
WHT/BLK WIRE
WHT/BLU WIRE
Go to component -> Object detection circuit -> PNK FLEXRAY 2+ OUTPUT PNK FLEXRAY 2+ INPUT WIRE
