Porsche Cayenne Turbo III (2017-2023) electromechanical parking brake button Wiring diagrams
This page contains all the electrical diagrams for the component. electromechanical parking brake button, in which he is found in the car Porsche Cayenne Turbo III (2017-2023). You can view various wiring diagrams where this component is used, as well as go to more detailed diagrams to see the complete connection and interaction in the system. All diagrams have links to quickly jump to the corresponding section with the component for easy viewing..

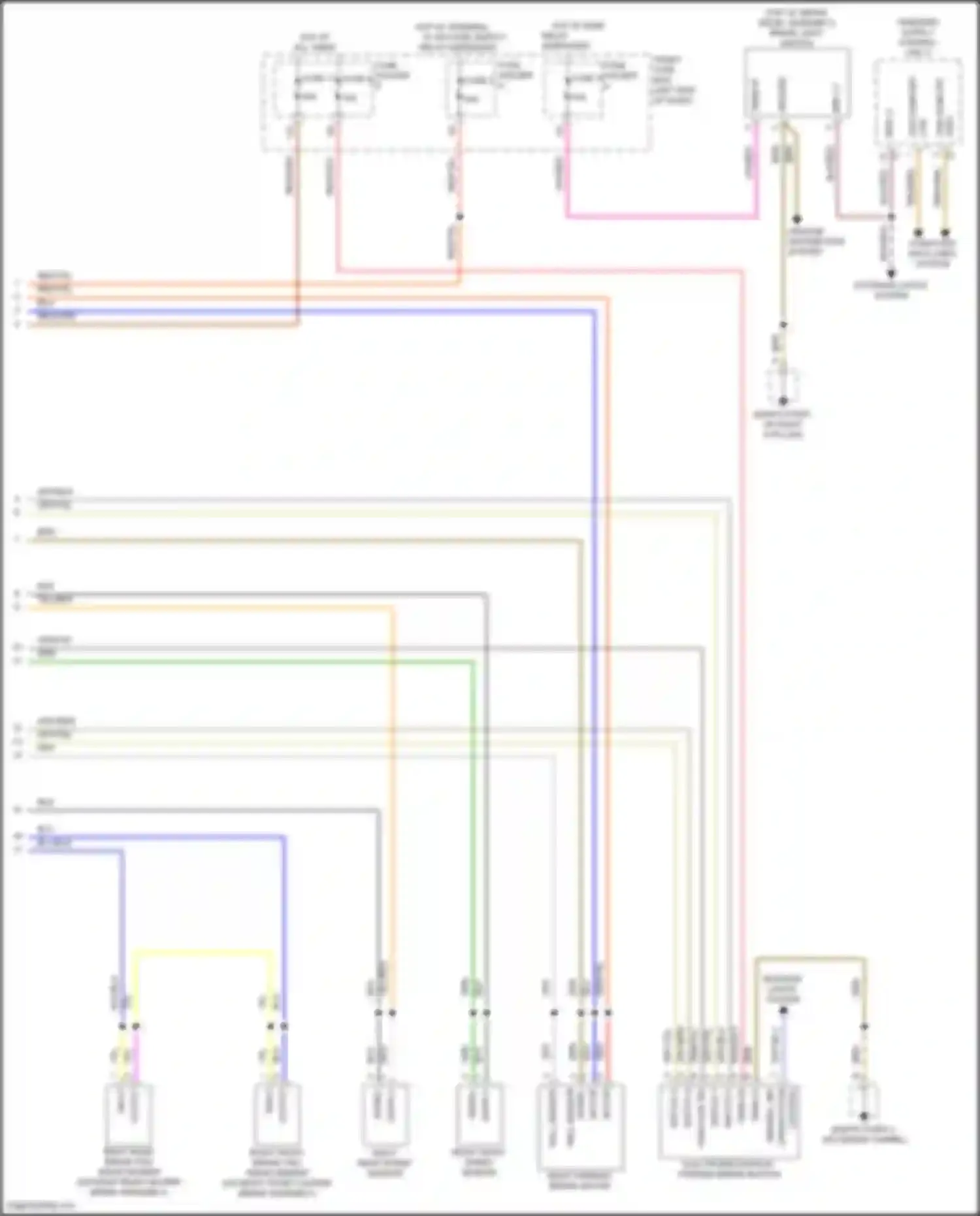

Wiring diagram electromechanical parking brake button (1 of 2)
BLK WIRE
BLK/RED WIRE
BLU WIRE
BLU/BLK WIRE
BRAKE LIGHT SWITCH
BRK LT SW
BRN WIRE
CAN COMFORT
COMPUTER DATA LINES SYSTEM
ELECTROMECHANICAL PARKING BRAKE BUTTON
FRONT FUSE BOX
FUNCTION IND
FUSE 11
FUSE 2
FUSE 5
FUSE 6
FUSE HOLDER A
FUSE HOLDER D
FUSE HOLDER E
GRN WIRE
GRN/VIO WIRE
GROUND
GROUND DISTRIBUTION SYSTEM
GRY WIRE
GRY/BLK WIRE
GRY/BLU WIRE
GRY/BRN WIRE
GRY/YEL WIRE
HALL SENSOR
HOT AT ALL TIMES
HOT W/ MAIN RELAY ENERGIZED
HOT W/ TERMINAL 15 VOLTAGE SUPPLY RELAY ENERGIZED
INPUT
LIGHTING
MOTOR A
MOTOR B
N/A
ONBOARD SUPPLY CONTROL UNIT 2
ORG/BRN WIRE
ORG/GRN WIRE
ORIENTATION
OUTPUT
RED WIRE
RED/GRN WIRE
RED/WHT WIRE
RED/YEL WIRE
RIGHT FRONT BRAKE PAD WEAR SENDER
RIGHT FRONT SPEED SENSOR
RIGHT PARKING BRAKE MOTOR
RIGHT REAR BRAKE PAD WEAR SENDER
RIGHT REAR SPEED SENSOR
SIGNAL
SUPPLY
SWITCH 1
SWITCH 2
SWITCH 3
SWITCH 4
TERM 30
TERM 31
TERM 87
VIO WIRE
VIO/RED WIRE
WHT WIRE
YEL WIRE
YEL/RED WIRE
Go to component -> Anti-lock brakes circuit (2 of 2) -> ELECTROMECHANICAL PARKING BRAKE BUTTON

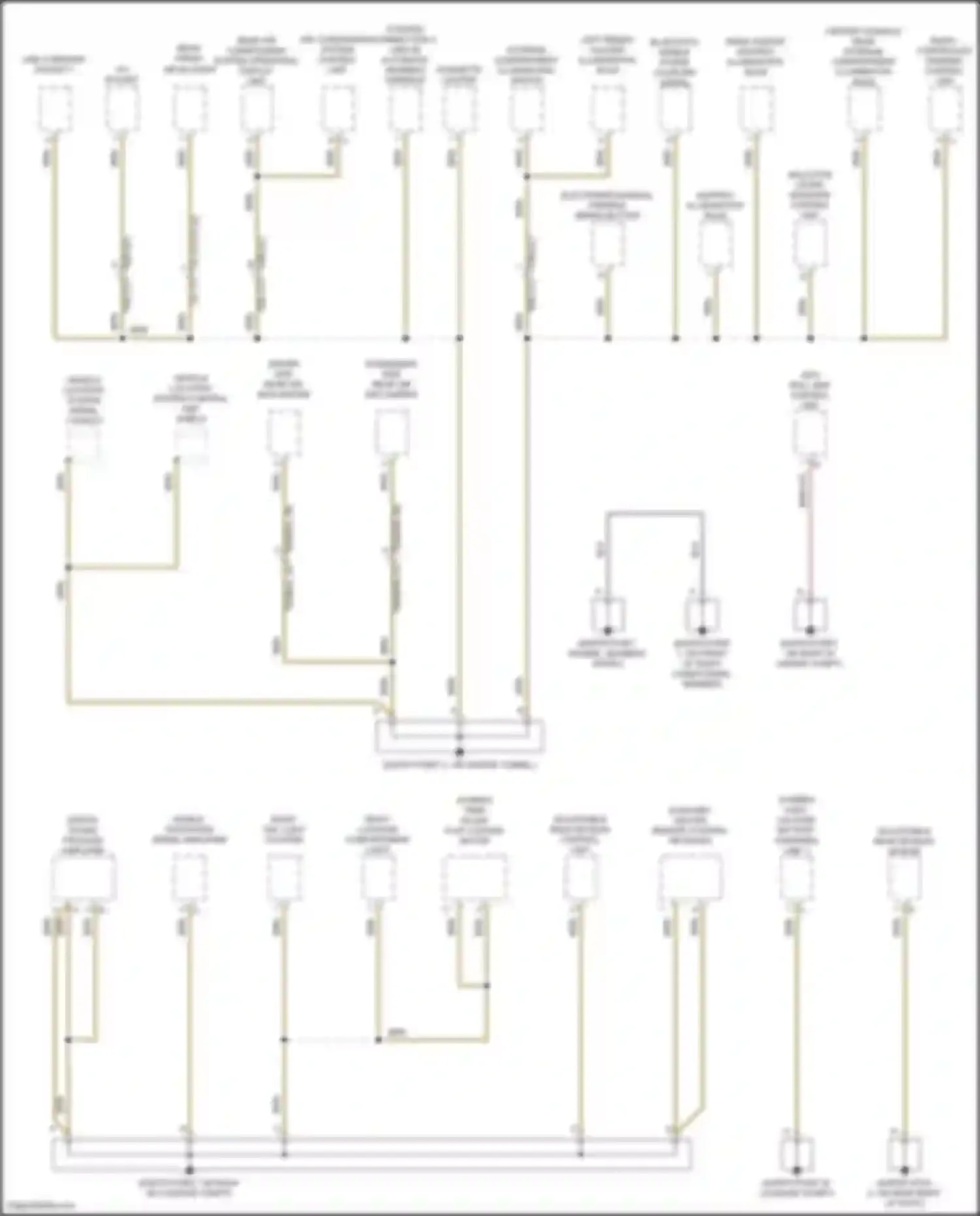

Wiring diagram electromechanical parking brake button (2 of 2)
ADJUSTABLE REAR SPOILER CONTROL UNIT
ADJUSTABLE REAR SPOILER MOTOR
AIR CONDITIONING SYSTEM CONTROL UNIT
ANTI-ROLL BAR CONTROL UNIT
ASHTRAY ILLUMINATION BULB
AUXILIARY HEATER REMOTE CONTROL RECEIVER
BLK WIRE
BLUETOOTH MOBILE PHONE COUPLING AERIAL
BRN WIRE
BRN/VIO WIRE
CENTER CONSOLE REAR STORAGE COMPARTMENT ILLUMINATION BULB
CIGARETTE LIGHTER
DIGITAL SOUND PACKAGE AMPLIFIER
DRIVER SIDE REAR AIR BAG IGNITER
ELECTROMECHANICAL PARKING BRAKE BUTTON
HIGH VOLTAGE BATTERY CHARGING UNIT 1
LEFT DRINKS HOLDER ILLUMINATION BULB
MOBILE TELEPHONE AERIAL AMPLIFIER
PASSENGER SIDE REAR AIR BAG IGNITER
RADIO CONTROLLED PARKING CONTROL UNIT
REAR AIR CONDITIONING SYSTEM OPERATING, DISPLAY UNIT
REAR CENTER ASHTRAY ILLUMINATION BULB
REAR FRESH AIR BLOWER
RIGHT LUGGAGE COMPARTMENT LIGHT
RIGHT TAIL LIGHT CLUSTER
SELECTOR LEVER SENSORS CONTROL UNIT
STORAGE COMPARTMENT ILLUMINATION SWITCH
TANK FILLER FLAP LOCKING MOTOR
USB CHARGING SOCKET 1
VEHICLE LOCATION SYSTEM AERIAL 3 SHIELD
VEHICLE LOCATION SYSTEM CONTROL UNIT SHIELD
Go to component -> Ground distribution circuit (5 of 6) -> ELECTROMECHANICAL PARKING BRAKE BUTTON
