Porsche Cayenne Turbo III (2017-2023) adjustable rear spoiler motor Wiring diagrams
This page contains all the electrical diagrams for the component. adjustable rear spoiler motor, in which he is found in the car Porsche Cayenne Turbo III (2017-2023). You can view various wiring diagrams where this component is used, as well as go to more detailed diagrams to see the complete connection and interaction in the system. All diagrams have links to quickly jump to the corresponding section with the component for easy viewing..

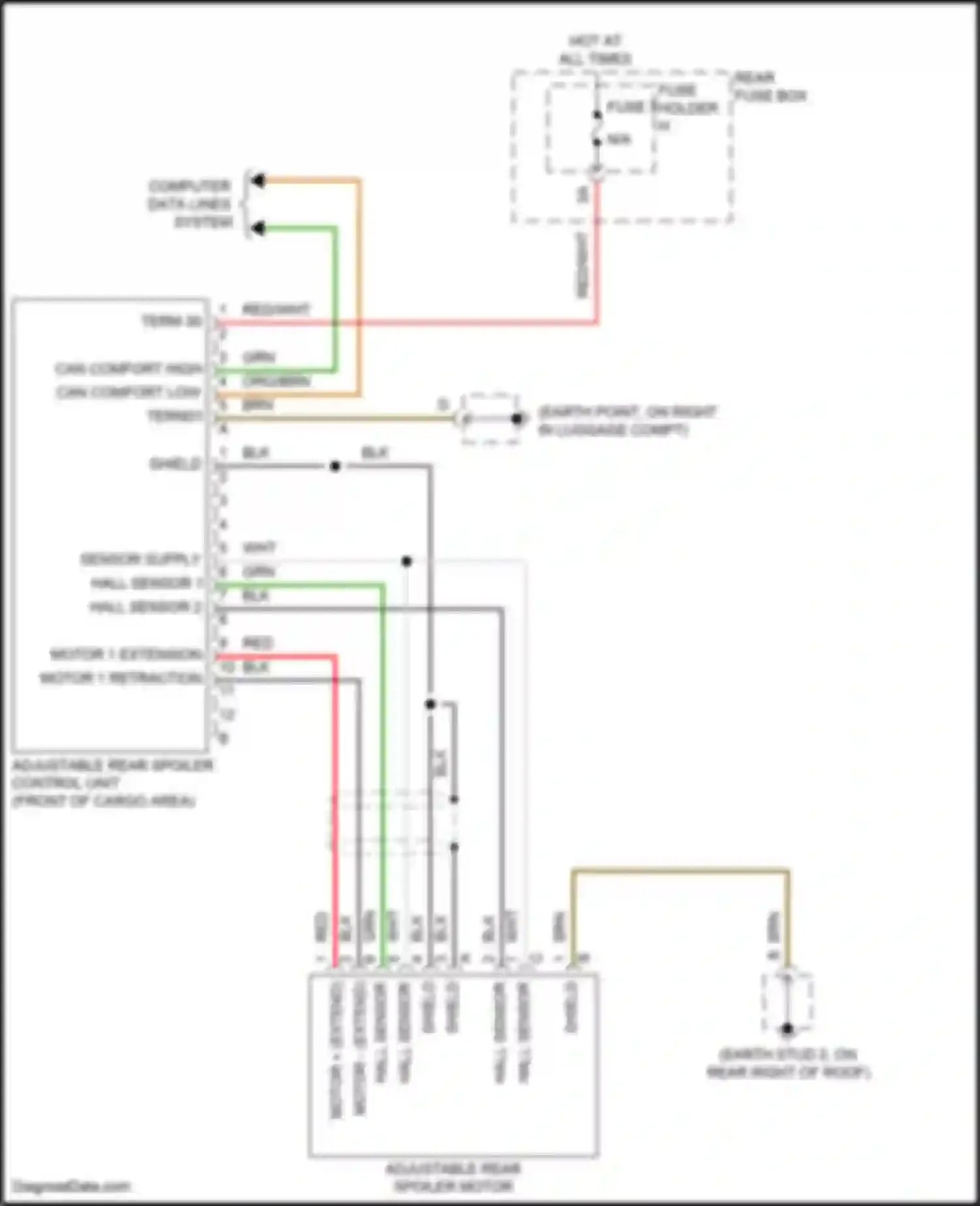

Wiring diagram adjustable rear spoiler motor (1 of 2)
ADJUSTABLE REAR SPOILER CONTROL UNIT
ADJUSTABLE REAR SPOILER MOTOR
BLK WIRE
BRN WIRE
CAN COMFORT HIGH
CAN COMFORT LOW
COMPUTER DATA LINES SYSTEM
FUSE 3
FUSE HOLDER H
GRN WIRE
HALL SENSOR
HALL SENSOR 1
HALL SENSOR 2
HOT AT ALL TIMES
MOTOR + (EXTEND)
MOTOR 1 EXTENSION
MOTOR 1 RETRACTION
N/A
ORG/BRN WIRE
REAR FUSE BOX
RED WIRE
RED/WHT WIRE
SENSOR SUPPLY
SHIELD
TERM 30
WHT WIRE
Go to component -> Active bodyworks circuit -> ADJUSTABLE REAR SPOILER MOTOR
Wiring diagram adjustable rear spoiler motor (2 of 2)
ADJUSTABLE REAR SPOILER CONTROL UNIT
ADJUSTABLE REAR SPOILER MOTOR
AIR CONDITIONING SYSTEM CONTROL UNIT
ANTI-ROLL BAR CONTROL UNIT
ASHTRAY ILLUMINATION BULB
AUXILIARY HEATER REMOTE CONTROL RECEIVER
BLK WIRE
BLUETOOTH MOBILE PHONE COUPLING AERIAL
BRN WIRE
BRN/VIO WIRE
CENTER CONSOLE REAR STORAGE COMPARTMENT ILLUMINATION BULB
CIGARETTE LIGHTER
DIGITAL SOUND PACKAGE AMPLIFIER
DRIVER SIDE REAR AIR BAG IGNITER
ELECTROMECHANICAL PARKING BRAKE BUTTON
HIGH VOLTAGE BATTERY CHARGING UNIT 1
LEFT DRINKS HOLDER ILLUMINATION BULB
MOBILE TELEPHONE AERIAL AMPLIFIER
PASSENGER SIDE REAR AIR BAG IGNITER
RADIO CONTROLLED PARKING CONTROL UNIT
REAR AIR CONDITIONING SYSTEM OPERATING, DISPLAY UNIT
REAR CENTER ASHTRAY ILLUMINATION BULB
REAR FRESH AIR BLOWER
RIGHT LUGGAGE COMPARTMENT LIGHT
RIGHT TAIL LIGHT CLUSTER
SELECTOR LEVER SENSORS CONTROL UNIT
STORAGE COMPARTMENT ILLUMINATION SWITCH
TANK FILLER FLAP LOCKING MOTOR
USB CHARGING SOCKET 1
VEHICLE LOCATION SYSTEM AERIAL 3 SHIELD
VEHICLE LOCATION SYSTEM CONTROL UNIT SHIELD
Go to component -> Ground distribution circuit (5 of 6) -> ADJUSTABLE REAR SPOILER MOTOR
