Porsche Cayenne GTS II (2010-2014) passenger door control unit Wiring diagrams

This page contains all the electrical diagrams for the component. passenger door control unit, in which he is found in the car Porsche Cayenne GTS II (2010-2014). You can view various wiring diagrams where this component is used, as well as go to more detailed diagrams to see the complete connection and interaction in the system. All diagrams have links to quickly jump to the corresponding section with the component for easy viewing..

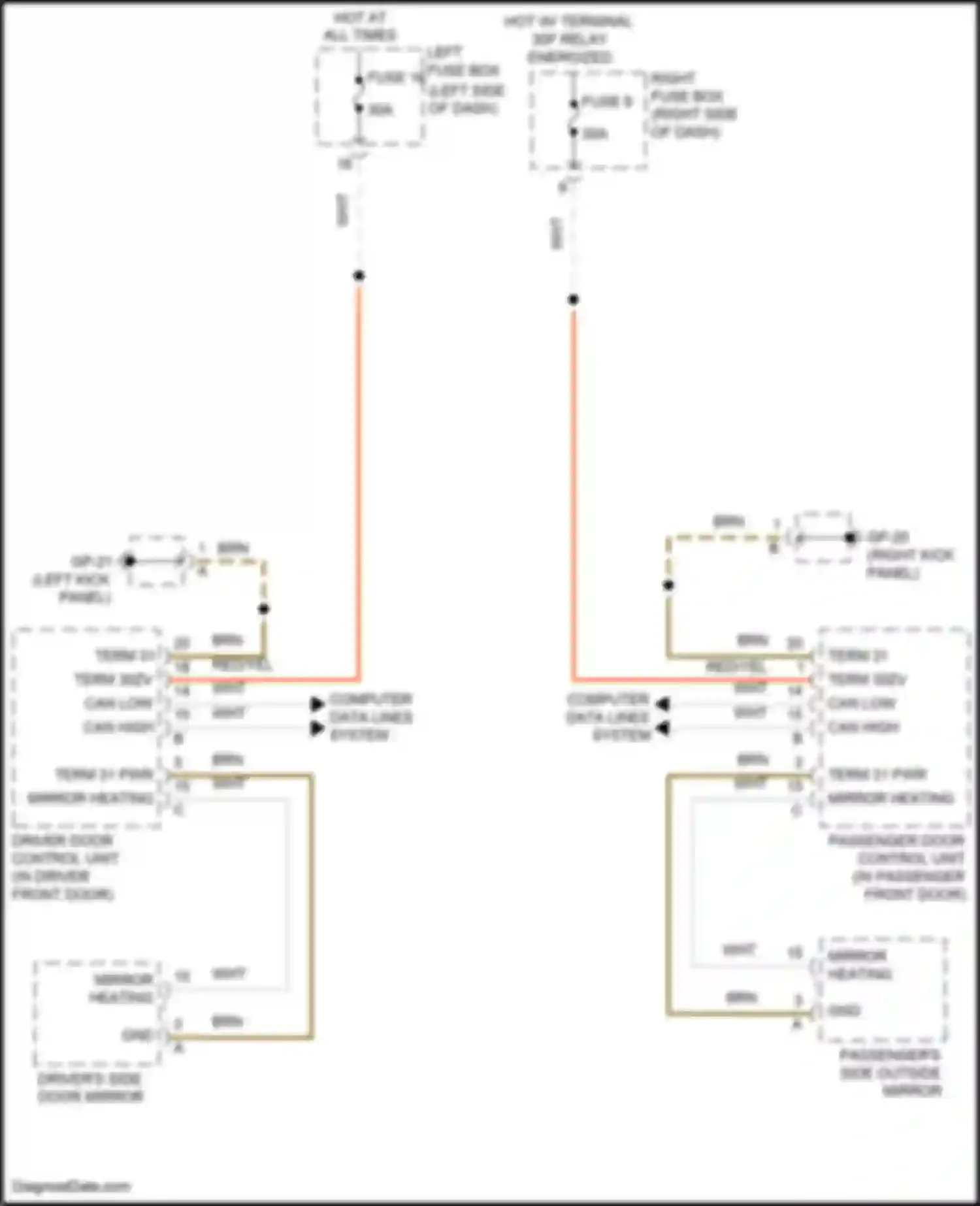

Wiring diagram passenger door control unit (1 of 2)

Wiring diagram passenger door control unit for Porsche Cayenne GTS II (2010-2014)

Get access

BRN WIRE CAN HIGH CAN LOW COMPUTER DATA LINES SYSTEM DRIVER DOOR CONTROL UNIT DRIVER'S SIDE DOOR MIRROR FUSE 16 FUSE 9 GP-20 GP-21 HOT AT ALL TIMES HOT W/ TERMINAL LEFT FUSE BOX MIRROR HEATING PASSENGER DOOR CONTROL UNIT PASSENGER'S SIDE OUTSIDE MIRROR RED/YEL WIRE RIGHT FUSE BOX TERM 31 TERM 31 PWR WHT WIRE

Go to component: -> Heated mirrors circuit -> PASSENGER DOOR CONTROL UNIT

Wiring diagram passenger door control unit (2 of 2)

Wiring diagram passenger door control unit for Porsche Cayenne GTS II (2010-2014)

Get access

AUTO ANTI-DAZZLING MIRROR CIRCUIT BLK WIRE BRN WIRE BRN/GRY WIRE BRN/VIO WIRE CAMERA GROUND CAMERA OUTPUT CAMERA SHIELD CAMERA SUPPLY CHANGEOVER SWITCH COURTESY LIGHT DRIVER DOOR CONTROL UNIT DRIVER DOOR MIRROR DRIVER'S DOOR BUTTON MODULE EC MIRROR FUSE 16 GRY WIRE GRY/VIO WIRE GRY/WHT WIRE HOT AT ALL TIMES LEFT FRONT FUSE BOX LEFT LANE CHANGE ASSISTANT MIRROR ADJUSTMENT MIRROR FOLDING 1 MIRROR FOLDING 2 MIRROR HEATING MOTOR 1 MOTOR 1/2 MOTOR 2 PASSENGER DOOR CONTROL UNIT PASSENGER DOOR MIRROR POTENTIOMETER POTI ENGINE 1 POTI ENGINE 2 RED/BLK WIRE RED/BLU WIRE RED/GRY WIRE RED/VIO WIRE RED/YEL WIRE RIGHT LANE CHANGE ASSISTANT SWA LED, PS+ SWA LED- TERM 31 VIO WIRE VIO/BLK WIRE VIO/GRN WIRE VIO/RED WIRE WHT WIRE YEL/VIO WIRE YEL/WHT WIRE

Go to component: -> Power mirrors circuit -> PASSENGER DOOR CONTROL UNIT
