Porsche Boxster 986 (1996-2002) right seat heater control unit Wiring diagrams
This page contains all the electrical diagrams for the component. right seat heater control unit, in which he is found in the car Porsche Boxster 986 (1996-2002). You can view various wiring diagrams where this component is used, as well as go to more detailed diagrams to see the complete connection and interaction in the system. All diagrams have links to quickly jump to the corresponding section with the component for easy viewing..

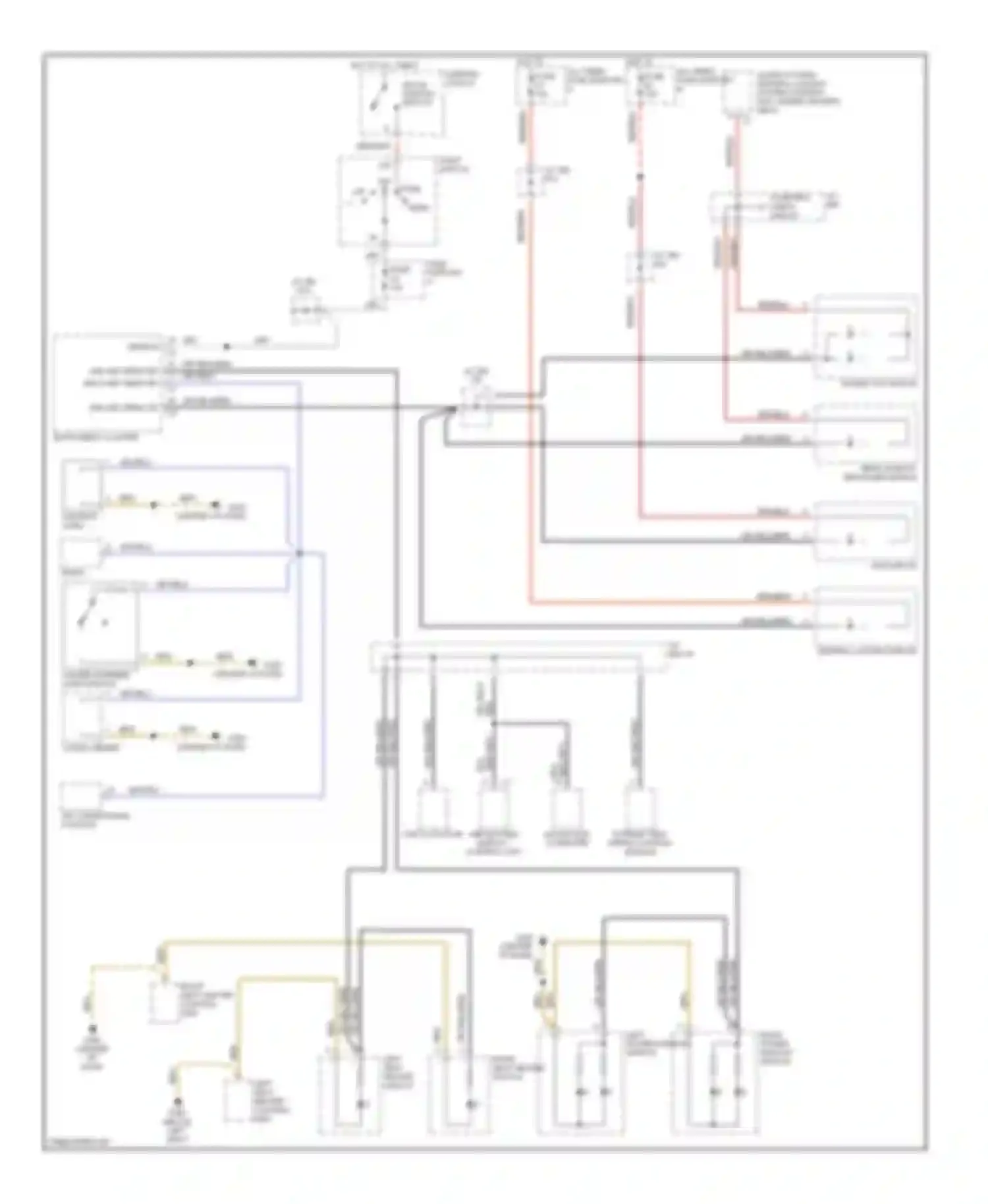

Wiring diagram right seat heater control unit (1 of 3)
AIR CONDITIONING CONTROL
ALARM SYSTEM/ CENTRAL LOCKING SYSTEM CONTROL UNIT (UNDER DRIVER'S SEAT)
ASHTRAY LIGHT
ASR SWITCH
BRN WIRE
CENTRAL LOCKING SWITCH
CIGAR LIGHTER
COURTESY LAMPS CIRCUIT
DSP ACTUATOR
FUSE SUPPORT FUSE
GRY WIRE
GRY/BLU WIRE
GRY/BLU/ RED WIRE
GRY/BLU/BRN WIRE
GRY/BLU/RED WIRE
HAZARD WARNING LIGHT SWITCH
HEAD
HOT AT ALL TIMES
HOT AT ALL TIMES FUSE SUPPORT FUSE
IGNITION SWITCH
INFOSYSTEM DISPLAY, CONTROL UNIT NAVIGATION COMPUTER
INSTRUMENT CLUSTER
INTERMITTENT WIPING CONTROL MODULE
J/C (BS 10/1)
J/C (BS 15)
J/C (BS 5/2)
J/C (BS 7)
J/C (BS 9/1)
J/C (BS 9/2)
KEY-IN IGNITION SWITCH
LEFT POWER WINDOW SWITCH
LEFT SEAT HEATER CONTROL UNIT
LEFT SEAT HEATER SWITCH
LIGHT SWITCH
OFF PARK L/R
POWER TOP SWITCH
RADIO
REAR WINDOW DEFOGGER SWITCH
RED GRY/BLU/ WIRE
RED/BLK WIRE
RED/BRN WIRE
RED/WHT WIRE
RIGHT POWER WINDOW SWITCH
RIGHT SEAT HEATER CONTROL UNIT
RIGHT SEAT HEATER SWITCH
TERM 58
Go to component -> Instrument illumination circuit -> RIGHT SEAT HEATER CONTROL UNIT

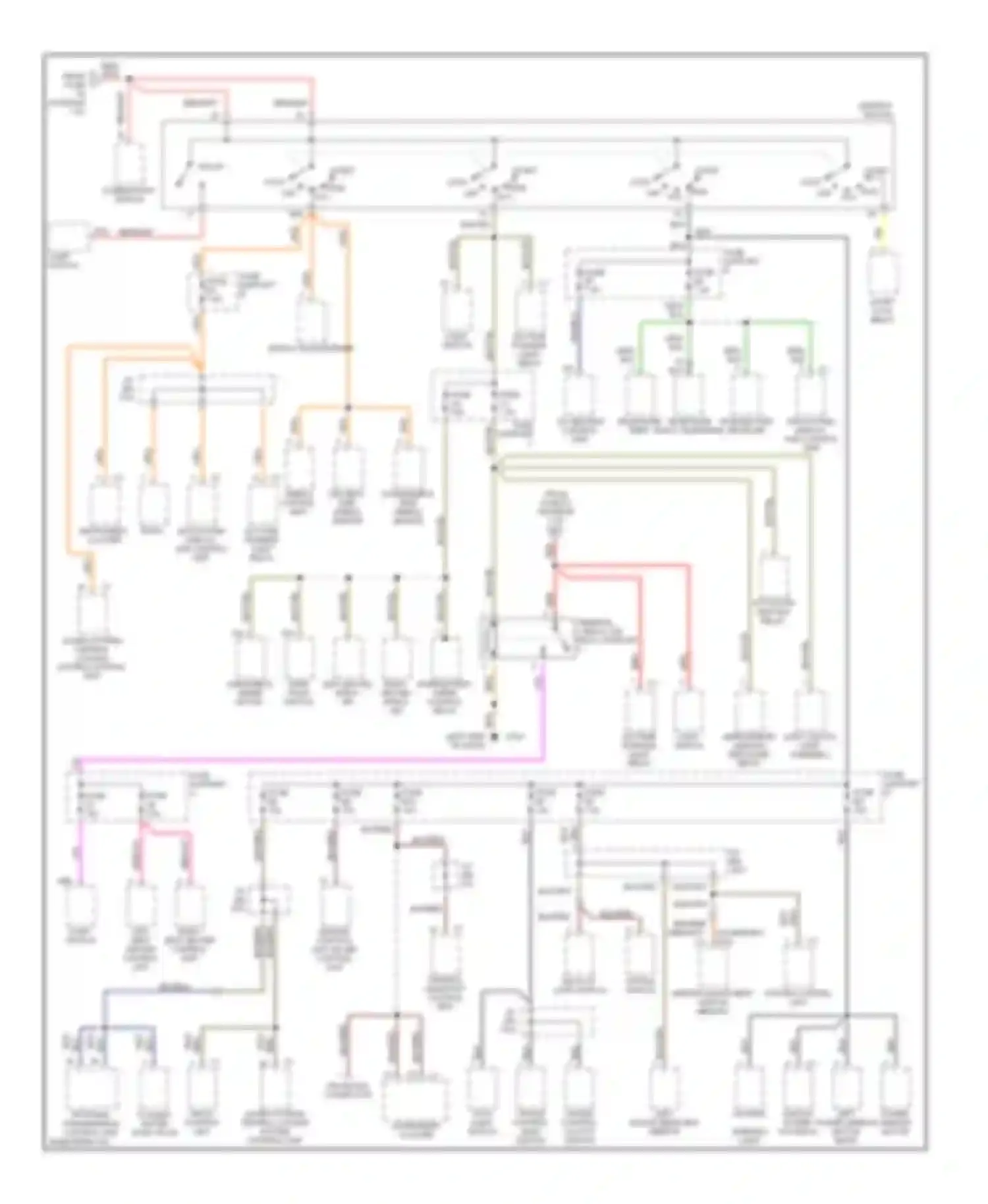

Wiring diagram right seat heater control unit (2 of 3)
A/C HEATING CONTROL UNIT
ABS/ASR CONTROL UNIT OR ABS CONTROL UNIT
ACTUATION HEATING RELAY
AIRBAG CONTROL UNIT DRIVER'S SIDE AIRBAG SENSOR
ALARM SYSTEM/ CENTRAL LOCKING SYSTEM CONTROL UNIT
ANTI- DAZZLE REARVIEW MIRROR
BLK WIRE
BLK/BLU WIRE
BLK/BRN WIRE
BLK/ORG WIRE
BLK/RED WIRE
BLK/YEL WIRE
BLU WIRE
BRN WIRE
BRN/RED WIRE
COMBINATION SWITCH
DAYTIME RUNNING LIGHT RELAY
DIAGNOSIS CONNECTOR
FROM
FROM FUSE
FUSE
FUSE FUSE
FUSE SUPPORT
GRN WIRE
HAZARD/ WARNING LIGHT SWITCH POWER TOP RELAY
IGNITION SWITCH
INFOSYSTEM DISPLAY AND CONTROL UNIT
INSTRUMENT CLUSTER
INTERMITTENT WIPER CONTROL RELAY
J/C (BS 13/1)
J/C (BS 14/2)
J/C (BS 16/1)
J/C (BS 16/2)
J/C (BS 2/1)
KEY IN
LEFT POWER WINDOW MOTOR RIGHT POWER WINDOW MOTOR
LEFT SEAT HEATER CONTROL UNIT
LIFTING SWITCH
LIGHT SWITCH
LIGHT SWITCH LIGHT ASSEMBLY MIRROR/REAR WINDOW DEFOGGER RELAY
LOCK OFF
LOCK RELAY
MFI-DI CONTROL UNIT COOLING WATER STOP VALVE
MIRROR ADJUSTMENT SWITCH MEMORY SYSTEM CONTROL UNIT
NCA WIRE
NSE
ORG BLK WIRE
ORG/ WIRE
PARKING ASSISTANT CONTROL UNIT BACK-UP LIGHT SWITCH
PASSENGER'S SIDE AIRBAG SENSOR
RADIO
RED WIRE
RED/VIO WIRE
RED/WHT WIRE
RIGHT HEATED SPRAY JET
RIGHT SEAT HEATER CONTROL UNIT
RUN WIRE
SIGNAL TRANSFORMER
TELEPHONE E-BOX TELEPHONE TRANSMITTER- RECEIVER
TELEPHONE PREP
TERMINAL X RELAY (ON RELAY SUPPORT 1)
TIPTRONIC TRANSMISSION CONTROL UNIT
VIO WIRE
WHT WIRE
WINDSHIELD WIPER MOTOR WIPE/ WASH SWITCH LEFT HEATED SPRAY JET
YEL WIRE
Go to component -> Power distribution circuit (2 of 2) -> RIGHT SEAT HEATER CONTROL UNIT

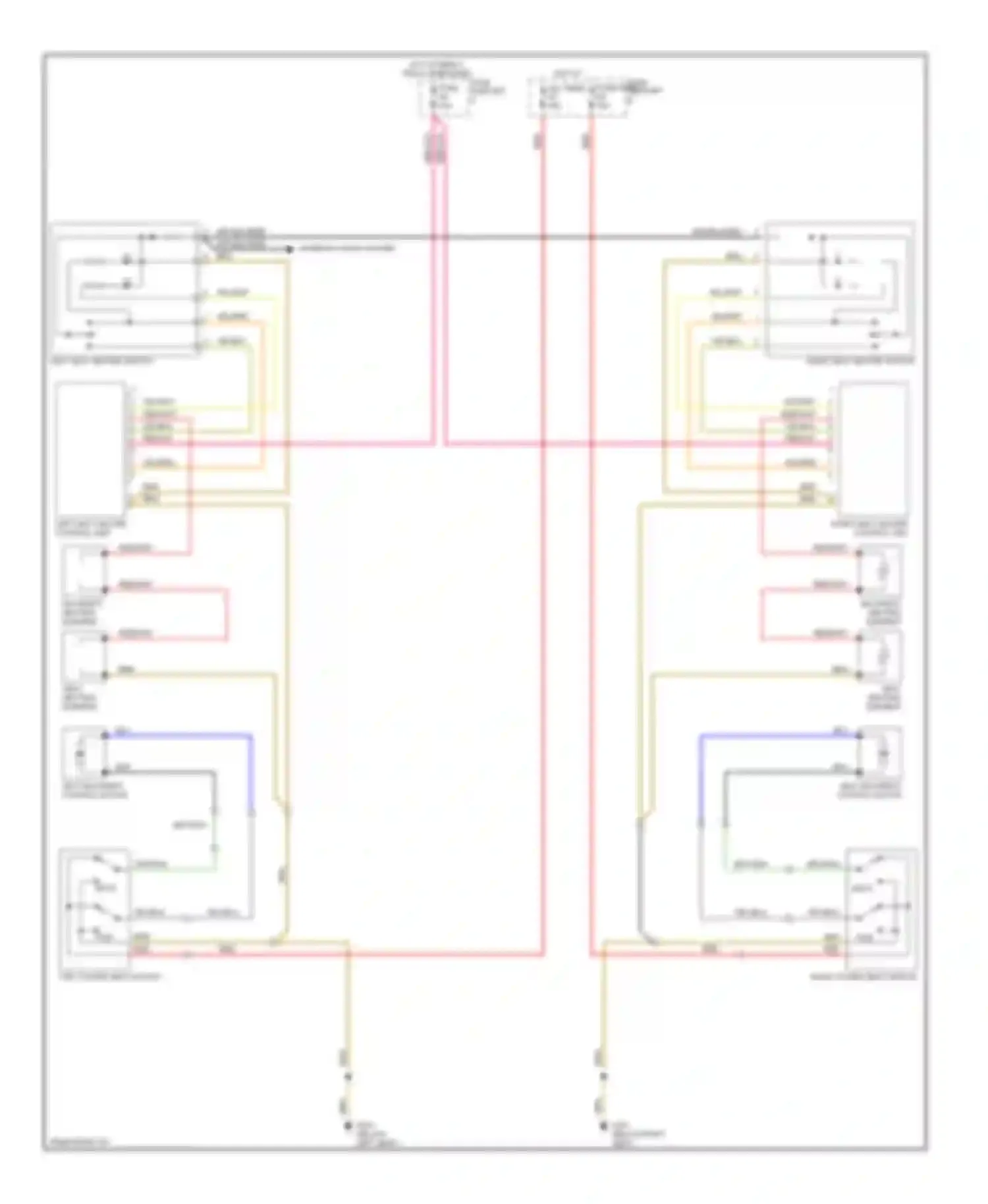

Wiring diagram right seat heater control unit (3 of 3)
BACK
BACKREST HEATING ELEMENT
BLK WIRE
BLU WIRE
BRN WIRE
FUSE SUPPORT
FUSE SUPPORT FUSE
GRY/BLK WIRE
GRY/BLU/RED WIRE
GRY/GRN WIRE
HOT AT ALL TIMES FUSE FUSE
HOT W/TERM X RELAY ENERGIZED
LEFT POWER SEAT SWITCH
LEFT SEAT HEATER CONTROL UNIT
LEFT SEAT HEATER SWITCH
RED WIRE
RED/VIO WIRE
RED/WHT WIRE
RIGHT POWER SEAT SWITCH
RIGHT SEAT HEATER CONTROL UNIT
RIGHT SEAT HEATER SWITCH
SEAT BACKREST CONTROL MOTOR
SEAT HEATING ELEMENT
YEL/BLK WIRE
YEL/RED WIRE
YEL/WHT WIRE
Go to component -> Power seat circuit -> RIGHT SEAT HEATER CONTROL UNIT
